1/4" FNPT In-Line Air Pressure Regulator With 1/8" FNPT Replaces RE206203AV

1/4" FNPT In-Line Air Pressure Regulator with 1/8" FNPT Side Port for Air Pressure Gauge Connection

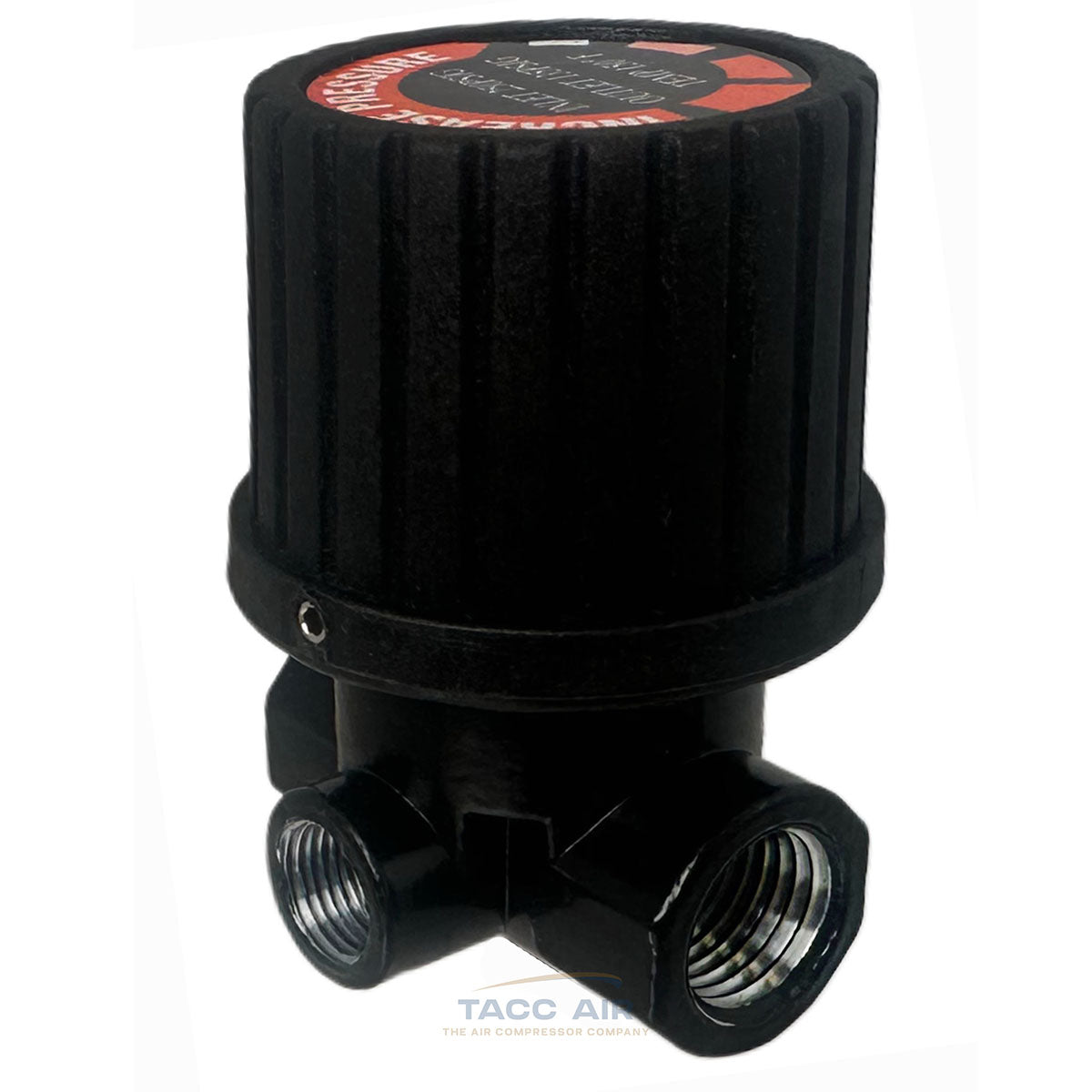

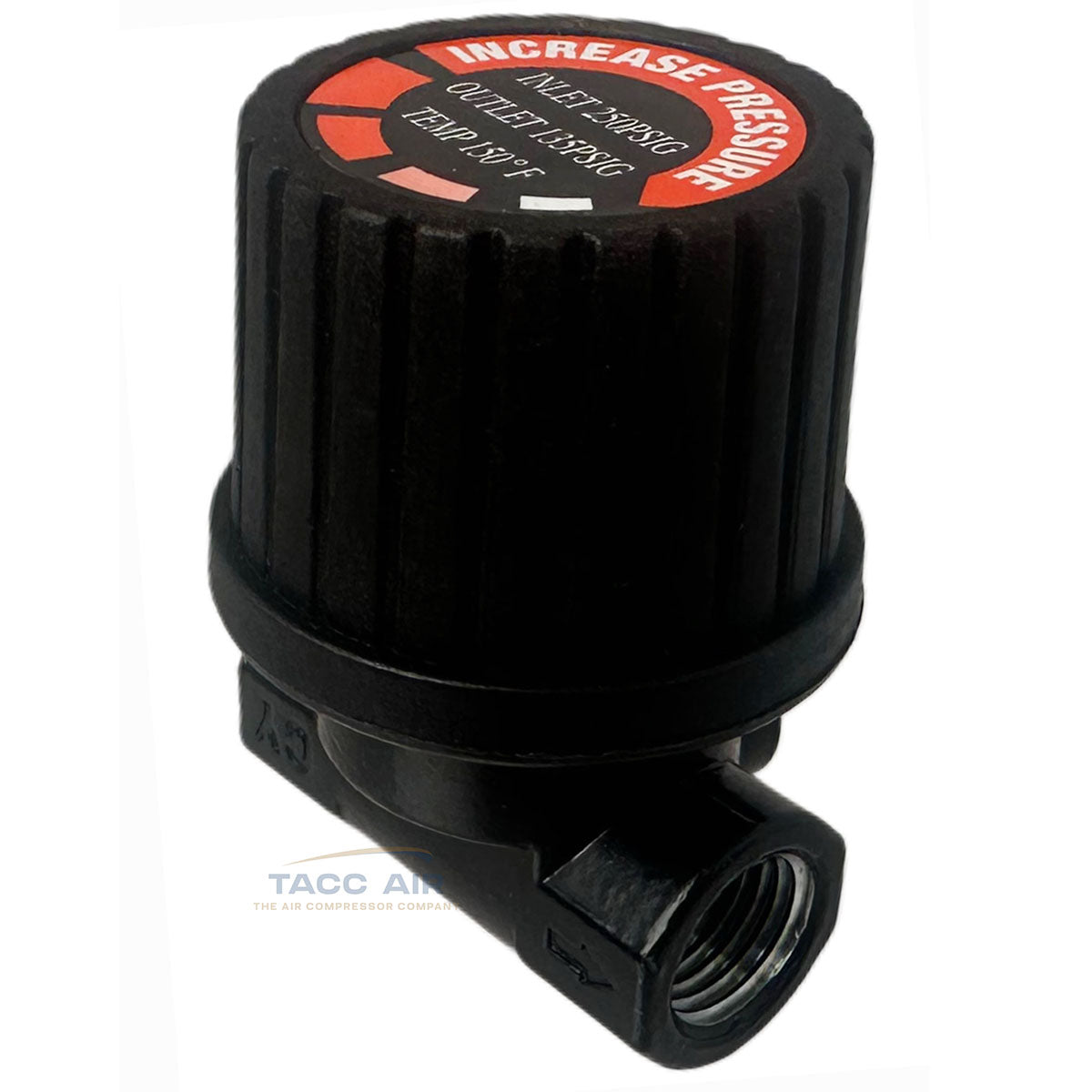

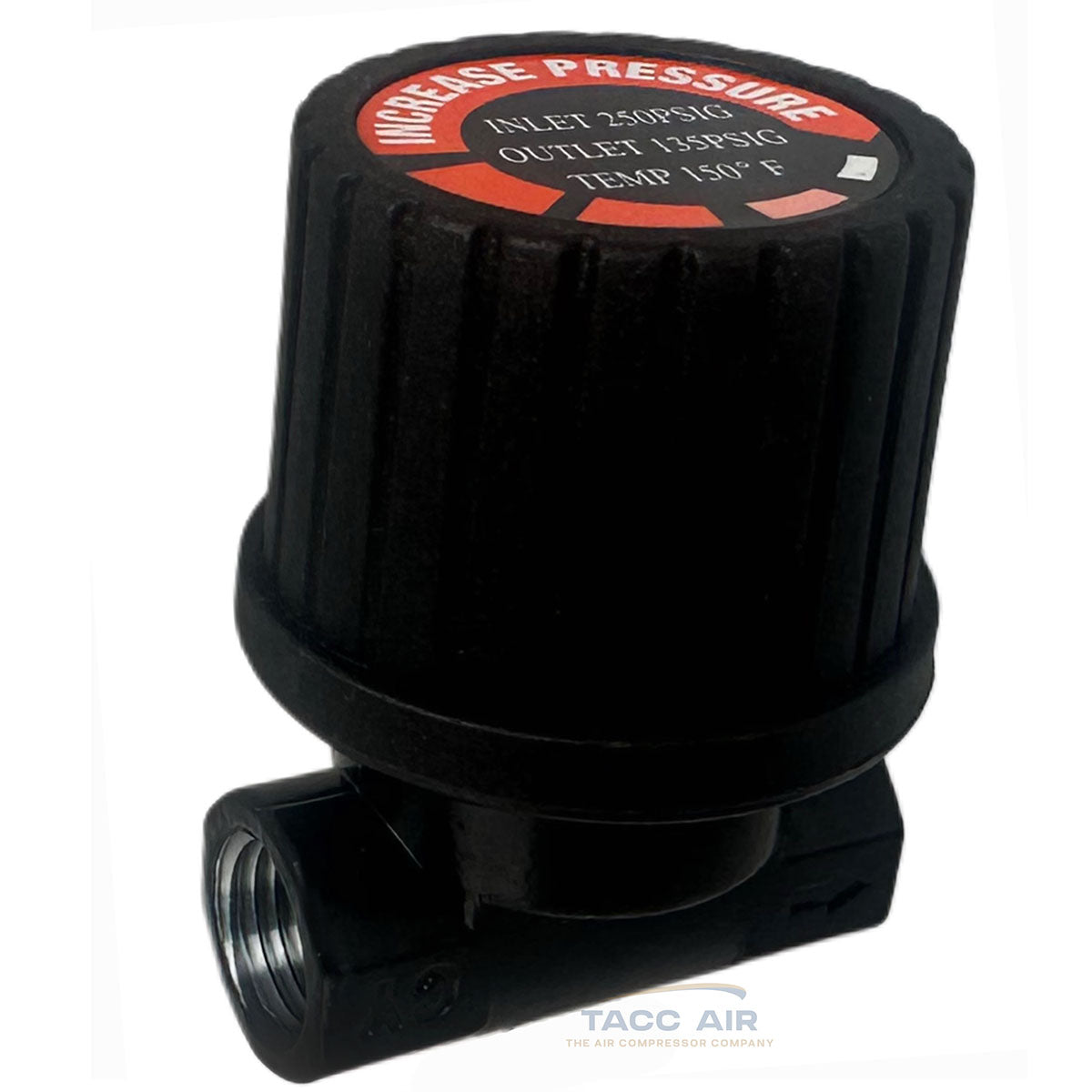

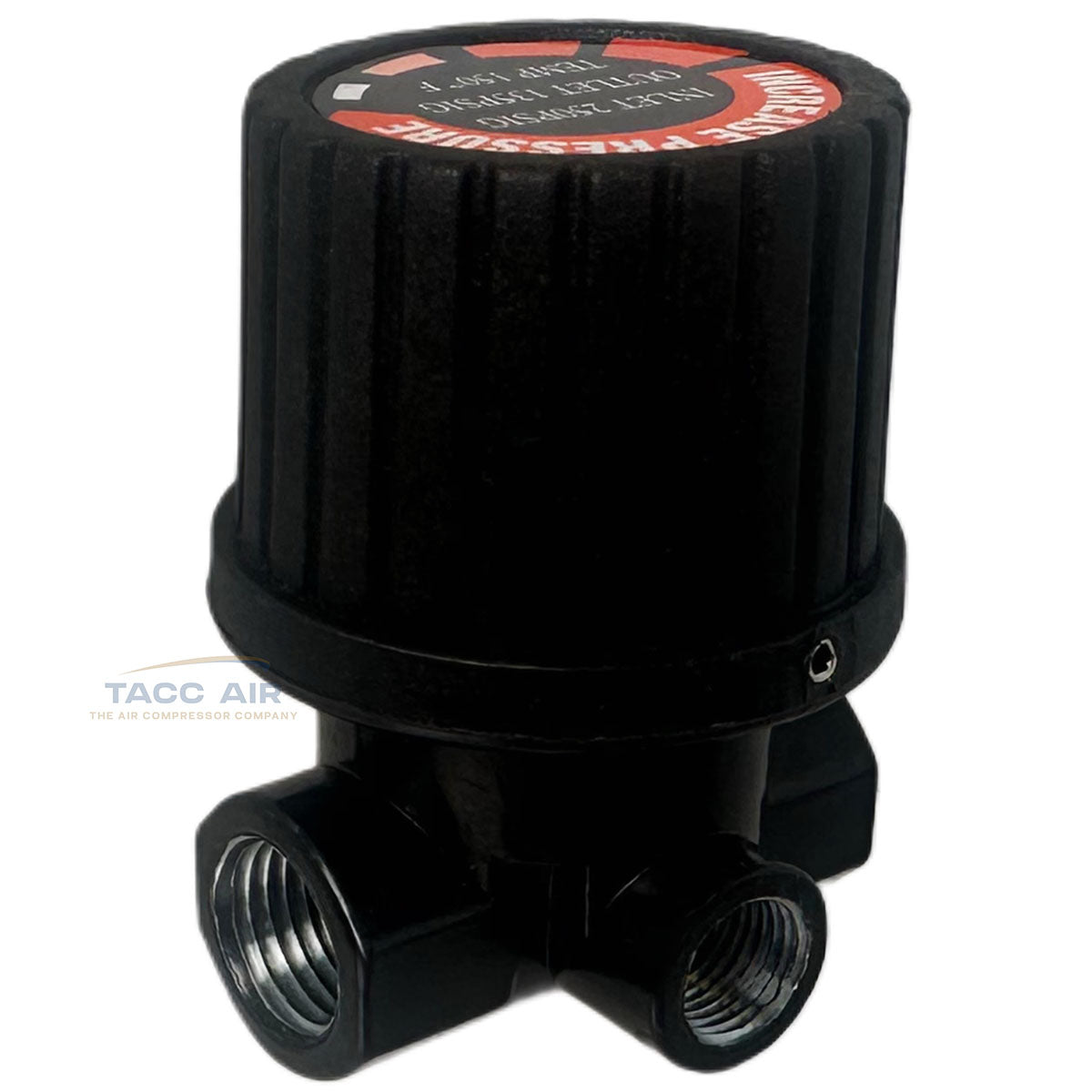

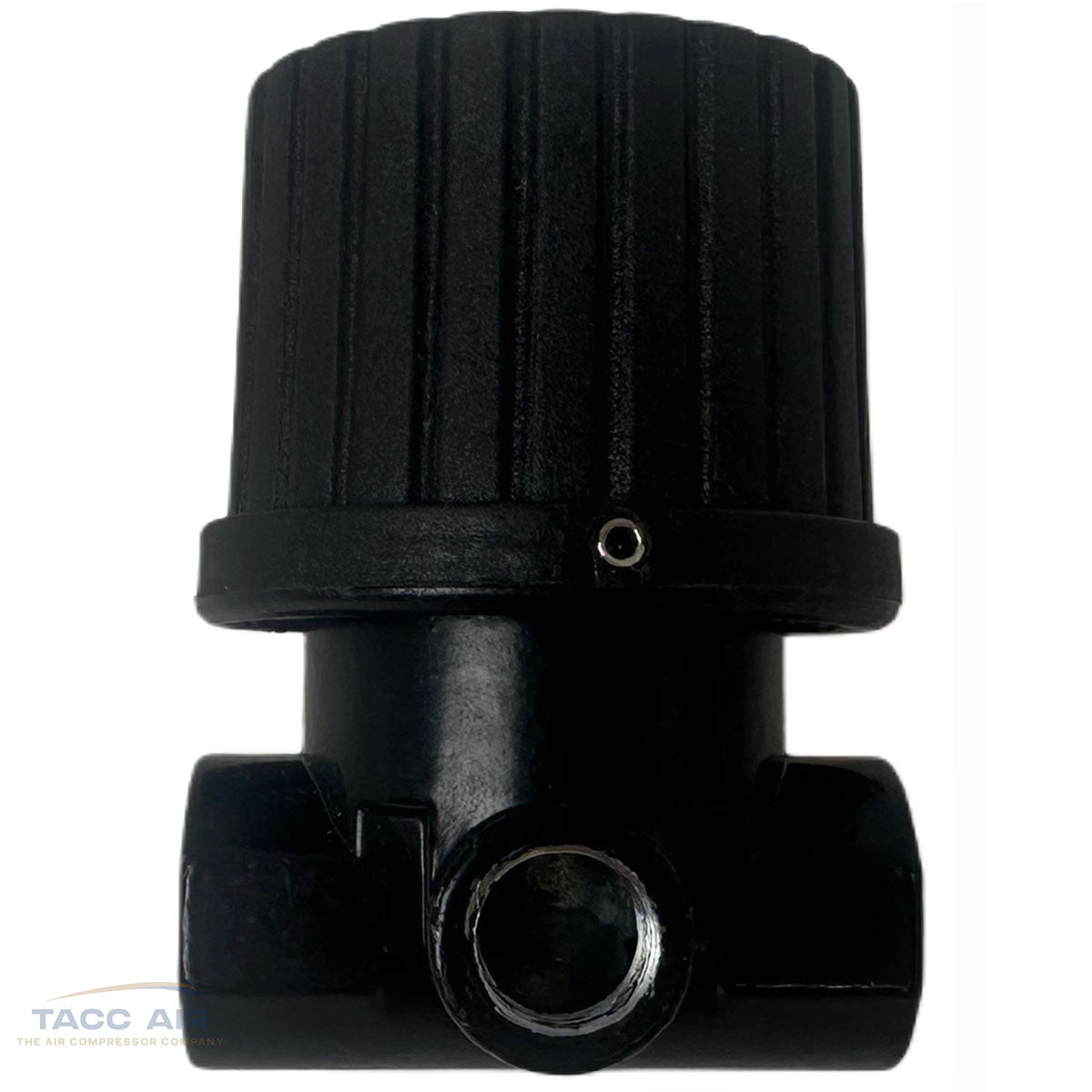

This high-quality 1/4" FNPT in-line air pressure regulator is the ideal aftermarket replacement for Campbell Hausfeld-style compact mini regulators. Commonly used on portable air compressors for years, this regulator is designed to work with various compressor brands, as long as the airflow is in the correct direction. The air flows from right to left when viewing the regulator from the side with the 1/8" FNPT gauge port.

For easy installation and operation, this regulator features a side-mounted 1/8" FNPT side port, perfect for connecting an air pressure gauge to monitor your system’s pressure. The manifold also has an arrow indicating the correct airflow direction, which is crucial to ensure proper functionality within your compressor setup.

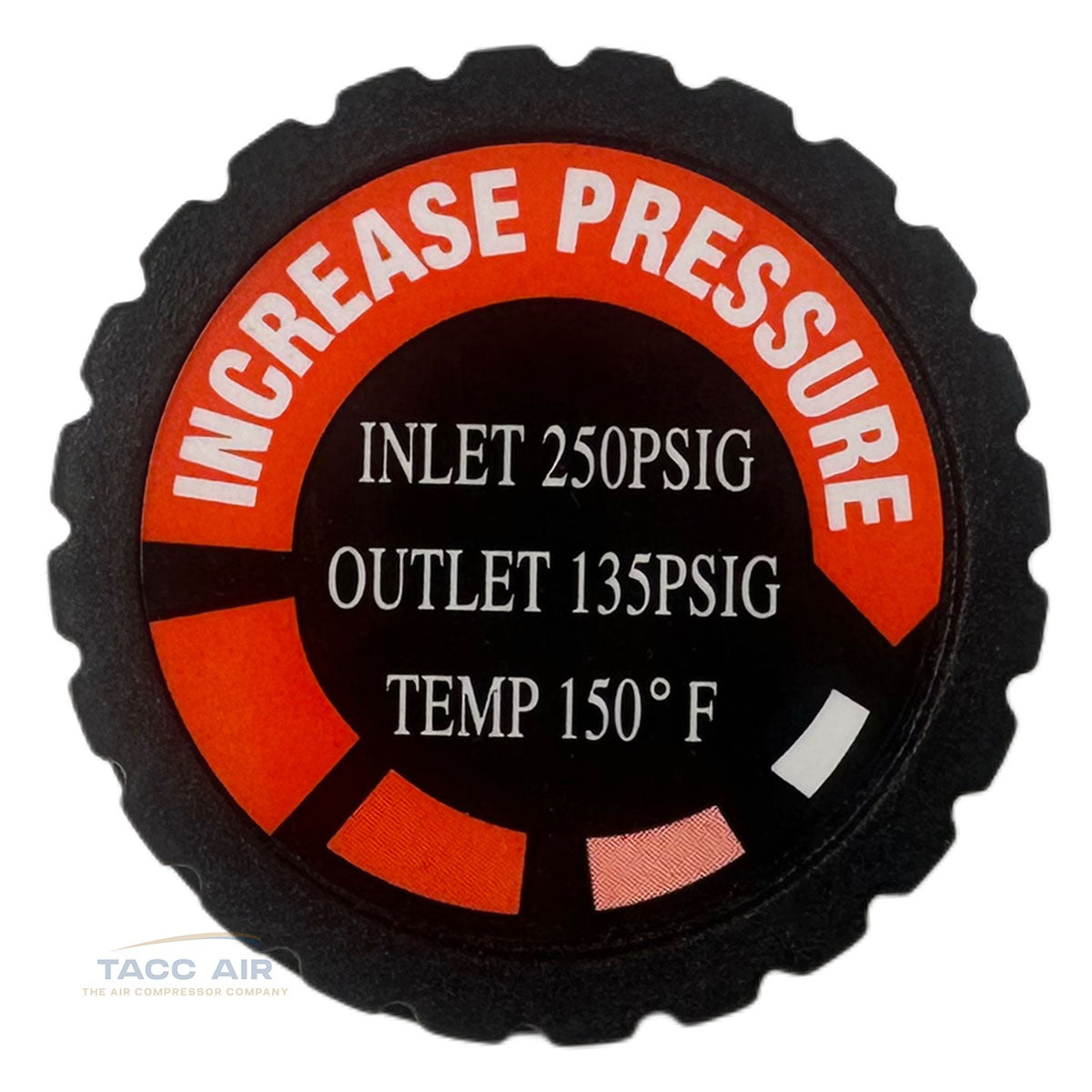

With an adjustable pressure control knob on top, this regulator allows you to precisely control air pressure. Turning the knob clockwise increases pressure, while turning it counterclockwise decreases it. The clear labeling on the knob ensures ease of use.

Replaces a RE206203AV,5F221/5F223/5F562, VS5006/VT6233/WL5043/WL5058 and more.

Product Features:

• Maximum Inlet Pressure: 250 PSI

• Regulated Pressure Range: Up to 135 PSI

• Max Operating Temperature: 150°F

• Side Port: 1/8" FNPT for air pressure gauge connection

• Air Flow Direction: Right to Left (viewed from the side with the gauge port)

• Easy Pressure Adjustment: Turn the top knob clockwise to increase and counterclockwise to decrease pressure

• Compatible with Multiple Brands: Primarily designed as a replacement for Campbell Hausfeld, but works with other brands when airflow direction is correct

This durable and reliable regulator ensures your air compressor performs efficiently, allowing you to fine-tune air pressure to meet the needs of your various pneumatic tools and applications.
