New 1/4" Mini Pressure Regulator W/ Gauge For Compressed Air compressor

1/4" NPT Air Compressor Regulator with 0–160 PSI Gauge and Wall Mount Bracket

Product Description:

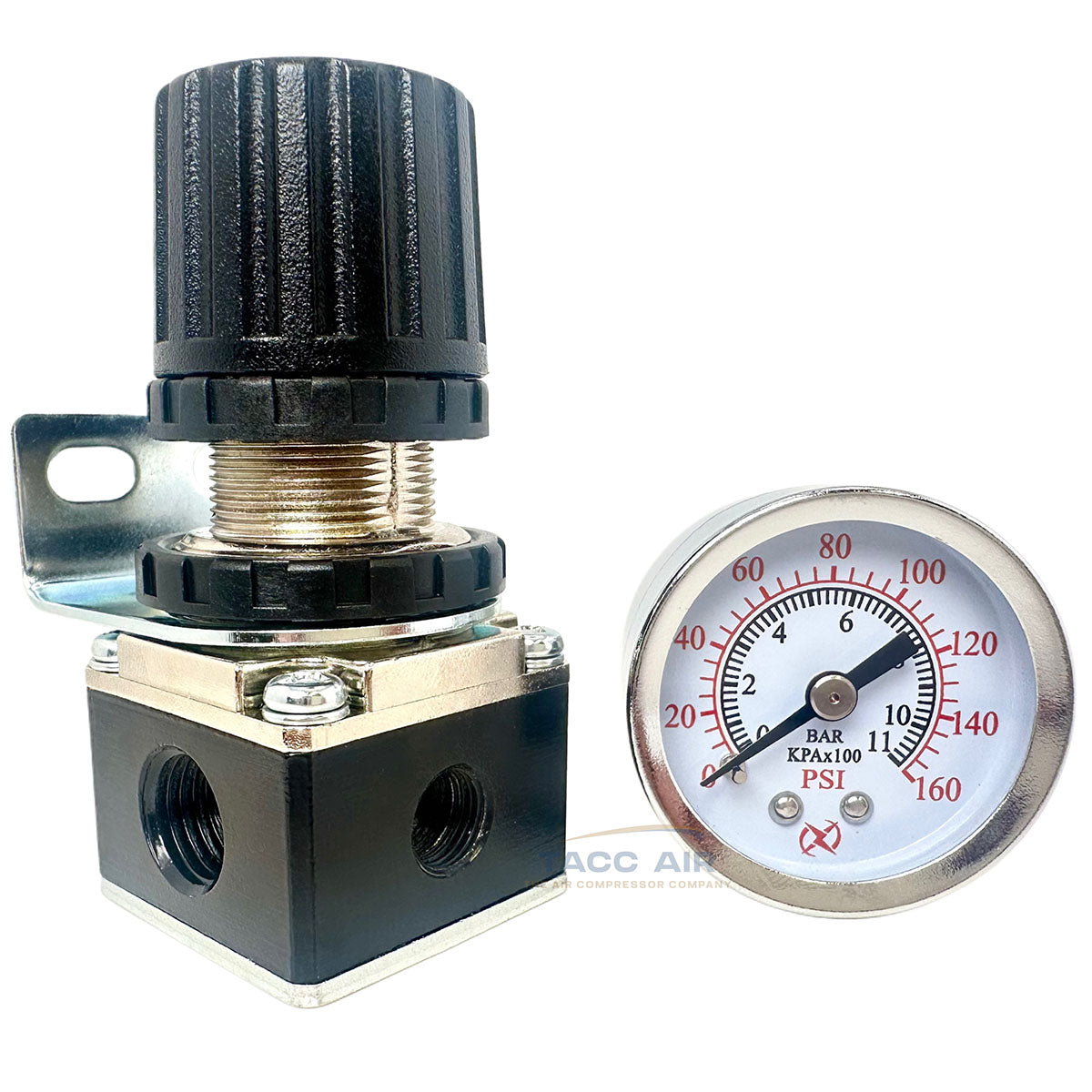

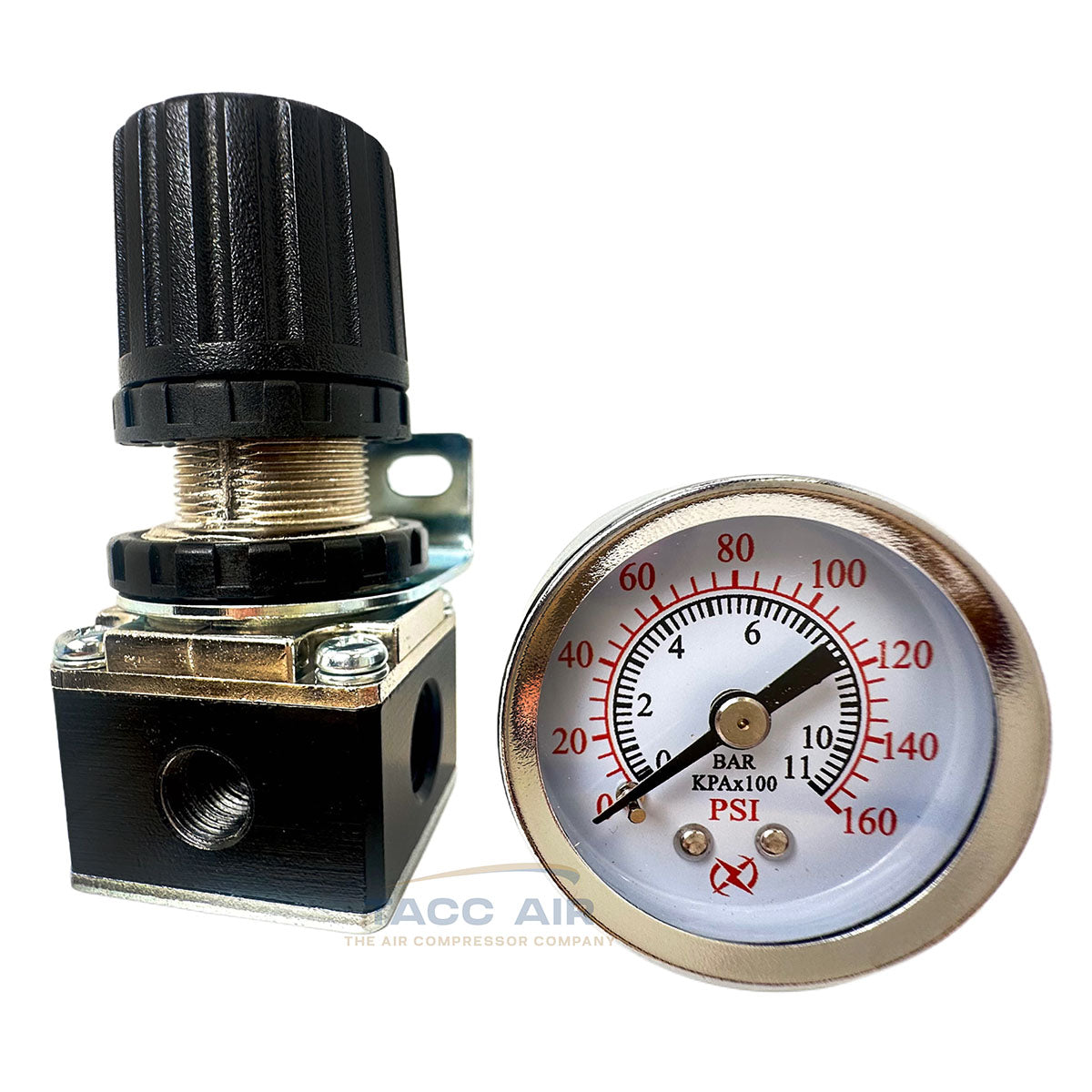

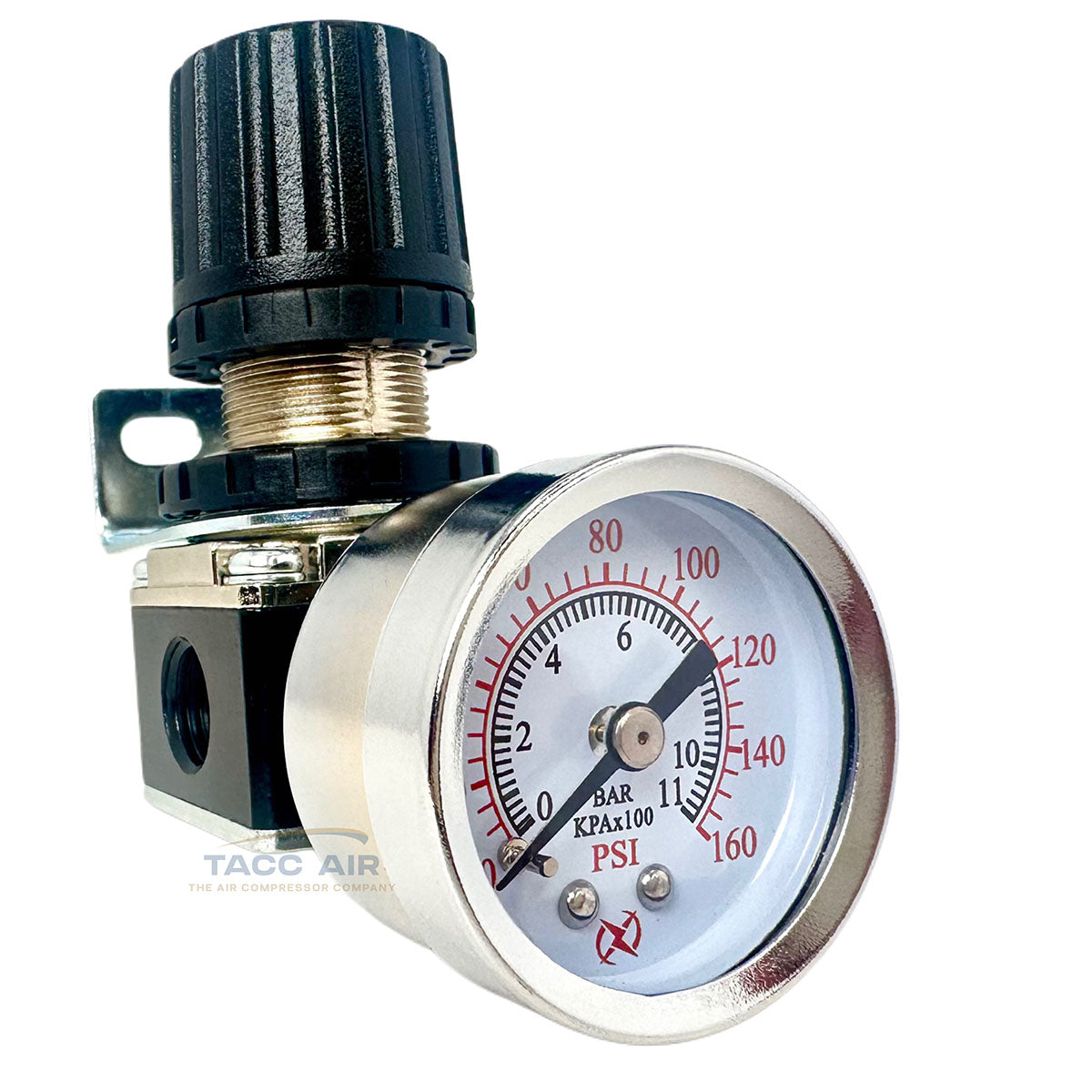

This 1/4" NPT air compressor regulator is designed for standard compressed air systems and includes a 0–160 PSI pressure gauge and a wall mounting bracket for convenience. Its four-port layout includes a 1/4" NPT inlet and outlet, plus two 1/8" NPT side ports for flexibility when installing the pressure gauge.

Only one gauge is needed, and it can be installed on either side of the regulator. A plug is included so the unused port can be securely closed or repurposed as an extra outlet if needed. The regulator is directional and features a clearly marked arrow indicating the correct flow direction, ensuring proper installation and performance. Ideal for maintaining consistent air pressure in various compressed air setups.

Specifications:

• Universal Fit: Compatible with any air compressor that requires a 1/4" female NPT regulator; easy to integrate into most pneumatic systems.

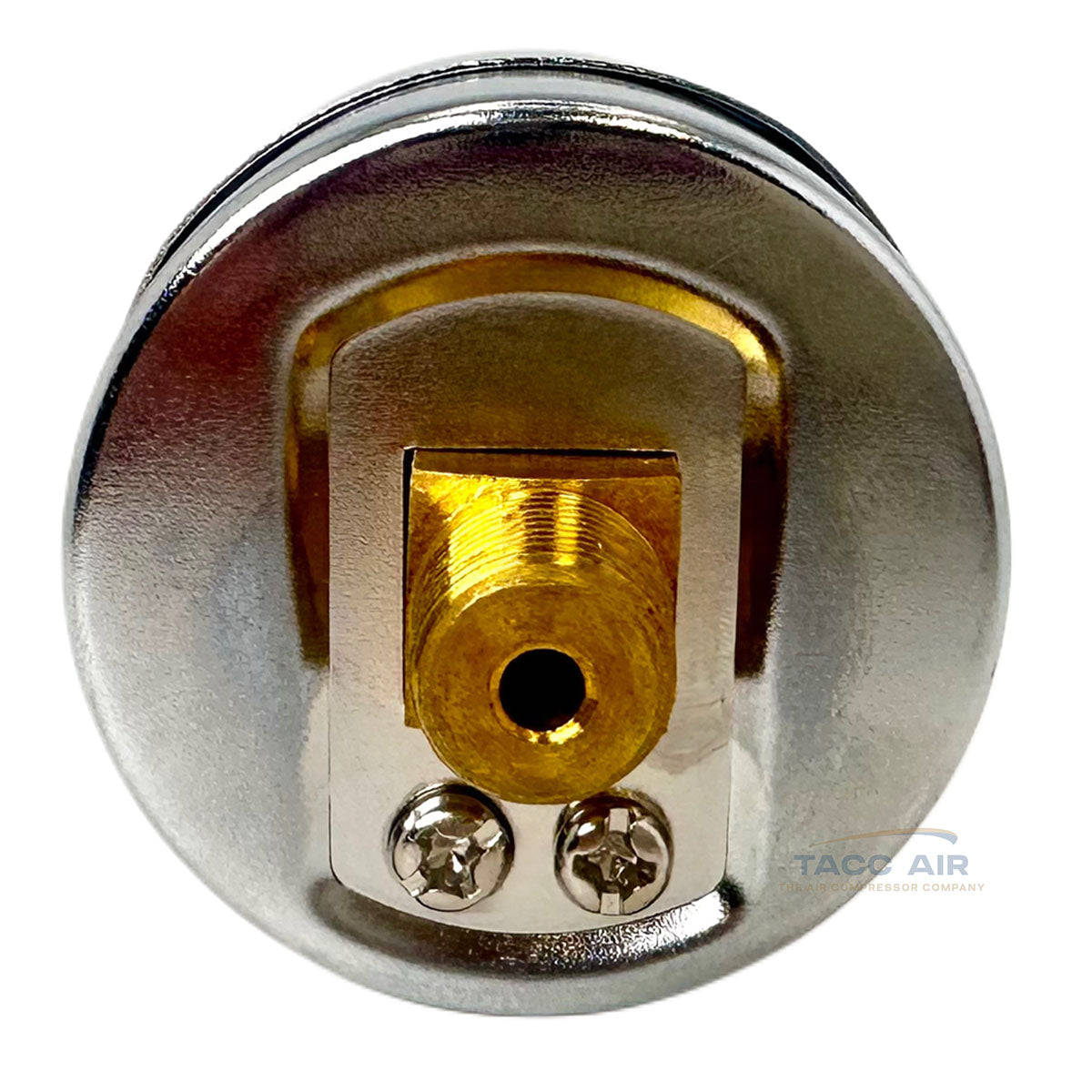

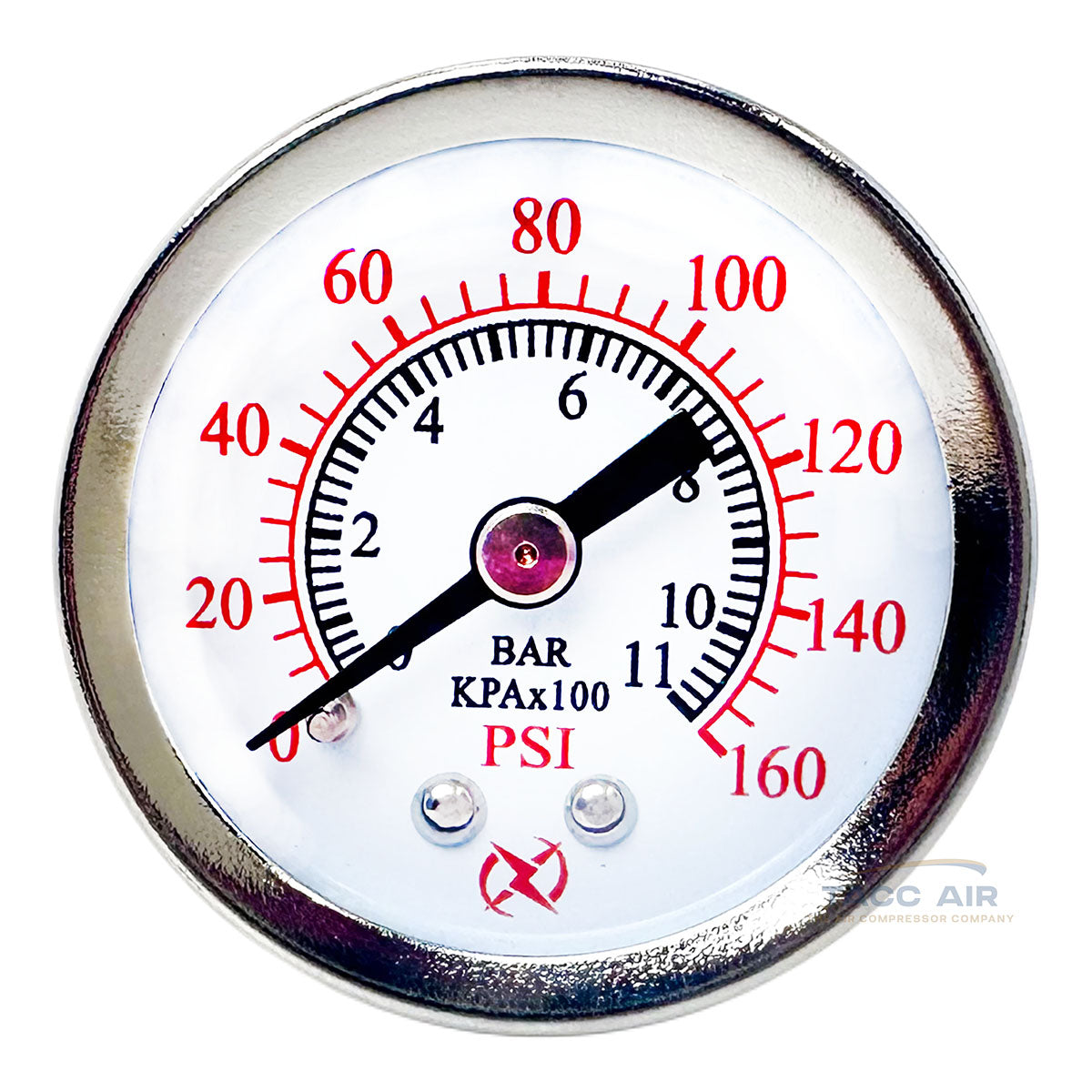

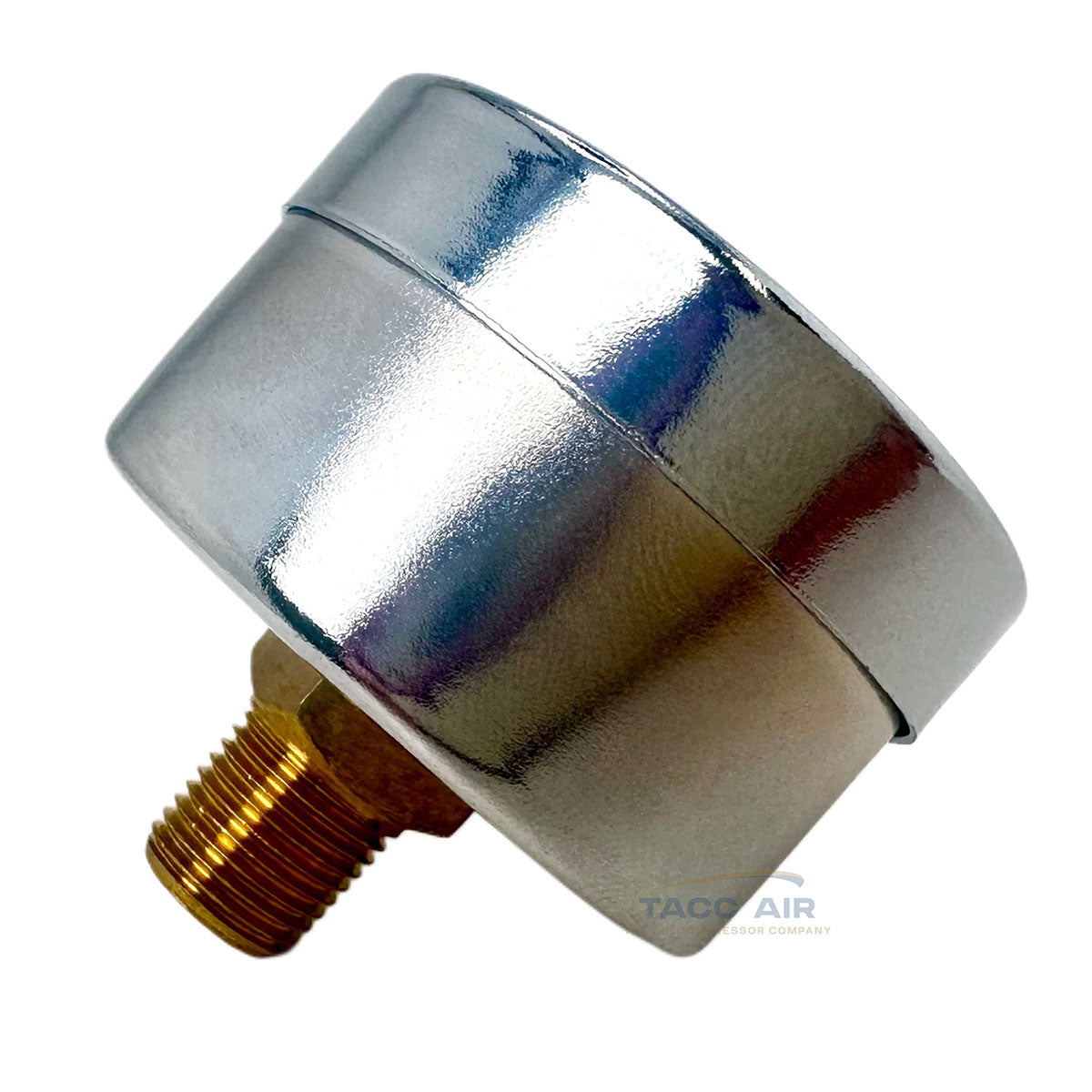

• Includes Pressure Gauge: Comes with a 0–160 PSI gauge for accurate monitoring of regulated air pressure.

• Four-Port Configuration: Features one 1/4" NPT air inlet, one 1/4" NPT air outlet (Note: 1/4" NPT measure approximately. 1/2" in diameter), and two 1/8" NPT side ports(Note: 1/8" NPT measures approximately. 3/8" in diameter)—one for the gauge and one that can be used as an extra outlet or plugged (plug included).

• Directional Airflow: Built-in arrow indicates correct airflow direction for proper setup.

• Adjustable Pressure Range: Allows control of output pressure from 7 to 140 PSI for general air tool use. Max air inlet pressure: 150PSI

• Compact Size: Measures 1-3/8" x 1-3/8" at the base and stands 3.15" tall, making it suitable for tight spaces.

• Wall Mount Included: Comes with a bracket for a secure wall installation option, helping to keep your work area organized.
