1/4" MNPT Air Compressor Tank Drain Valve Male Easy Twist Petcock

1/4" NPT Air Compressor Tank Drain Valve Petcock

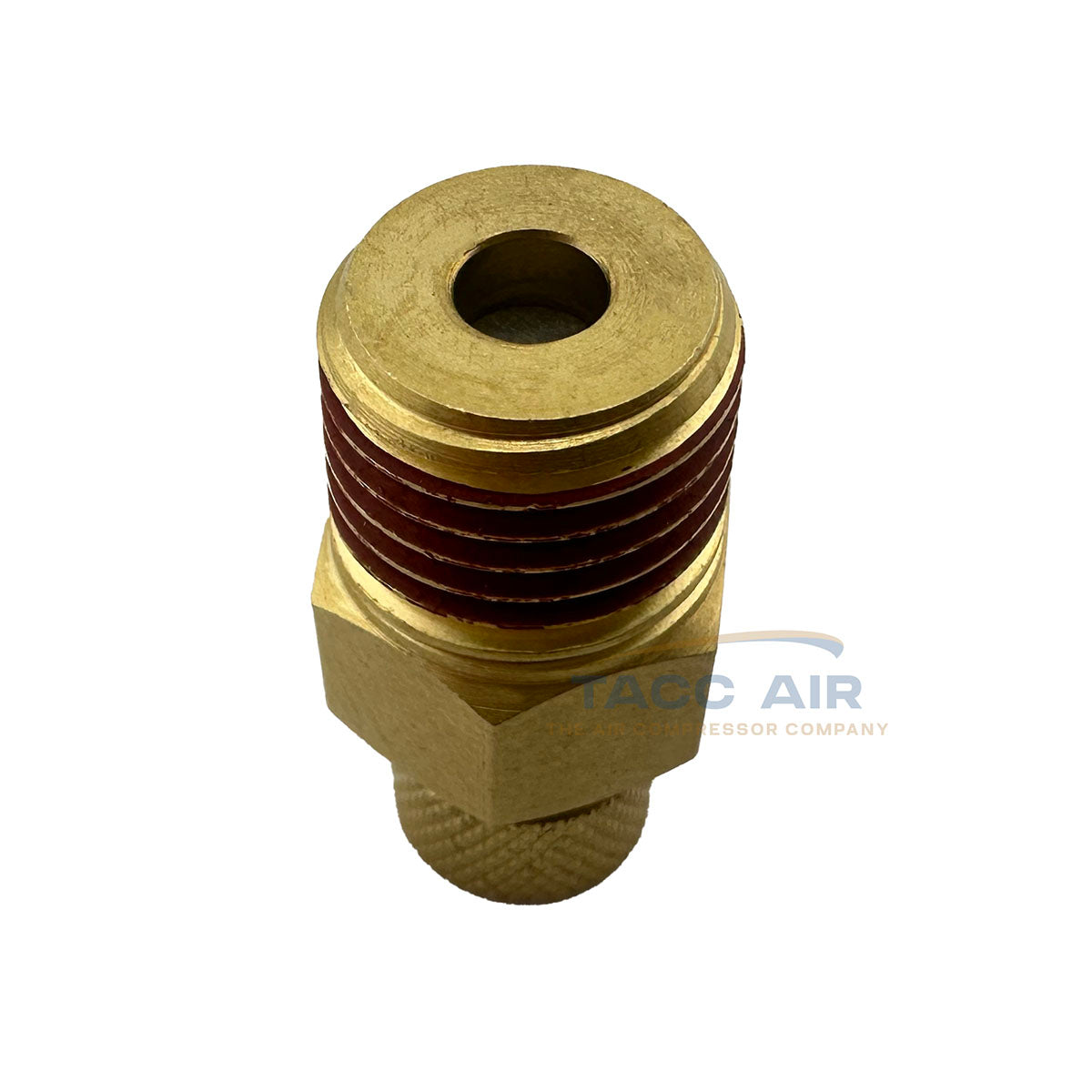

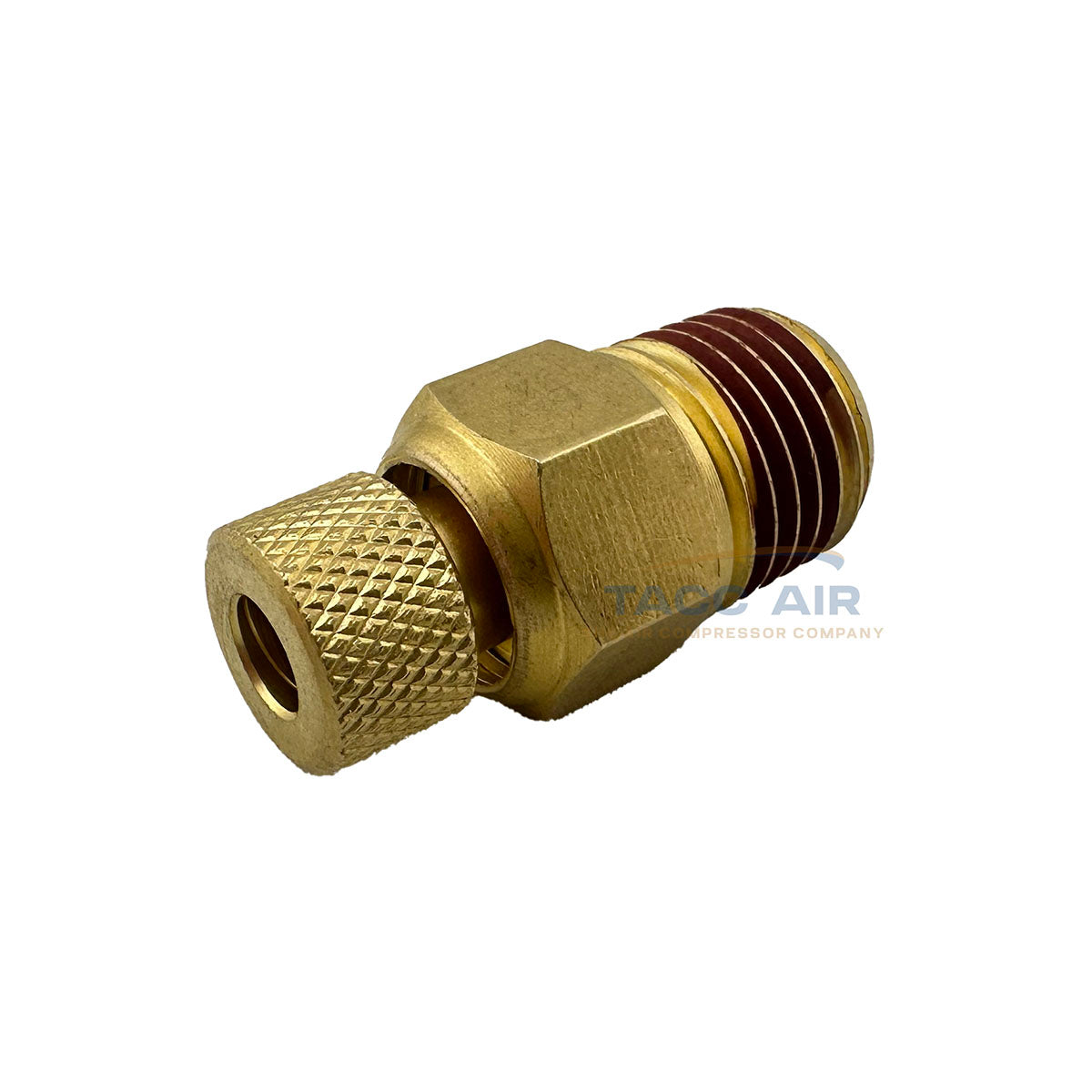

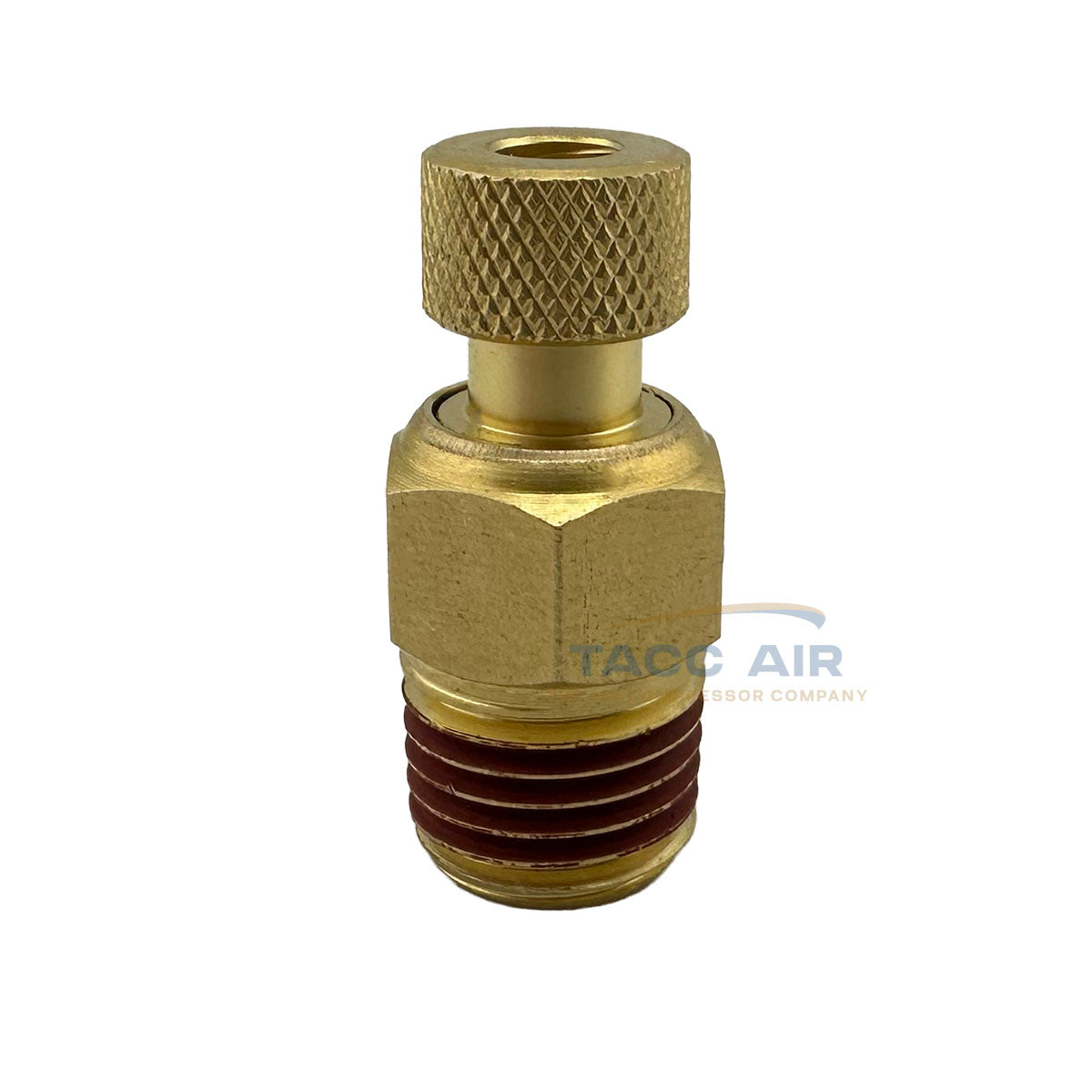

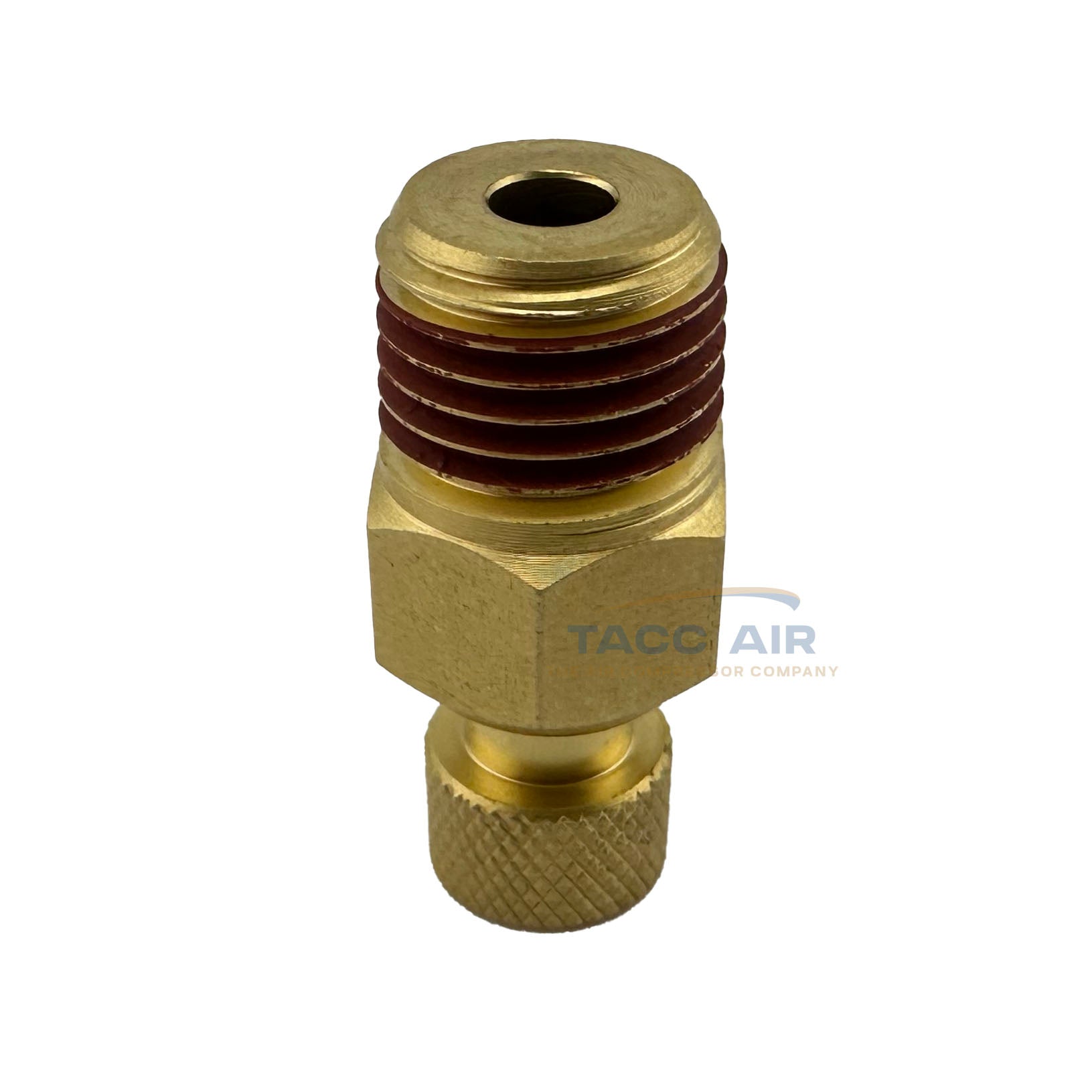

This reliable air compressor tank drain valve, also known as a petcock, is equipped with 1/4" male NPT pipe threads—the standard size for most air compressor tank drain ports. The 1/4" NPT threads measure approximately 1/2" in diameter. Unlike traditional T-handle style petcock drain valves, which rely on brass-to-brass seals prone to clogging from debris, this valve uses a rubber seat seal for a tight, dependable seal, ensuring smooth operation and preventing leaks. Made from durable solid brass, it is built to withstand long-term use and is also corrosion resistant. When fully open, the valve extends 1.3" in total length, once installed the remaining protruding part will measure around 0.9" for clearance reference.

Specifications:

• Maximum Working Pressure: 200 psi

• Material: Solid Brass for durability and corrosion resistance

• Seal Type: Rubber seat seal for a tight, reliable closure

• Thread Size: 1/4" male NPT (approximately 1/2" diameter)

• Installation: Comes with thread tape pre-applied for quick and easy installation

• Overall Length: 1.3" when fully open (about 0.9" protrudes from the air tank)
