1" Inlet/Outlet Air Compressor Pilot Unloader Check Valve Combo 140 - 175 PSI

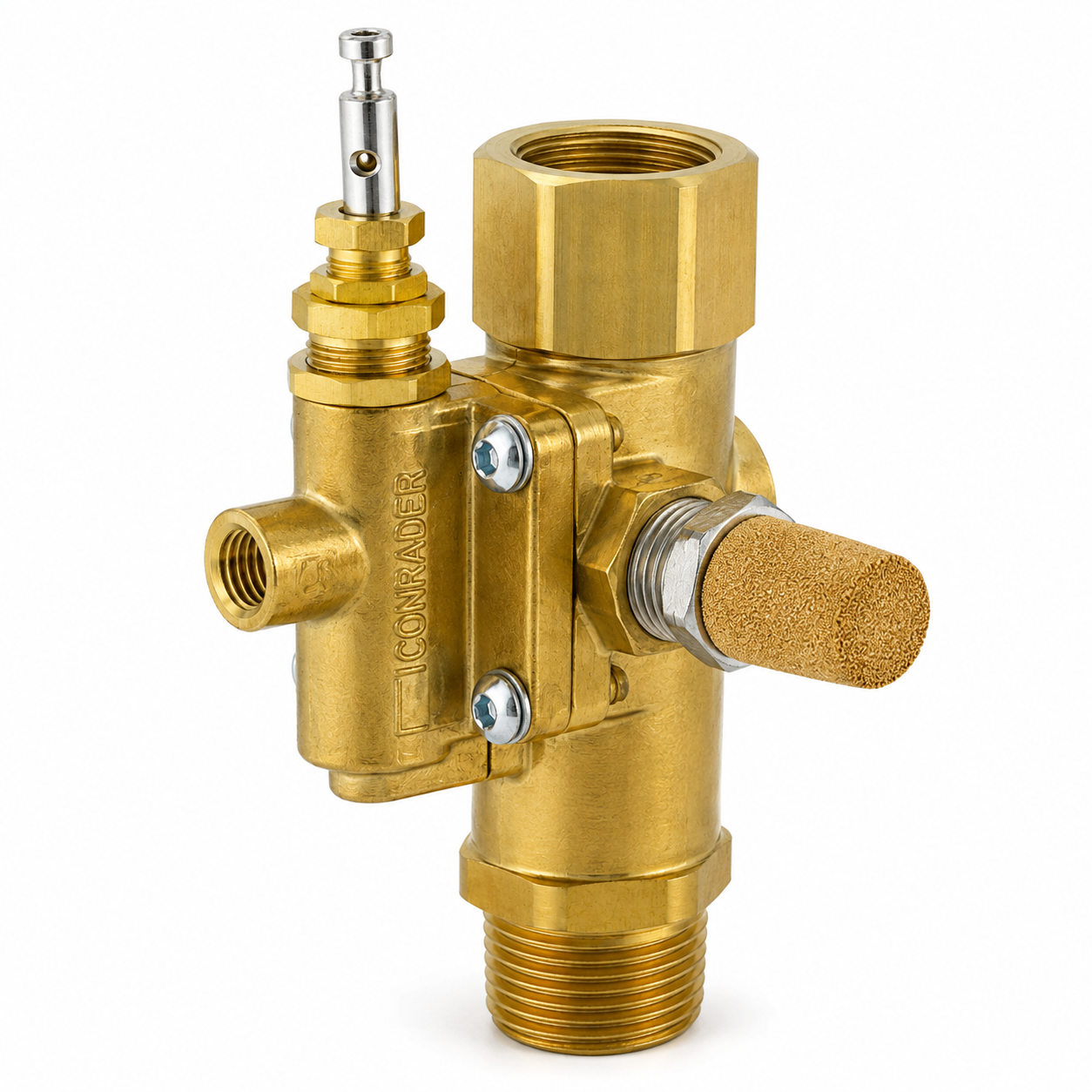

Conrader NLG Series 1" Female NPT x 1" Male NPT Air Compressor Pilot/Unloader/Check Valve Combo – 140-175 PSI

This is a U.S.-made NG series combo valve from Conrader, built for use with gas-powered or electric constant-run air compressors. It combines a pilot valve, discharge valve, and check valve in one.

The valve includes a 1" female NPT top inlet, a 1" male NPT outlet to the tank connection, and a 1/8" female NPT port on the back for throttle or unloader control. It’s factory set to operate between 140 and 175 PSI and features a built-in manual unloader valve. The unloader exhaust outlet also has a muffler to reduce noise during unload.

Details:

• Solid brass construction

• 1" male NPT outlet / tank connection ( Note 1" NPT measures approximately 1-/1/4" in diameter)

• 1" female NPT air inlet ( Note 1" NPT measures approximately 1-1/4" in diameter)

• 1/8" NPT port for throttle or unloader control (1/8" NPT measures approximately 3/8" in diameter)

• Set for 140 PSI on / 175 PSI off (adjustable ~30-40 PSI range) (Contact us for adjustment instructions)

• Manual unloader valve option

• Rated for up to 60 CFM

• Made in the USA
