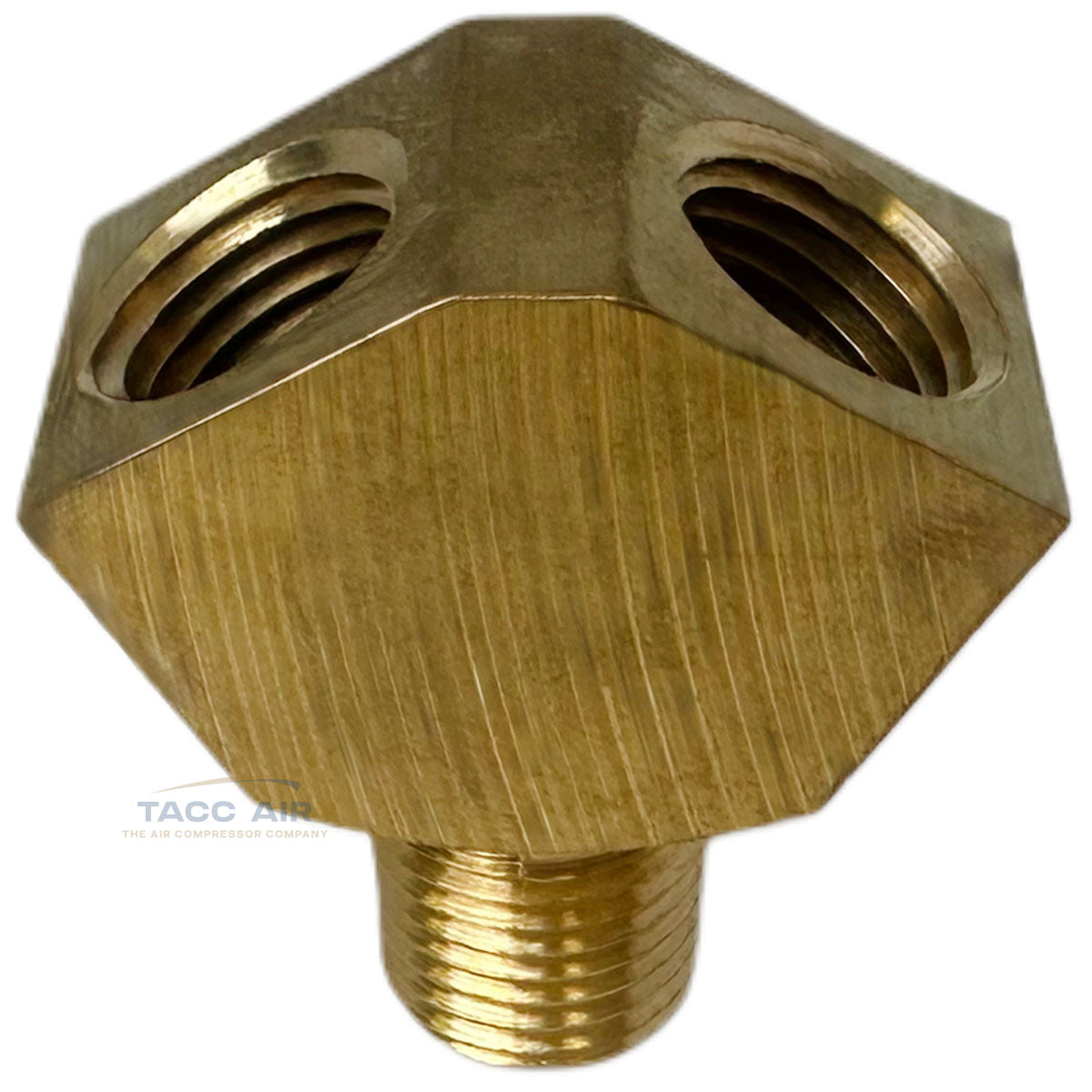

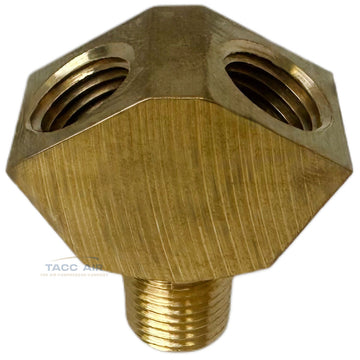

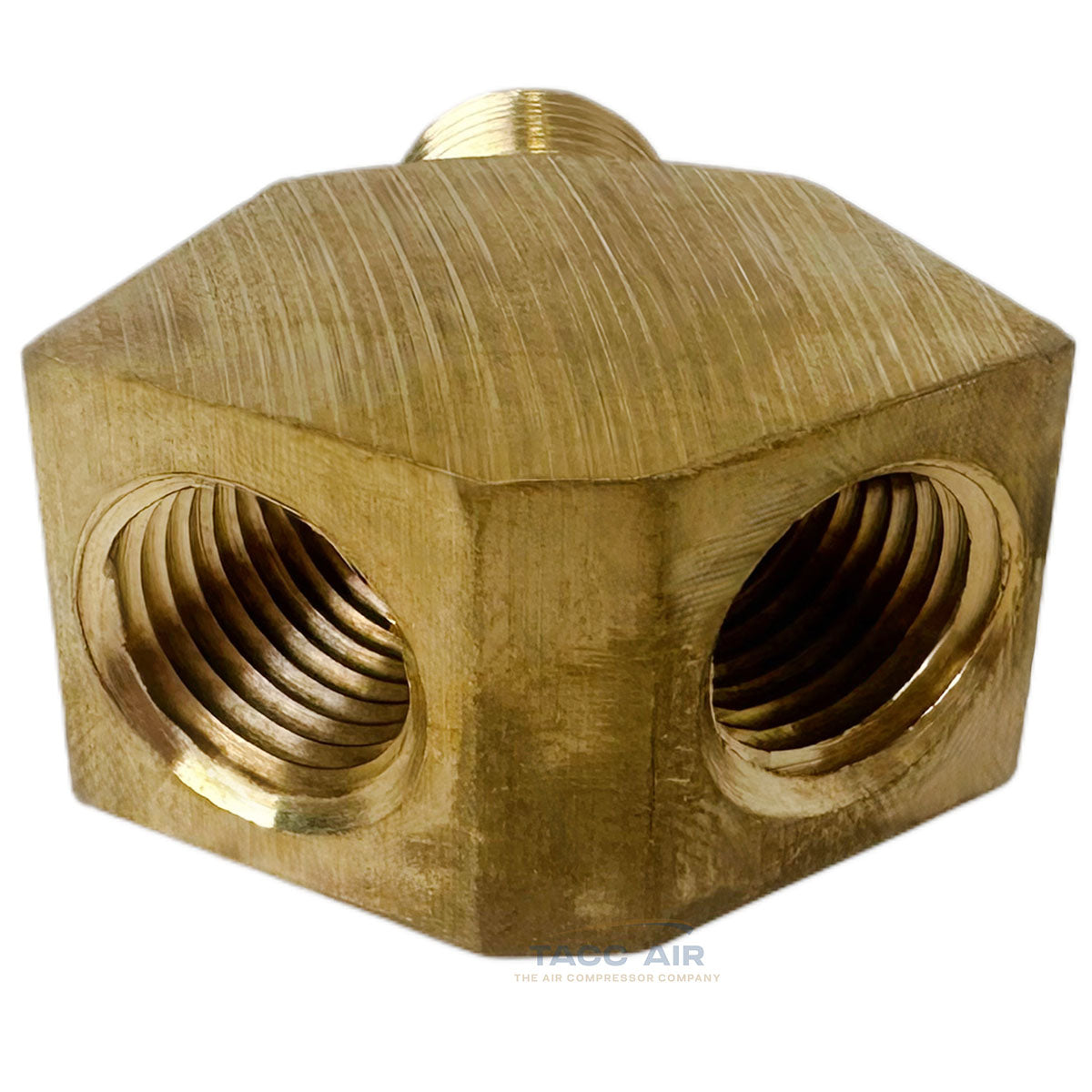

Brass Y Splitter Manifold 1/4" Male MNPT x 2 Way 1/4" Female FNPT Fitting

Description:

This brass Y-splitter fitting features a 1/4" NPT male thread on one end and two 1/4" NPT female threads on the other, allowing you to efficiently split a single line into two. It’s an ideal solution for distributing air, fluid, or gas flow from one source to multiple destinations in a compact space. Also commonly used to make coupler manifolds.

Constructed from durable, corrosion-resistant yellow brass, this fitting is suitable for use with water, air, gas, oil, and other non-corrosive media. With an overall length of approximately 1-1/2", a width of 1-3/8", and a depth of 3/4", it provides a secure and space-efficient connection where dual outputs are needed.

Specifications:

• Material: Yellow Brass (corrosion-resistant)

• Thread Type: NPT (National Pipe Thread)

• Connection: 1/4" Male NPT x Two 1/4" Female NPT

• Function: For splitting one pipe or hose line into two

• Thread Size:
  1/4" NPT → (Note: 1/4" NPT measures approx. 1/2" in diameter)

• Fitting Dimensions:
  Length: 1-1/2"
  Width: 1-3/8"
  Depth: 3/4"

Applications:

• Compressed air systems

• Plumbing

• Gas lines

• Oil distribution

• Dual-line setups from a single regulator

• General-purpose fluid handling with non-corrosive media

Note: NPT threads are tapered for a tight seal. Use thread sealant or PTFE tape to ensure leak-free connections.
