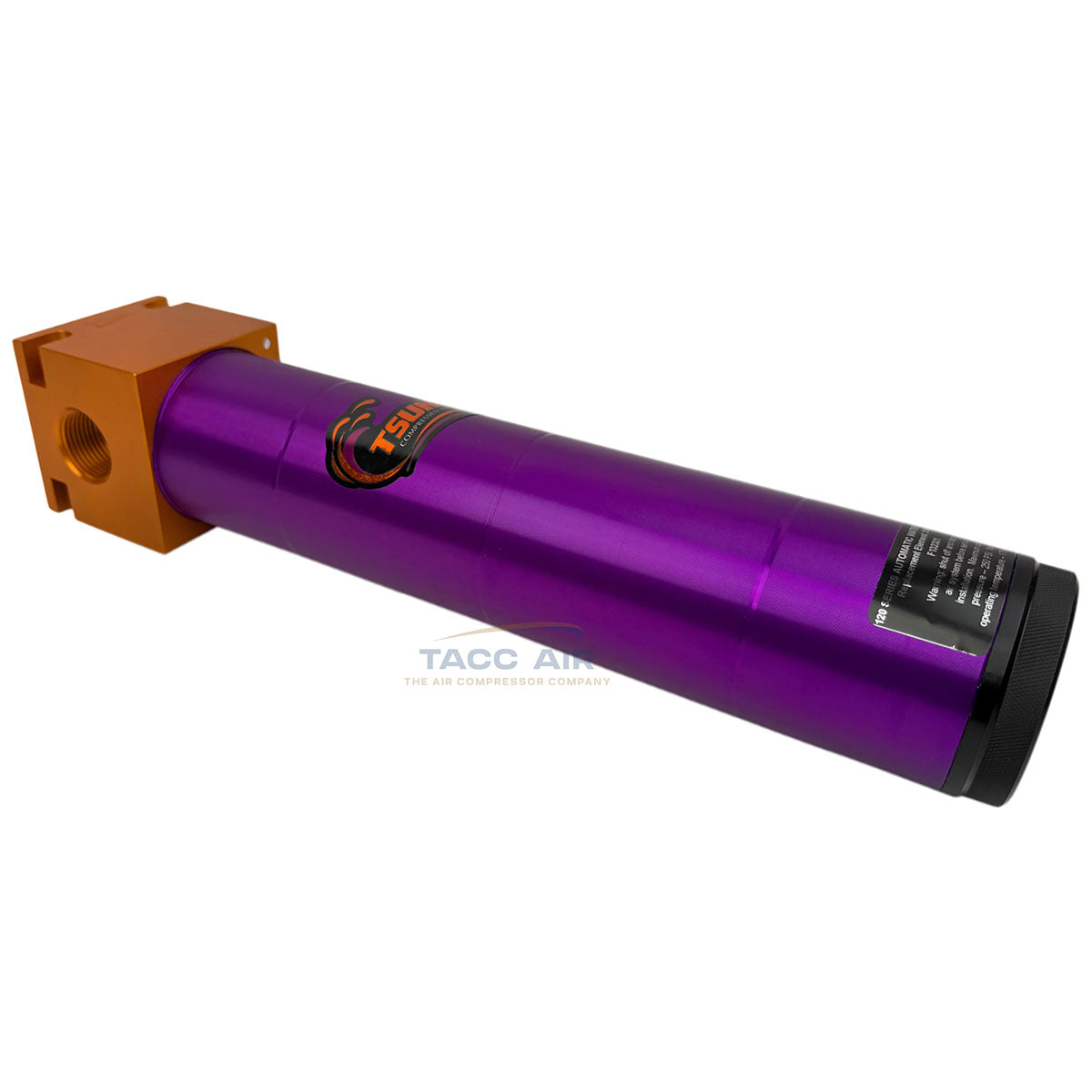

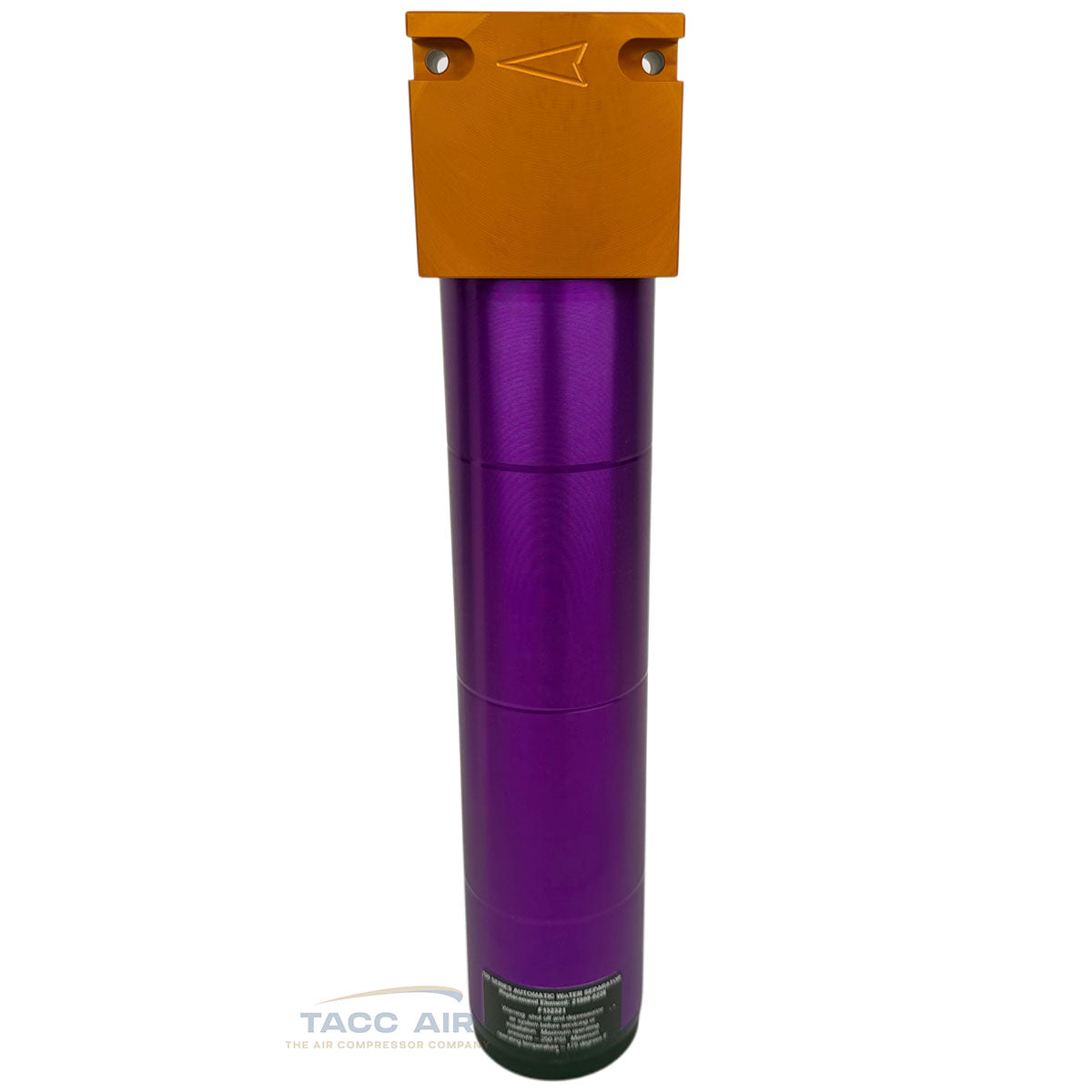

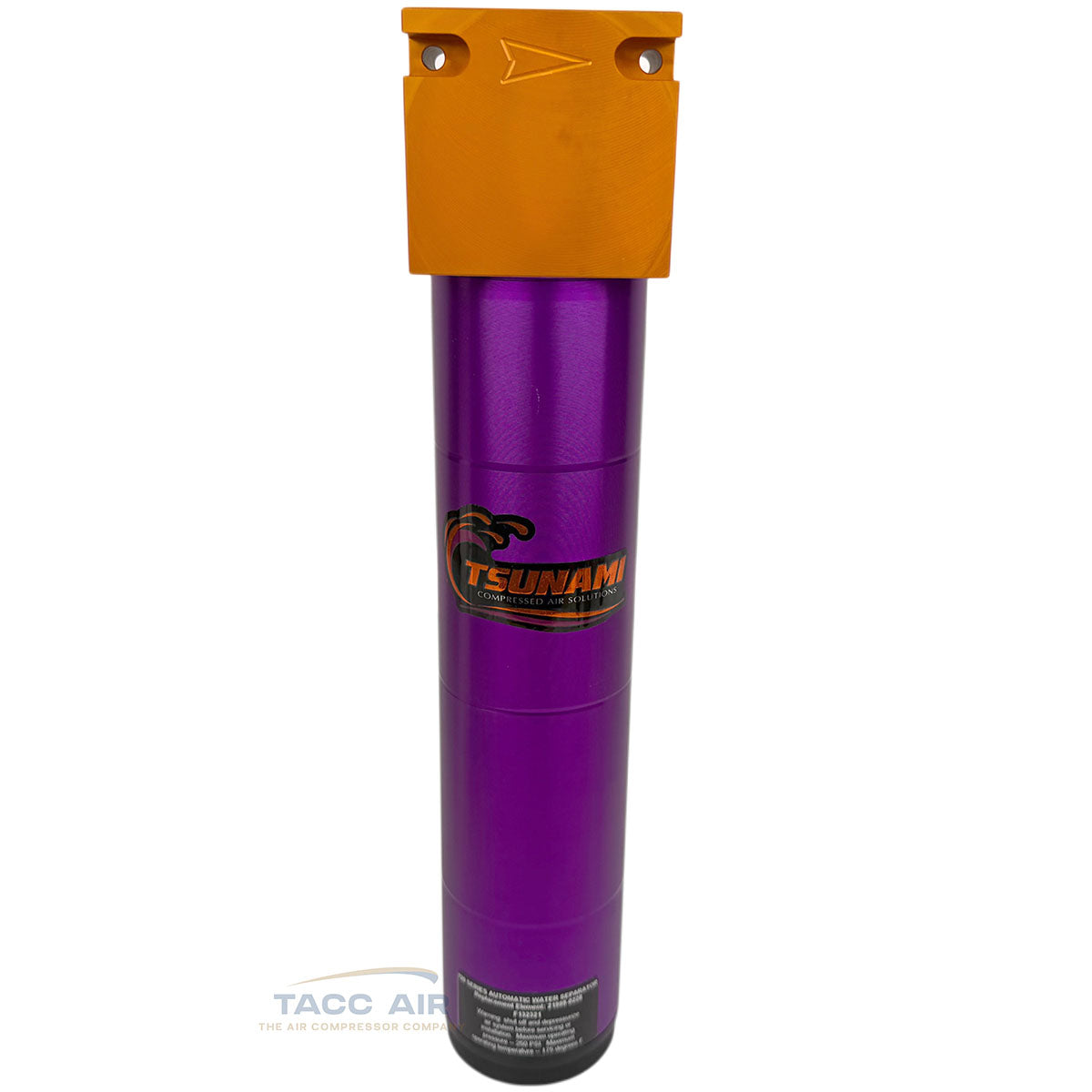

21999-0082 Tsunami 1" NPT Compressed Air Water Filter Separator 120 CFM

Tsunami 120 Series Water Separator – 1" NPT, 250 PSI Max Pressure, 120 CFM

Made in USA

The Tsunami 120 Series Water Separator (Part #21999-0082) is engineered for high-flow compressed air systems that demand reliable moisture removal and equipment protection. Designed to handle up to 120 CFM, this heavy-duty separator removes large amounts of water and contaminants before they reach your tools, machinery, or downstream filtration equipment. Its advanced up-flow separation technology provides consistent performance across all operating conditions while filtering particulate down to 10 microns.

Key Features:

High-Capacity Moisture Removal – Removes up to 1 quart of water and oil per minute, helping protect air tools, pneumatic equipment, paint systems, and production machinery from moisture-related damage.

120 CFM Flow Rating – Designed for larger compressed air systems requiring increased airflow while maintaining efficient water separation and filtration performance.

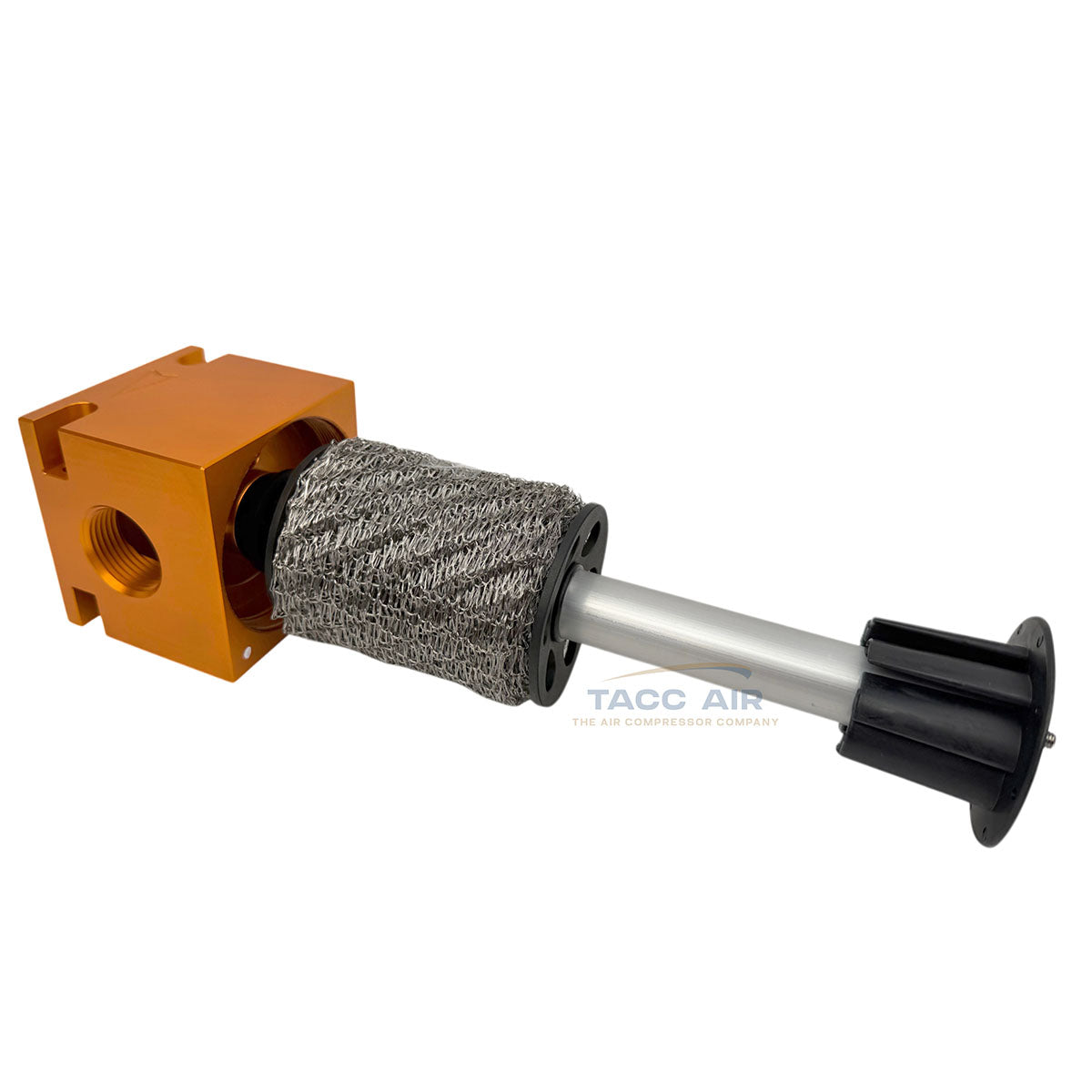

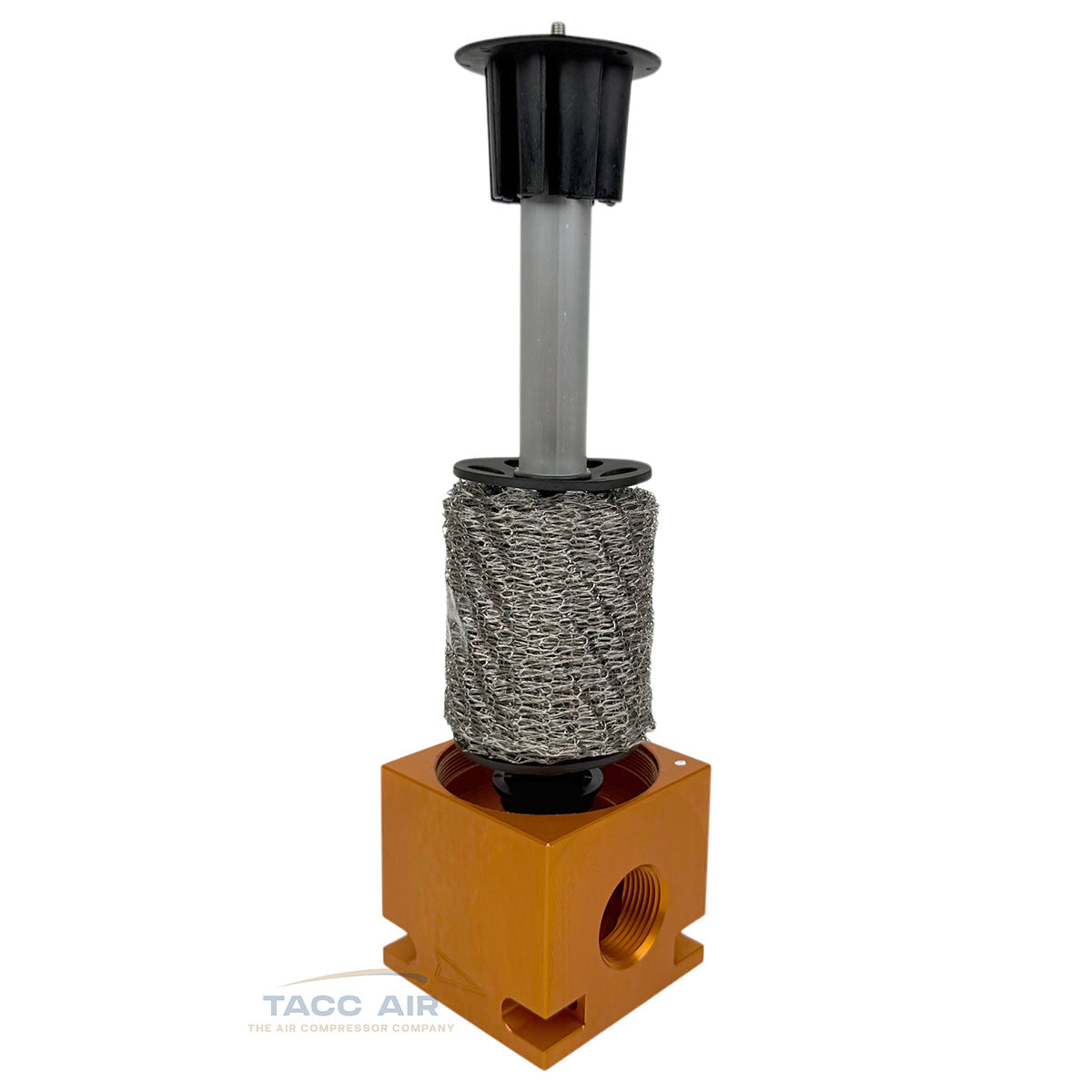

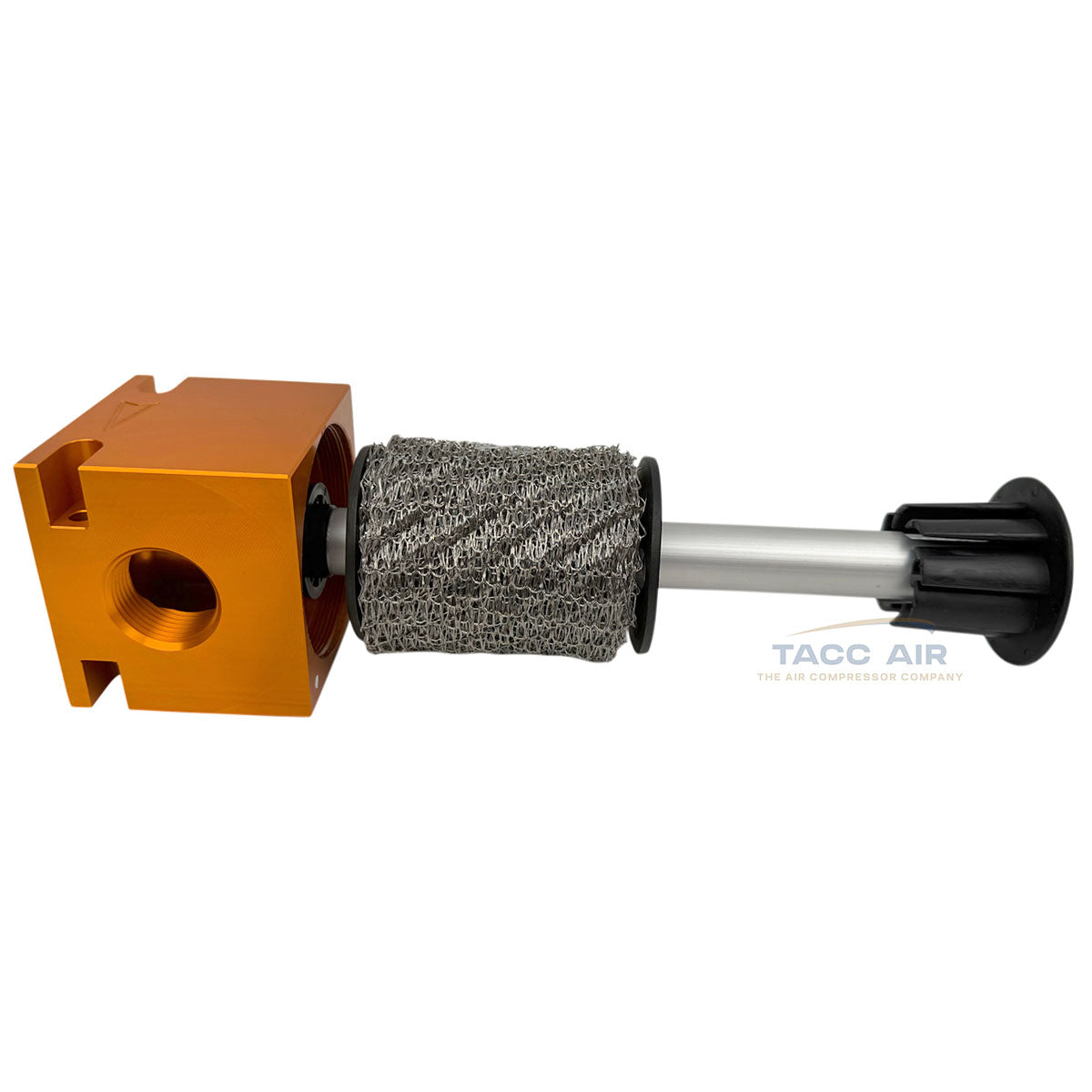

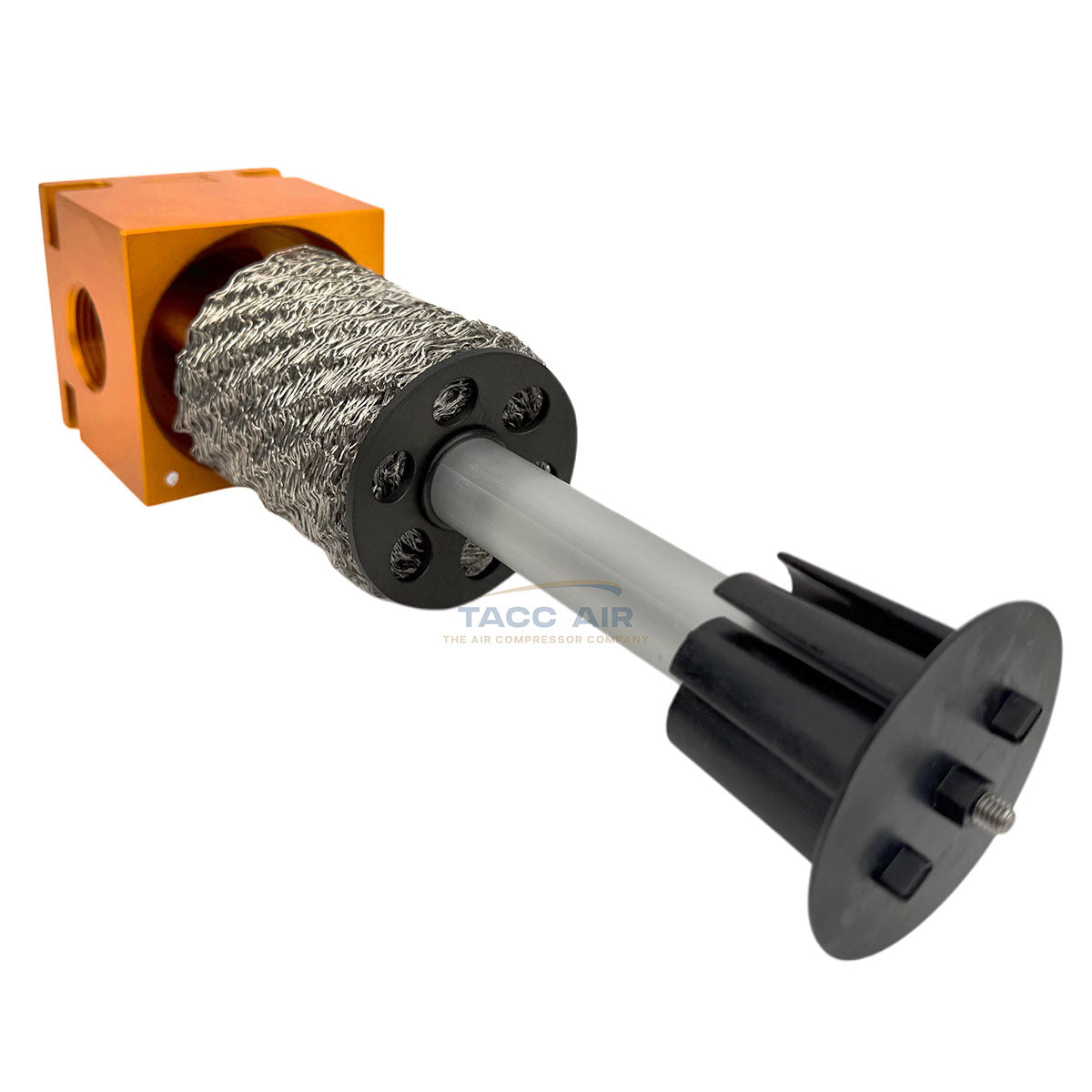

Unique Up-Flow Separation Technology – Air is forced through a special stainless steel mesh element and reversed 180°, allowing gravity and centrifugal force to efficiently separate moisture from the air stream for consistent performance at all flow rates.

Integral Automatic Float Drain – Automatically ejects collected water from the oversized sump with minimal maintenance required, keeping your system operating efficiently.

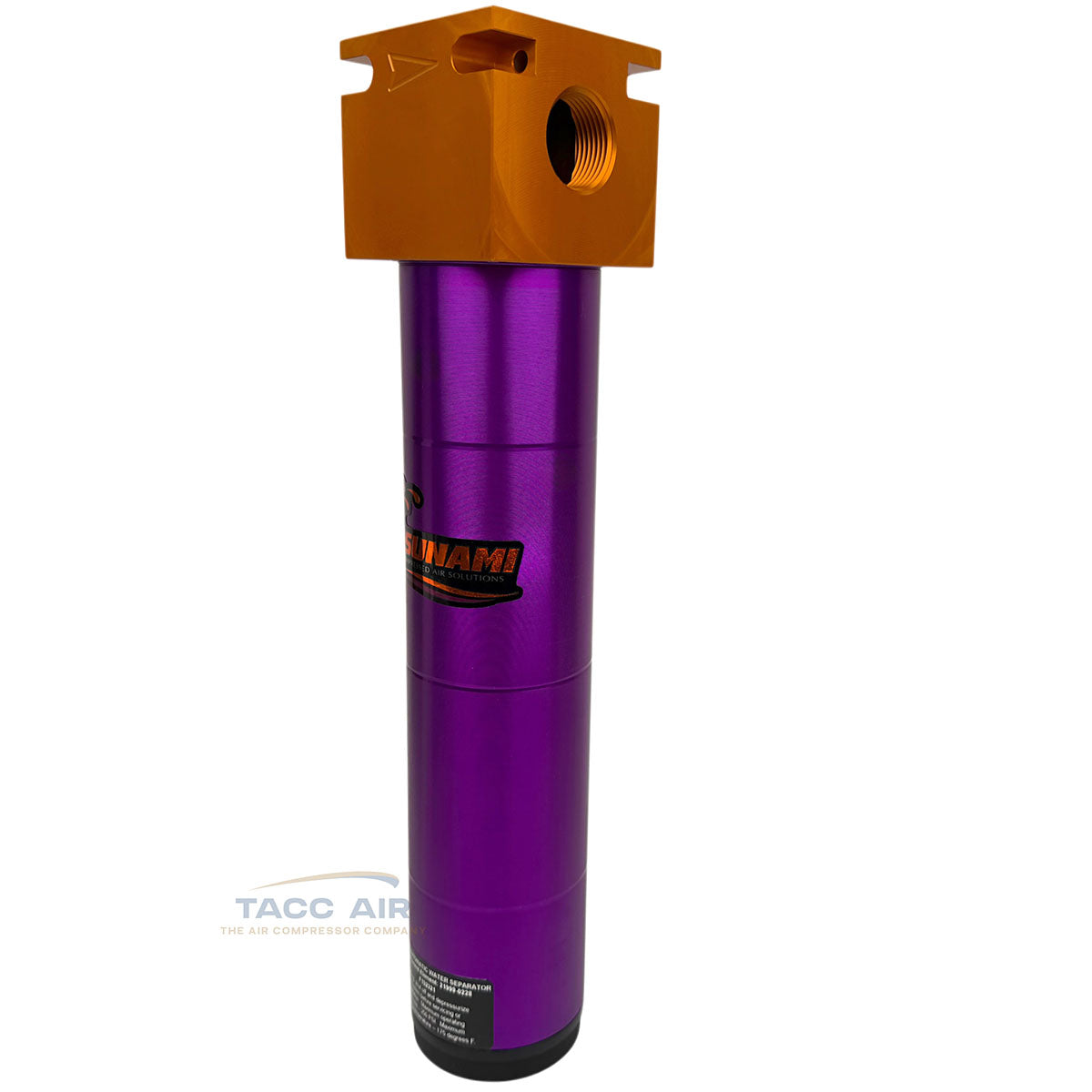

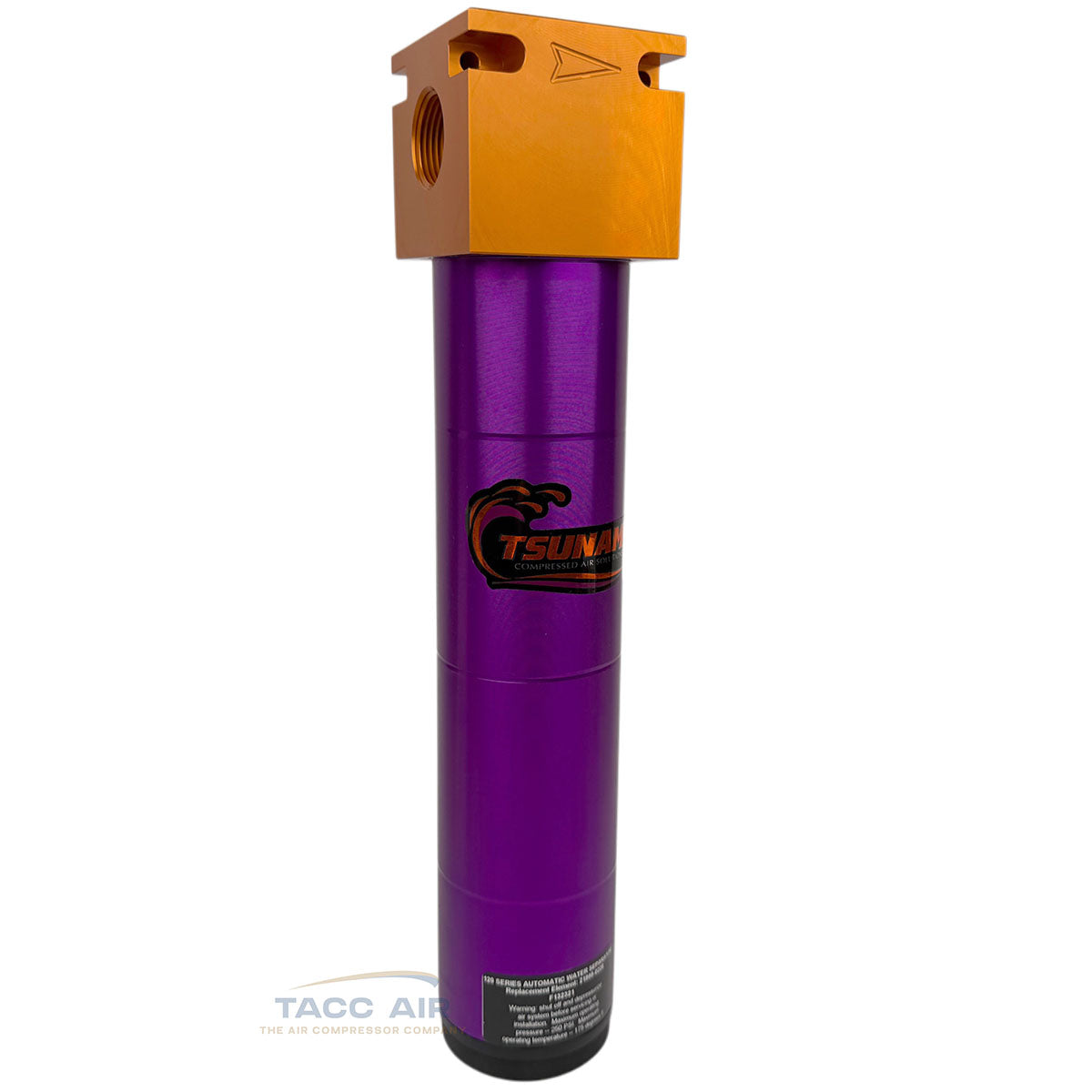

Heavy-Duty Construction – Features a anodized head with an oversized housing machined from 6061 aircraft-grade aluminum for superior corrosion resistance and long service life.

Extended Filter Life – Elevated sump design allows sediment and contaminants to collect below the filter element, helping maximize performance and reduce maintenance intervals.

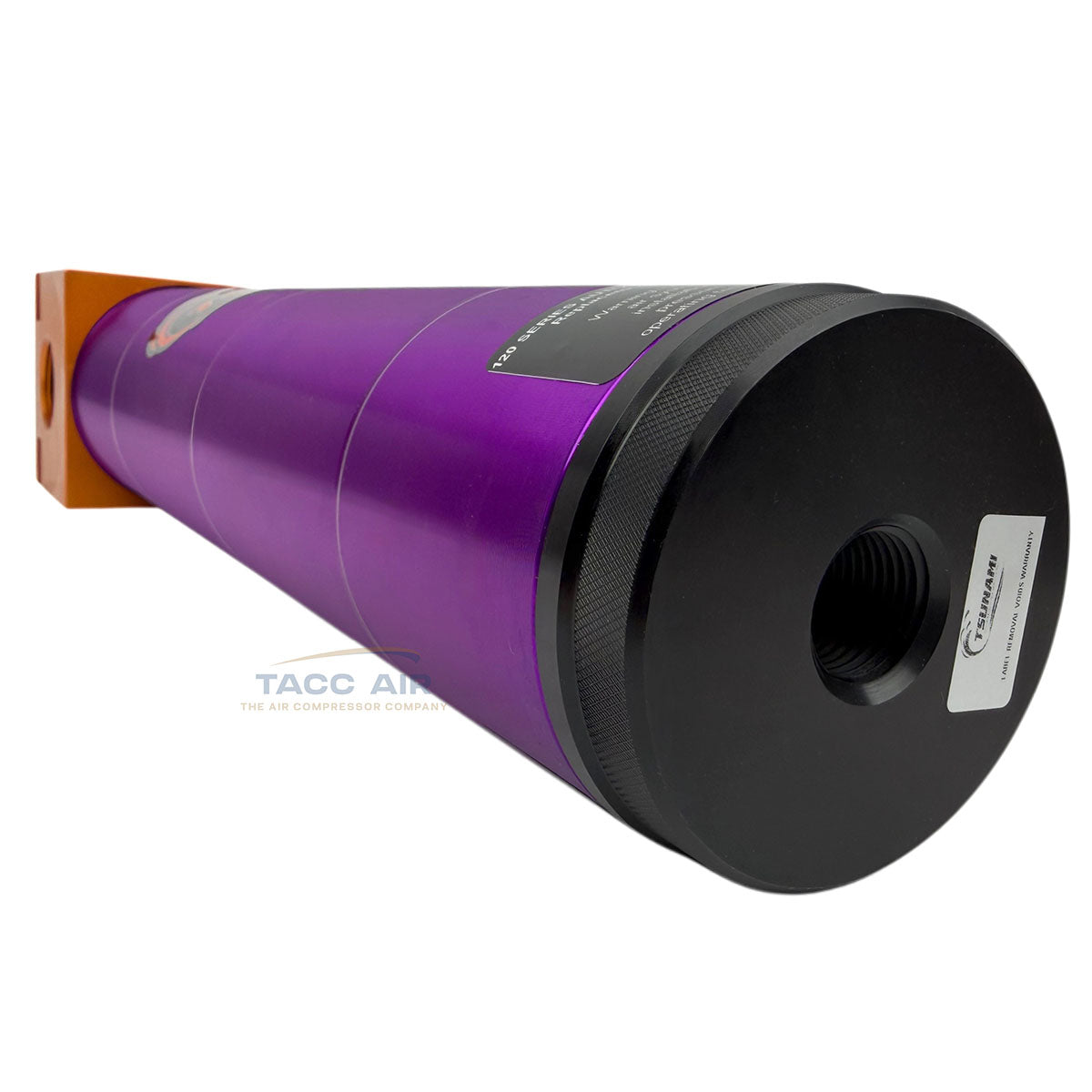

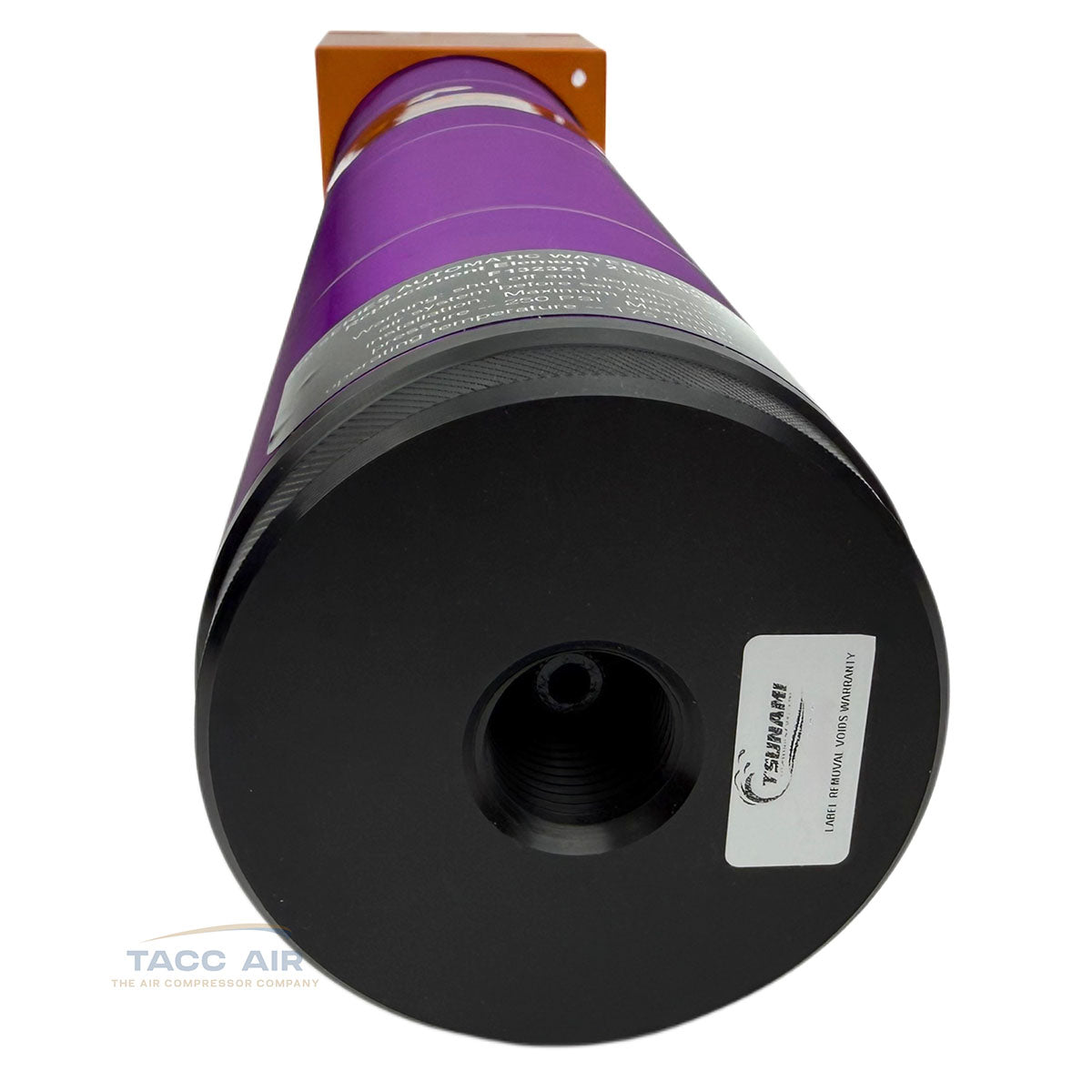

Easy Serviceability – Bottom cap can be removed for servicing the float drain and is threaded to accept an optional electronic drain or drain hose if desired (sold separately).

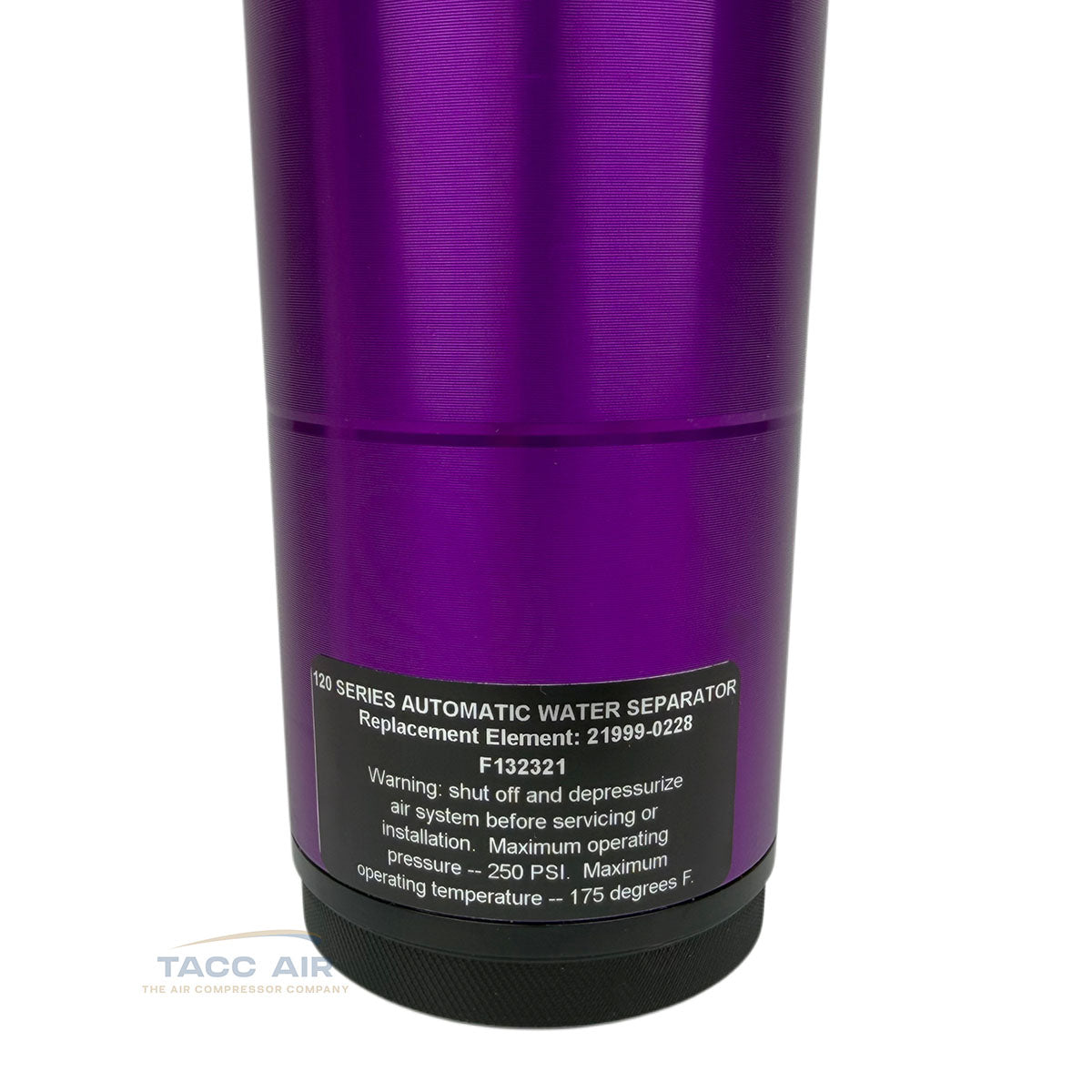

Performance Specifications:

• Part Number: 21999-0082
• Series: 120 Series
• Maximum Flow: 120 CFM

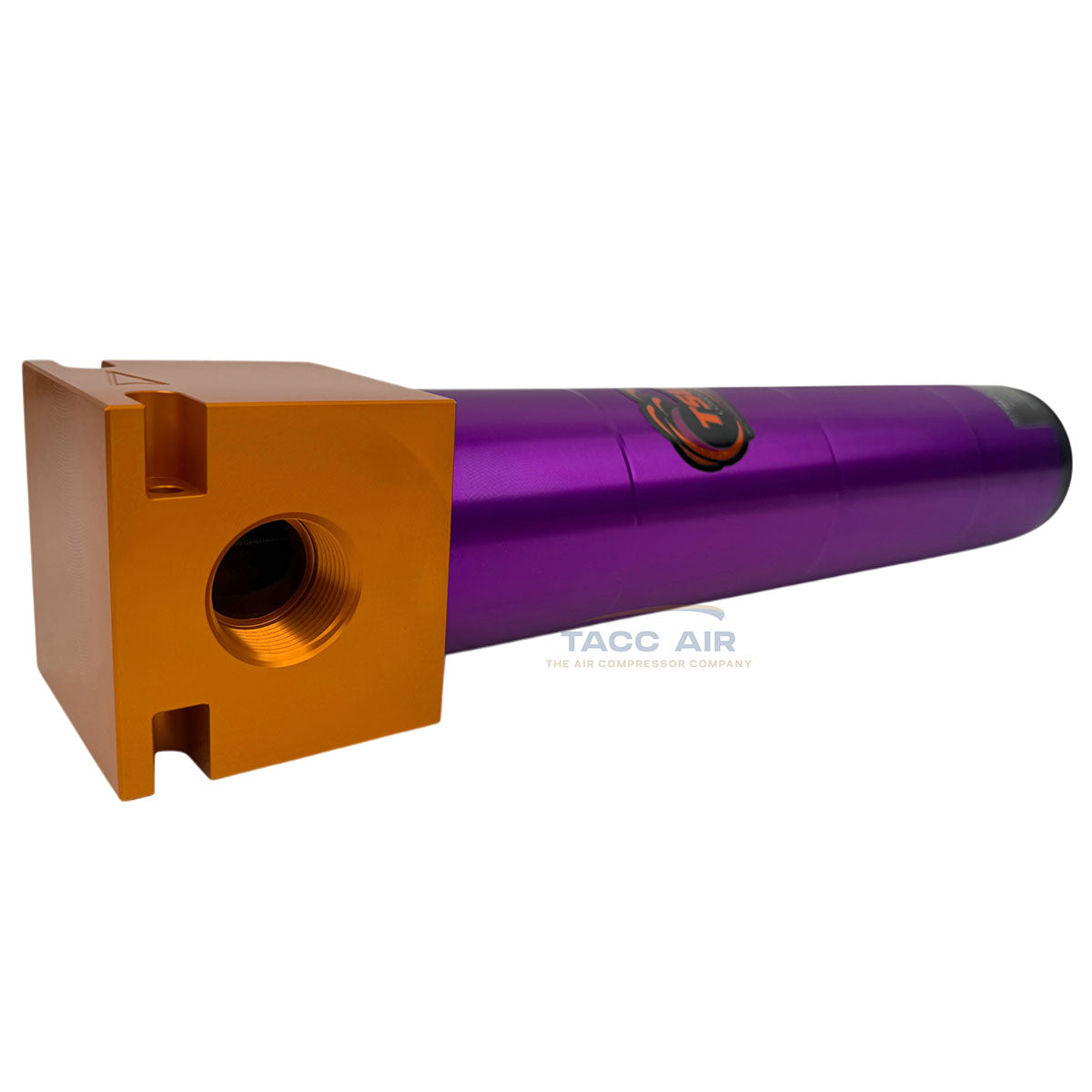

• Port Size: 1" NPT Female Inlet & Outlet (Note: 1" NPT measures approximately 1.25" outside diameter for reference.)
• Filtration Rating: 10 Micron
• Maximum Pressure: 250 PSI
• Maximum Temperature: 175°F
• Drain Type: Automatic Float Drain
• Dimensions: 15.75" H × 3.25" W × 3.25" D
• Weight: Approximately 5.5 lbs
• Made in USA

Installation Notes:

• Air must flow in the direction indicated on the housing for proper operation.
• Mounting brackets are sold separately for wall-mounted installations.
• Ideal as a first-stage separator before dryers and fine filtration systems.

Whether you're operating a spray foam rig, body shop, manufacturing facility, or industrial compressed air system, the Tsunami 120 Series Water Separator delivers dependable moisture removal and contaminant protection to help ensure cleaner, drier compressed air throughout your operation.
