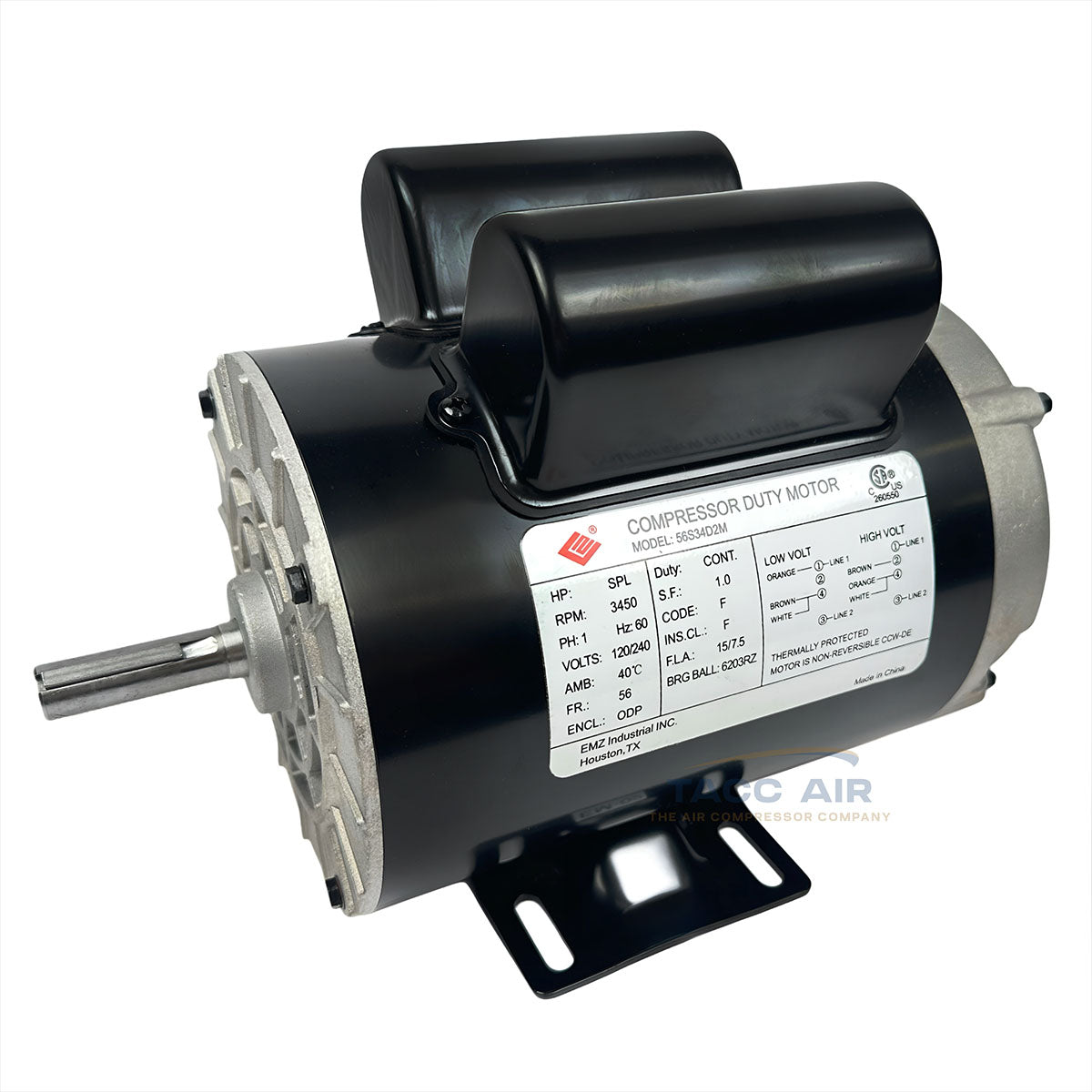

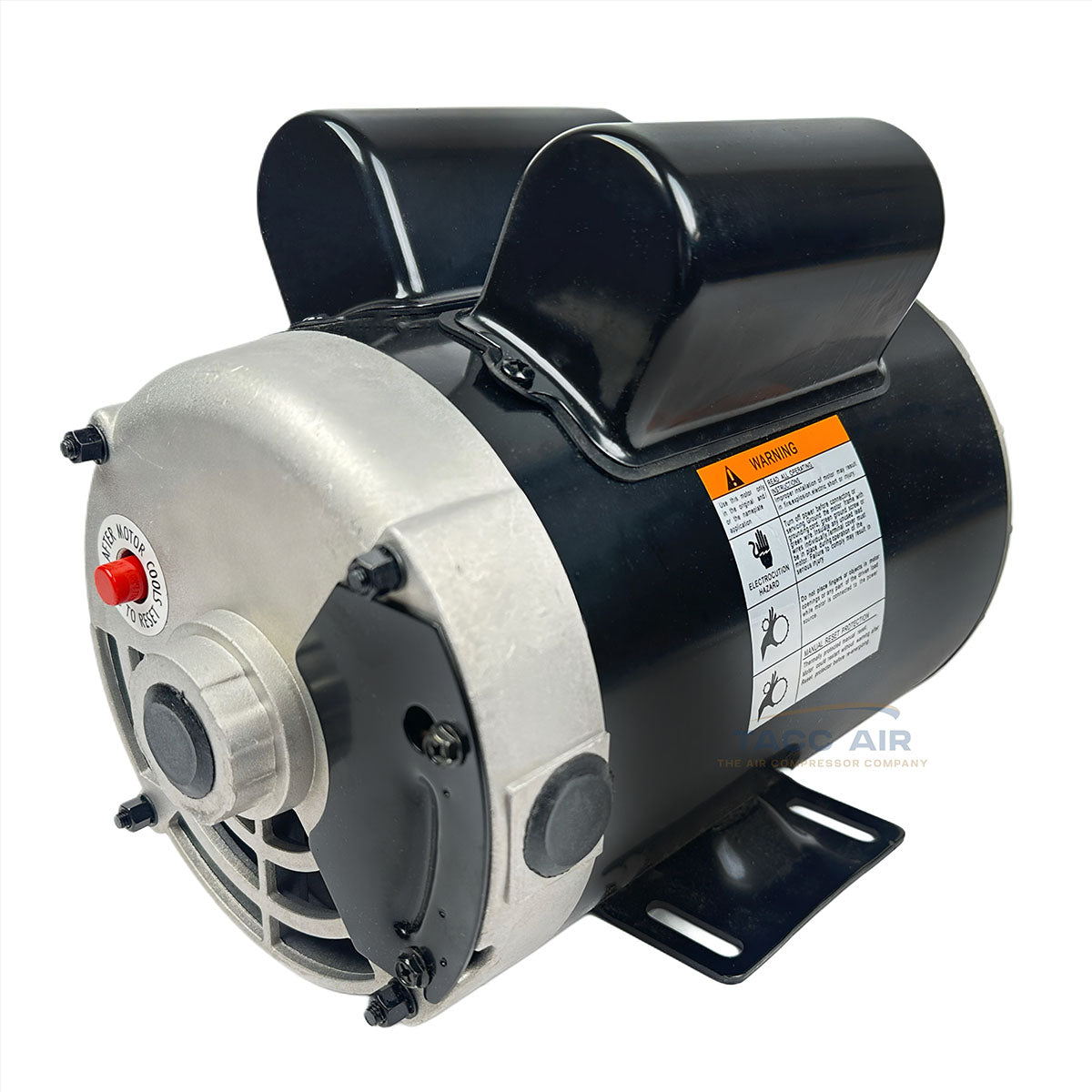

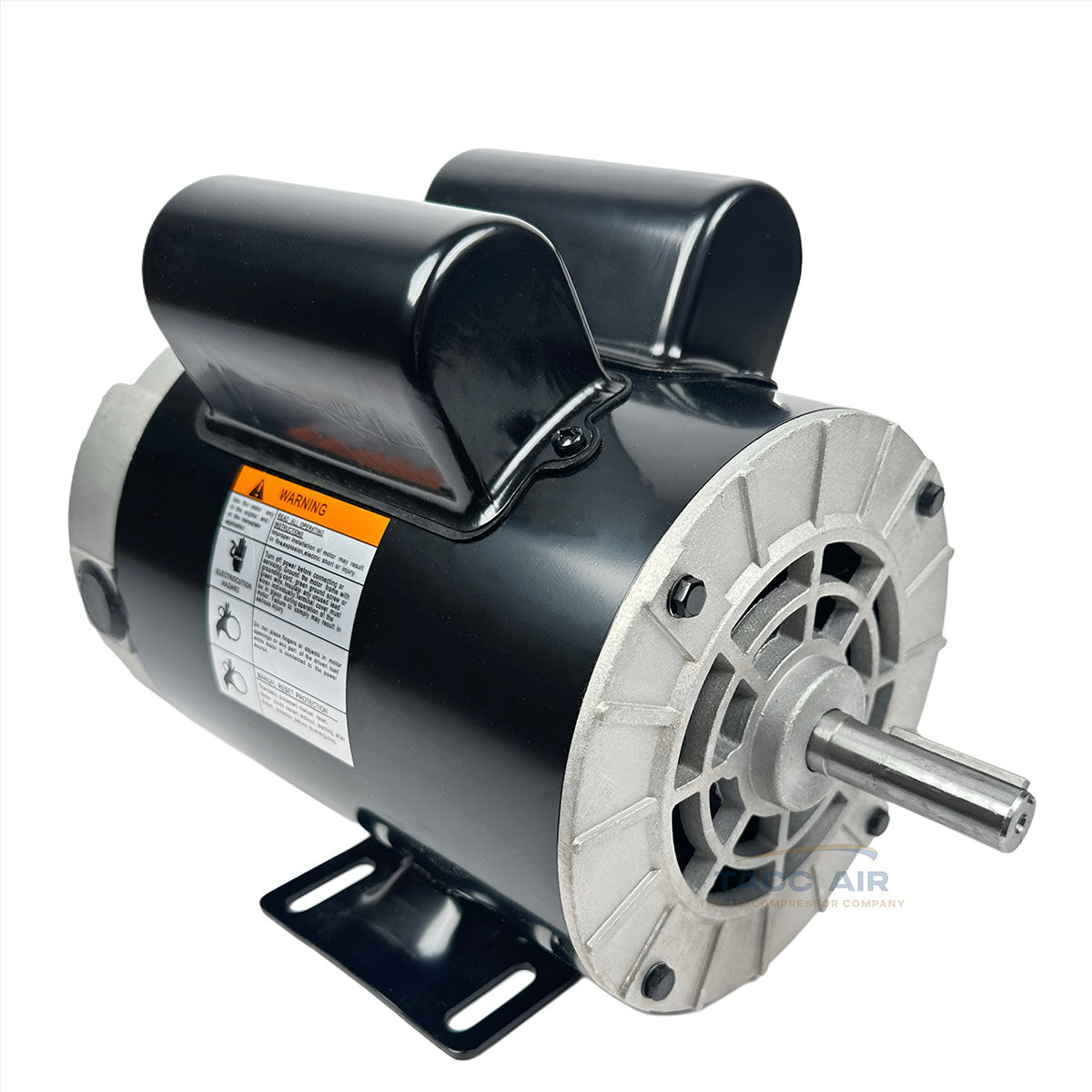

2 HP Electric Motor 3450 RPM 56 Frame 5/8" Shaft Air Compressor Duty 120/240 V SPL

2 HP Electric Motor 3450 RPM 56 Frame 5/8" Shaft Compressor Duty 120/240 V SPL

Product Description:

Replacement 2 HP Electric Compressor Duty Motor—specifically engineered to handle the rigorous start-up load and demanding duty cycle of air compressors. This motor is not just compatible, it’s purpose-built for the job.

Designed with a 56 frame, this motor’s specifications control key dimensions like shaft size, motor length, and mounting pattern. That means if your current setup uses a 56 frame motor, this one should bolt right up for a quick, hassle-free installation. No need to modify your mounts or rework your system—just swap it in and power up.

With the speed of 3450 RPM, counter-clockwise shaft rotation, and dual voltage compatibility (120/240V), this motor is ideal for a variety of compressor systems and industrial applications. Plus, it features manual reset thermal overload protection and a clearly labeled wiring diagram for easy setup and safe operation.

Product Details:

• Powerful 2 HP Performance: Delivers consistent high-output power with 3450 RPM, ideal for heavy-duty air compressor applications and more.

• Durable Compressor-Duty Design: Built to withstand the demanding startup torque of air compressors, making it a reliable choice for continuous industrial use.

• Single Phase, Dual Voltage Operation: Compatible with both 120V and 240V setups, providing flexible installation options for a variety of work environments.

• Precision Engineered 56 Frame: Features a 5/8” shaft diameter with a standard 3/16” keyway and 2.55" shaft length—perfect fit for most compressor setups.

• Non-Reversible Motor with CCW Rotation: Counter-clockwise rotation when facing the shaft ensures compatibility with specific compressor pump systems.

• Thermal Overload Protection: Integrated manual reset safeguard prevents motor damage by automatically shutting down during overheating conditions.

• Compact & Efficient: Open Drip Proof (ODP) housing keeps the motor cool while maintaining a compact size—measuring 12.3” in total length with shaft.

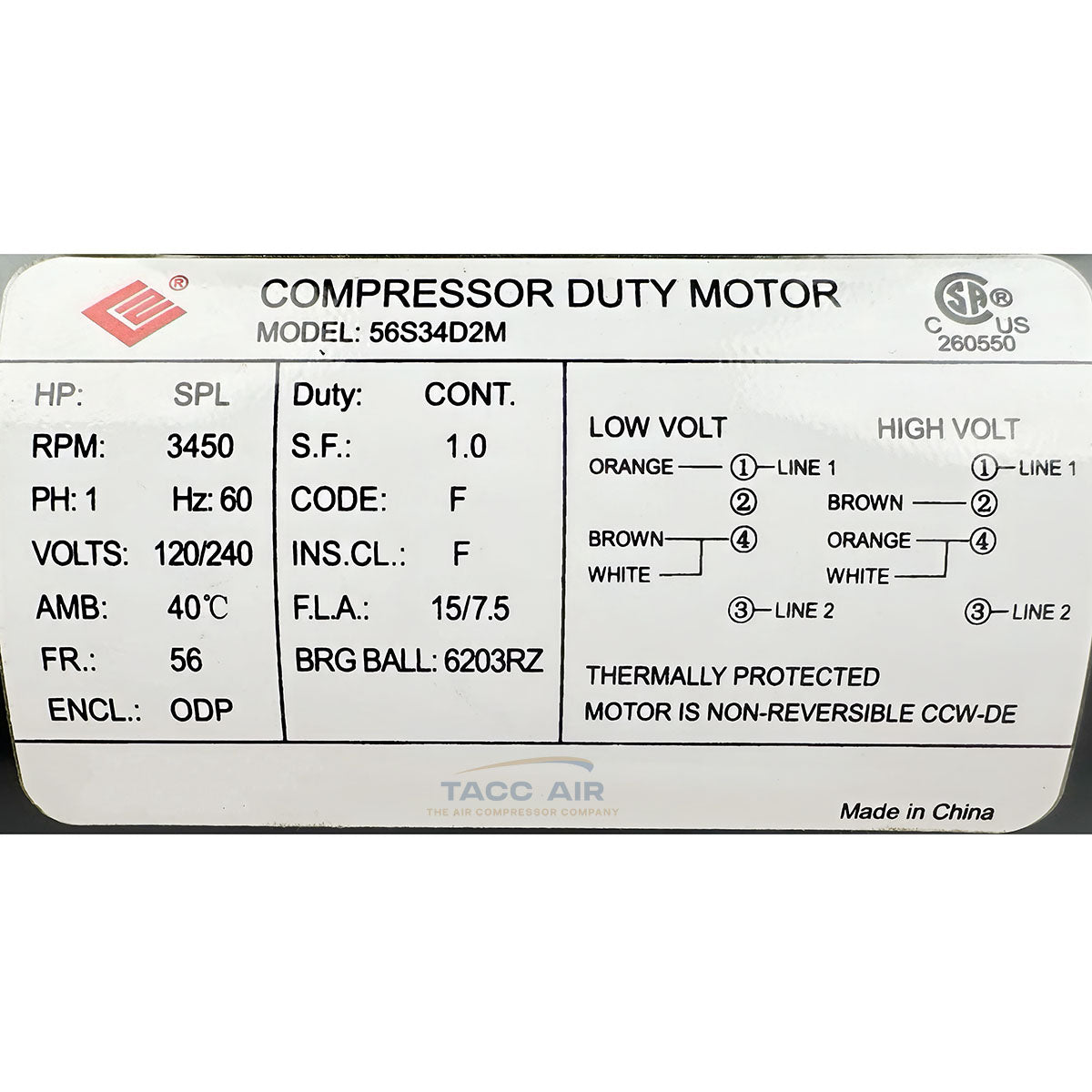

• Wiring Made Easy: Clearly marked wiring diagram is conveniently located on the motor housing for hassle-free setup and connection.
