3/4" NPT FRL Air Compressor Filter Regulator Lubricator Combo Compressed Air System

3/4" NPT FRL Air Compressor Filter Regulator Lubricator Combo Compressed Air System

Product Description:

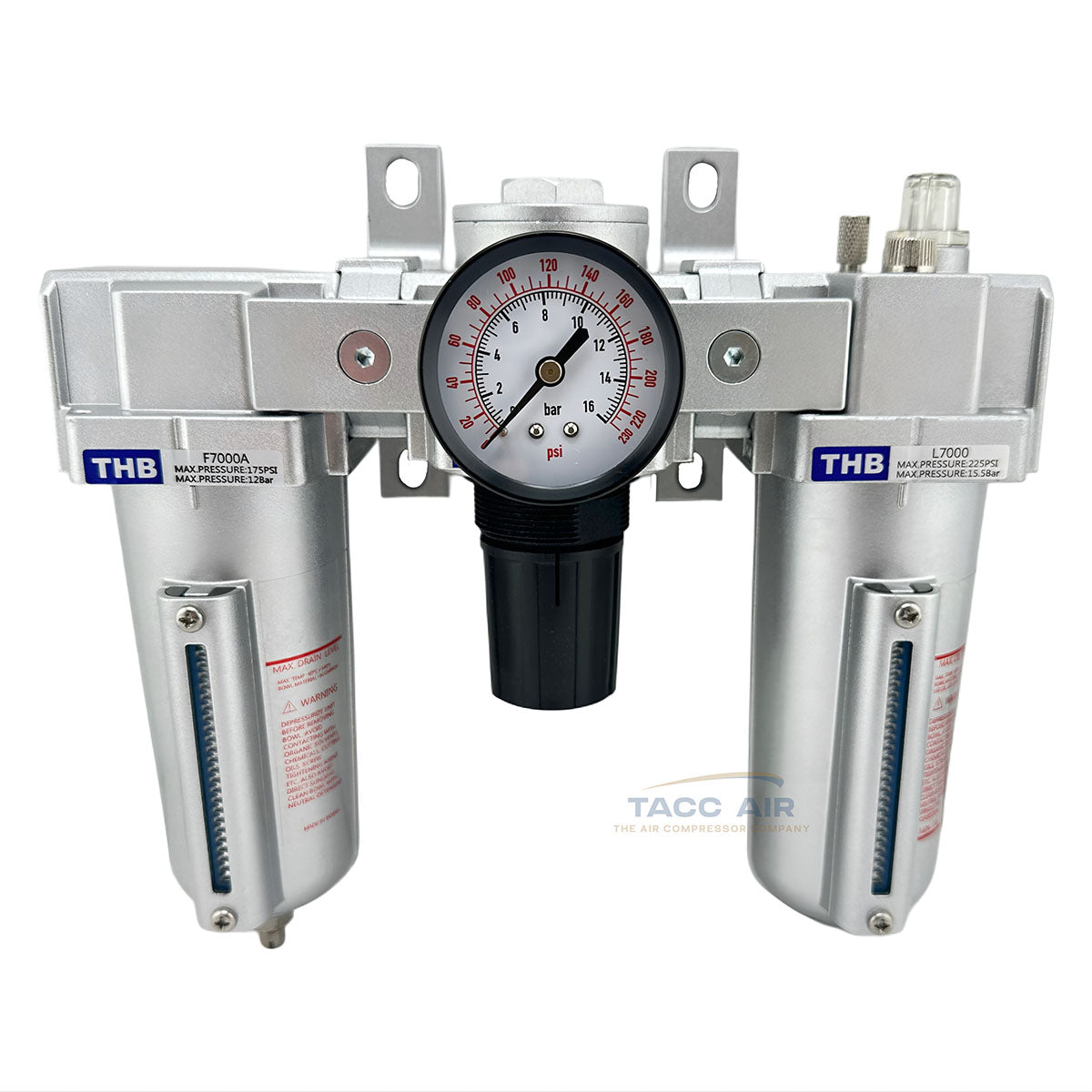

Compressed air FRL Filter, Regulator, Lubricator, Combination system 3/4" NPT. This 3-stage system is engineered for precision air treatment in commercial and industrial environments. It begins with a 5-micron particulate and moisture filter, followed by an adjustable air pressure regulator, and finishes with a lubricator that injects small amounts of oil into the air stream—keeping your air tools and equipment properly lubricated for long-term performance.

The regulator knob features a push-to-lock / pull-to-unlock design, allowing for secure pressure adjustments between 7 PSI and 175 PSI. A built-in pressure gauge gives real-time pressure readings. With clearly marked directional flow arrows and 3/4" female NPT ports, installation is fast and straightforward.

This is a commercial-grade air management system capable of handling high-demand setups with up to 138 CFM flow and 225 PSI max inlet pressure.

Product Details:

• Type: 3-Stage FRL Unit (Filter, Regulator, Lubricator)

• Filter Rating: 5 Micron

• Regulator Range: 7 – 175 PSI

• Lubricator Function: Adds small amounts of oil to air line for tool longevity (Use with air tool oil only)

• Flow Direction: Directional (must follow arrow markings)

• Locking Mechanism: Push to lock / Pull to unlock pressure knob

• Display: Integrated Air Pressure Gauge

• Applications: Commercial and Industrial Air Systems, Pneumatic Tool Setups

Specifications:

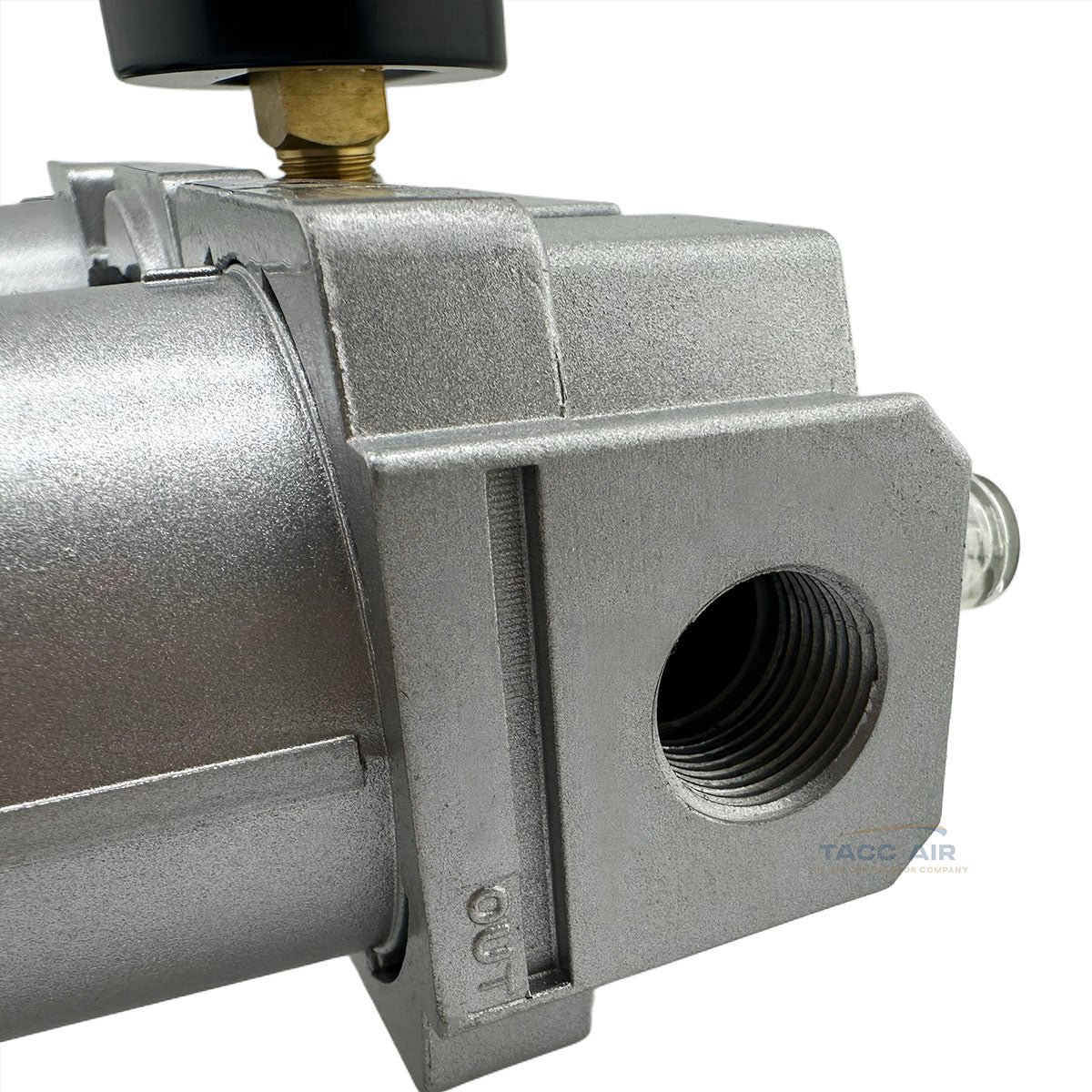

• Connection Type: 3/4" NPT Female (approx. 1" outside thread diameter)

• Max Inlet Pressure: 225 PSI

• Max Flow Capacity: 138 CFM

• Operating Temperature Range: 40°F – 140°F (4°C – 60°C)

• Overall Dimensions:

  • Length: 9-3/8"

  • Height: 9"

  • Depth (with gauge): 4-5/8"
