0.01 Micron Oil Coalescing Filter 3/4" NPT Compressed Air Compressor Inline Separator

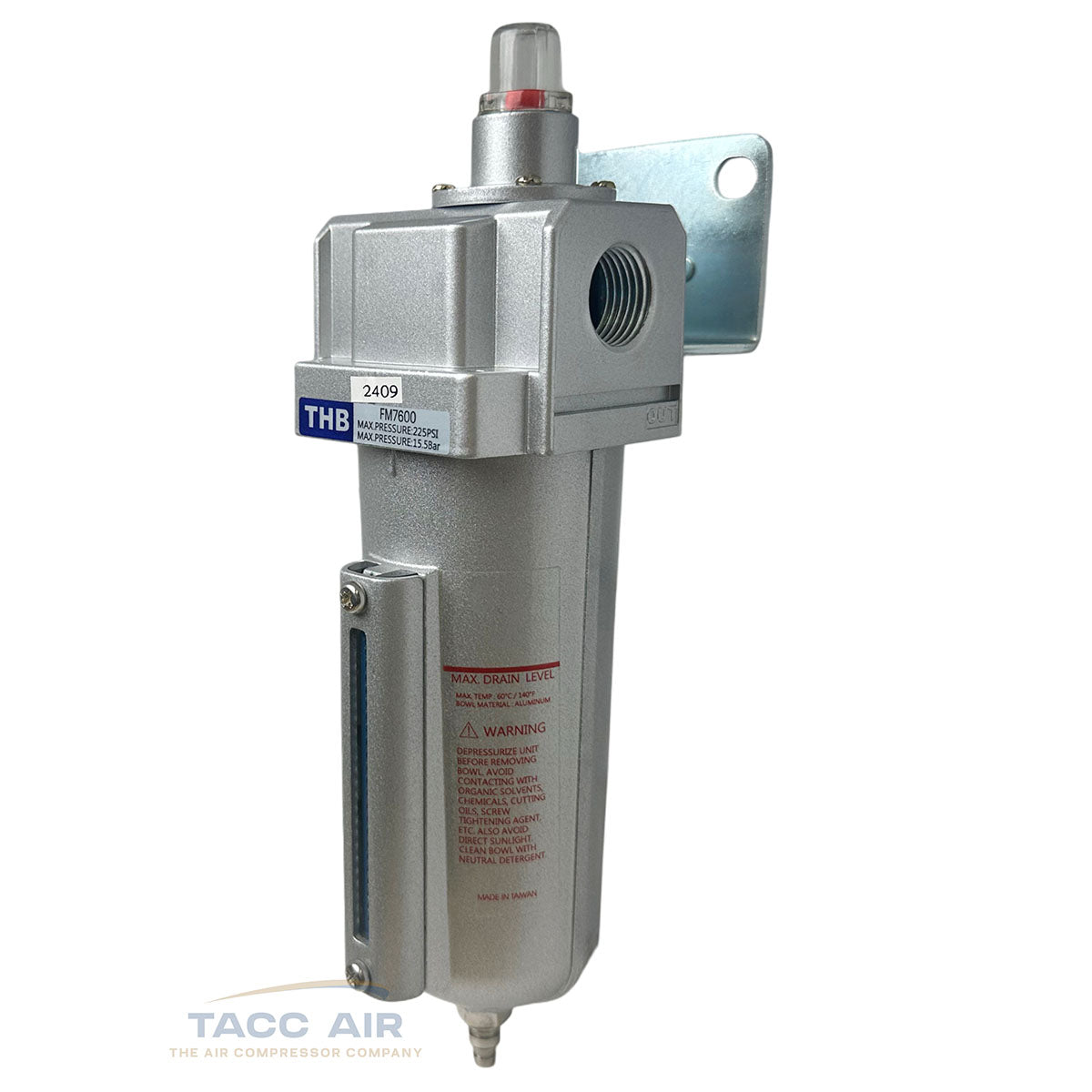

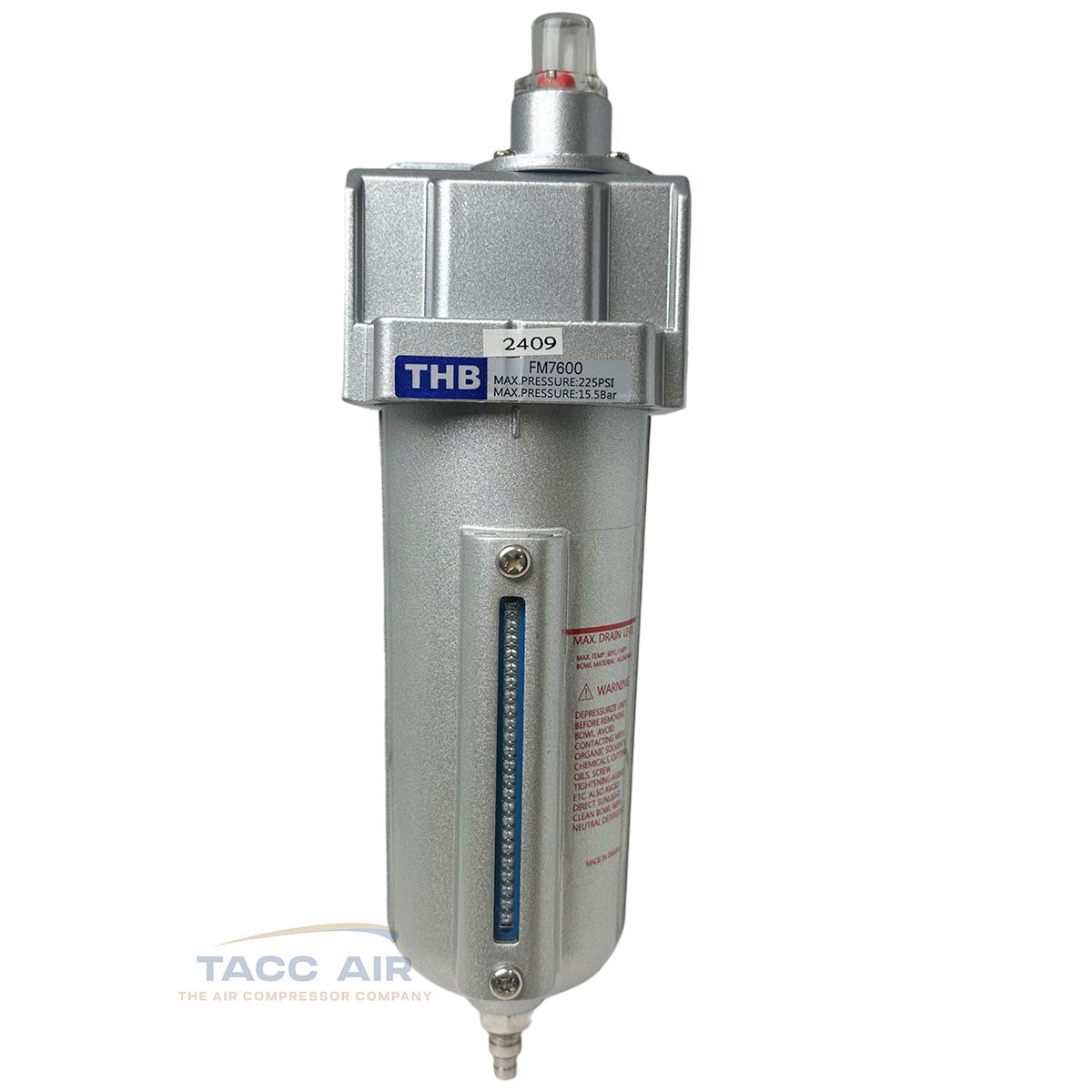

3/4" Heavy Duty Coalescing Filter System – 0.01 Micron

This industrial-grade 3/4" coalescing filter is designed to effectively remove 99.98% of oil, oil aerosols, moisture, and fine contaminants down to 0.01 microns from your compressed air lines — making it essential for applications like painting, sandblasting, and other high-precision air tool operations.

Key Features:

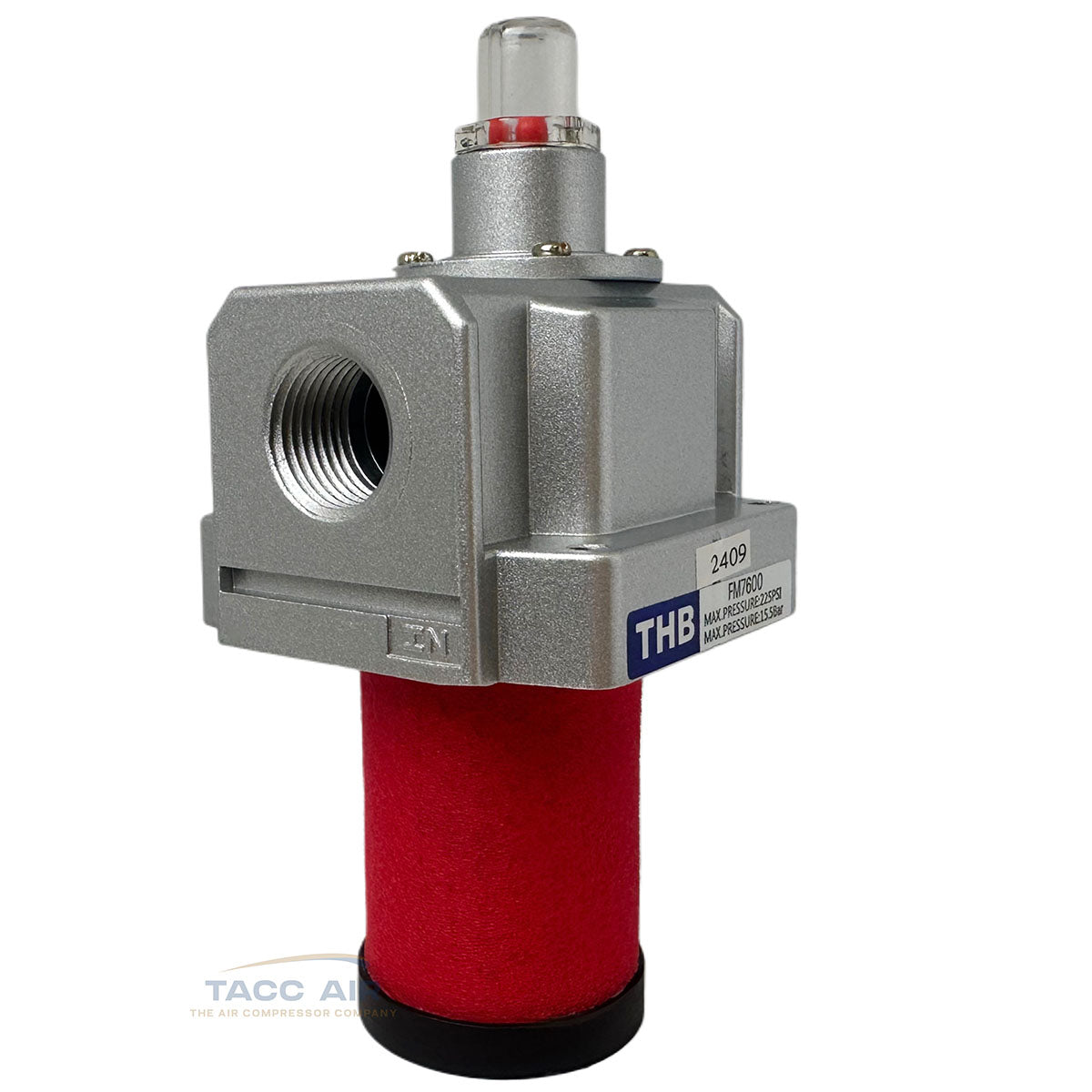

• 3/4" NPT Inlet & Outlet Ports (Note: 3/4" NPT measures approximately 1" in diameter)

• Up To 140 SCFM Maximum Airflow

• Maximum Input Pressure: 225 PSI | Maximum Output Pressure: 215 PSI

• 0.01 Micron Filtration Efficiency – captures moisture, oil, and vapor with exceptional precision

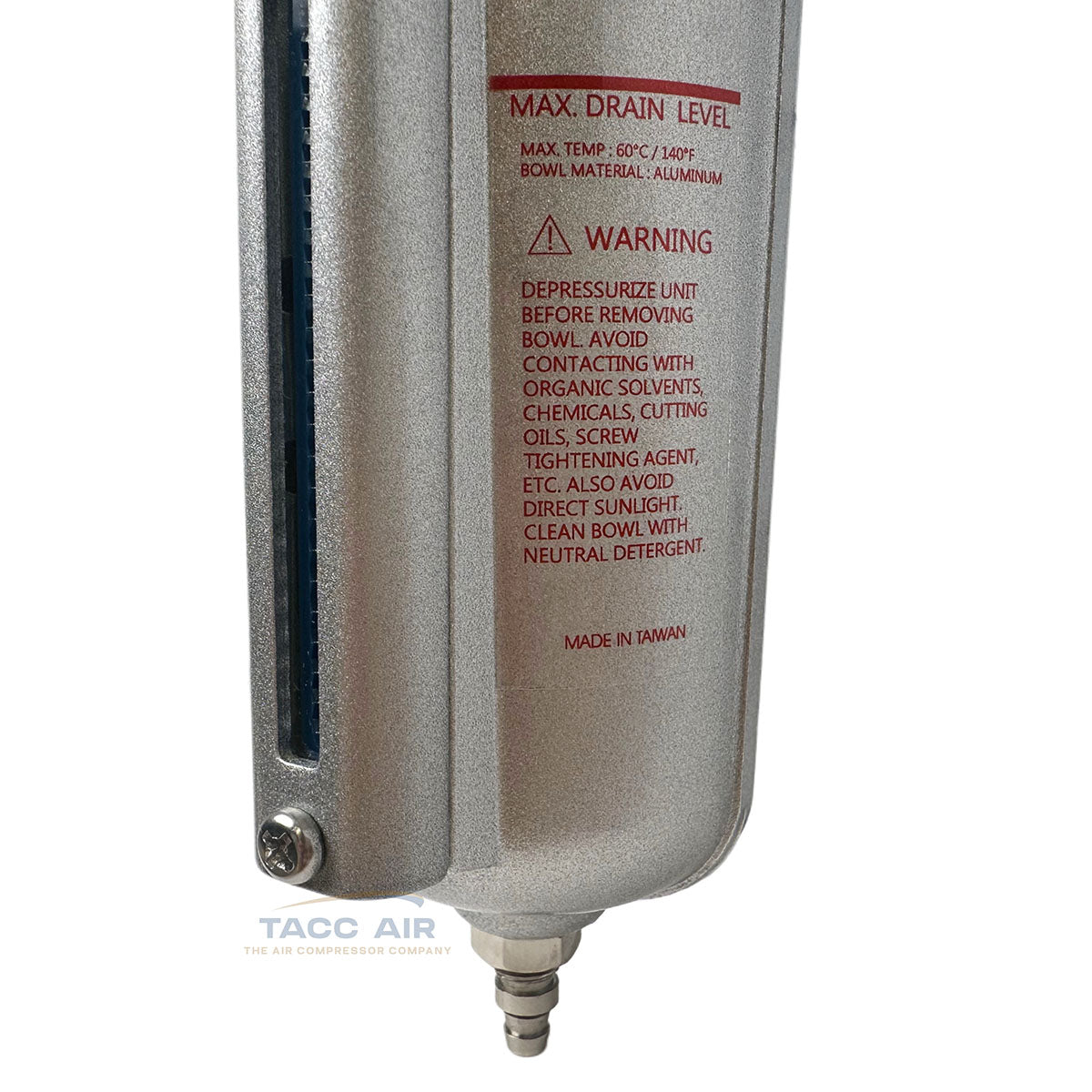

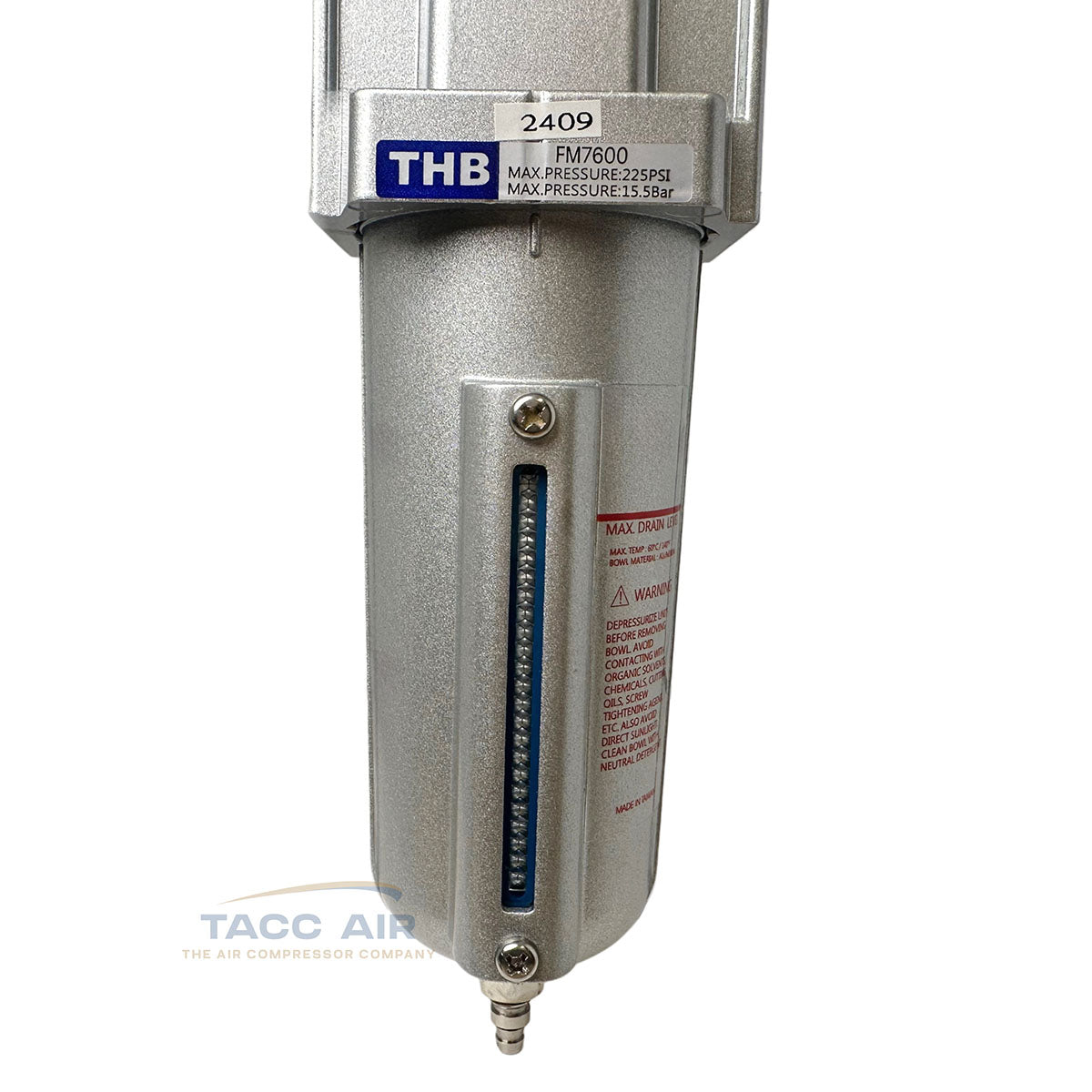

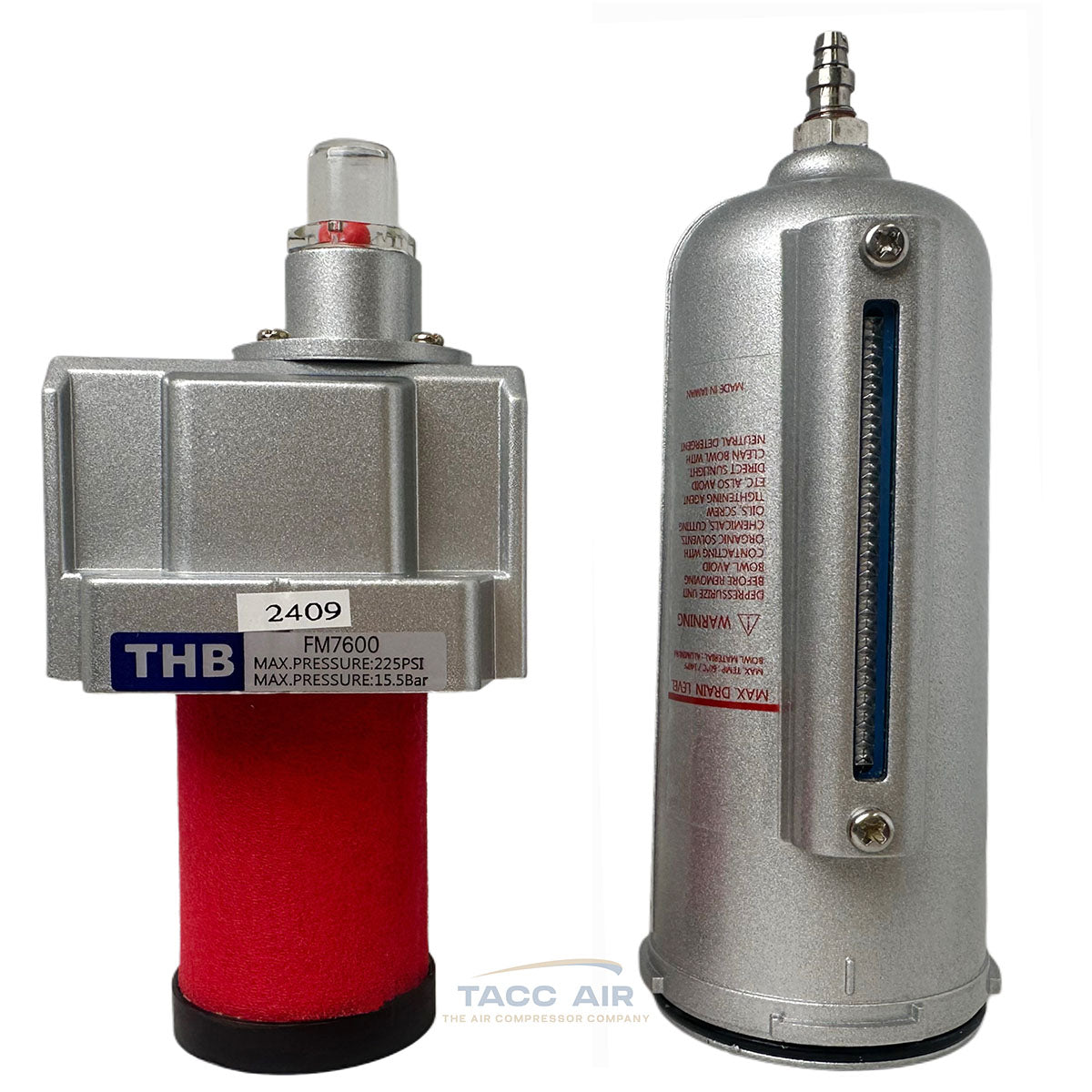

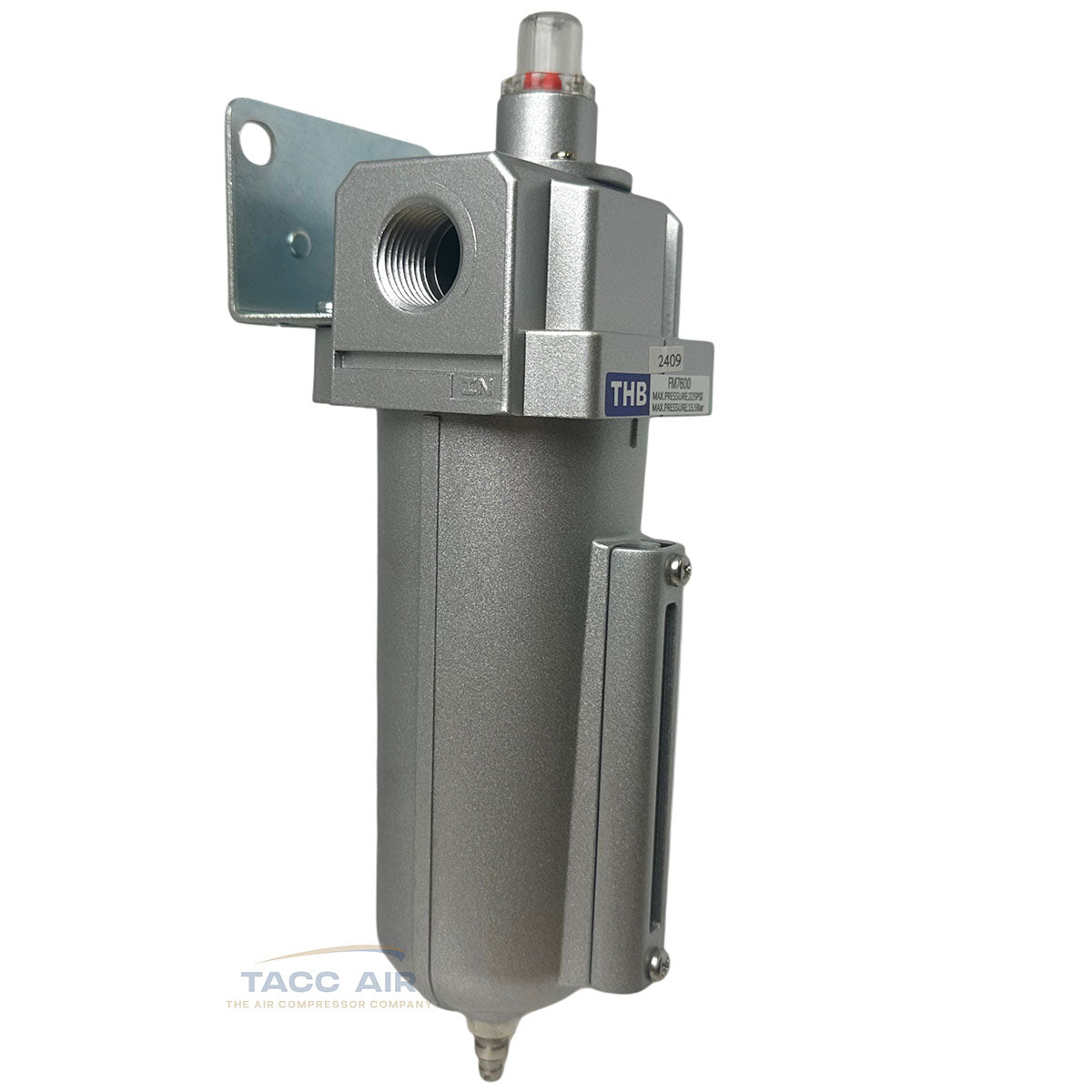

• Durable Metal Bowl with visible sight glass for monitoring oil and liquid levels

• 2.7 oz. Bowl Capacity

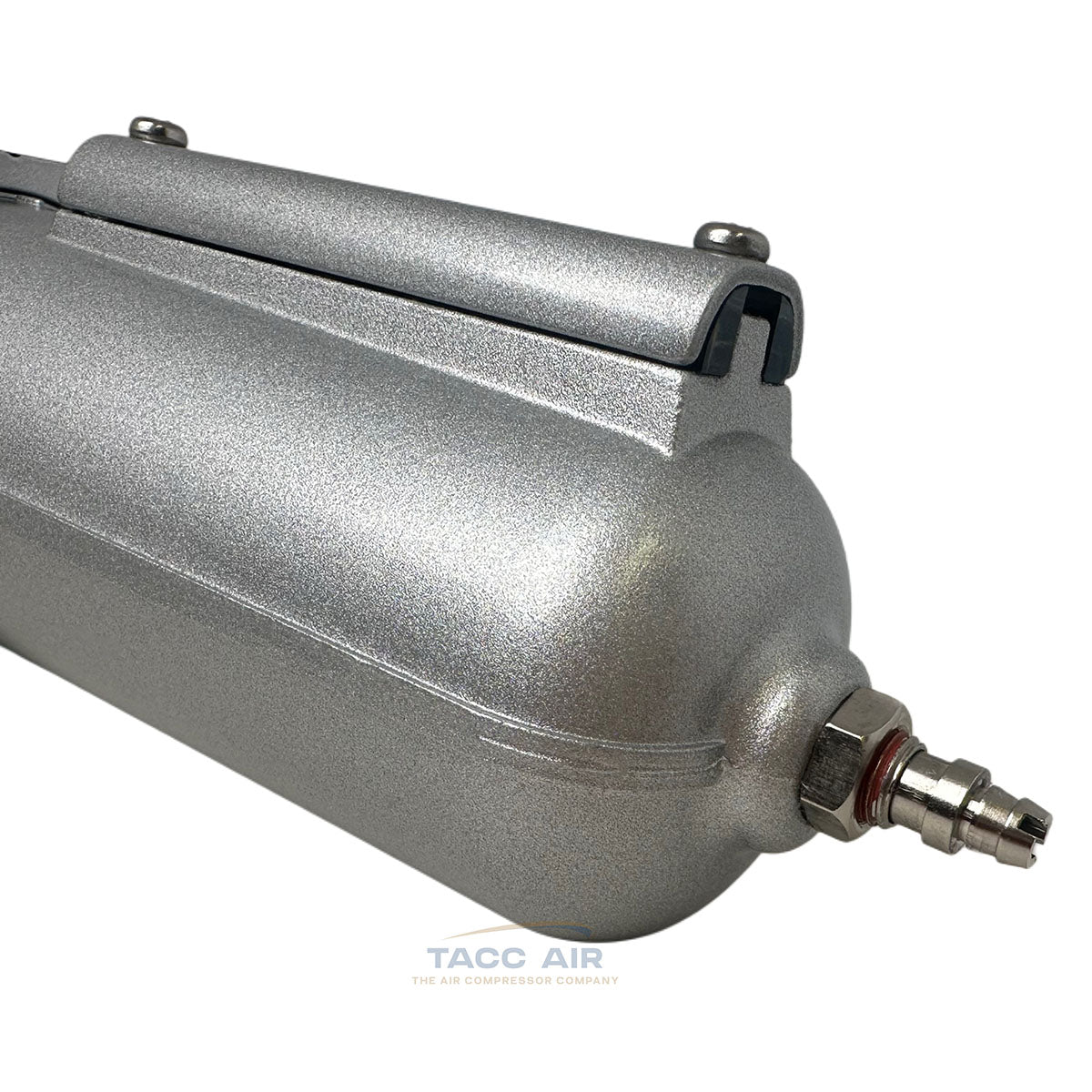

• Manual Push-Button Drain Valve for easy maintenance (Hose barb on drain so a hose can be attached if needed to drain moisture to a defined location)

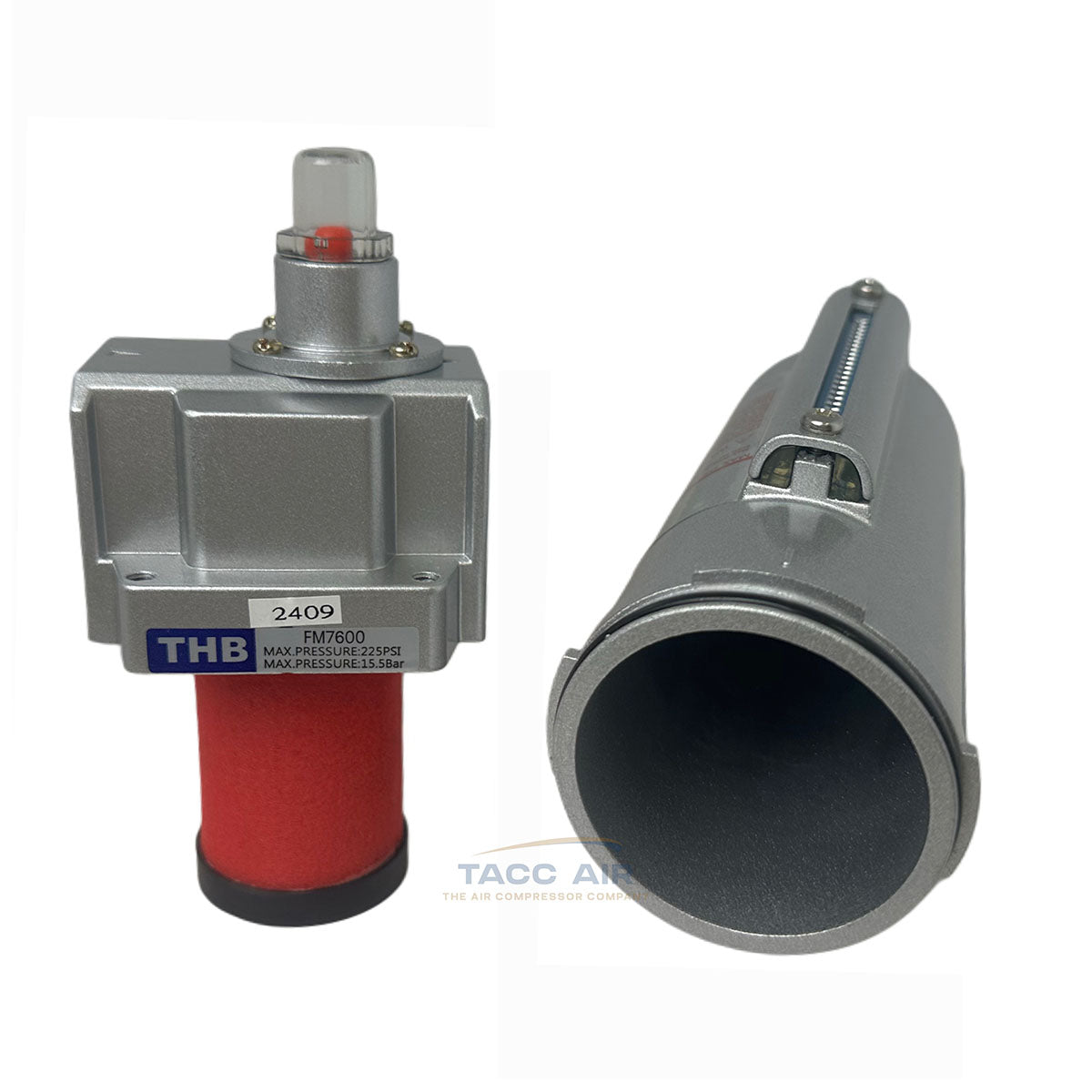

• Pop-Up Red Indicator alerts you when the filter element needs replacing (Replacement Filter Part Number FM7607)

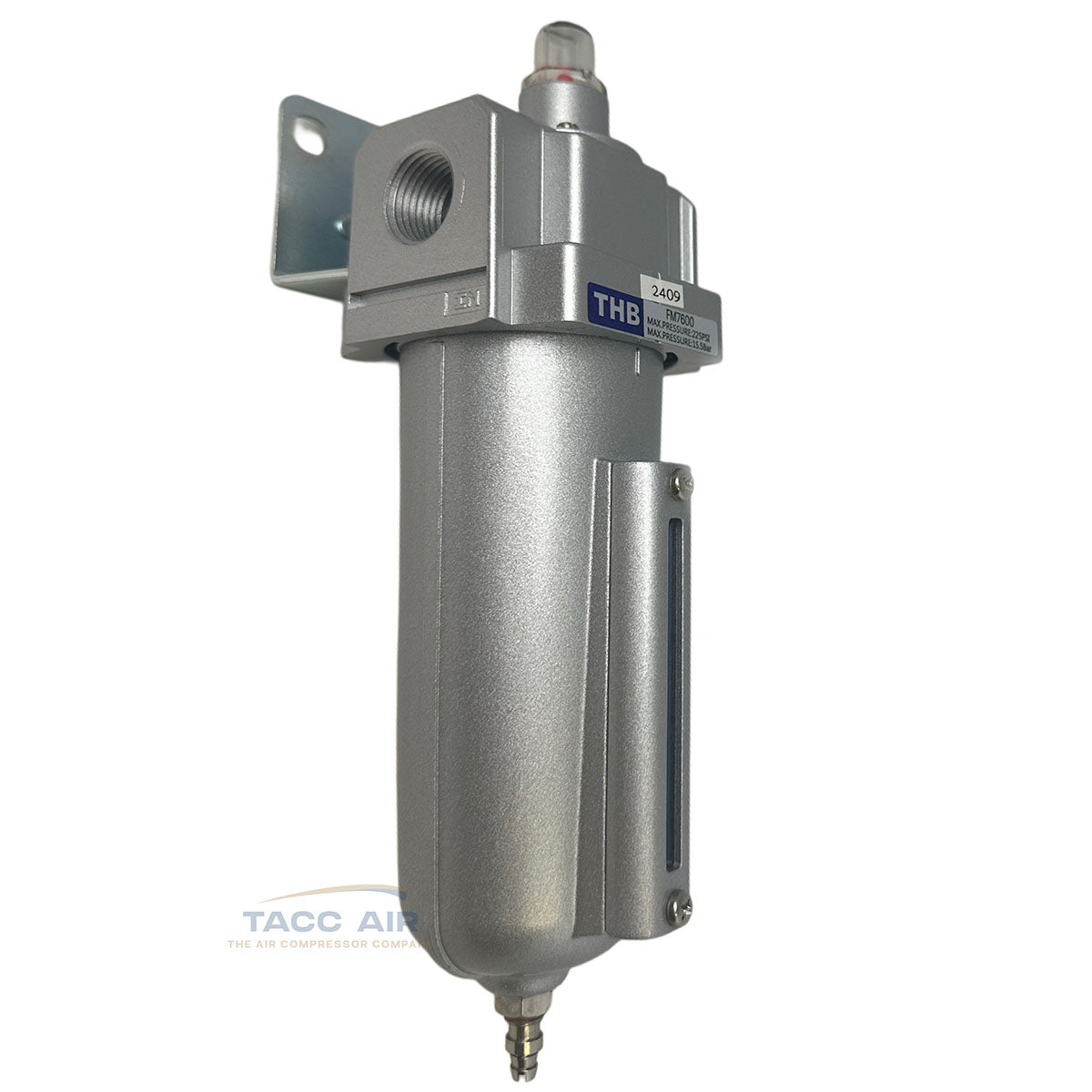

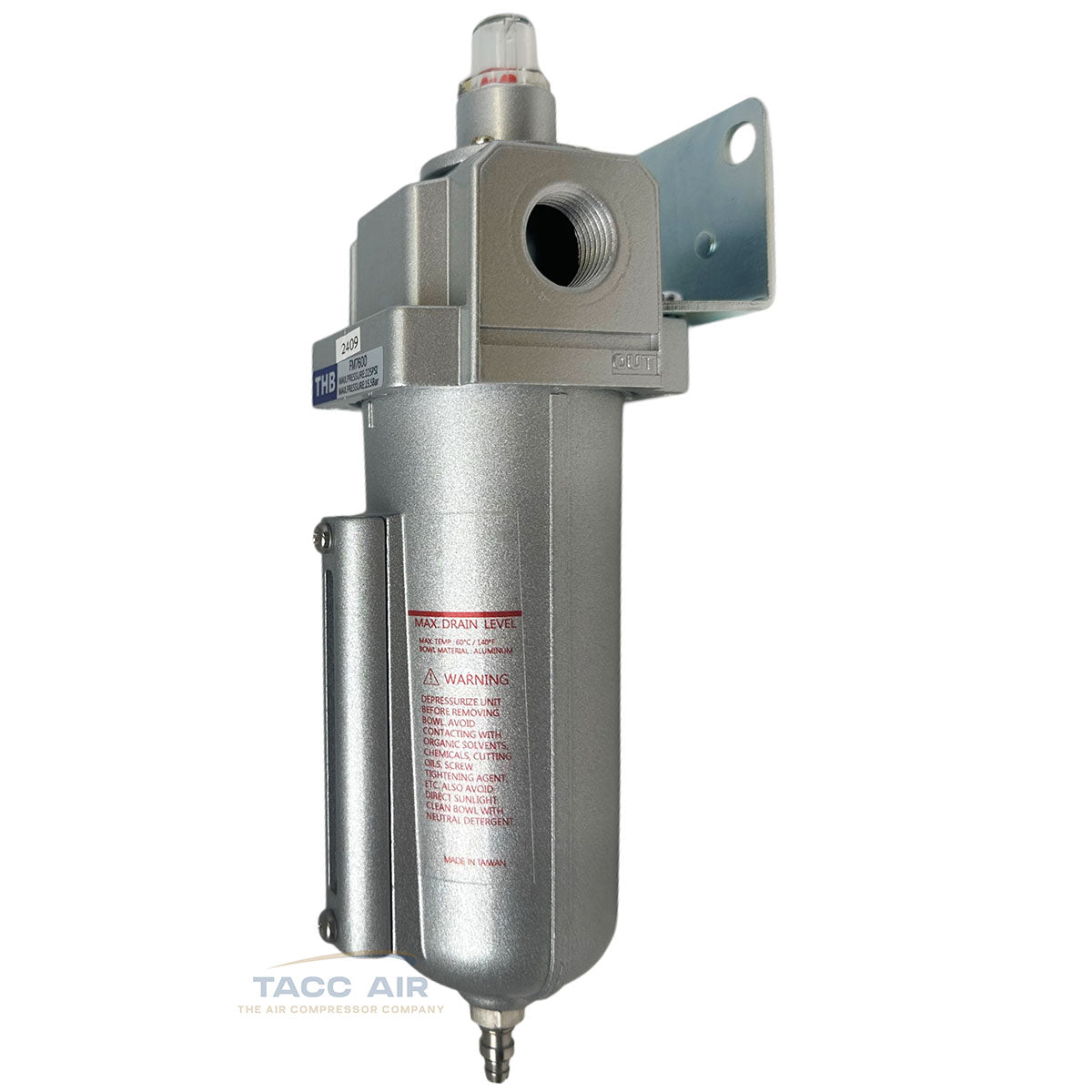

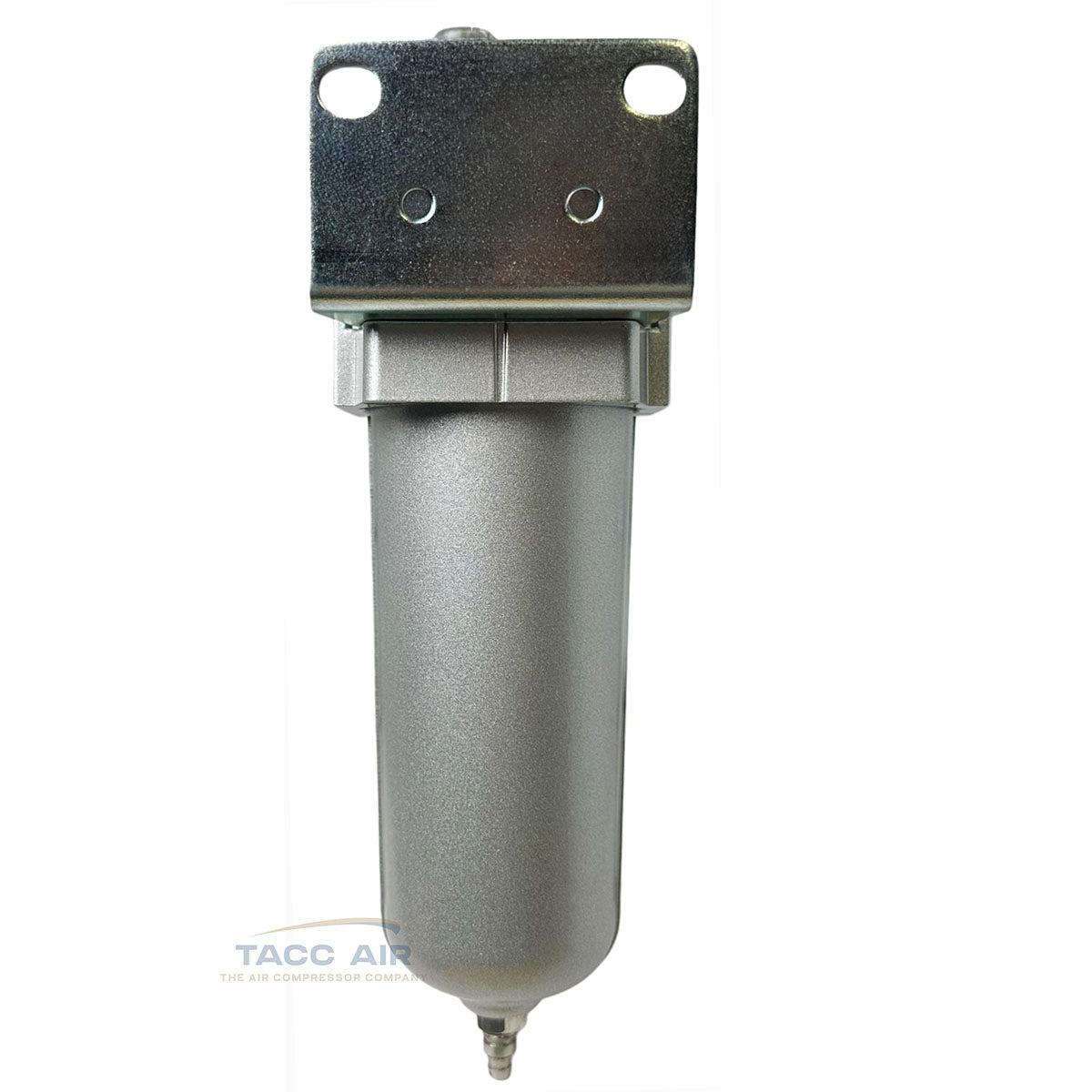

• Wall Mounting Bracket Included for secure installation
