3 HP Electric Motor 3450 RPM 56 Frame 1 Phase 5/8" Shaft 230V 3450 RPM Compressor Duty
3 HP Electric Motor 3450 RPM 56 Frame 1 Phase 5/8" Shaft 230V 3450 RPM Compressor Duty

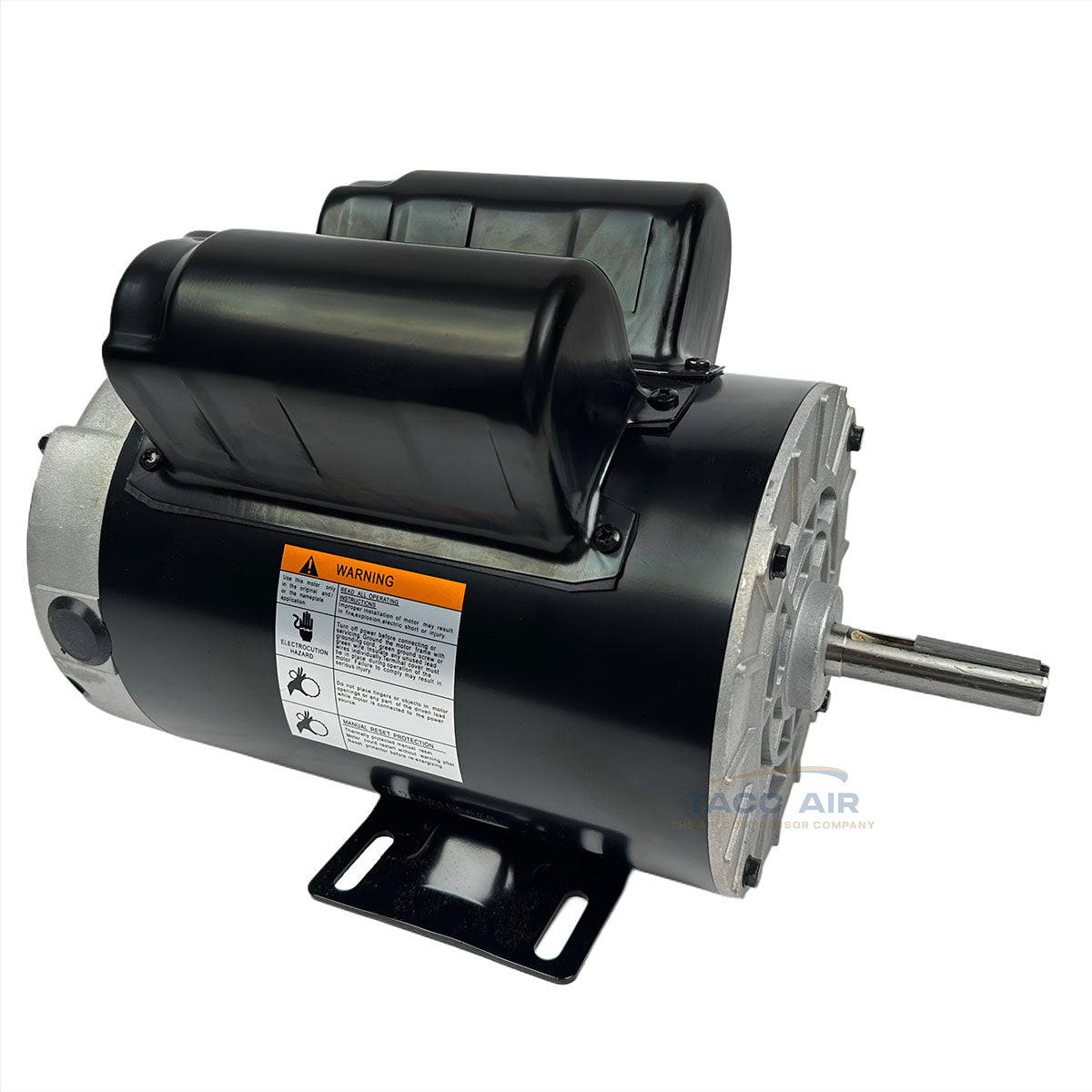

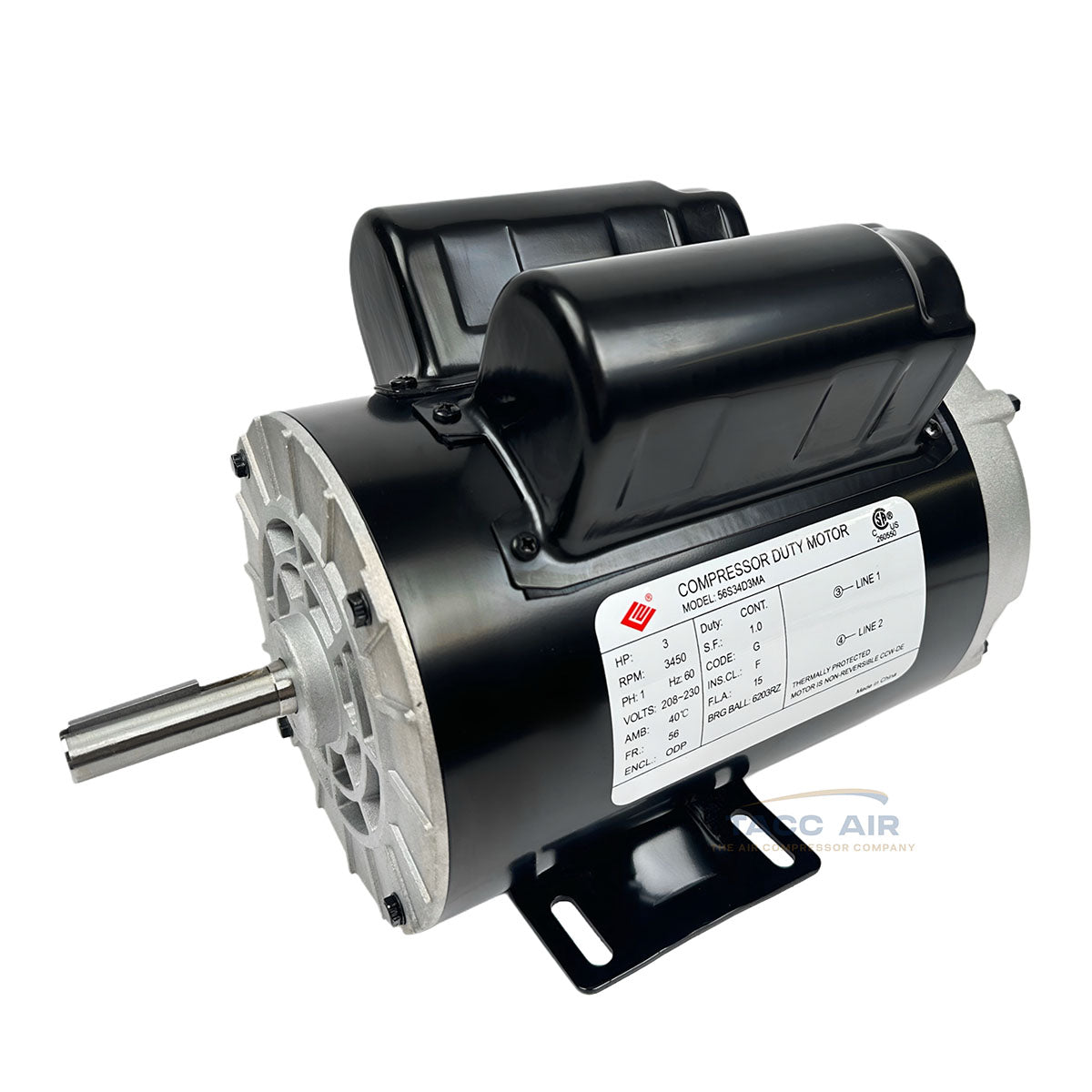

3 HP Electric Motor 3450 RPM 56 Frame 5/8" Shaft Compressor Duty 230V
Product Description:
Replacement 3 HP Electric Compressor Duty Motor—purpose-built to handle the intense start-up demands and heavy-duty cycle of air compressor systems. This high-performance motor is engineered for reliability, durability, and efficiency in demanding industrial environments.
Built with a standard 56 frame, this motor's specifications determine the shaft size, mounting footprint, and overall dimensions. If your current setup uses a 56 frame motor, this unit should bolt on seamlessly for a fast, frustration-free installation.

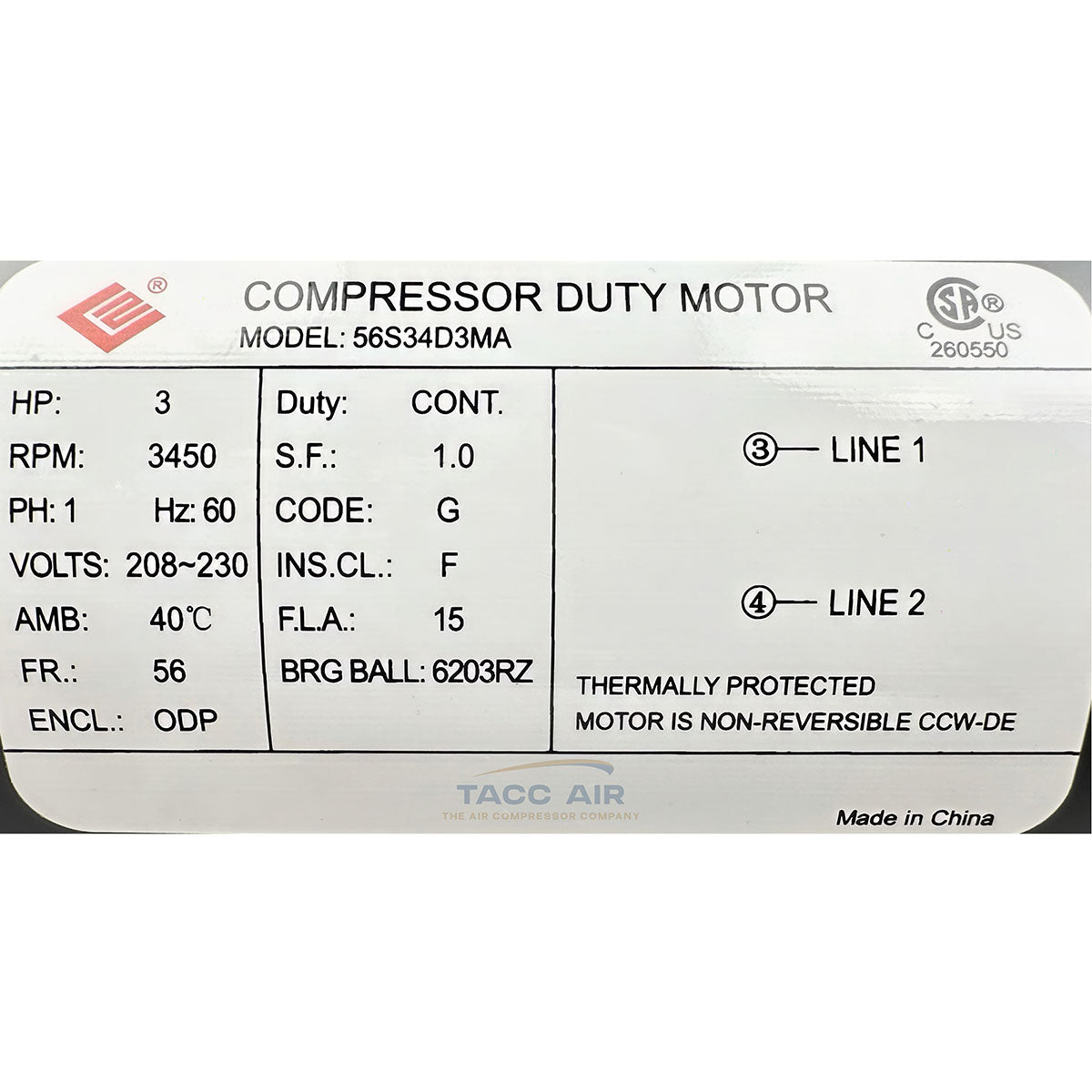

Operating at 3450 RPM, with counter-clockwise rotation when facing the shaft, and a voltage requirement of 230V, this motor is ideal for industrial compressors motor replacement when meeting these specifications. It also includes a manual reset thermal overload protector for added safety, and a clearly printed wiring diagram on the housing for hassle free installation.
Product Details:
Powerful 3 HP Output: Delivers robust and consistent performance at 3450 RPM—perfect for driving air compressors and other high-demand machinery.
Compressor-Duty Construction: Built to endure high torque start-ups and continuous load conditions typical of compressor operations.
Single Phase, 230V Design: Optimized for 230-volt power systems commonly found in commercial and industrial settings.

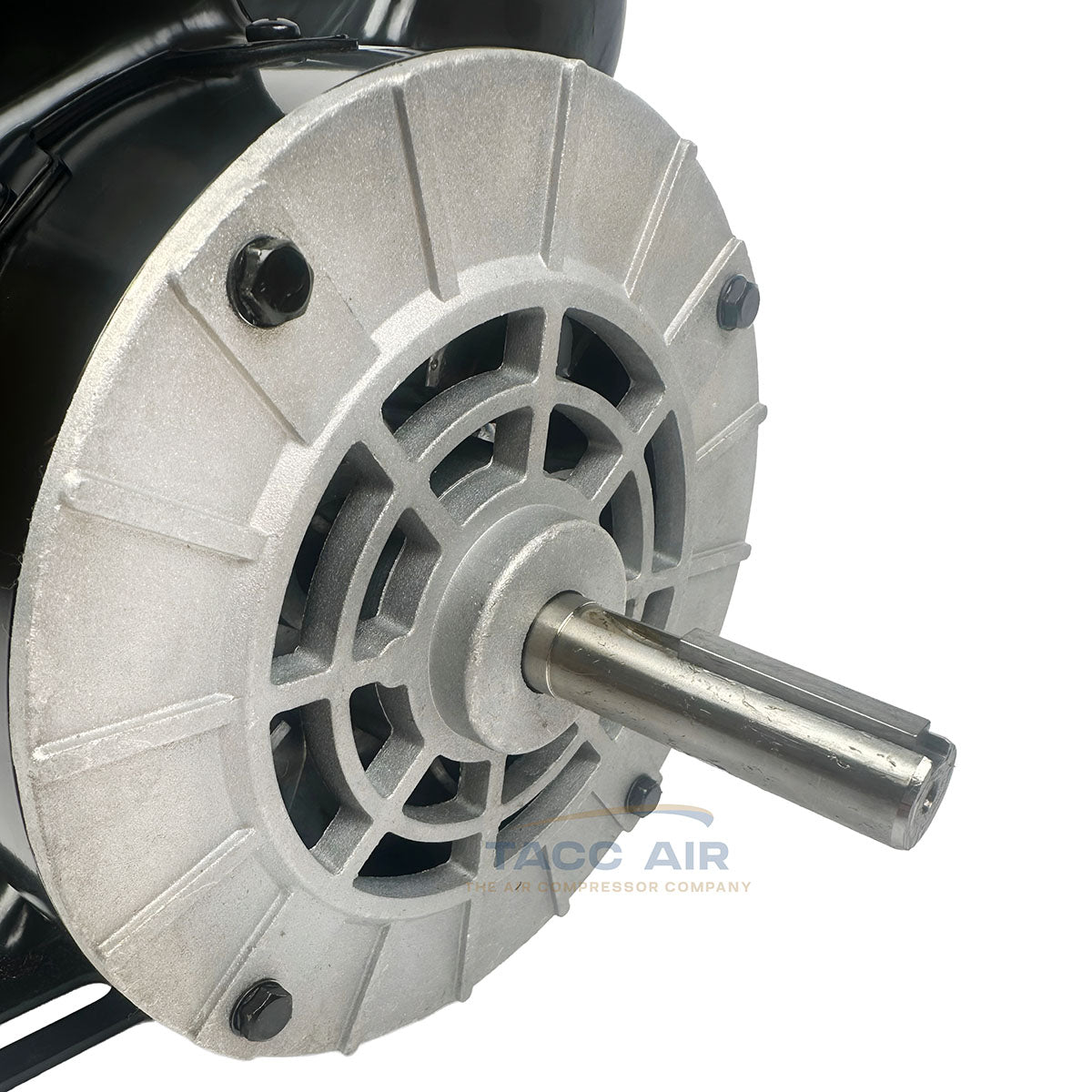

Standard 56 Frame Fit: Equipped with a 5/8” shaft diameter, 3/16” keyway, and 2-3/8" shaft length—designed for universal compatibility with 56 frame compressor mounts.
Non-Reversible with CCW Rotation: Features fixed counter-clockwise rotation (facing shaft)
Built-In Thermal Overload Protection: Manual reset function protects the motor from overheating and ensures safe operation during demanding use.
Efficient, Open Drip Proof Design: ODP housing maintains airflow and motor cooling while keeping the overall size compact—total length with shaft: 13.25”.

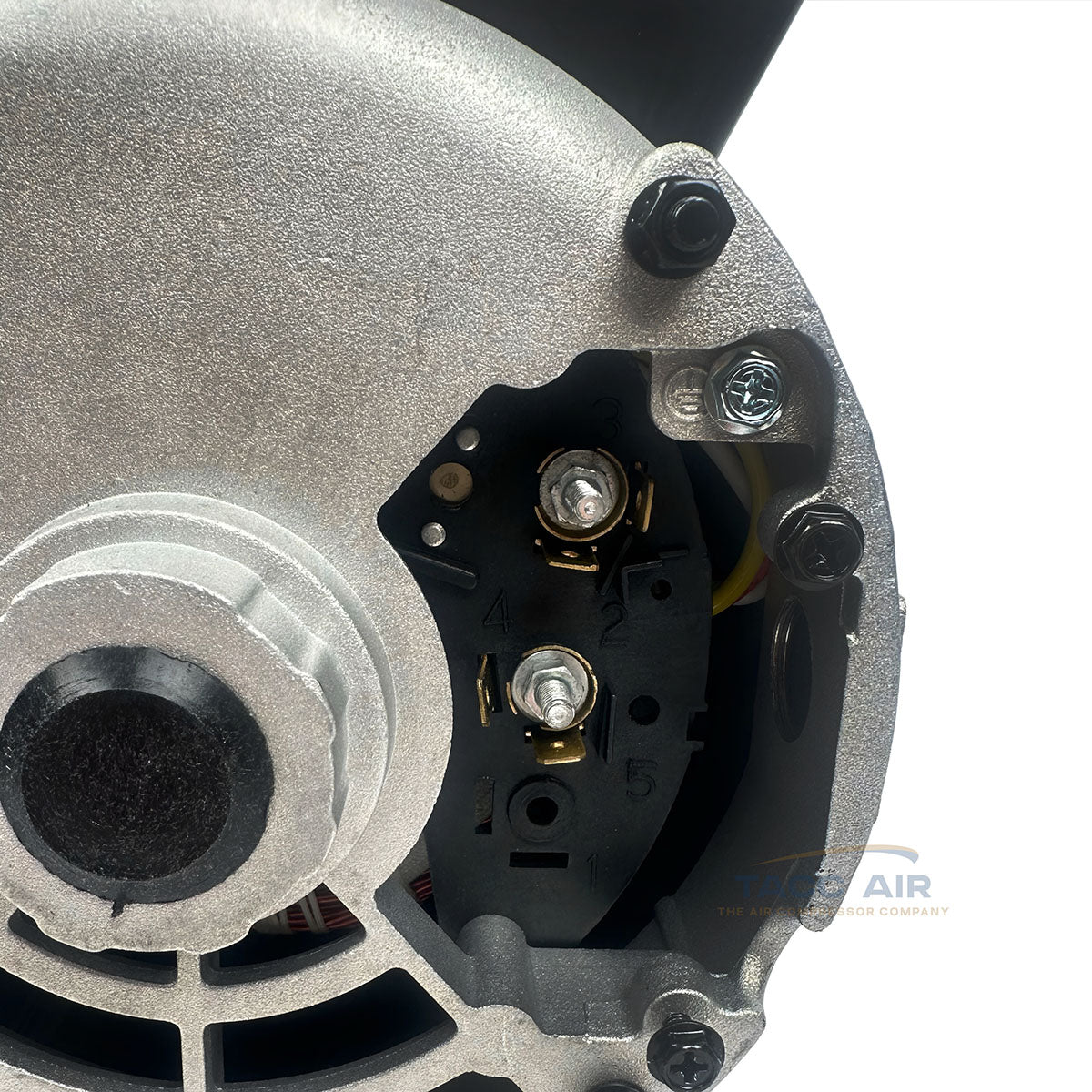

Simple Setup: Includes a clearly labeled wiring diagram on the motor housing for quick and easy electrical connection.
