5 HP Air Compressor Electric Motor 3450 RPM 7/8" Shaft 230 V Single Phase
5 HP Air Compressor Electric Motor 3450 RPM 7/8" Shaft 230 V Single Phase

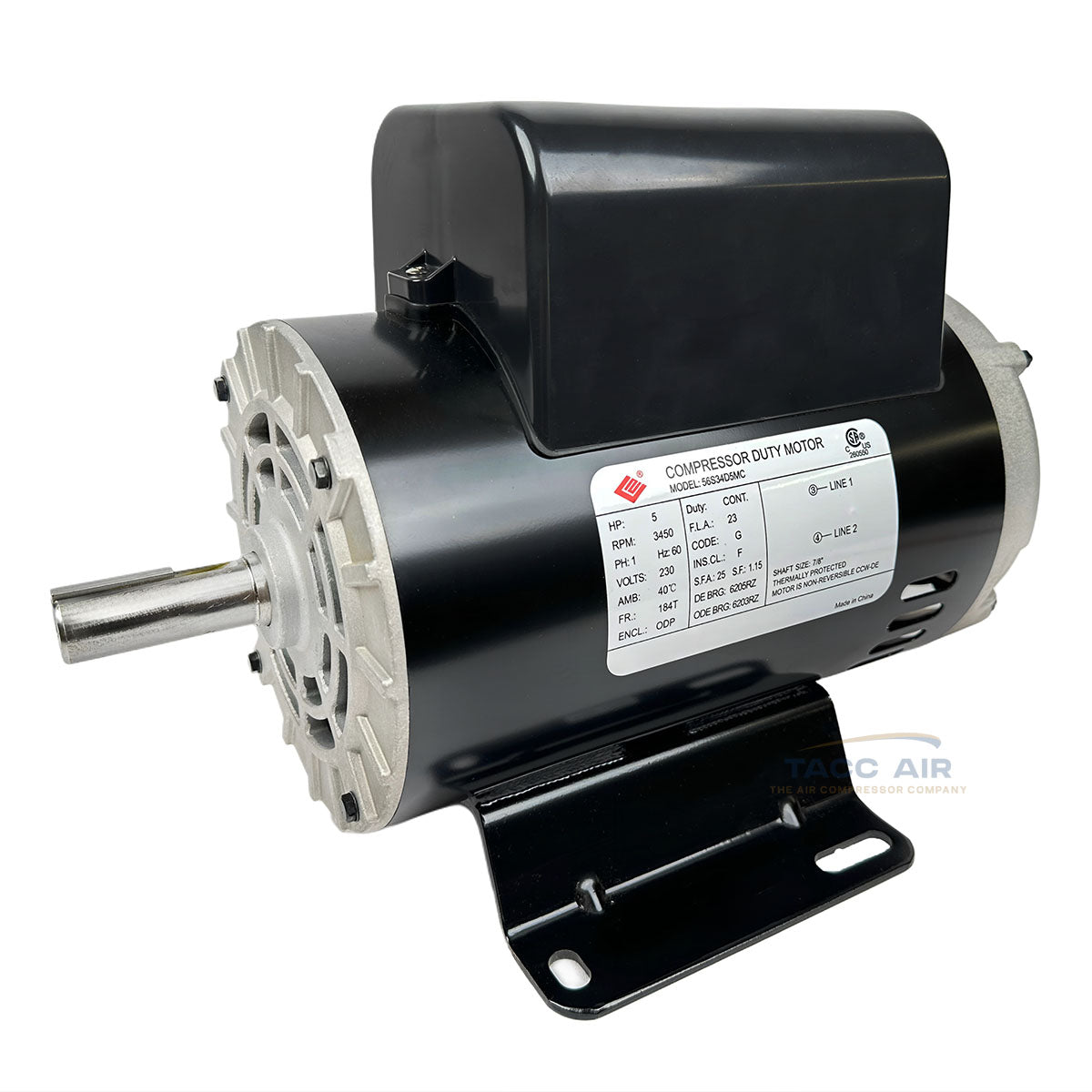

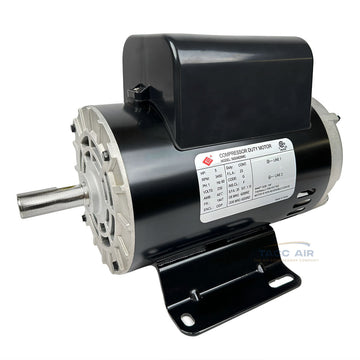

5 HP Electric Motor 3450 RPM Universal Frame 7/8" Shaft Compressor Duty 230V Single Phase

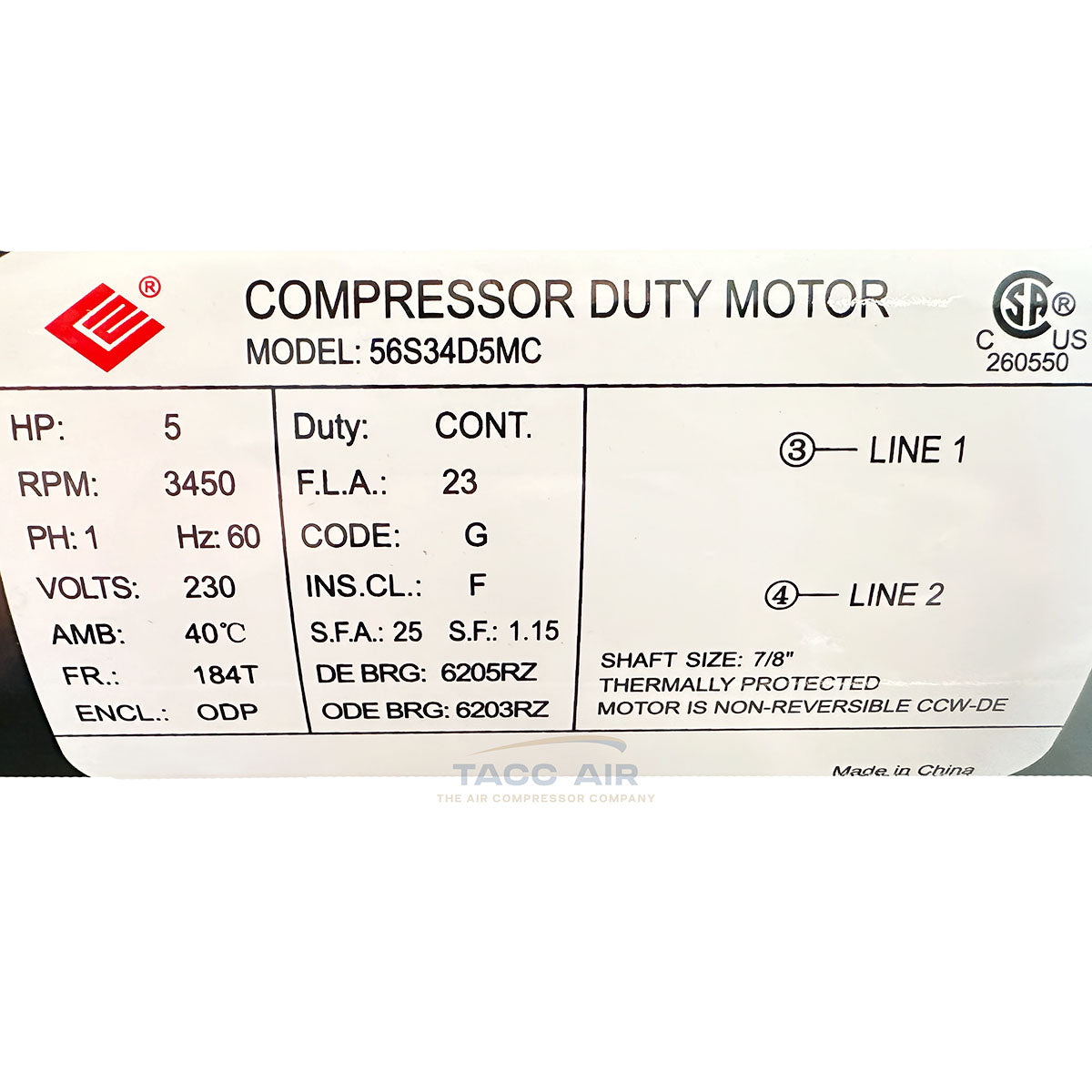

Note: This motor is marked 184T frame on the tag but is a universally designed motor and will work with all the frame sizes listed below.
Product Description:
Replacement 5 HP Electric Compressor Duty Motor—specifically engineered to handle the heavy start-up load and continuous duty cycle of high-powered air compressors. This motor isn’t just compatible—it’s made to work hard, exactly where you need it.
Built with a 56HZ frame, this motor ensures that critical dimensions like shaft size, motor body, and mounting pattern align with your existing compressor setup. It is also compatible with 56Y and 182/4Y frame applications, offering added flexibility for a broader range of air compressor systems. If your current system uses a 56HZ, 56Y, or 182/4Y frame motor, you can expect a seamless installation without any rework or guesswork. Just bolt it on and get back to business. (Note: On 182/4Y Frame motors not always do they have a 7/8" diameter shaft make sure your shaft diameter is 7/8" for exact fitment.)
Delivering 3450 RPM of power, counter-clockwise shaft rotation, and single-phase operation at 230V, this motor is ideal for a wide range of compressor systems and industrial applications. It features thermal overload protection and a rugged open drip proof (ODP) enclosure to keep it cool and efficient under tough conditions.
Product Details:
Heavy-Duty 5 HP Performance: Delivers consistent high-output power at 3450 RPM—perfect for powering large air compressors and demanding industrial systems.
Compressor-Duty Construction: Designed to handle the high starting torque required by air compressors, ensuring dependable long-term use.
Single Phase, 230V Operation: Optimized for 230-volt single-phase systems with a 23-amp draw—ideal for commercial workshops and job sites.

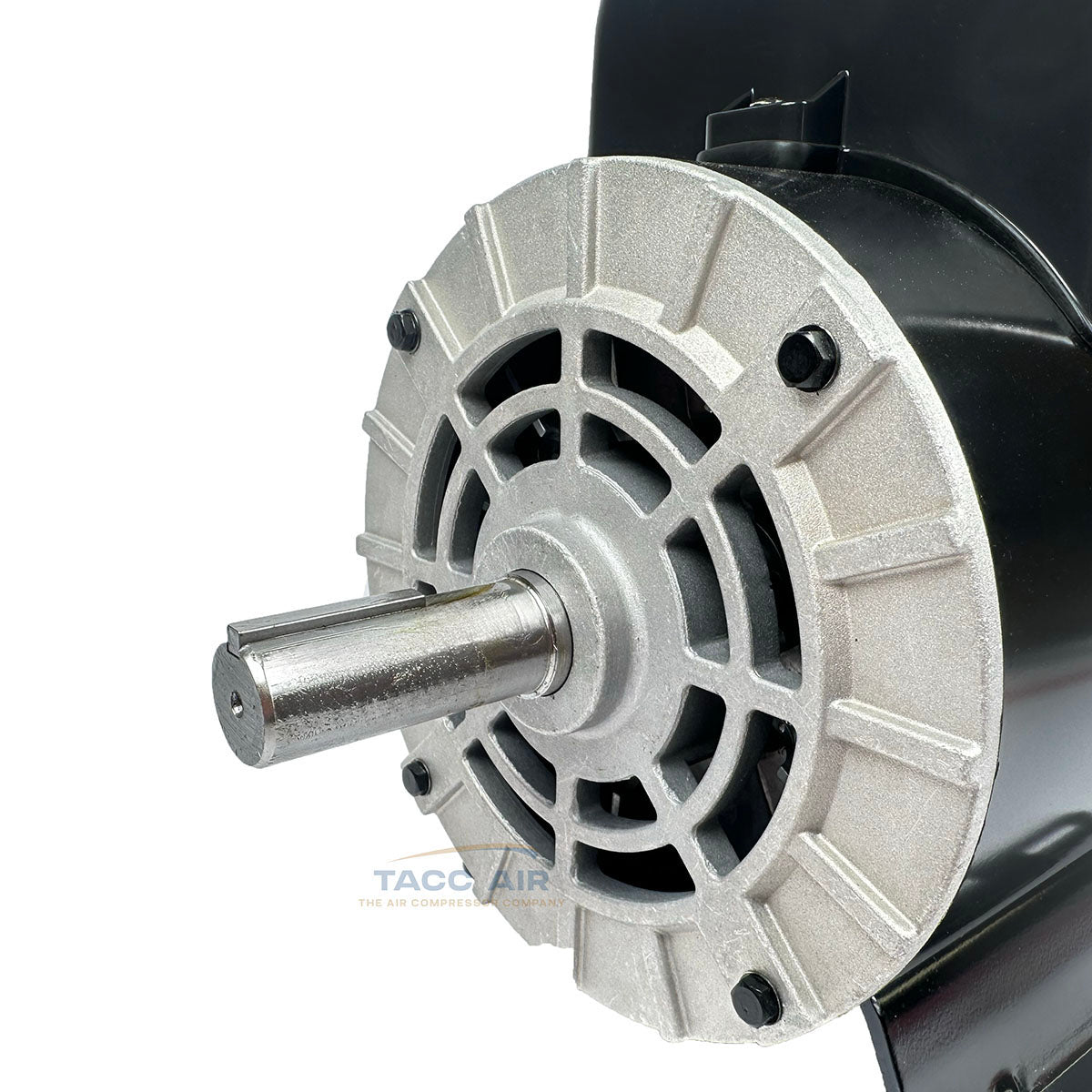

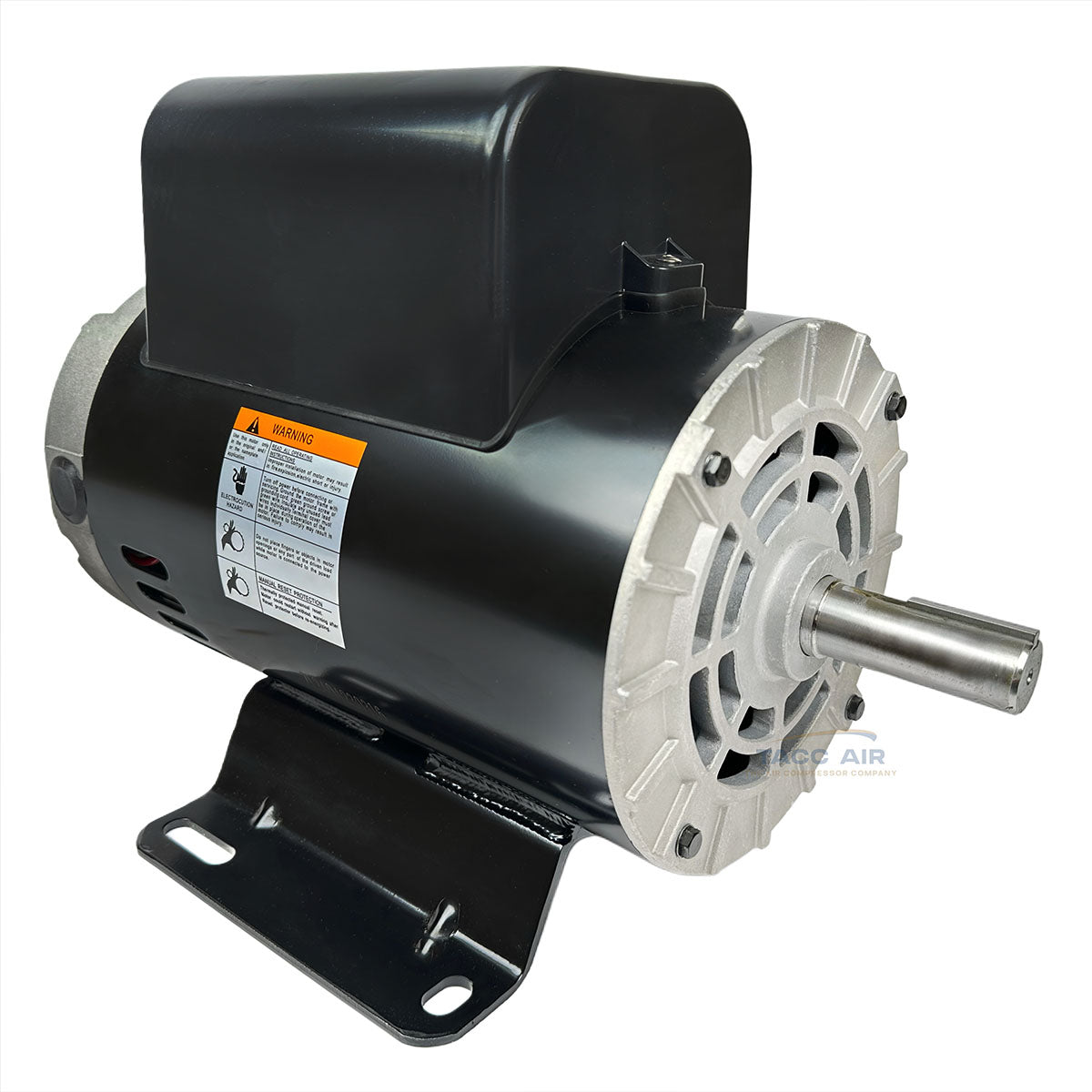

Precision 56HZ Frame: Equipped with a 7/8” shaft diameter, 2.24" shaft length, and standard mounting pattern—compatible with 56HZ, 56Y, and 182/4Y frame setups for easy integration with a wide range of compressors.
Non-Reversible Motor with CCW Rotation: Turns counter-clockwise when viewed from the shaft end, making it the right fit for specific compressor pump systems.

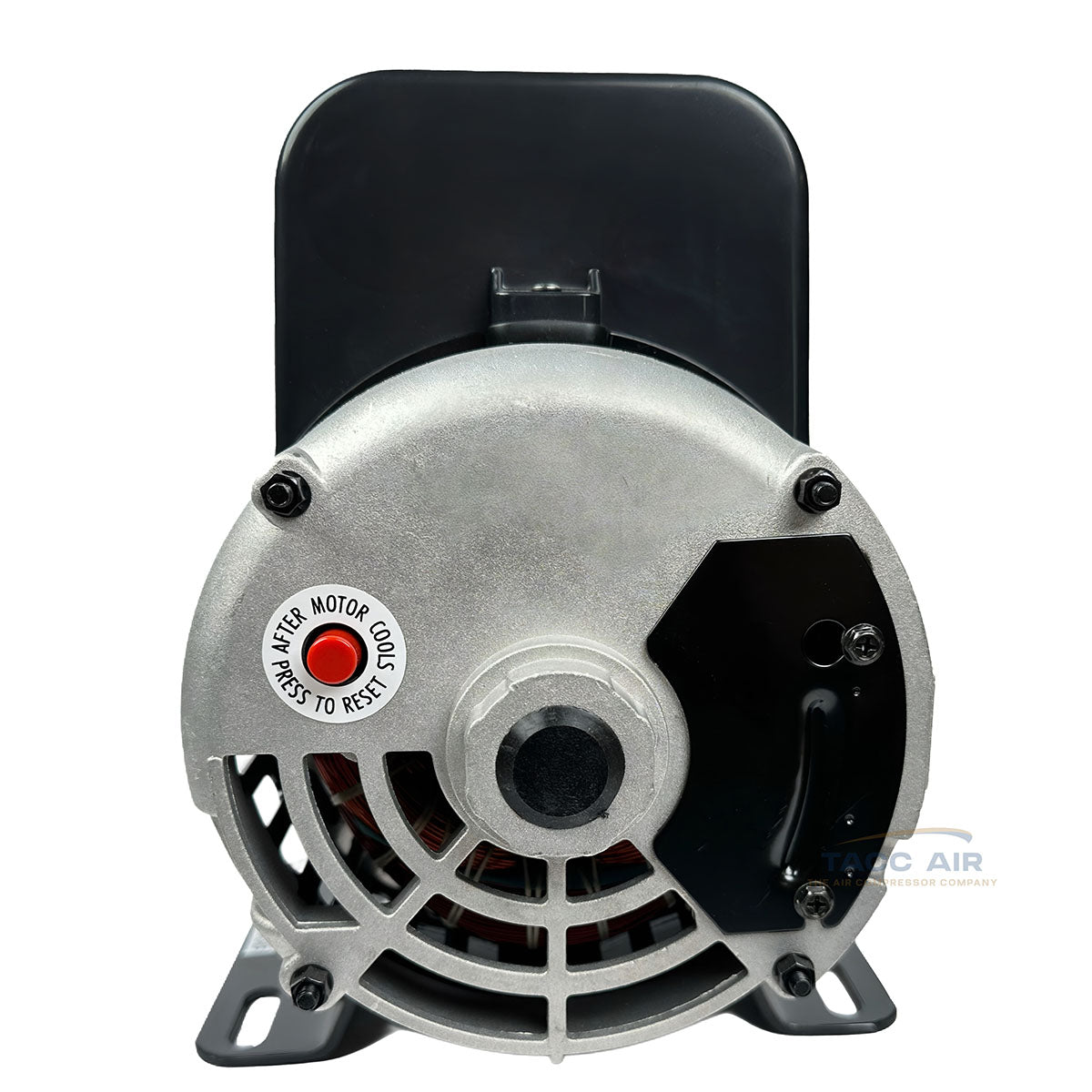

Thermal Overload Protection: Built-in protection system automatically shuts the motor down in case of overheating, with manual reset for added safety.
Rugged & Reliable: Open Drip Proof (ODP) housing offers efficient air circulation to keep the motor cool while delivering a compact footprint—approx. 50 lbs total weight.

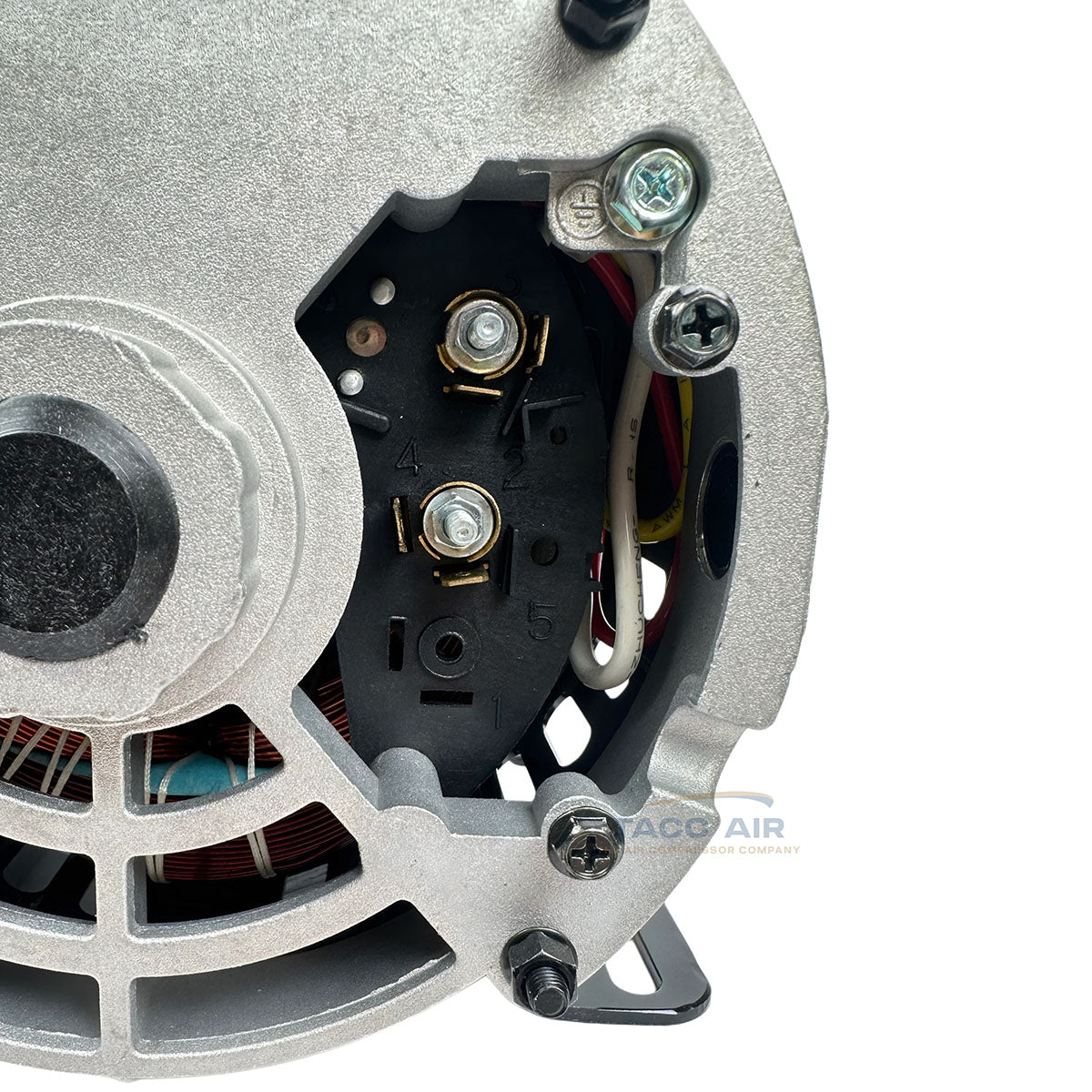

Ready for Installation: Wiring diagram clearly displayed on the motor housing for fast, no-fuss electrical hookup.
Front to back bolt spacing: 5-1/2" to 4-3/8" Adjustable with rear slotted cutouts.
Side To Side Bolt Spacing: 6-7/8" to 7-1/2" Adjustable slotted cutouts.
