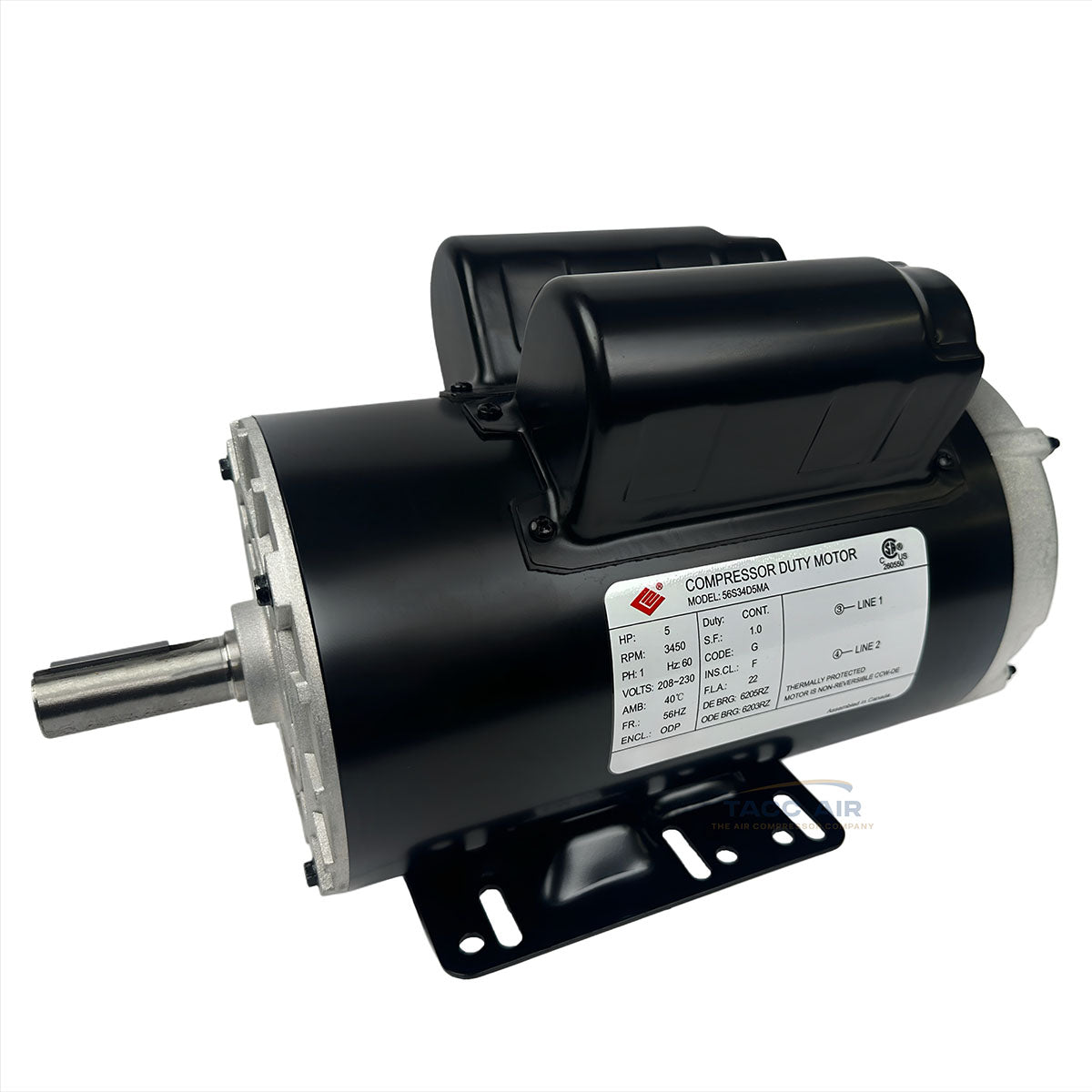

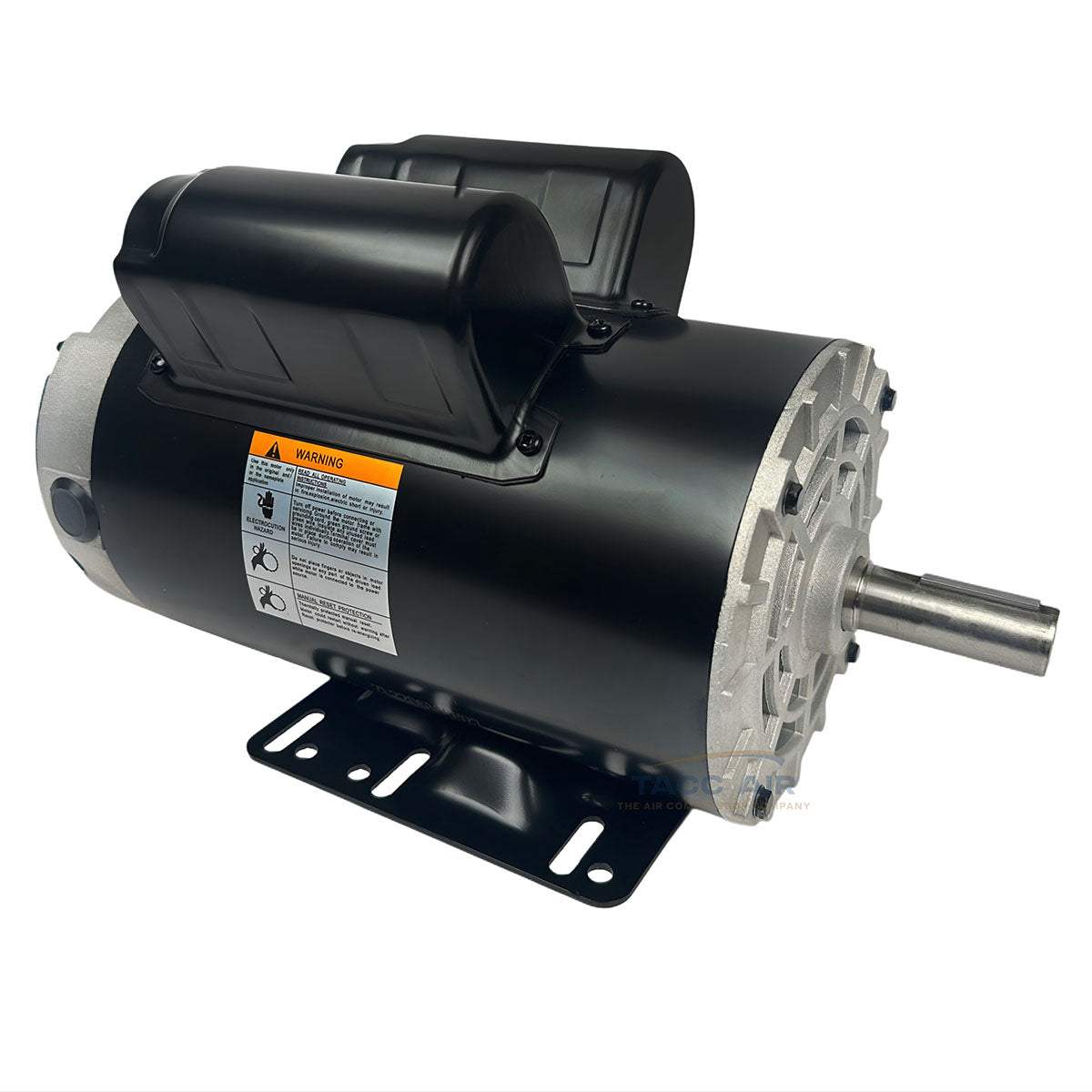

5 HP Compressor Duty Electric Motor 1 Phase 3450 RPM 7/8" Shaft 56 Frame

5 HP Electric Motor 3450 RPM 56 Frame 230V Single Phase Compressor Duty

Product Description:

Brand new 5 HP electric motor designed for compressor duty, engineered to handle the high start-up load demands of air compressor pumps and other heavy-duty applications. This motor features a robust 56 frame and delivers powerful 3450 RPM performance on standard 230V single-phase power.

With a 7/8" diameter shaft and non-reversible, counter-clockwise rotation (facing the shaft), this motor is a reliable replacement option for various compressor systems. A wiring diagram is clearly labeled on the motor housing for easy installation and reference. Built with an Open Drip Proof (ODP) enclosure and thermal protection, this motor is ideal for well-ventilated areas where durability and continuous operation are required.

Product Details:

• High-Performance 5 HP Output: Provides consistent 3450 RPM speed for demanding compressor and general-purpose applications.

• Compressor-Duty Design: Built for continuous operation and heavy start-up torque, perfect for air compressors and other industrial equipment.

• 230V Single Phase Power: Standard voltage compatibility with a full load draw of 22 amps.

• Precision 56 Frame Sizing: Equipped with a 7/8” shaft diameter, 2-3/8” shaft length, and 3/16” keyway

• Non-Reversible CCW Rotation: Fixed counter-clockwise rotation when facing the shaft.

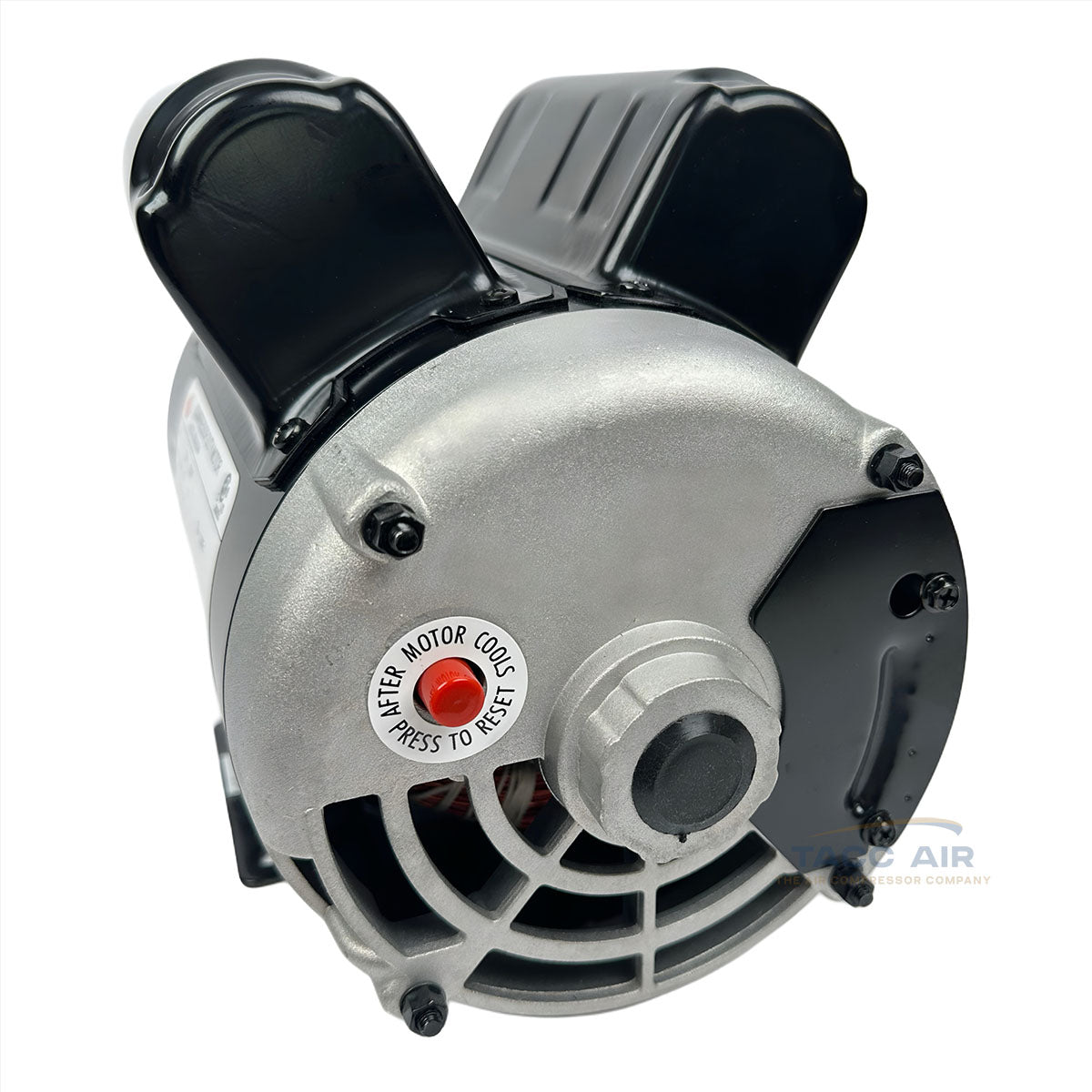

• Thermal Overload Protection: Manual reset feature helps prevent overheating and extends motor life.

• Open Drip Proof (ODP) Enclosure: Promotes air circulation for effective cooling in well-ventilated environments.

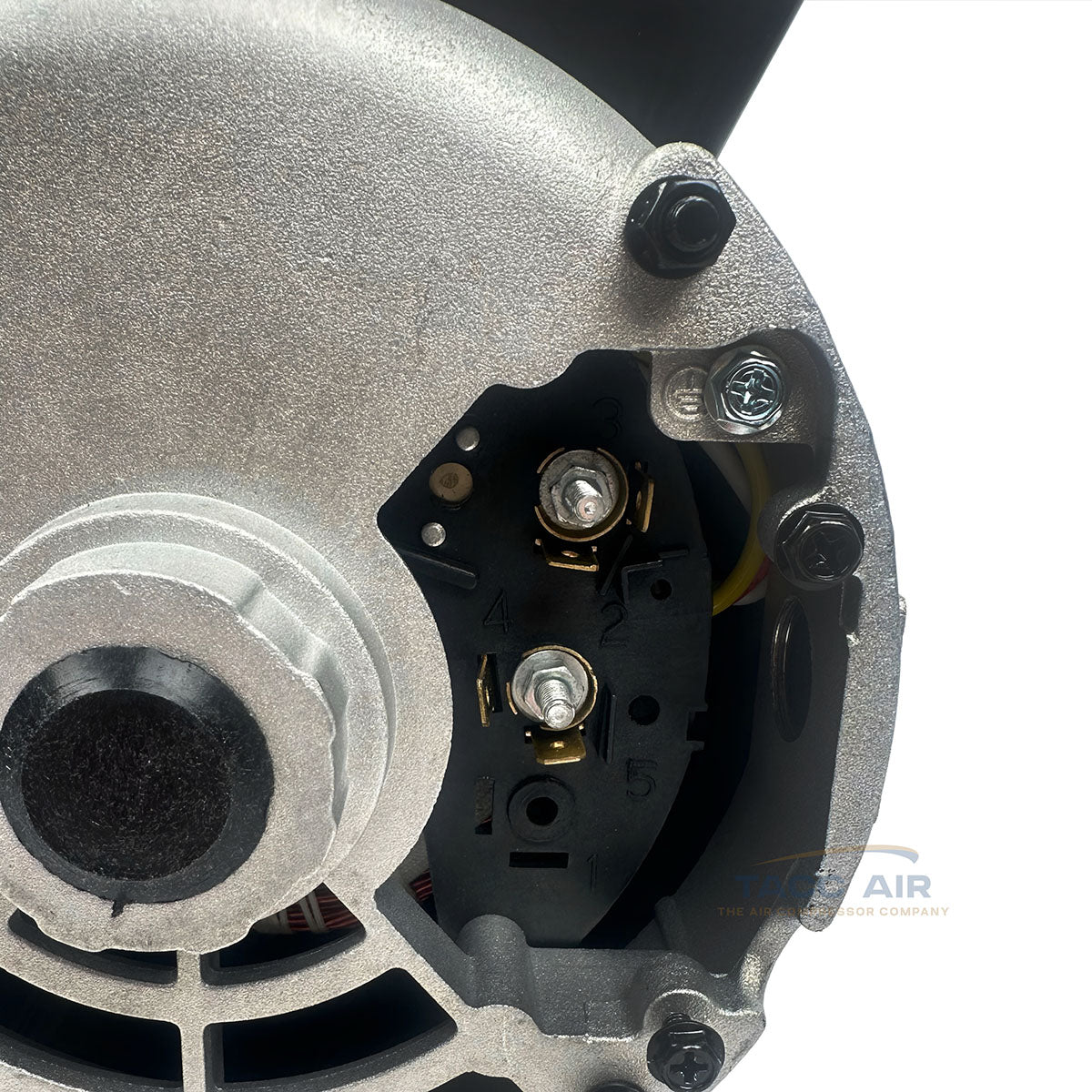

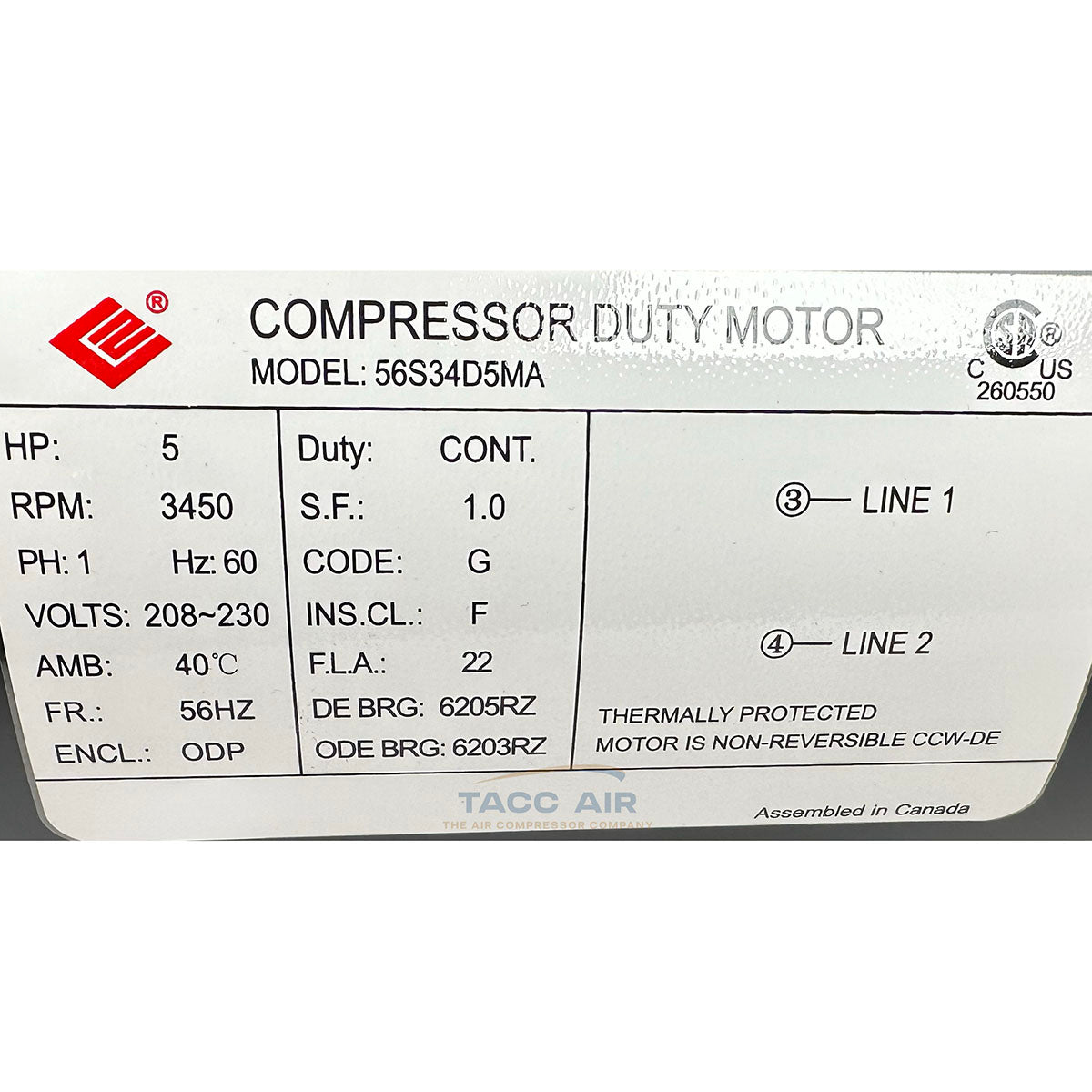

• Wiring Diagram On Motor: Conveniently located for quick reference during setup.

Specifications:

• Power: 5 HP

• Voltage: 230V

• Amperage: 22 Amps

• Frequency: 60 Hz

• Frame: 56

• Shaft Diameter: 7/8"

• Shaft Length: 2-3/8"

• Keyway: 3/16" standard

• Rotation: CCW (non-reversible, facing shaft)

• Duty: Continuous Compressor

• Service Factor: 1.0

• Insulation Class: F

• Ambient Temperature Rating: 40°C

• Enclosure: Open Drip Proof (ODP)

• Thermal Protection: Manual reset

• Dimensions:

  • Length (w/o shaft): 12.5"

  • Length (with shaft): 14.85"

  • Height: 8.65"

  • Width: 6.6"

  • Weight: 51 lbs
