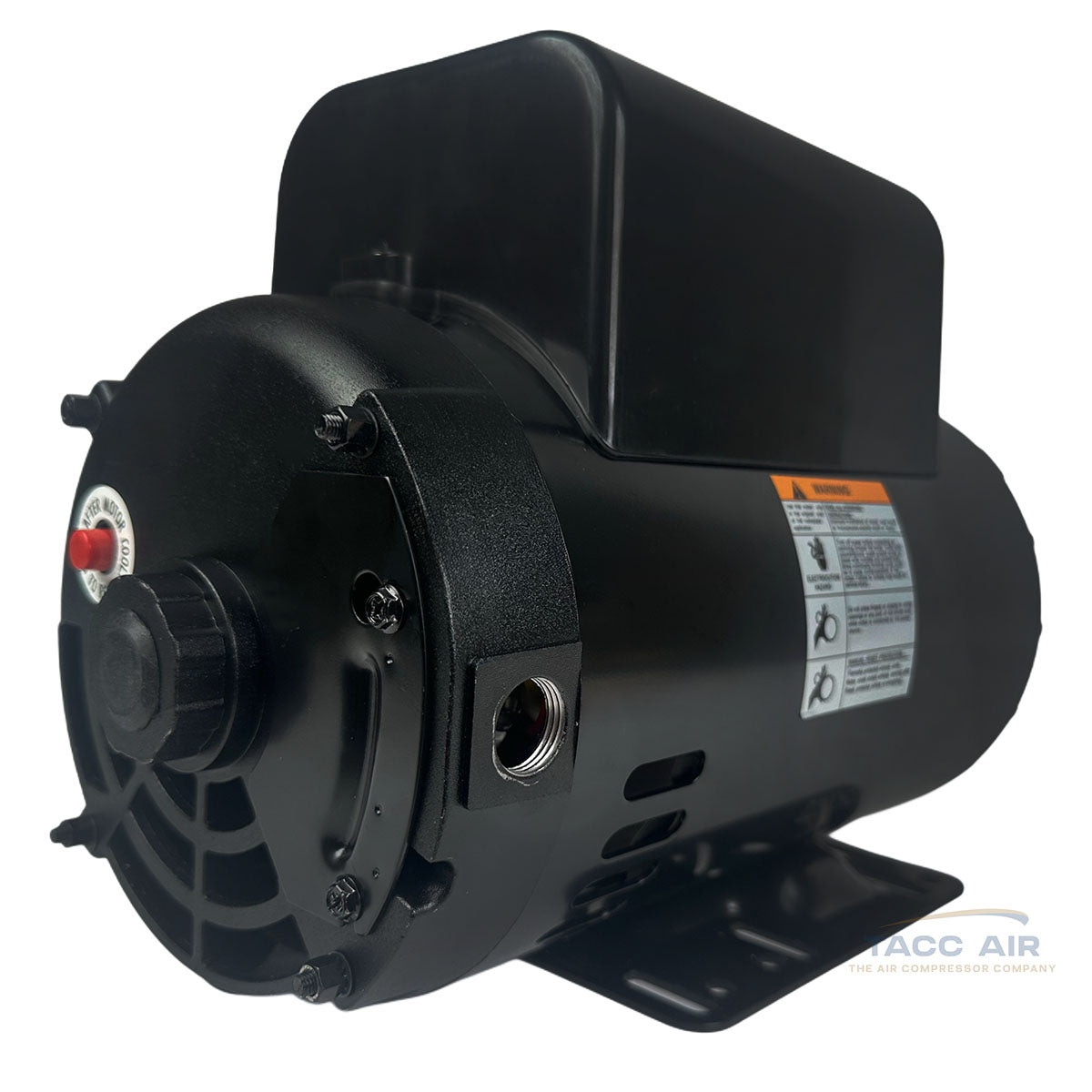

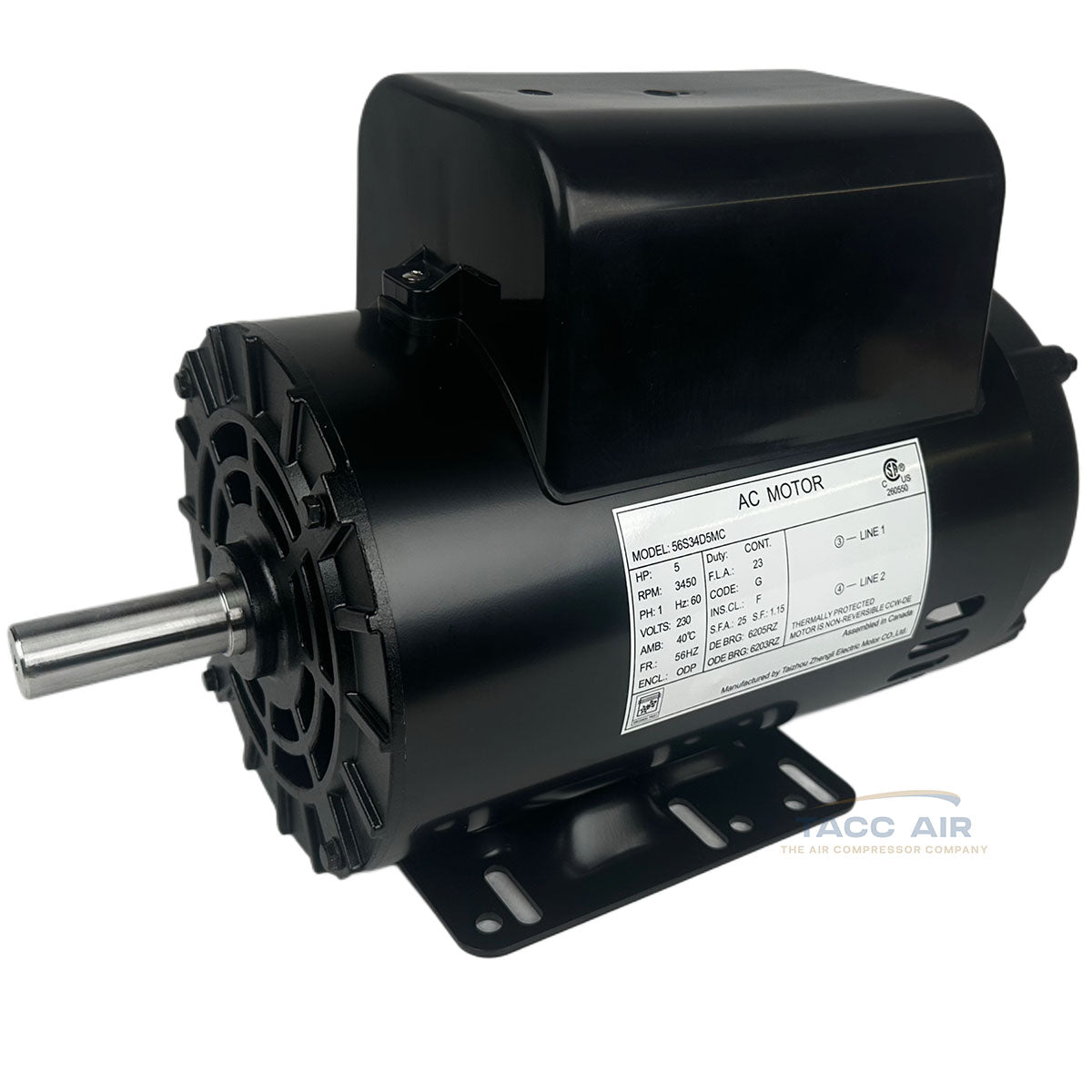

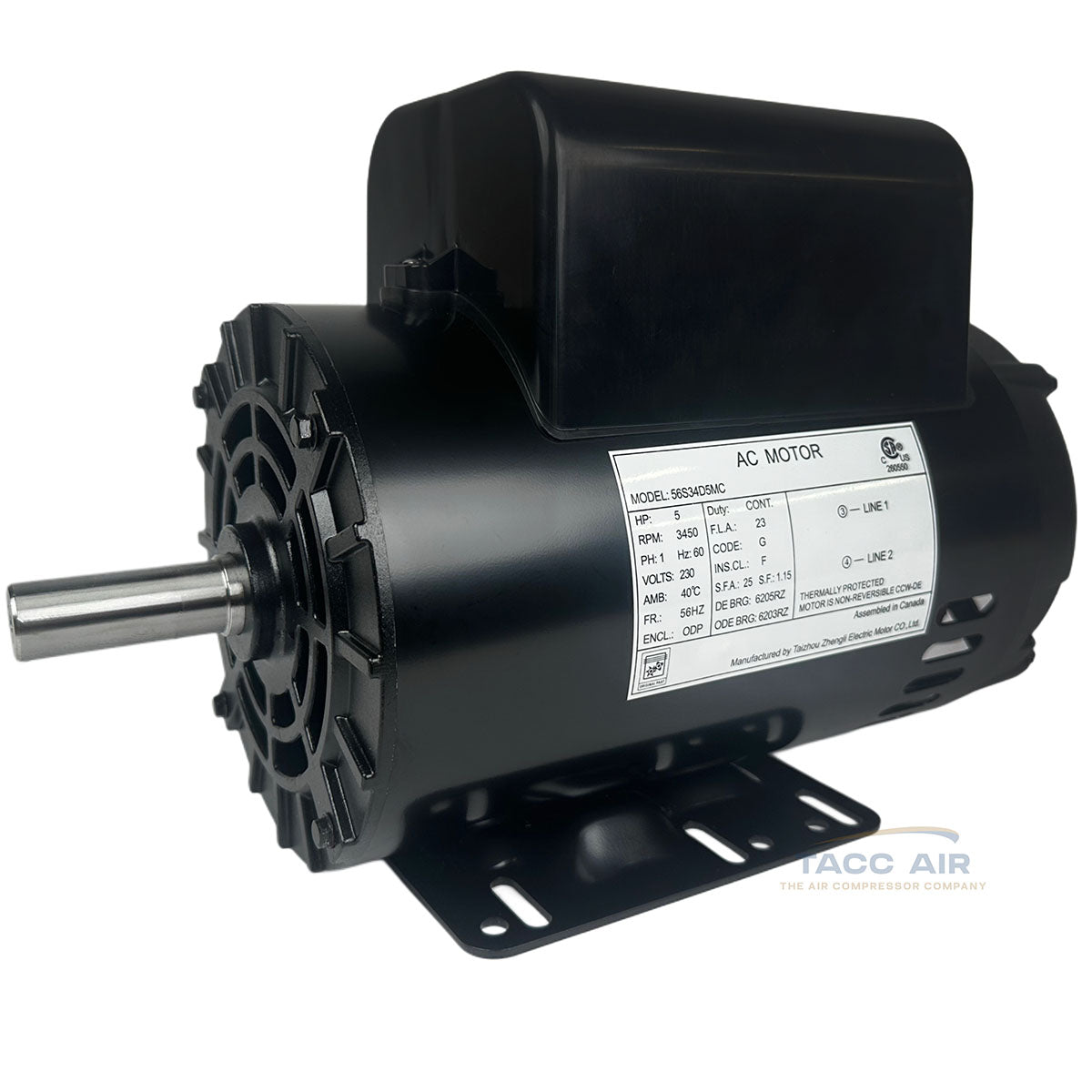

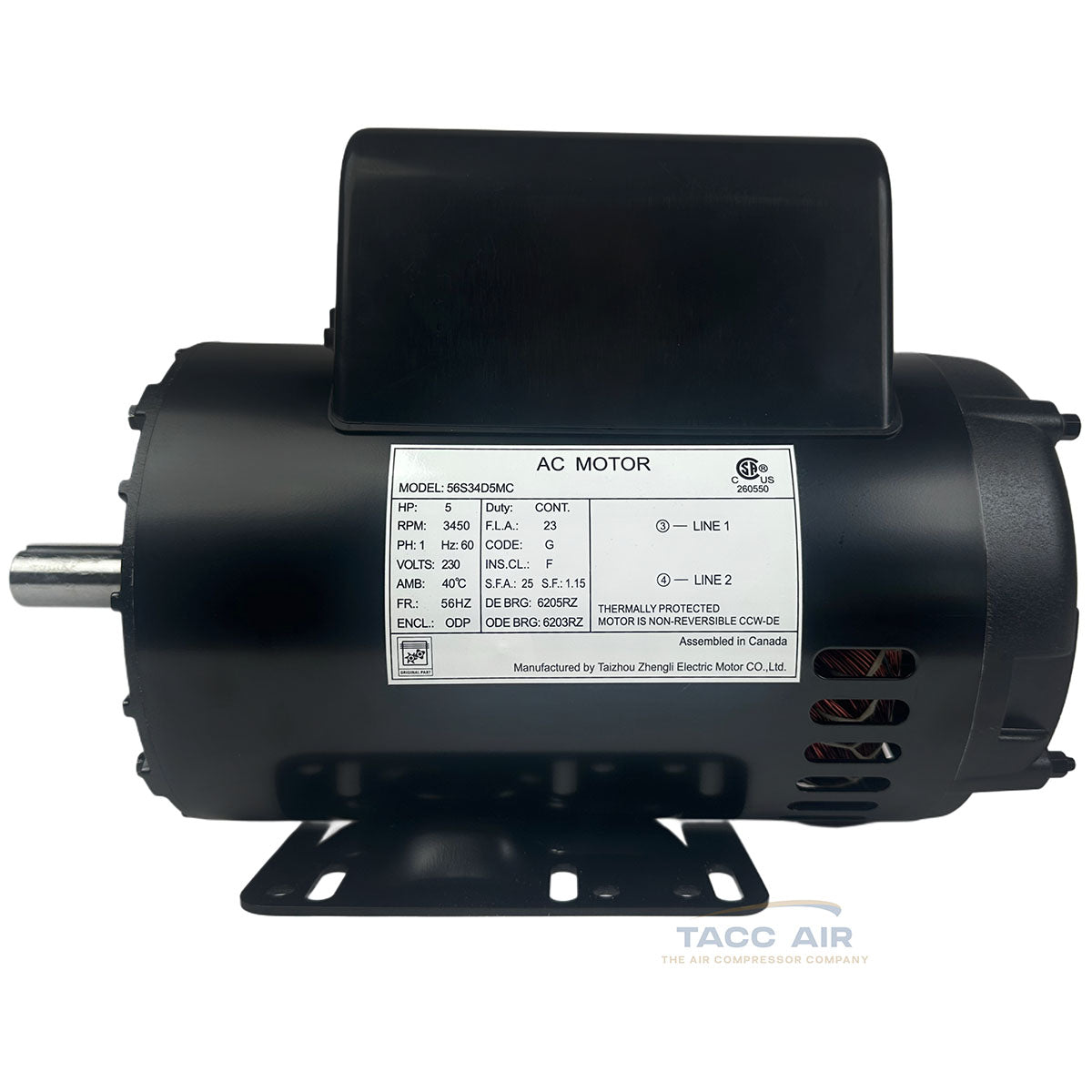

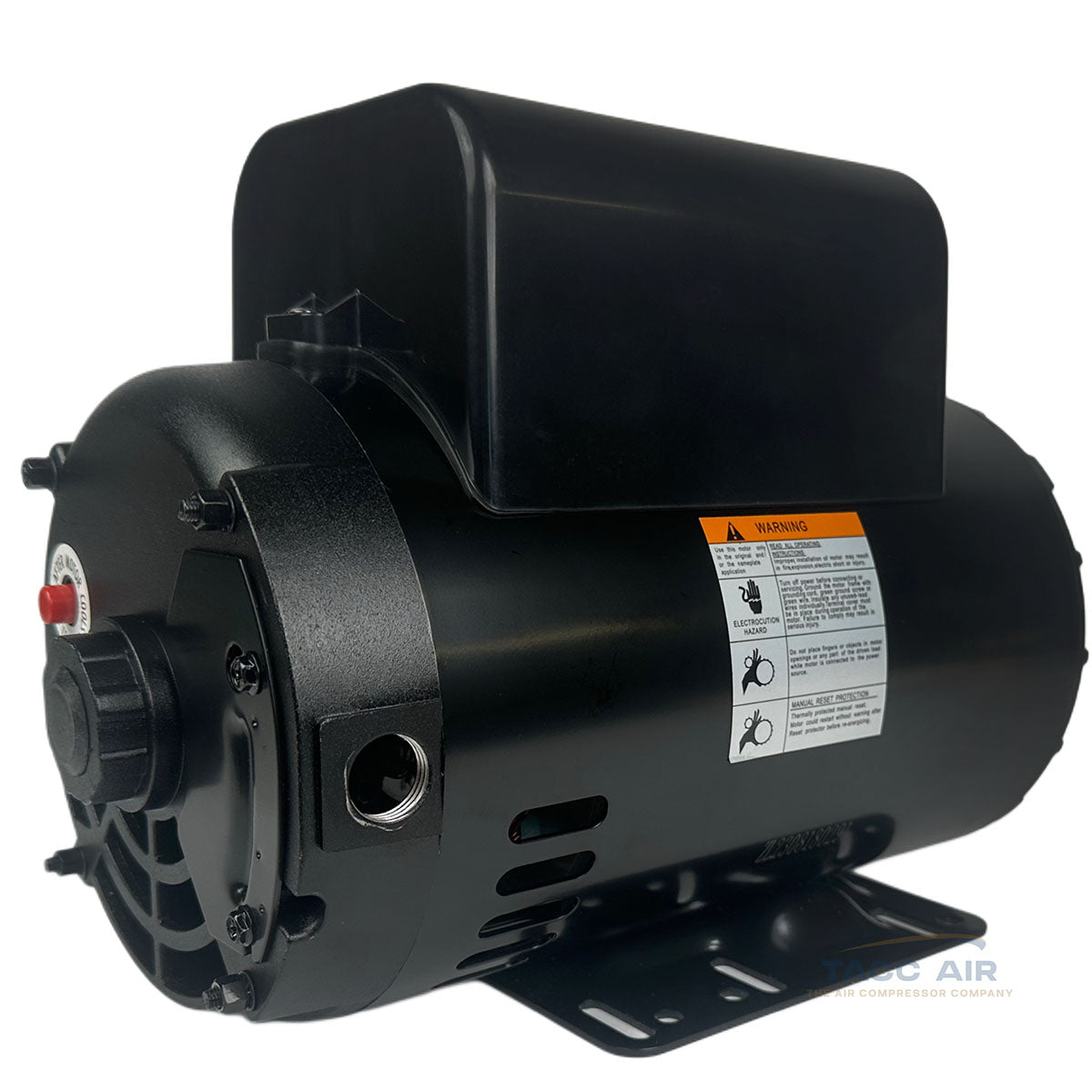

5 HP Air Compressor Electric Motor 230V 1 Phase 56HZ Frame 7/8" Shaft 3450 RPM

5 HP Electric Motor 3450 RPM 56HZ Frame 7/8" Shaft Compressor Duty 230V Single Phase

Product Description:

Replacement 5 HP Electric Compressor Duty Motor—specifically engineered to handle the high start-up load and continuous duty cycle of industrial air compressors. This motor is built tough and ready to perform under pressure.

Designed with a 56HZ frame, this motor’s key specifications control dimensions like shaft size, motor length, and mounting pattern. That means if your current setup uses a 56HZ frame motor, this one should mount up with no modifications needed. Just bolt it in, wire it up, and you’re ready to go.

This motor delivers powerful 3450 RPM performance, counter-clockwise shaft rotation, and operates on standard 230V single-phase power. With thermal overload protection, durable open drip proof construction, and compressor-duty design, this motor is ideal for long-term use in demanding environments.

Product Details:

High-Performance 5 HP Output: Provides powerful and consistent performance with 3450 RPM—perfect for high-demand air compressor systems.

Compressor-Duty Motor Design: Engineered to handle heavy startup torque and continuous operation in shop, industrial, and commercial environments.

230V Single Phase Operation: Runs on standard 230-volt systems with a full load draw of 23 amps—ideal for a wide range of applications.

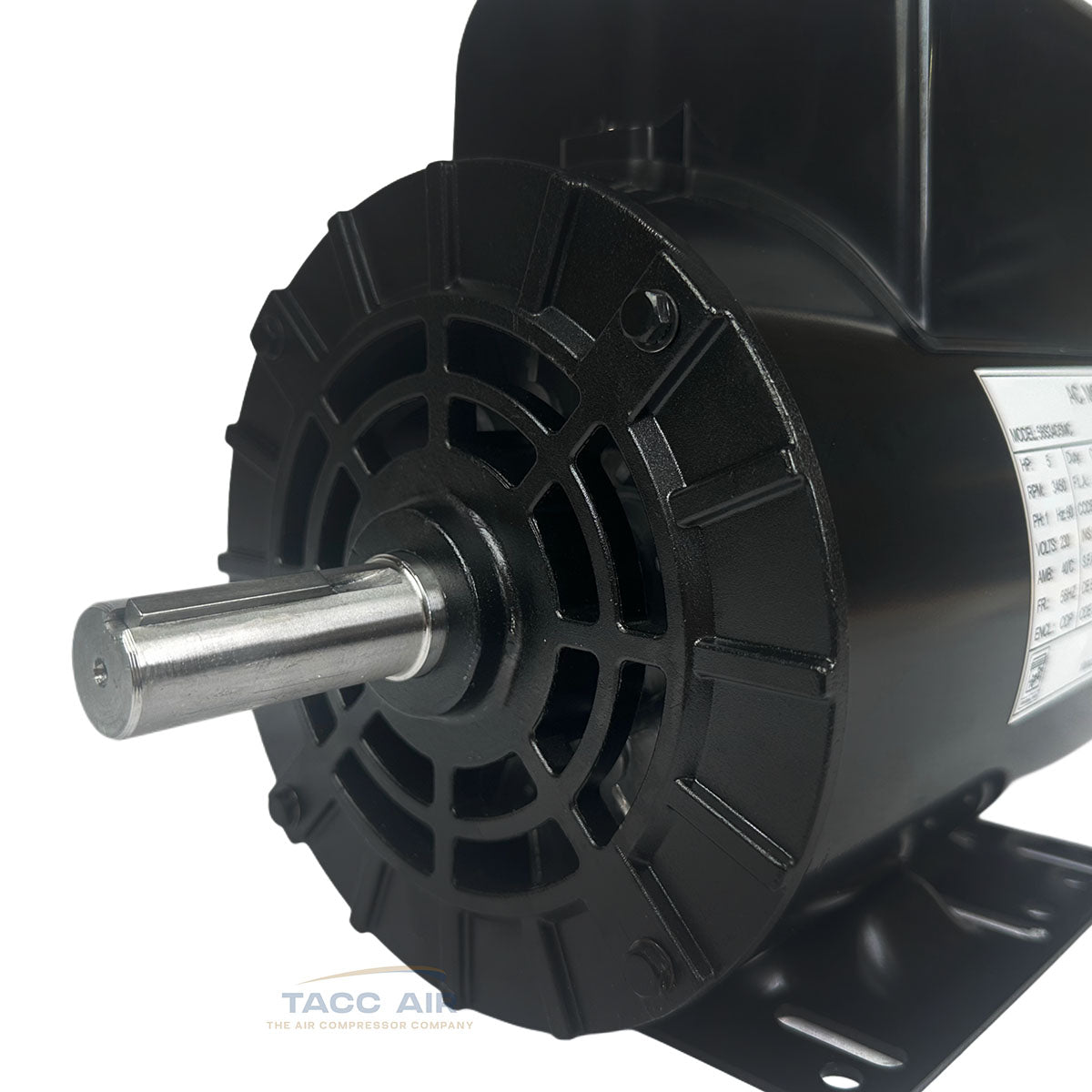

Precision 56HZ Frame Fitment: Equipped with a 7/8” shaft diameter, 2-3/8" shaft length, and 3/16" standard keyway—provides a reliable fit for many compressor pump configurations.

Non-Reversible, CCW Rotation: Counter-clockwise rotation when facing the shaft.

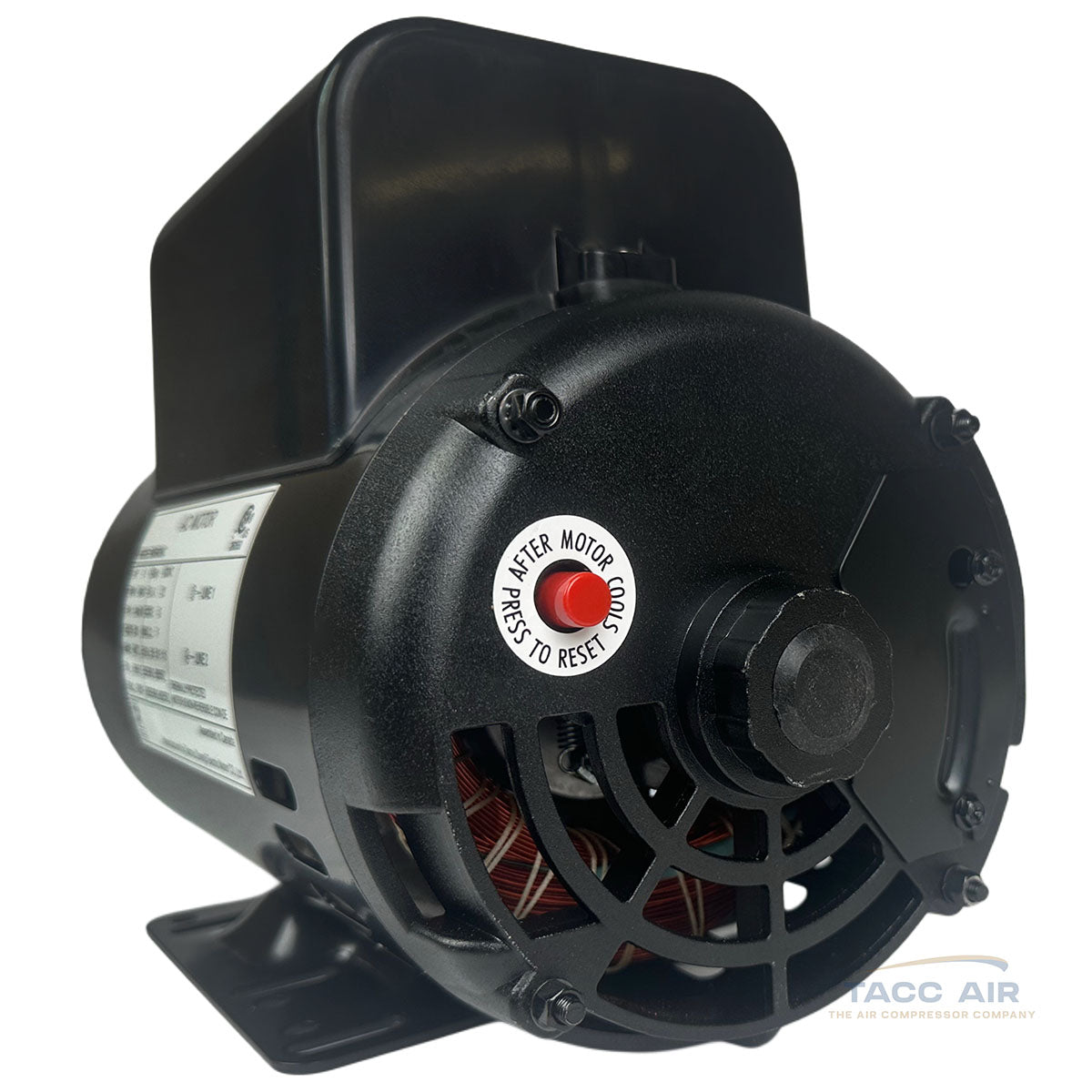

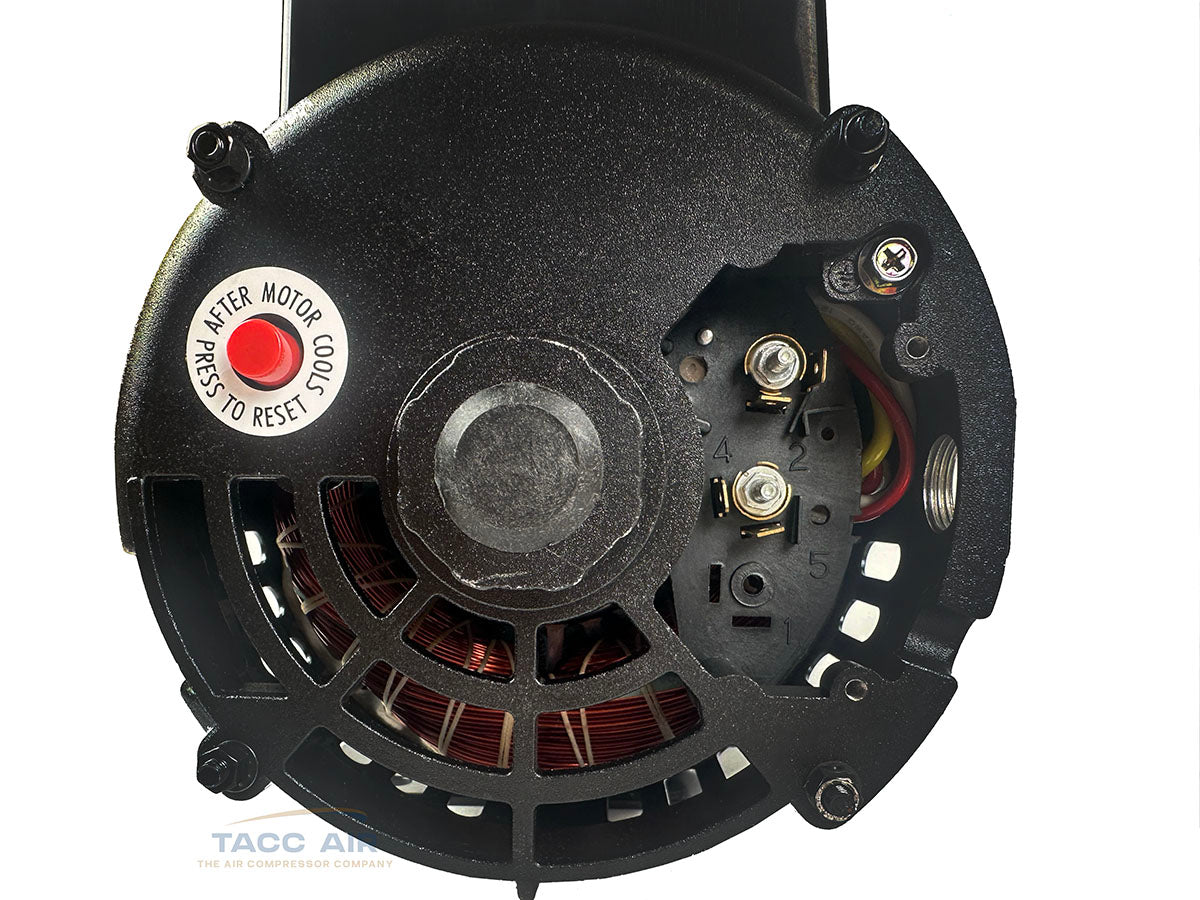

Thermal Overload Protection: Integrated manual reset safeguard prevents overheating damage and protects motor life.

Open Drip Proof (ODP) Enclosure: Allows for efficient cooling while protecting internal components in well-ventilated spaces.

Compact, Heavy-Duty Build:

• Motor Length (w/o Shaft): 12.4"

• Overall Length (w/ Shaft): 14.85"

• Height: 10"

• Width: 6.75"

• Weight: Approx. 51 lbs
