Compressed Air Bubble Tank Manifold Valve With 130 PSI Safety Relief

Compressed Air Bubble Tank Manifold Valve With 130 PSI Relief – 1/2" Male NPT Inlet, Two Ports For Hose & Gauge, Along With Schrader Tire Valve Fill Port

Replacement compressed air bubble manifold valve. Featuring solid brass construction, this valve is built for long-lasting durability and is ideal for replacing an existing valve or converting a compressor tank into an efficient air storage system or air bubble.

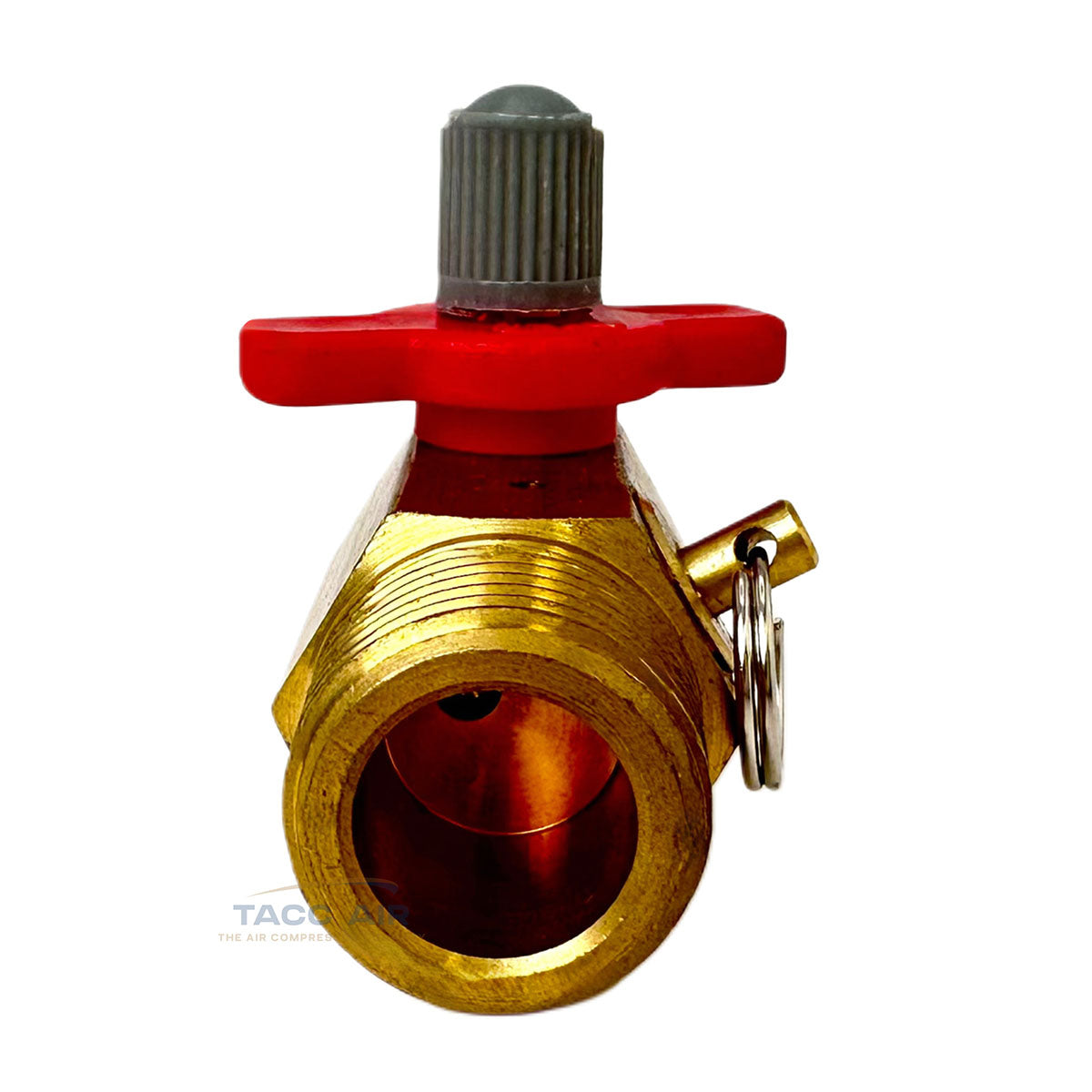

This manifold valve has a 1/2" Male NPT thread that screws directly into the air tank (1/2" NPT measures approximately 3/4" in diameter). If needed, the thread size can be adjusted using a reducer or increaser fitting (sold seperately). The valve is equipped with multiple ports and features, including:

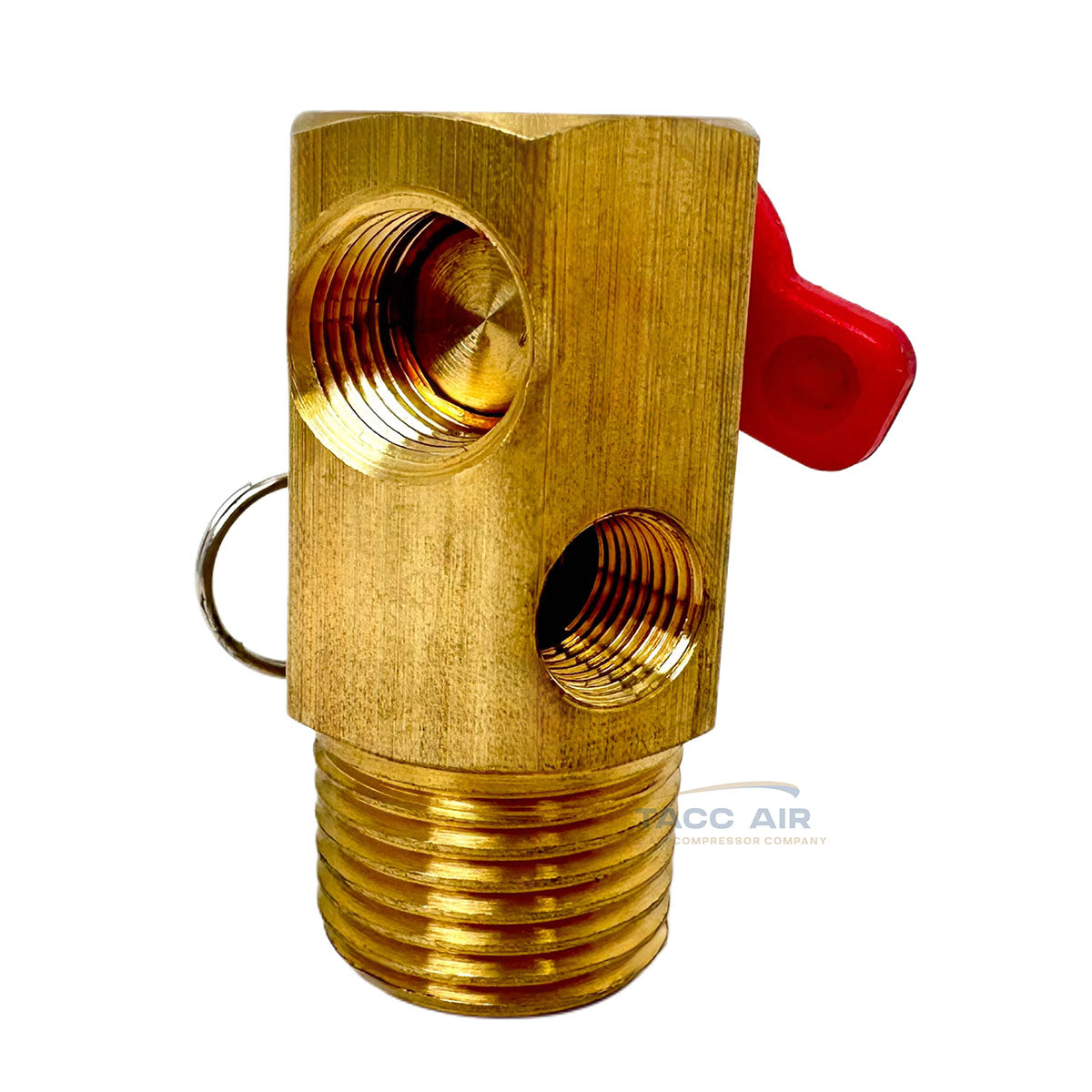

• A 1/4" Female NPT port for easy connection of an air hose. (Note: 1/4" NPT measures approximately. 1/2" in diameter)

• A 1/8" Female NPT port designed for attaching an air pressure gauge. (Note: 1/8" NPT measures approximately. 3/8" in diameter)

• A Schrader tire fill valve on the side for convenient air bubble pressurization.

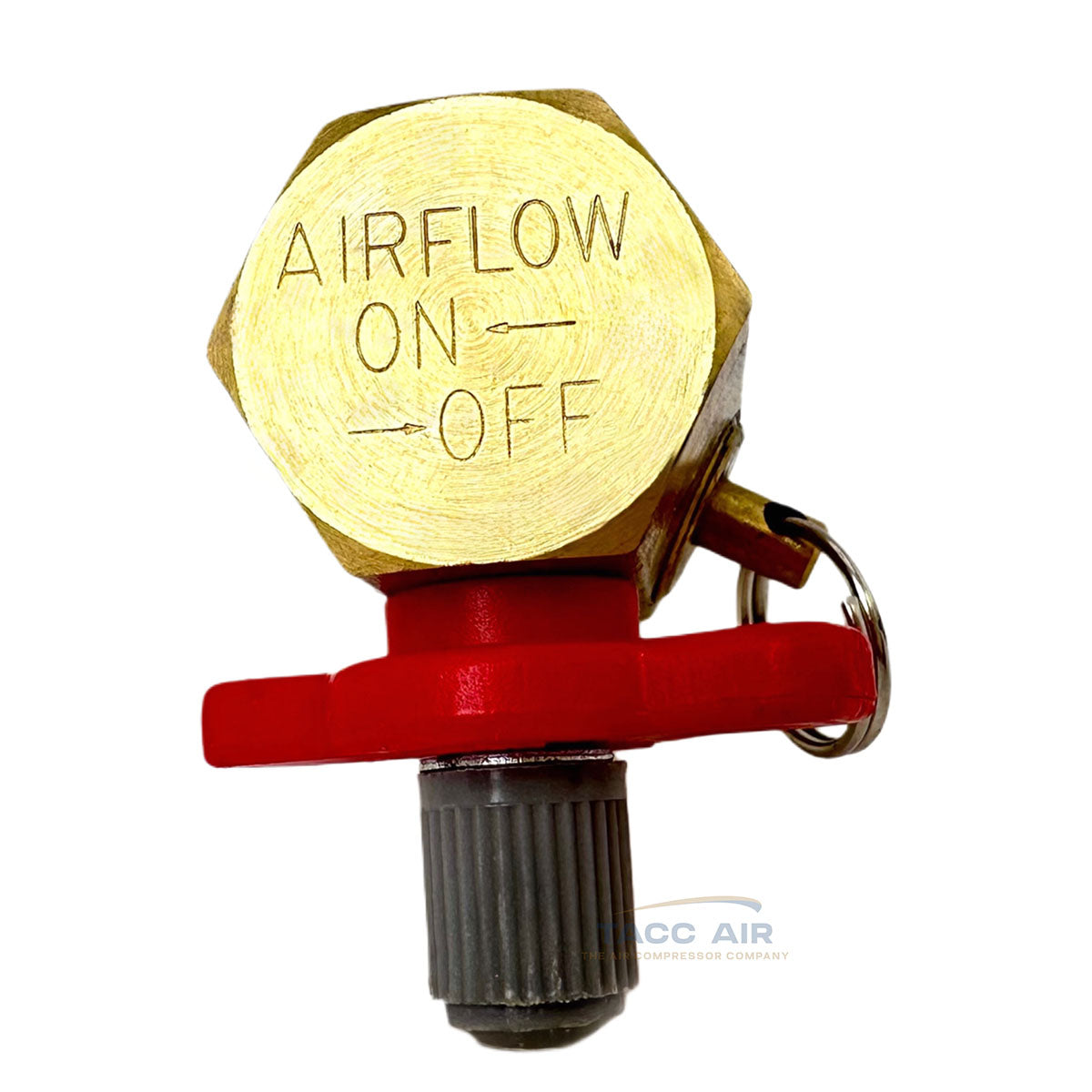

• A red control knob to easily turn the air flow to the hose on or off.

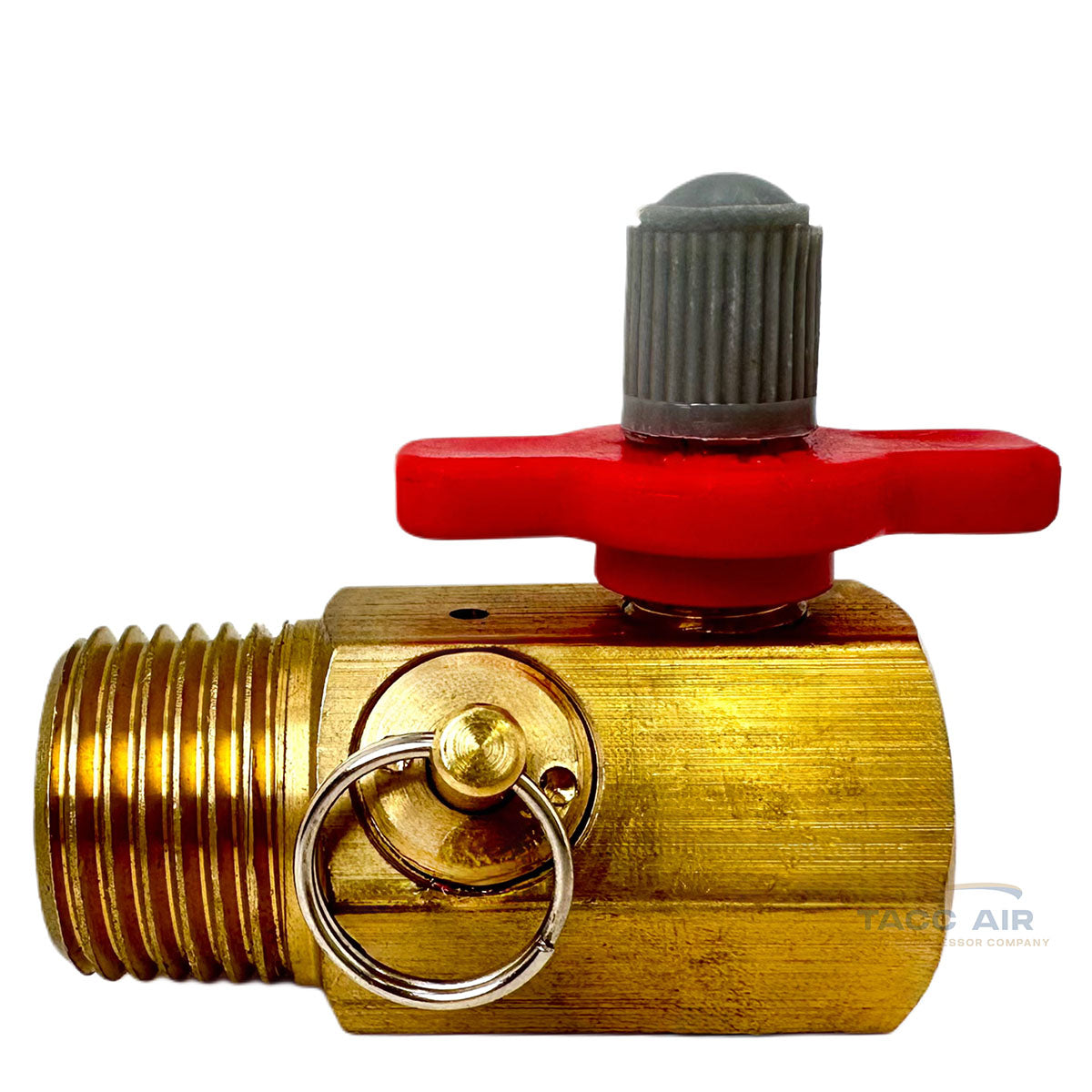

Additionally, the manifold is equipped with a 130 PSI safety relief valve, also known as a pop-off valve, to protect the system from over-pressurization ( Note: make sure the tank is rated for 140 psi or above when using this valve)

Specifications:

• Material: Solid Brass Construction

  • Tank Inlet (Male NPT): 1/2" ( Note: 1/2" NPT measures approximately 3/4" in diameter)

• Air Hose Connection (Female NPT): 1/4"( Note: 1/4" NPT measures approximately 1/2" in diameter)

• Air Gauge Port (Female NPT): 1/8"( Note: 1/8" NPT measures approximately 3/8" in diameter)

• Schrader Valve: For Fill / Pressurization

• Safety Relief Valve: 130 PSI

• Red Air Flow Control Knob: For easy on/off air flow control

• Compatible with: Replacement for air bubble or air storage tank conversion
