M8088 Maxline 90 Degree Elbow Fitting 3/4" Tubing x 3/4" MNPT Compressed Air

MaxLine Air Piping System M8088 3/4" Tubing x 3/4" Male NPT 90° Elbow Adapter Fitting

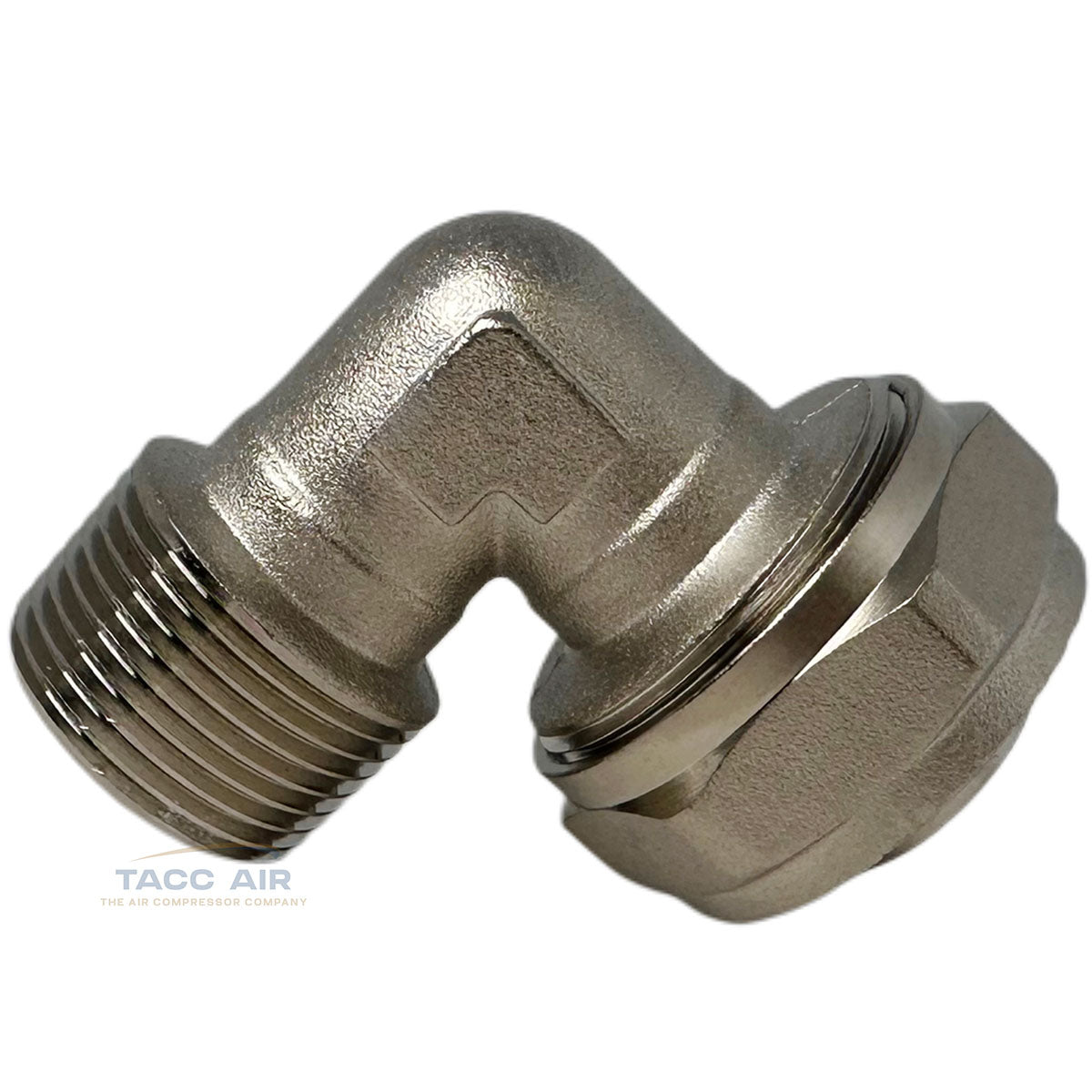

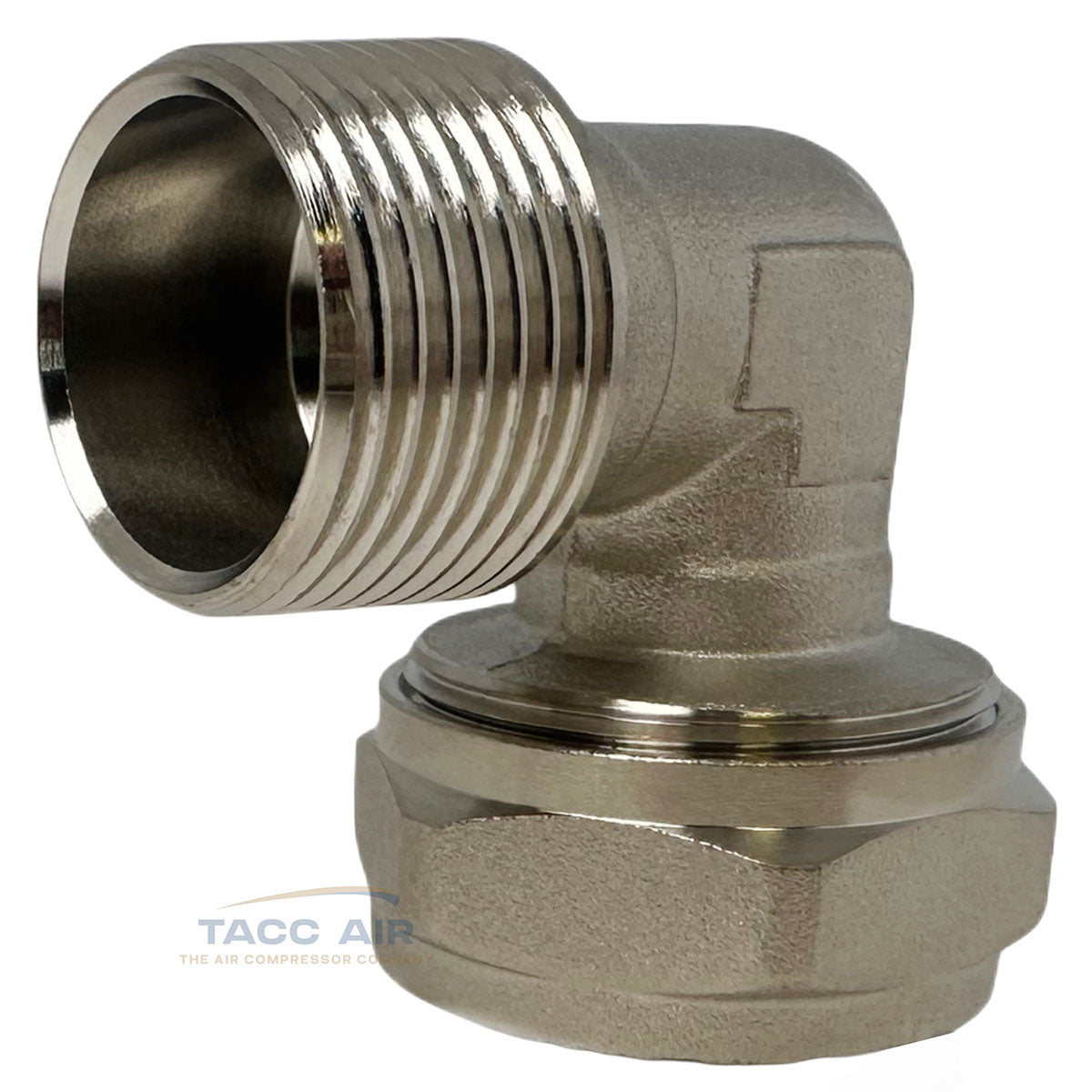

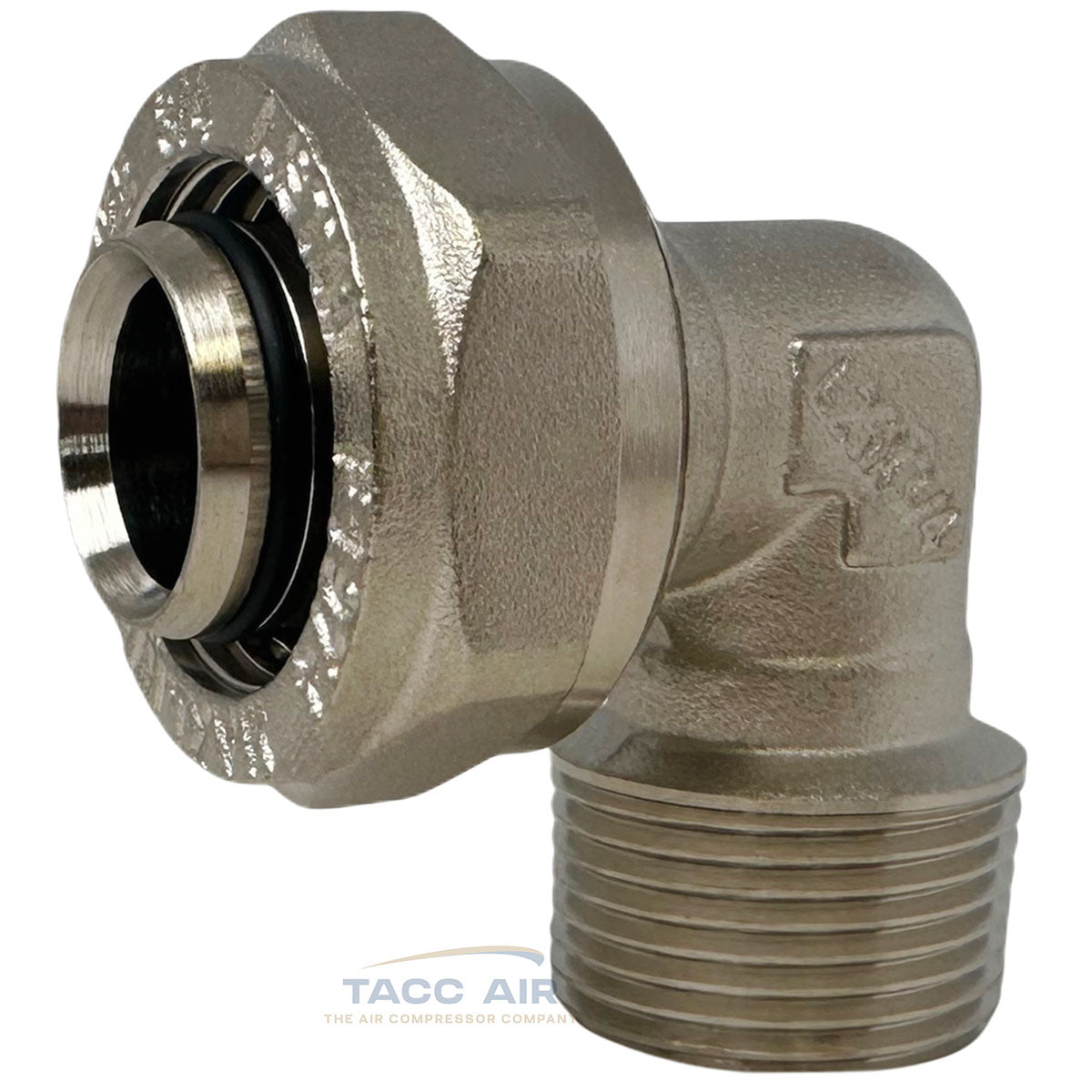

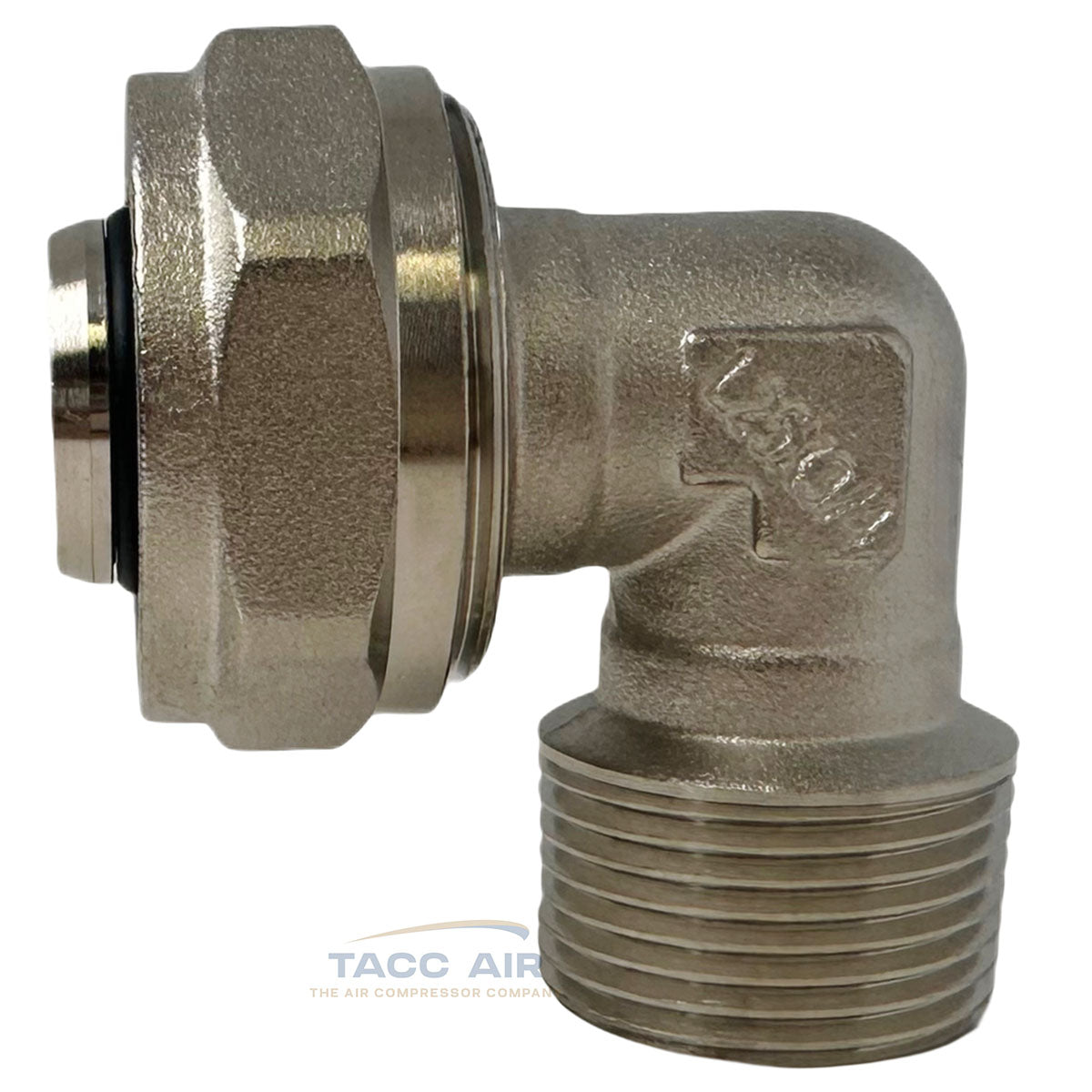

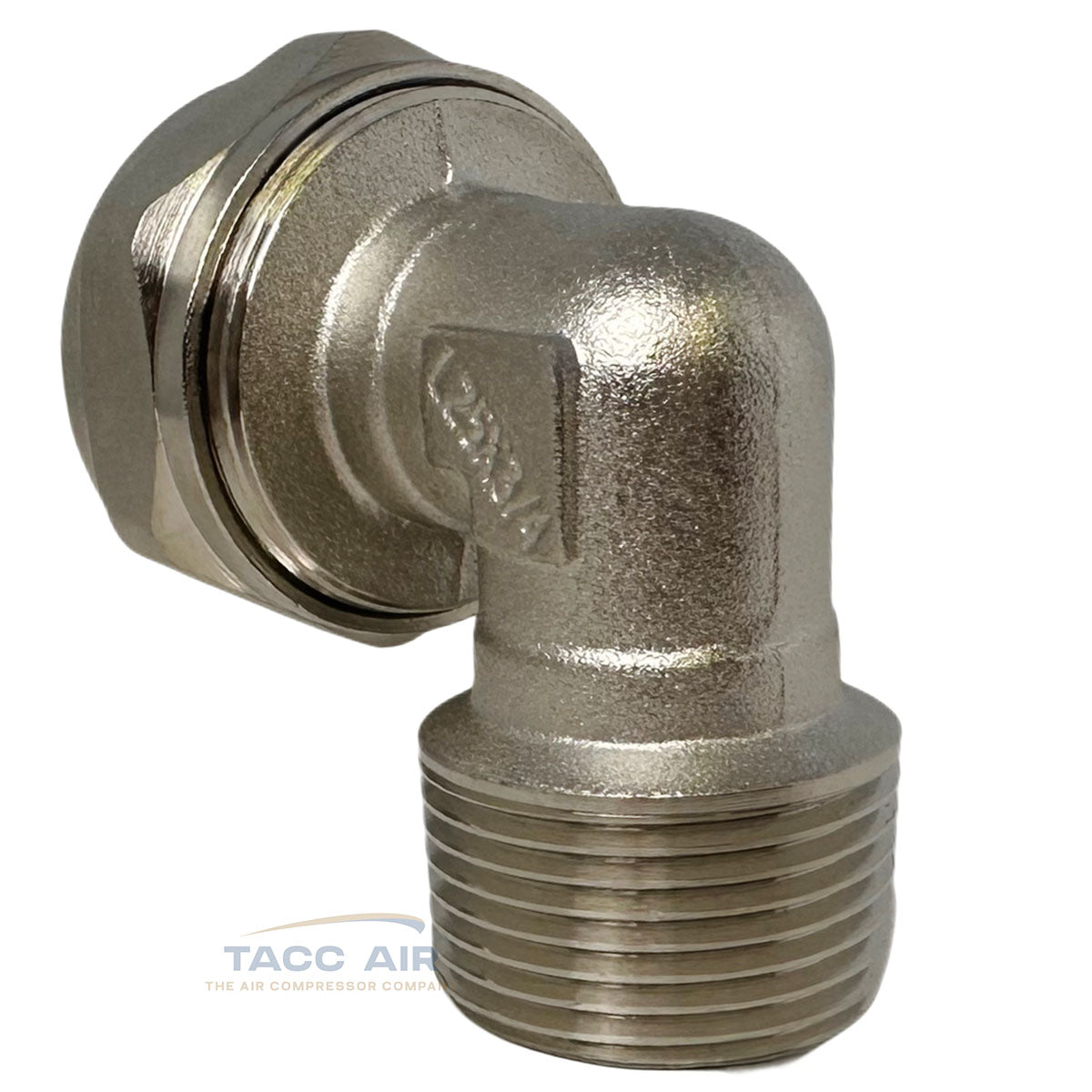

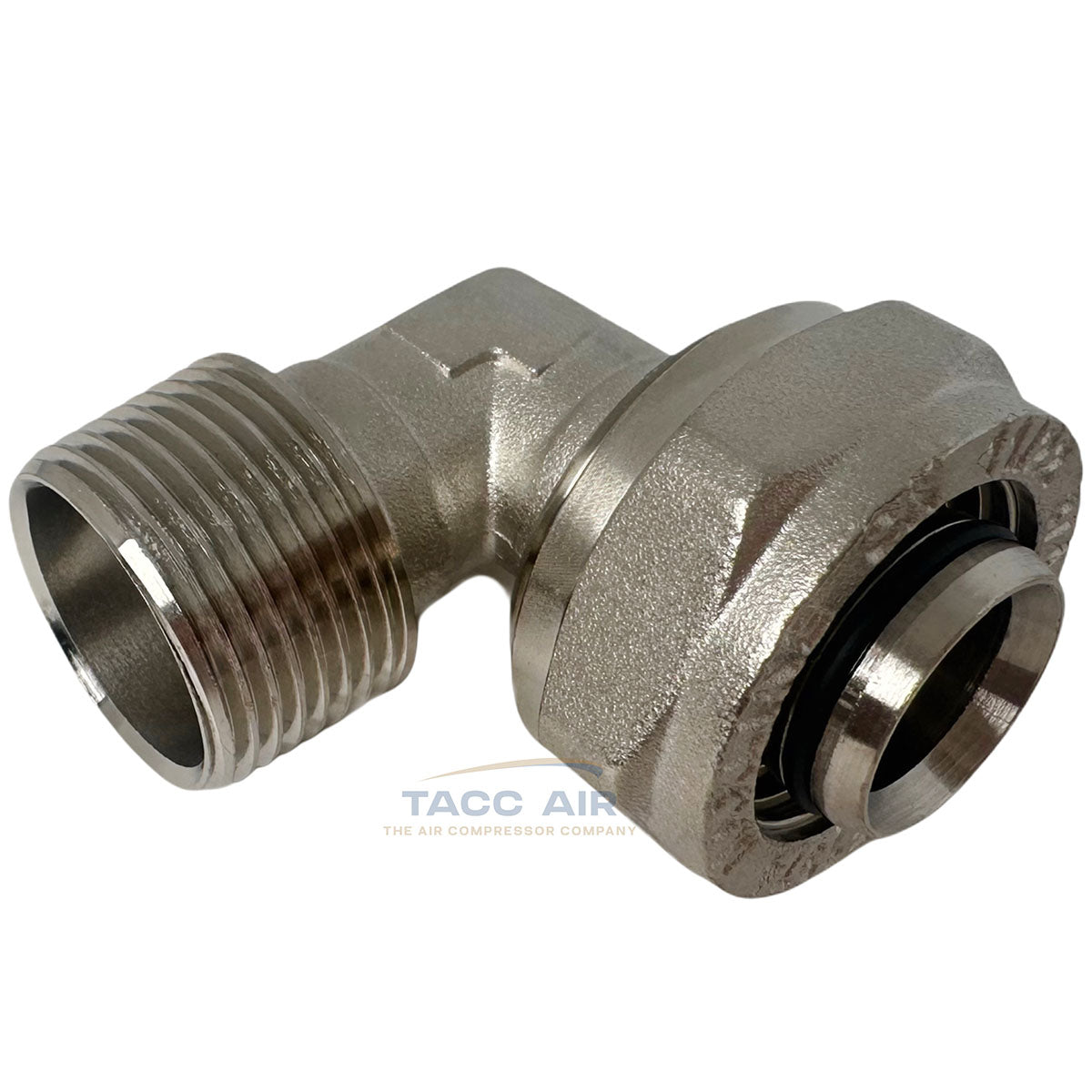

The MaxLINE M8088 90-Degree Elbow Adapter Fitting is a reliable and essential component for customizing your MaxLINE compressed air system. Designed for use with 3/4" MaxLINE Tubing by RAPIDAIR, this fitting provides a 90-degree directional change with a 3/4" male NPT connection—perfect for attaching compressors, outlets, regulators, filters, or other components where a right-angle turn is needed.

Constructed from solid brass and nickel-plated for enhanced corrosion resistance, the M8088 features a double O-ring seal to ensure a tight, leak-free fit. The split ring connection system allows for quick installation and easy disassembly, making it a convenient option for both new installations and future modifications.

Features:

• Compatible with 3/4" MaxLINE Tubing (by RAPIDAIR)

• 90-degree 3/4" Male NPT x 3/4" Maxline Tubing for connecting equipment or accessories (Note 3/4" NPT measures approximately 1" in diameter)

• 90-degree elbow design for directional changes

• Solid brass construction with nickel plating for corrosion resistance

• Double O-ring seal for a tight, leak-free connection

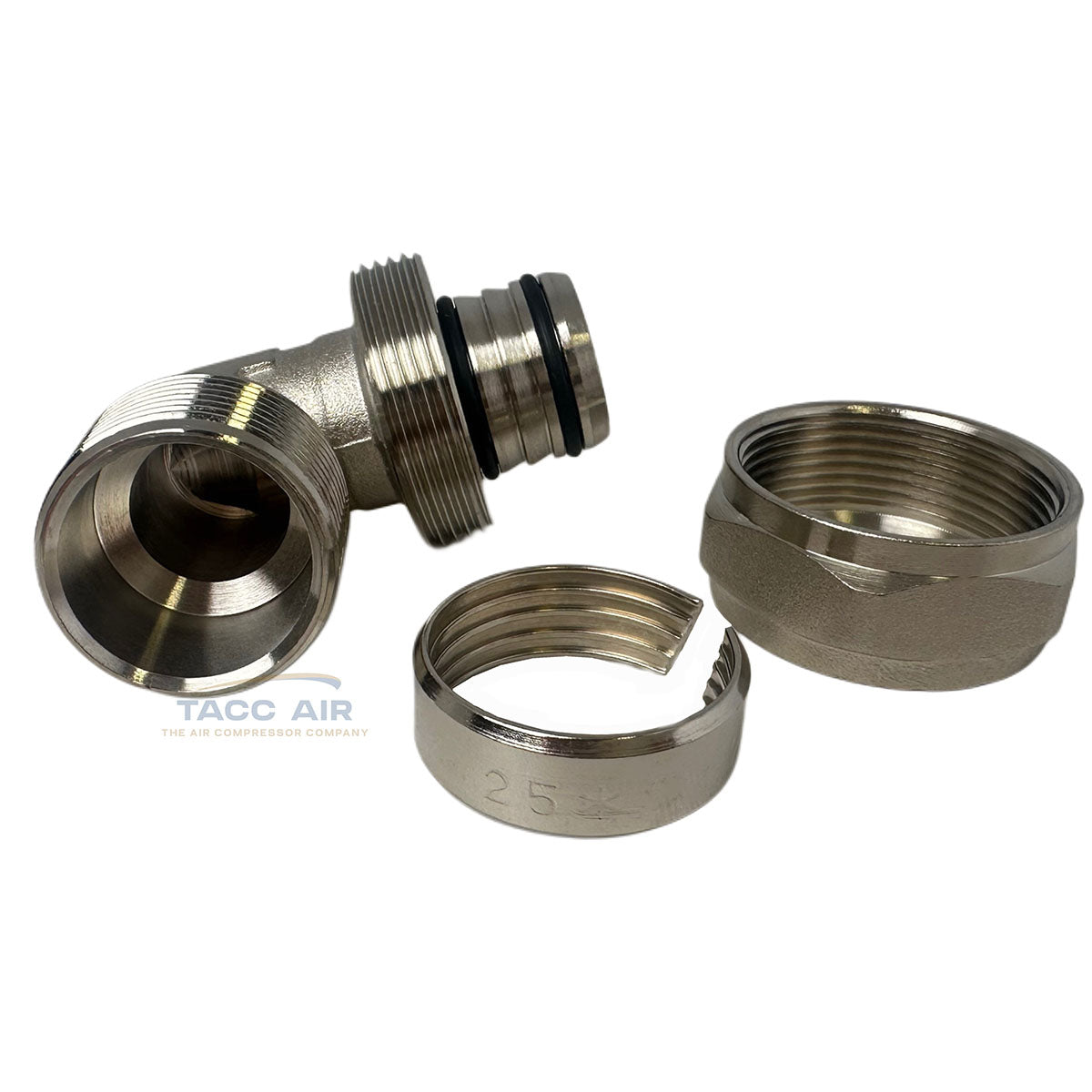

• Split ring connections for easy installation and disassembly

• Rated for 175 PSI working pressure

Part Number: M8088
Brand: MaxLINE by RAPIDAIR
Type: 90-Degree Elbow Adapter Fitting for Compressed Air Piping Systems

If you're building or modifying a MaxLINE system and need to make a right-angle connection to NPT-threaded components, this fitting is a secure and efficient solution.
