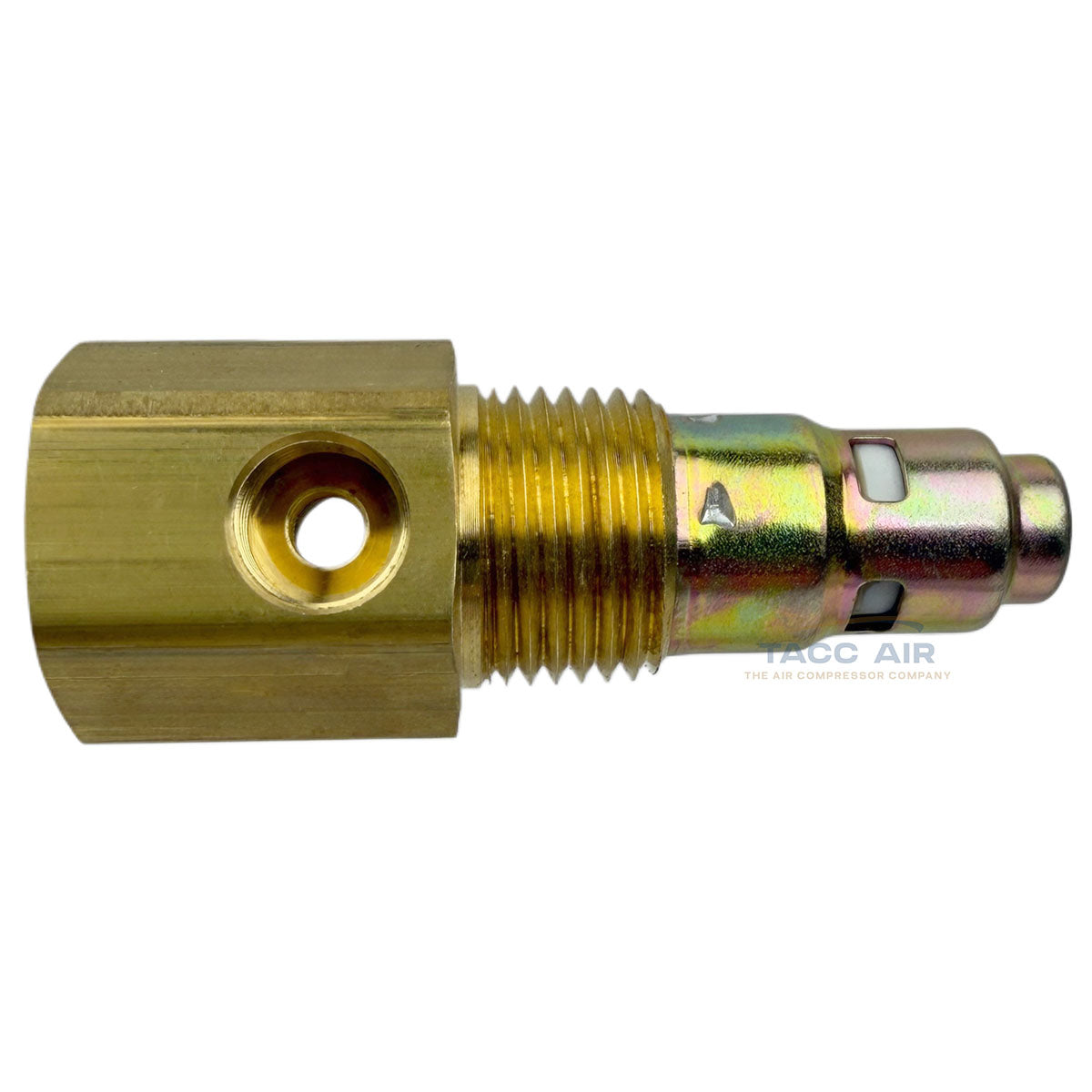

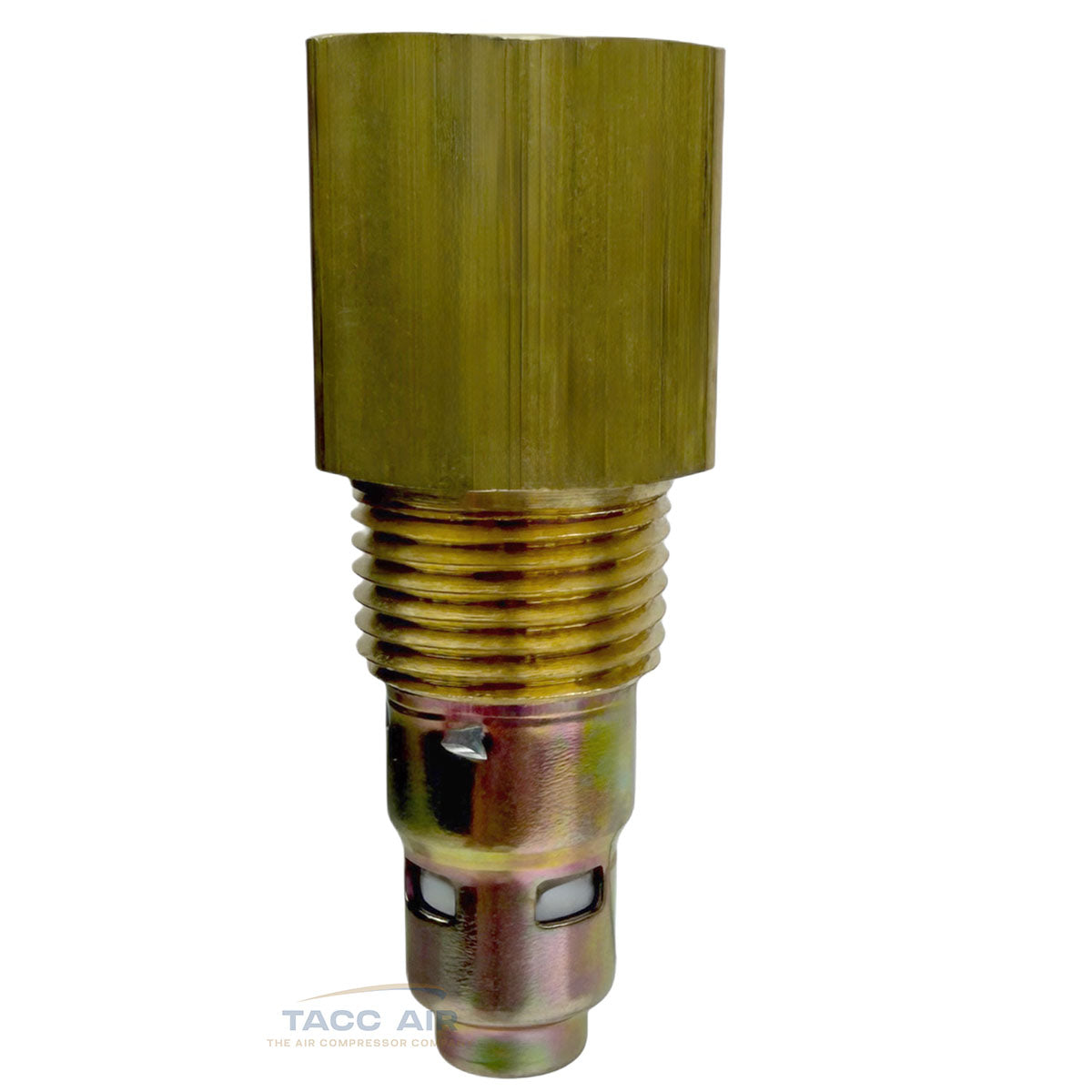

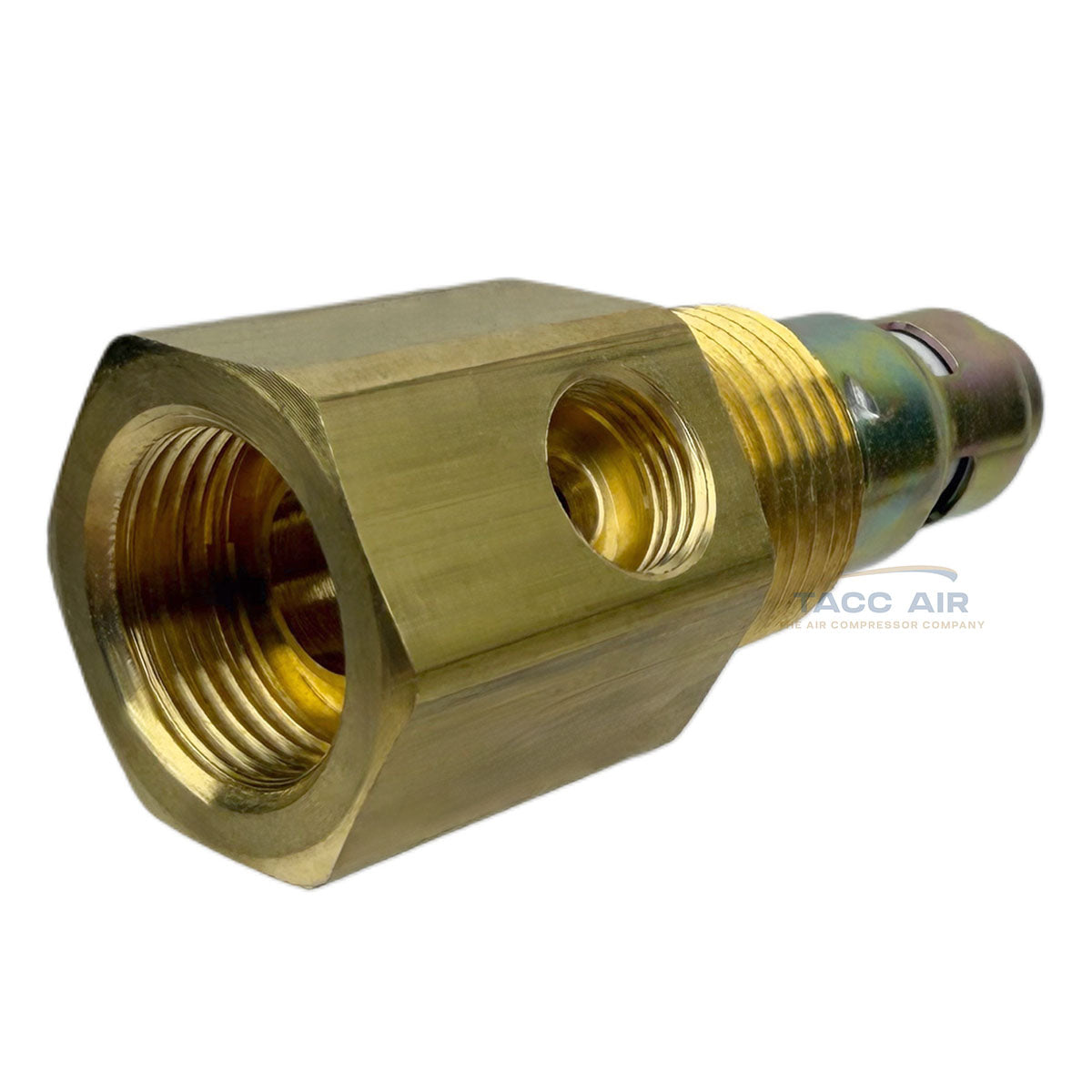

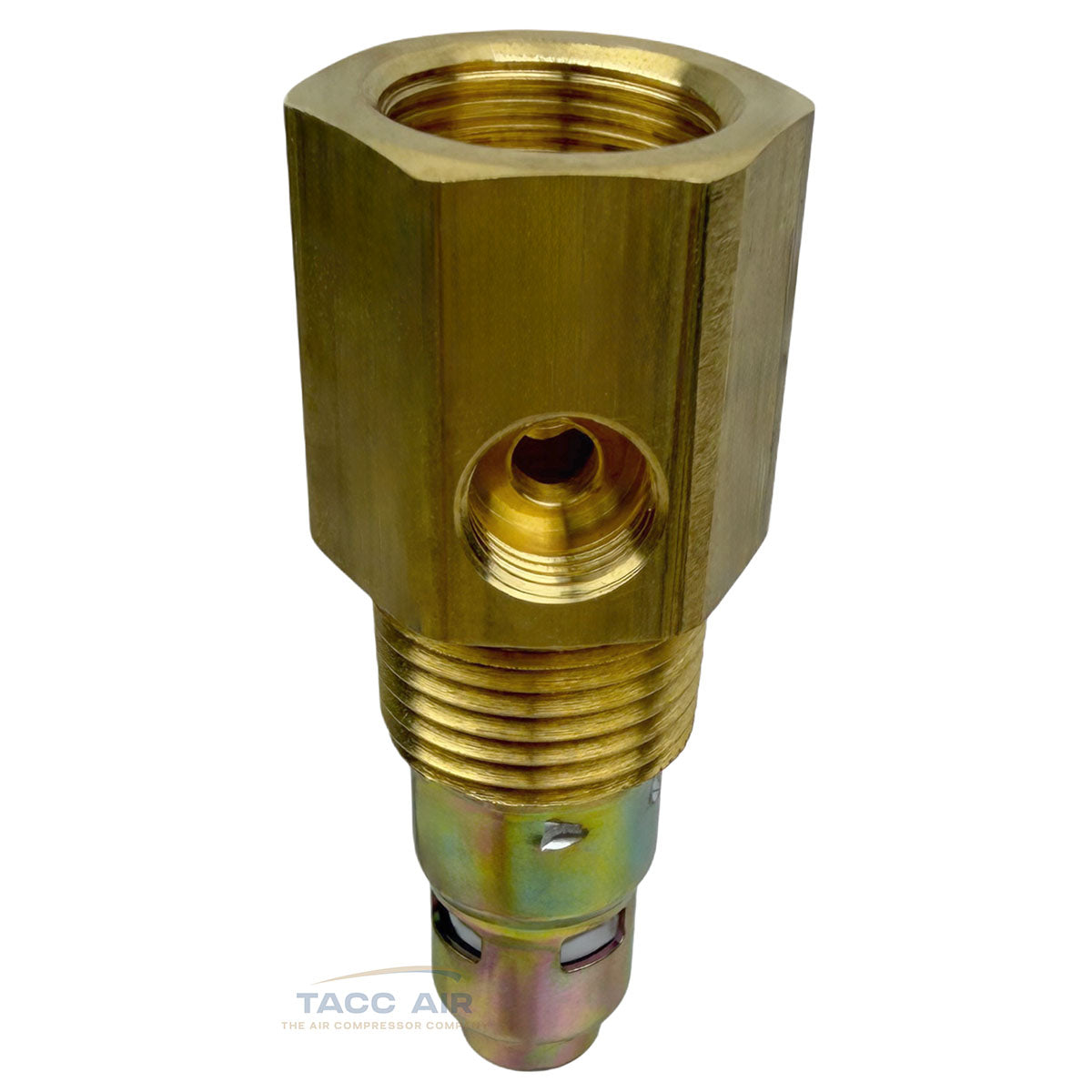

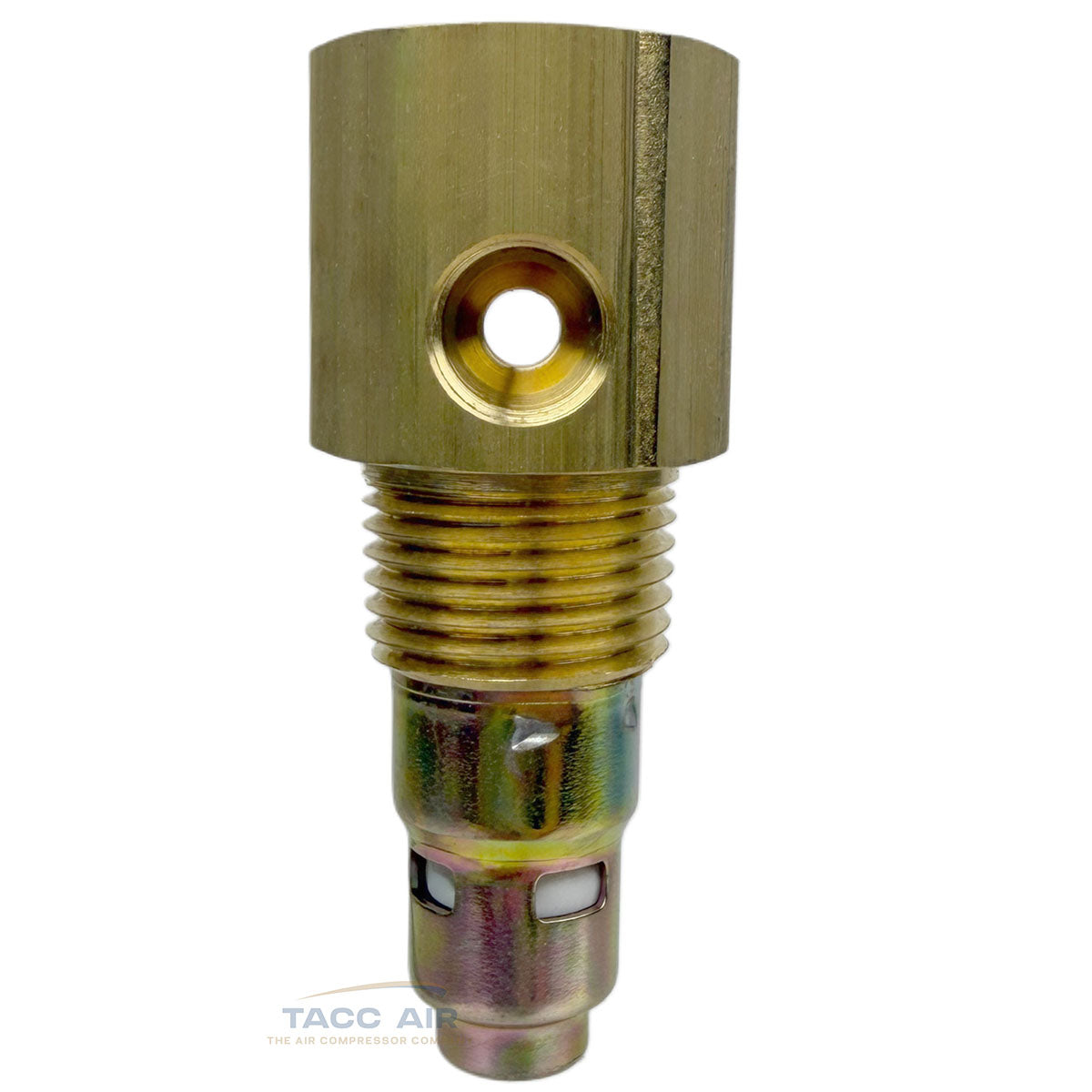

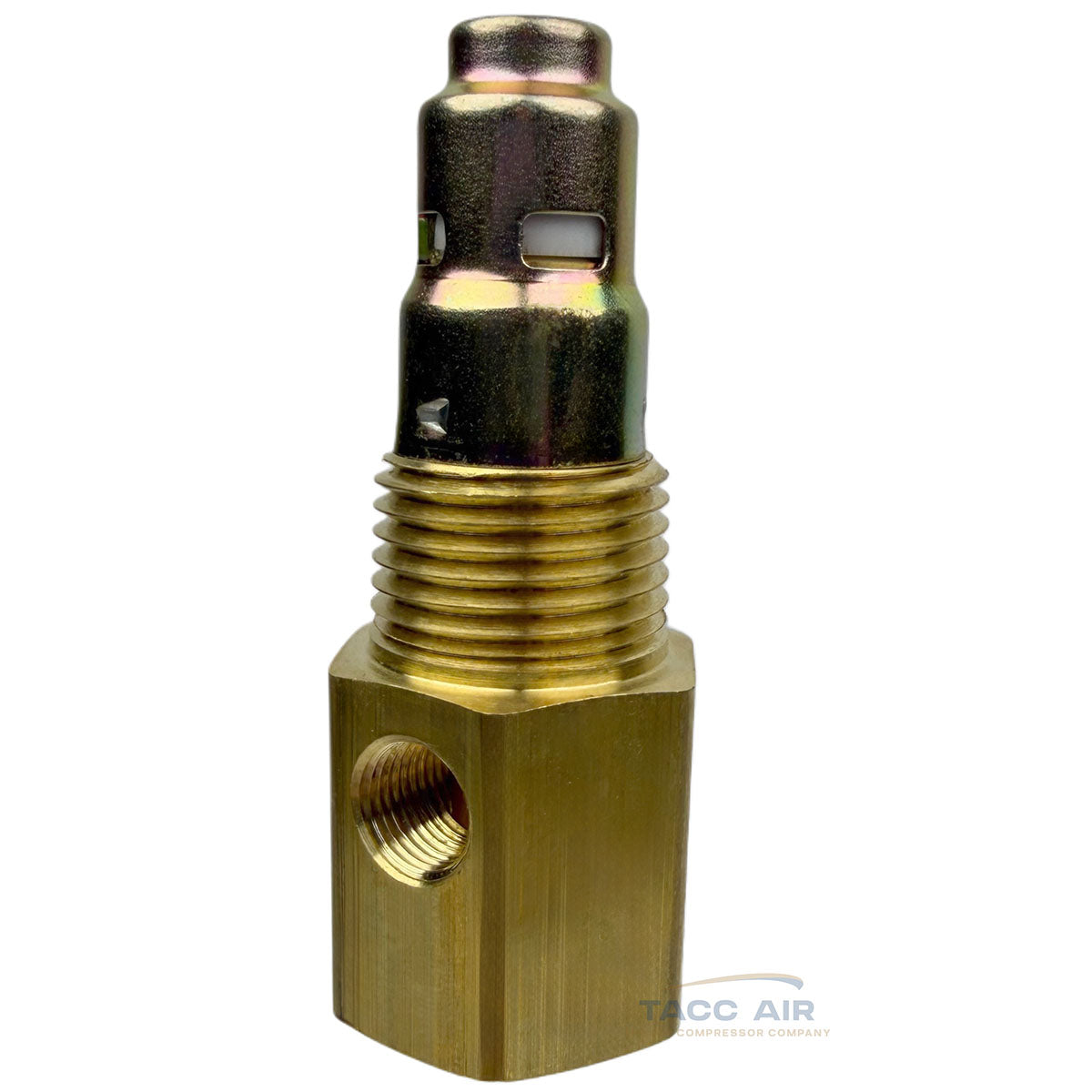

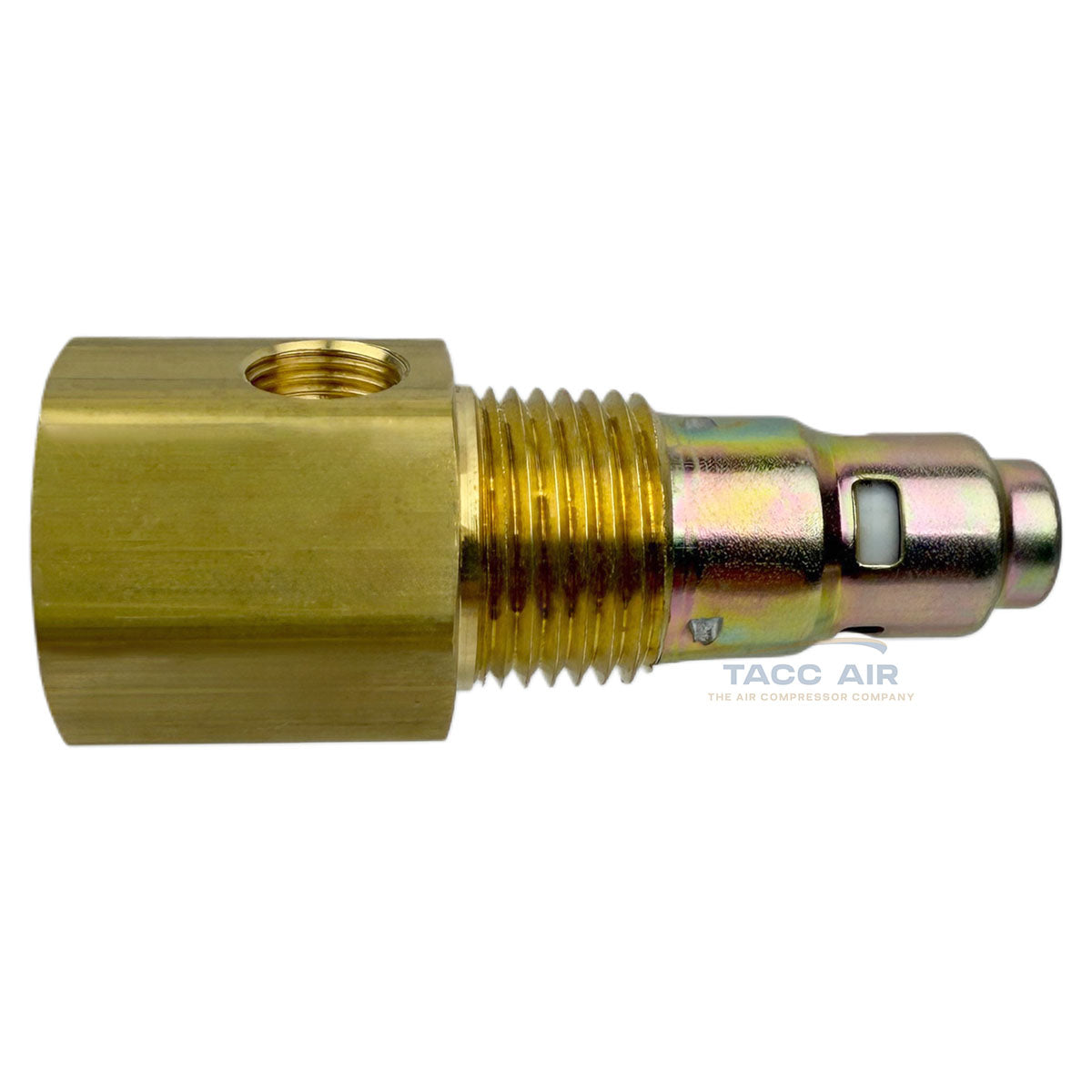

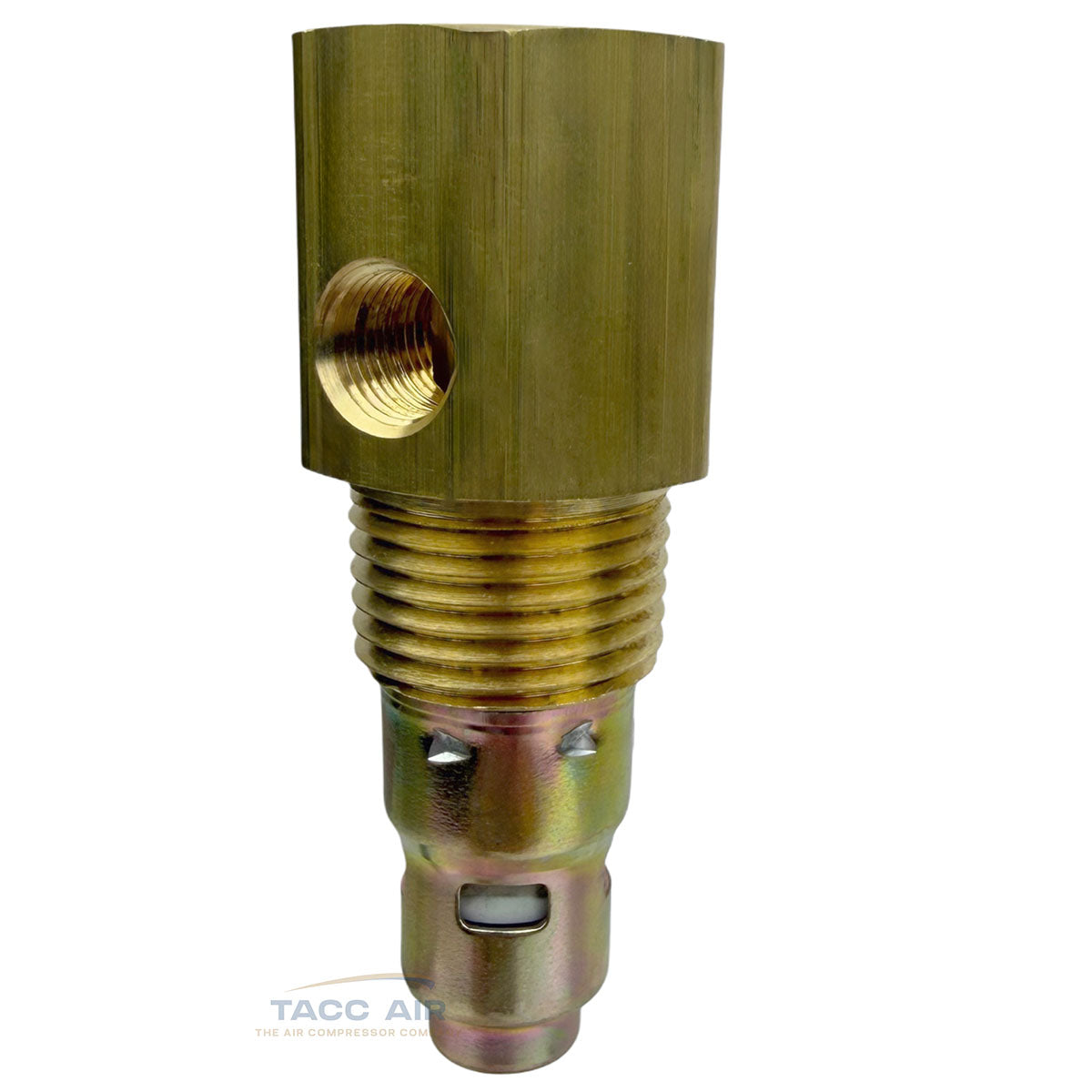

1/2" Flare x 1/2" NPT Air Compressor Check Valve 56269590 For Ingersoll Rand

Replacement For Ingersoll Rand 56269590 1/2" Female Inverted Flare x 1/2" Male NPT Air Compressor Check Valve

High quality USA Made 1/2" female inverted flare x 1/2" male NPT check valve. Specifically designed for Ingersoll Rand compressors and other compatible models, this check valve prevents backflow from reaching your compressor pump after the system shuts down, ensuring longer life and optimal performance.

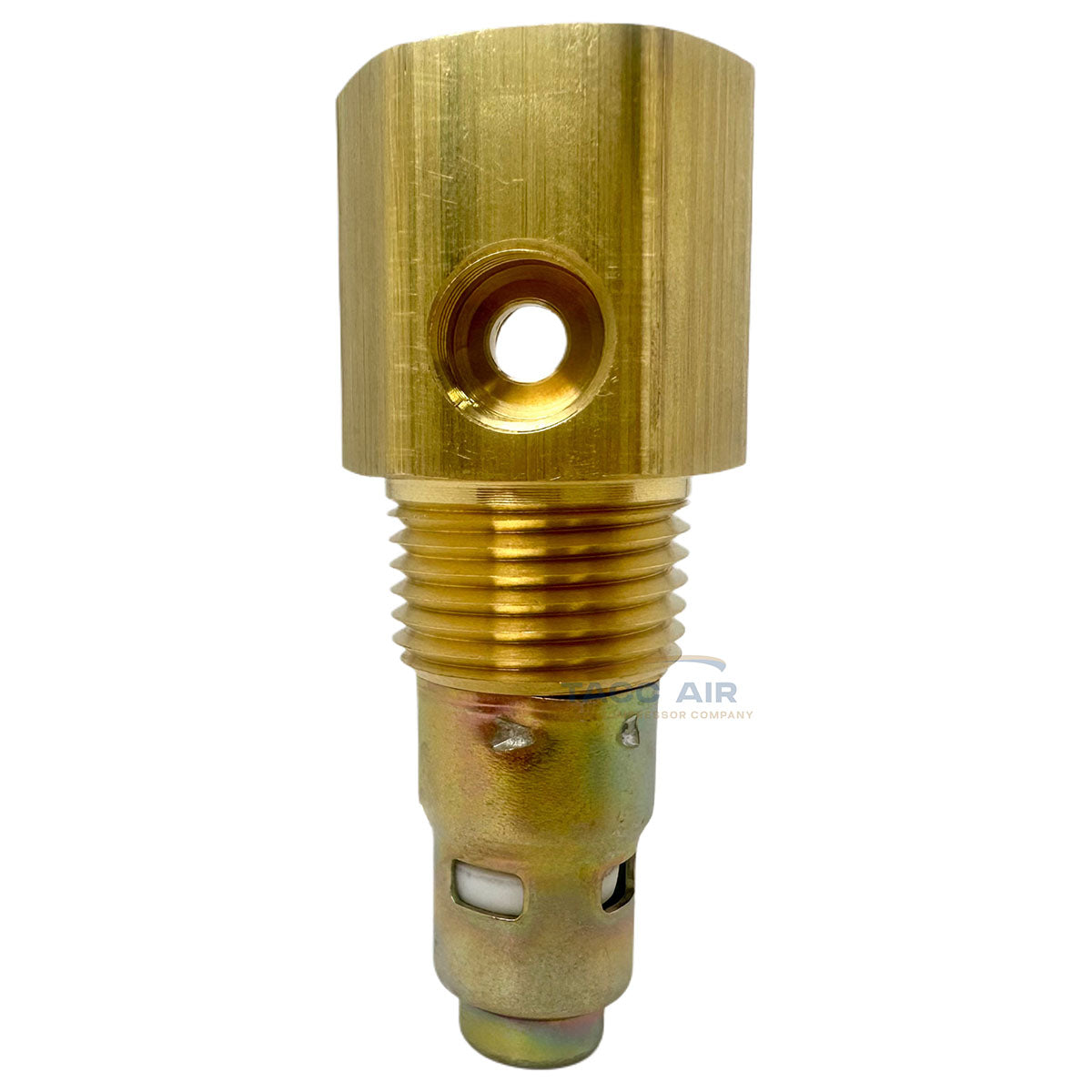

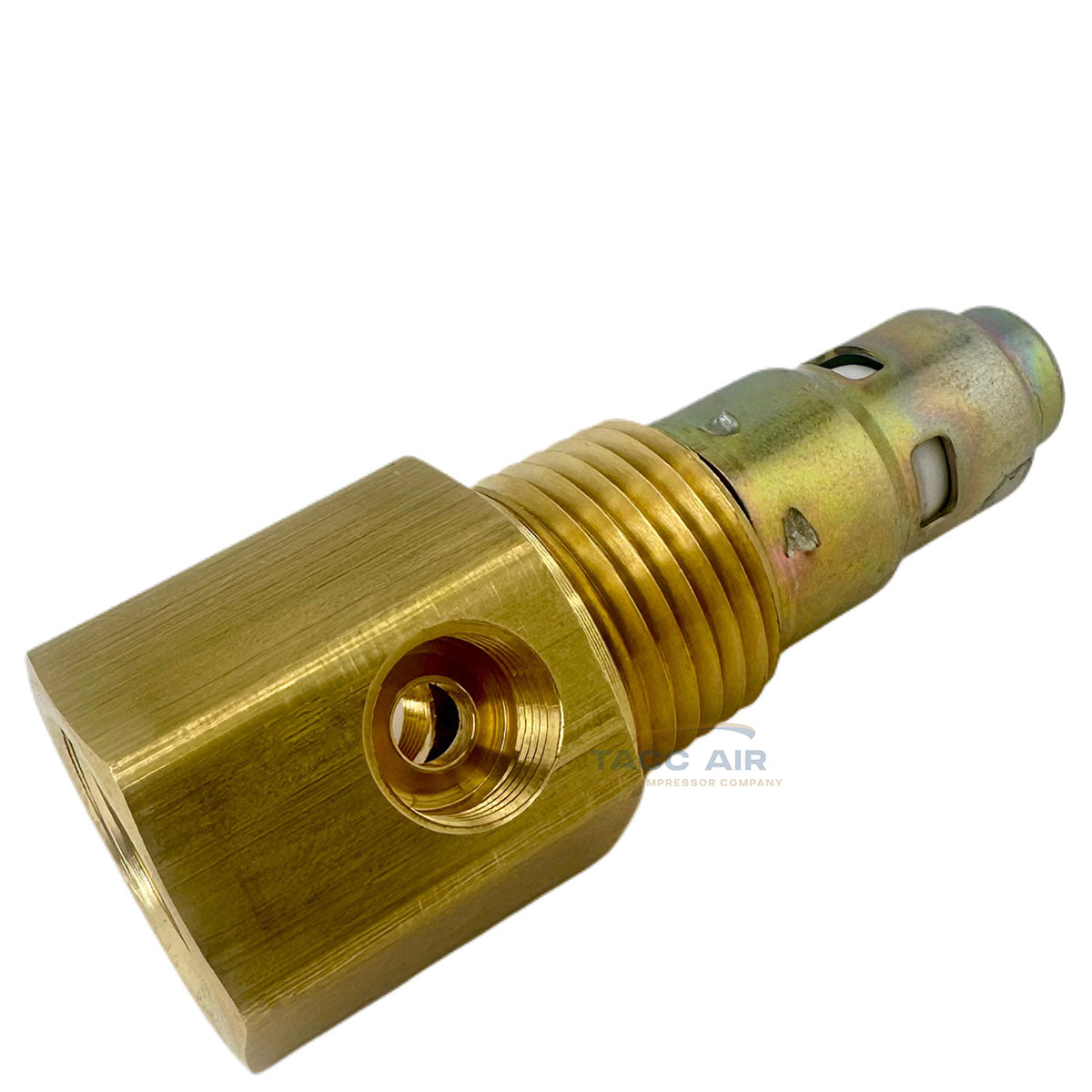

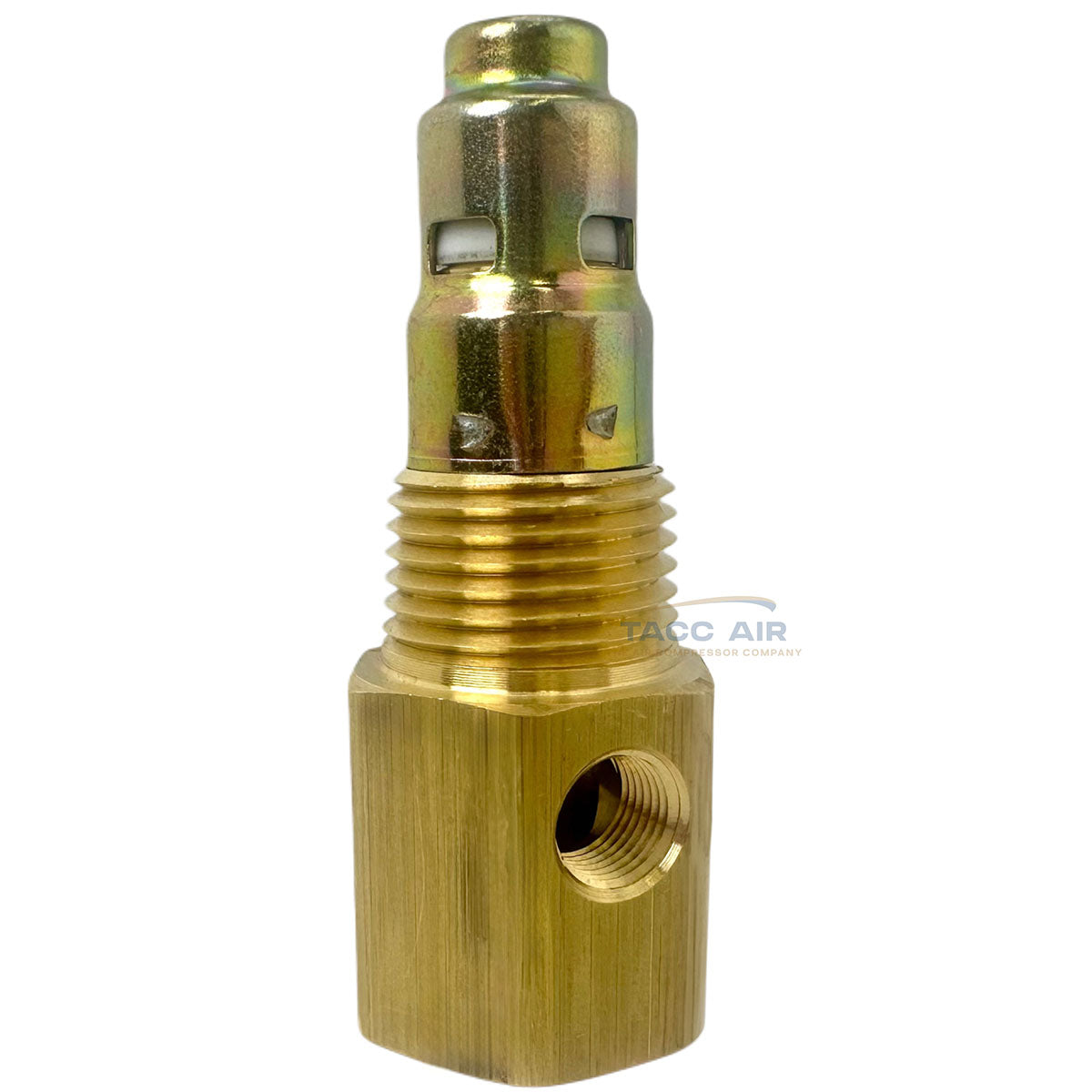

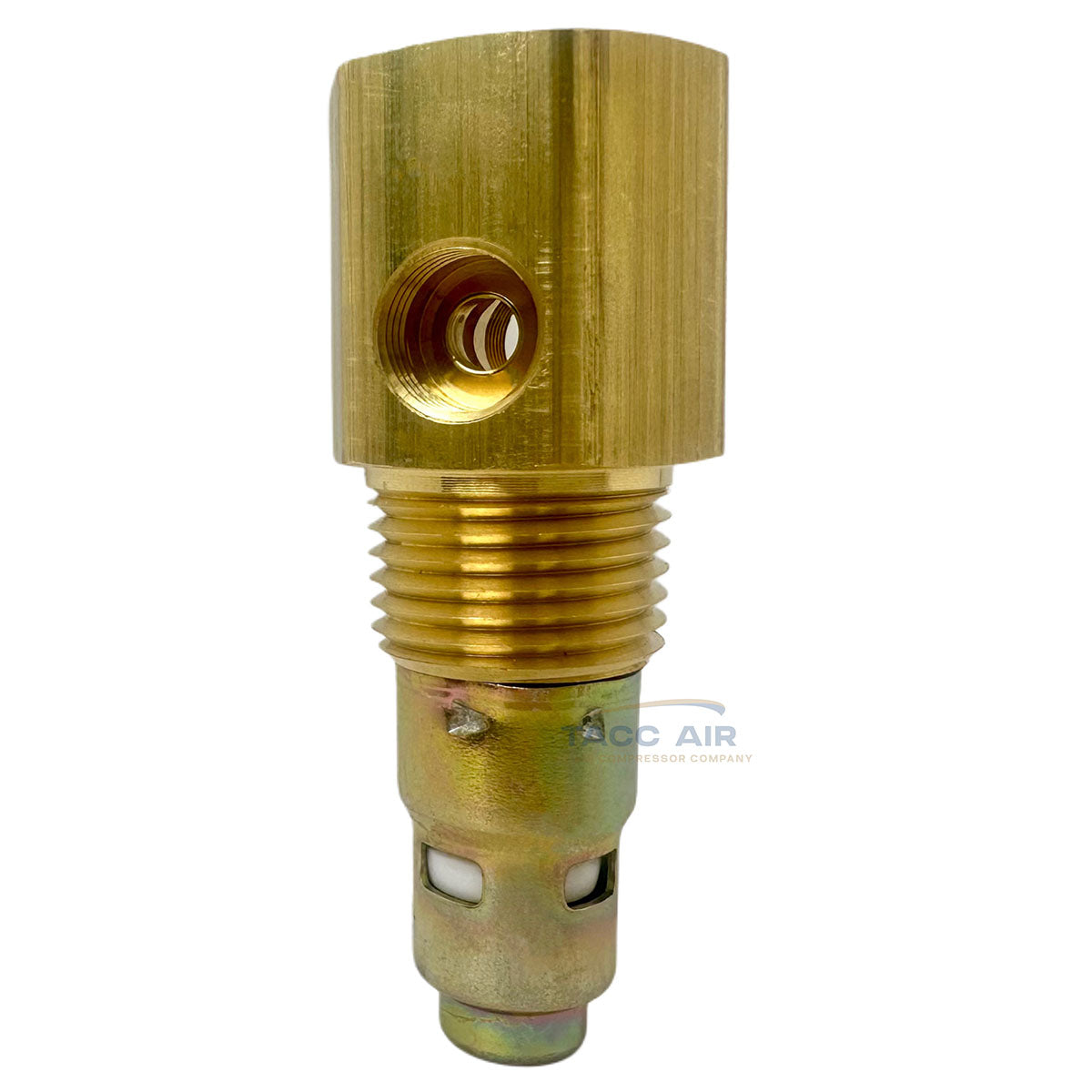

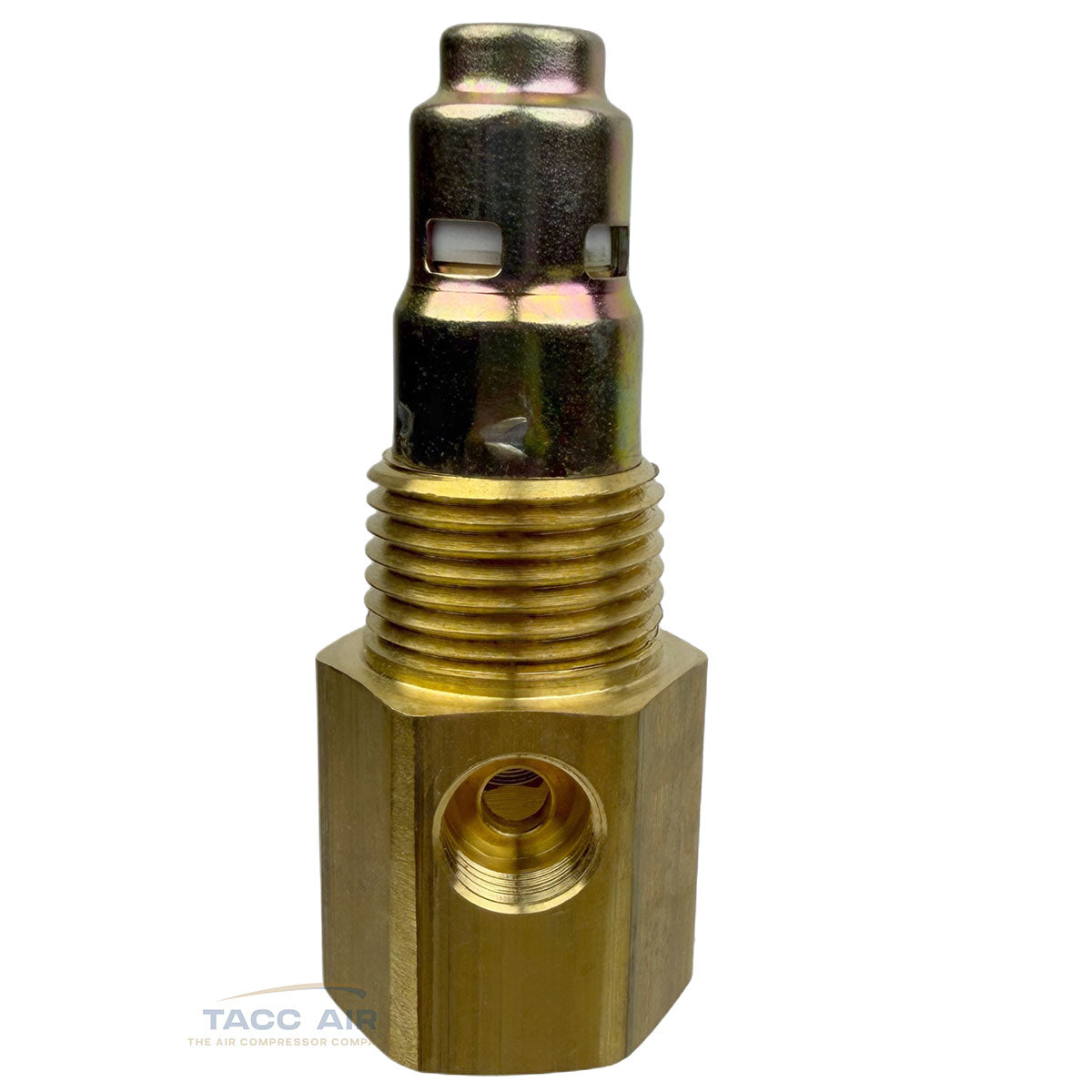

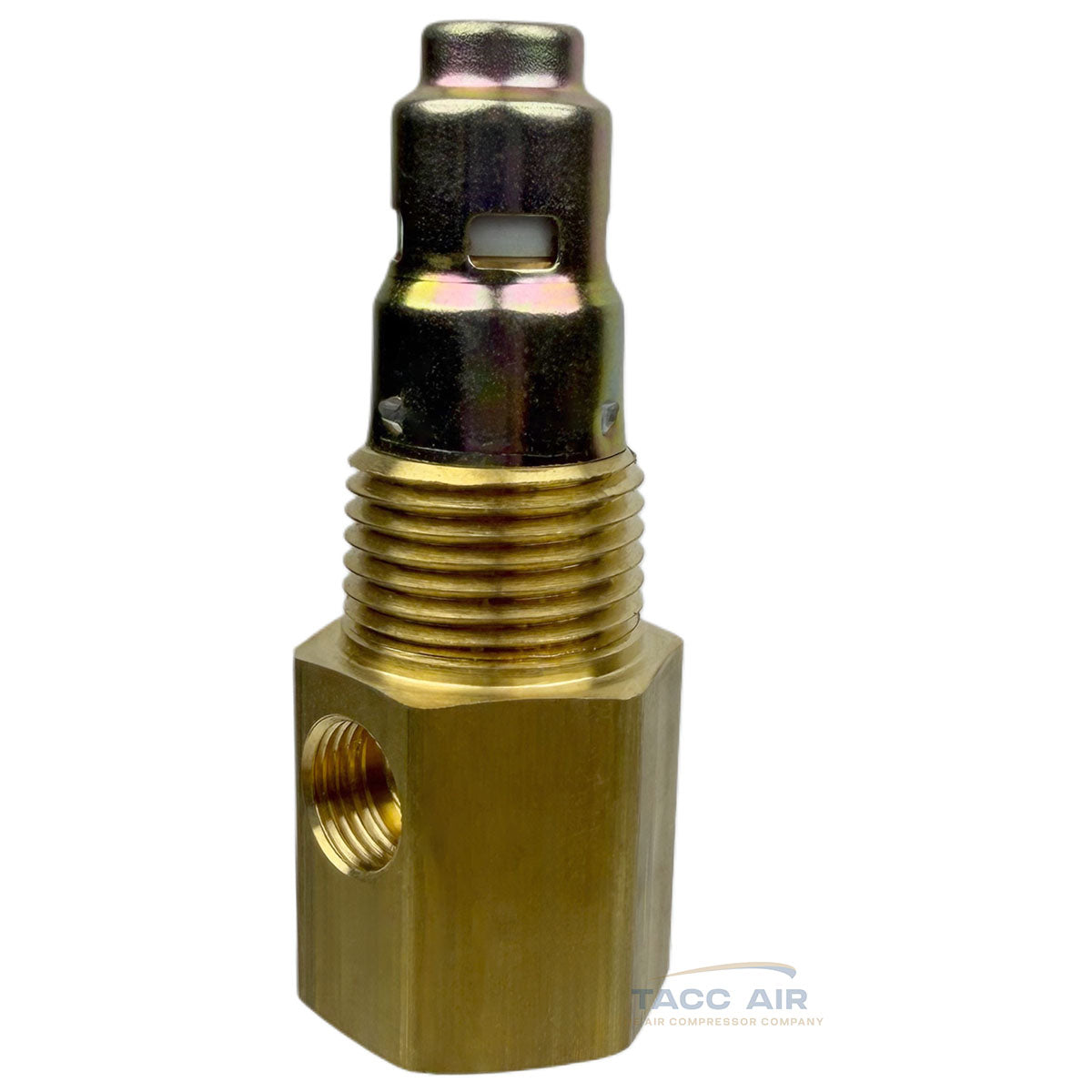

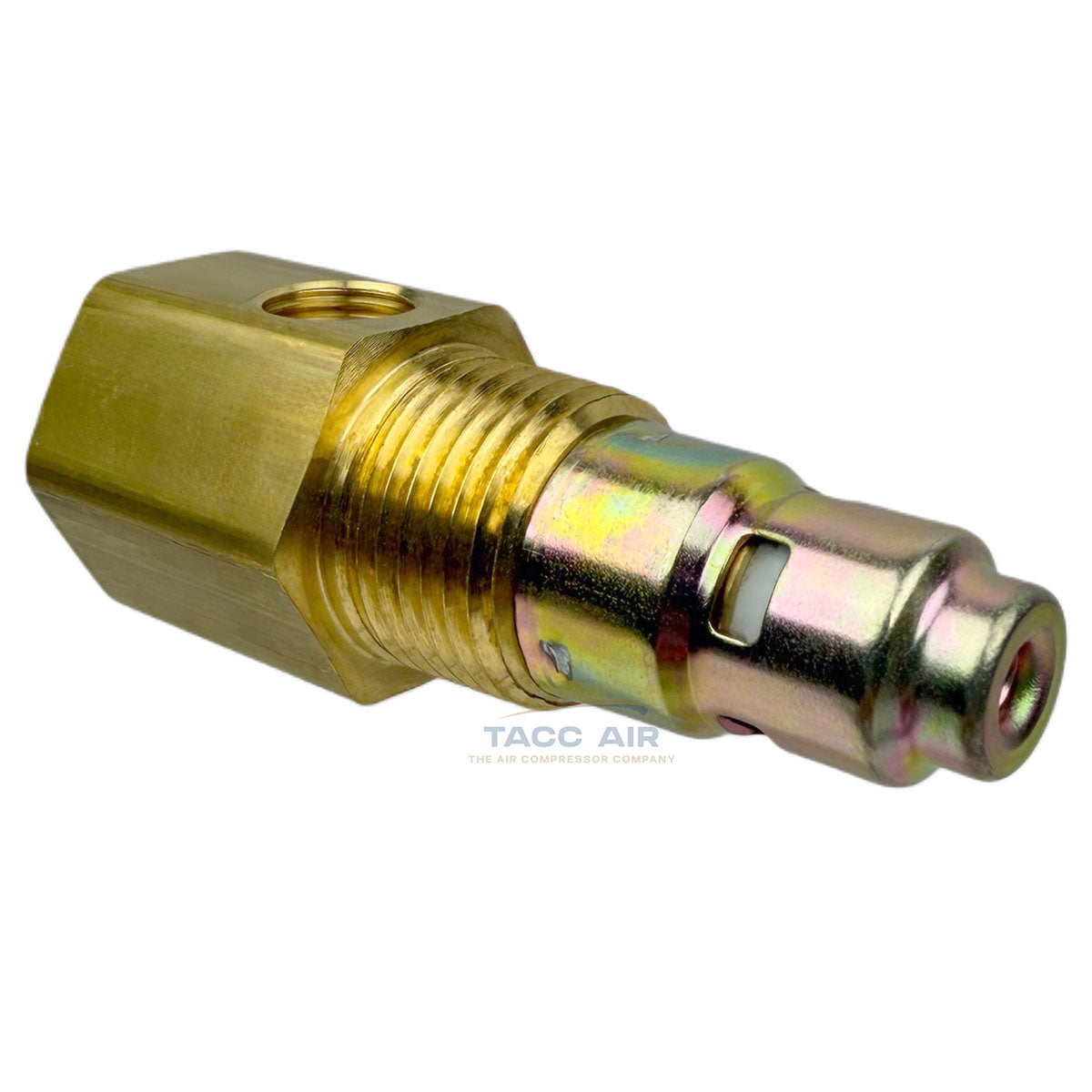

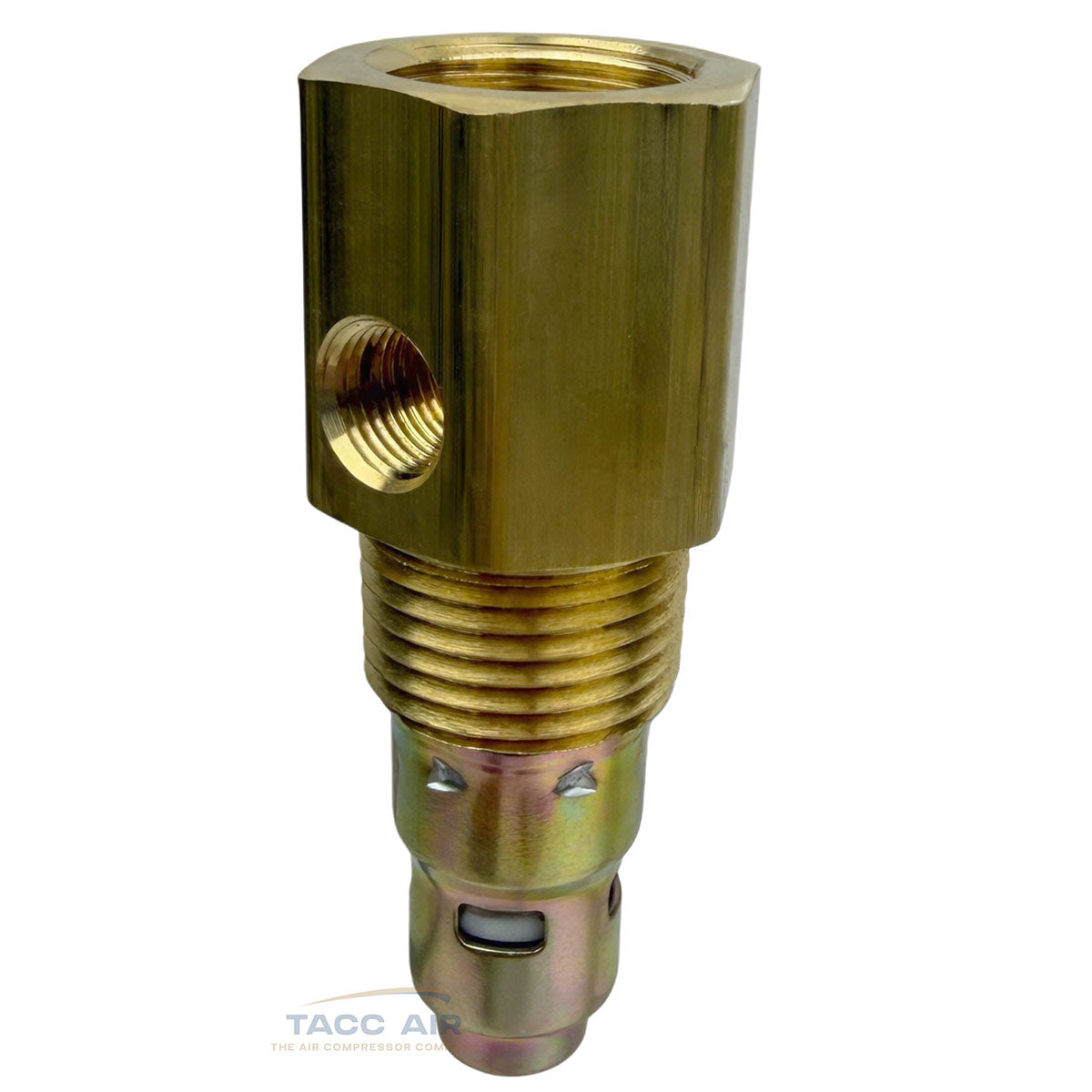

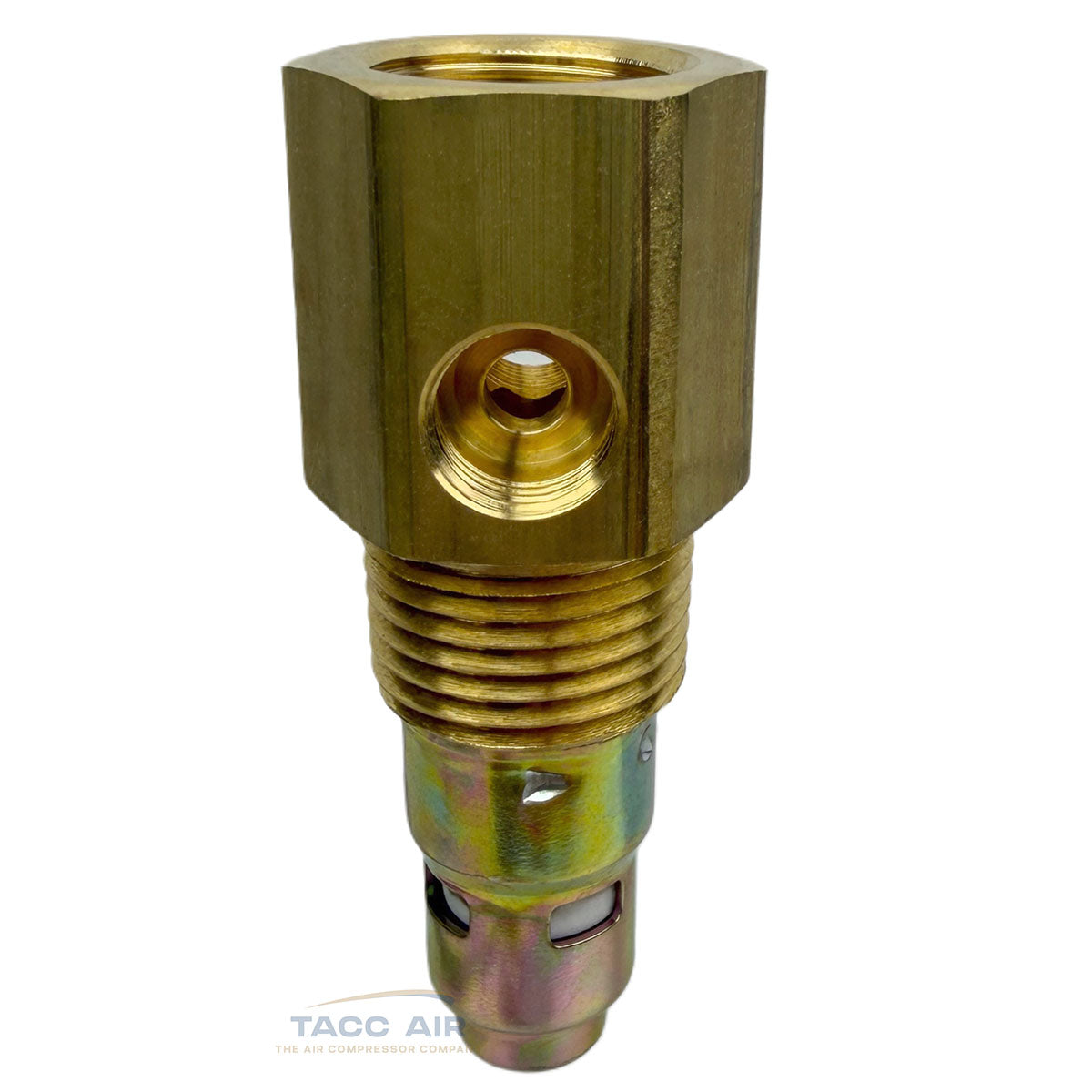

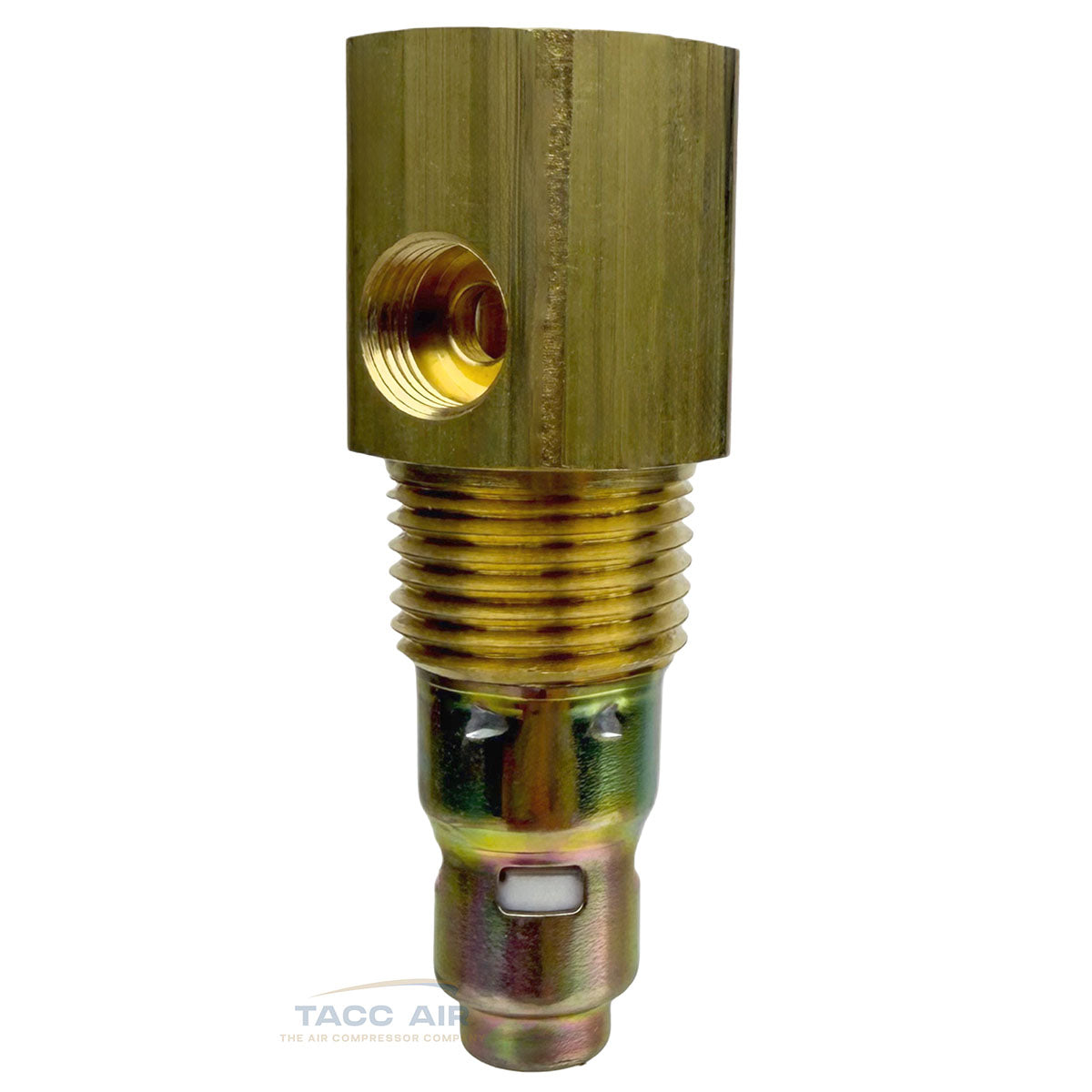

This valve features a 1/2" female inverted flare inlet and a 1/2" male NPT outlet, which securely connects to your air tank, providing a leak-free seal. Additionally, it includes two ports on the side: a 1/4" female NPT port for connecting a pressure relief valve, and a 1/8" female inverted flare port for an unloader line, specifically designed for Ingersoll Rand applications. Replaces Ingersoll Rand part # 56269590 commonly used on Ingersoll Rand SS3L3 air compressors.

Common compressor models using this check valve:

• SS3F2-GM
• SS3J2-WB
• SS3J3-AS
• SS3L3
• SS3R2-GM
• SSL3
• SSL5 - double check sizing on this model

Specifications:

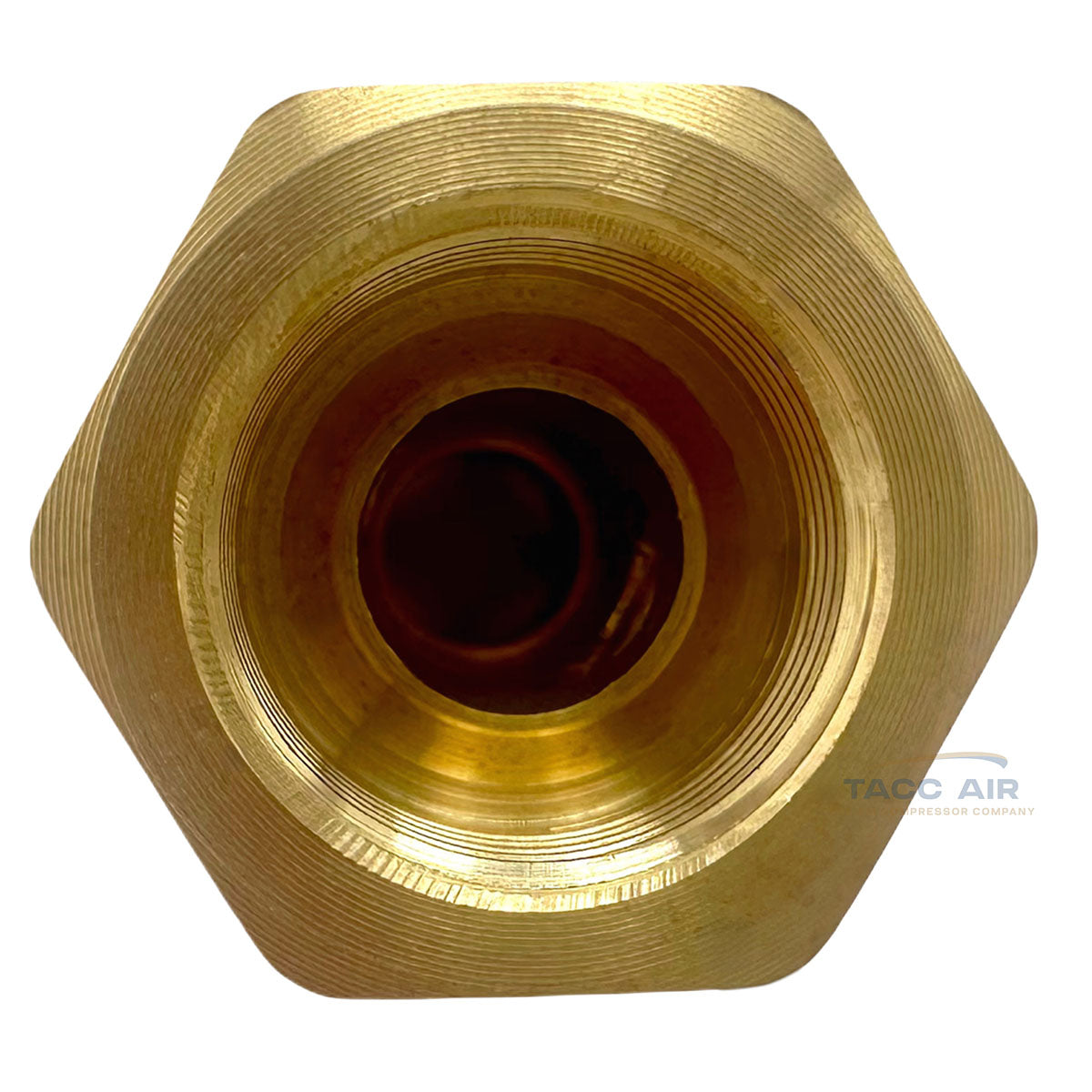

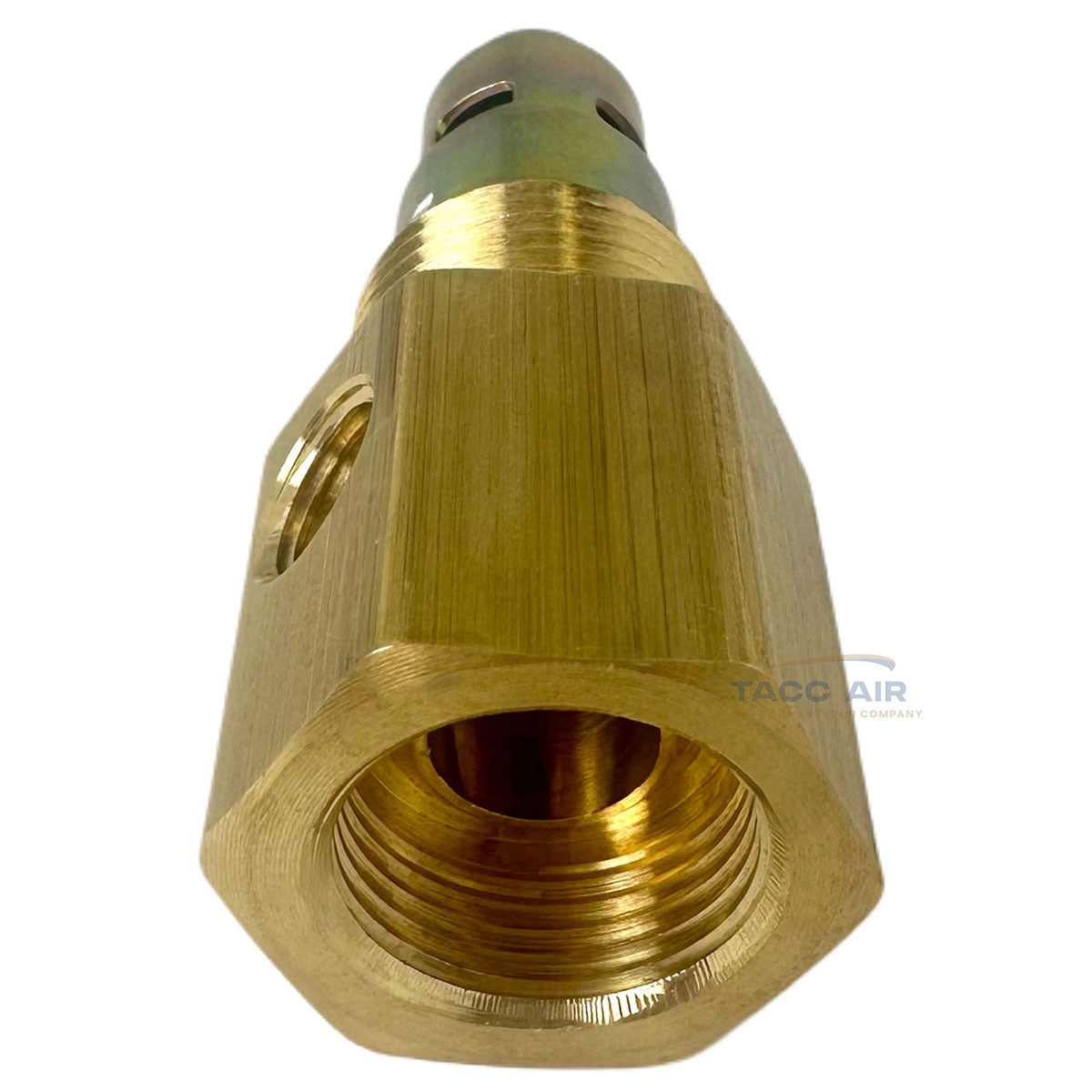

• Inlet Thread Size: 1/2" Female Inverted Flare (1/2" inverted flare threads measures approx. 11/16" inside diameter)

• Outlet Thread Size: 1/2" Male NPT (1/2" NPT measures approx. 3/4" outside diameter)

• Pressure Relief Valve Port: 1/4" Female NPT (1/4" NPT measures approx. 1/2" inside diameter)

• Unloader Line Port: 1/8" Female Inverted Flare (fits 1/4" unloader line, threads measure approximately. 3/8" in diameter)

• Overall Length: 2-3/4" inches

• Thread Type: Female inverted flare inlet, Male NPT outlet

• Side Ports: Includes 1/4" NPT port for pressure relief and 1/8" inverted flare port for unloader line

• Made in the USA: Premium quality construction for enhanced durability and reliability

Built with durability in mind, this USA-made valve provides long-lasting performance, ensuring your air compressor operates efficiently and safely.
