1/2" Compressed Air In Line Compressor Filter & Regulator Combo Piggyback System

Product Description:

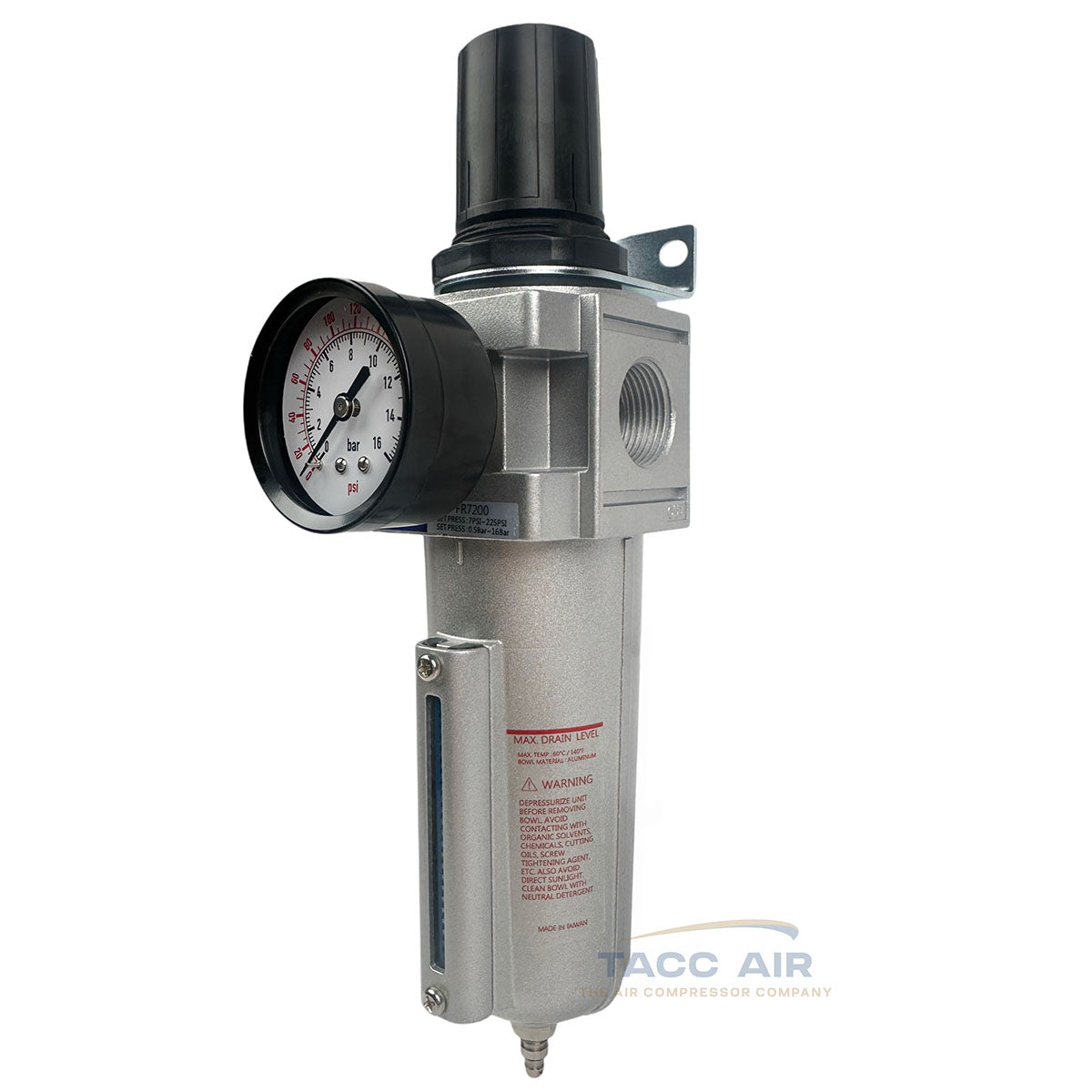

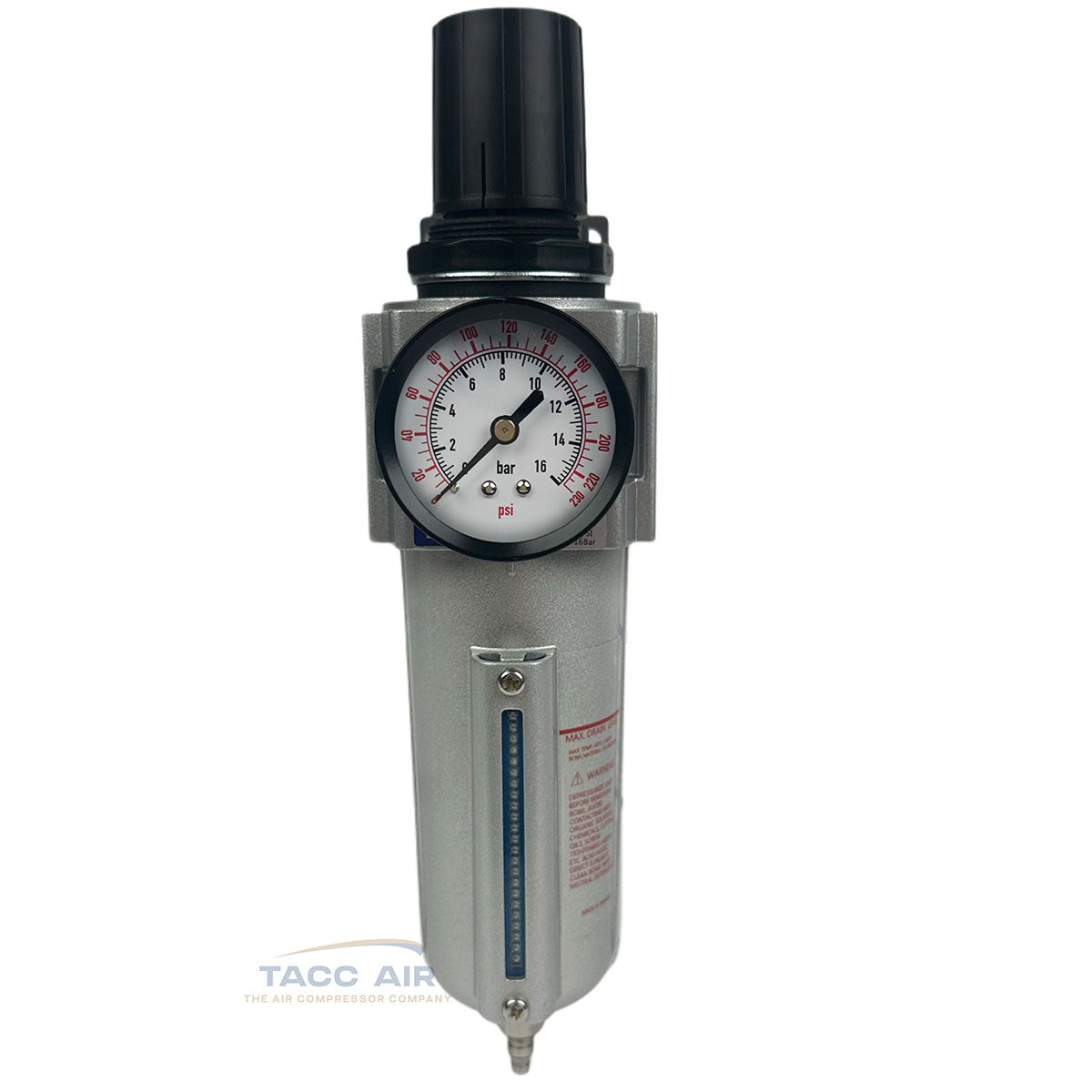

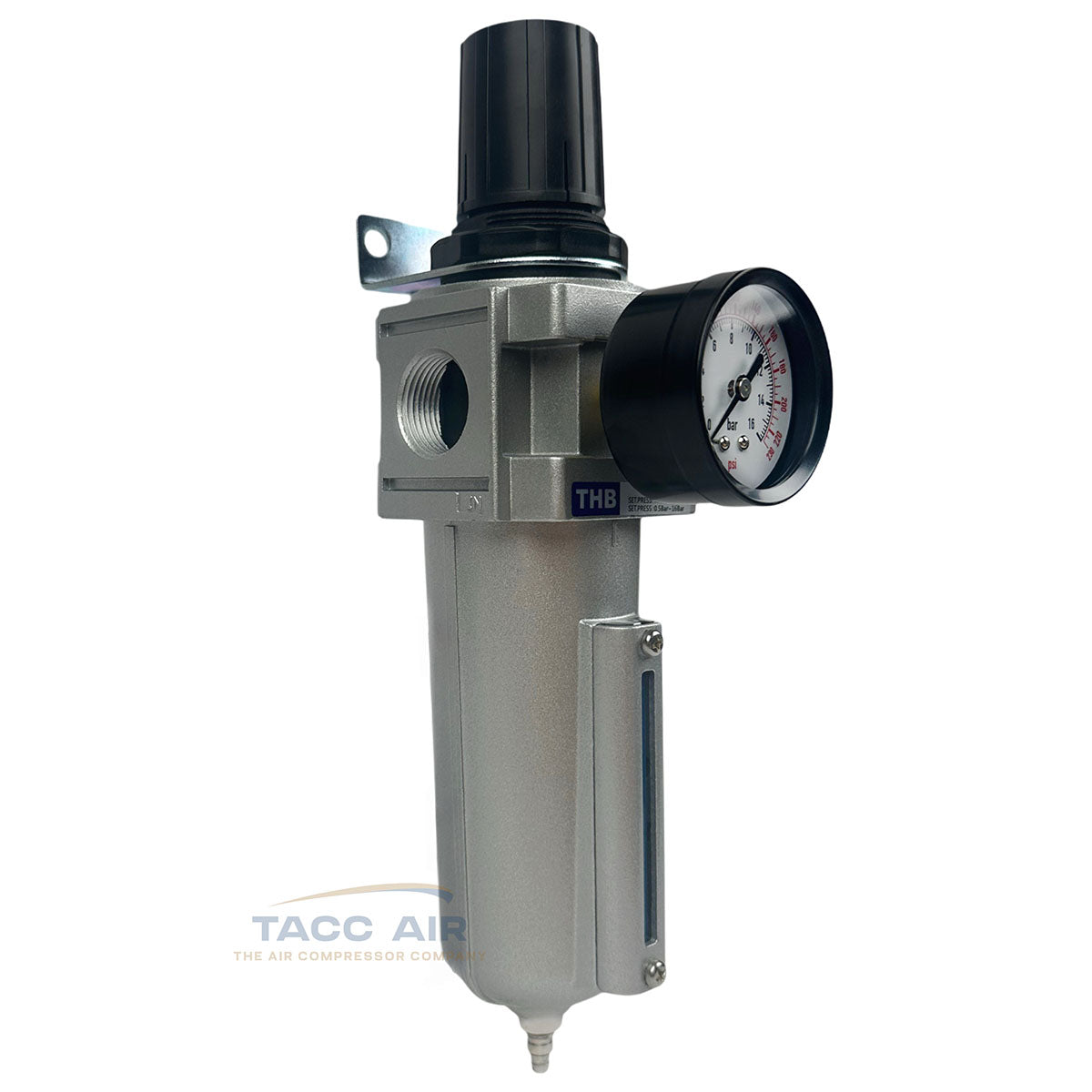

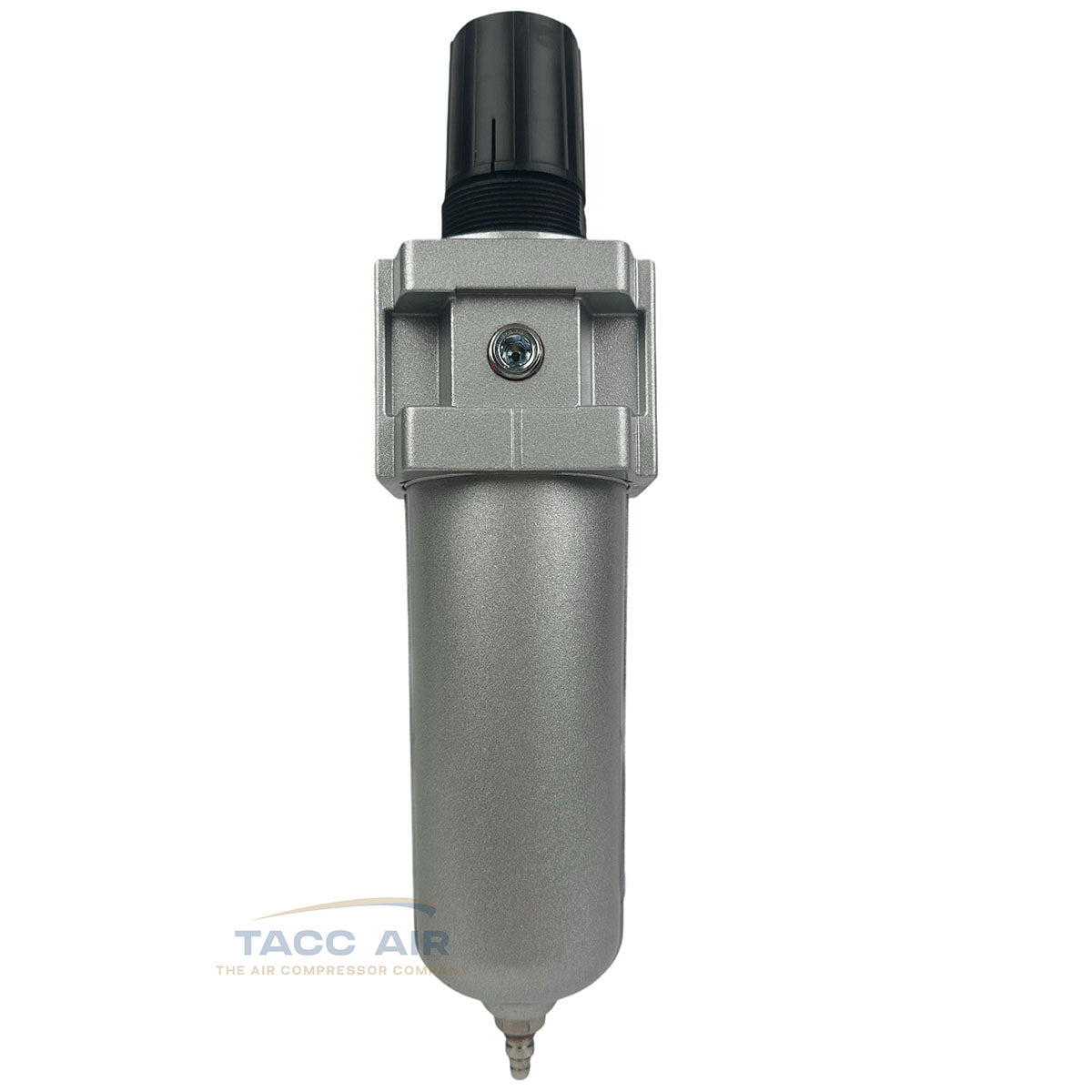

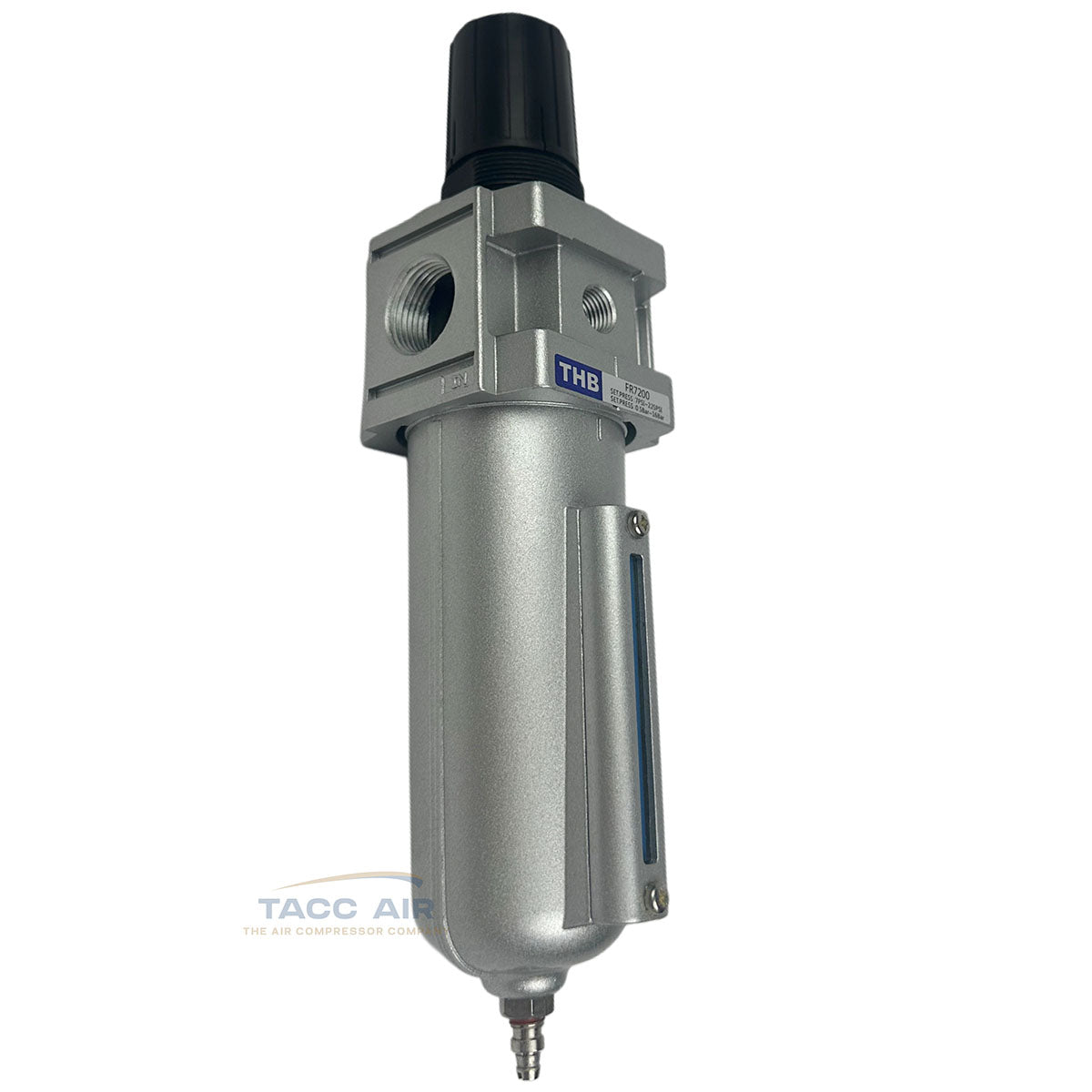

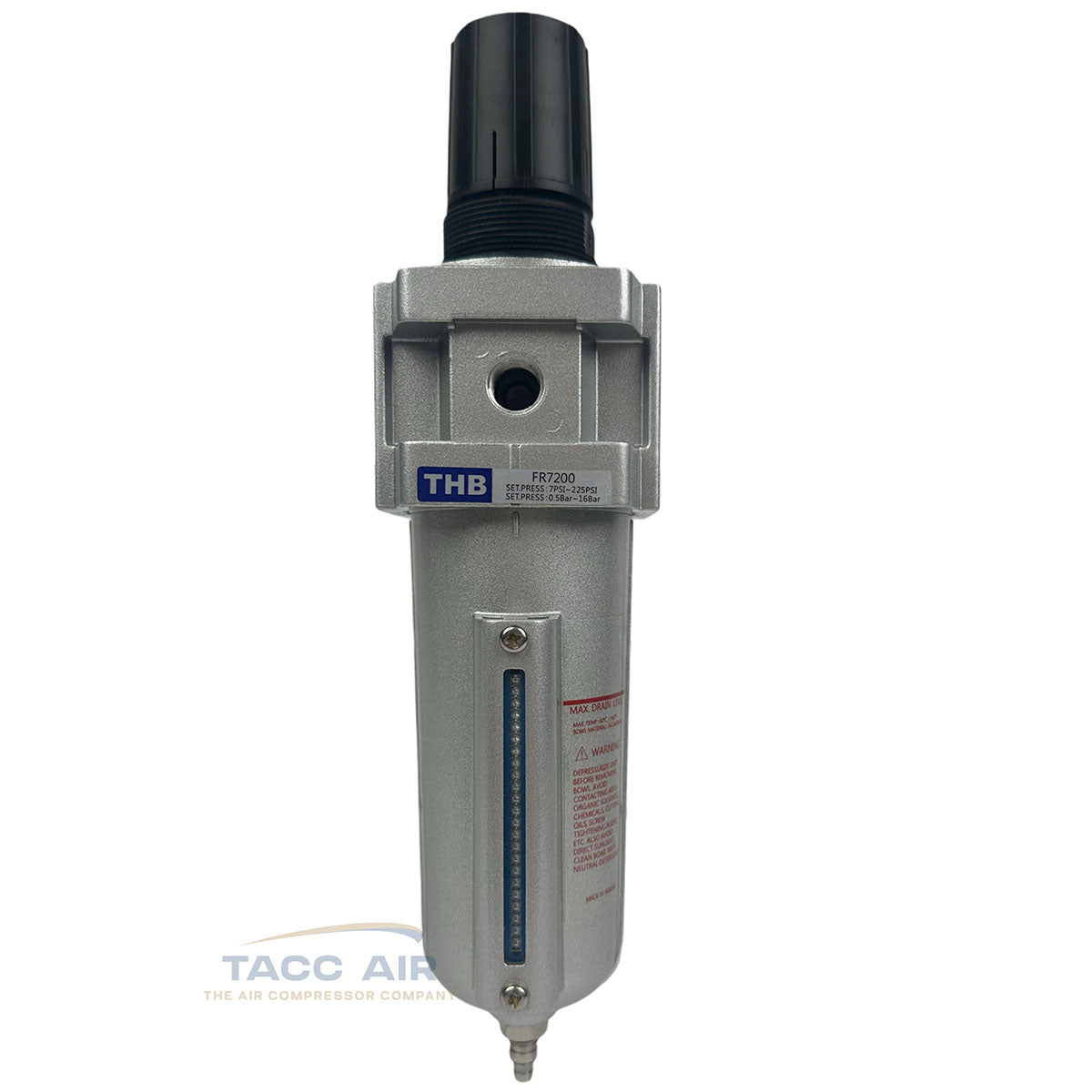

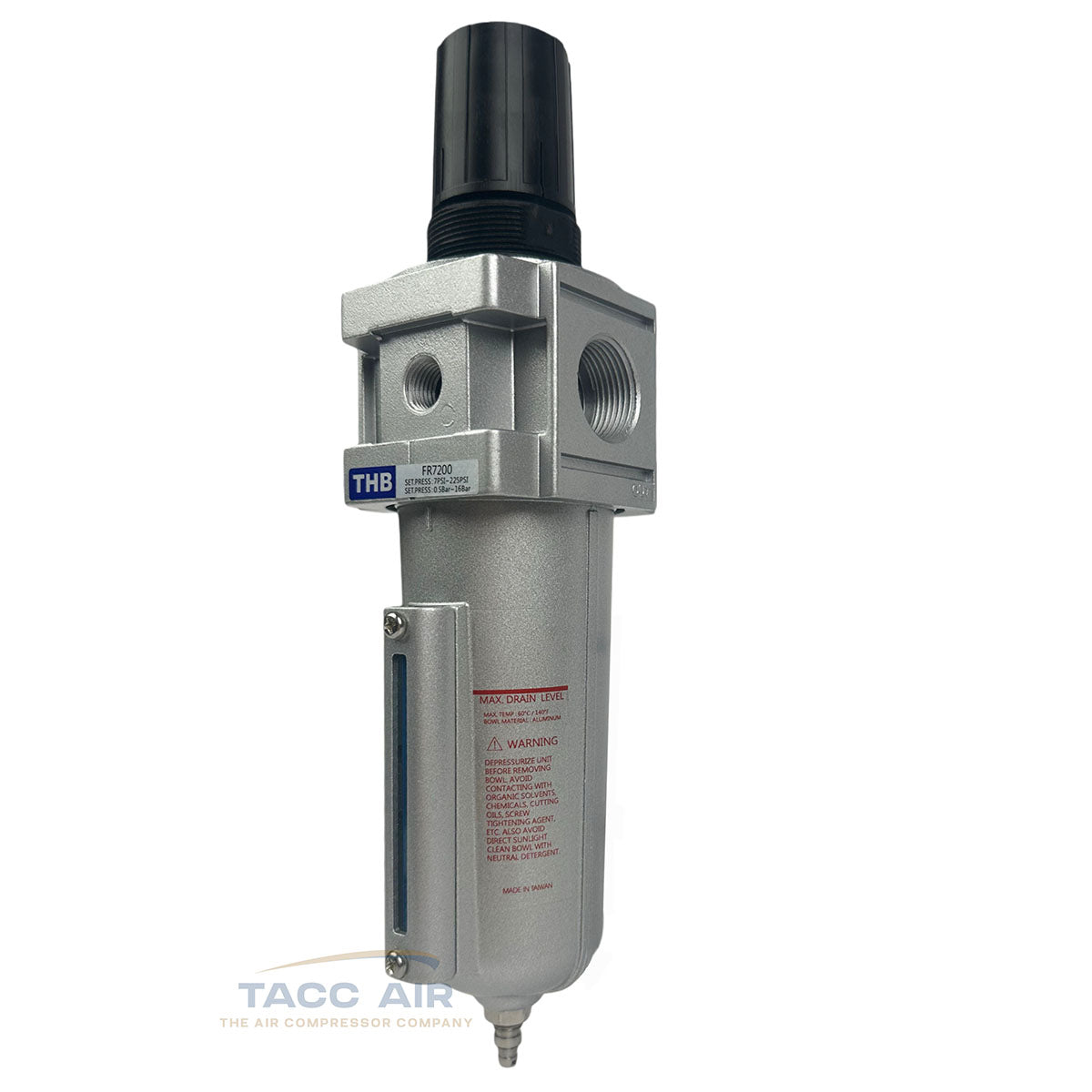

Compact Compressed air Filter & Regulator Combination system 1/2" NPT. This system is engineered for precision air treatment in commercial and industrial environments. The system is a piggyback style 5-micron particulate and moisture filter built in with an adjustable air pressure regulator. This helps regulate your system and tools while helping keep them dry for long term performance.

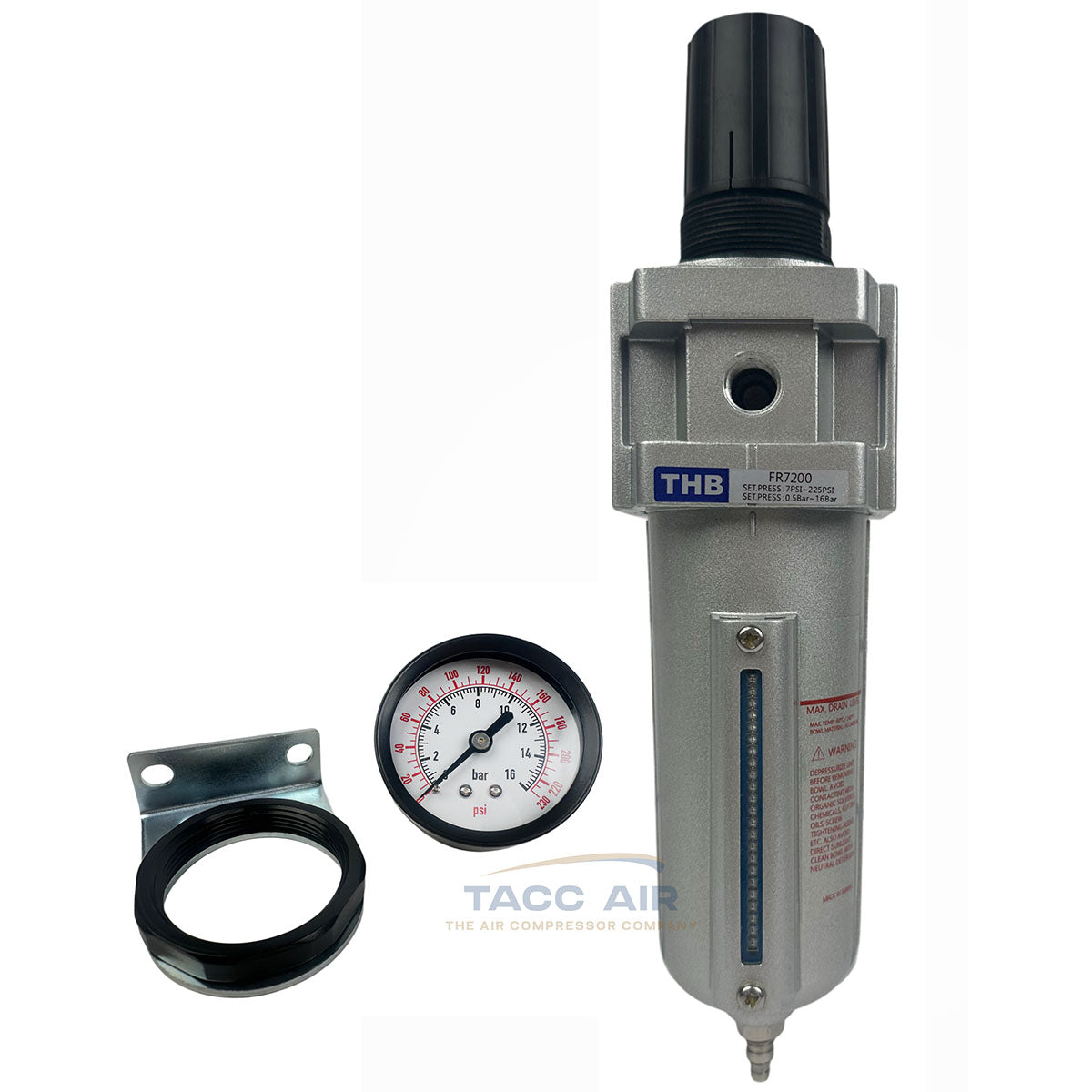

The regulator knob features a push-to-lock / pull-to-unlock design, allowing for secure pressure adjustments between 7 PSI and 175 PSI. An included pressure gauge gives real-time pressure readings. With clearly marked directional flow arrows and 1/2" female NPT ports, installation is fast and straightforward.

This is a commercial-grade air management system capable of handling high-demand setups with up to 138 CFM flow and 225 PSI max inlet pressure.

Product Details:

• Type: Piggyback (Filter, Regulator)

• Filter Rating: 5 Micron

• Regulator Range: 7 – 175 PSI

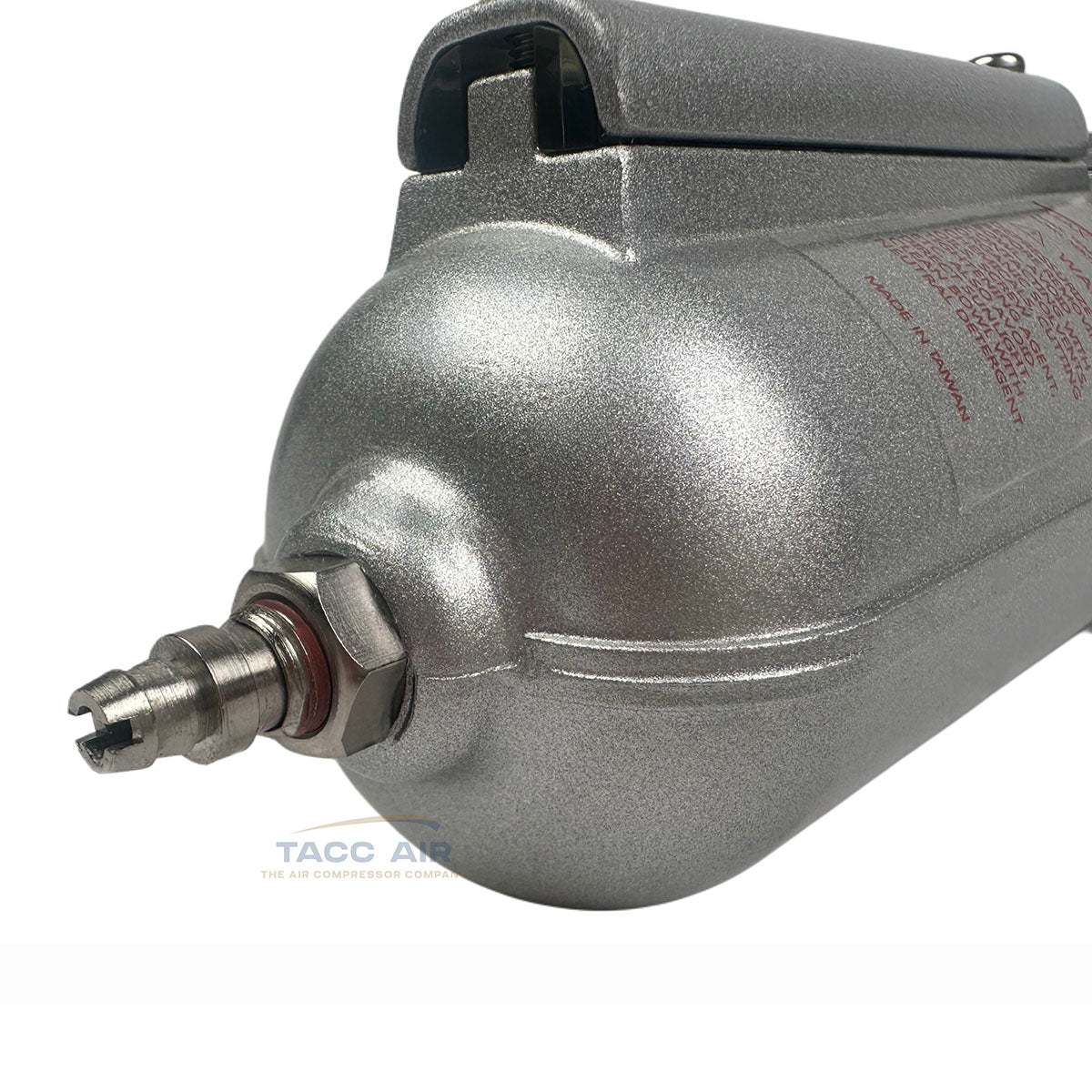

• Quick-Drain Valve – Spring-loaded push-style drain makes it easy to empty collected liquid without mess or disassembly. The drain port also features a hose barb to connect hose and drain into a designated area.

• Generous Bowl Capacity – Holds up to 2.7 oz of liquid for longer run times between maintenance.

• Flow Direction: Directional (must follow arrow markings casted in aluminum body)

• Locking Mechanism: Push to lock / Pull to unlock pressure knob

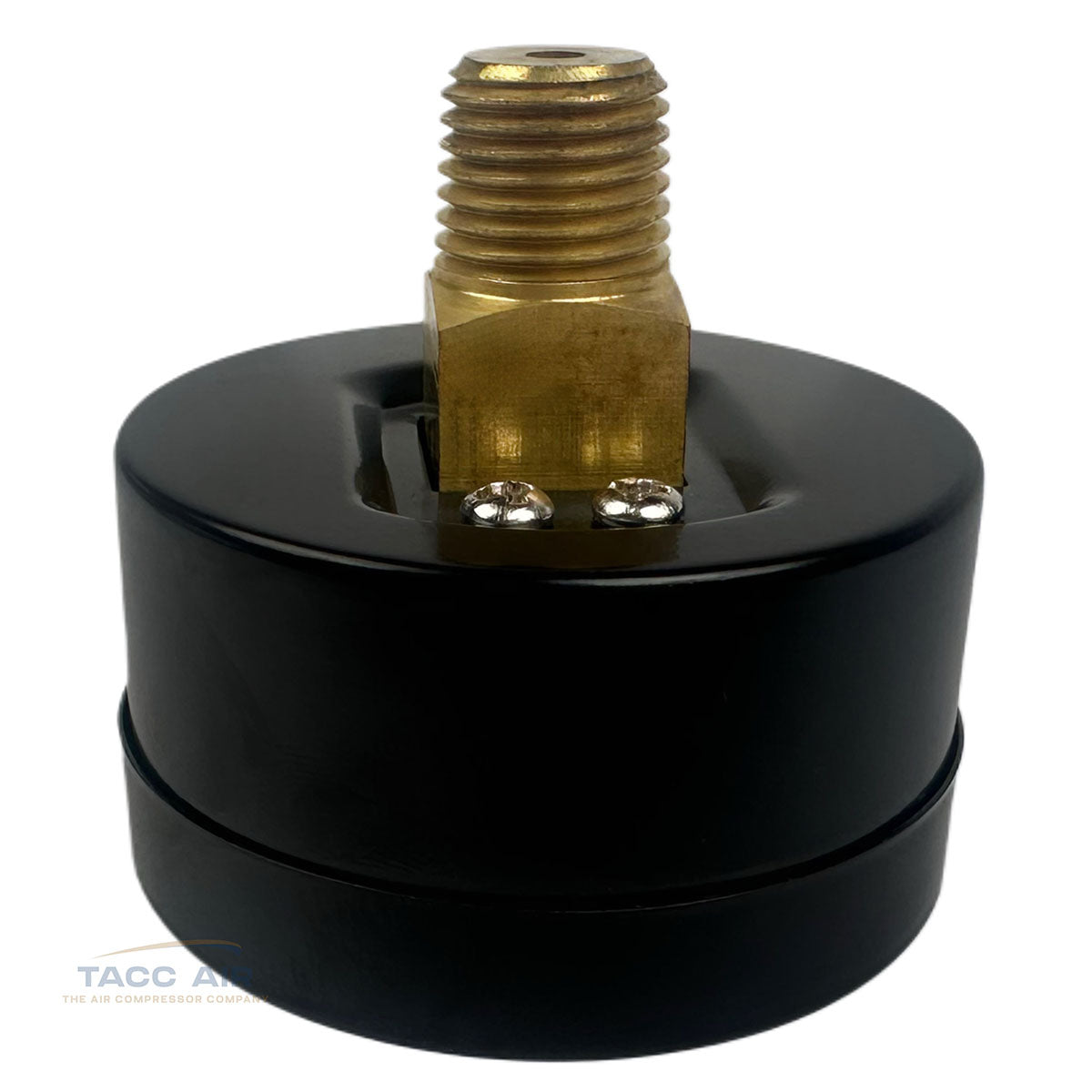

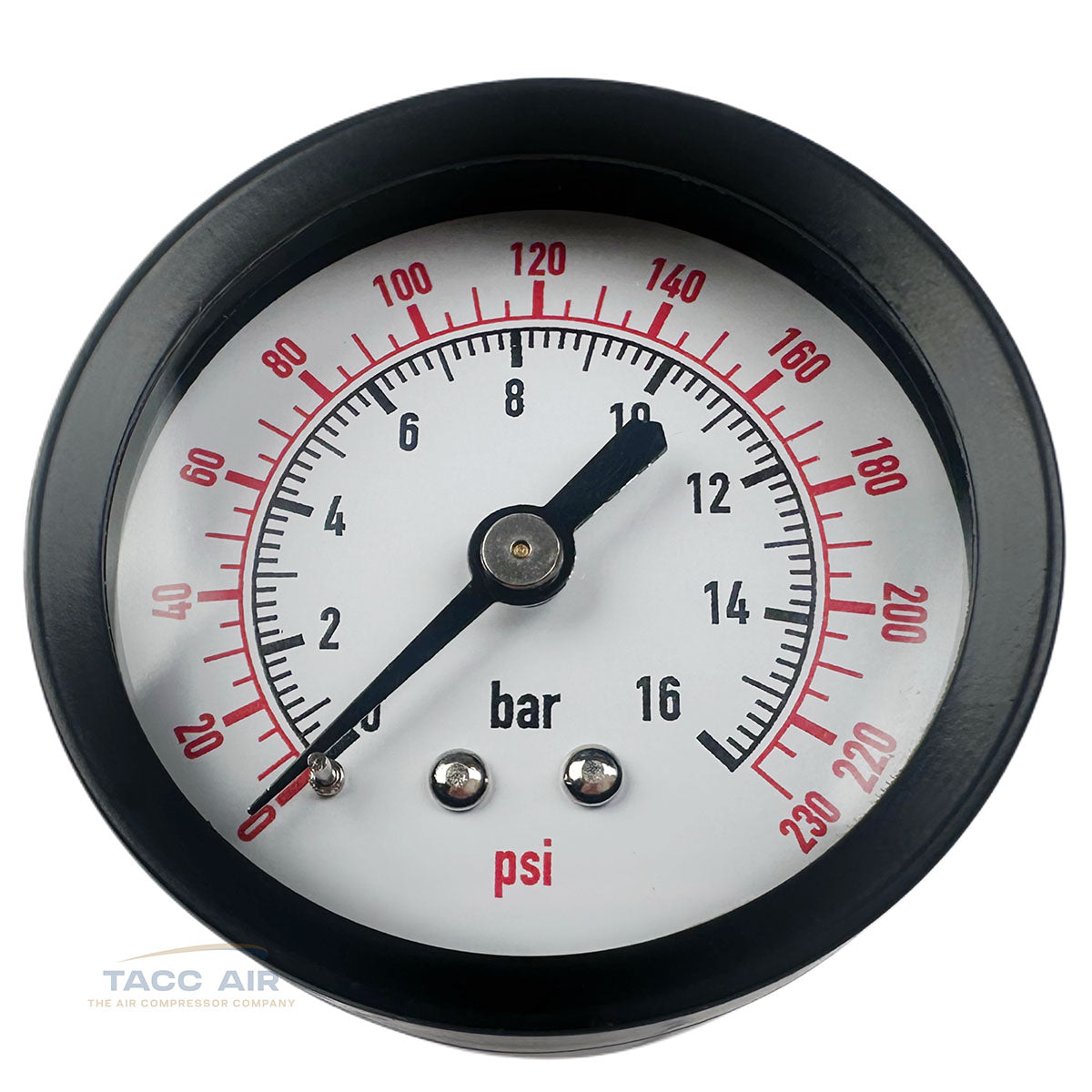

• Display: Included Air Pressure Gauge

• Applications: Commercial and Industrial Air Systems, Pneumatic Tool Setups

Specifications:

• Connection Type: 1/2" NPT Female (1/2" NPT measures approx. 3/4" in diameter)

• Max Inlet Pressure: 225 PSI

• Max Flow Capacity: 138 CFM

• Operating Temperature Range: 40°F – 140°F (4°C – 60°C)

• Overall Dimensions:

  • Width: 2-3/4"

  • Height: 11"

  • Depth (with gauge): 4-5/8"
