1/4" NPT Air Compressor Tank Pull Drain Valve Cable Moisture Release

1/4" NPT Air Compressor Tank Pull Drain Valve Cable Moisture Release

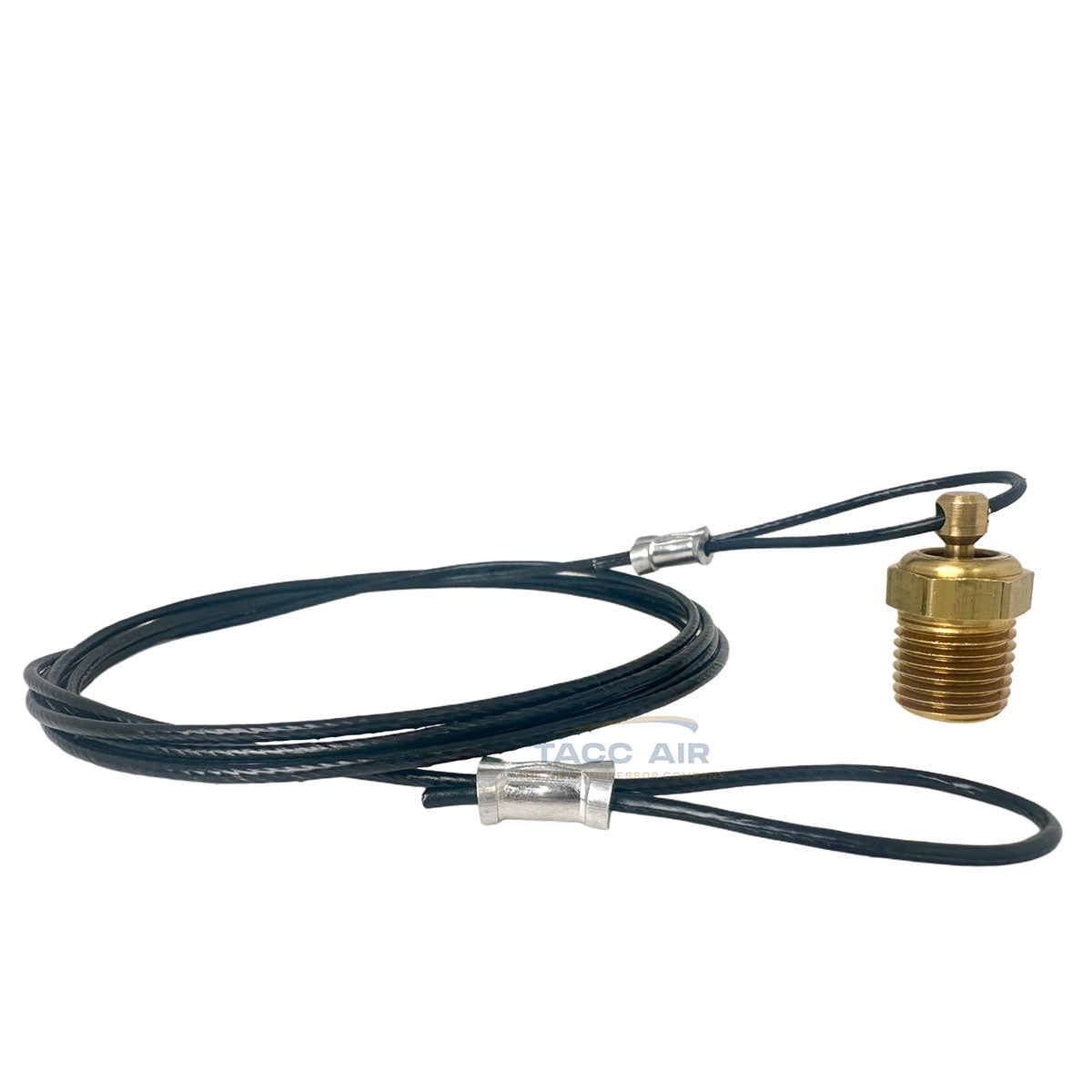

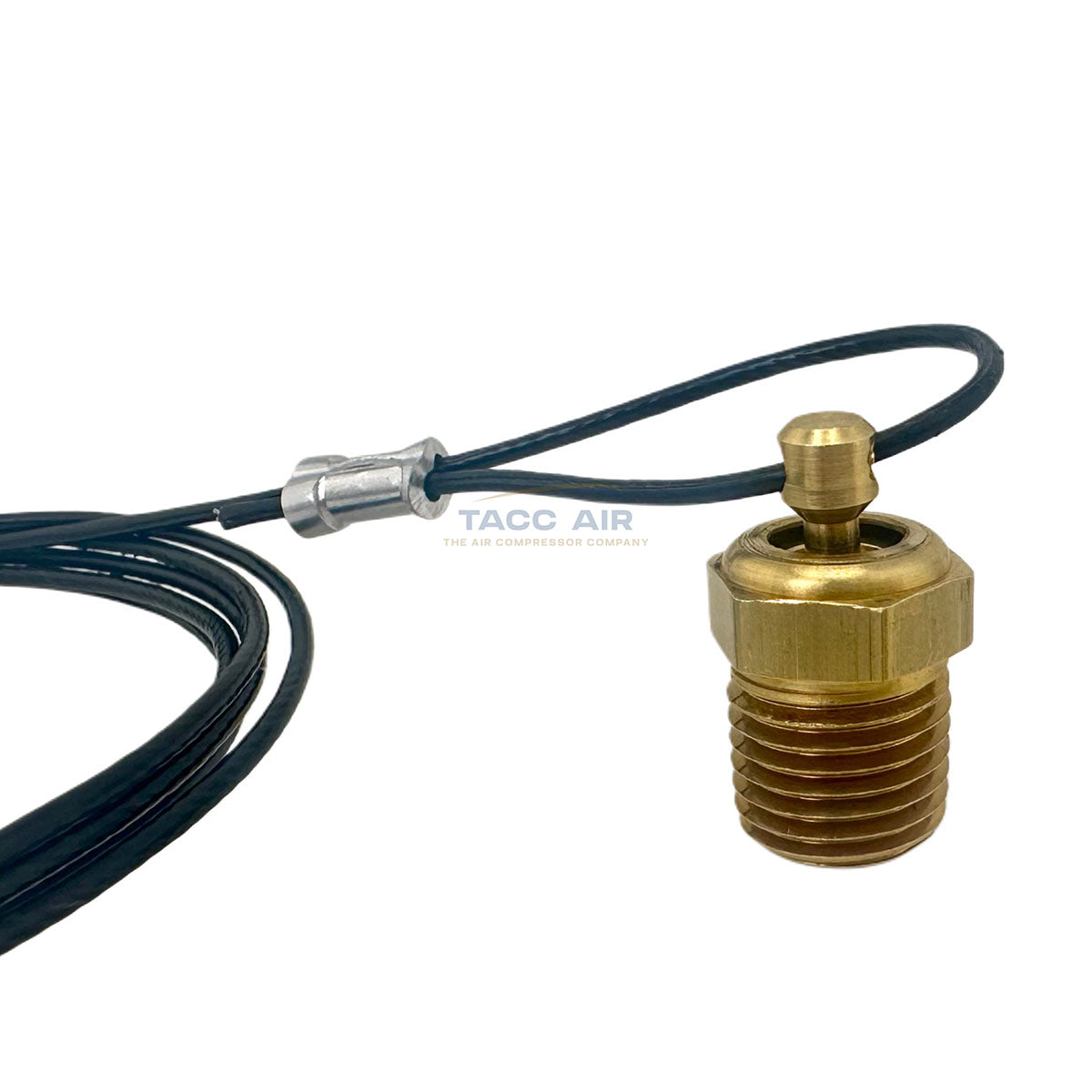

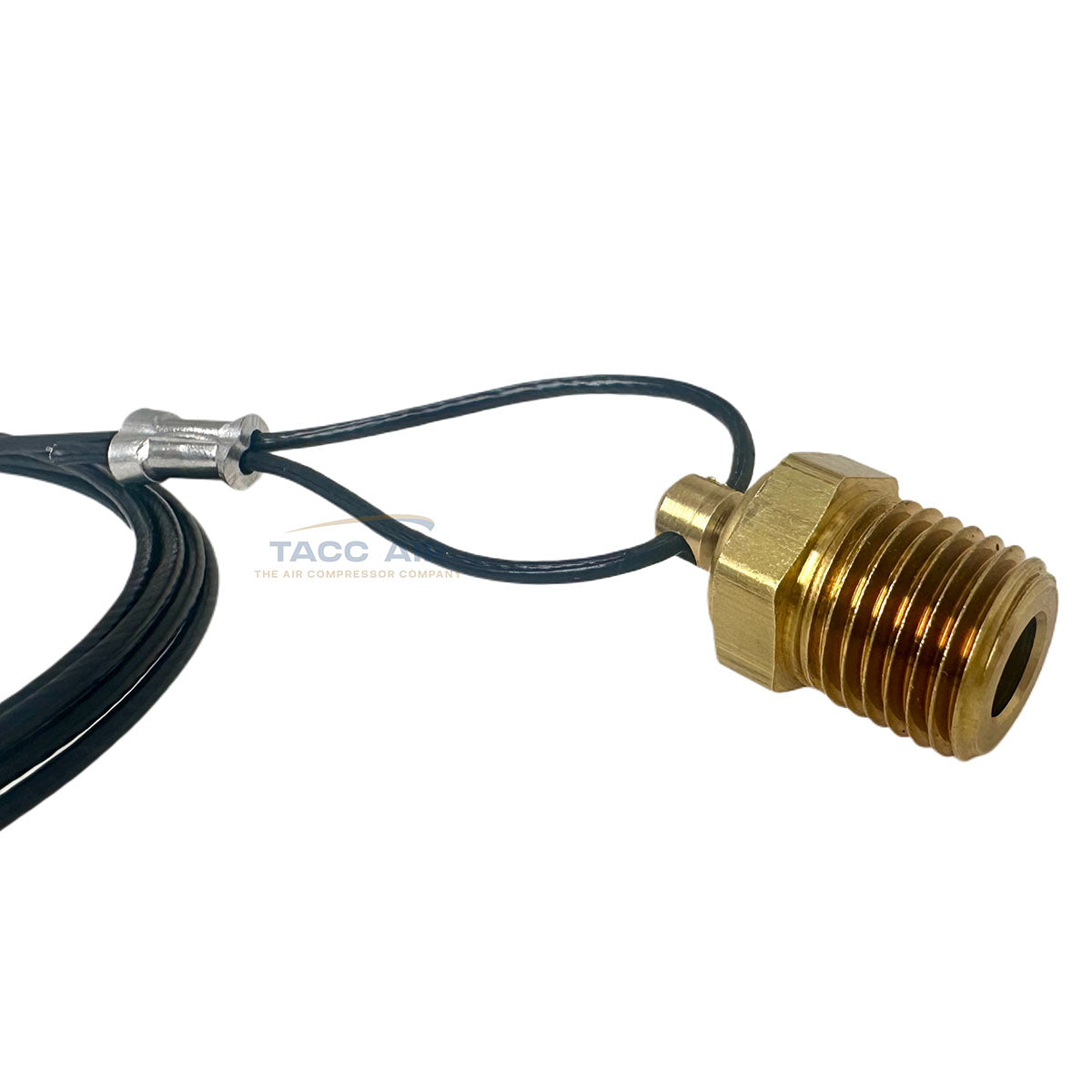

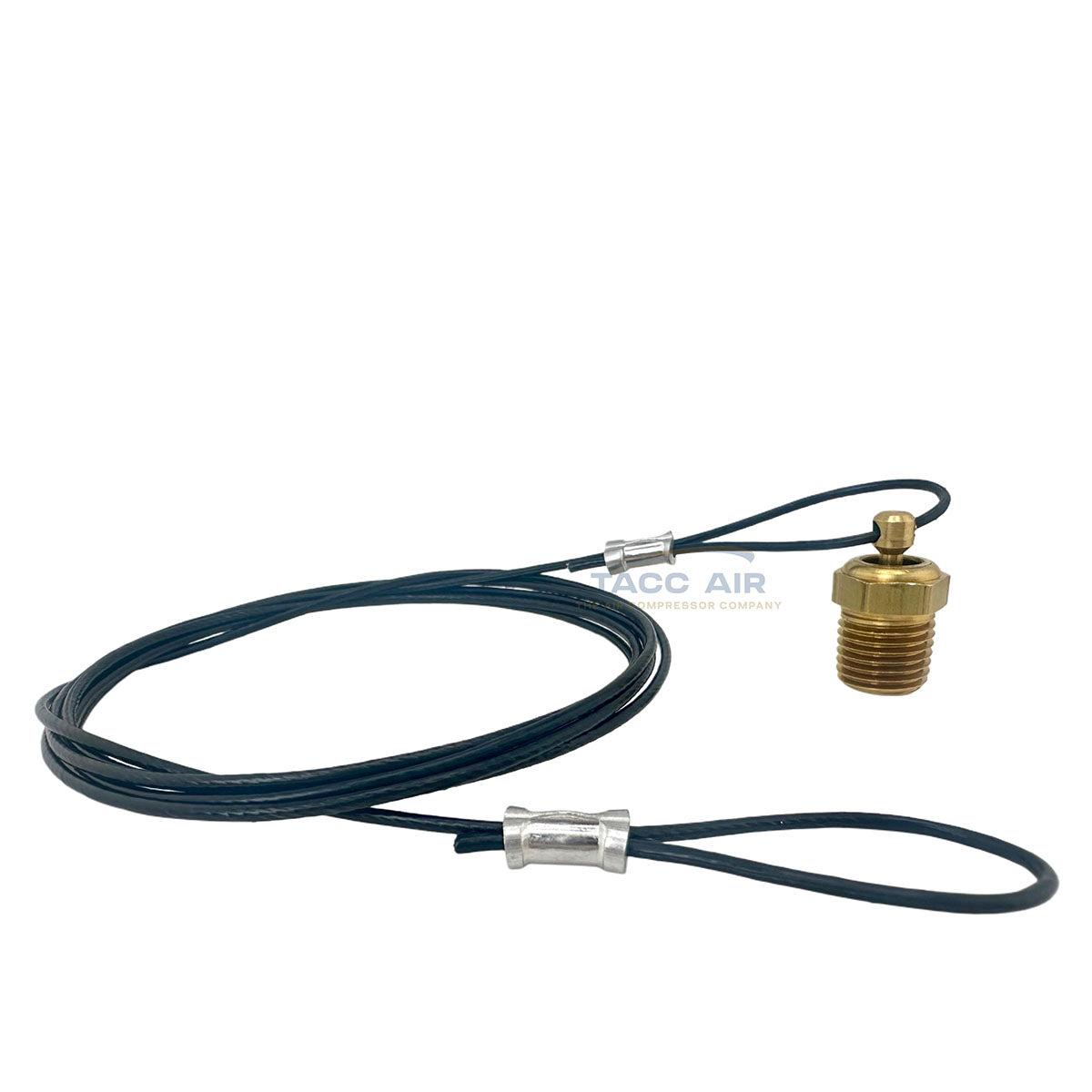

This cable-style air tank drain valve is a practical upgrade for anyone looking to replace a traditional twist-style petcock drain. Designed with convenience in mind, this valve features a 1/4" male NPT thread and installs directly into the bottom of your air tank. The 60-inch pull cable allows you to easily release built-up moisture from the tank without having to crawl underneath or reach into tight spaces.

The valve itself is made from solid brass, providing excellent durability and resistance to corrosion in demanding shop or industrial environments. The cable is constructed from sturdy steel and covered with a protective poly coating to prevent wear and ensure long-lasting performance. Rated for up to 250 PSI, this valve is compatible with a wide range of portable and stationary air compressor tanks.

For installation: This valve screws into the bottom of the air tank and the cable runs up and secures to the base plate of the compressor or somewhere near the top of the tank. There should be some slack still left in the cable as you don't want it tight, if it is too tight it will keep the valve open. Then when you pull on the cable it will pull this valve stem to the side and drain air and moisture until released. Note this drain does not function by pulling straight out it is designed so the stem gets pulled to the side to open the valve.

Specifications:

• Connection Type: 1/4" Male NPT (1/4" npt measures approx. 1/2" outside diameter)

• Valve Material: Solid Brass

• Cable Material: Steel with Durable Poly Coating

• Cable Length: 60 inches

• Maximum Pressure: 250 PSI

• Drain Type: Pull-Cable Style Moisture Drain

• Compatibility: Replaces standard petcock-style tank drains

• Installation Location: Screws into bottom drain port of air tanks

• Operation: Pulling cable to the side approx. 90 degrees actuates valve to release moisture

• Country of Origin: Made in the USA

Whether you're doing routine maintenance or upgrading your equipment, this American-made pull-style drain valve offers a simple and effective solution to help extend the life of your air tank and keep your system drained.
