1/4" Compressed Air Compressor Regulator Industrial Grade W/ Pressure Gauge

Compact 1/4" NPT Heavy Duty Air Compressor Pressure Regulator R202N With Pressure Gauge

Take full control of your air compressor system with this brand new, high-quality heavy duty 1/4" NPT air pressure regulator. Designed for universal compatibility, this compact regulator is ideal for any air compressor setup that requires a reliable 1/4" regulator.

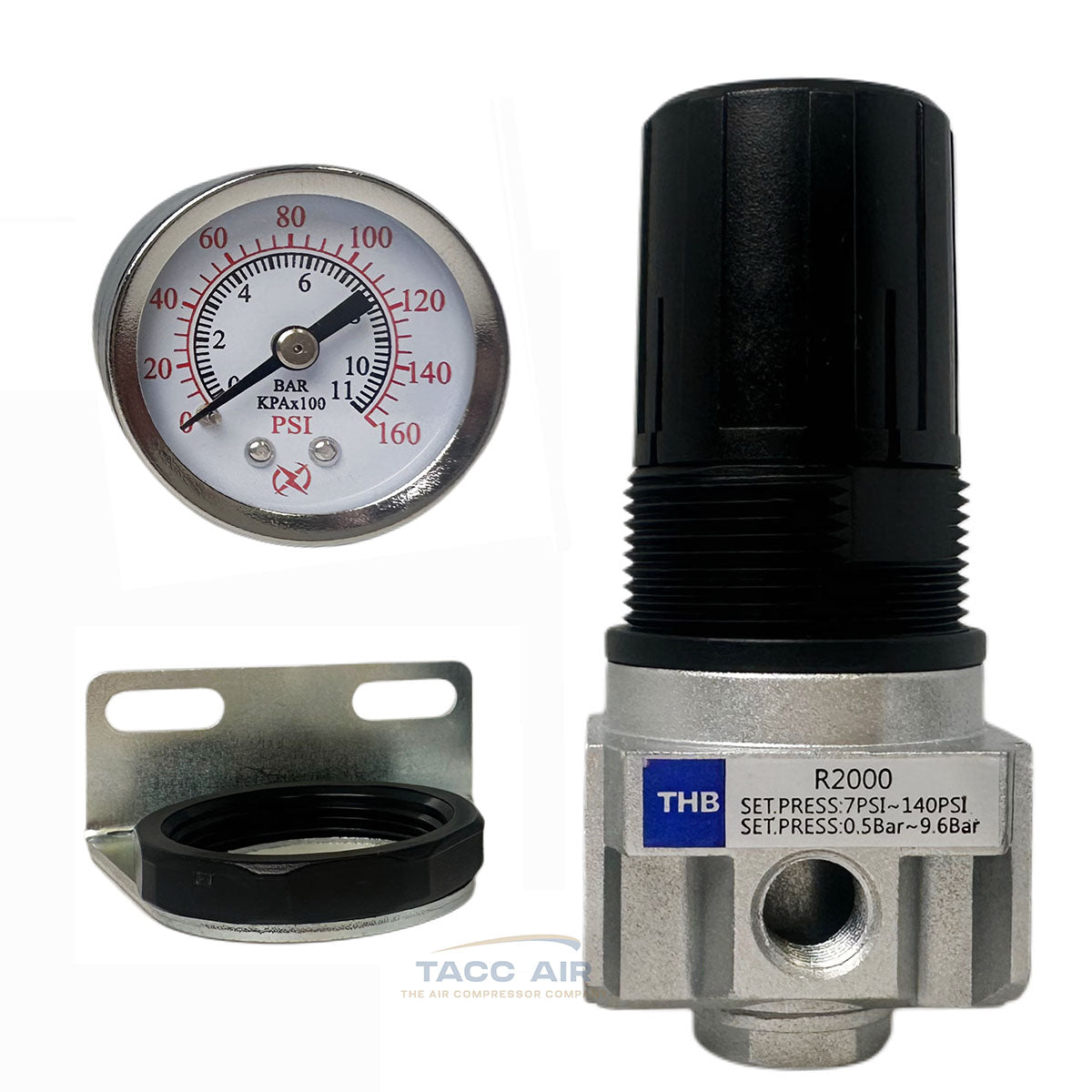

Both the inlet and outlet feature 1/4" female NPT threads, making installation easy on standard air lines. It also includes two 1/8" NPT gauge ports—use either side to install the a pressure gauge, and seal the unused side with the provided plug. You can even use the second port as an auxiliary air outlet if needed.

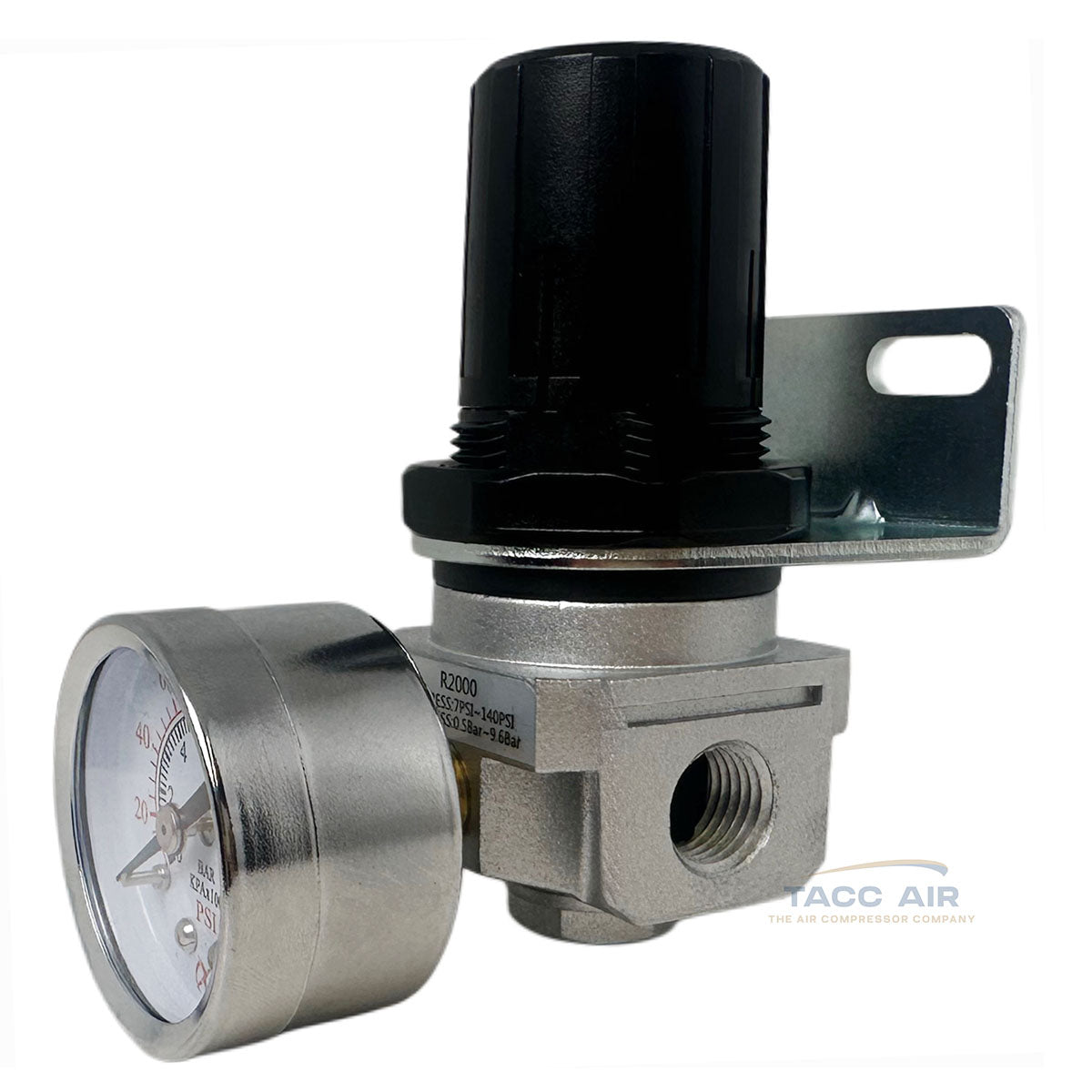

The regulator is directional, with a clearly marked arrow indicating the correct airflow direction. A sturdy wall mounting bracket is included for convenient installation in fixed locations.

With an adjustable pressure range from 7 to 140 PSI, and a maximum pressure rating of 150 PSI, this unit provides consistent performance for tools, spray systems, and general air line control in a home shop or commercial application.

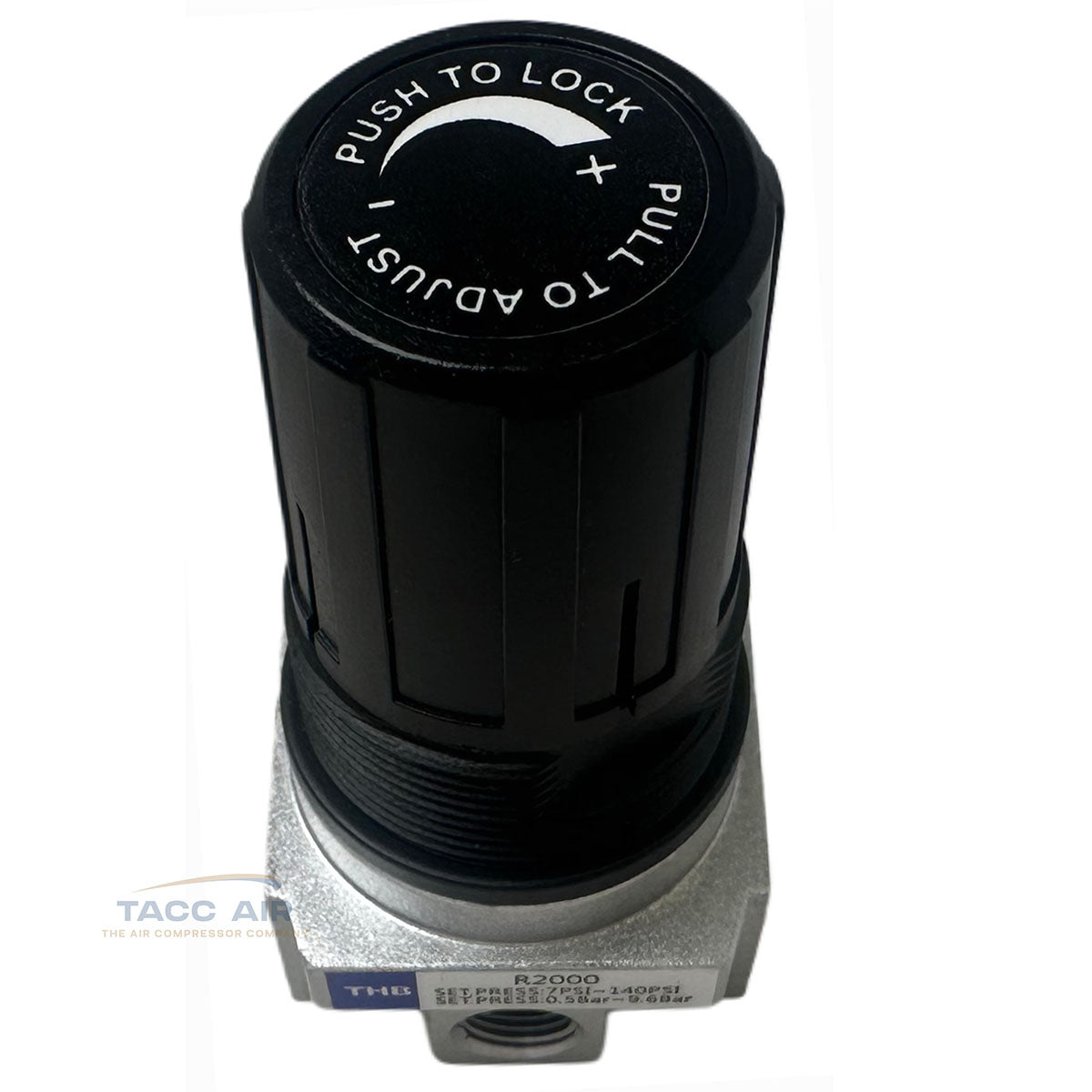

Regulator Knob locks into place to set pressure by simply pushing down on the adjustment knob and to unlock the knob you simply pull up and it will move about 1/8" to a unlock position to allow for pressure adjustment.

Product Specifications:

• Max Pressure: 150 PSI

• Adjustable Range: 7–140 PSI

• Inlet/Outlet Ports: 1/4" Female NPT (1/4" NPT measures approx. 1/2" in diameter)

• Gauge Ports: Two 1/8" Female NPT (1/8" NPT measures approx. 3/8" in diameter)

• Regulator Size: 1.65" W x 1.65" D x 3.5" H

• Mounting Bracket: Included

• Flow Direction: Marked with arrow signifying flow direction for correct installation

Ideal for garages, workshops, and industrial air systems where compact and accurate pressure control is essential.
