1/4" Air Compressor Compressed Air Pressure Regulator In Line Mini

1/4" NPT Adjustable Air Compressor Pressure Regulator w/ Wall Mount Bracket – 140 PSI Max

Description:

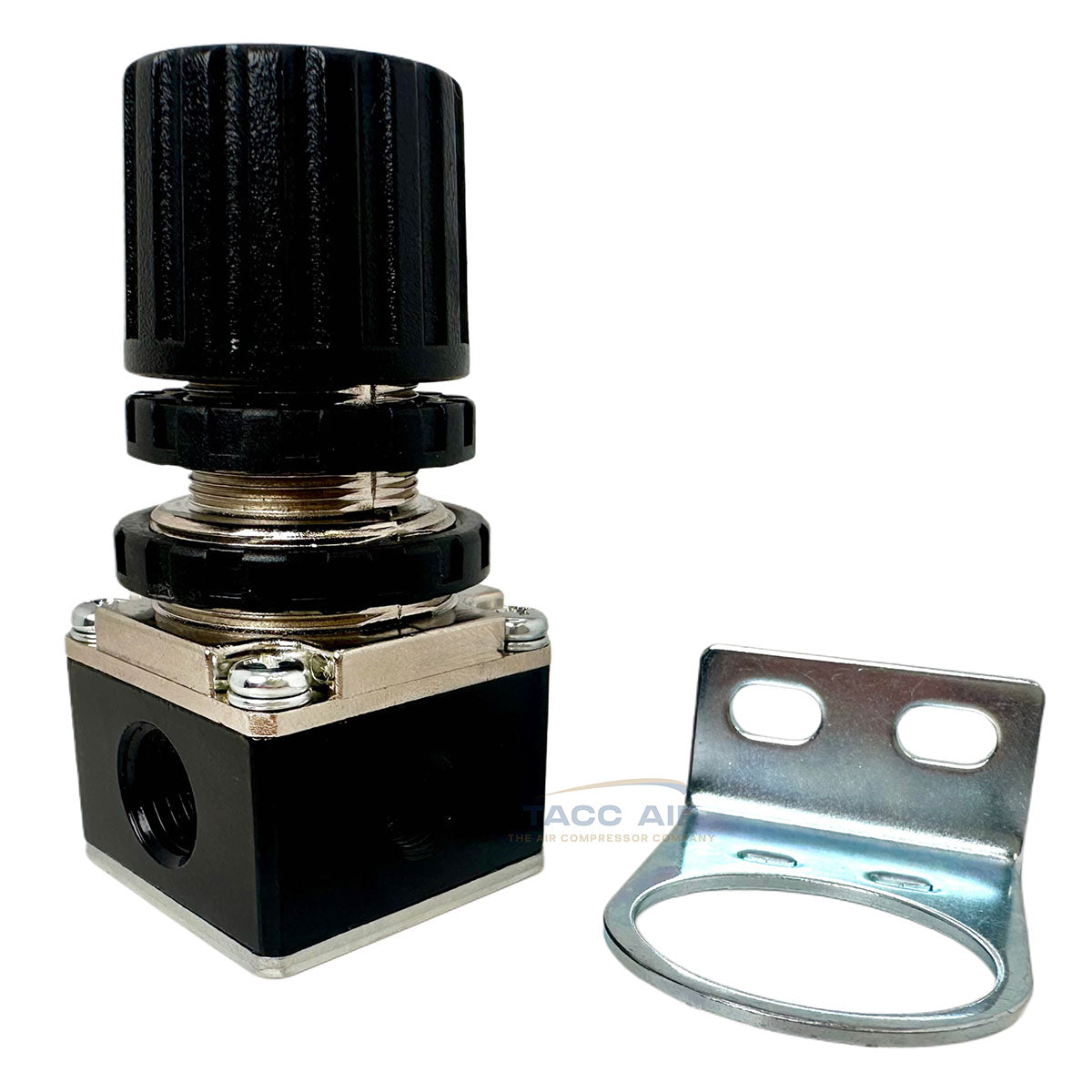

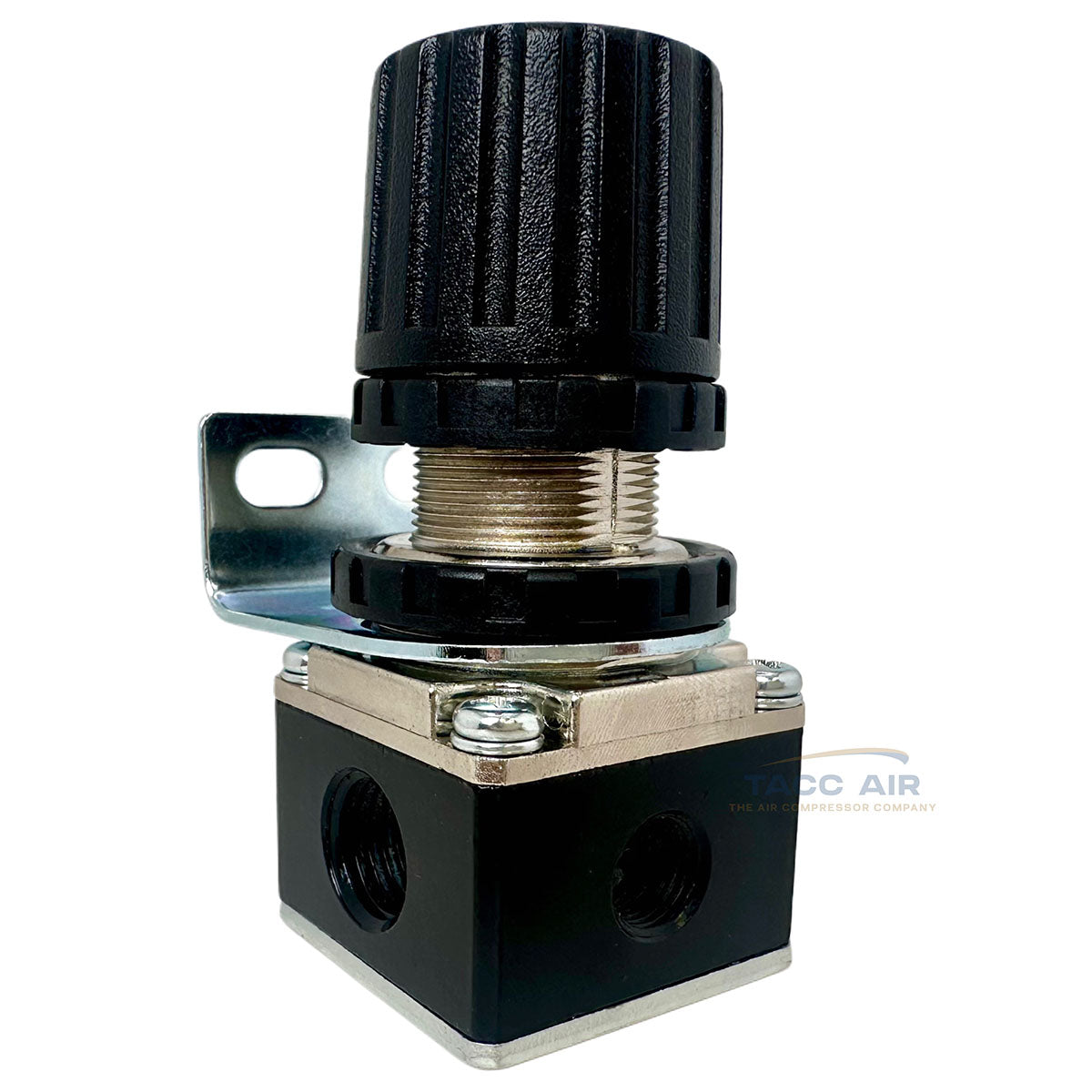

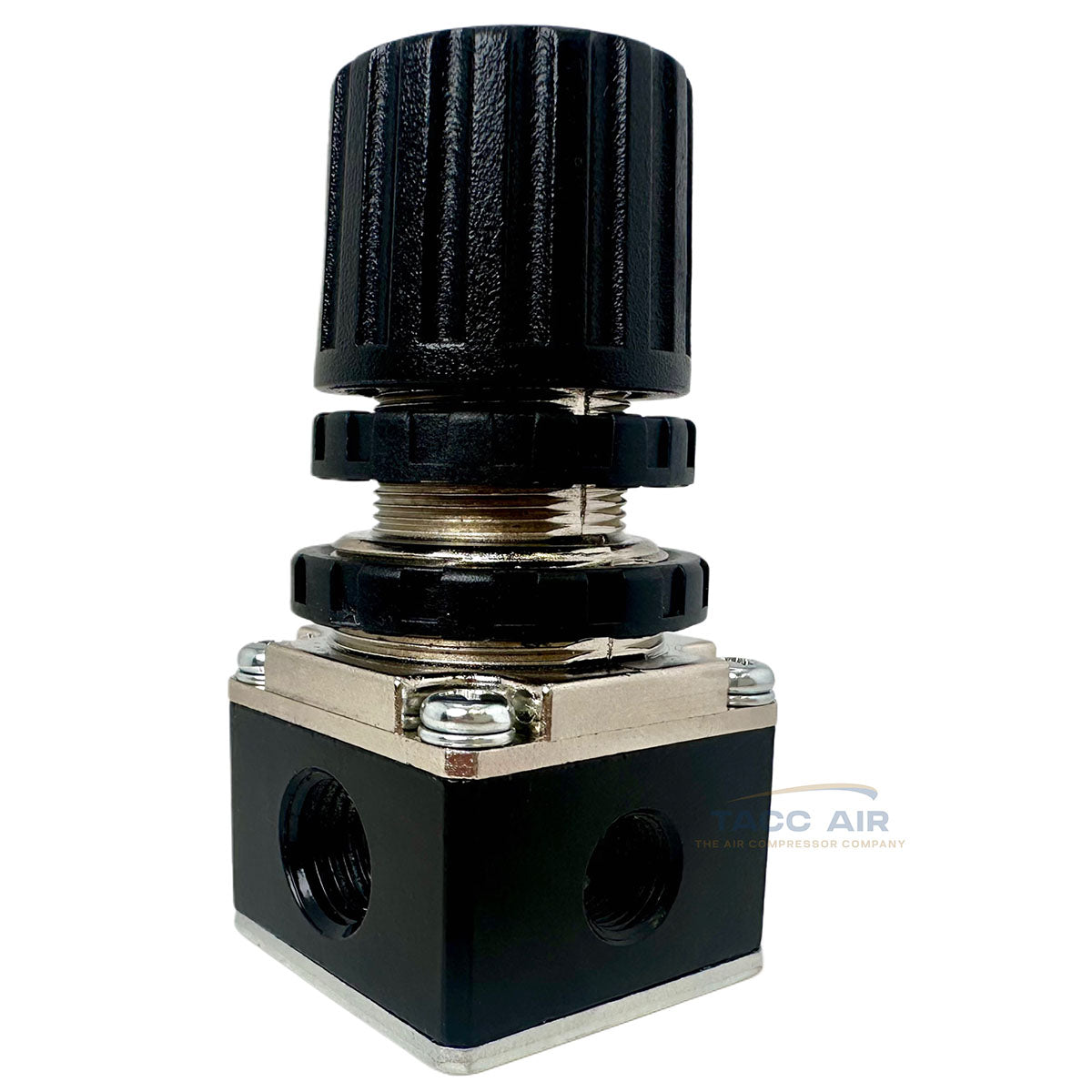

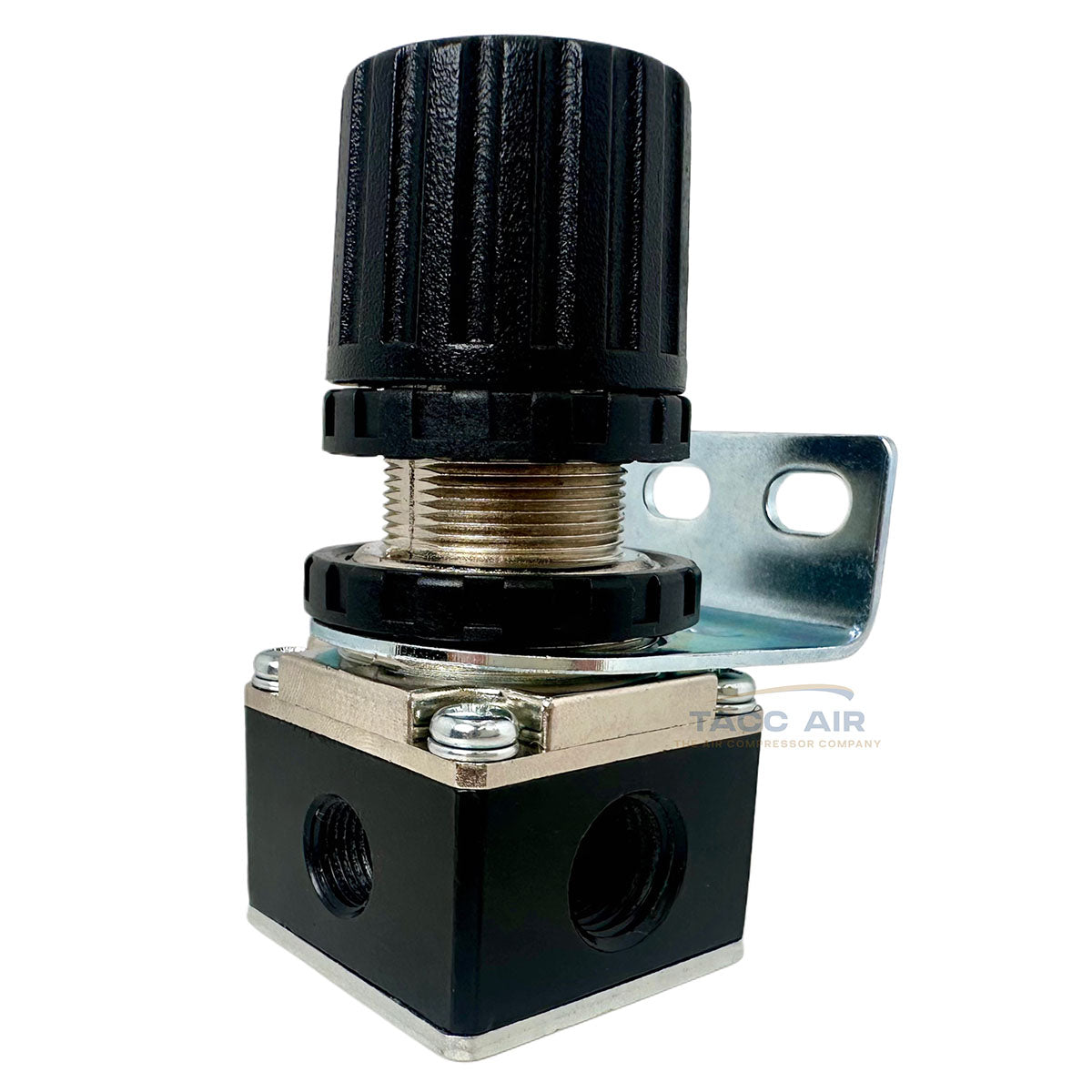

Brand new, universal 1/4" NPT mini air pressure regulator—built for precision and durability. Designed to work with any compressor system that requires a 1/4" npt regulator, this compact unit offers four ports for versatile installation options and comes complete with a wall mounting bracket for wall installation applications.

The main inlet and outlet ports are both 1/4" female NPT, while there are two side ports (1/8" female NPT) located on either side for attaching a pressure gauge. A plug is included so you can plug the side not used for the air pressure gauge installation.

This is a directional regulator with a clearly marked airflow arrow and provides adjustable pressure from 7 to 140 PSI.

Product Specs:

• Max Inlet Pressure: 150 PSI

• Inlet/Outlet: 1/4" Female NPT (1/4" npt measures approx. 1/2" OD)

• Gauge Ports: 1/8" Female NPT (1/8" npt measures approx. 3/8" OD)

• Dimensions: 1-3/8" x 1-3/8" x 3.15"

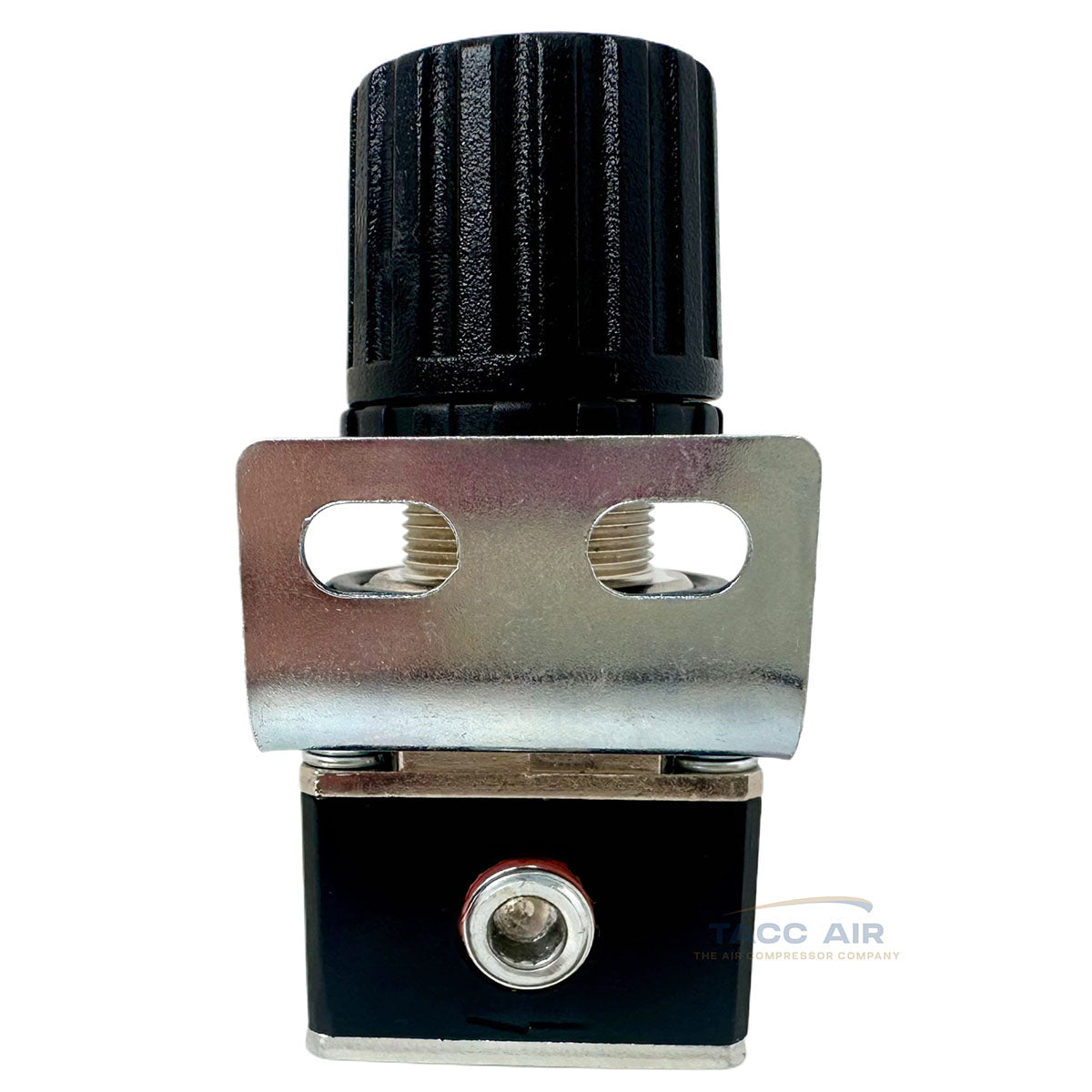

• Mounting Bracket Included

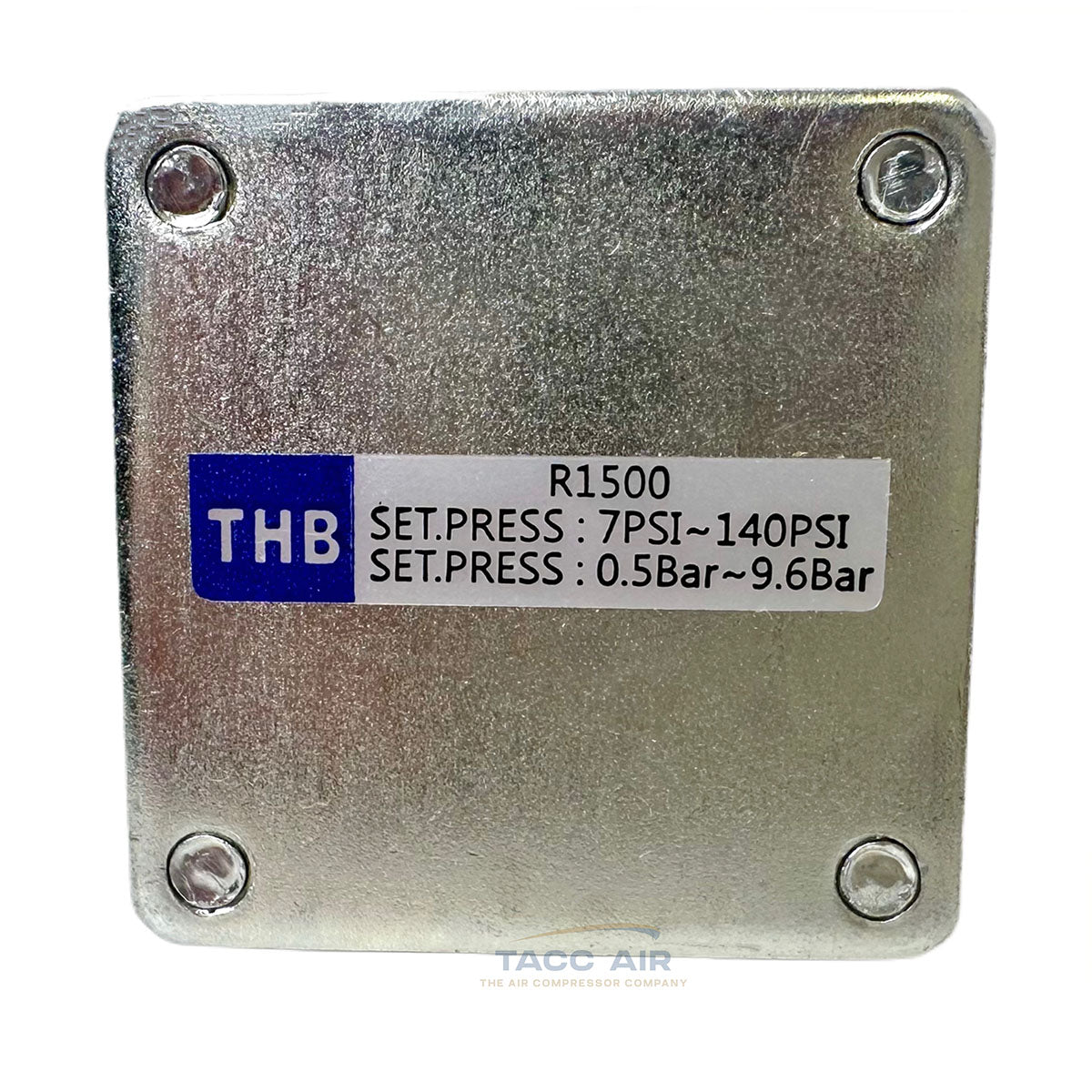

• Pressure Range: 7–140 PSI

• Durable and Easy to Install

Perfect for DIYers, mechanics, or professionals looking to regulate airflow with precision. Ships fast and ready to use!
