Stanley Bostitch Air Compressor Replacement In Line Regulator # 7100640000

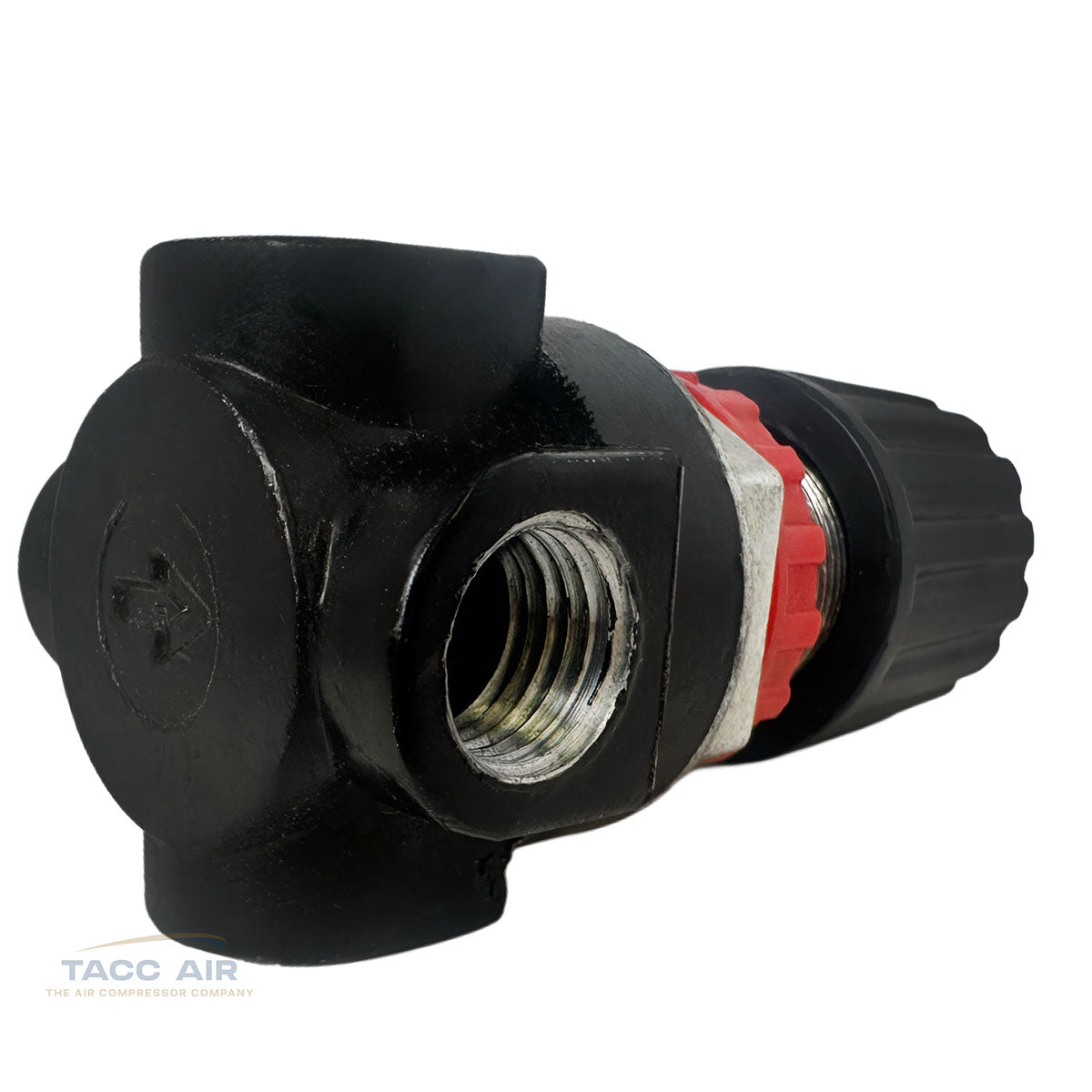

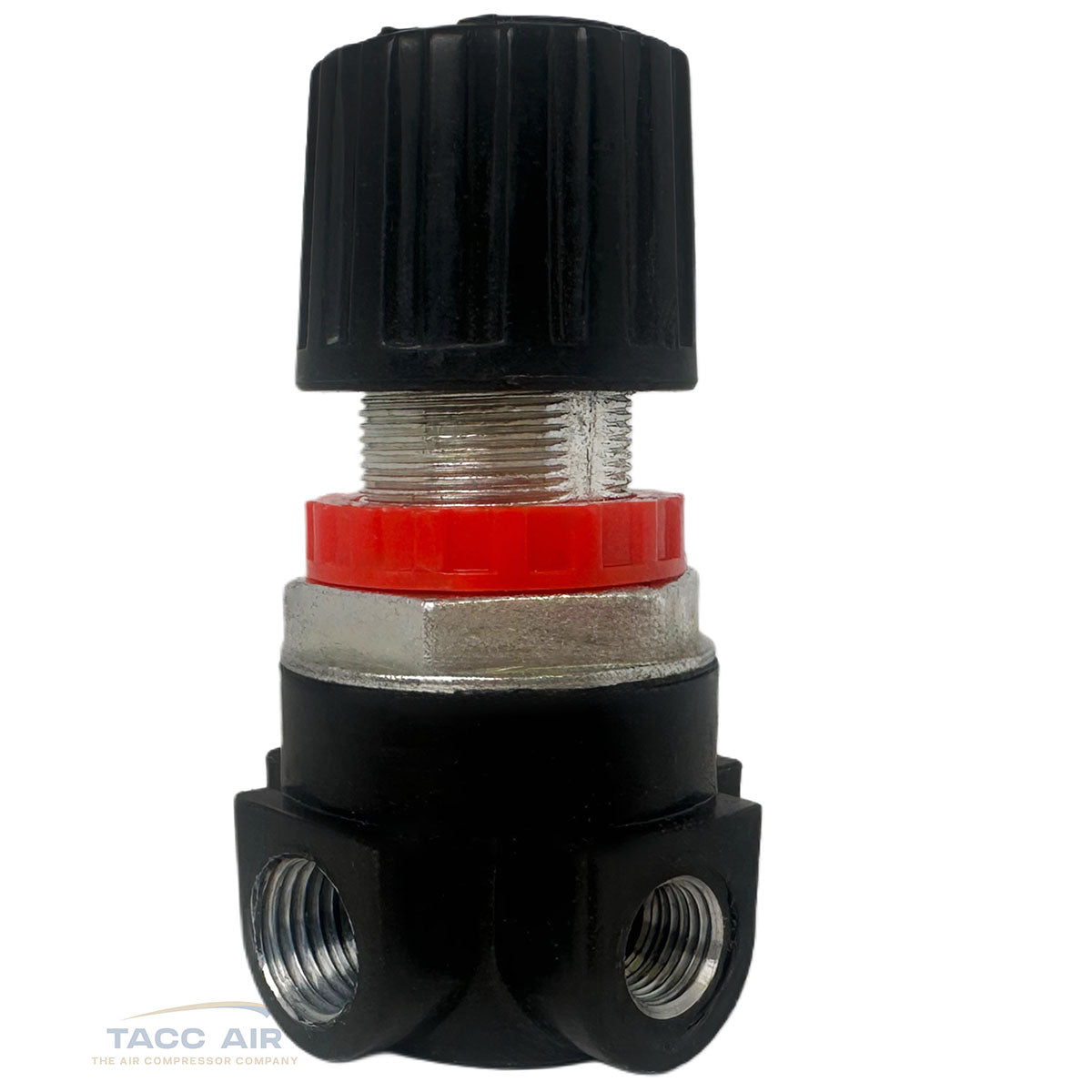

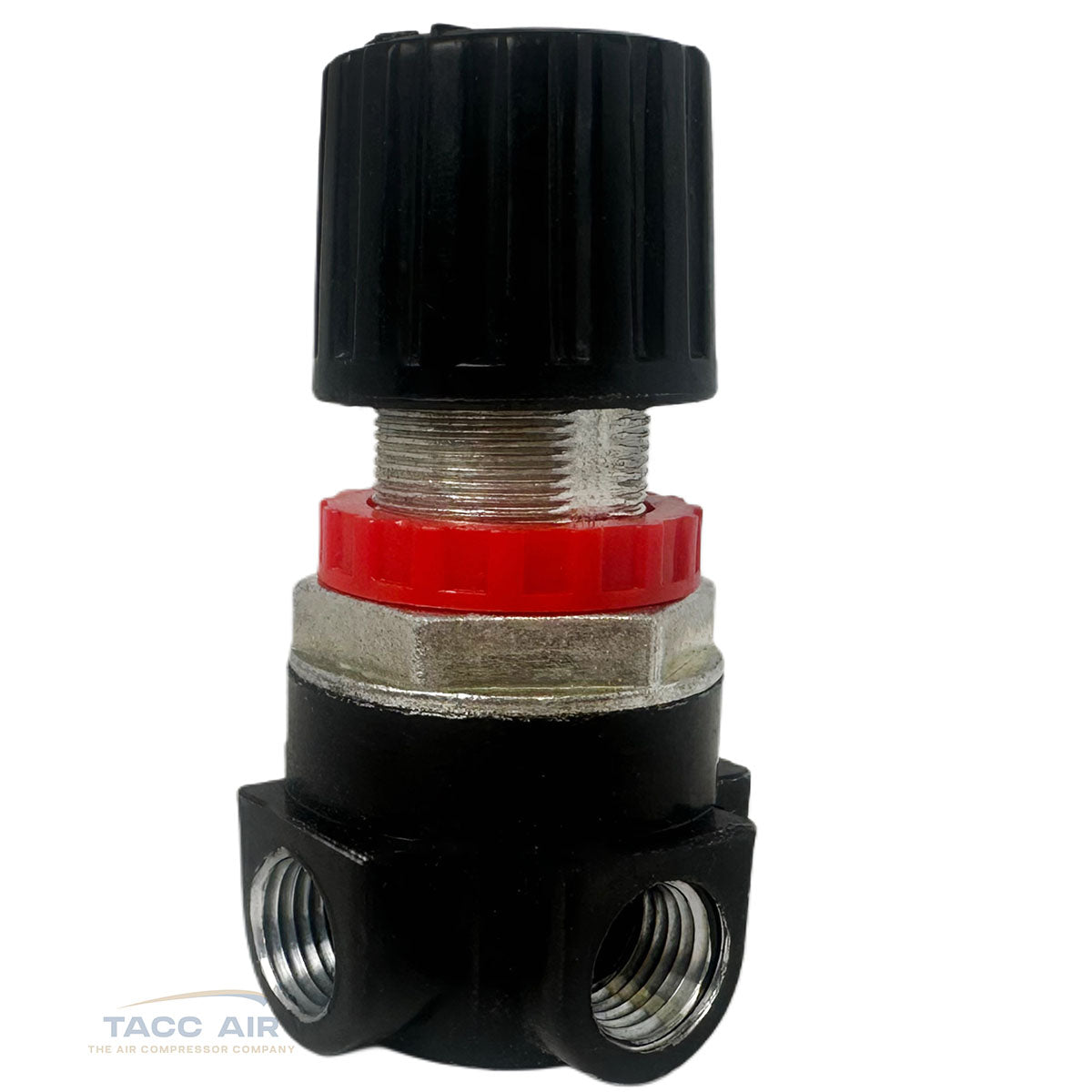

Stanley Bostitch Air Compressor Replacement In-Line Regulator #7100640000

This high-quality in-line air regulator is a compatible replacement for Bostitch part #7100640000, designed to fit a variety of Stanley Bostitch air compressors. It offers precise pressure control and straightforward installation, making it an ideal solution for repairing your compressor.

Product Features:

• Compatible replacement for Bostitch Part #7100640000

• Inlet/Outlet Size: 1/4" NPT (1/4" NPT Measures approx. 1/2" in diameter)

• Gauge Port Size: 1/8" NPT (1/8" NPT Measures approx. 3/8"" in diameter)

• Regulator Adjustment: Turn knob clockwise to increase pressure, counterclockwise to decrease pressure

Port Configuration:
When viewing the regulator with the knob pointed up and inlet facing you, the port layout is as follows:

• Inlet (1/4" NPT): Rear-facing (directly in front of you)

• Gauge Port (1/8" NPT): Right-hand side – typically used to install a pressure gauge

• Air Outlet 1 (1/4" NPT): Left-hand side – standard output port for air tools or lines

• Air Outlet 2  (1/4" NPT): Front-facing – located directly opposite the inlet for flexible setup options

Compatible Models Include But Not Limited To:

• Stanley Bostitch CAP2040P

• CAP2060P

• CAP60P

• CAP60PB

• CWC200ST

• AB-9051116

• CAP2560OL

Additional Info:

• Important: This is a compatible aftermarket replacement part

• Installation Tip: Always refer to your compressor’s manual to verify part compatibility and proper installation procedures
