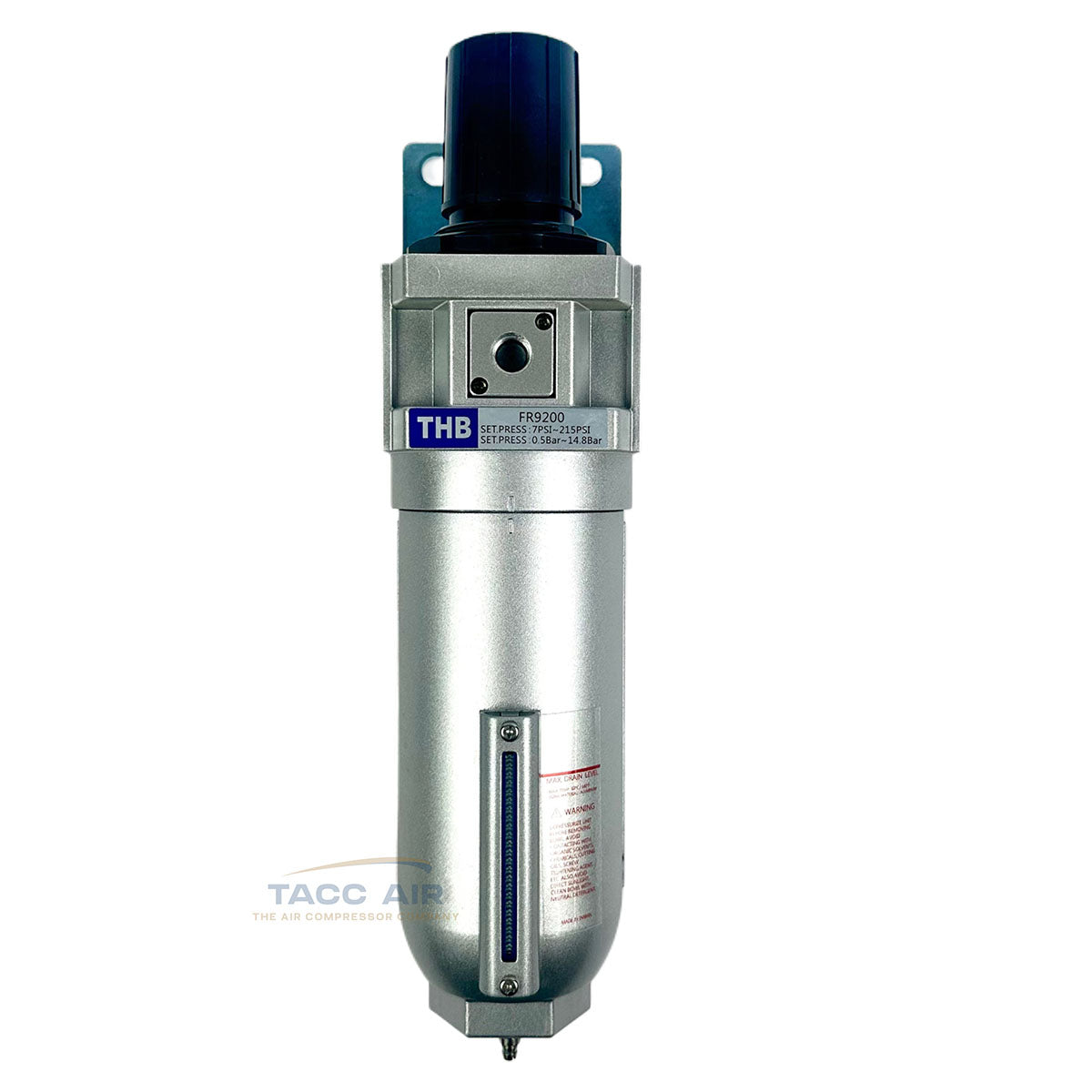

1" Industrial High Flow In line Moisture Filter Regulator Combination Piggyback

Heavy Duty High Flow 1" In-Line Compressed Air Filter Regulator Combo, 183 SCFM, 5 Micron Filter, Includes Gauge & Wall Bracket

Specifications:

• Connection: 1" Female NPT (Note: 1" NPT measures approximately 1.25" in diameter)

• Adjustable Output Pressure: 7 to 225 PSI

• Maximum Input Pressure: 250 PSI

• Flow Rate: Up to 183 SCFM

• Filter Element: 5 micron

• Water Capacity: Holds up to 300 ml before draining

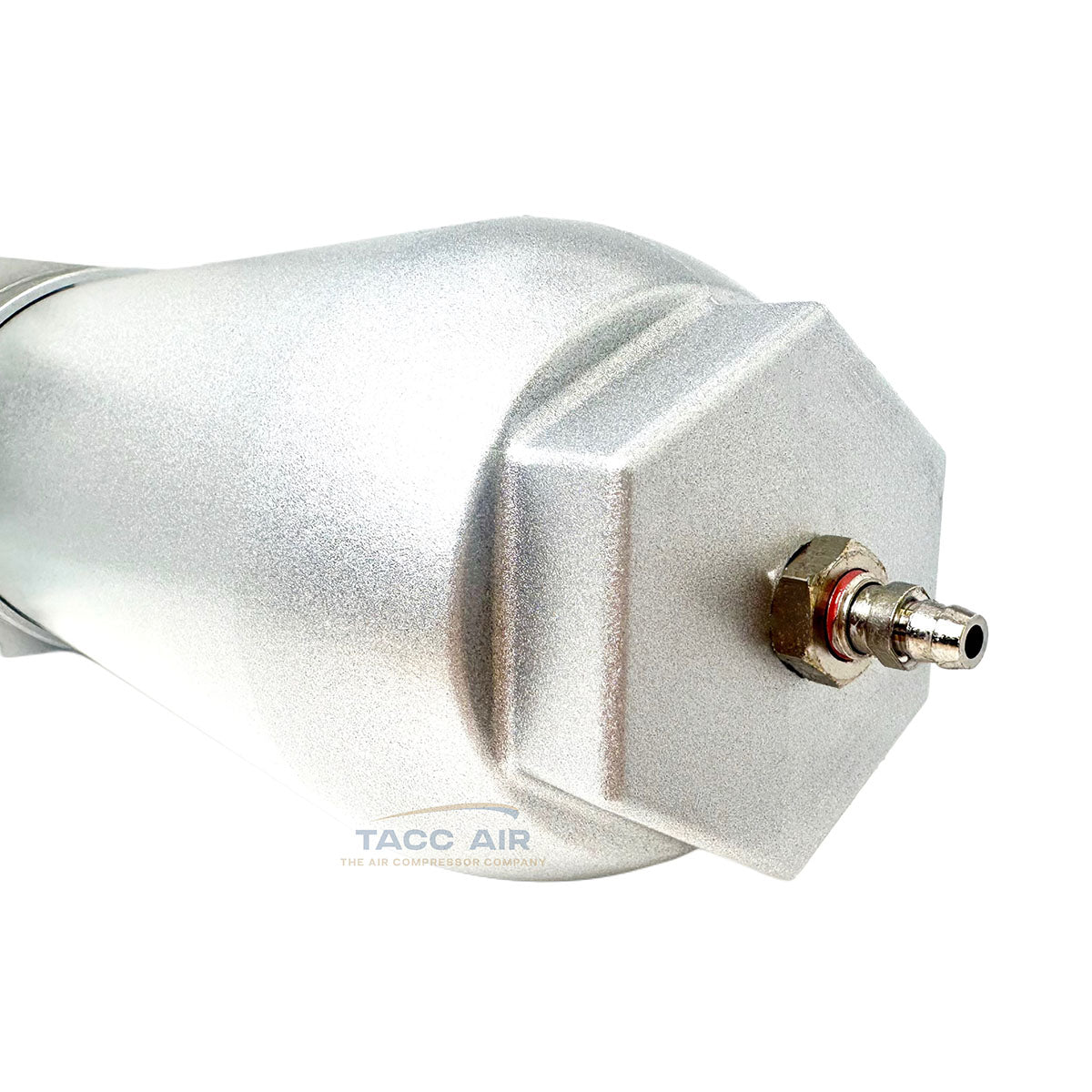

• Drain: Push-button drain with barbed fitting for hose attachment

• Knob: High-impact plastic locking knob

• Body Material: All-aluminum construction

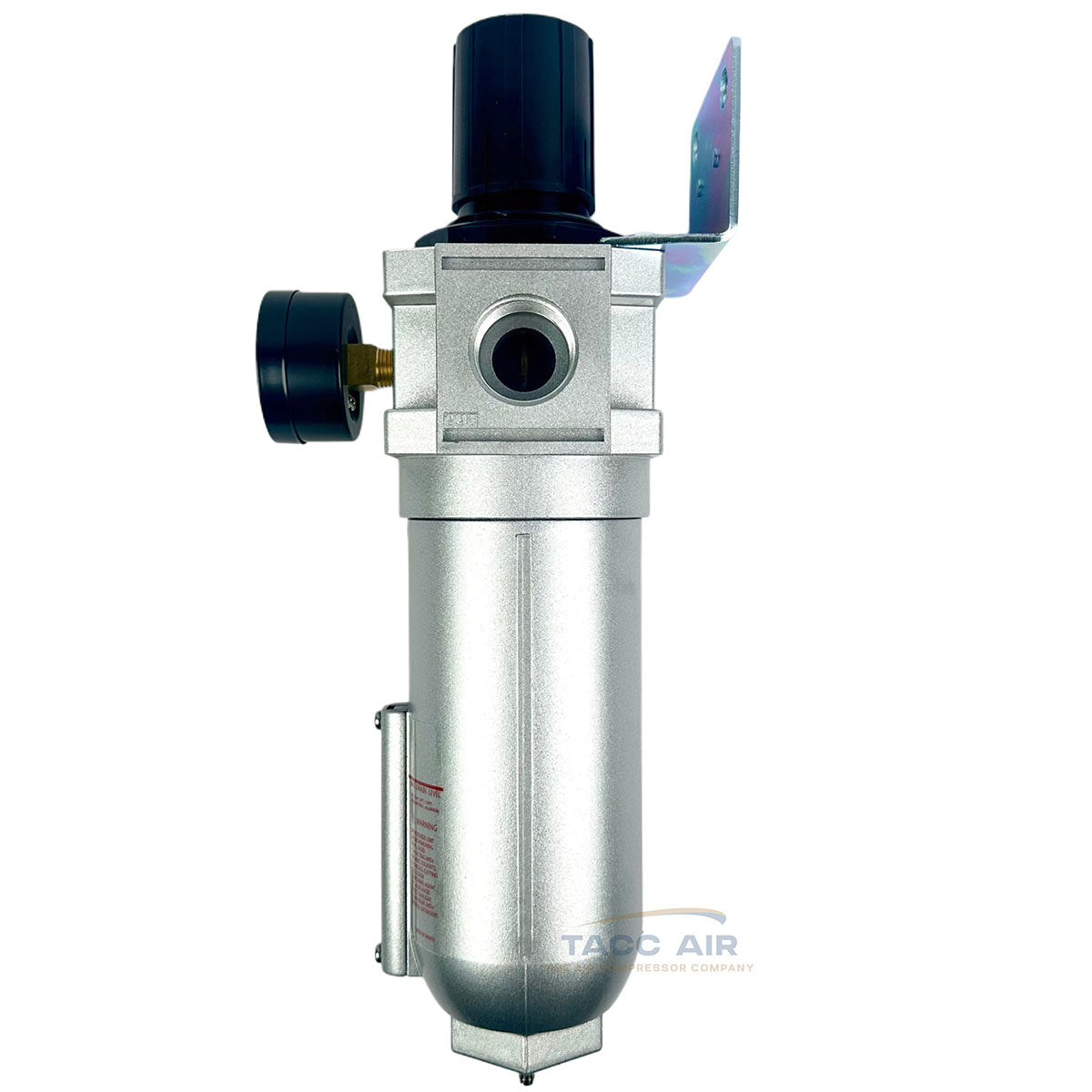

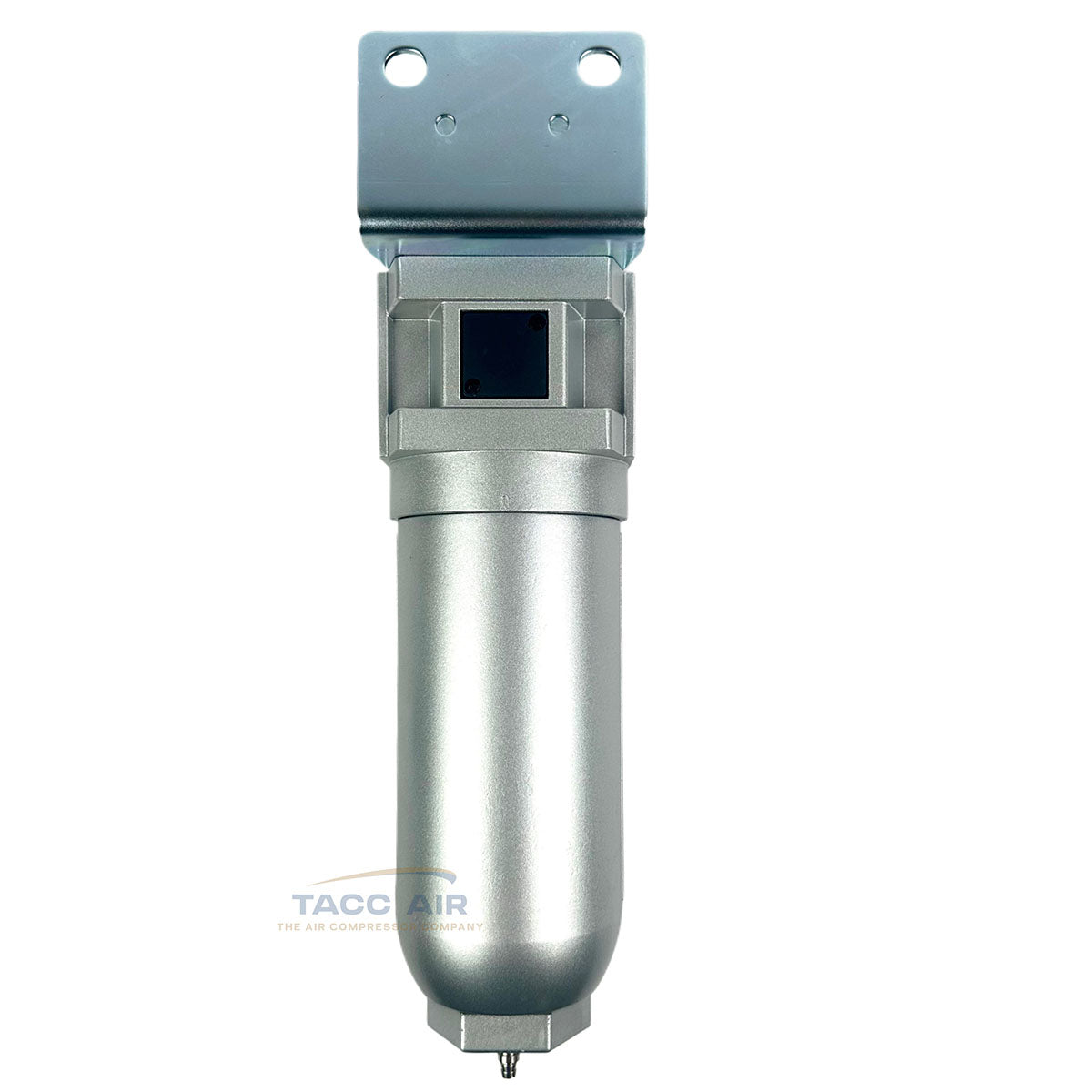

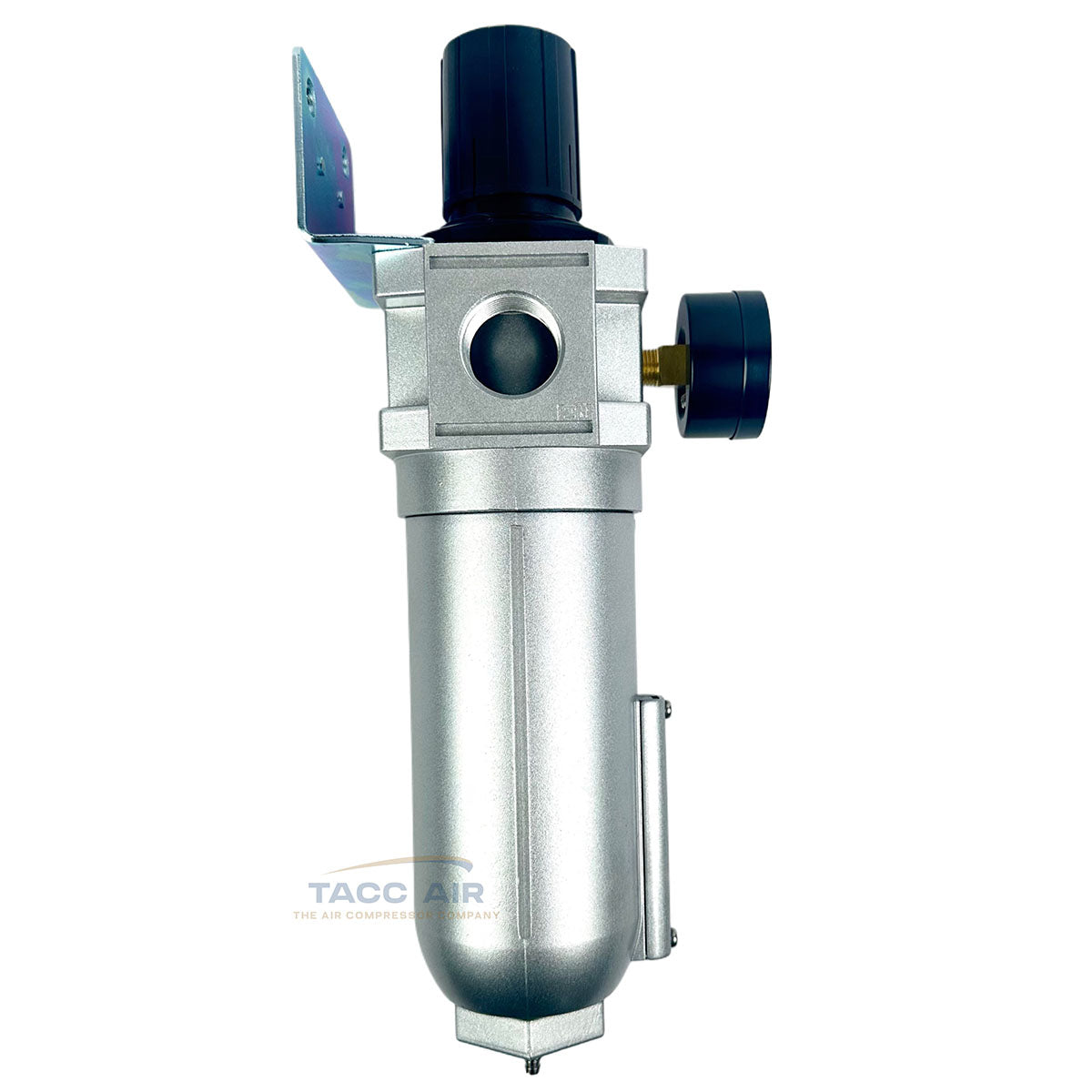

• Mounting: Includes wall bracket for optional surface mounting

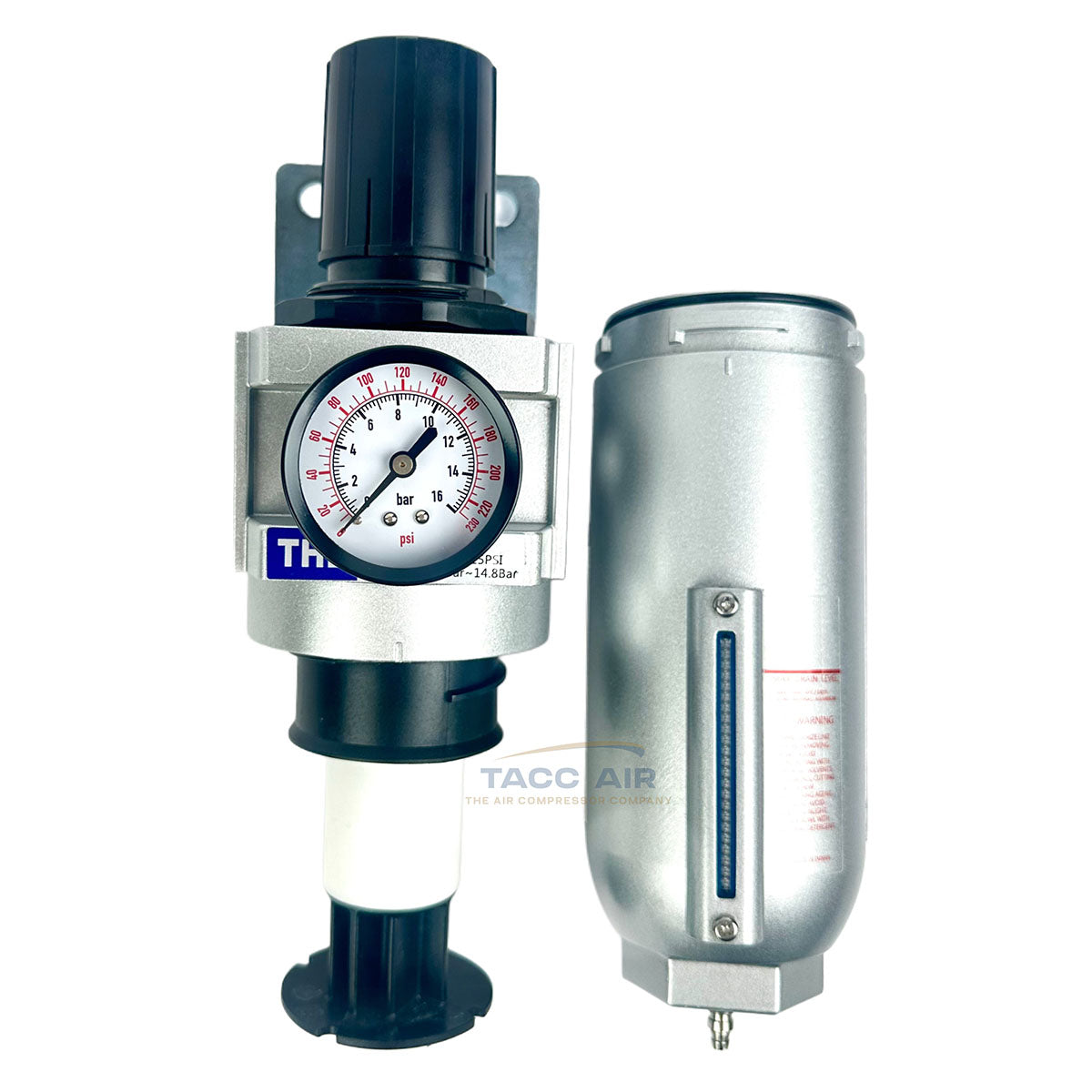

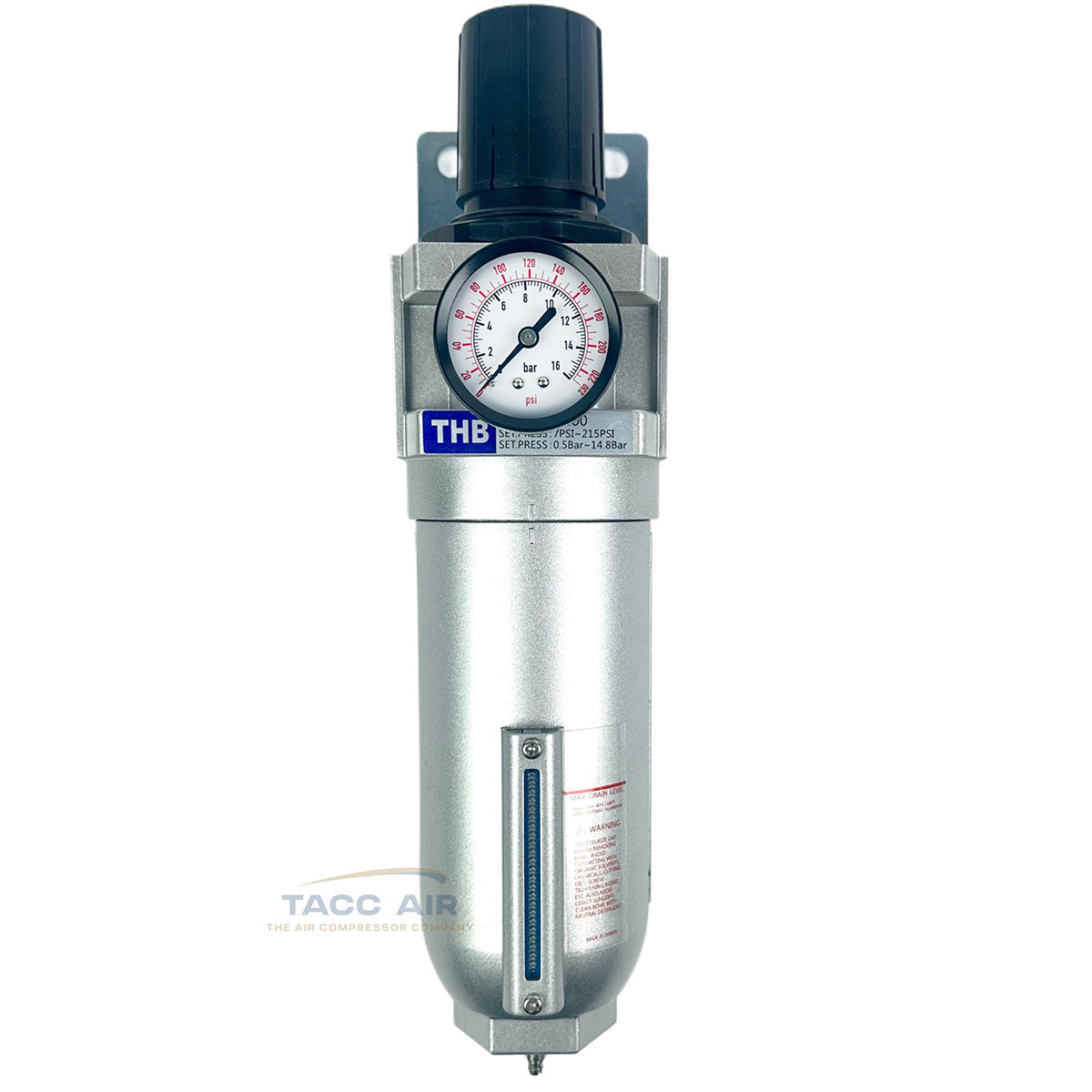

• Gauge: Included – can be mounted on either side of unit

• Flow Direction: Must follow arrows on housing for proper function

• Dimensions (excluding gauge): 14.25" tall x 3.6" wide x 3.6" deep

Product Description:
This industrial-grade 1" high-flow piggyback style filter regulator combo unit combines a compressed air moisture filter and an adjustable pressure regulator into a single unit. Built for shop, plant, and commercial construction environments, it provides clean, dry, and precisely controlled air in high-demand systems.

Regulator Knob locks into place to set pressure by simply pushing down on the adjustment knob and to unlock the knob you simply pull up and it will move about 1/8" to a unlock position to allow for pressure adjustment.

The integrated 5 micron filter captures water droplets and debris, while the 300 ml capacity bowl includes a push-button drain with a barbed fitting for optional hose routing. The regulator adjusts from 7 to 225 PSI with a max input pressure of 250 PSI, and the locking composite knob helps prevent accidental changes. A pressure gauge is included and can be mounted on either side of the unit for flexible installation.

(Note: Air must flow in the direction of the arrows on the aluminum body. A wall mounting bracket is also included for optional surface installation.)
