1" Compressed Air FRL System Filter Regulator Oiler Separator Lubricator Combo

1" NPT High Flow FRL Air Compressor Filter Regulator Lubricator Combo For Moisture Removal, Pressure Control & Lubrication

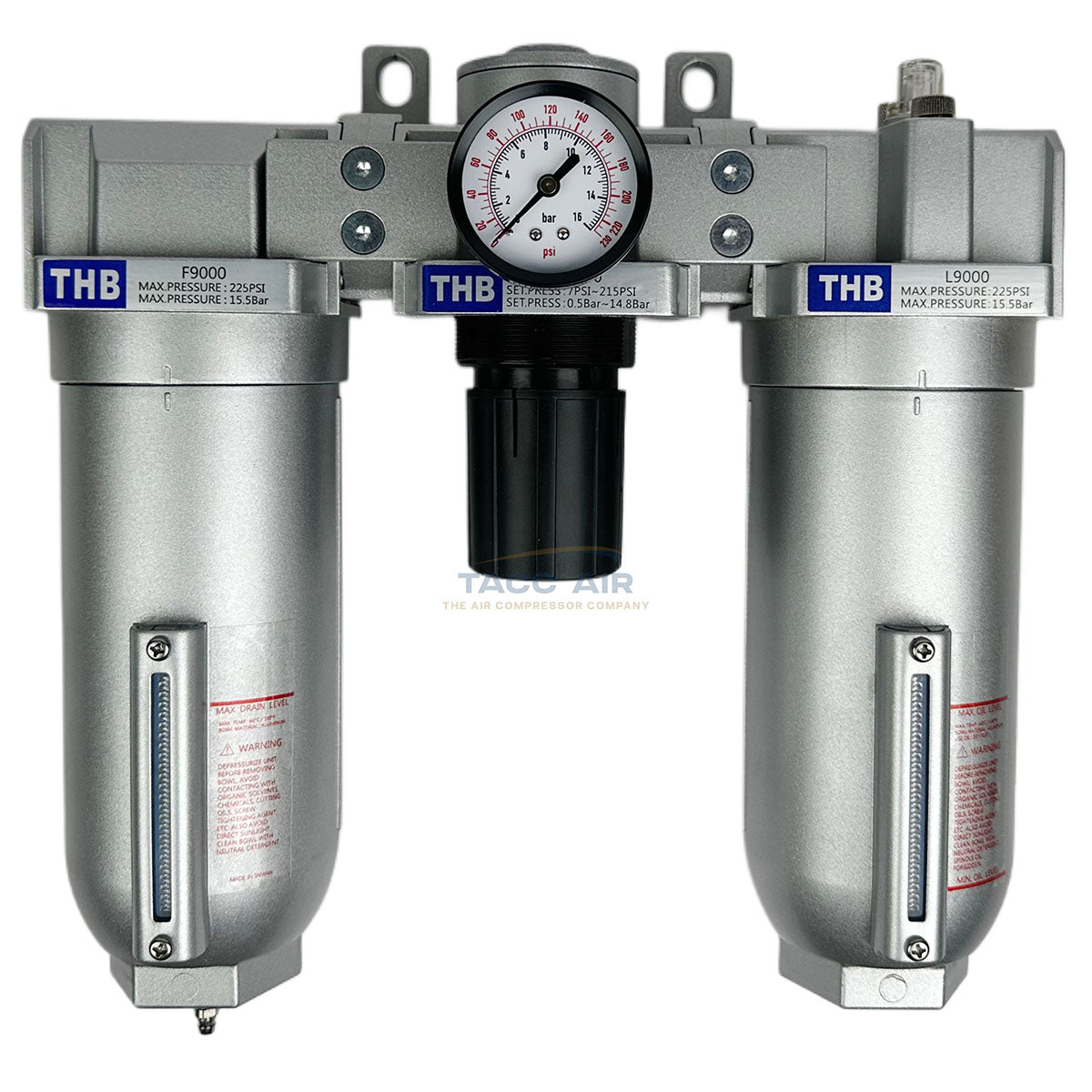

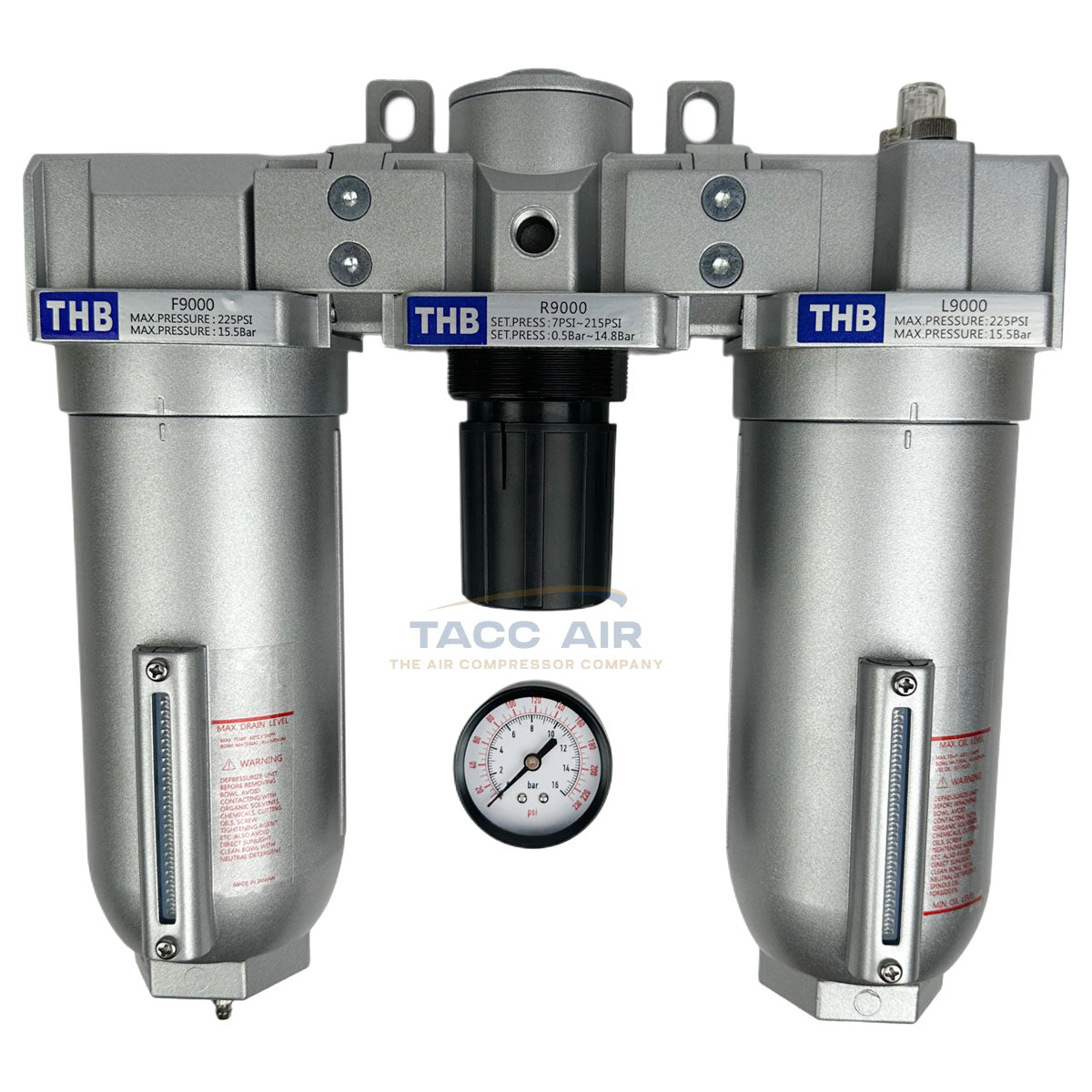

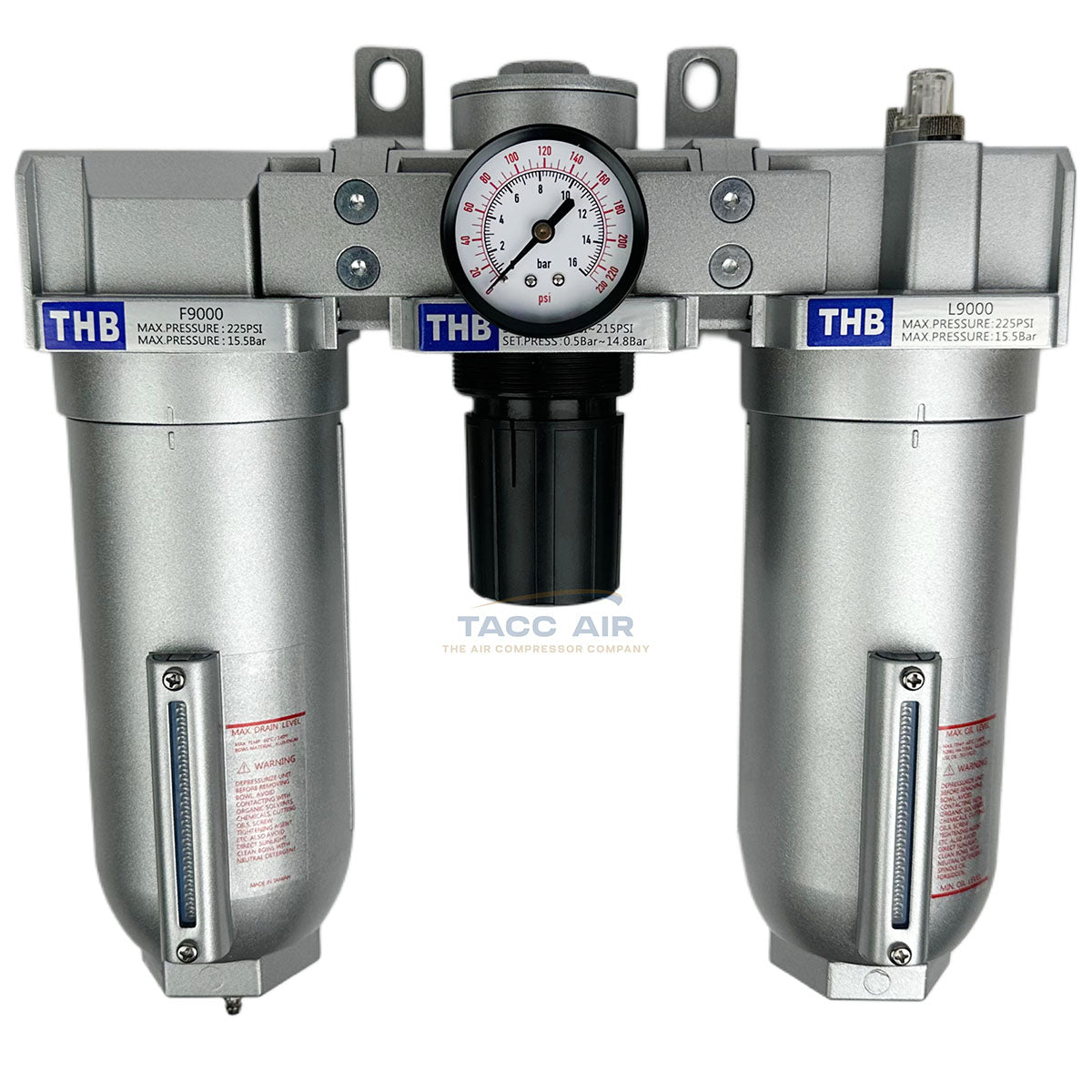

This 3-stage in-line FRL (Filter, Regulator, Lubricator) combo unit is a compact, high-flow solution for compressed air systems where space is limited but full functionality is needed. Designed to manage moisture, control air pressure, and lubricate airline tools in one integrated unit, this setup is ideal for workshops, industrial environments, or anywhere reliable air quality is critical for high CFM applications.

Ideal Application:
Built for systems requiring high flow and consistent air management, this combo features 1" female NPT inlet and outlet ports, making it compatible with large-volume air delivery setups. Its compact footprint and included wall mounting bracket allow for quick installation in tight or high-traffic areas.

Features:

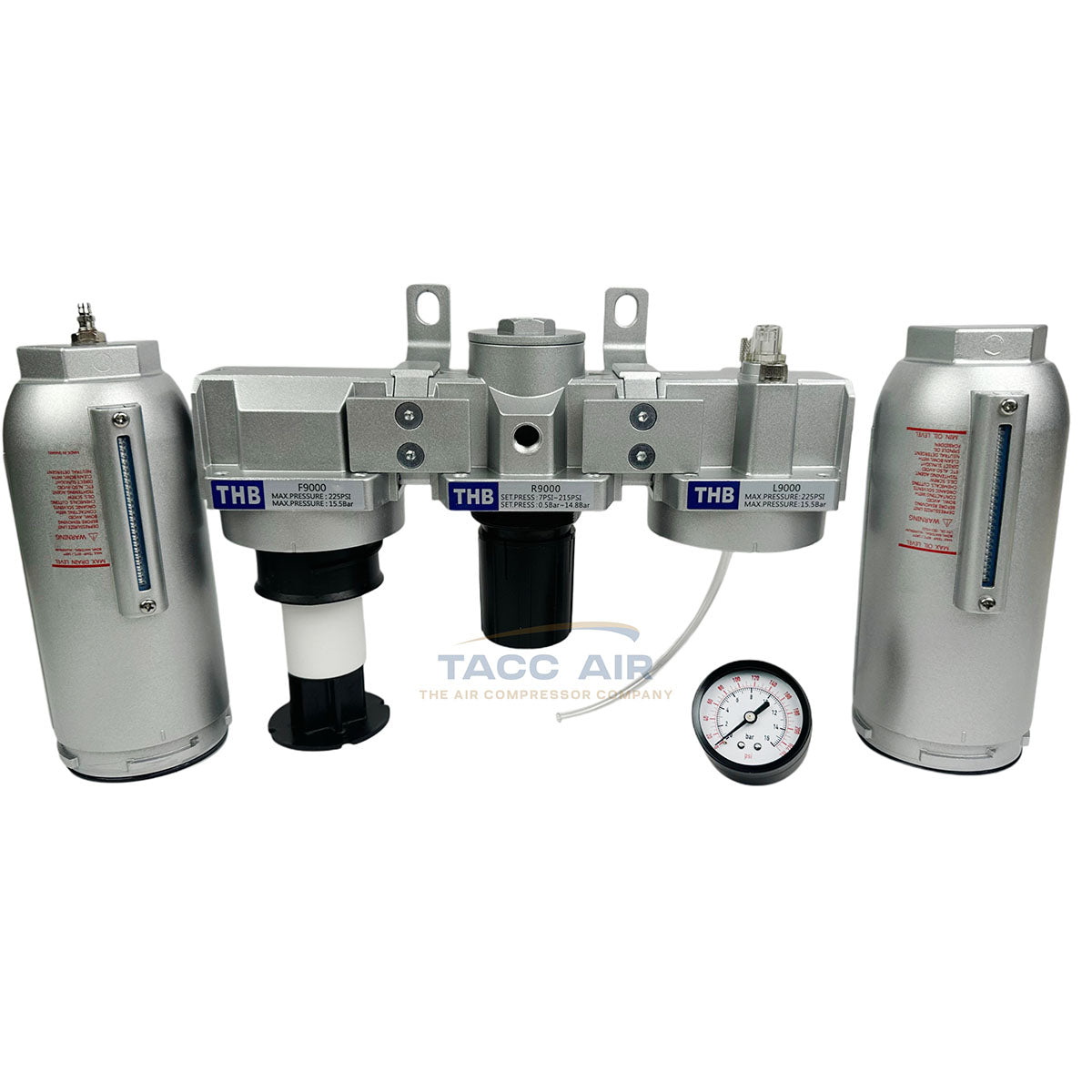

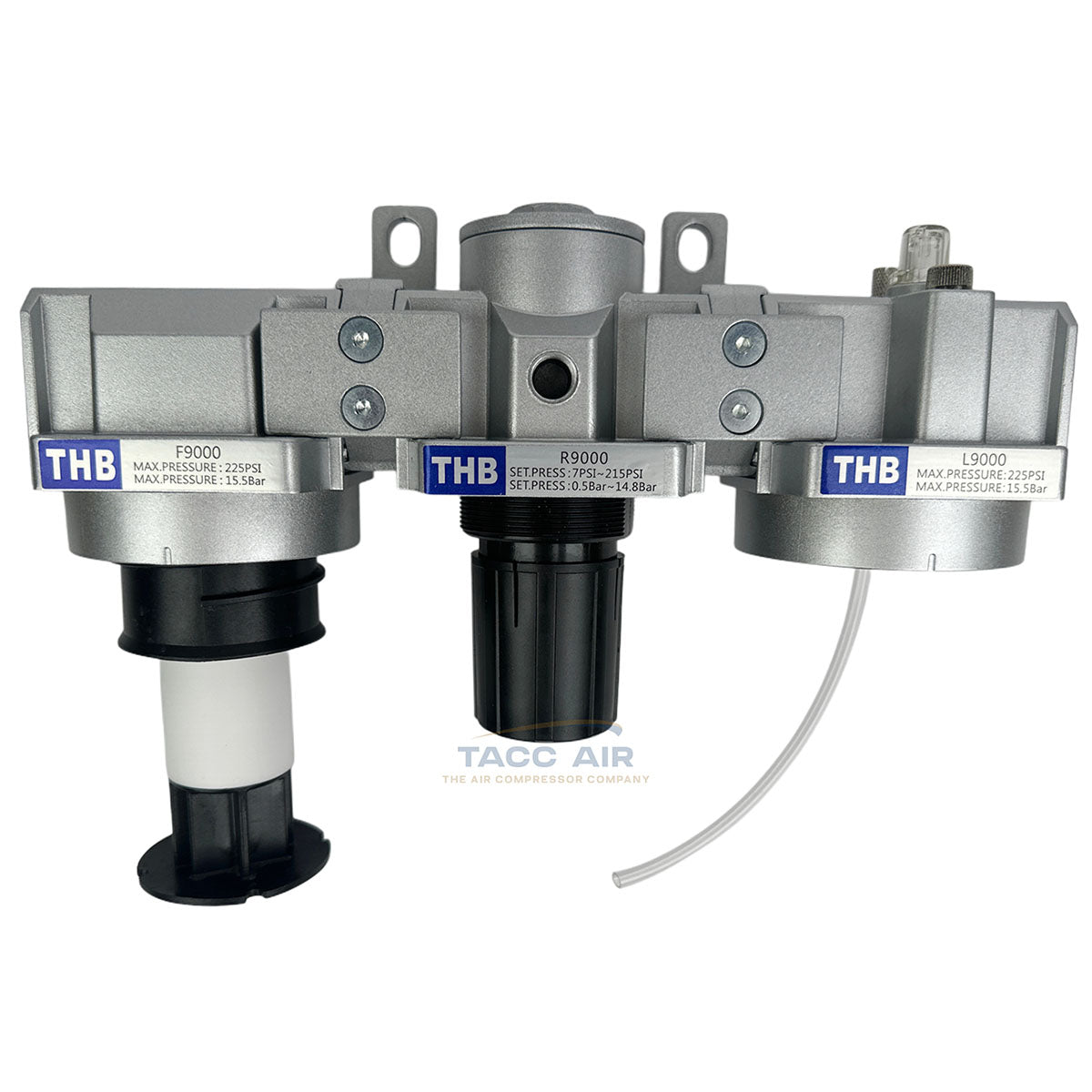

• All-in-One FRL System: Combines moisture filtration, pressure regulation, and air lubrication in one compact unit.

• High Flow Capacity: Handles up to 183 CFM of airflow to support high-demand pneumatic applications.

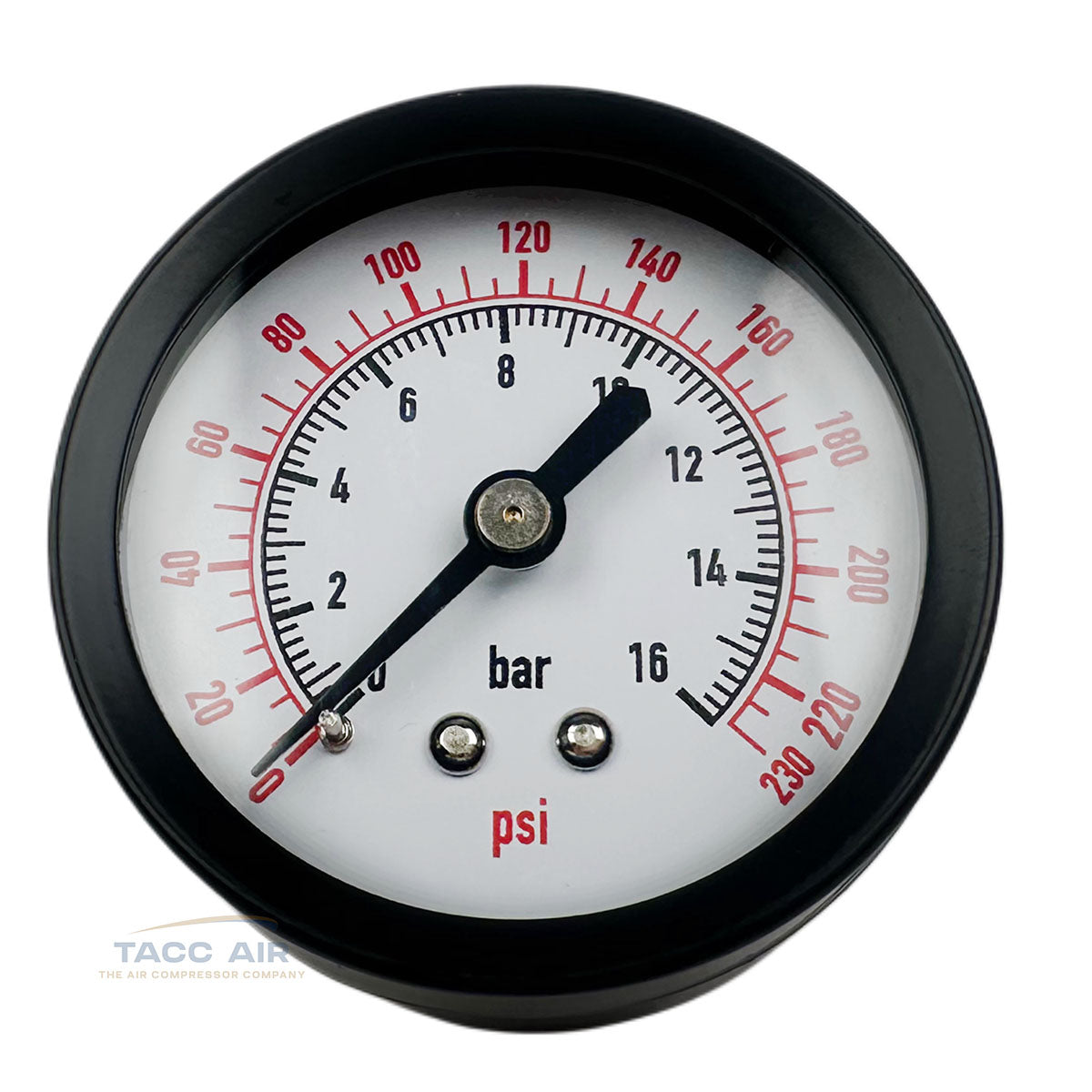

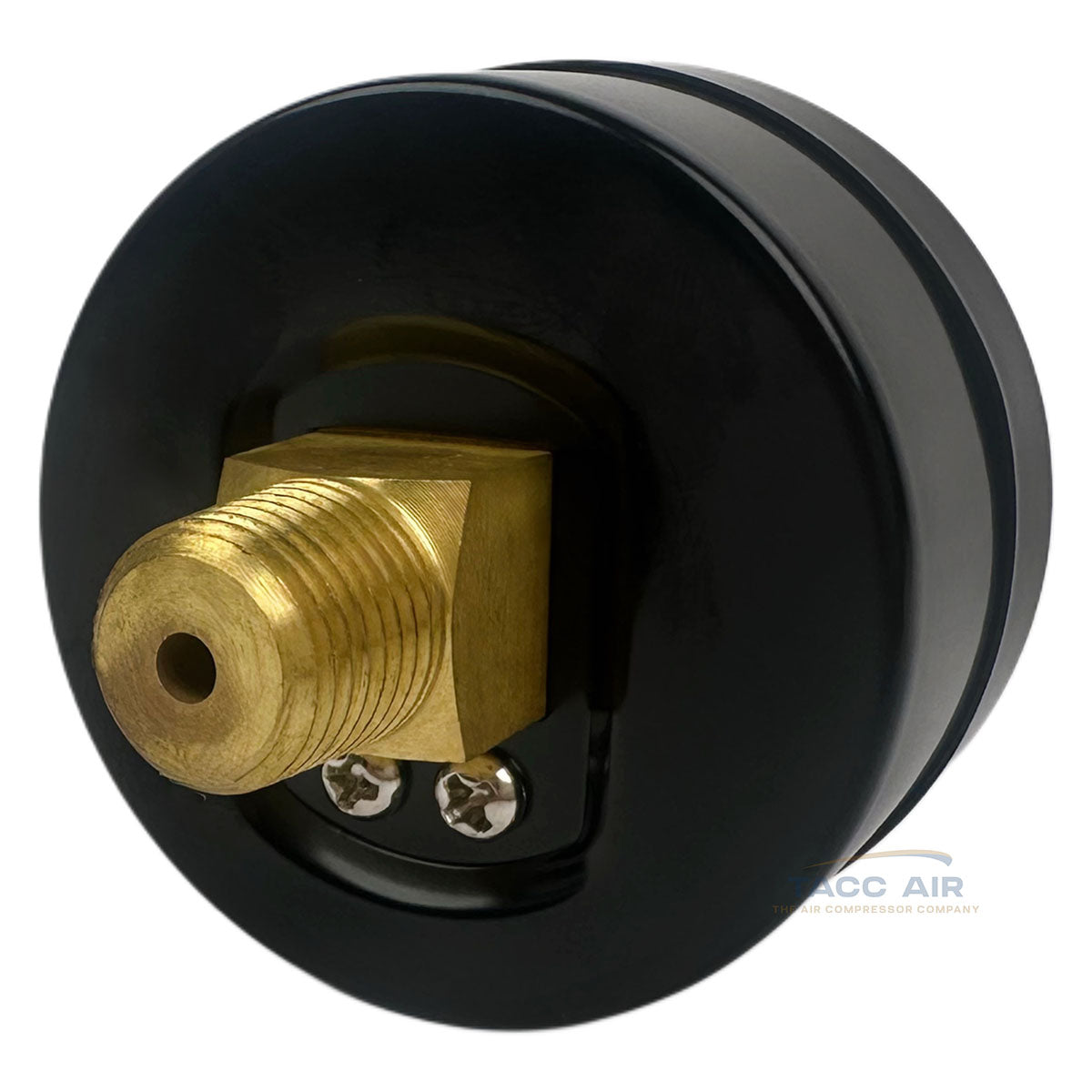

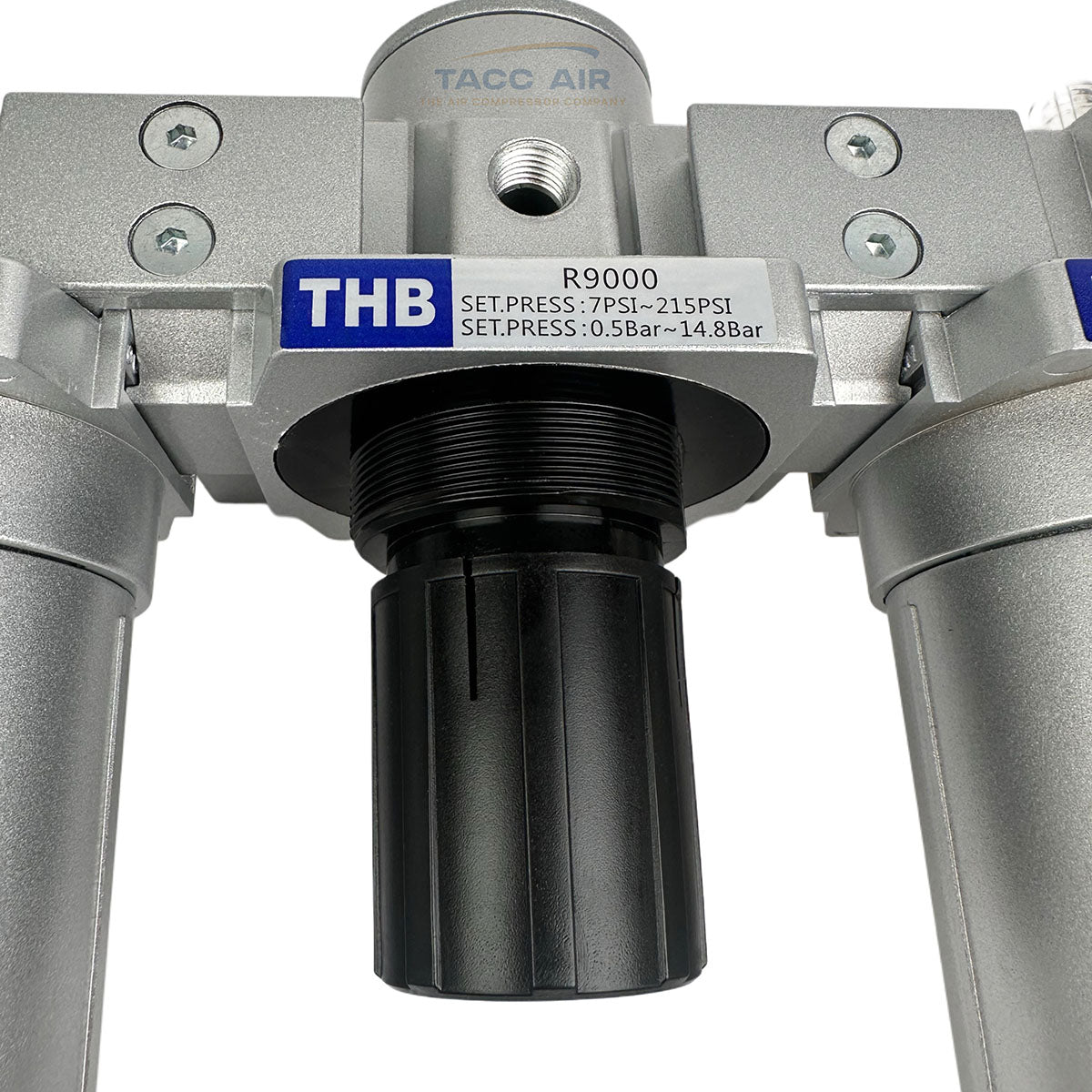

• Adjustable Regulator: Dial in your air pressure from 7 to 225 PSI; includes a pressure gauge for real-time monitoring. Push-to-lock / pull-to-unlock design ensures secure settings.

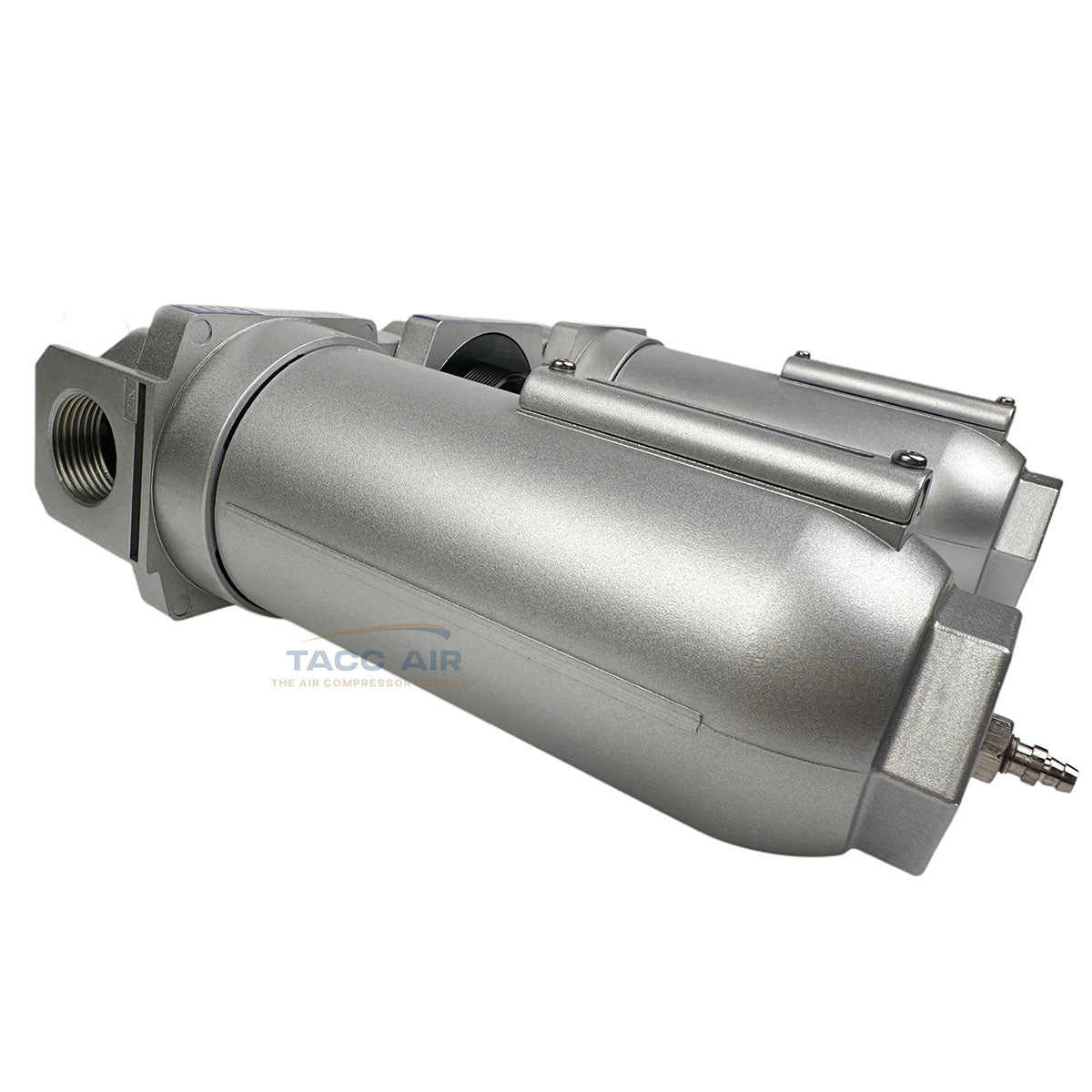

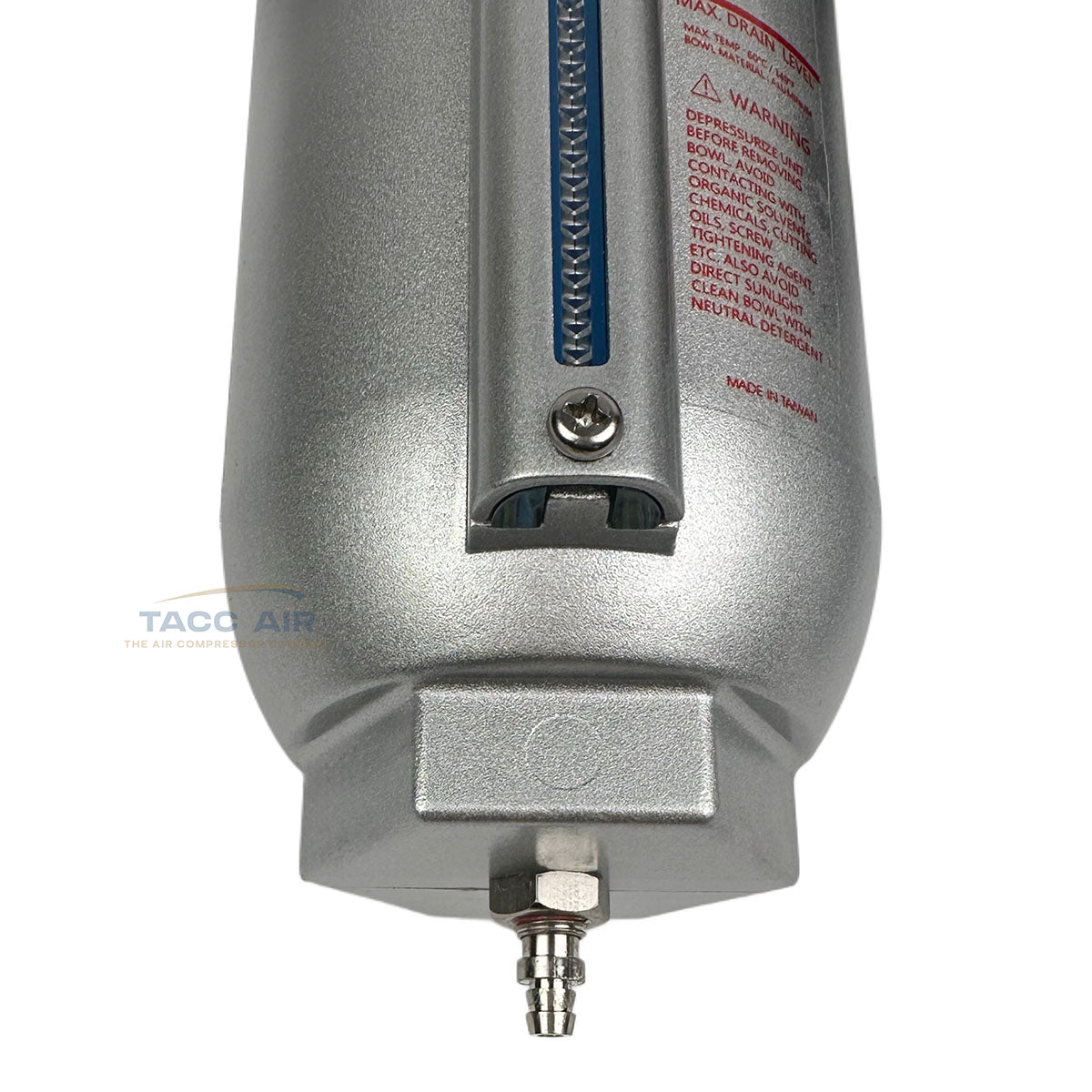

• 5-Micron Moisture Filter: Removes water and fine particulates. 11.83 oz bowl capacity with integrated sight glass for easy level monitoring. Includes standard manual drain.

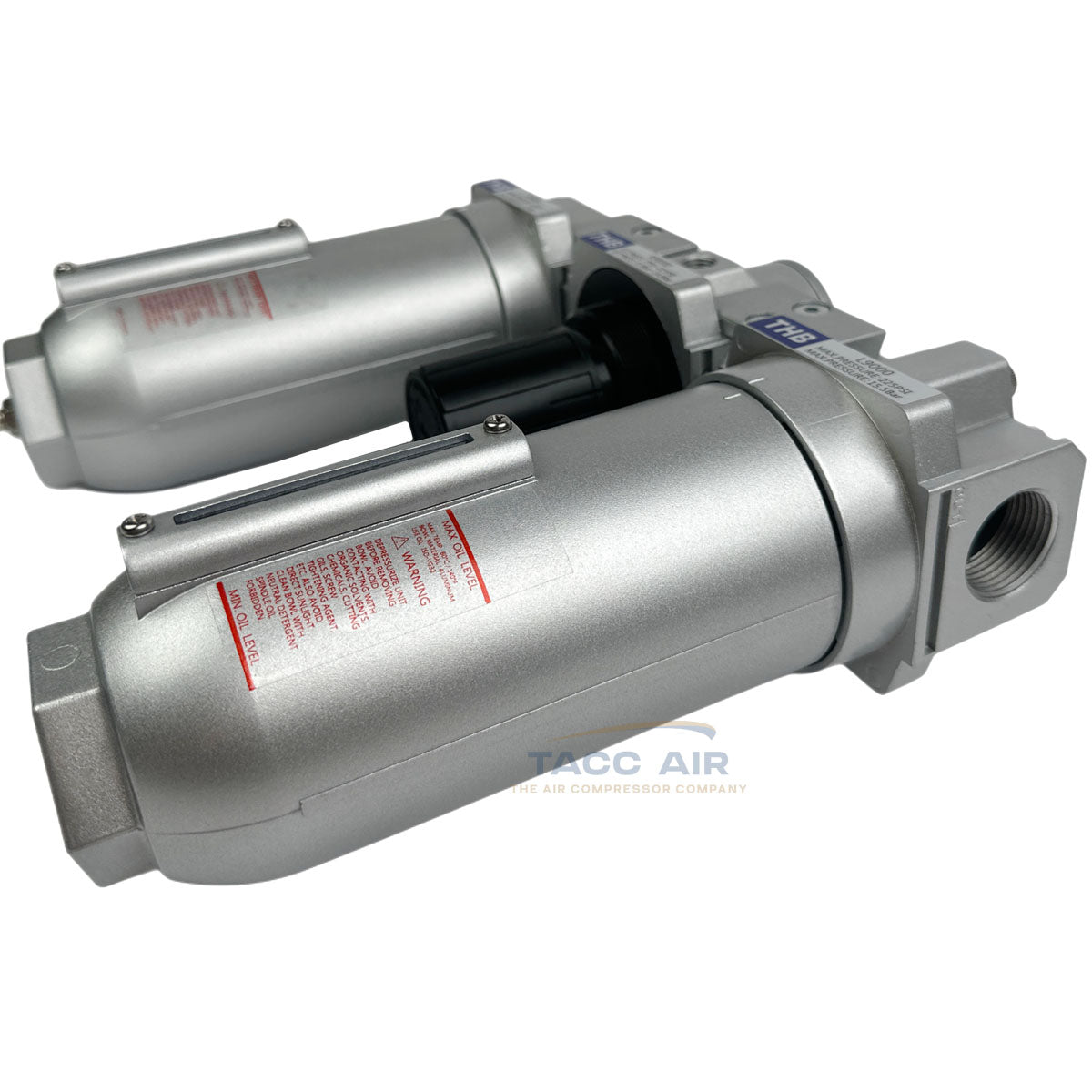

• Lubricator with Sight Glass: Adds fine oil mist to the air stream for tool and equipment protection. 11.83 oz oil capacity with visible oil level.

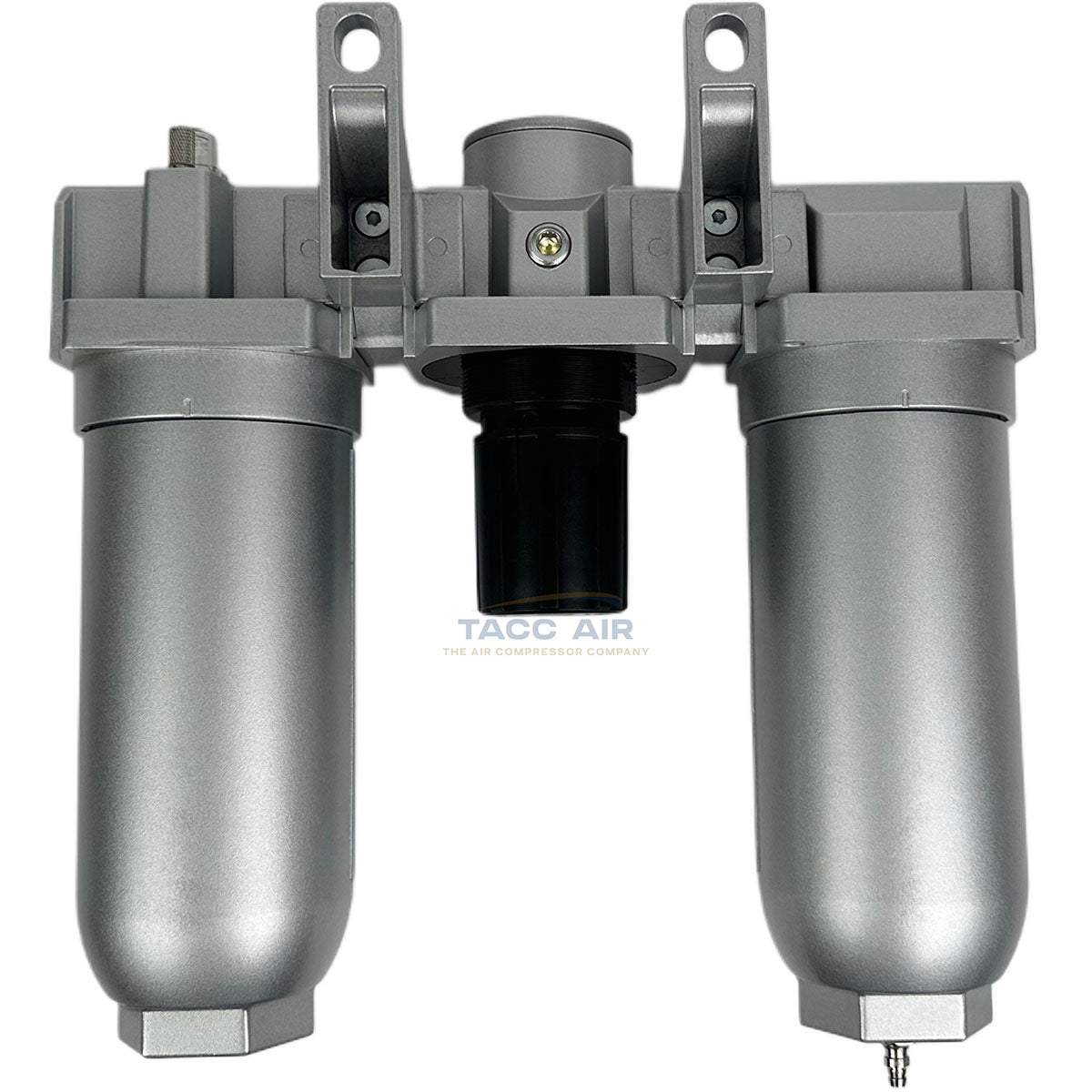

• Compact & Mountable: Integrated wall-mount bracket and compact design save space and simplify installation.

Specifications:

• Connection Type: 1" NPT Female (inlet and outlet) (Note 1" NPT measures approximately 1.25" in diameter)

• Max Inlet Pressure: 250 PSI

• Regulator Range: 7 – 215 PSI

• Max Flow Capacity: 183 CFM

• Filter Rating: 5 Micron (Moisture bowl capacity: 11.83 oz)

• Lubricator Capacity: 11.83 oz (Use air tool oil only)

• Drain Type: Manual

• Operating Temperature Range: 40°F – 140°F (4°C – 60°C)

• Flow Direction: Directional (must follow arrow markings stamped in aluminum casting)

Overall Dimensions:

• Length: 11.75"

• Height: 12"

• Depth (with gauge): 4.65"
