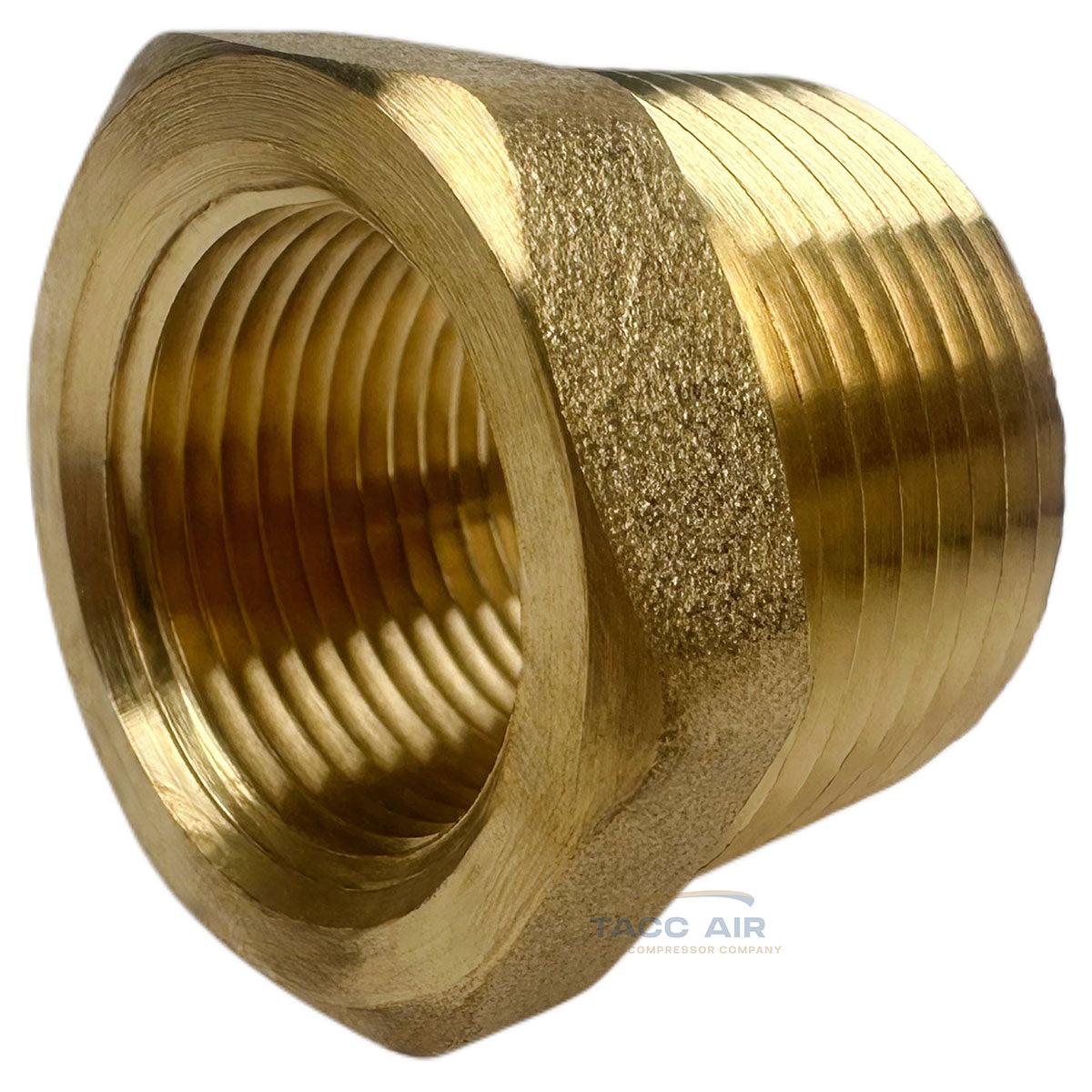

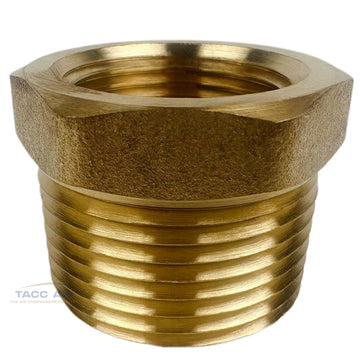

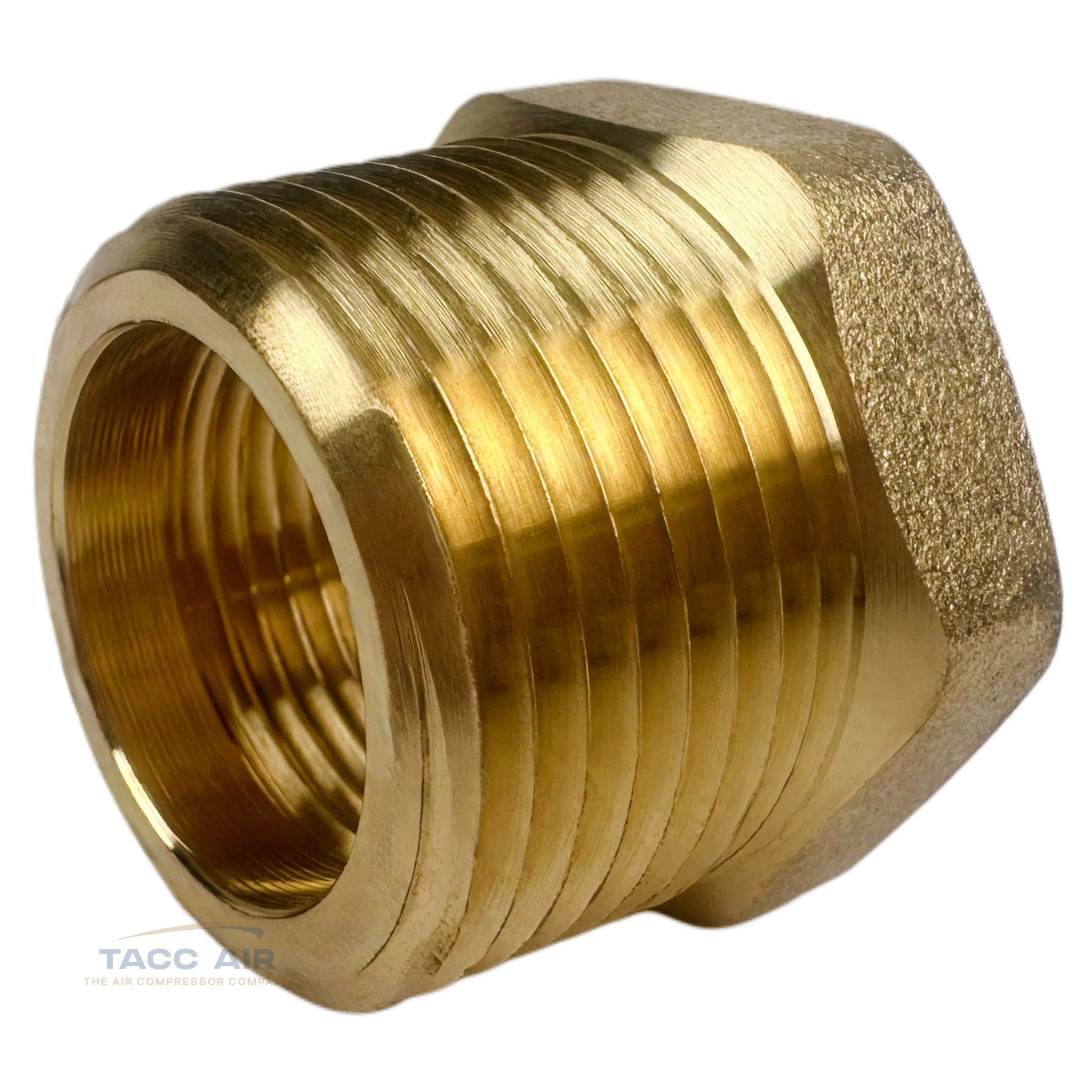

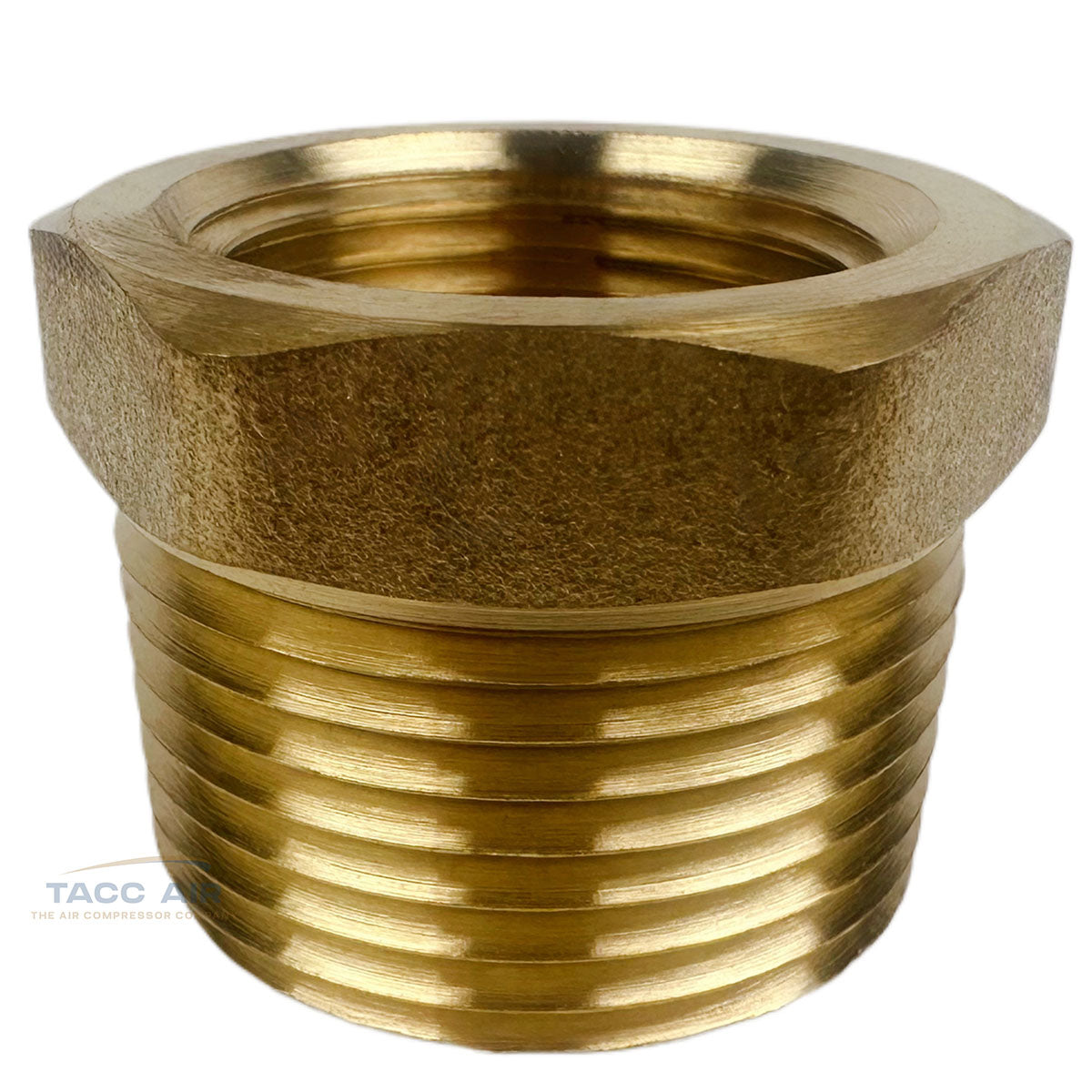

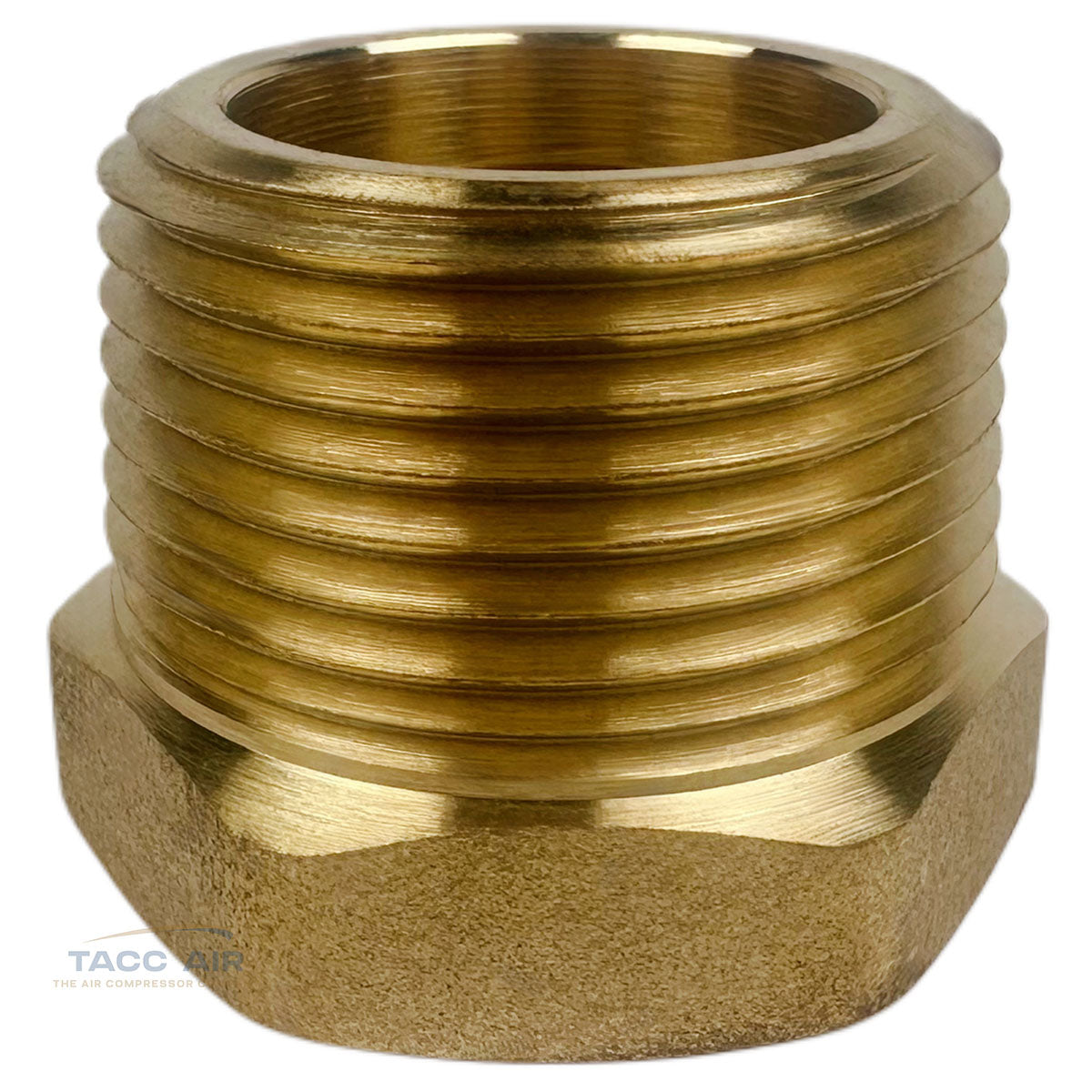

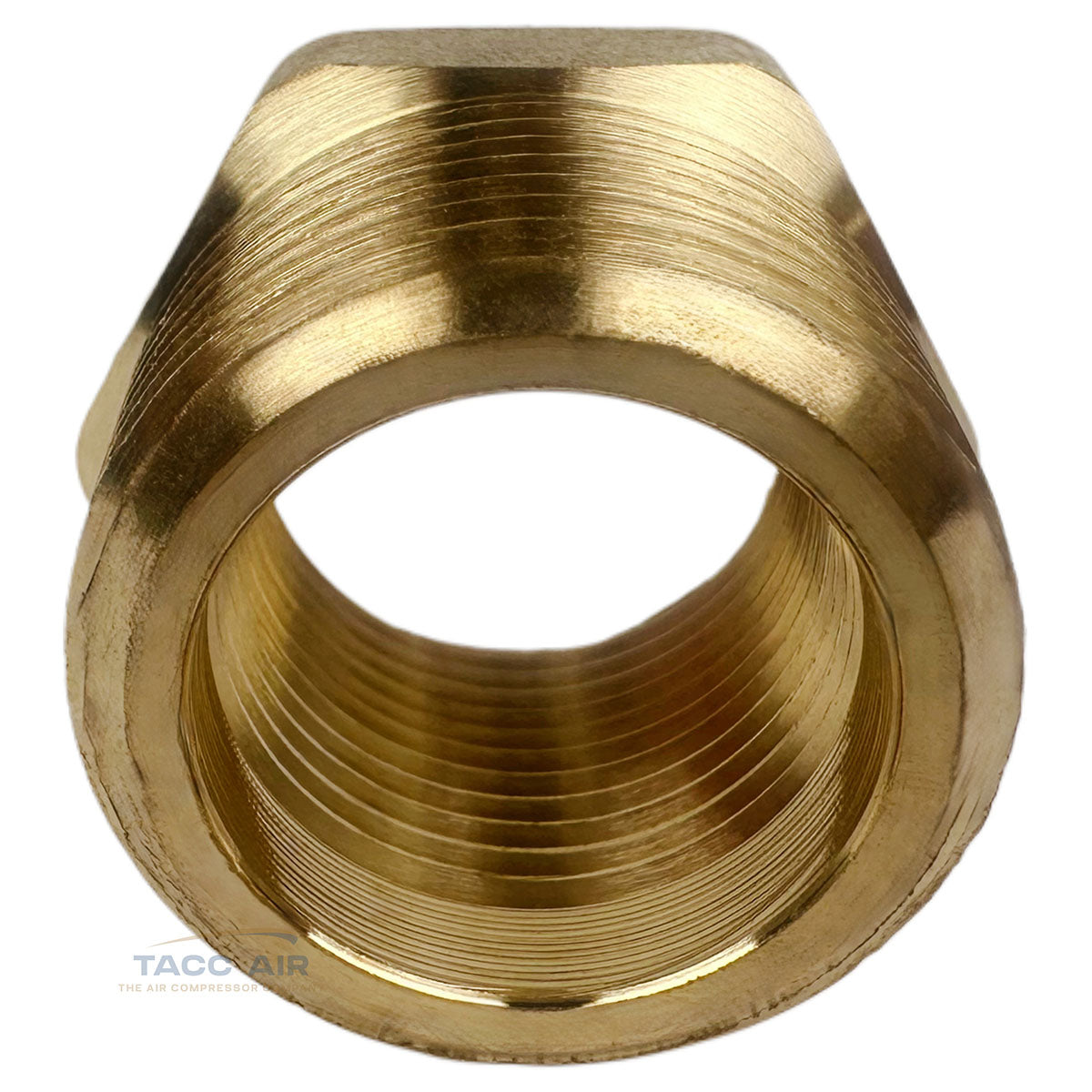

1" Male x 3/4" Female NPT Hex Reducer Bushing Adapter Pipe Reducing Fitting

Description:

This brass hex reducing bushing features a 3/4" FNPT (female National Pipe Thread) connection on the inside and a 1" MNPT (male National Pipe Thread) on the outer threads. This reducer bushing has a hex top ideal for applications requiring a secure hold with a wrench during installation.

Constructed from durable, corrosion-resistant yellow brass, this fitting is well-suited for water, air, gas, oil, and other non-corrosive fluids or media. With an overall length of 1-1/8", it’s perfect for reducing a 1" FNPT port to a 3/4" FNPT port in compact installations.

Specifications:

• Material: Yellow Brass (corrosion-resistant)

• Thread Type: NPT (National Pipe Thread)

• Connection: 3/4" Female NPT x 1" Male NPT

• Thread Size:

  • 3/4" FNPT → (Note: 3/4" NPT measures approx. 1" in diameter)

  • 1" MNPT → (Note: 1" NPT measures approx. 1.25" in diameter)

• Overall Length: 1-1/8"

• Temperature Range: -65°F to 250°F

• Use With: Brass, Bronze, Copper, Steel, Aluminum, and Iron Pipe

Applications:

• Pressure gauge installations

• Plumbing

• Compressed air systems

• Gas lines

• Oil transfer

• General-purpose fluid handling

• Any system using non-corrosive media compatible with brass

Note: NPT threads are tapered for a tight seal. Use thread sealant or PTFE tape for leak-free connections.

You will receive 1 reducer bushing with this purchase.
