Coxreels 117‑4‑350 100 Series Hand‑Crank Hose Reel Up To 350FT Of 1/2" Air Hose

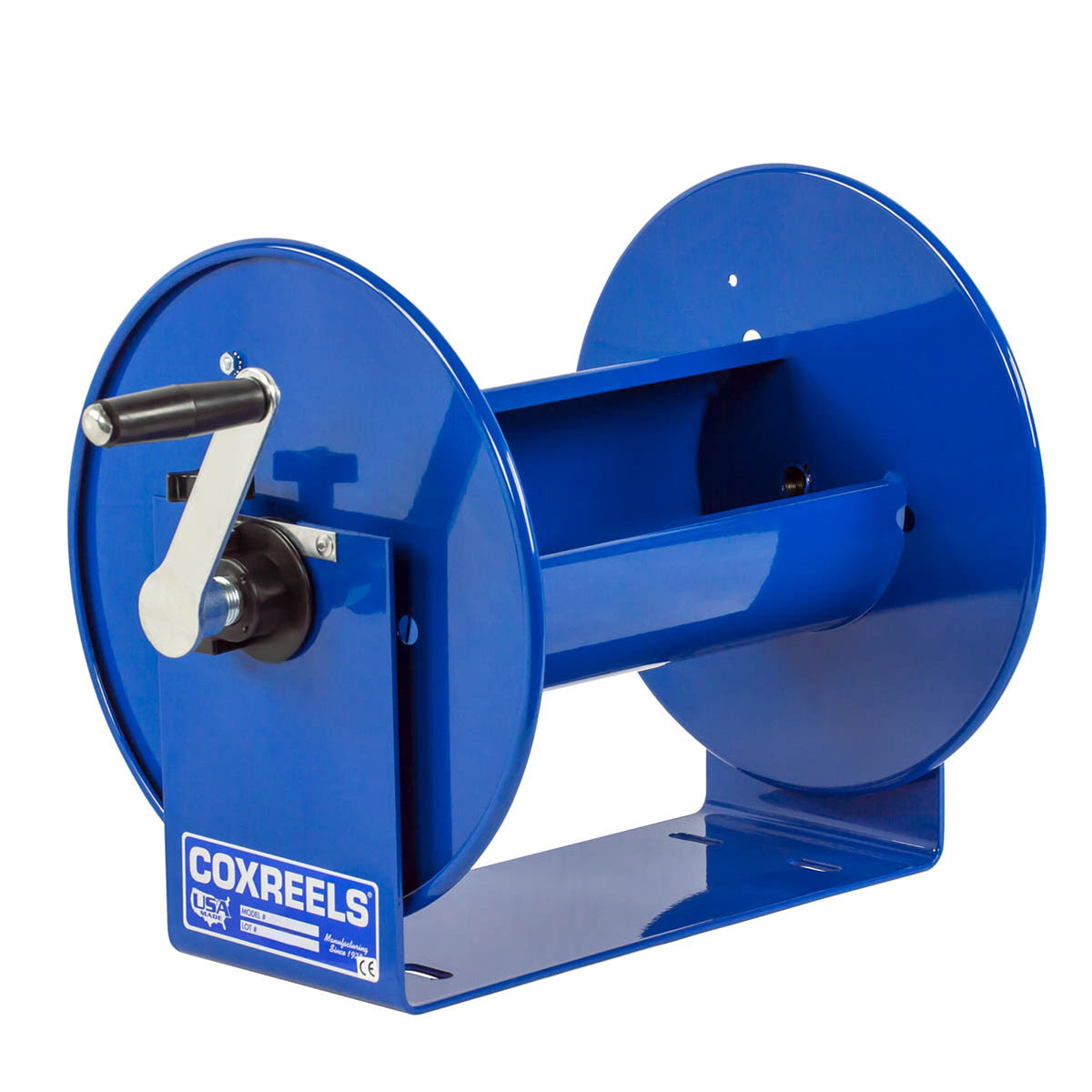

Coxreels 117‑4‑350 100 Series Hand‑Crank Hose Reel

Description:

The Coxreels 117‑4‑350 is a high-capacity, hand-crank hose reel designed for tough industrial, commercial, and professional applications. Built in the USA with heavy-gauge steel, this reel is engineered for handling long lengths of hose, and up to 4,000 PSI. Whether you're managing air hose, pressure washer lines, fluid transfer systems, or general utility hoses, this reel delivers reliability and performance where it matters.

With a simple and efficient direct hand-crank rewind system, the reel gives you full control over hose payout and retrieval. Its open-drum design allows for easy access, maintenance, and cleaning. The sturdy U-shaped frame ensures structural rigidity, while the CPC powder-coated finish offers excellent corrosion resistance in harsh environments. Designed to hold up to 350 feet of 1/2" hose, this reel is the go-to solution when durability, safety, and capacity are top priorities.

Specifications

• Model Number: 117‑4‑350

• Series: 100 Series

• Rewind Method: Manual, direct hand crank

• Hose Capacity:

  • 350 ft of 1/2″ ID hose (7/8″ OD)

  • Up to 450 ft of 3/8″ ID hose

• Maximum Pressure: 4,000 PSI

• Construction: Heavy-duty steel frame and drum

• Finish: Chip-resistant CPC powder coat (blue)

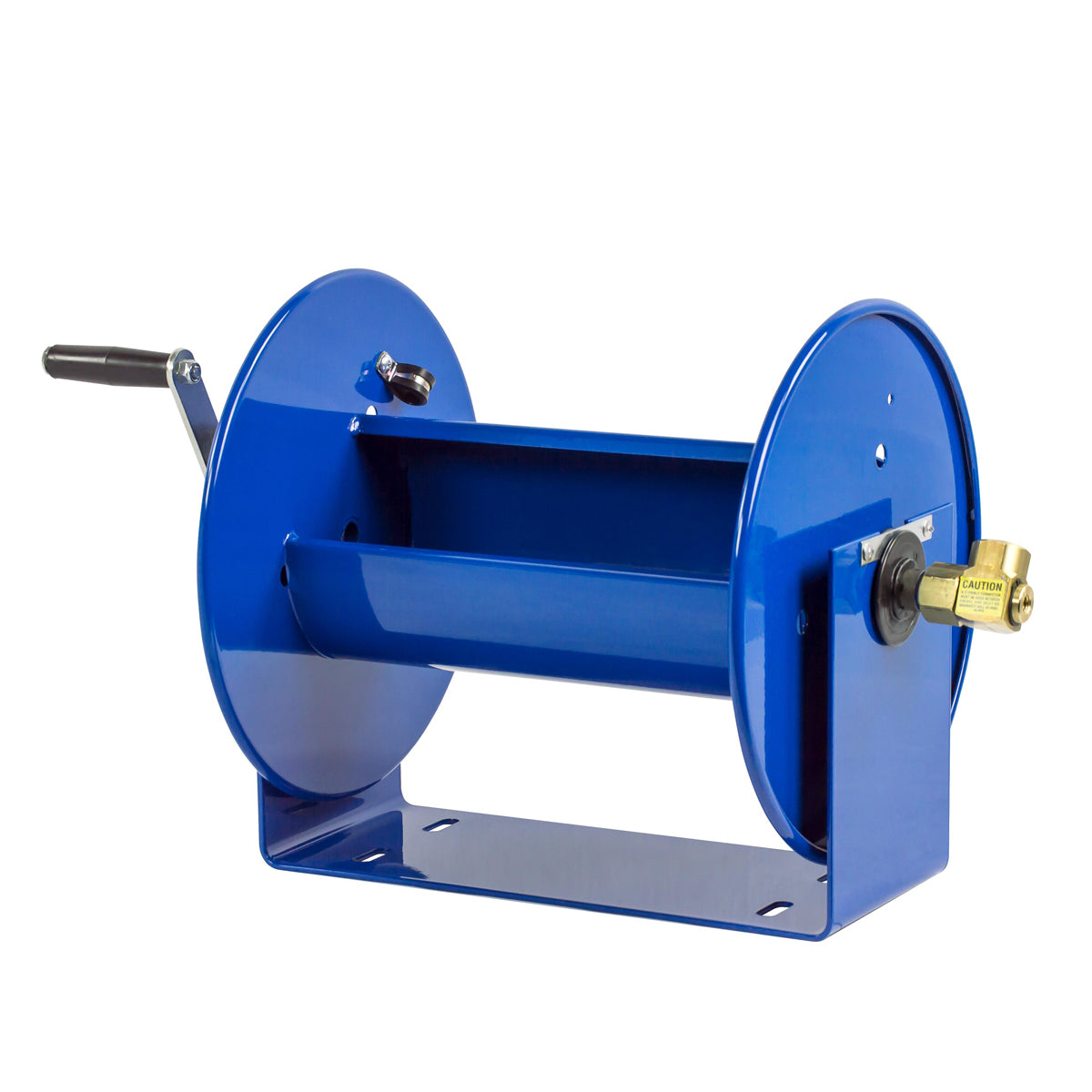

• Swivel Inlet:

  • 90° brass 1/2" Female NPT full-flow NPT swivel (Note 1/2" NPT measures about 3/4" in diameter)

  • Standard nitrile seals (EPDM or Viton available)

• Brake: Adjustable tension brake to prevent hose free-spooling

• Drum Width (between discs): 18″

• Dimensions:

  • Width: 28.5″ (Including Swivel and handle)

  • Height: 18″

  • Depth: 17″

• Unit Weight: Approx. 37 lb

Ideal Applications

• Pressure washing systems

• Fluid and chemical transfer setups

• Agricultural spraying

• Washdown and sanitation stations

• General air and water hose storage in industrial settings

SKU: COX1174350
Warranty: 2-Year Limited Manufacturer Warranty
Country of Origin: USA
