1/4" Male NPT X 2.5" Long Pipe Nipple 1-1/2" Extension Threaded Fitting Brass

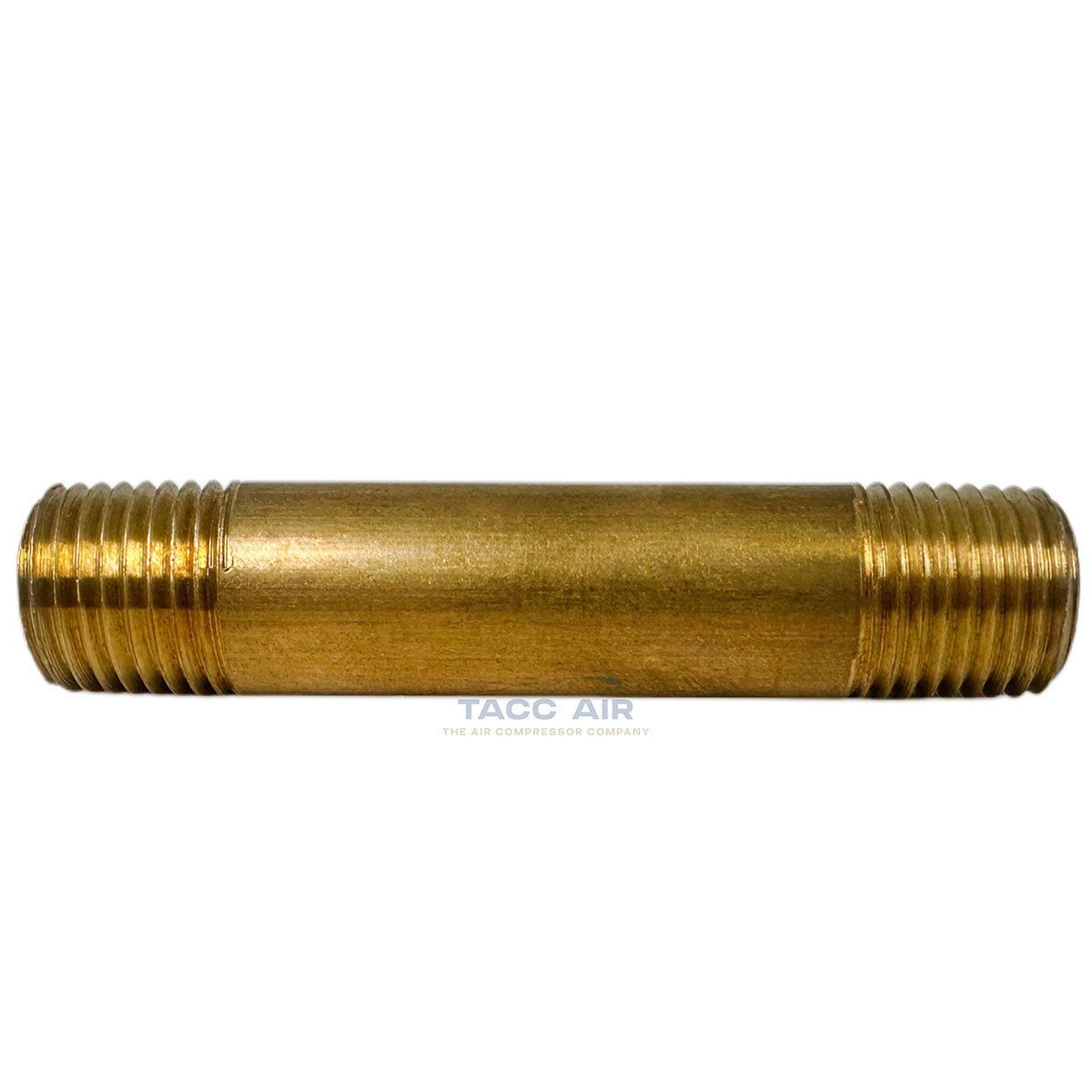

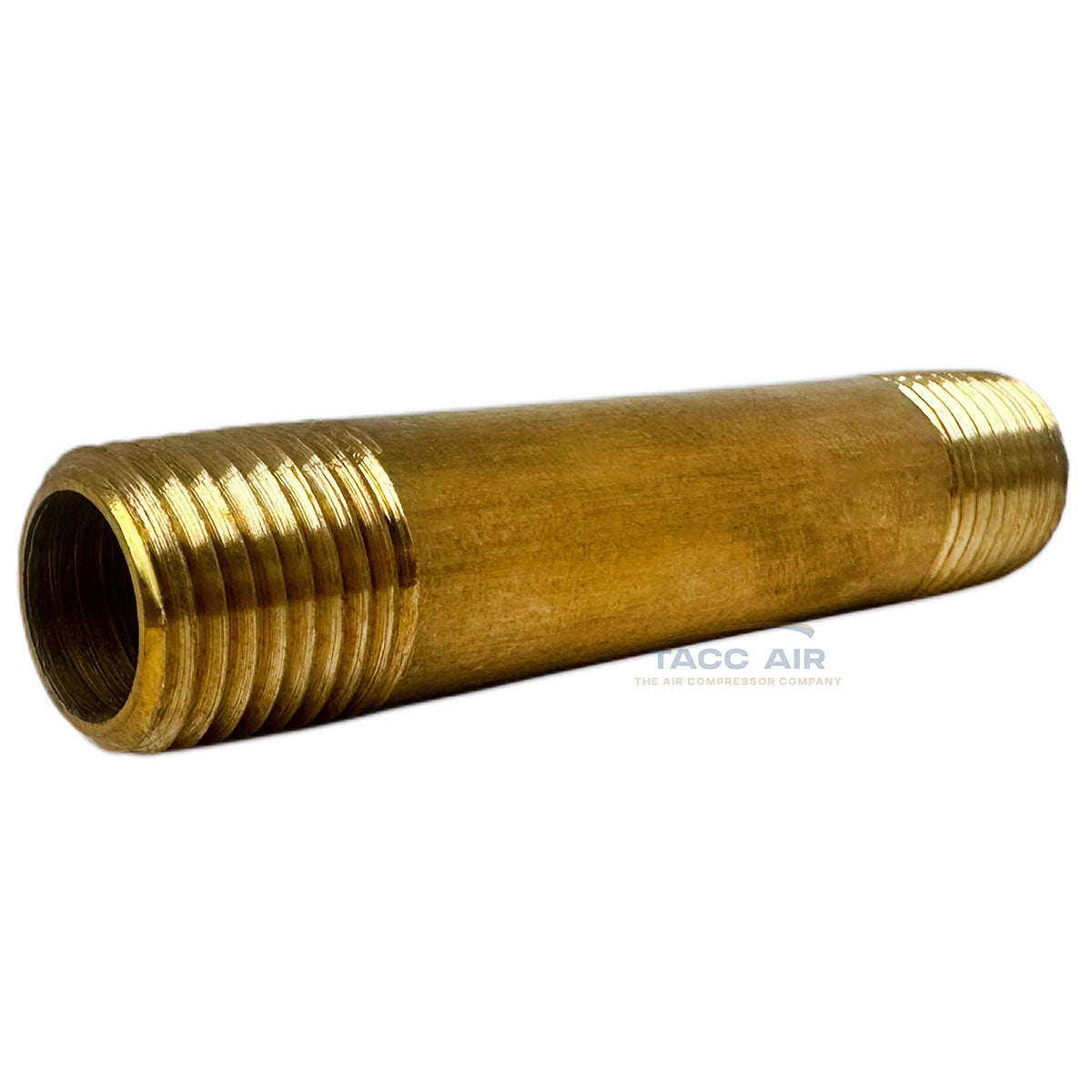

1/4" Male NPT x 2.5" Long Brass Pipe Extension Nipple

This brass pipe nipple features two 1/4" male NPT (MNPT) threaded ends and measures 2.5 inches in total length. While the overall length is 2.5", the actual extension between the threads — the unthreaded middle portion — is 1.5" in length, providing a 1.5" extension between connections when installed. This can fluctuate slightly based on how far the connections are threaded together during installation.

Constructed from durable, corrosion-resistant yellow brass, this fitting is well-suited for water, air, gas, oil, and other non-corrosive fluids or media. This fitting is compatible with brass, bronze, copper, steel, aluminum, and iron pipe systems. Made of durable brass, it offers fair vibration resistance and a broad operating temperature range.

Specifications:

• Material: Brass

• Thread Size: 1/4" MNPT (1/4" NPT measures approx. 1/2" in diameter)

• Total Length: 2.5"

• Extension Between Threads: 1-1/2"

• Temperature Range: -65°F to 250°F

• Compatible With: Brass, bronze, copper, steel, aluminum, and iron pip

  • Applications:

    • Plumbing

    • Compressed air systems

    • Gas lines

    • Oil transfer

    • General-purpose fluid handling

    • Any system using non-corrosive media compatible with brass

Note: NPT threads are tapered for a tight seal. Use thread sealant or PTFE tape for leak-free connections.
