1/2" Male NPT X 2" Long Pipe Nipple 3/4" Extension Threaded Fitting Brass

1/2" Male NPT x 2" Long Brass Pipe Extension Nipple

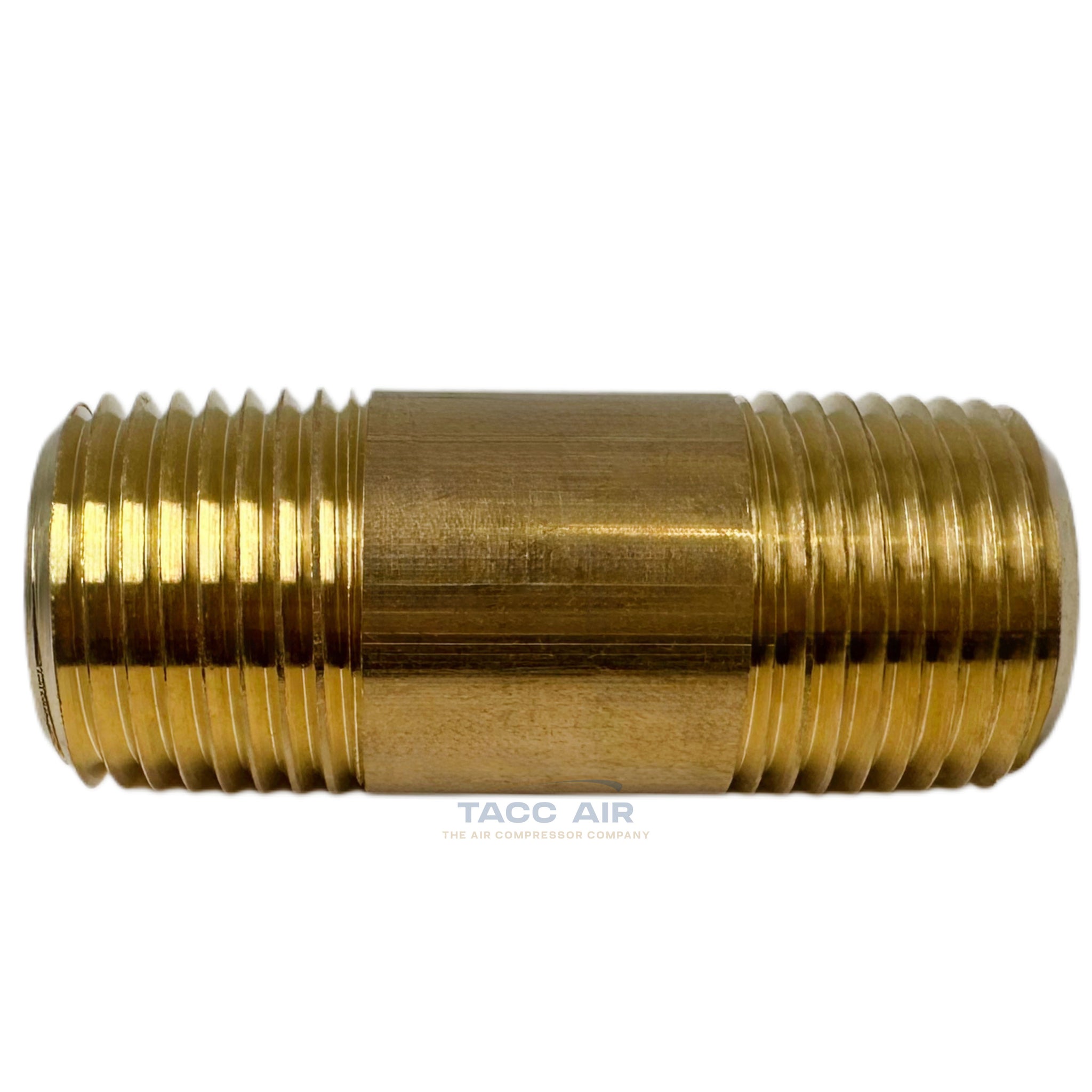

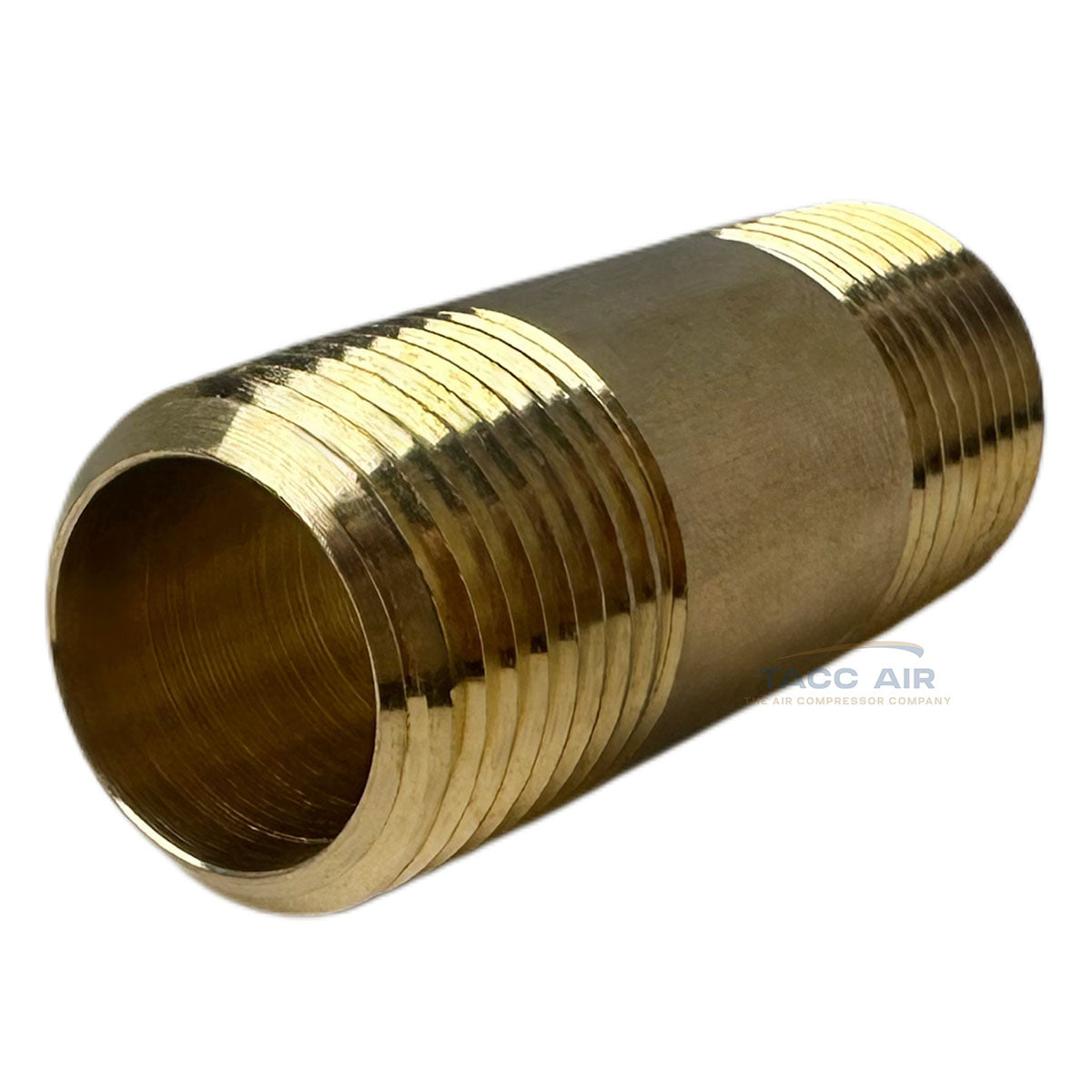

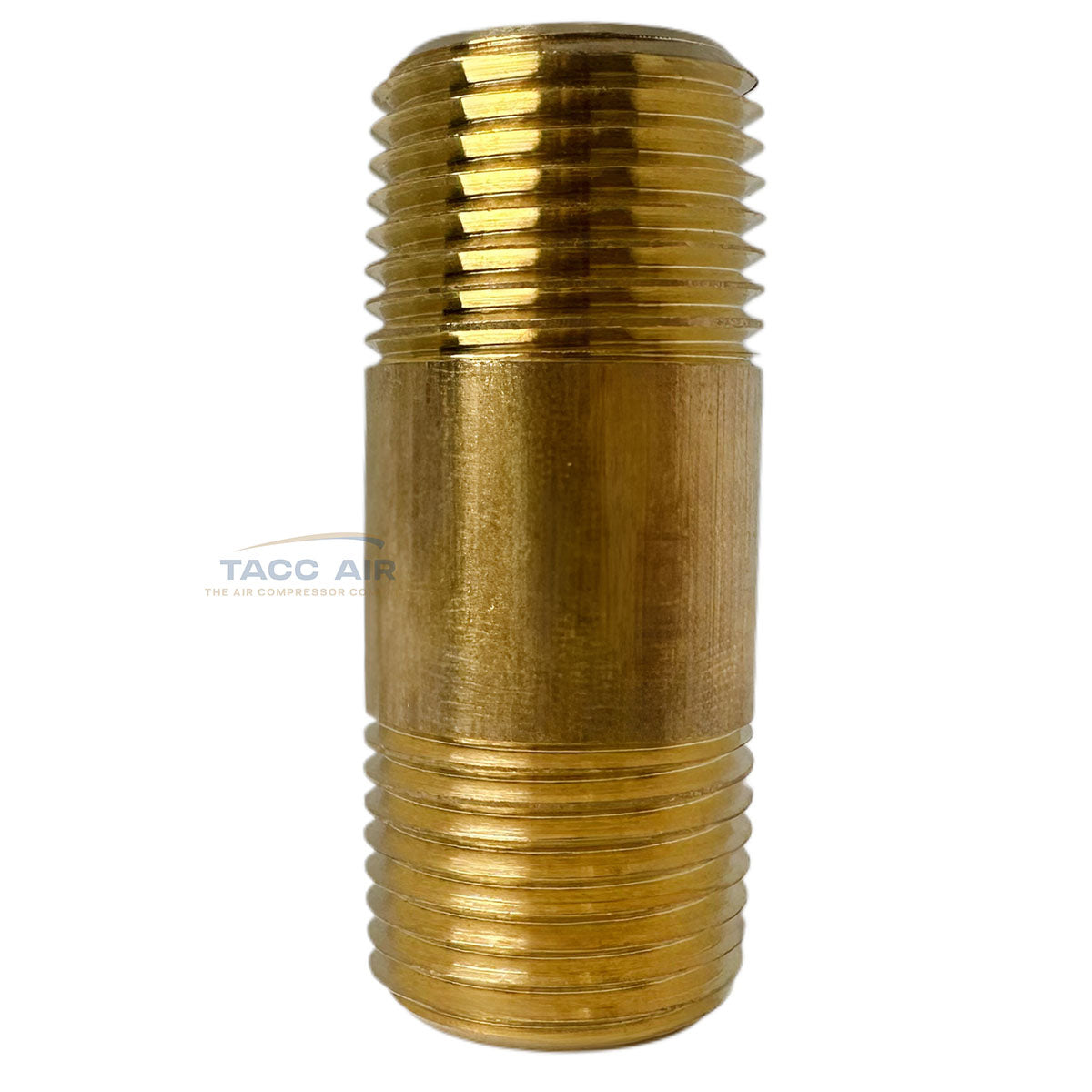

This brass pipe nipple features two 1/2" male NPT (MNPT) threaded ends and measures 2 inches in total length. While the overall length is 2", the actual extension between the threads — the unthreaded middle portion — is 3/4" in length, providing a 3/4" extension between connections when installed. This can fluctuate slightly based on how far the connections are threaded together during installation.

Constructed from durable, corrosion-resistant yellow brass, this fitting is well-suited for water, air, gas, oil, and other non-corrosive fluids or media. This fitting is compatible with brass, bronze, copper, steel, aluminum, and iron pipe systems. Made of durable brass, it offers fair vibration resistance and a broad operating temperature range.

Specifications:

• Material: Brass

• Thread Size: 1/2" MNPT (1/2" NPT measures approx. 3/4" in diameter)

• Total Length: 2"

• Extension Between Threads: .75"

• Temperature Range: -65°F to 250°F

• Compatible With: Brass, bronze, copper, steel, aluminum, and iron pip

  • Applications:

    • Plumbing

    • Compressed air systems

    • Gas lines

    • Oil transfer

    • General-purpose fluid handling

    • Any system using non-corrosive media compatible with brass

Note: NPT threads are tapered for a tight seal. Use thread sealant or PTFE tape for leak-free connections.
