1/2" Female X 1/2" Male NPT Pipe Fitting Extender Adapter FIP X MIP Brass

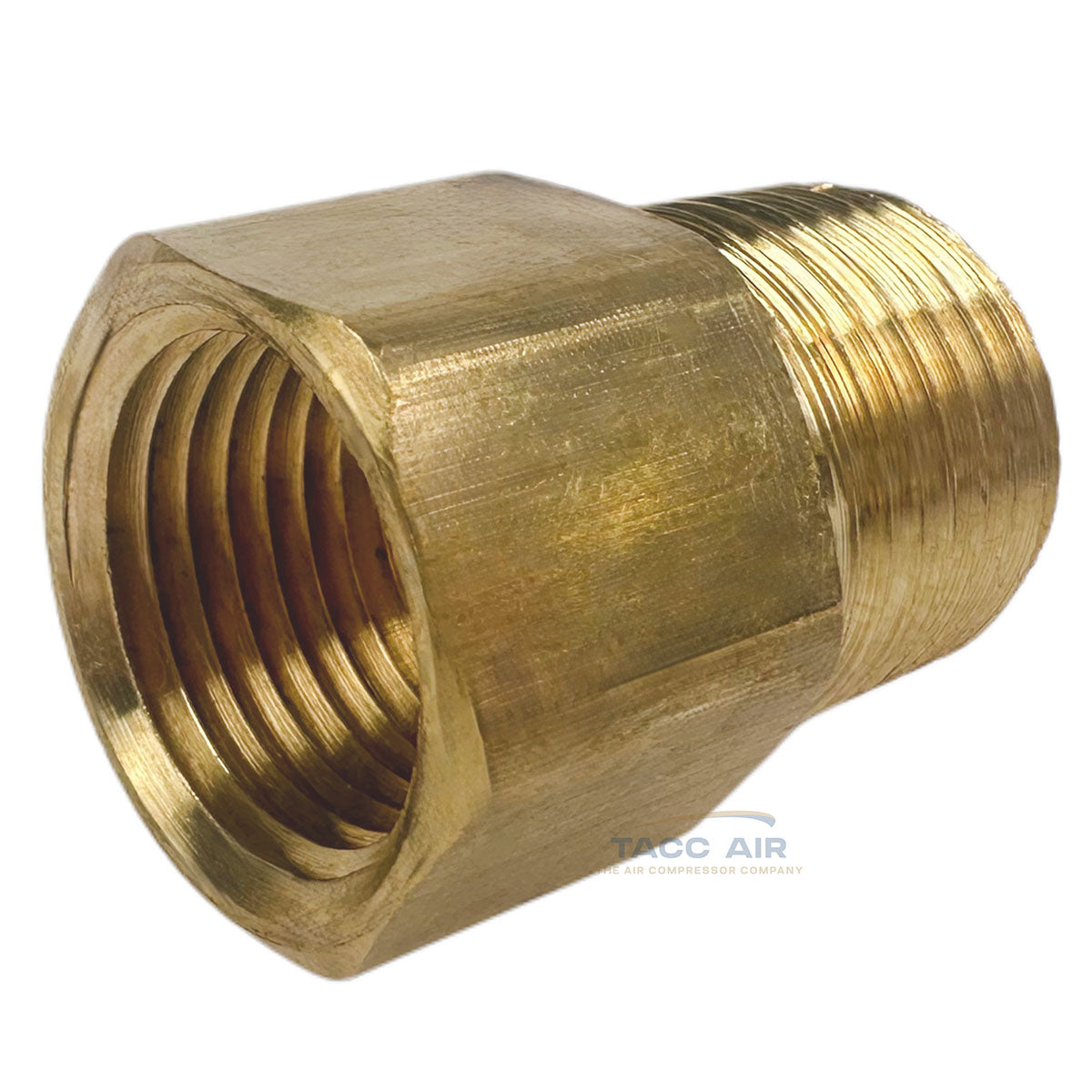

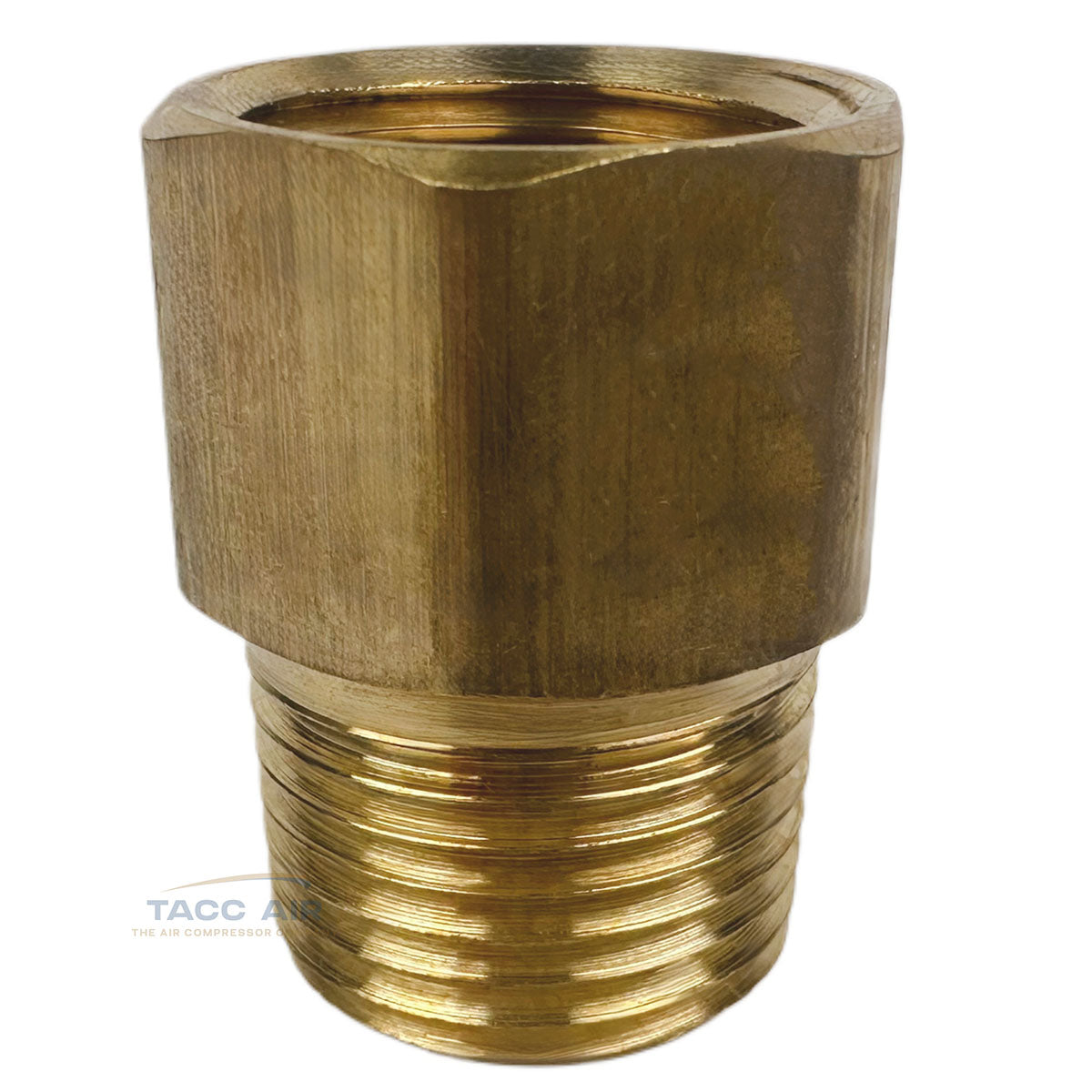

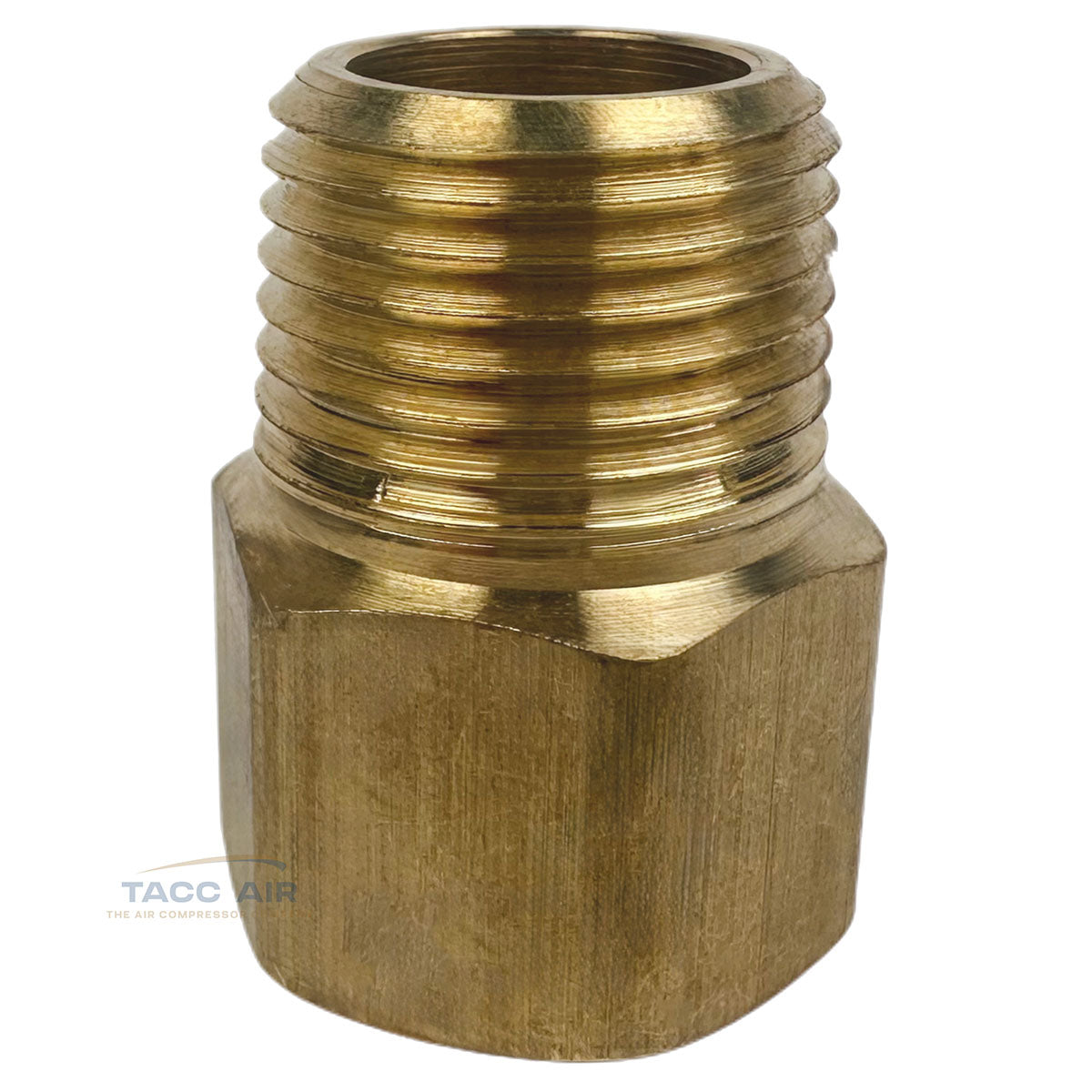

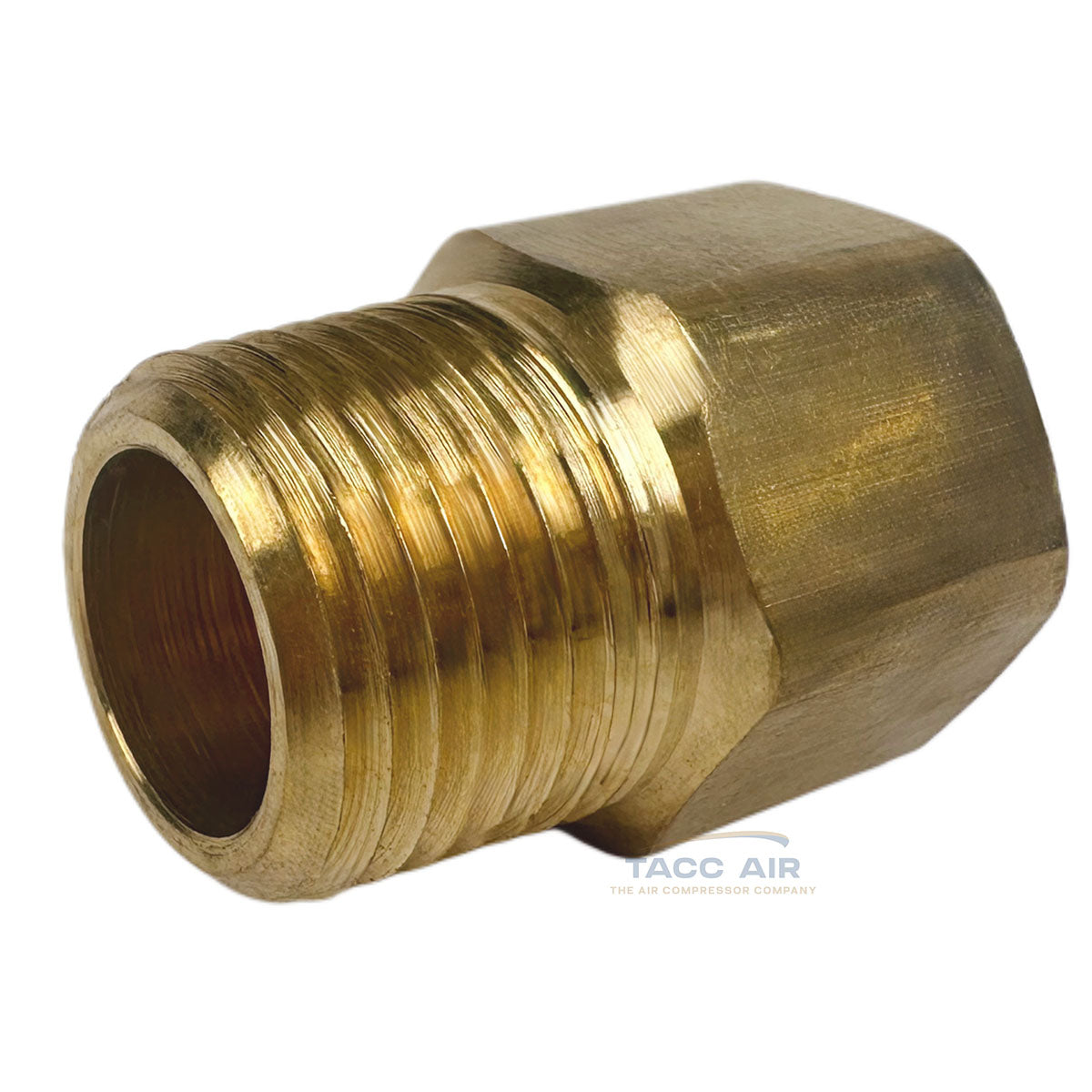

Brass Pipe Fitting Extender 1/2" Female NPT x 1/2" Male NPT Threaded Adapter

This brass pipe fitting extender features a 1/2" NPT female thread on one end and a 1/2" NPT male thread on the other, designed to extend standard 1/2" NPT pipe connections in compressed air, gas, oil, or water systems. It's a practical solution for adding extra clearance or length in tight or confined installation areas without changing the fitting type or size.

Made from corrosion-resistant yellow brass, this fitting delivers excellent durability and a leak-resistant seal across a wide range of temperatures. With an overall length of 1-5/16", it adds approximately 9/16" of length once fully connected and the threads are tightened—ideal for use in systems where space is limited and precision matters.

Specifications:

• Quantity: 1

• Material: Yellow Brass (corrosion-resistant)

• Thread Type: NPT (National Pipe Thread)

• Connection: 1/2" Female NPT x 1/2" Male NPT

• Function: Extends an existing NPT pipe connection for added clearance

• Overall Length: 1-5/16"

• Added Extension Once Tightened: Approx. 9/16"

• Thread Size:

  • 1/2" NPT → measures approx. 3/4" in outside diameter

• Temperature Range: -65°F to 250°F

Applications:

• Compressed air systems

• Plumbing

• Oil and gas lines

• Water transfer

• General-purpose fluid handling

• Any system using non-corrosive media compatible with brass

Note: NPT threads are tapered for a secure seal. Apply PTFE tape or thread sealant during installation to prevent leaks.

You will receive 1 fitting extender with this purchase.
