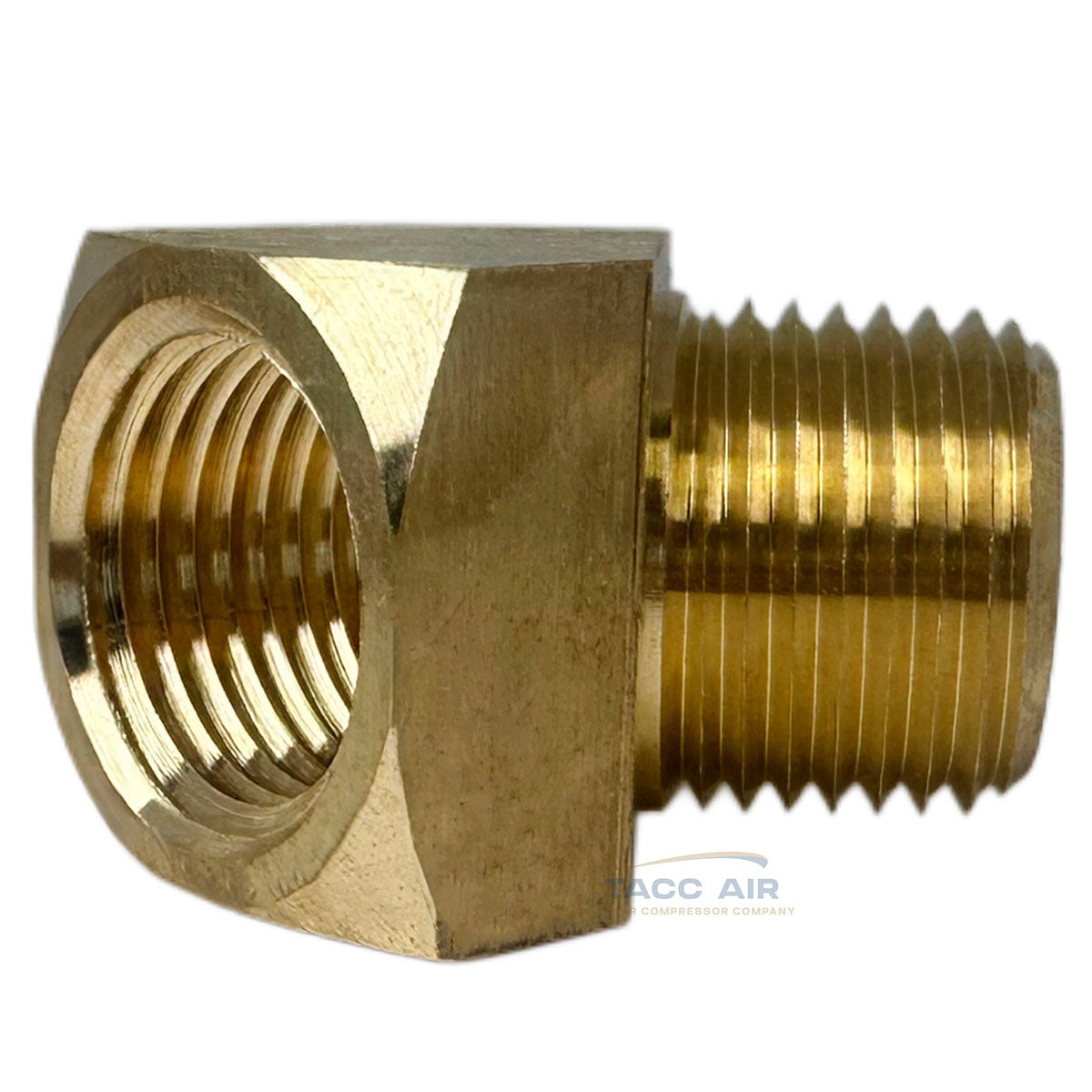

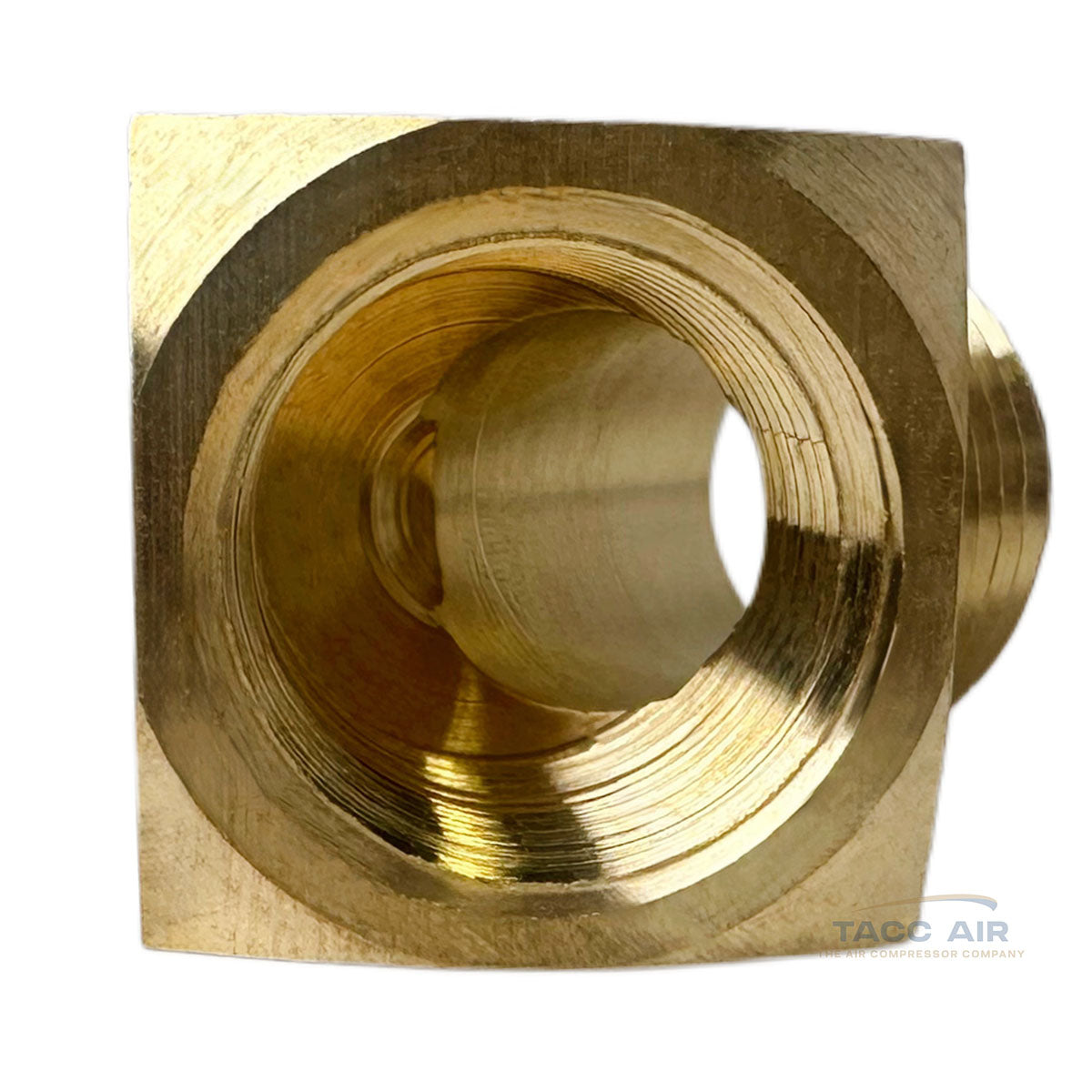

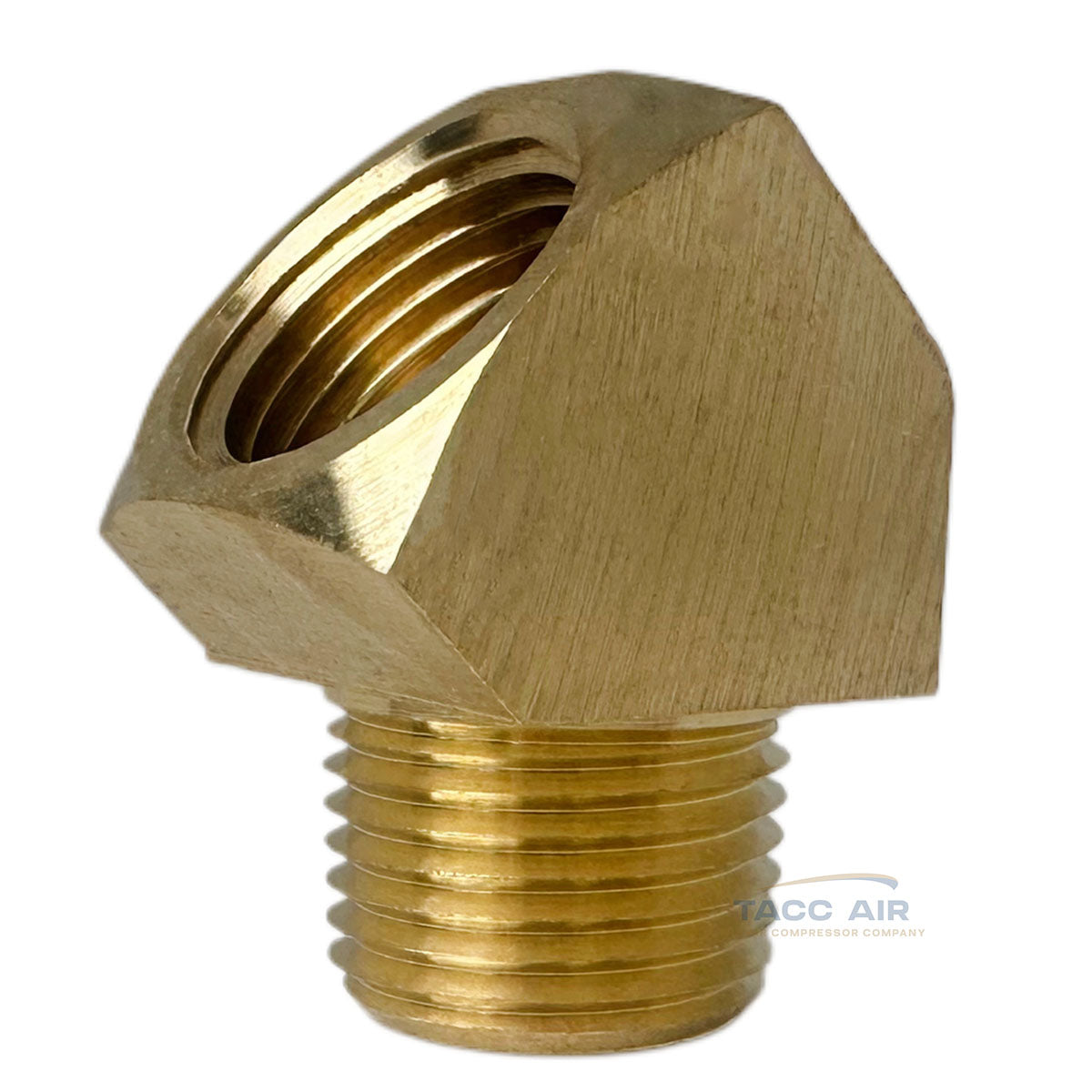

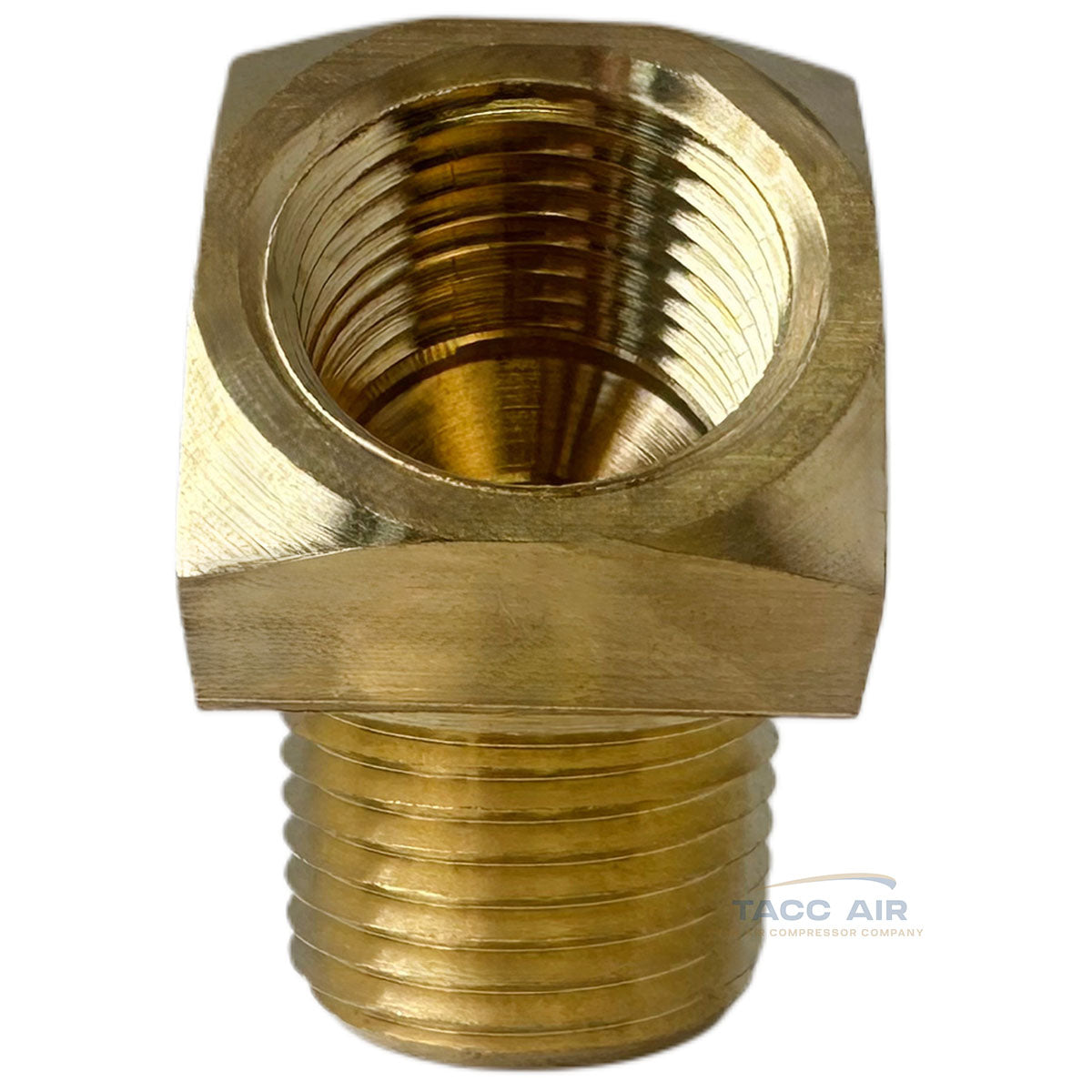

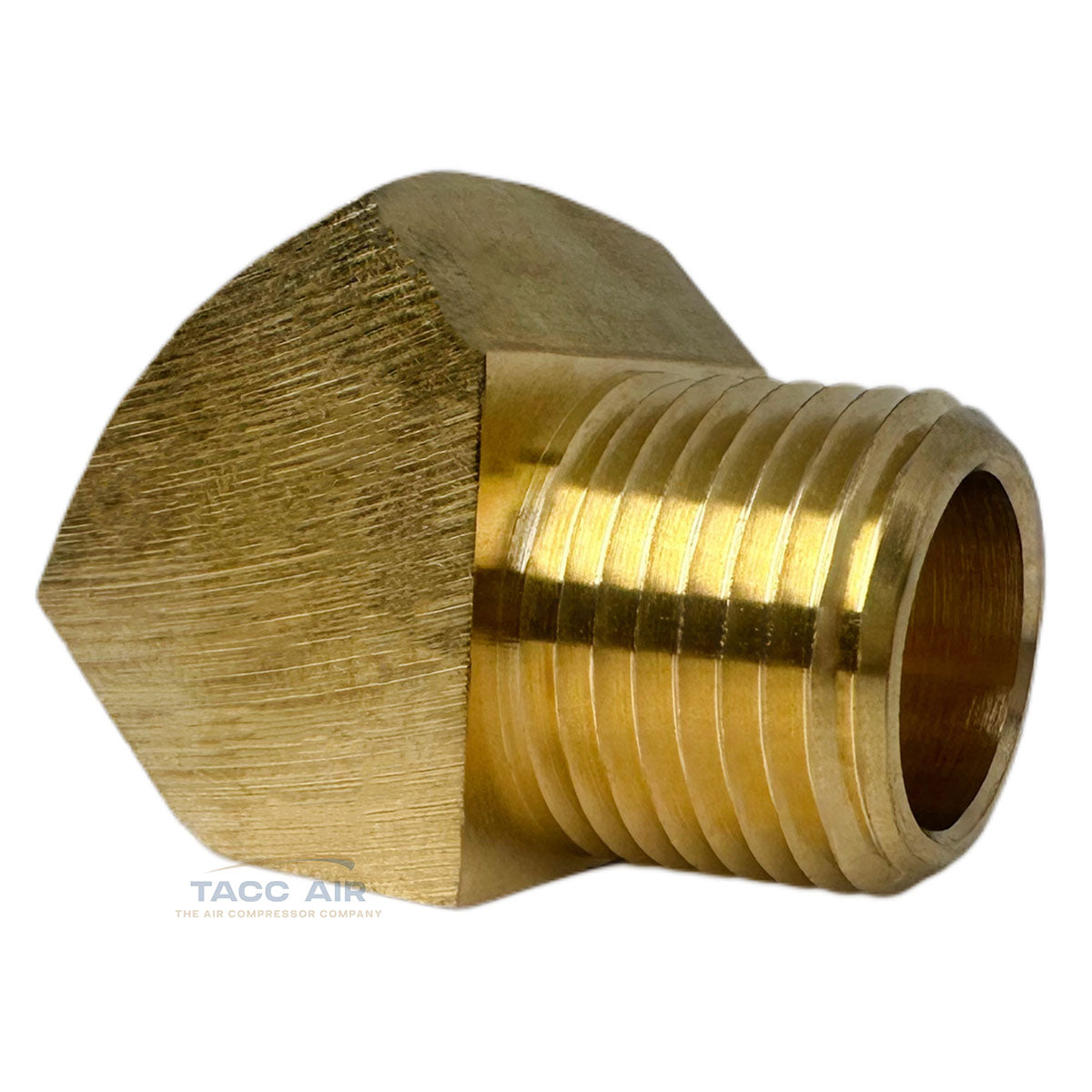

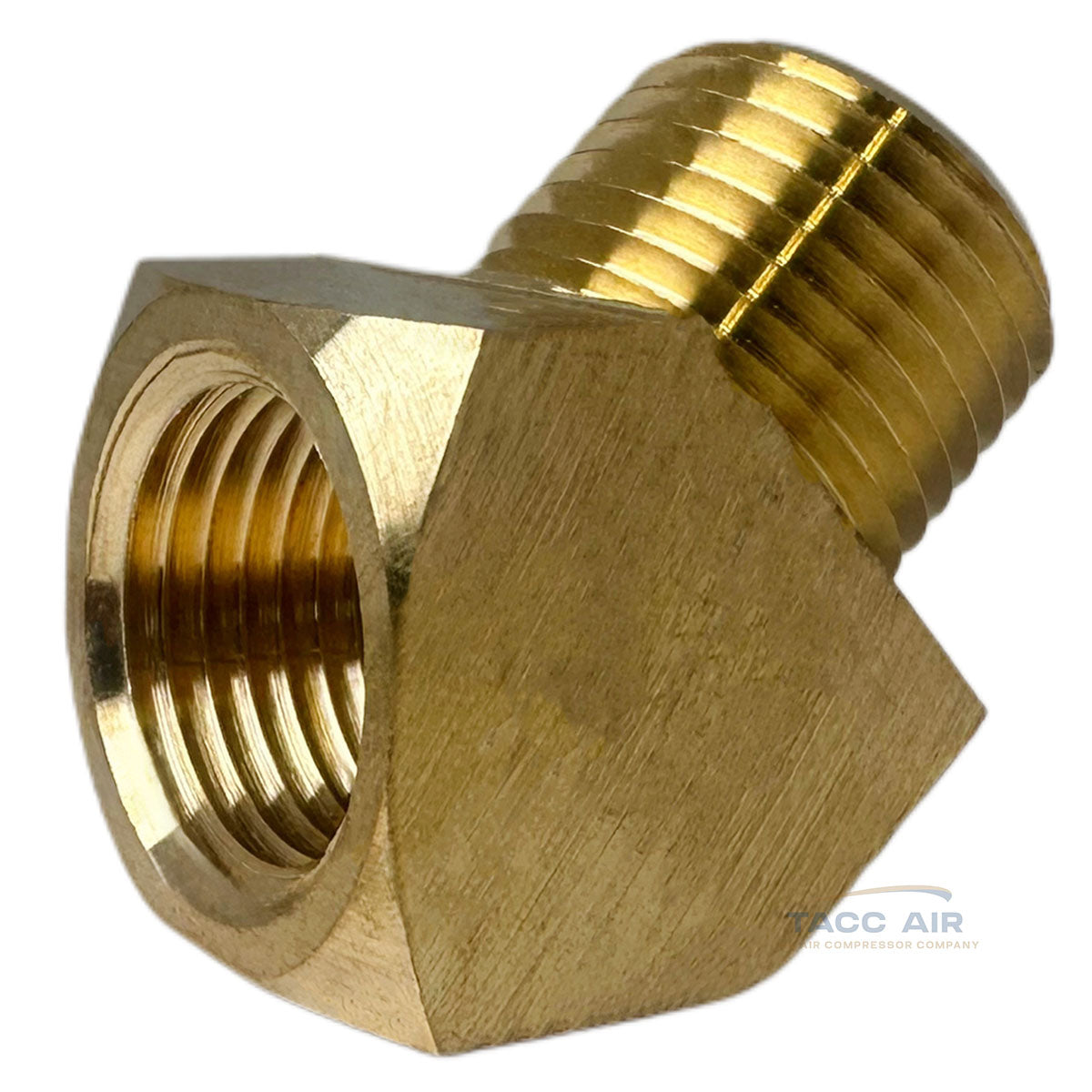

45 Degree 1/2" NPT Pipe Thread Brass Street Elbow Fitting 50131

Description:

This brass 45-degree street elbow features a 1/2" NPT female thread on one end and a 1/2" NPT male thread on the other, providing a reliable solution for angled transitions in piping systems. Its 45° bend allows for more gradual directional changes than a 90° fitting, making it ideal for custom layouts where a particular flow path or more compact routing is needed.

Made from solid, corrosion-resistant yellow brass, this fitting is built for durability and long-lasting reliability with water, air, gas, oil, and other non-corrosive fluids. The precision-machined NPT threads ensure a secure, leak-tight fit in various systems using standard pipe thread connections.

This Also works same as a 50131 fitting used on RapidAir Air Piping Systems to angle the coupler down off the wall for a more convenient connection.

Specifications:

-Material: Yellow Brass (corrosion-resistant)

-Thread Type: NPT (National Pipe Thread)

-Connection: 1/2" Male NPT x 1/2" Female NPT

-Function: For 45-degree angled connections between pipe thread fittings

-Thread Size:1/2" NPT → (Note: 1/2" NPT measures approx. 3/4" in diameter)

Applications:

• Plumbing

• Compressed air systems

• Gas lines

• Oil transfer

• General-purpose fluid handling

• Any system using non-corrosive media compatible with brass

Note: NPT threads are tapered for a tight seal. Use thread sealant or PTFE tape for leak-free connections.
