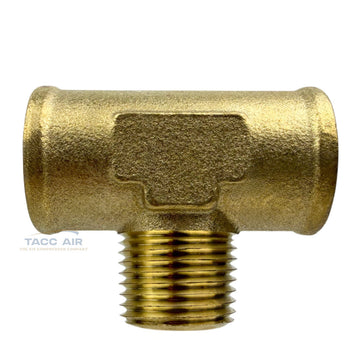

1/2" NPT Solid Brass Branch Tee Fitting 3 Way With 2 Female And 1 Male Thread

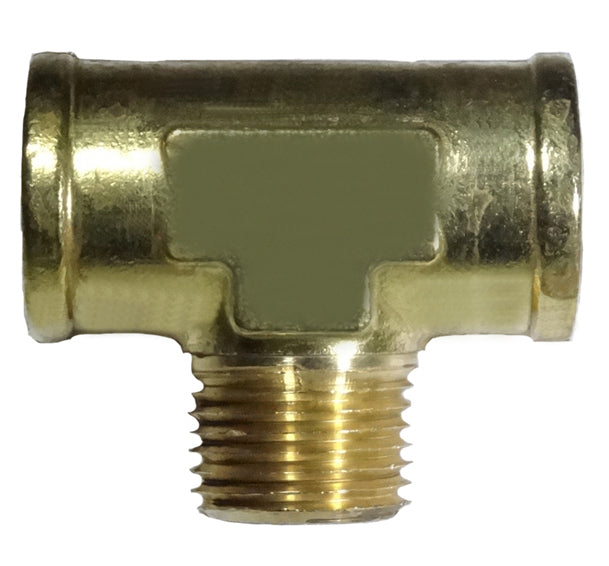

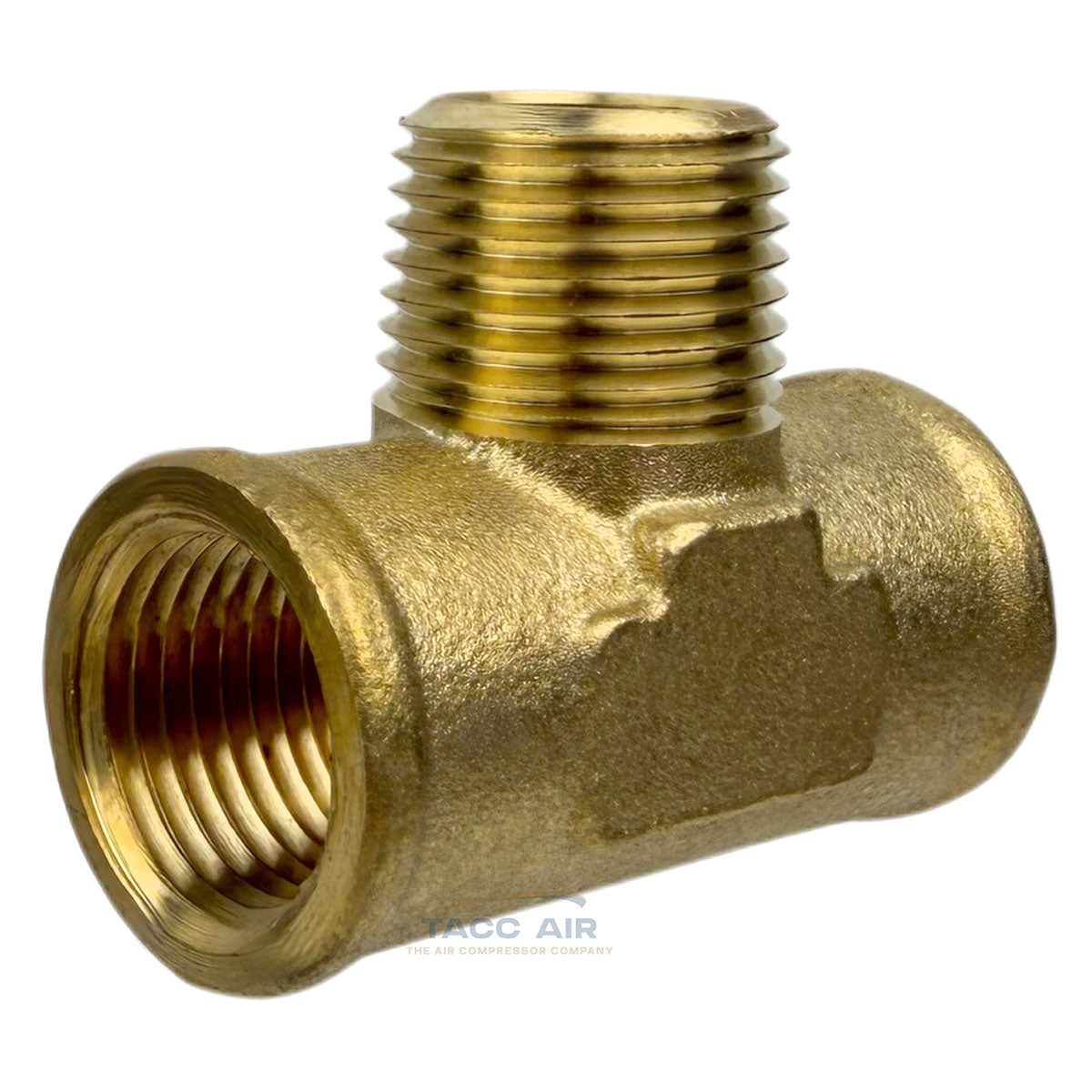

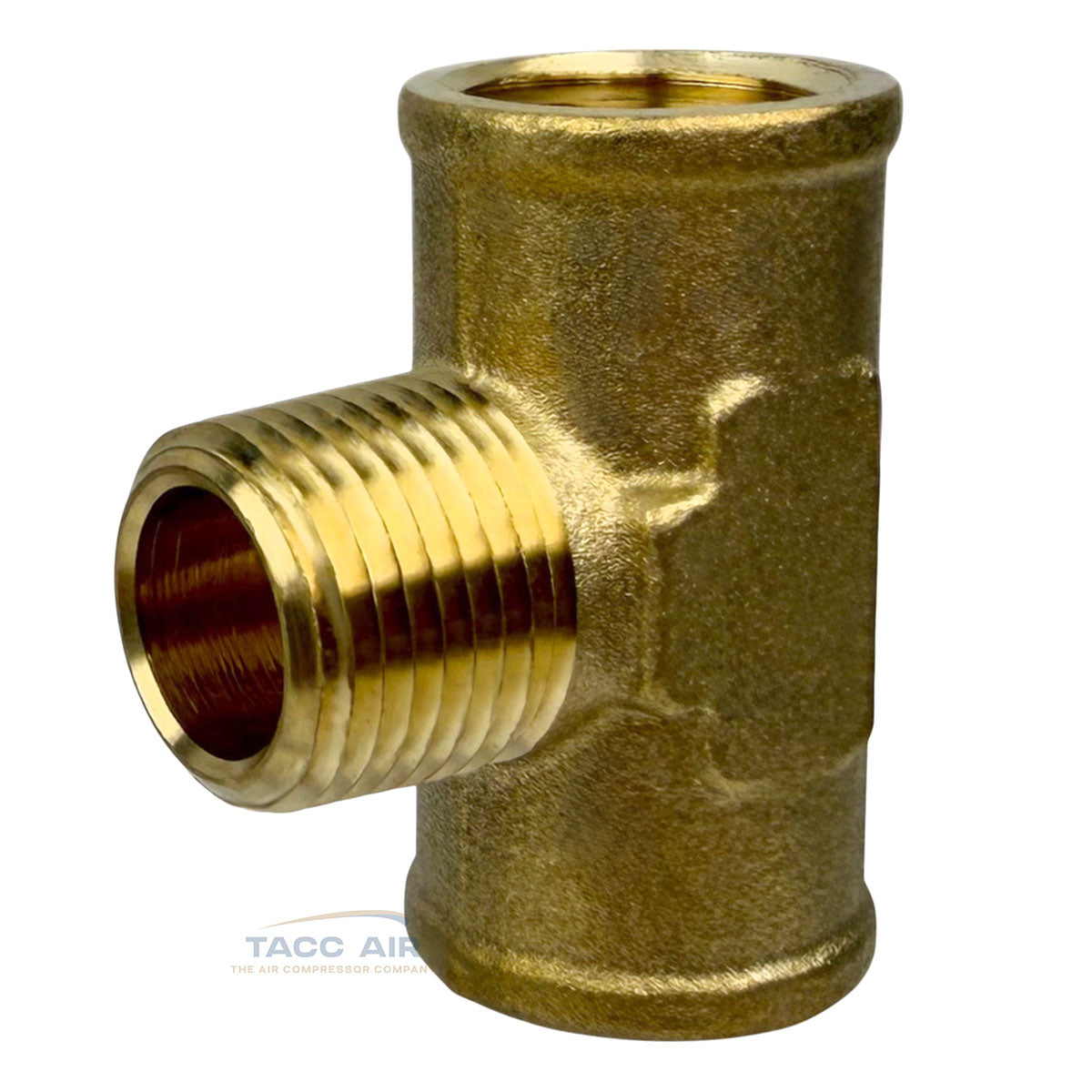

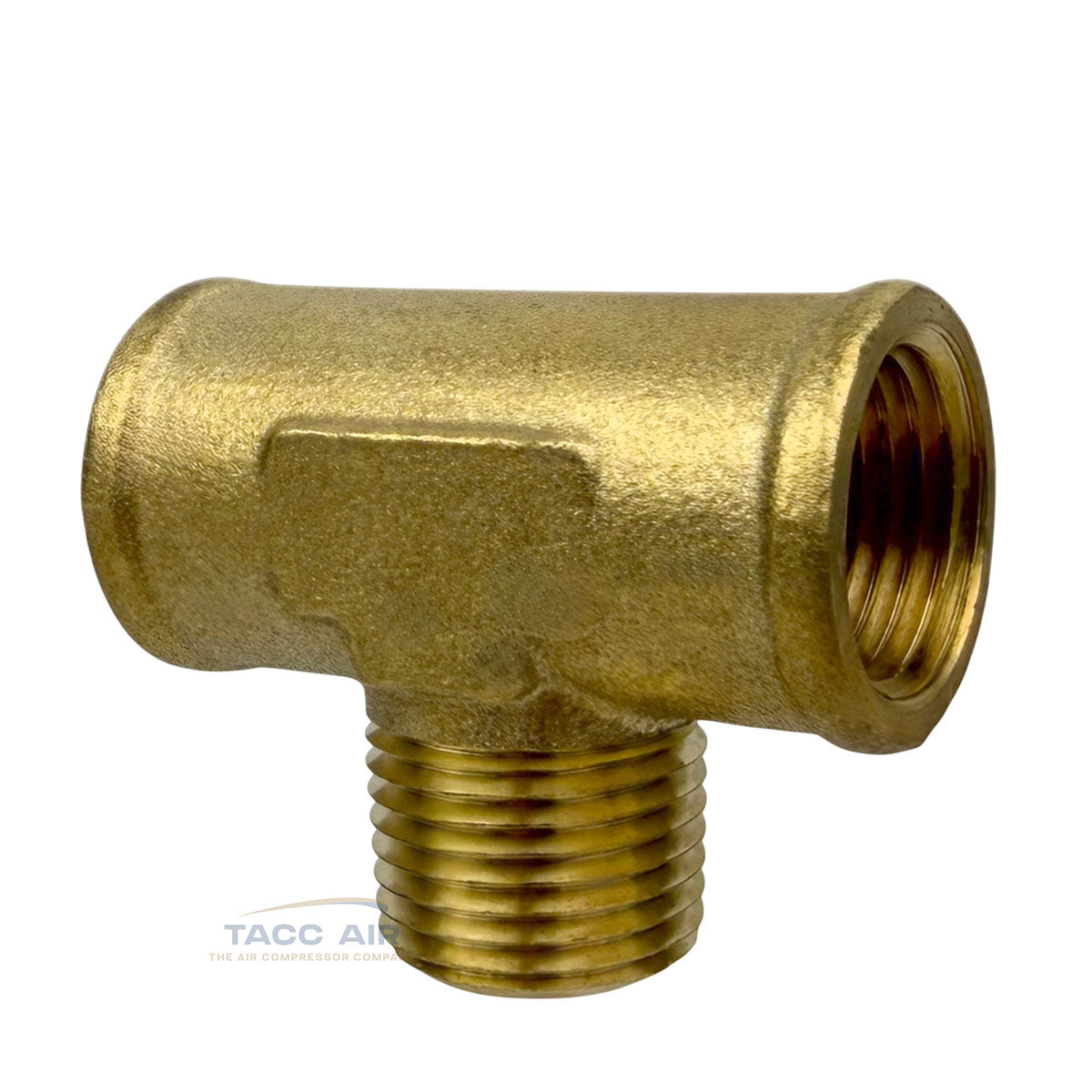

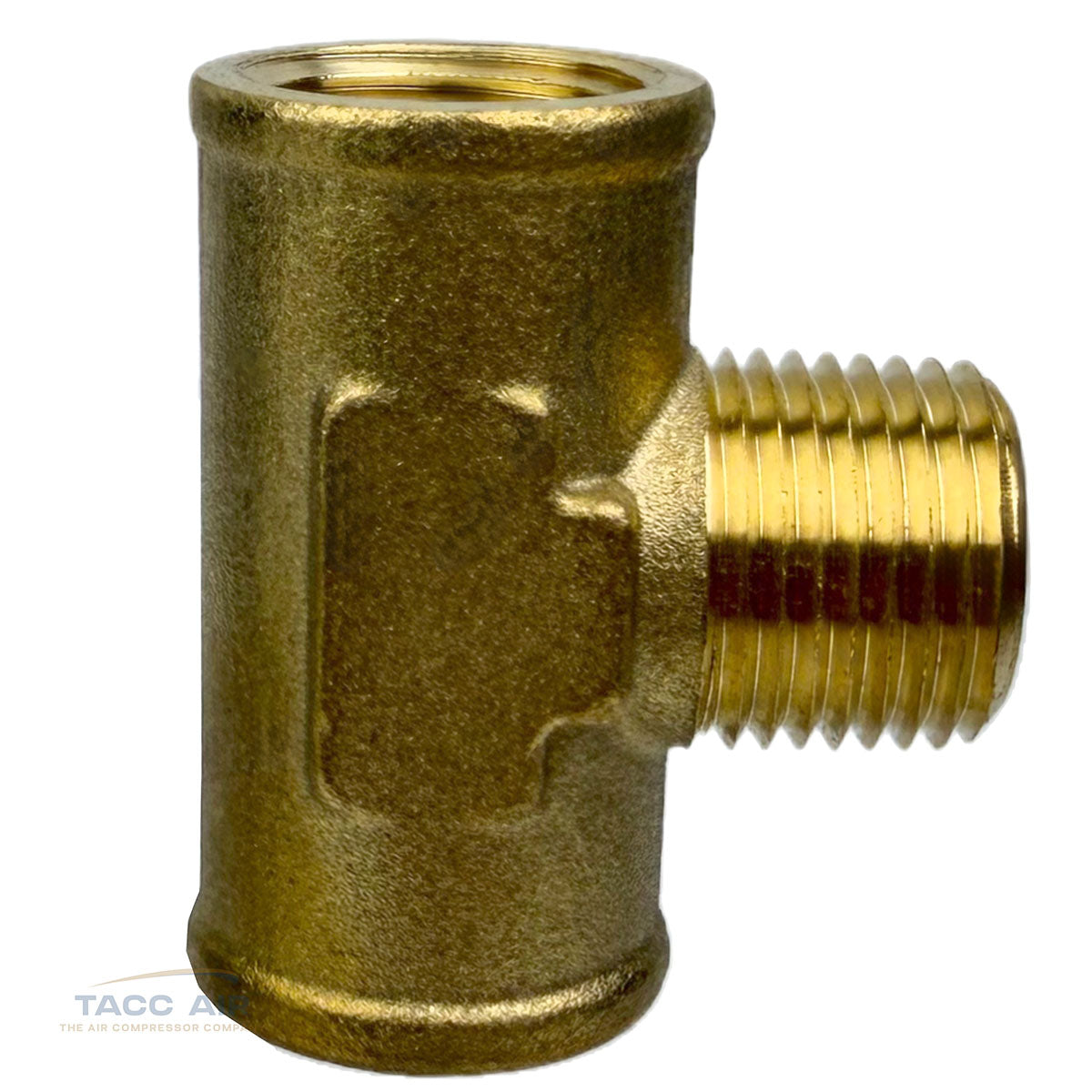

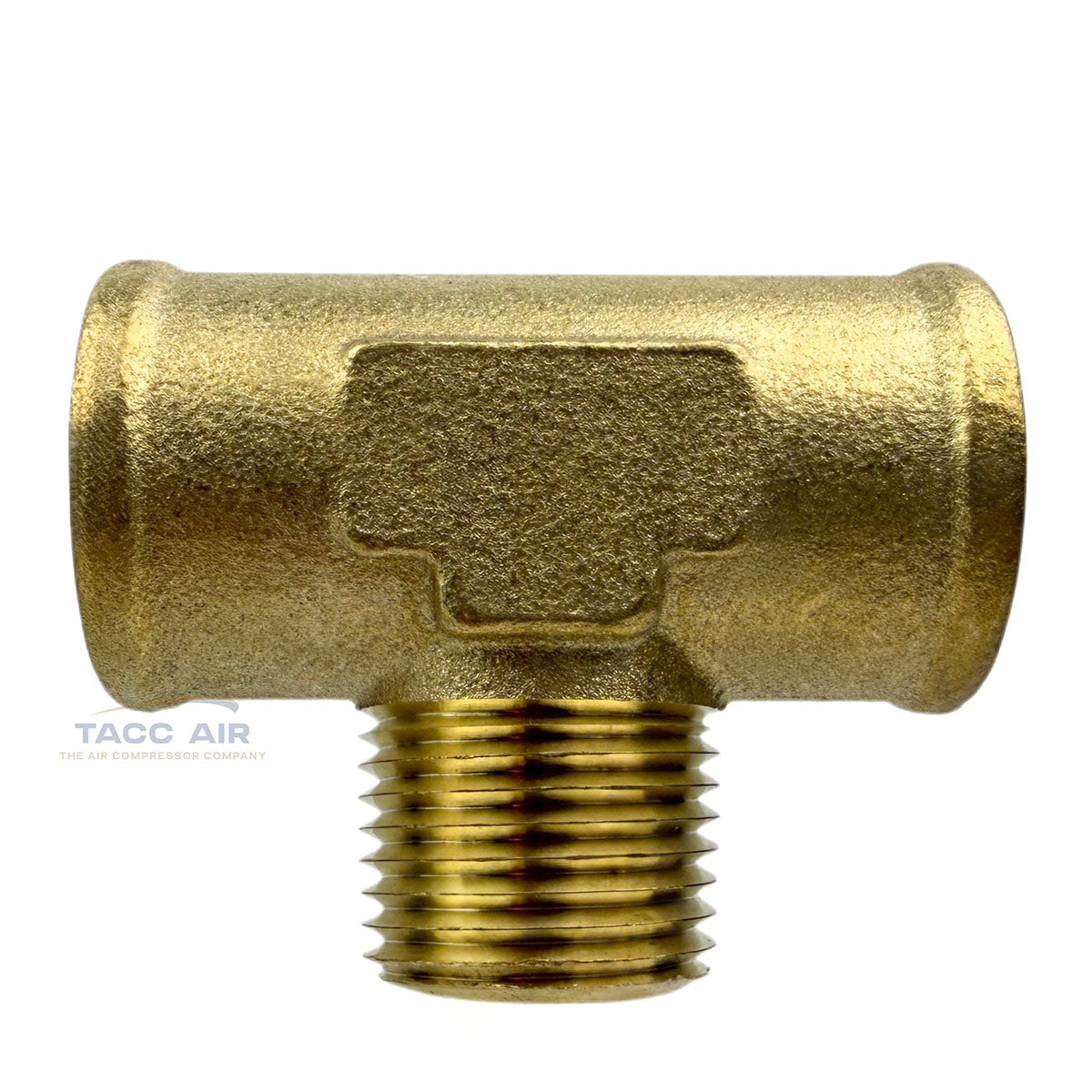

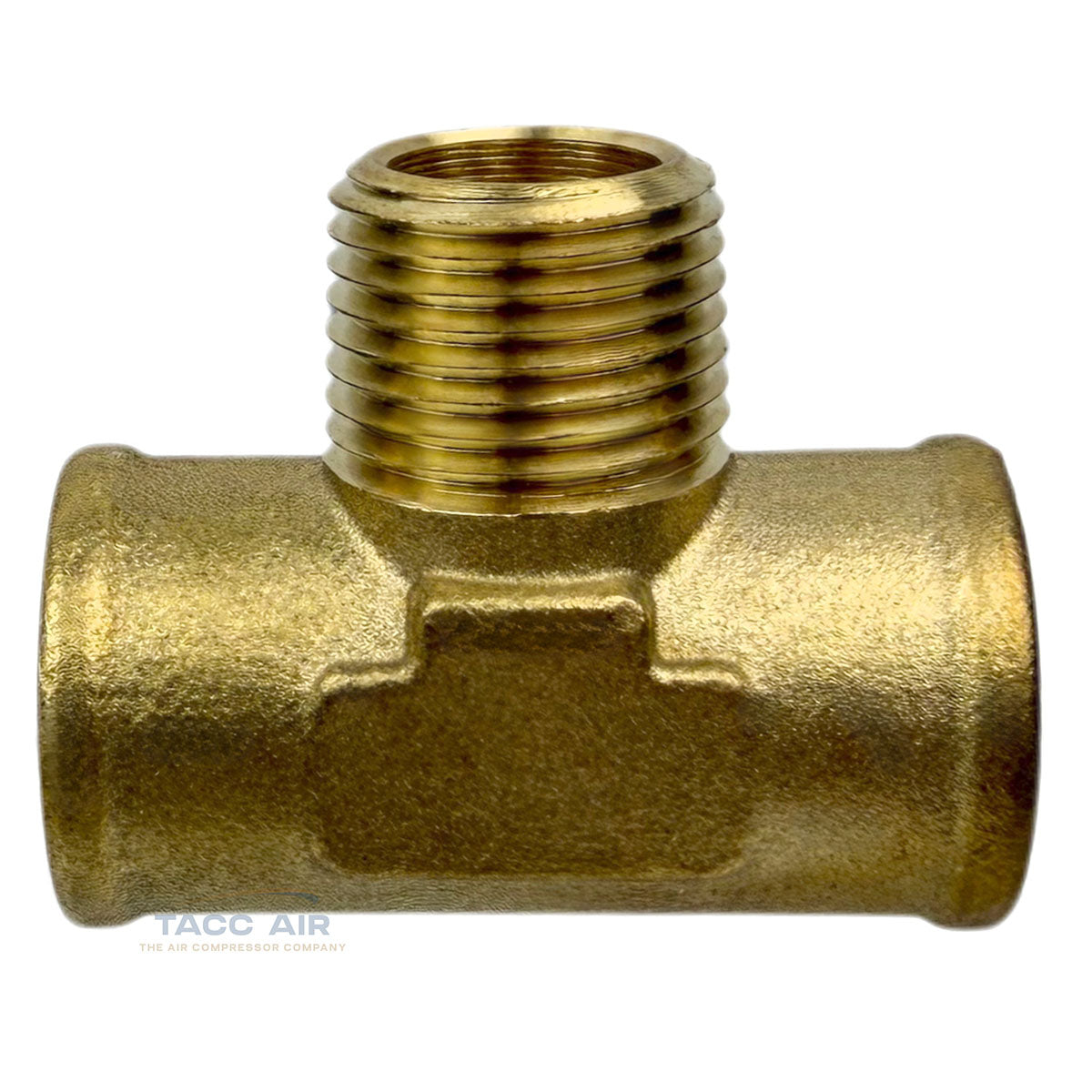

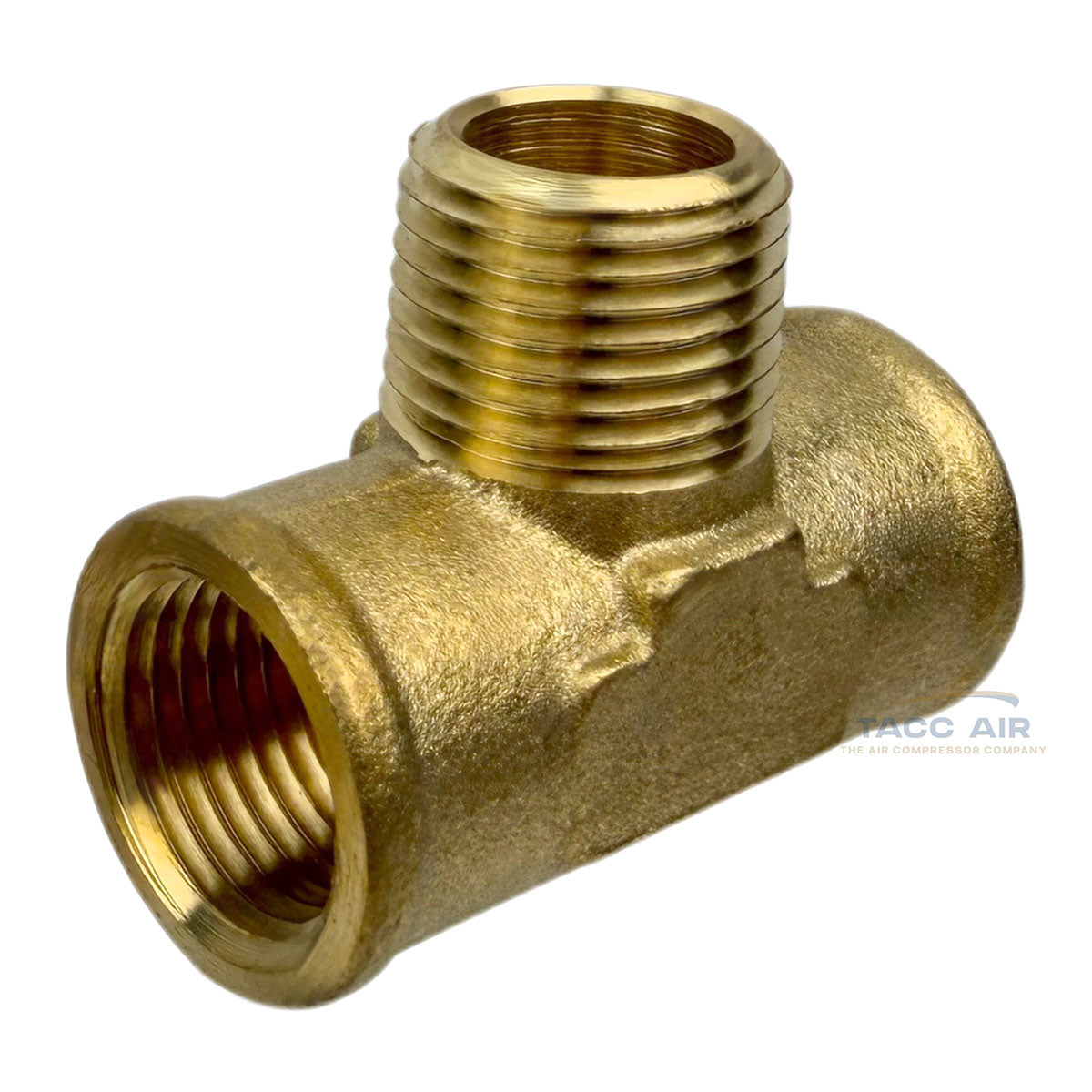

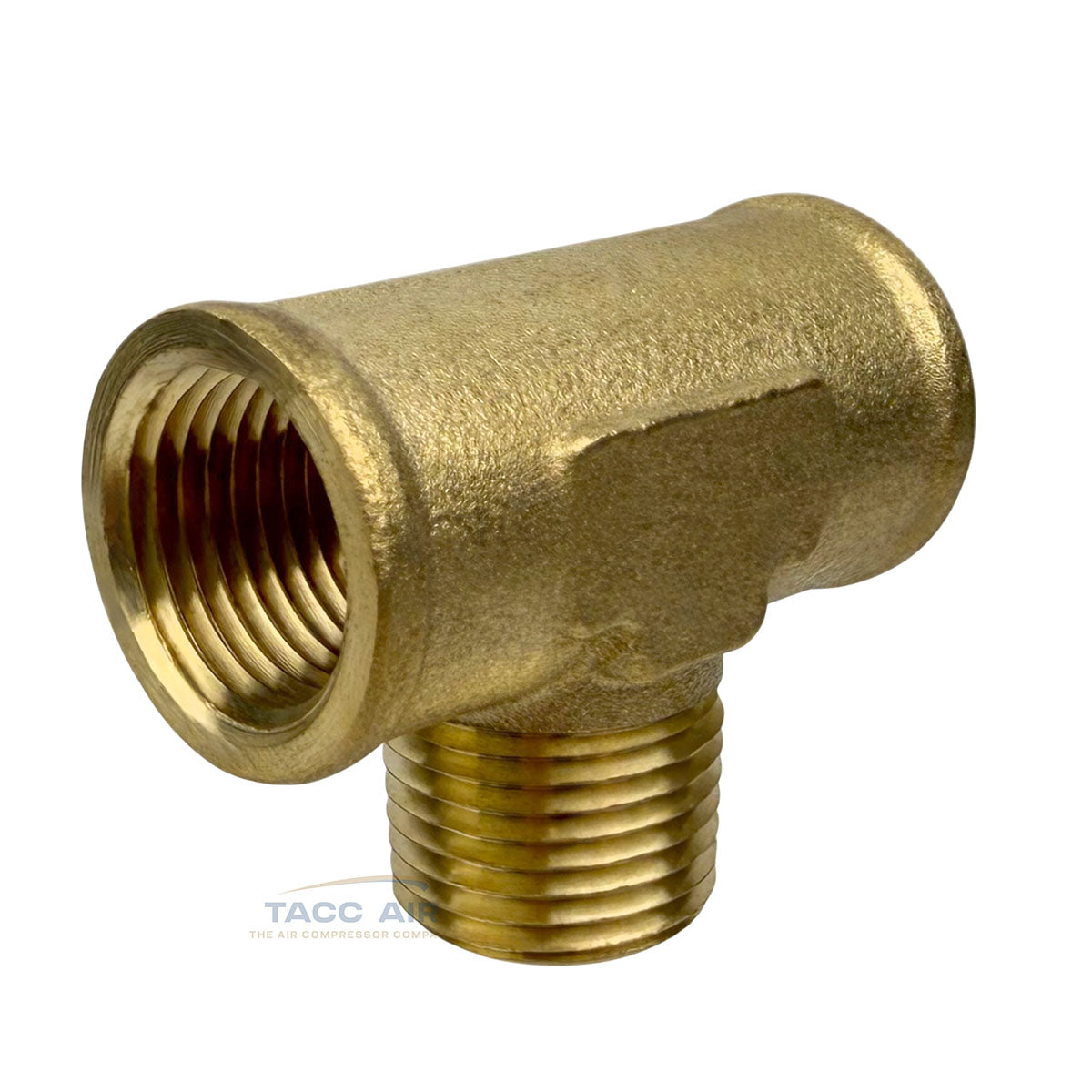

This brass male branch tee features a 1/2" NPT male thread on the branch connection and 1/2" NPT female threads on both ends of the run. The T-shaped design allows for easy branching from an existing threaded connection while providing two female ports for additional components or piping connections.

Constructed from durable, corrosion-resistant yellow brass, this fitting is suitable for use in grease, fuel, LP and natural gas systems, refrigeration, instrumentation, hydraulic applications, and compressed air systems.

Specifications:

• Material: Yellow Brass (corrosion-resistant)
• Thread Type: NPT (National Pipe Thread)
• Connection: 1/2" Female NPT x 1/2" Female NPT (run) x 1/2" Male NPT (branch)
• Function: For T-shaped connections between threaded pipe components
• Pressure Rating: 1,200 PSI
• Temperature Rating: -65°F to 250°F

Thread Size:

• 1/2" NPT → (Note: 1/2" NPT measures approximately 3/4" in outside diameter)

Fitting Size:

• Female-to-Female Run Length: 2"
• Overall Height (Center of Run to End of Male Branch): 1.65"

Applications:

• Air compressor and pneumatic systems
• Grease systems
• Fuel lines
• LP and natural gas systems
• Refrigeration and instrumentation
• Hydraulic systems
• Water and non-corrosive fluid applications
• Any system using media compatible with brass

Note: NPT threads are tapered for a tight seal. Use thread sealant or PTFE tape for leak-free connections. Always verify thread size, pressure requirements, temperature requirements, and media compatibility before installation. Pressure and temperature ratings may vary depending on the application and operating conditions.
