Puma 2414031 3/4" Air Compressor Check valve For 5hp & 7.5HP Cabinets

3/4" NPT x 3/4" Flare Puma Air Compressor Check Valve – #2414031

This is a brand-new replacement check valve for Puma brand air compressors, designed for use on the following 5 HP and 7.5 HP Silent Cabinet units:

PP5T, PP7, PE75, PE50, NCSE75, NCSE50, and NCST50

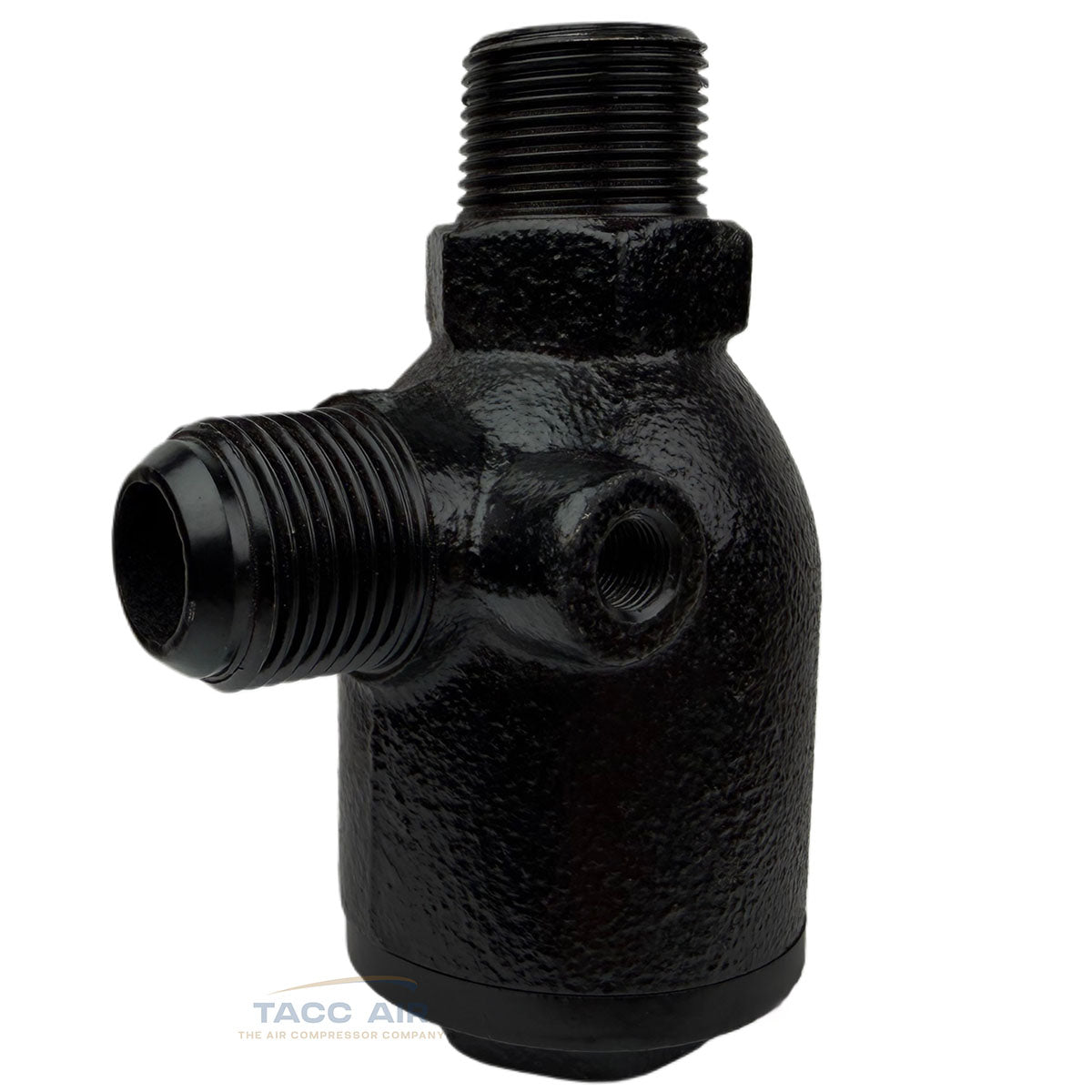

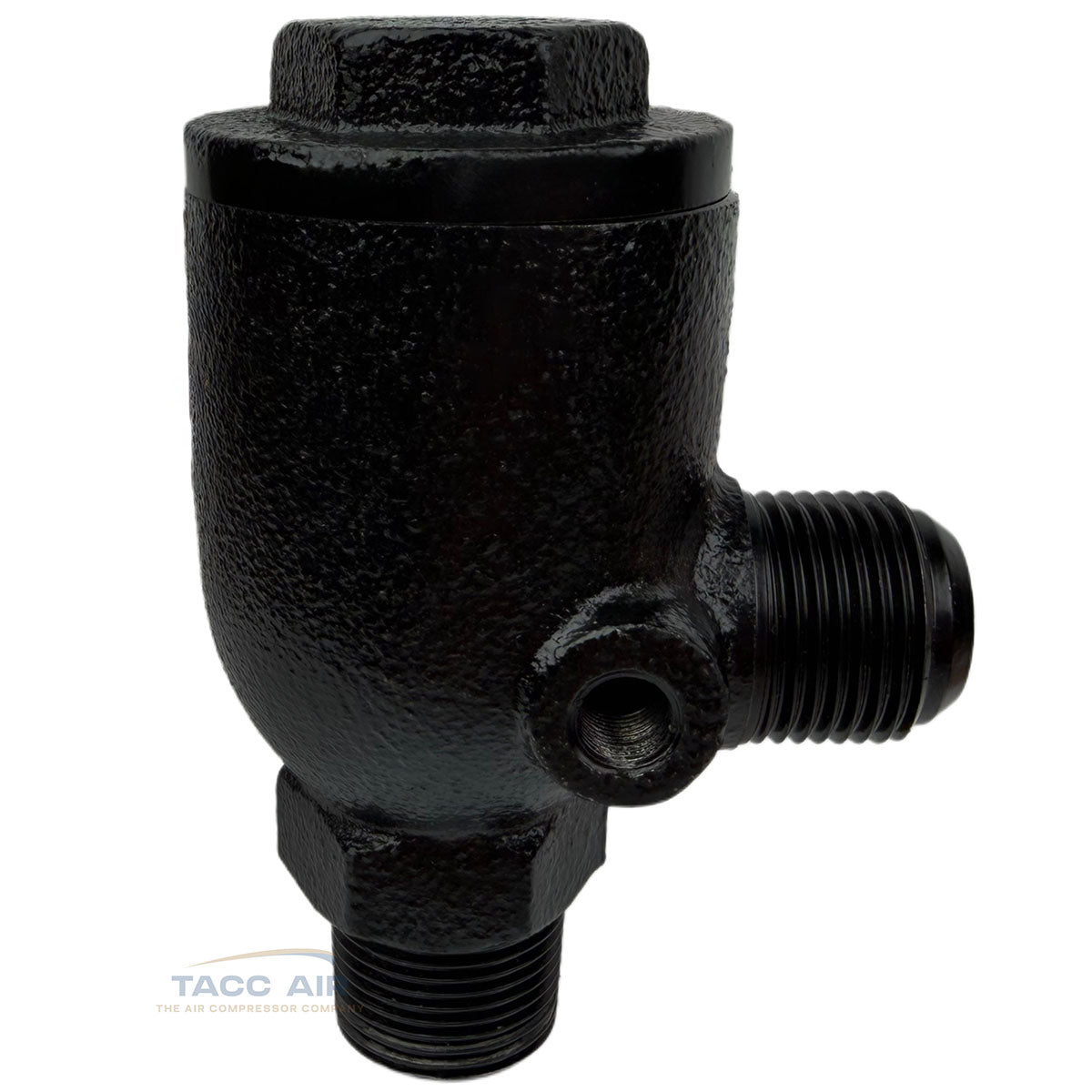

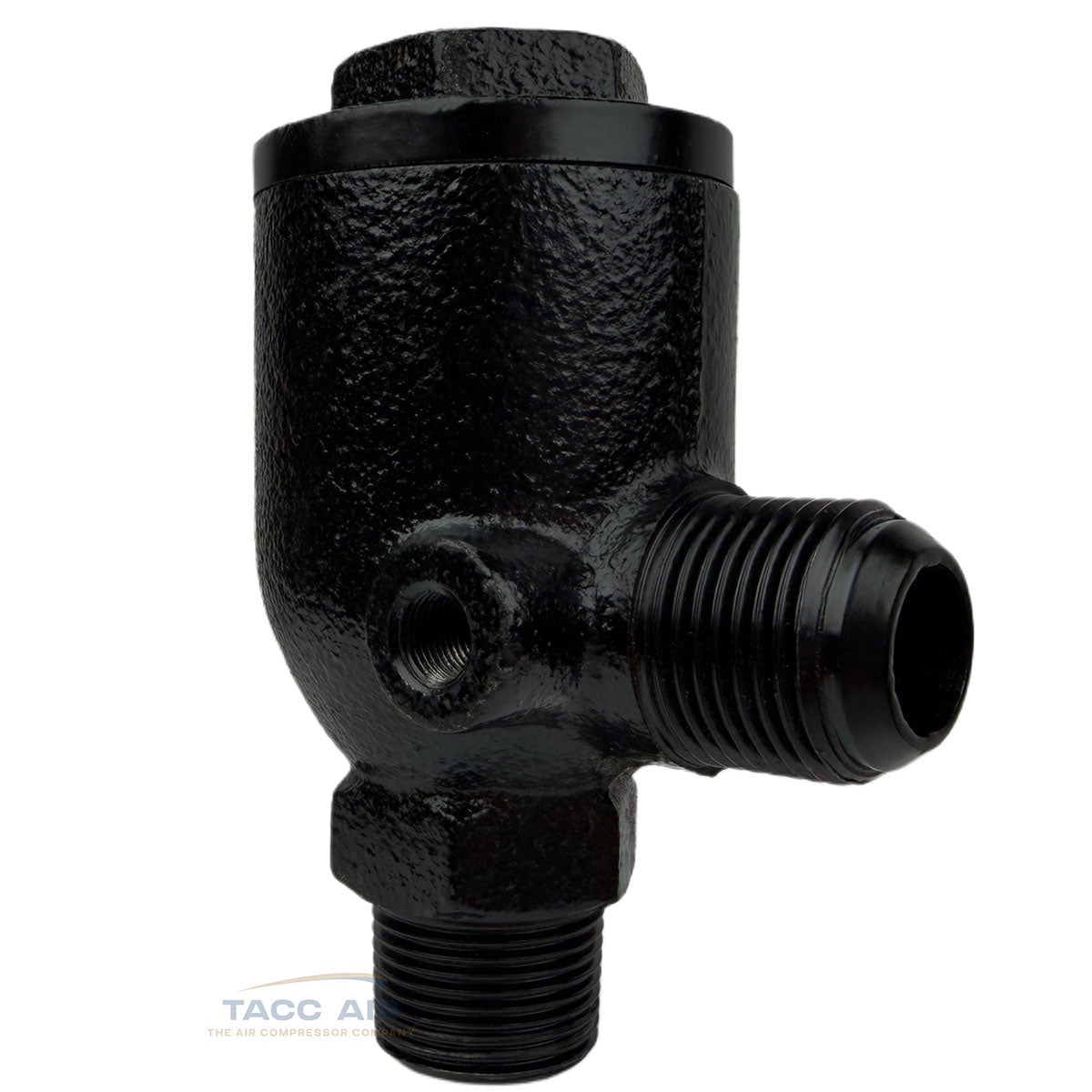

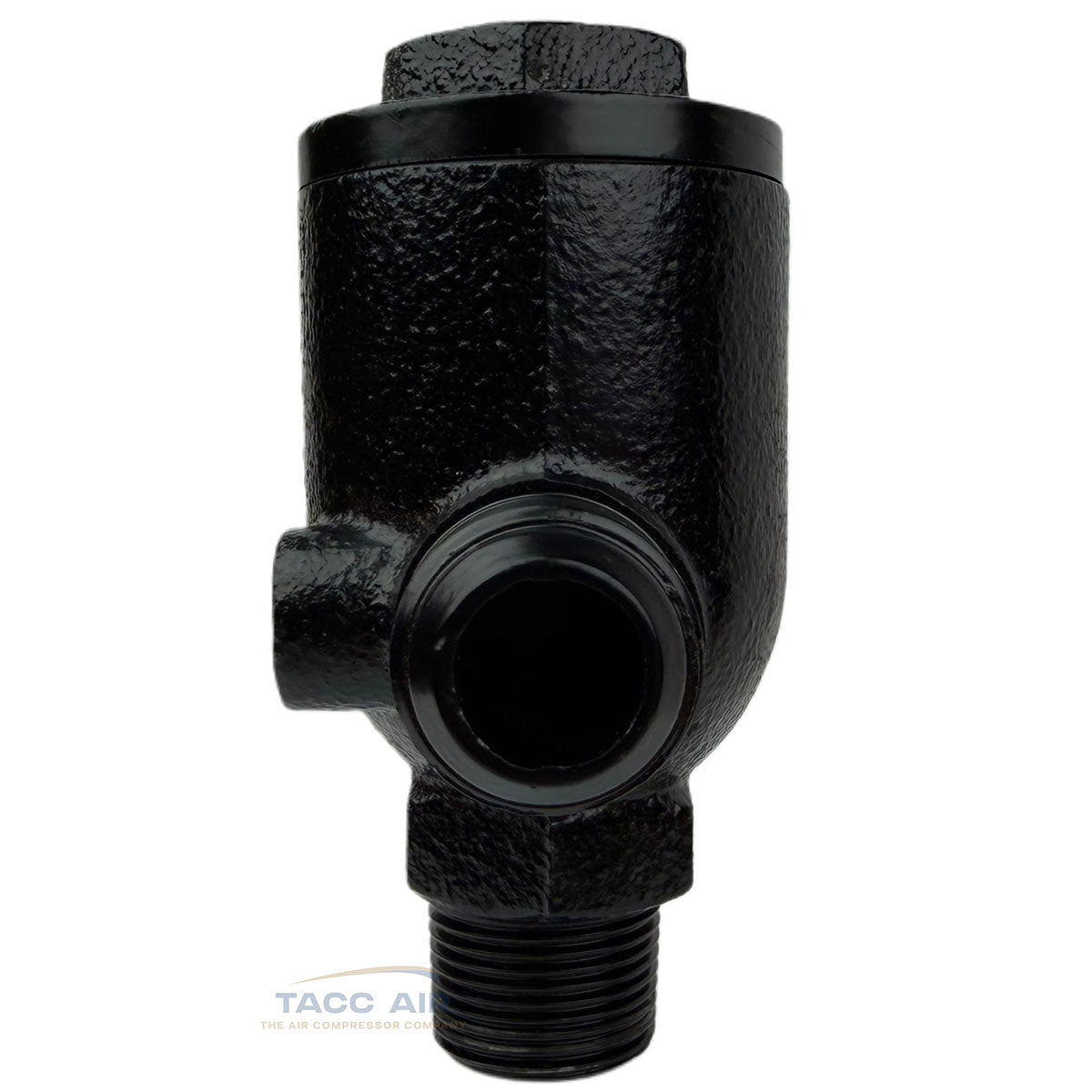

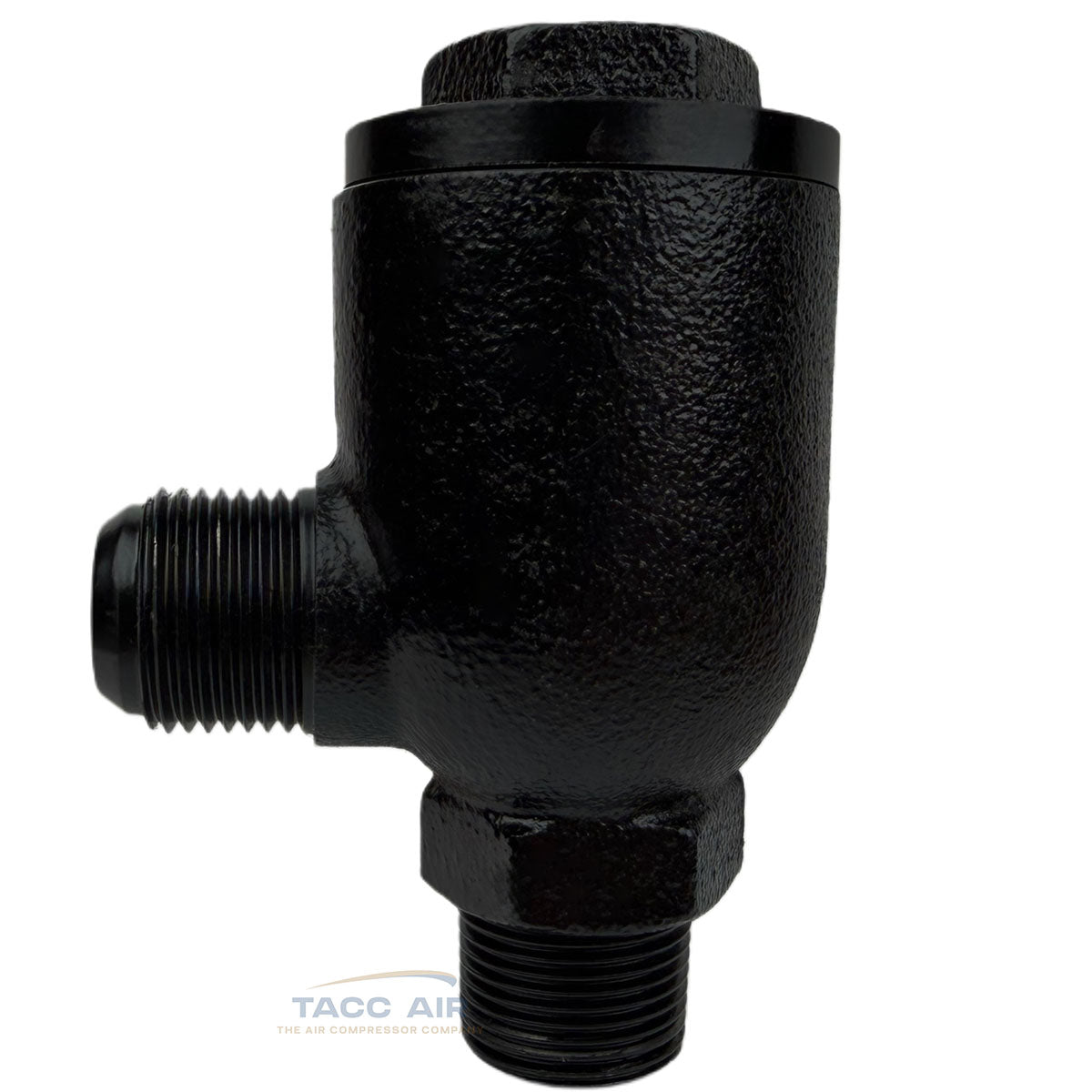

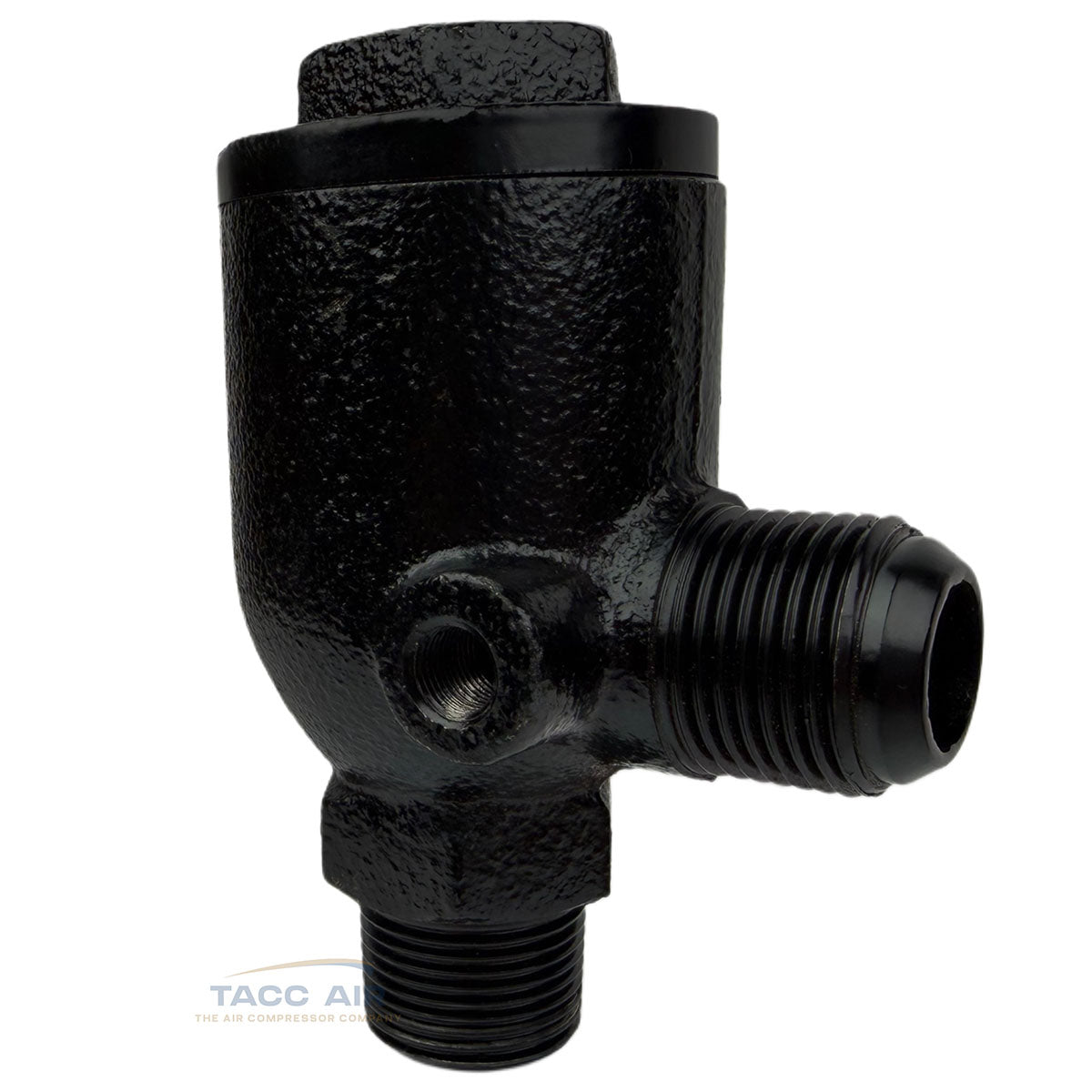

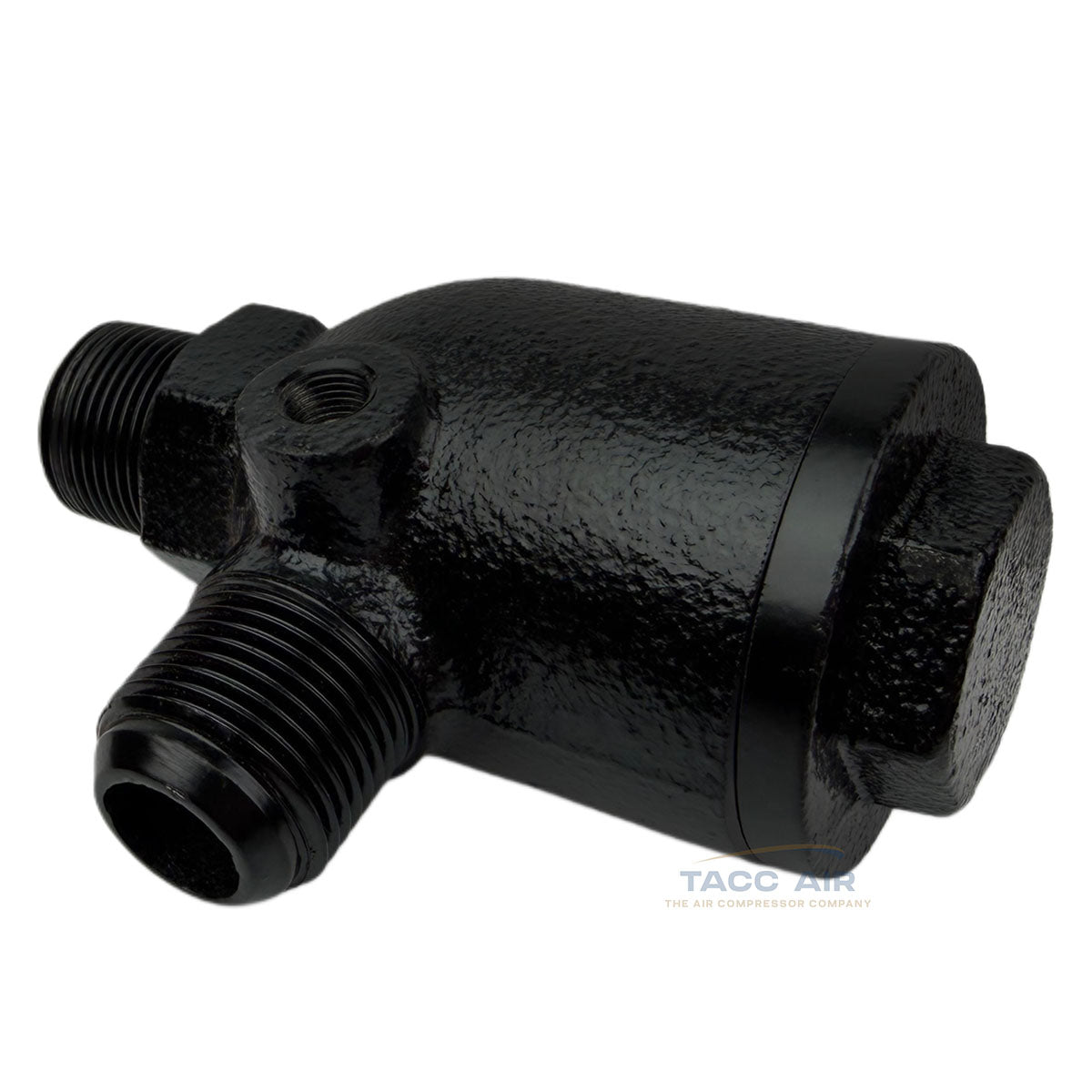

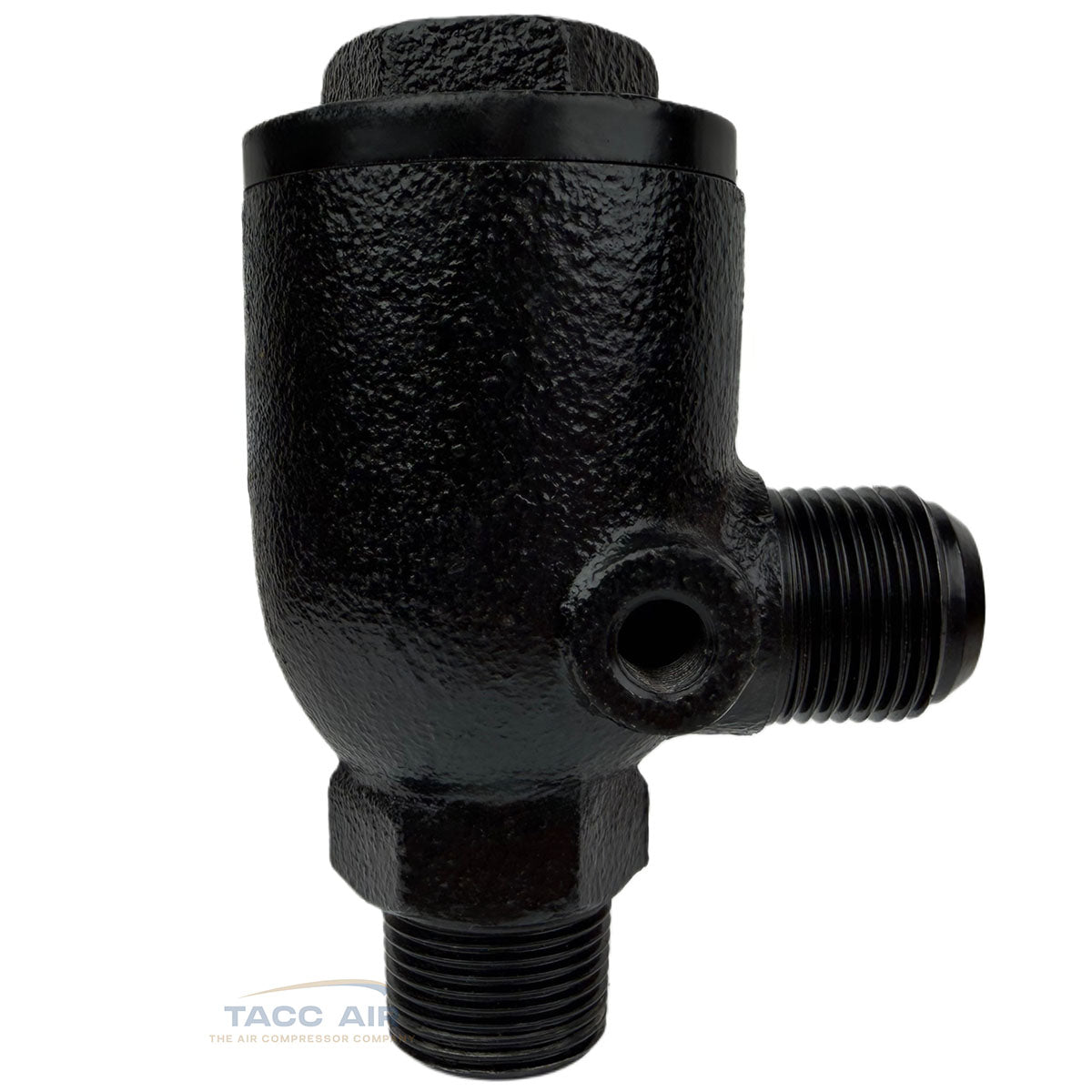

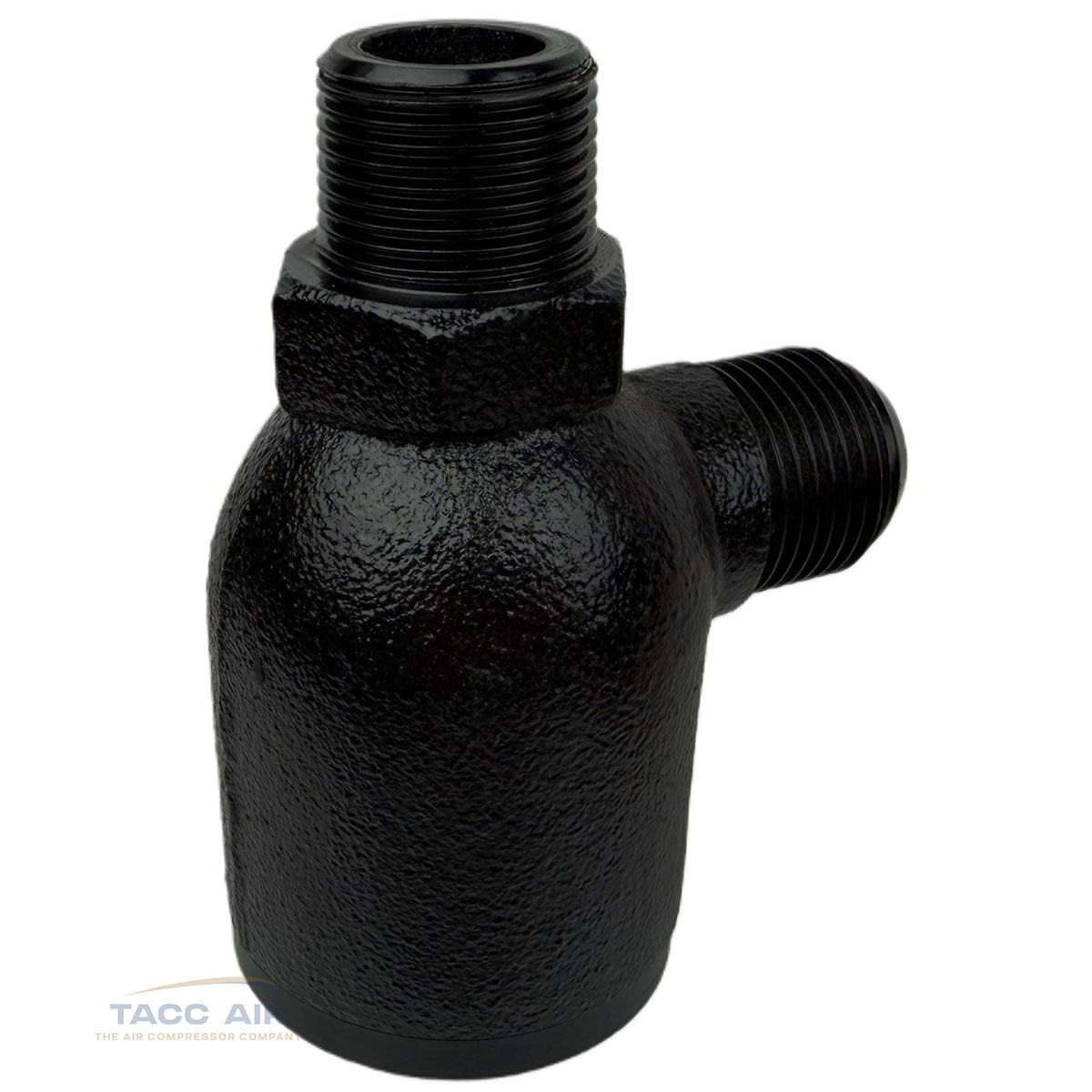

This valve features a 3/4" male NPT outlet on the bottom, a 3/4" male flare (JIC) inlet on the side for incoming air, and a 1/8" female NPT port for the unloader line connection.

This check valve is designed to keep back pressure off the compressor pump head and to allow the unit to properly unload after it shuts off, ensuring a load-free startup. If the unloader valve continues to leak air after the compressor shuts off and only stops once the compressor turns back on, this is the component that typically needs to be replaced.

Specifications:

• Part Number: 2414031
• Outlet: 3/4" Male NPT (measures approximately 1" in diameter for reference)

•  Inlet: 3/4" Male Flare (JIC)

•  Unloader Port: 1/8" Female NPT (measures approximately 3/8" in diameter for reference)

•  Overall Length: 4-3/8"
