3/4" Inlet/Outlet Air Compressor Pilot Unloader Check Valve Combo 145 - 175 PSI

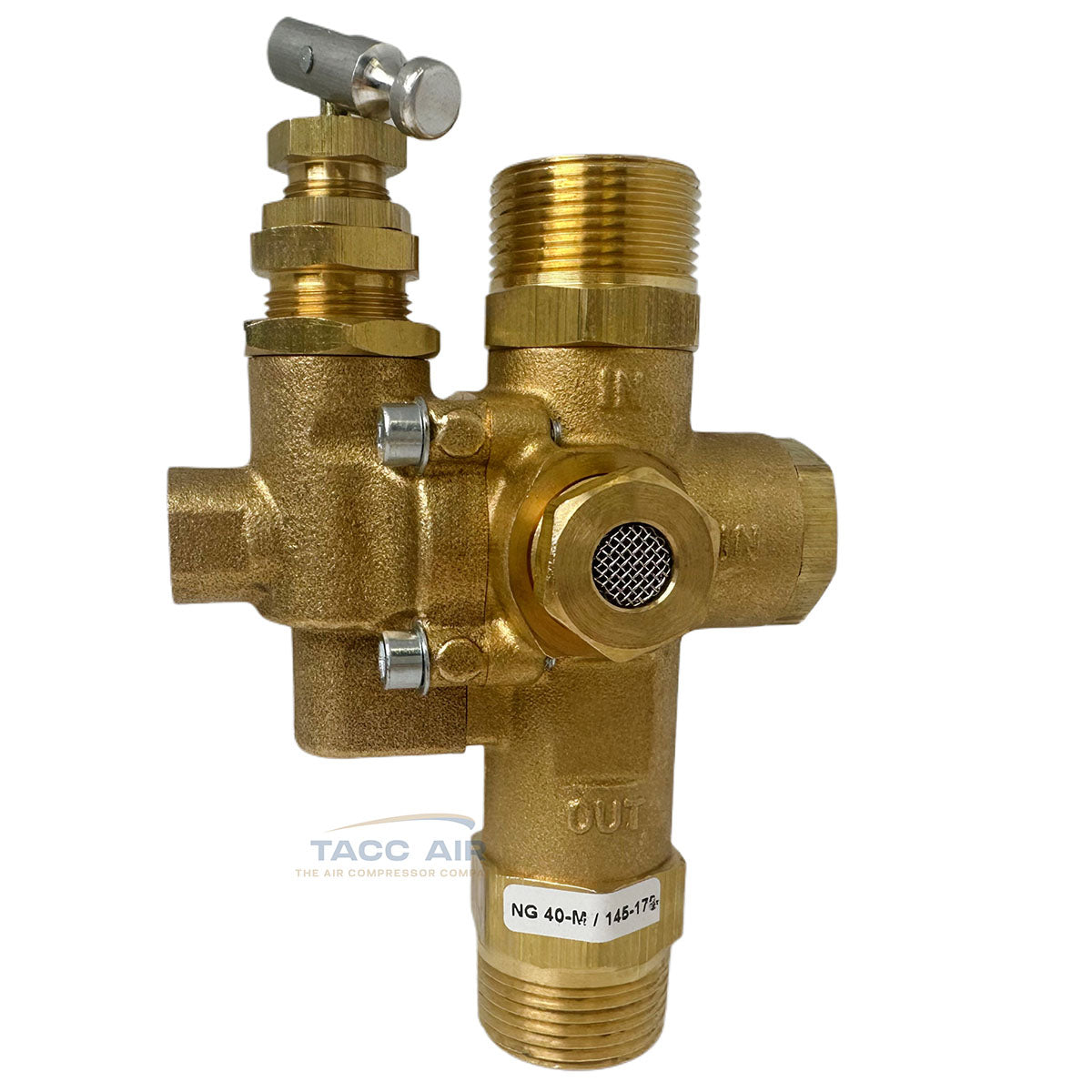

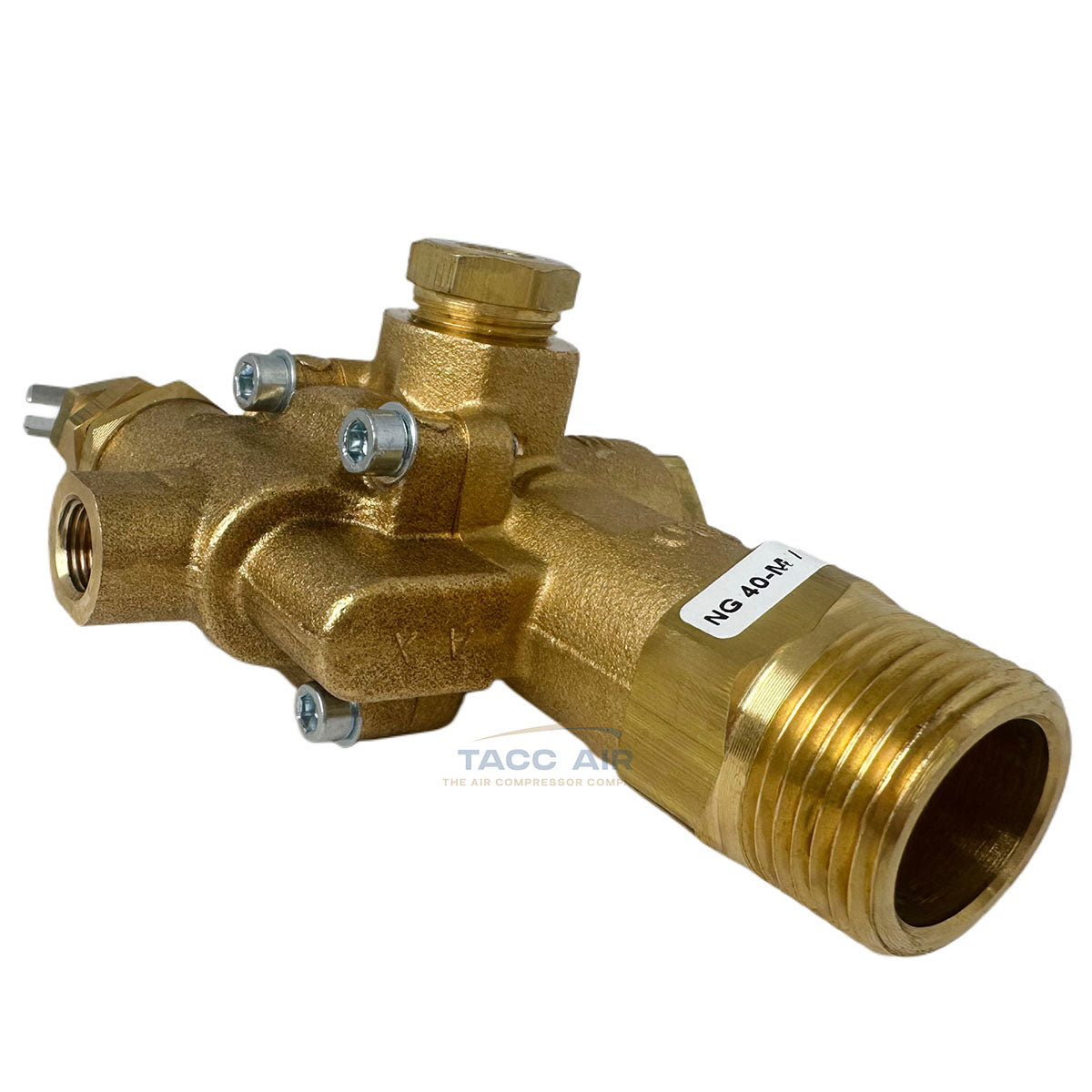

Conrader NG Series 3/4" Compression x 3/4" NPT Air Compressor Pilot/Unloader/Check Valve Combo – 145-175 PSI

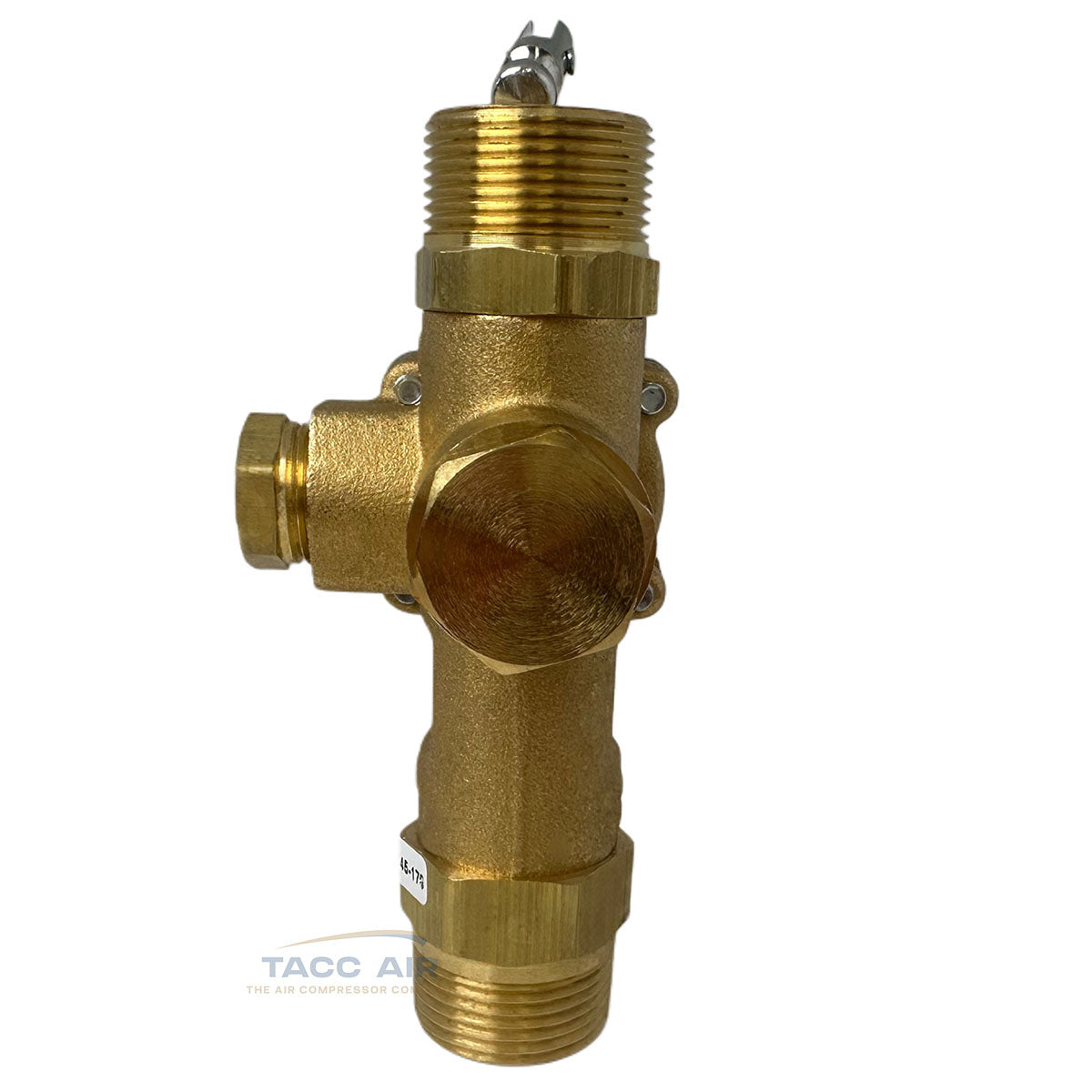

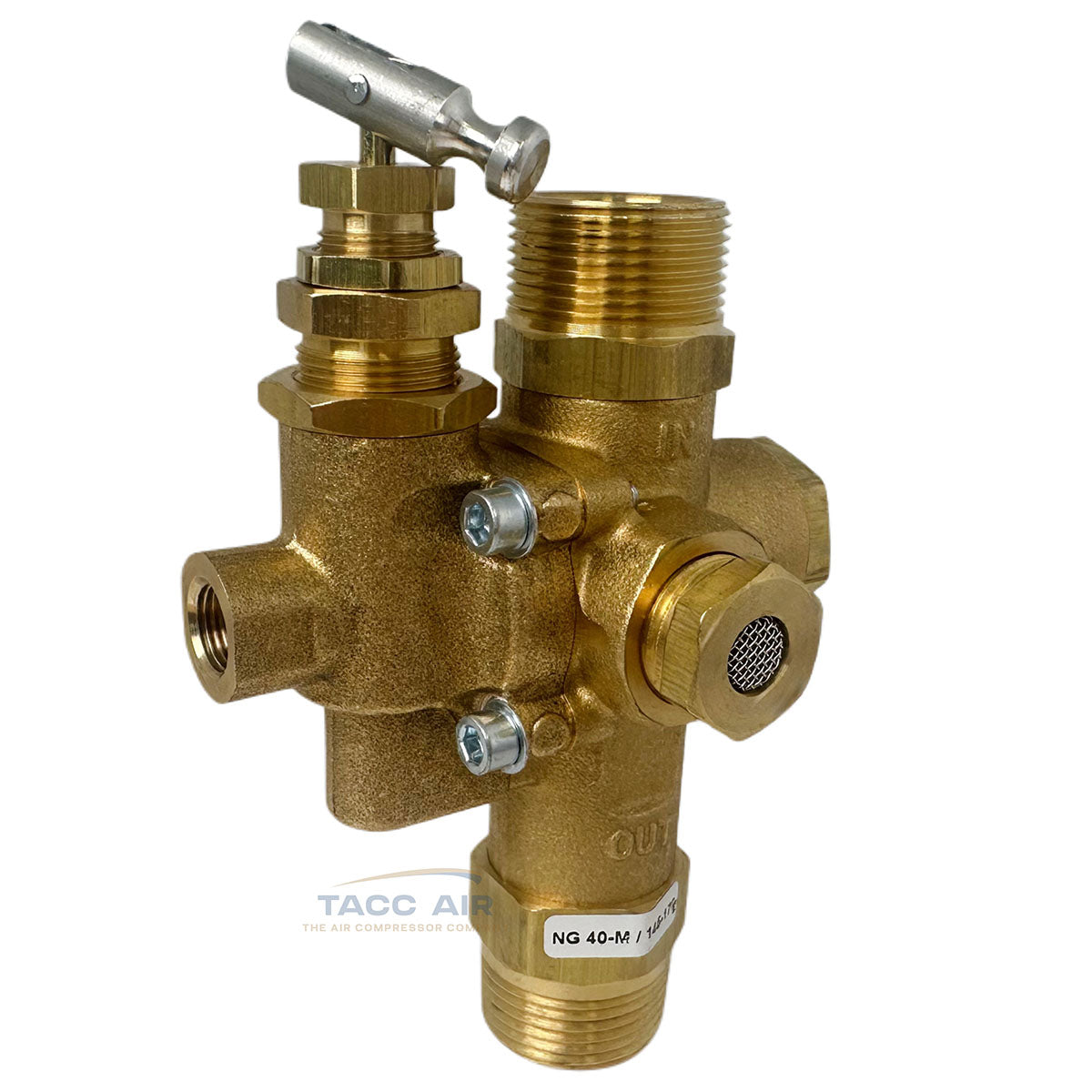

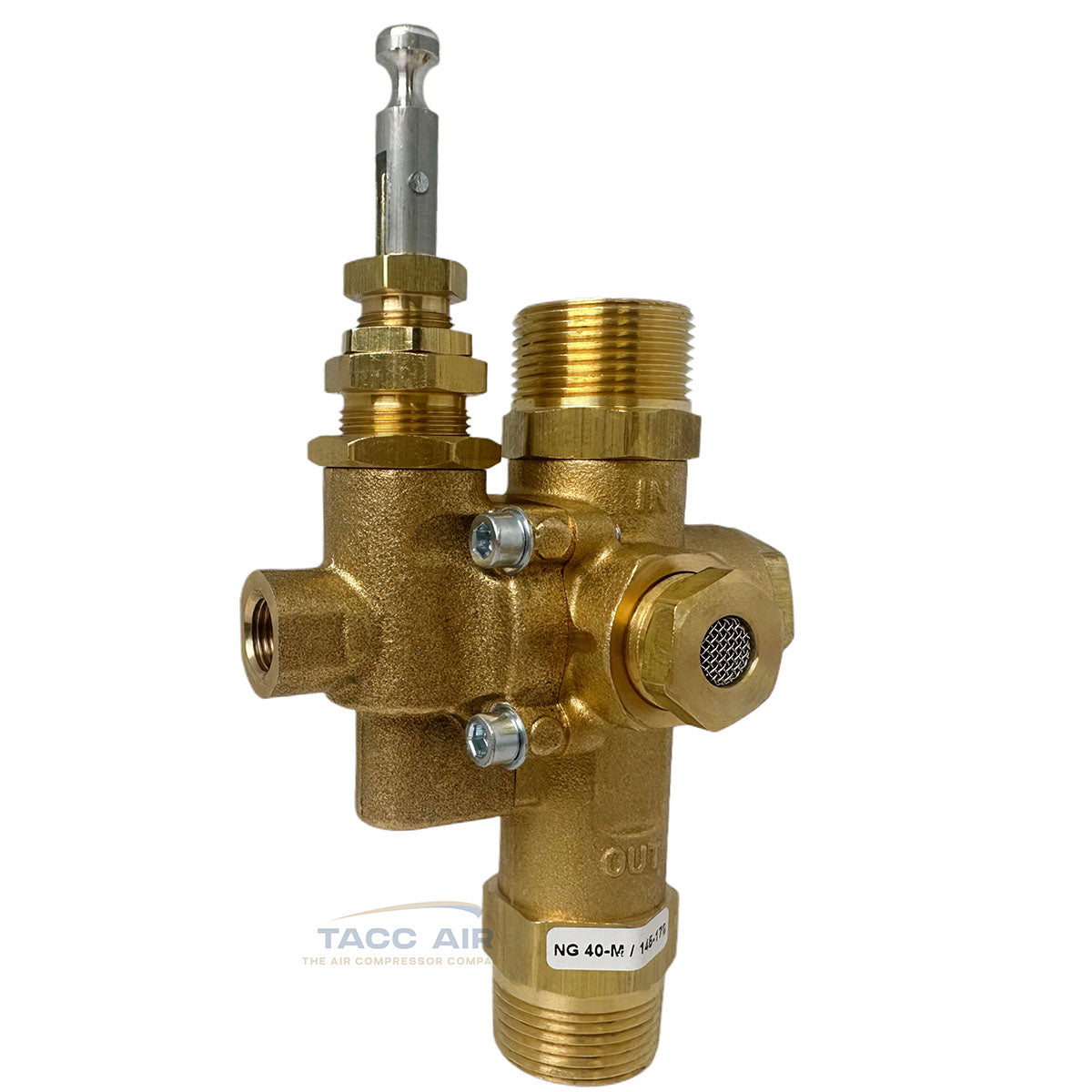

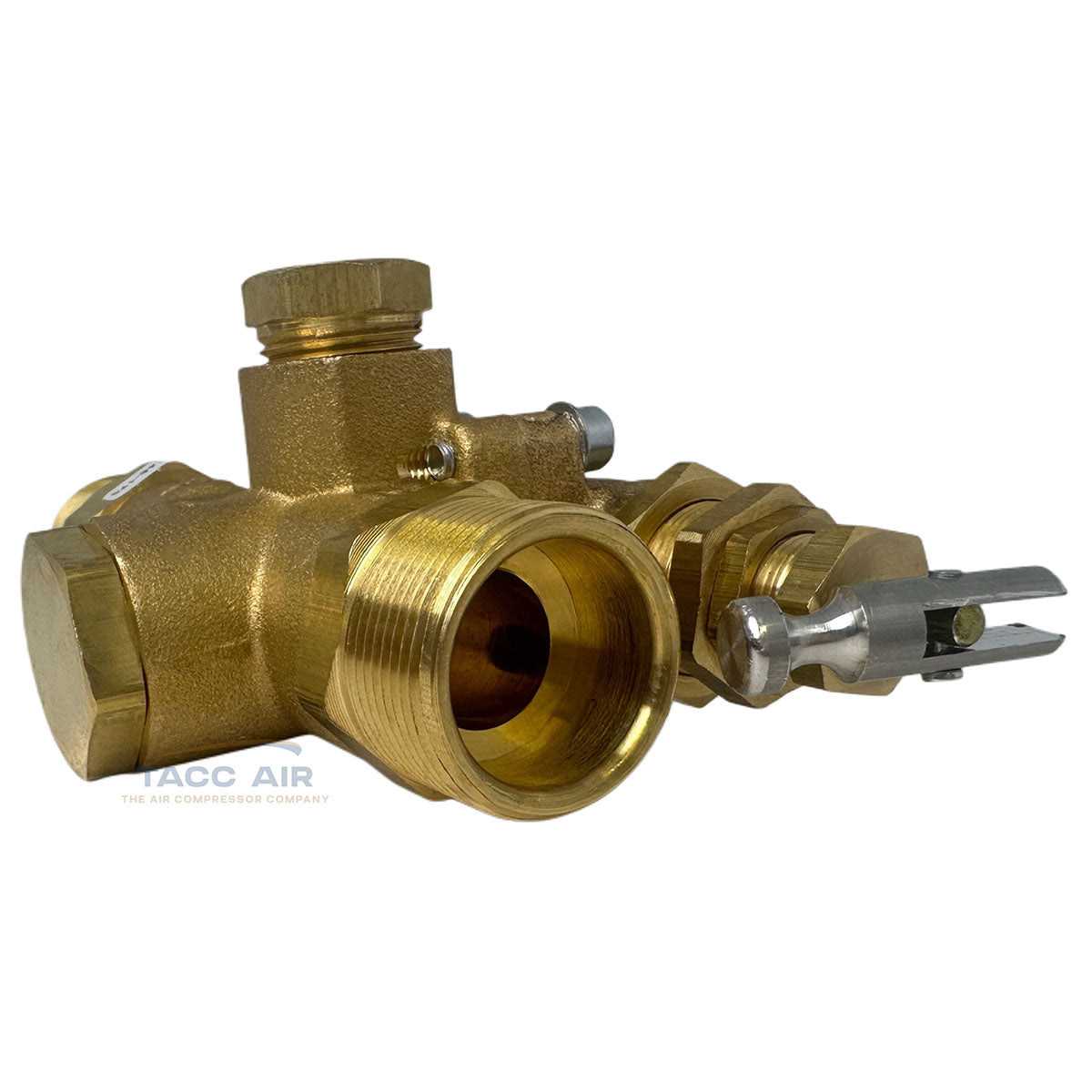

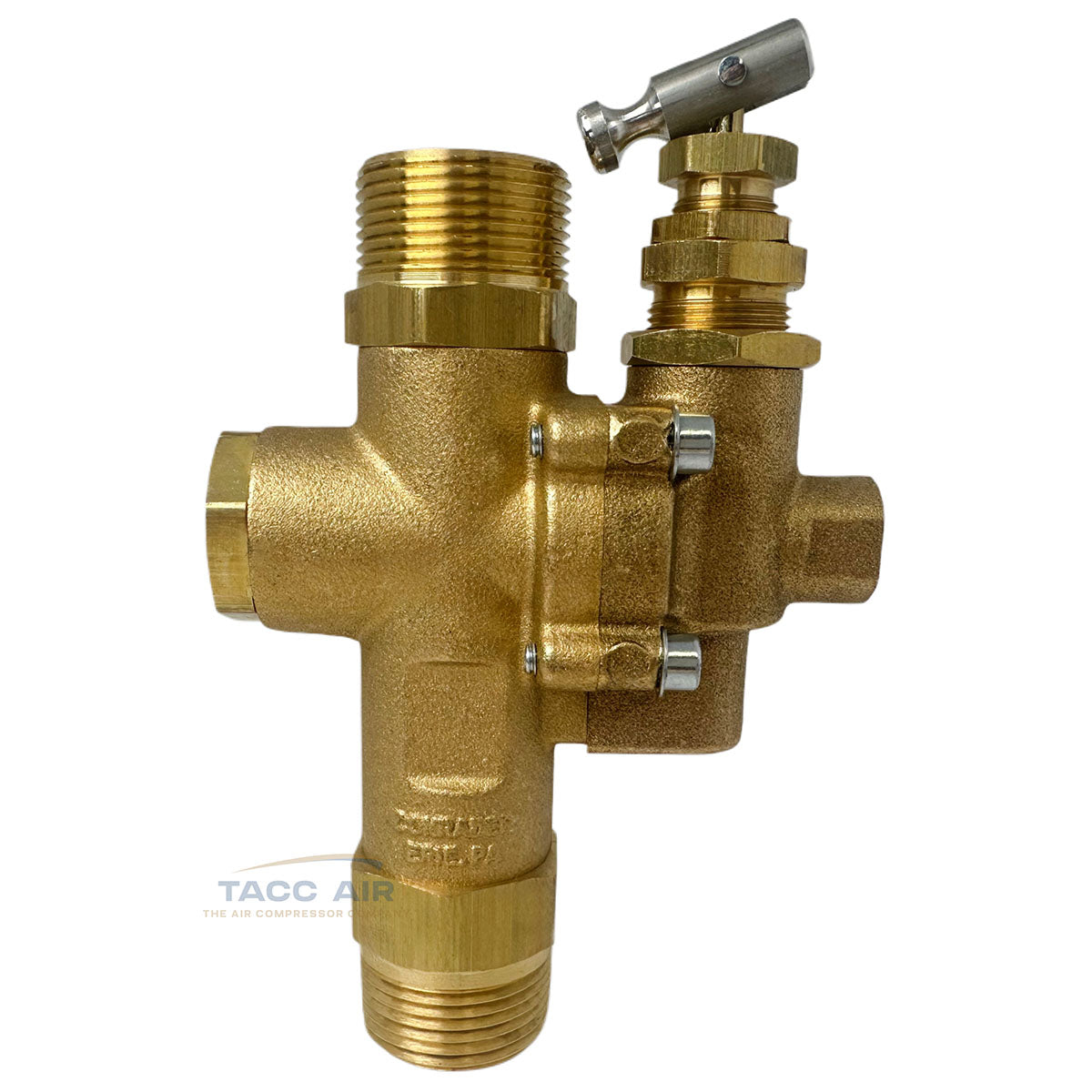

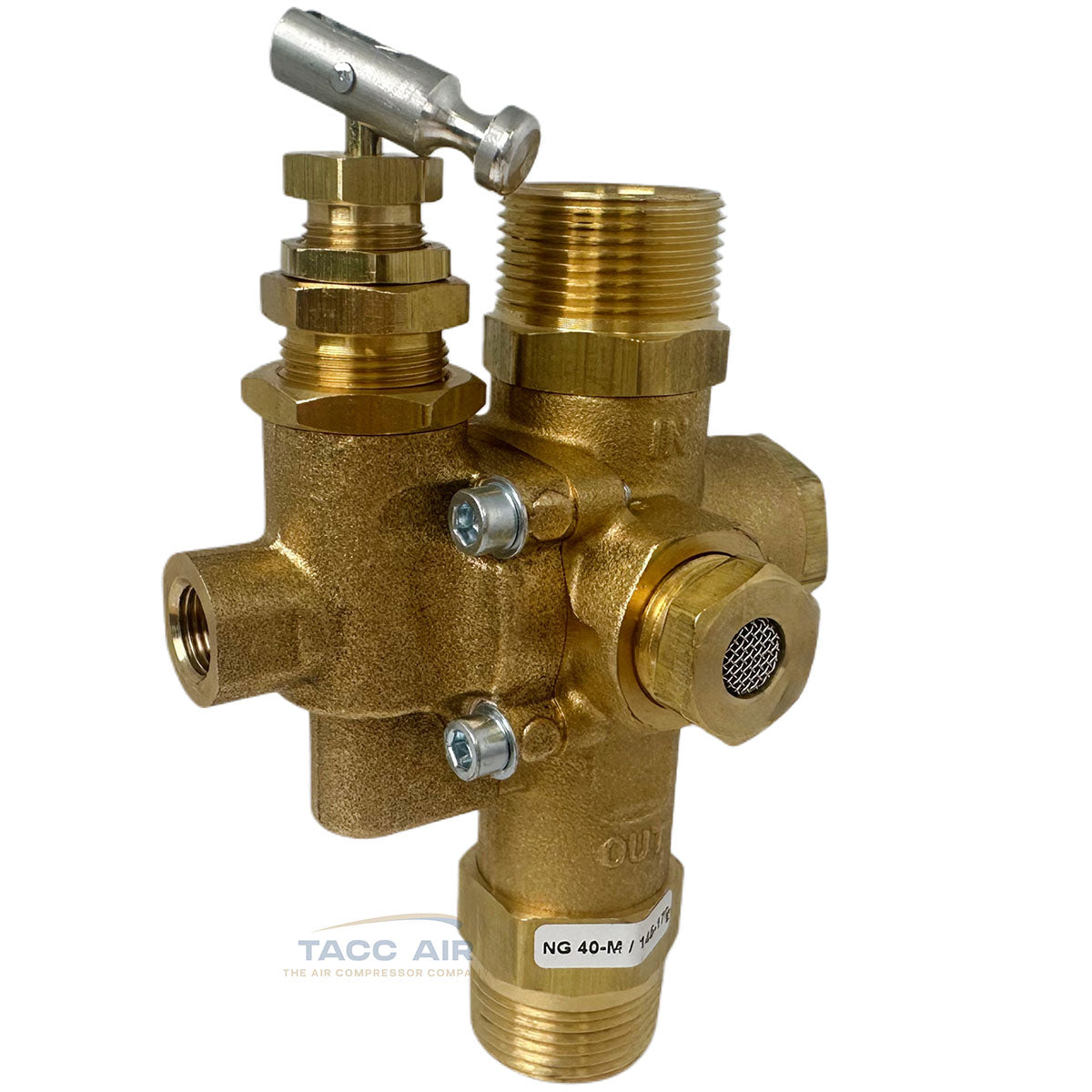

This is a U.S.-made NG series combo valve from Conrader, built for use with gas-powered or electric constant-run air compressors. It combines a pilot valve, discharge valve, and check valve in one.

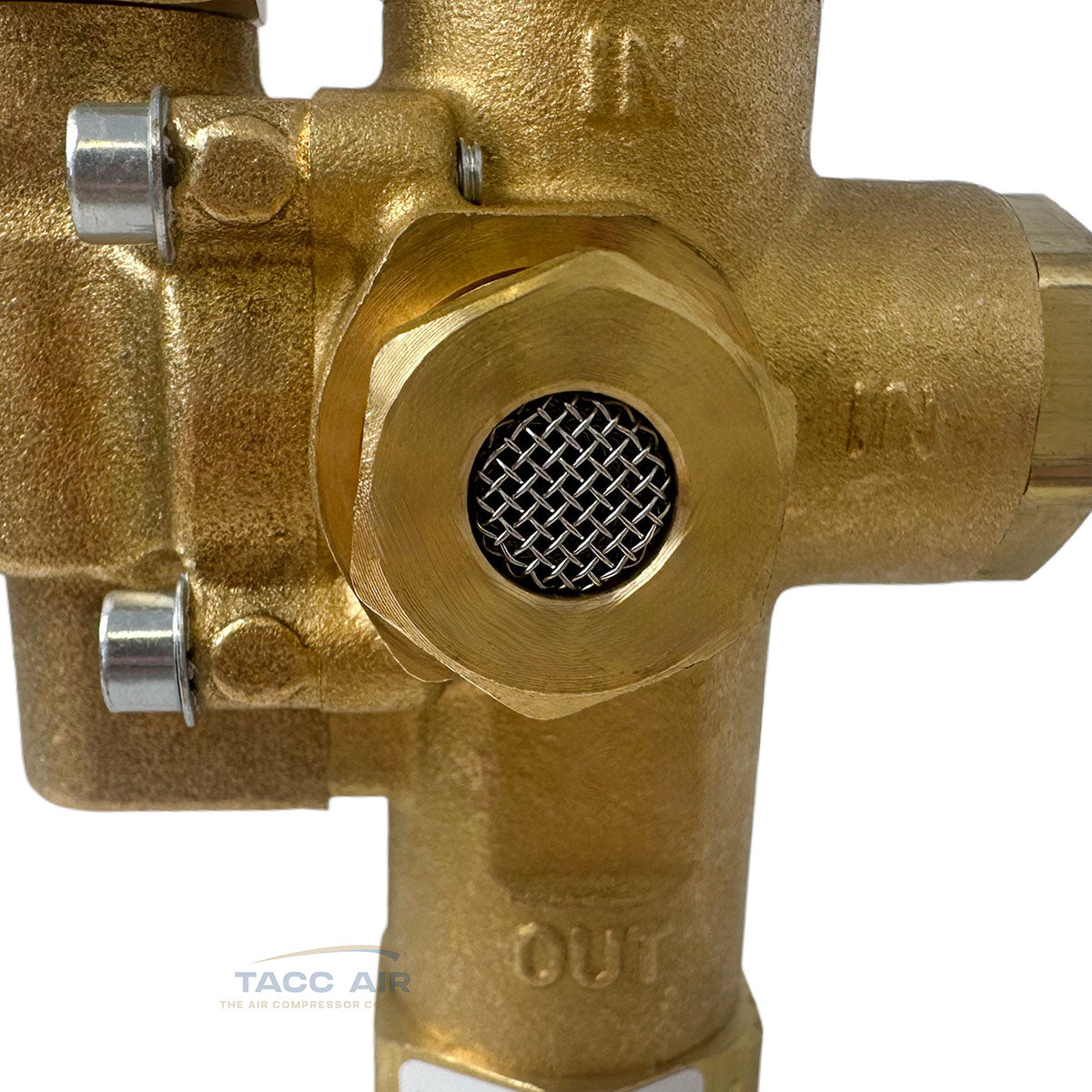

The valve includes a 3/4" compression top inlet for copper tubing, a 3/4" male NPT outlet to the tank connection, and a 1/8" female NPT port on the back for throttle or unloader control. It’s factory set to operate between 145 and 175 PSI and features a built-in manual unloader valve. The unloader exhaust outlet also has a muffler to reduce noise during unload.

Details:

• Solid brass construction

• 3/4" male NPT outlet / tank connection ( Note 3/4" NPT measures approximately 1" in diameter)

• 3/4" compression air inlet for copper tubing (3/4" compression is measure by the outside diameter of the copper tubing going into the valve) Make sure your tubing measures 3/4" outside diameter.

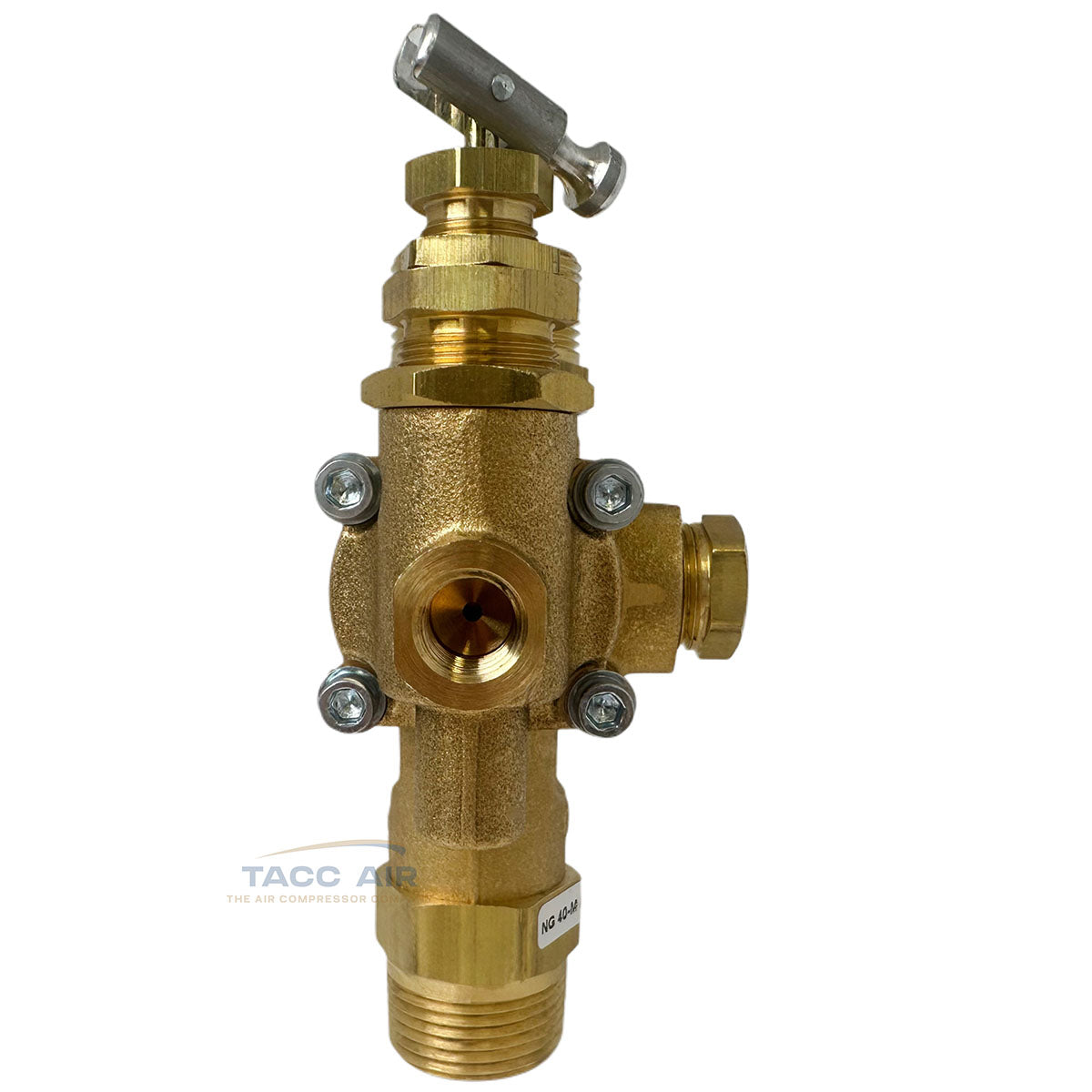

• 1/8" NPT port for throttle or unloader control (1/8" NPT measures approximately 3/8" in diameter)

• Set for 145 PSI on / 175 PSI off (adjustable ~30-40 PSI range) (Contact us for adjustment instructions)

• Manual unloader valve option

• Rated for up to 30 CFM

• Made in the USA
