3/4" Compressed Air In Line Filter & Desiccant Dryer Combination 2 Stage System

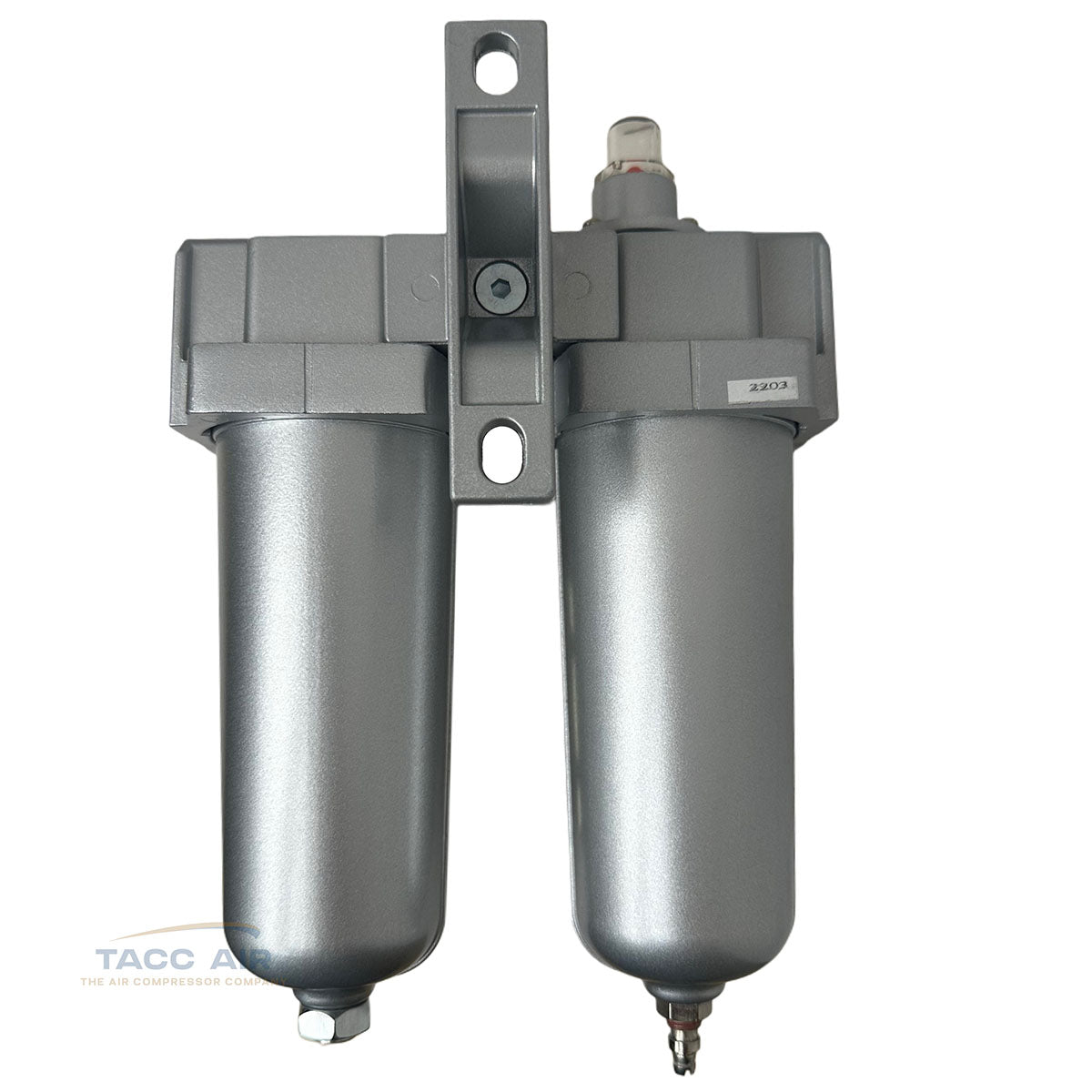

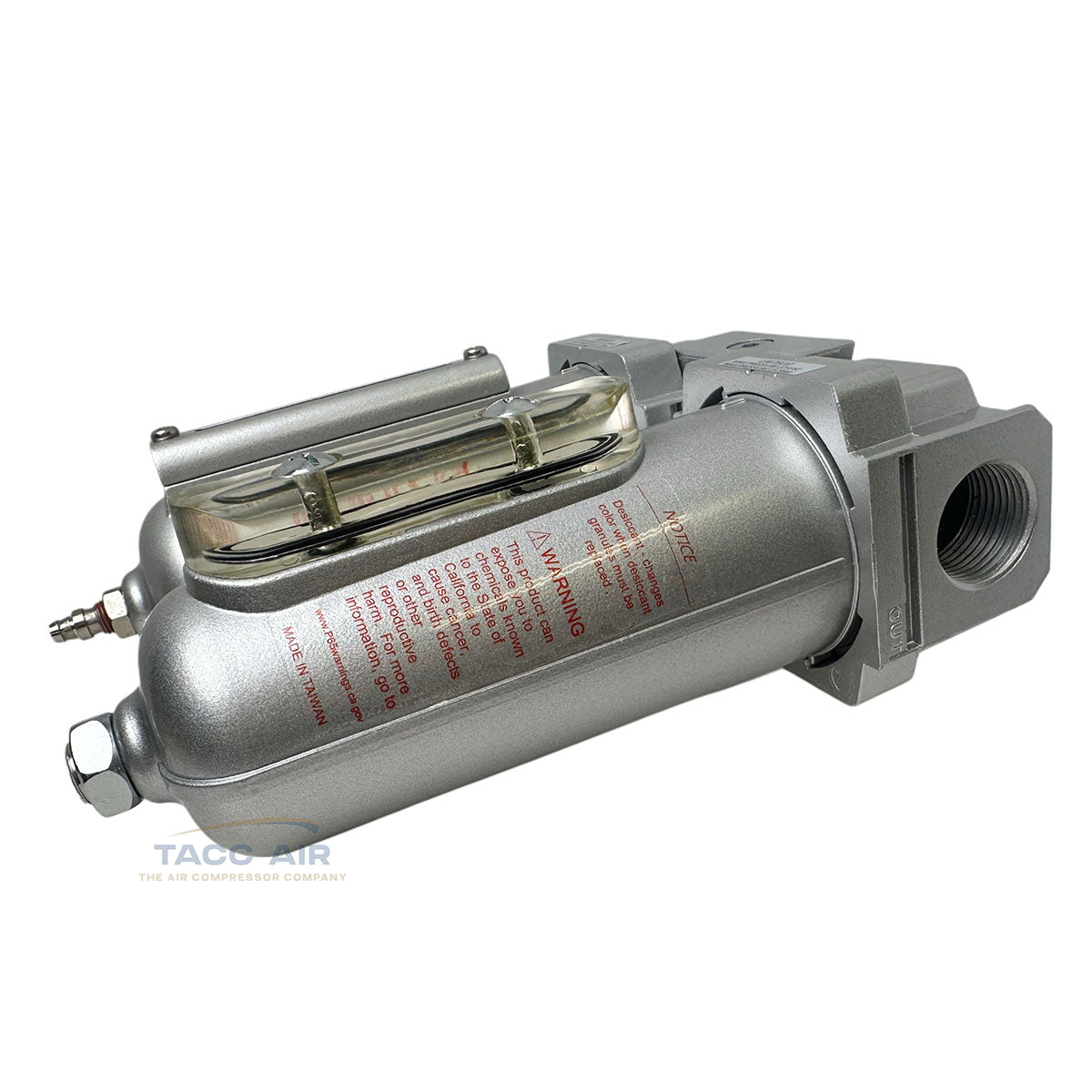

3/4" NPT 2-Stage Desiccant Air Dryer System FLM766

Description:

Keep your compressed air system dry and clean with this rugged, high-efficiency 2-stage desiccant dryer. Designed for professional use in spray painting, sandblasting, automation, and control systems, this unit ensures exceptional air quality by removing moisture, oil, and particles down to 0.01 micron.

For optimal performance, it's recommended to install a 40-micron pre-filter upstream of this system, especially in environments with high moisture levels. The 40-micron filter helps capture larger water droplets before they reach the 0.01-micron first stage, allowing this dryer system to focus more effectively on removing fine vapors, oil aerosols, and contaminants.

Key Features:

-Part Number: FLM766

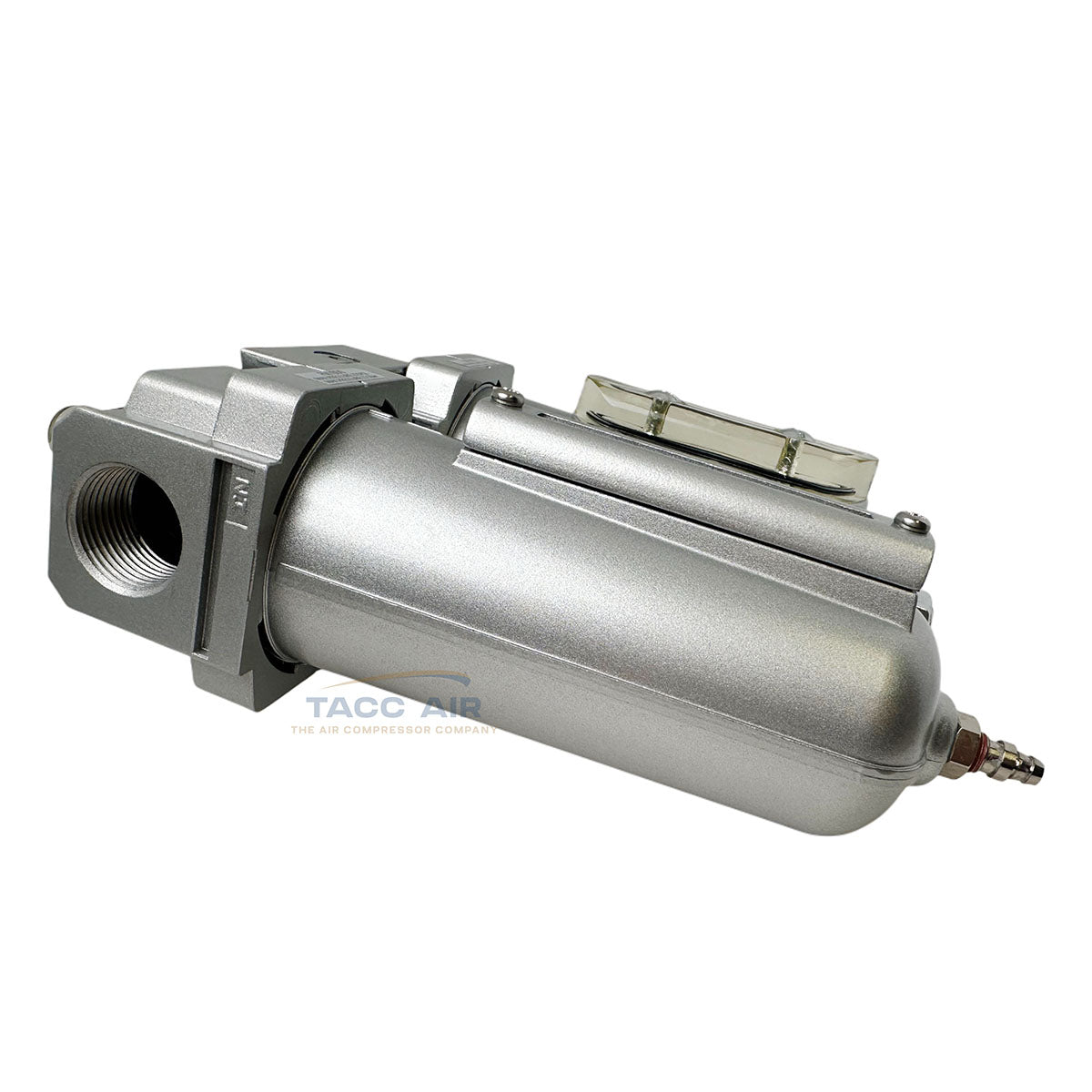

-Connection Size: 3/4" NPT (Note: 3/4" NPT measures approx. 1" outer diameter)
-Material: All cast aluminum construction – built to last in harsh environments
-Dimensions: 8.75" H x 6" W x 3.25" D
-Max Working Pressure: 174 PSI
-Recommended Max Flow Rate: 40 SCFM ( For optimum efficiency)
-Operating Temperature Range: 41°F to 140°F

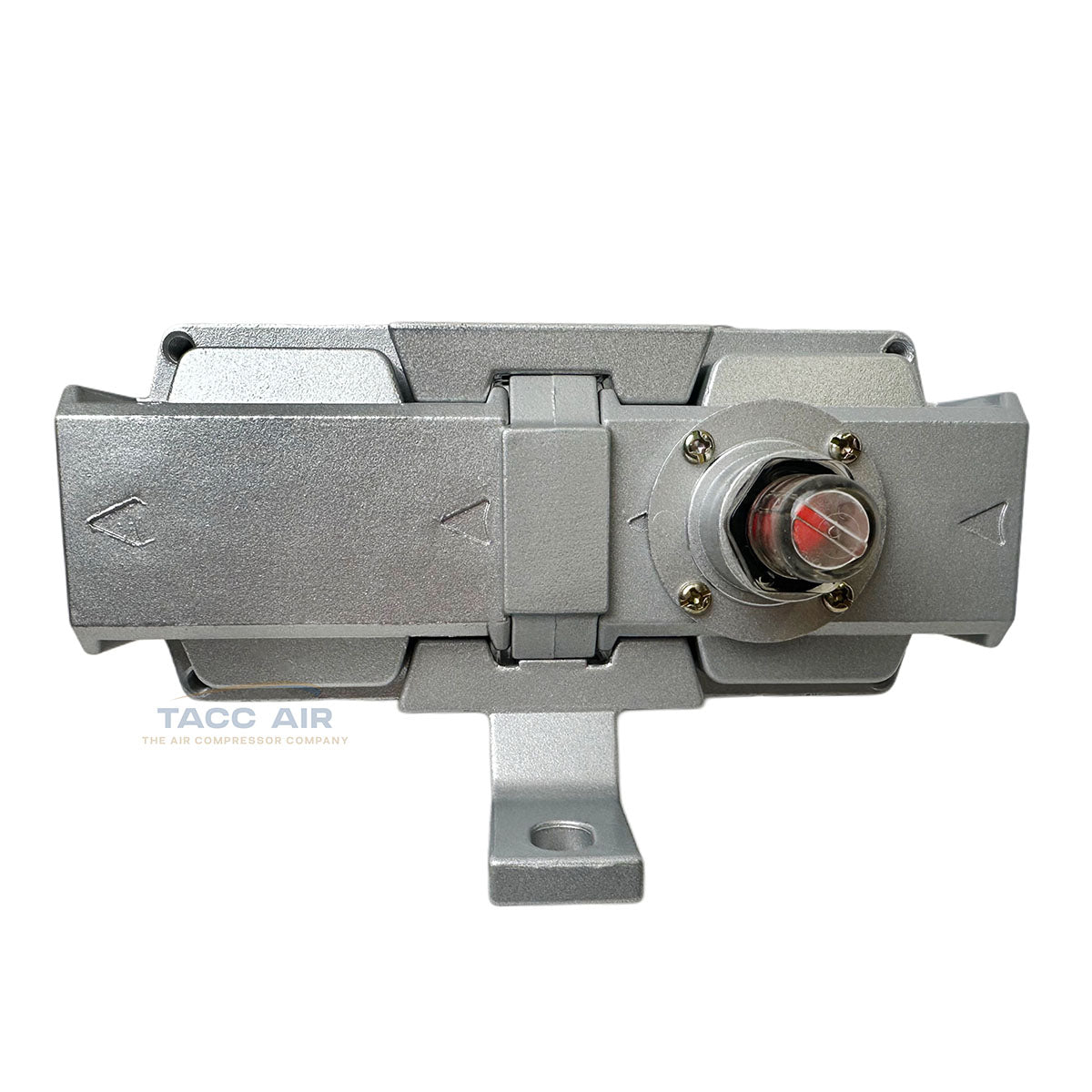

-Mounting Bracket Included – for easy wall mounting

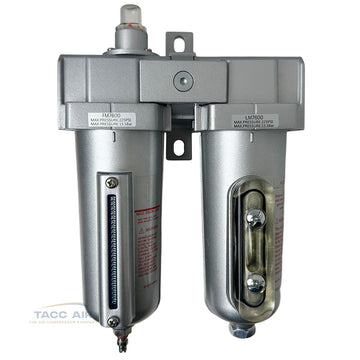

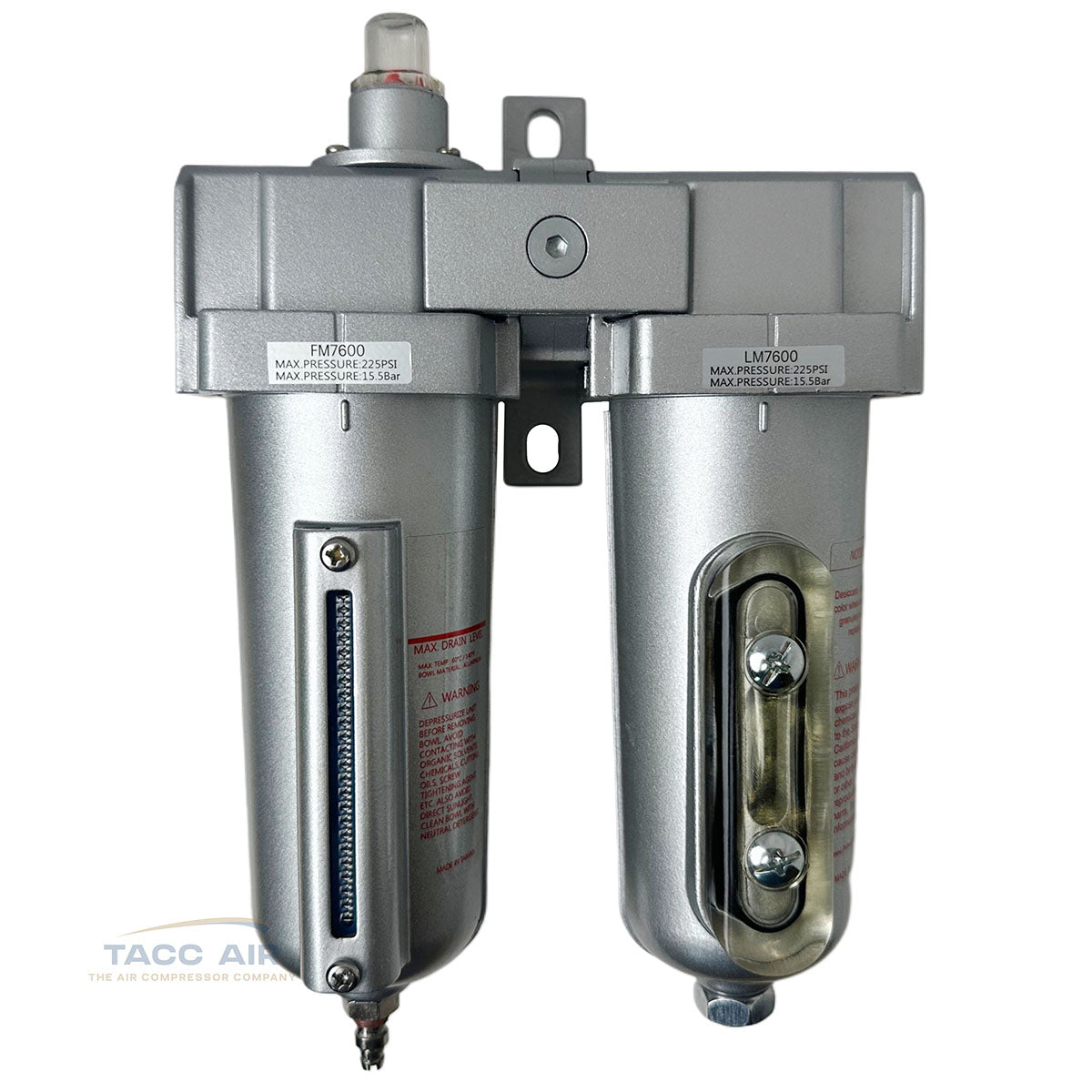

Two-Stage Filtration System:

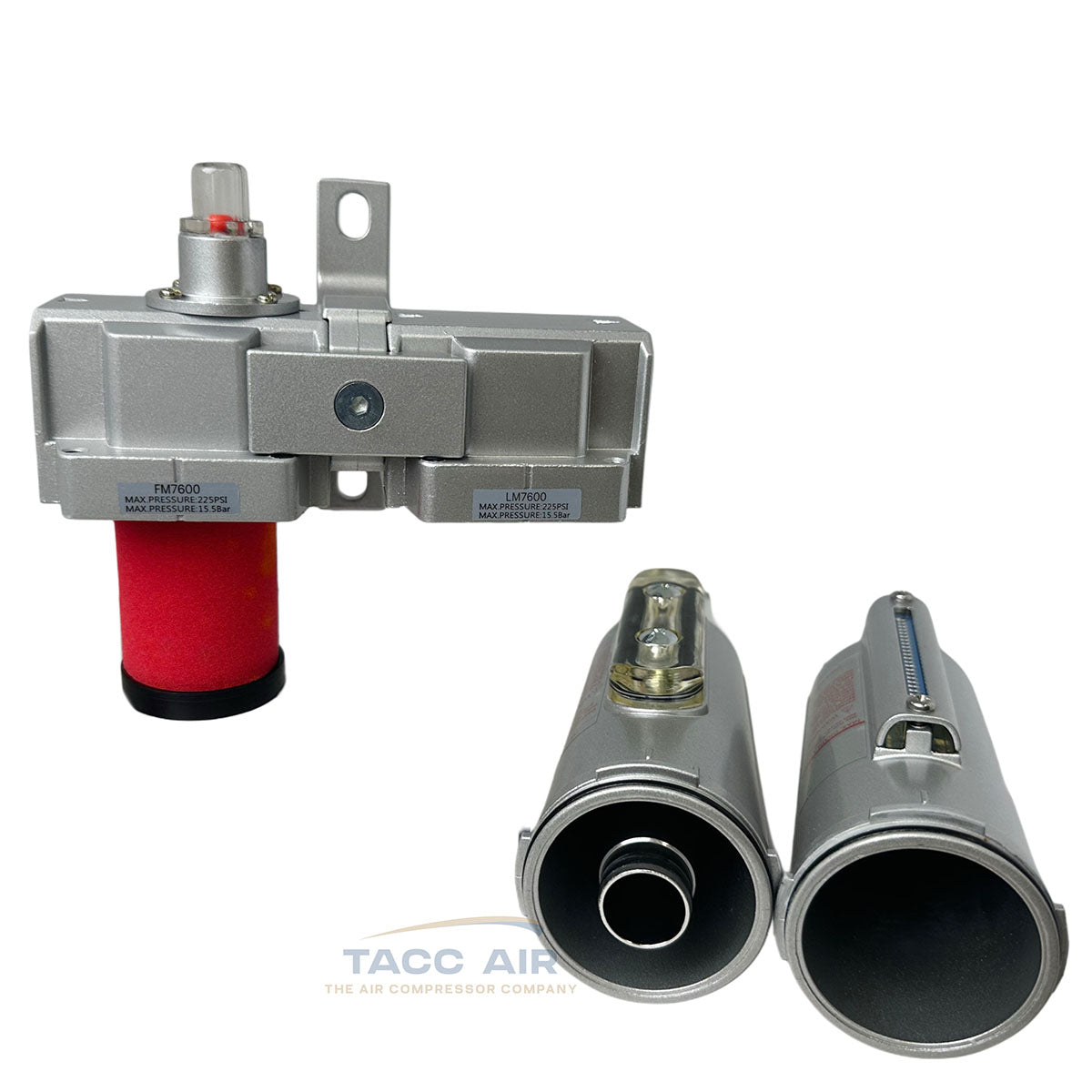

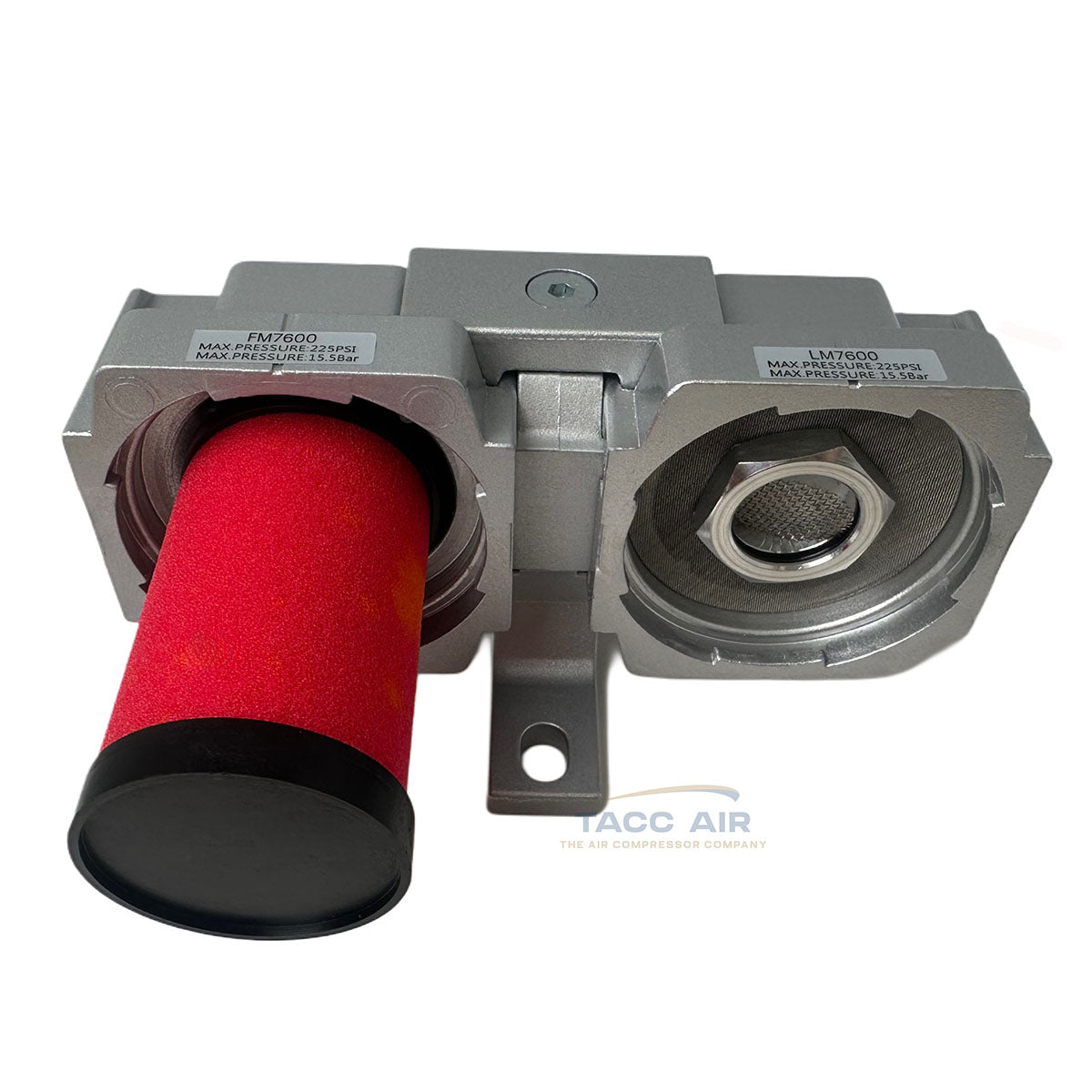

Stage 1: 0.01 Micron Pre-Filter

• Removes 99.99% of solid particles and oil aerosols > 0.01μ

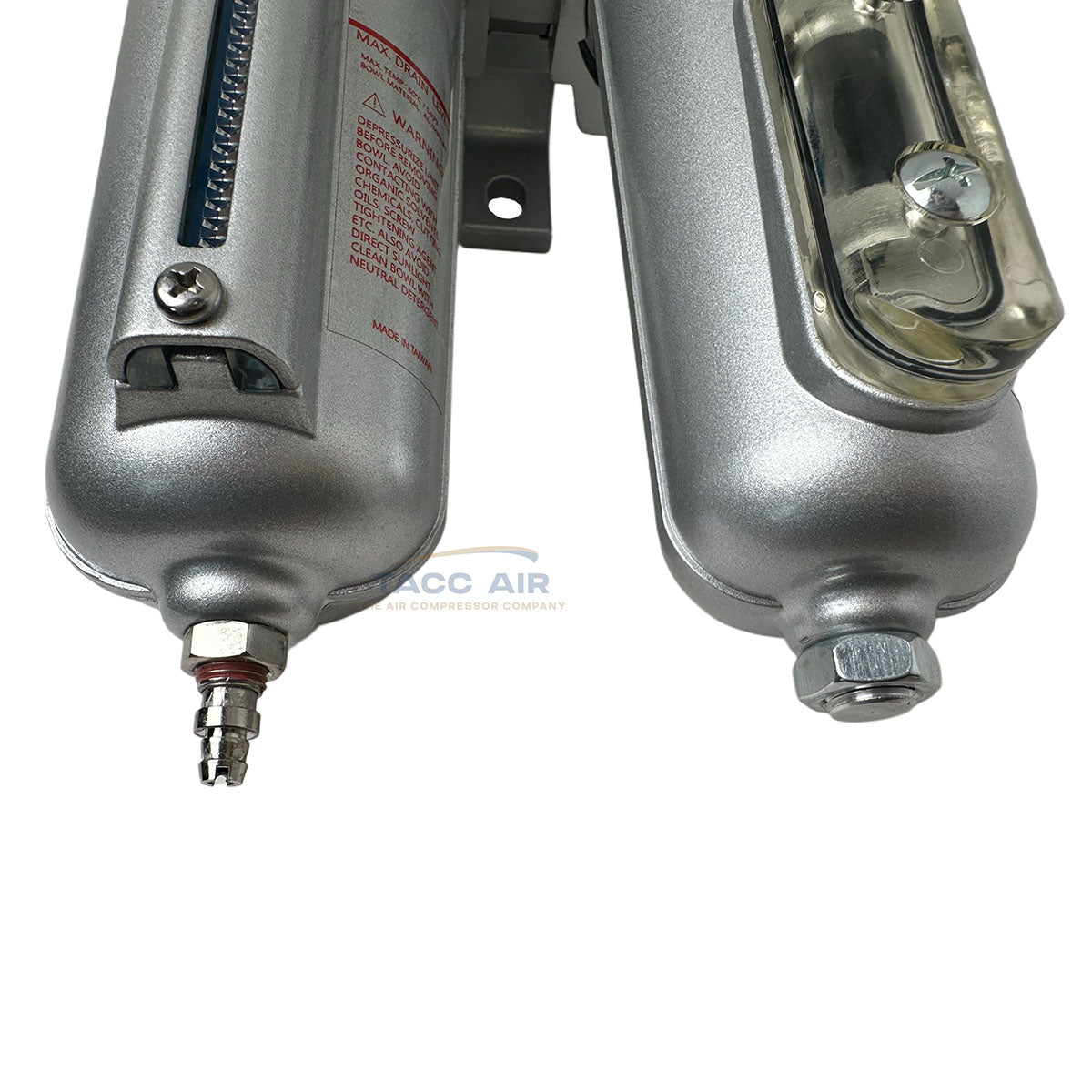

• Manual moisture drain (holds approx. 2.7 oz of liquid)

• Cast-in directional flow arrows to ensure correct installation

Stage 2: Desiccant Dryer with Refillable Beads

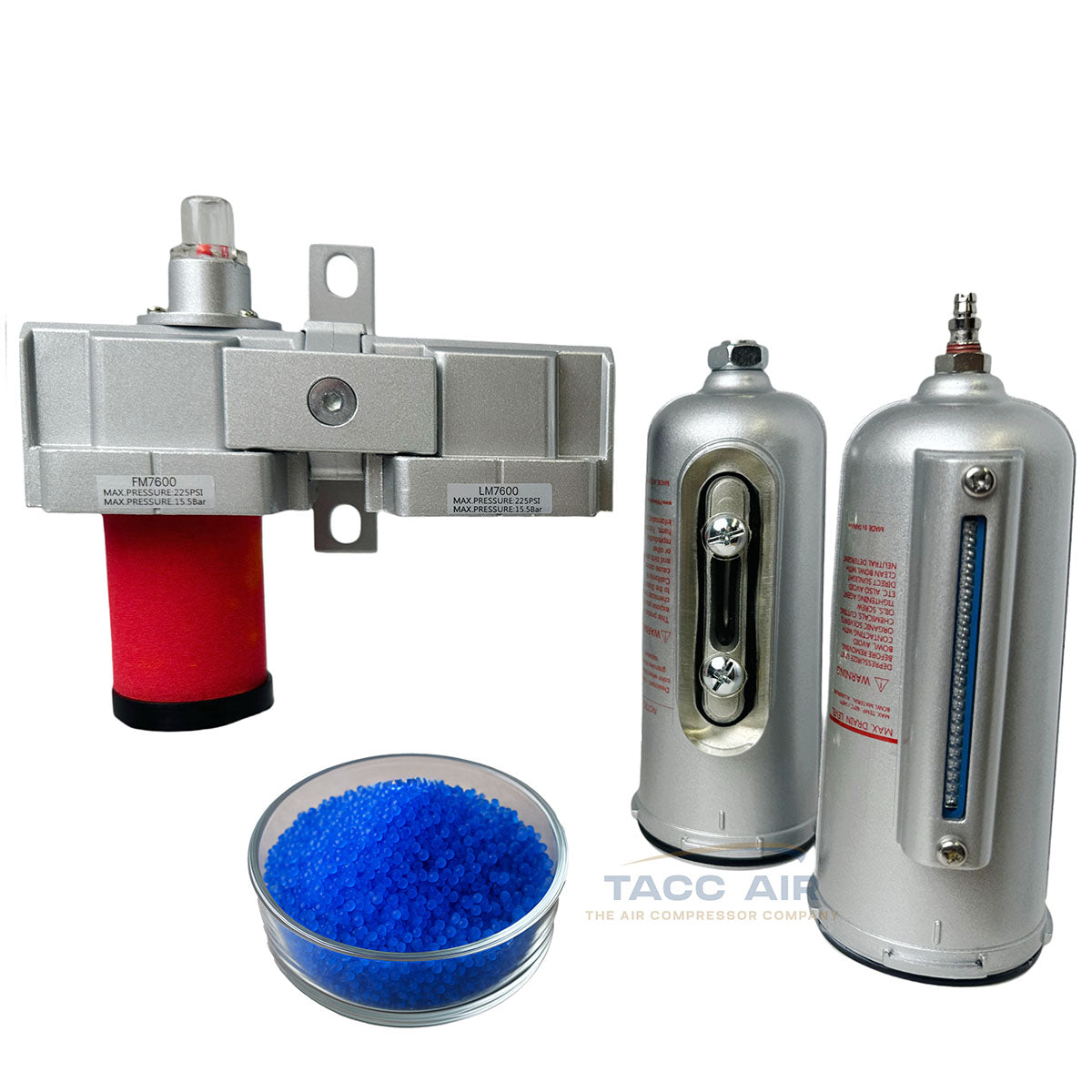

• Desiccant beads change from blue to pink when saturated

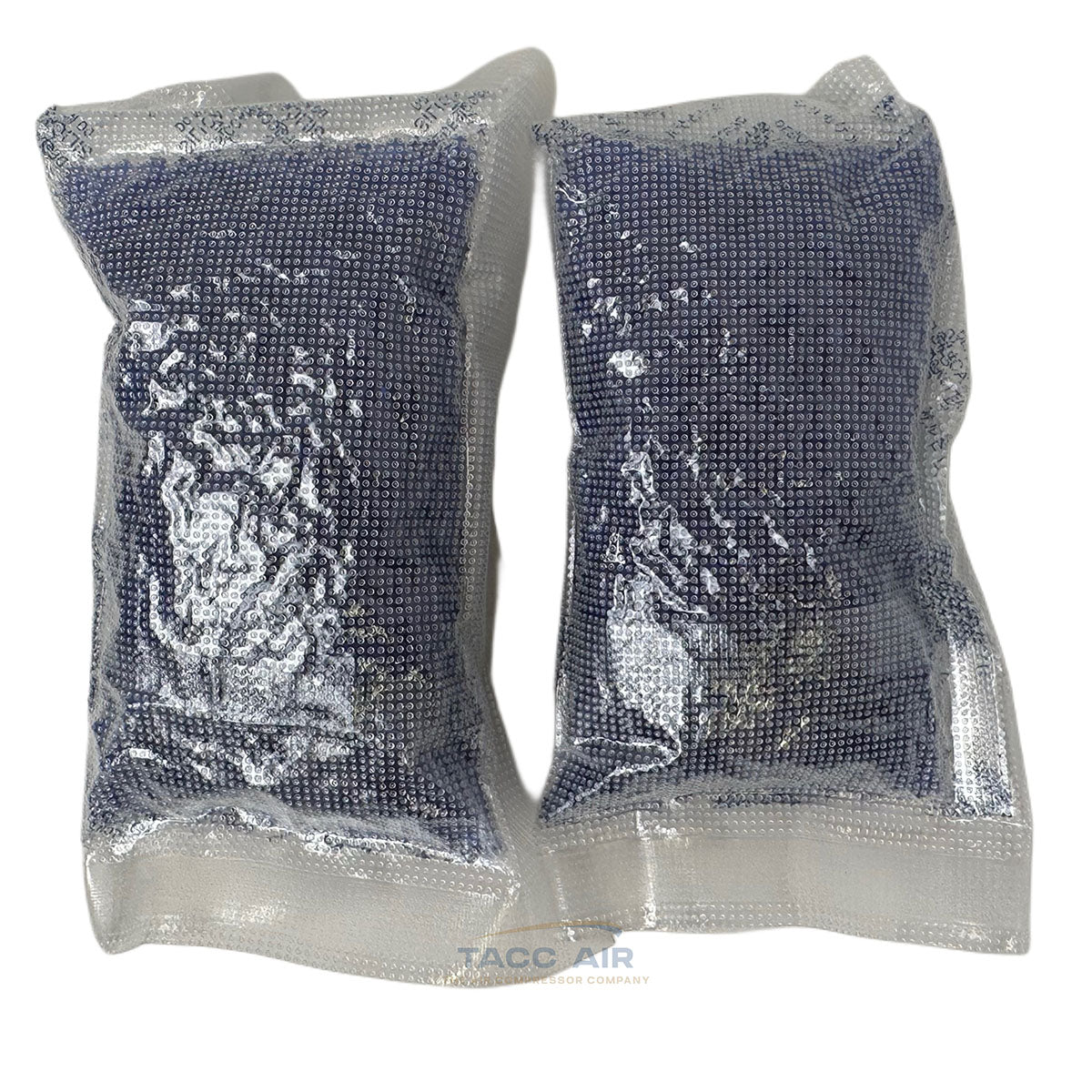

• Two refills of desiccant included

• Delivers dry, clean air ideal for sensitive equipment

Ideal For:

• Paint spray guns

• Sandblasting

• Pneumatic control systems

• Cleanroom air supplies

• Any compressed air system requiring ultra-dry, contaminant-free air

Ensure reliable, dry air for your critical operations – upgrade your air system with this durable and effective FLM766 desiccant dryer unit.
