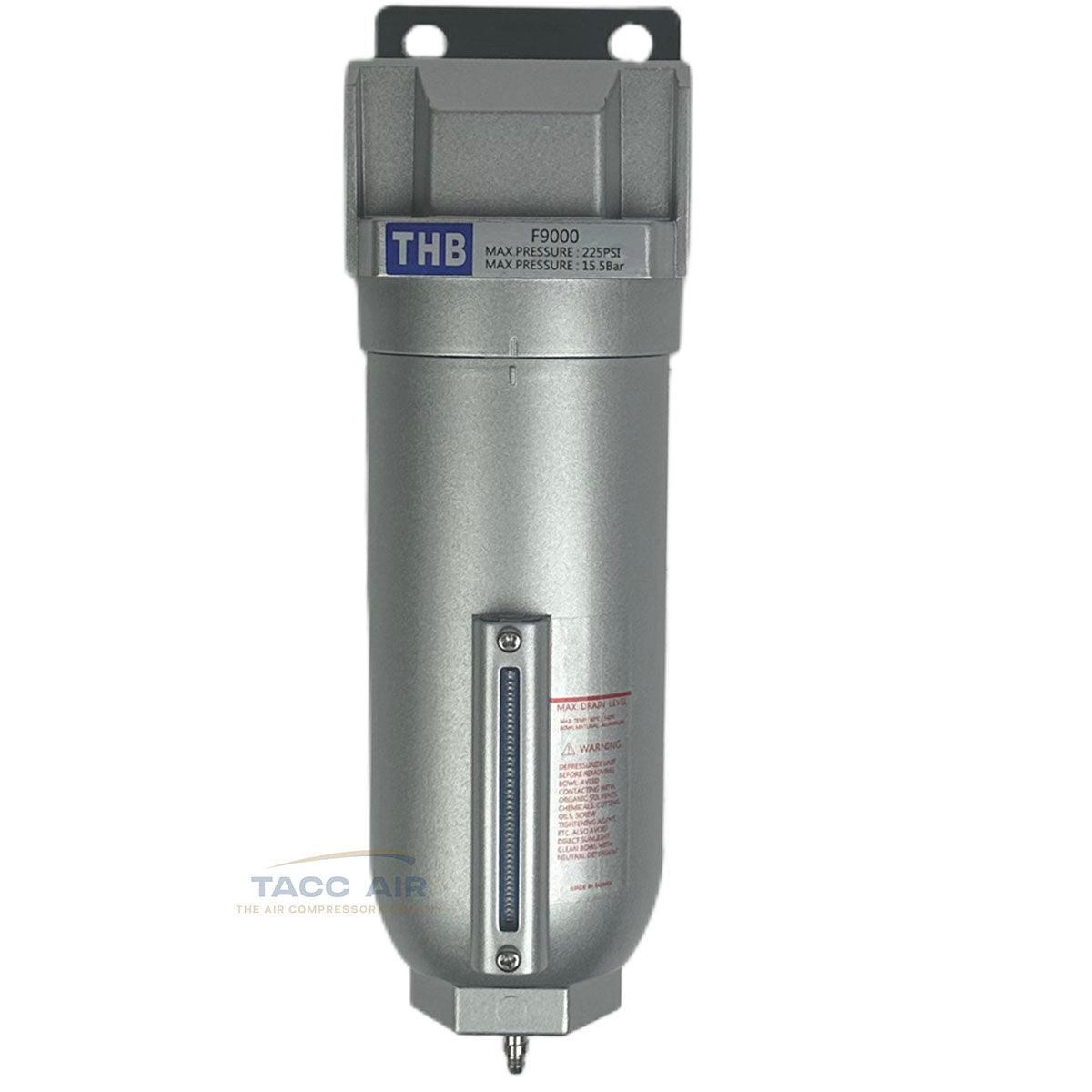

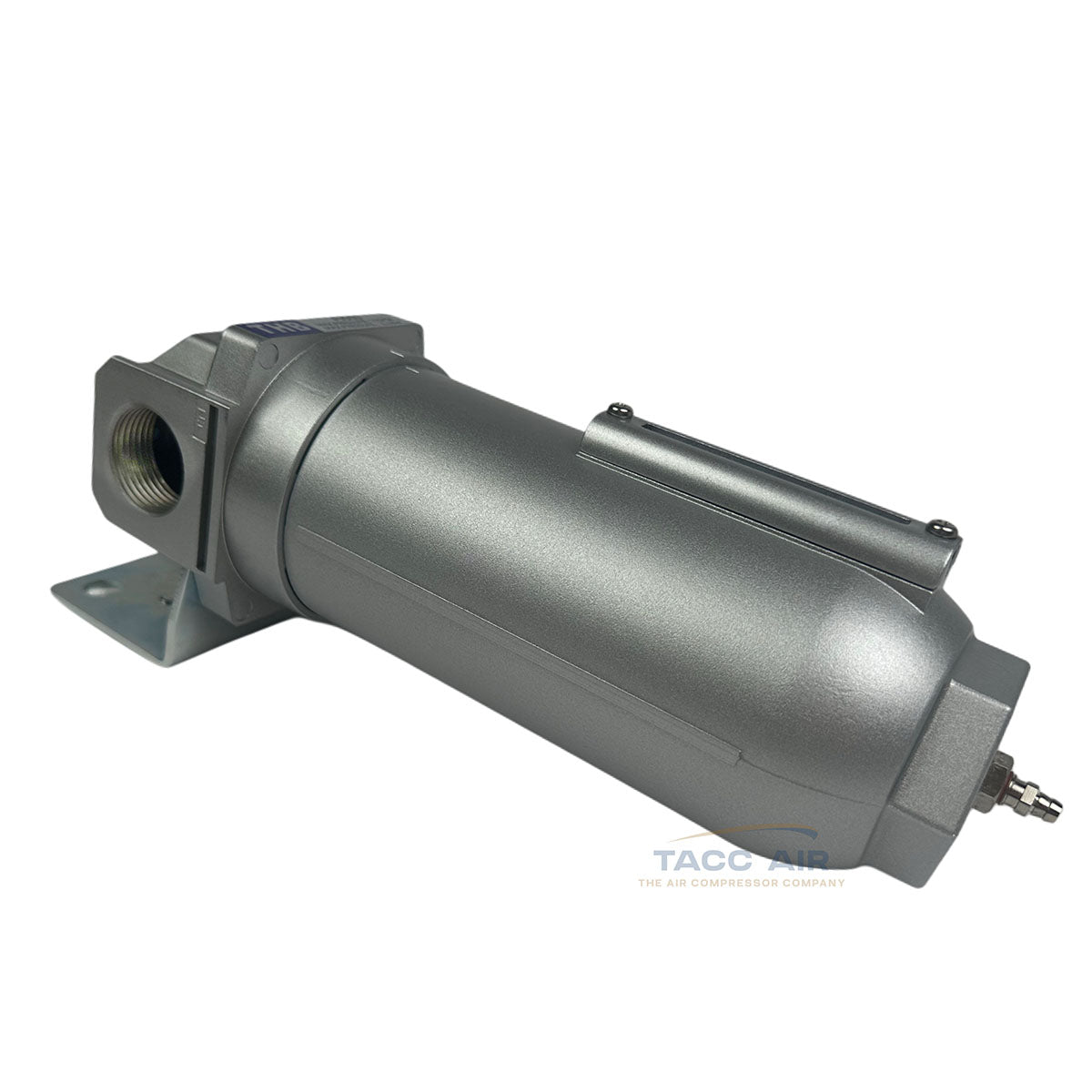

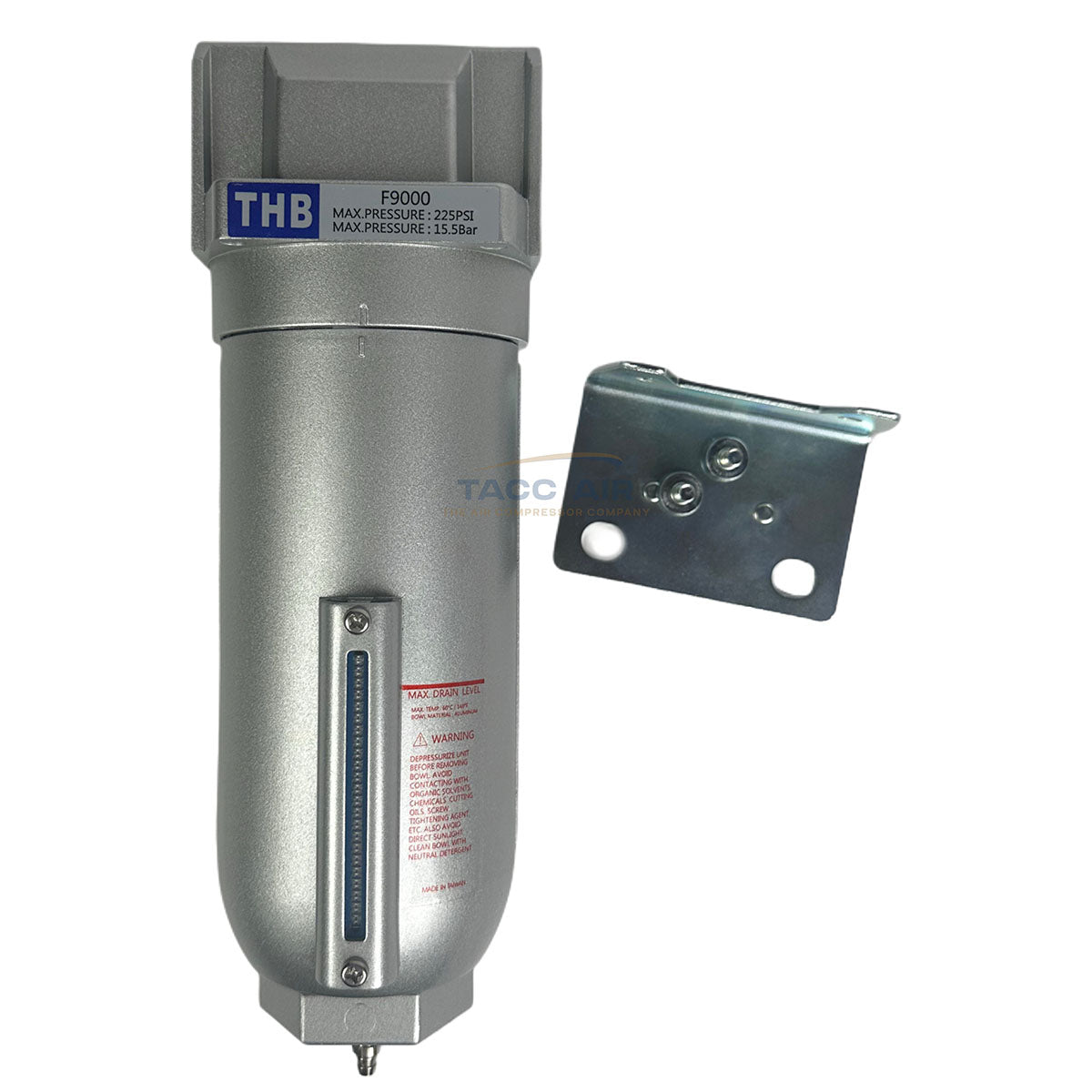

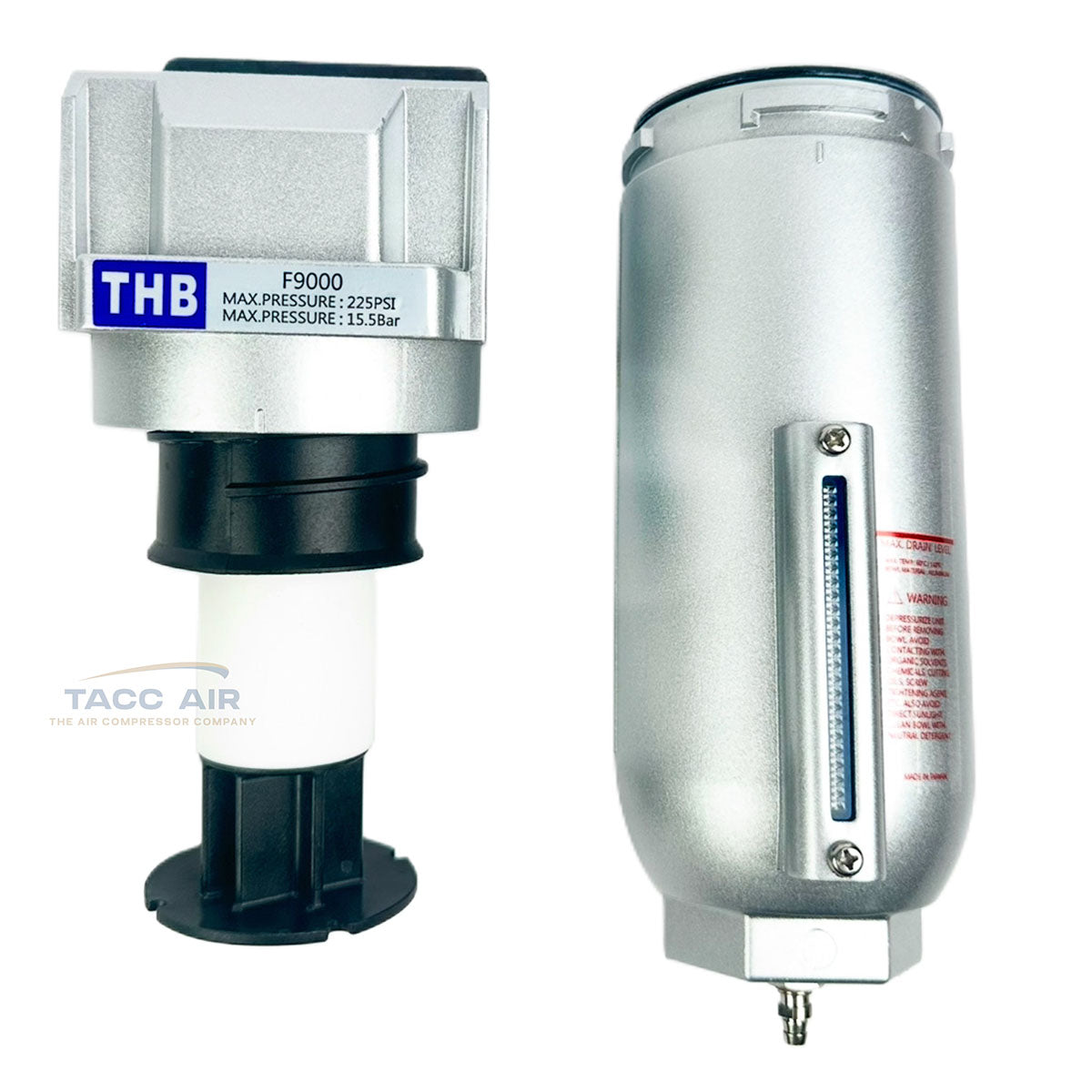

3/4" High Flow In line Compressed Air Moisture Particulate Filter Separator Trap

Heavy Duty High Flow 3/4" In-Line Compressed Air Moisture Filter, 183 SCFM, 5 Micron Element, 300ml Capacity, Push Drain, All-Aluminum Construction

Specifications:

• Connection: 3/4" Female NPT (Note: 3/4" NPT measures approximately 1" in diameter)

• Flow Rate: Up to 183 SCFM

• Filter Element: 5 micron

• Capacity: Holds up to 300 ml of water

• Drain: Push-button drain with barbed fitting for hose attachment

• Body Material: All-aluminum housing

• Design: In-line moisture trap for compressed air systems

• This is directional flow. The air must be flowing in the direction of the arrows marked on the aluminum housing.

• Dimensions: 11" Tall x 3.5" wide x 3.5" deep

Product Description:
This industrial-grade 3/4" high-flow in-line compressed air moisture filter is built to remove water droplets and debris from your air lines before they reach your tools or equipment. With a high flow capacity of up to 183 SCFM and a 5 micron filter element, it offers reliable filtration in demanding shop, plant, and commercial construction environments.

The all-aluminum body is durable and built for long-term use. The moisture bowl holds up to 300 ml of water and features a push-button drain at the bottom. The drain is barbed, allowing for optional hose connection to direct water to a designated drainage point.

Designed for use in compressed air systems where clean, dry air is critical to performance and equipment longevity.
