3/4" FNPT Air Compressor Pressure Regulator Inline W/ Gauge HD Industrial

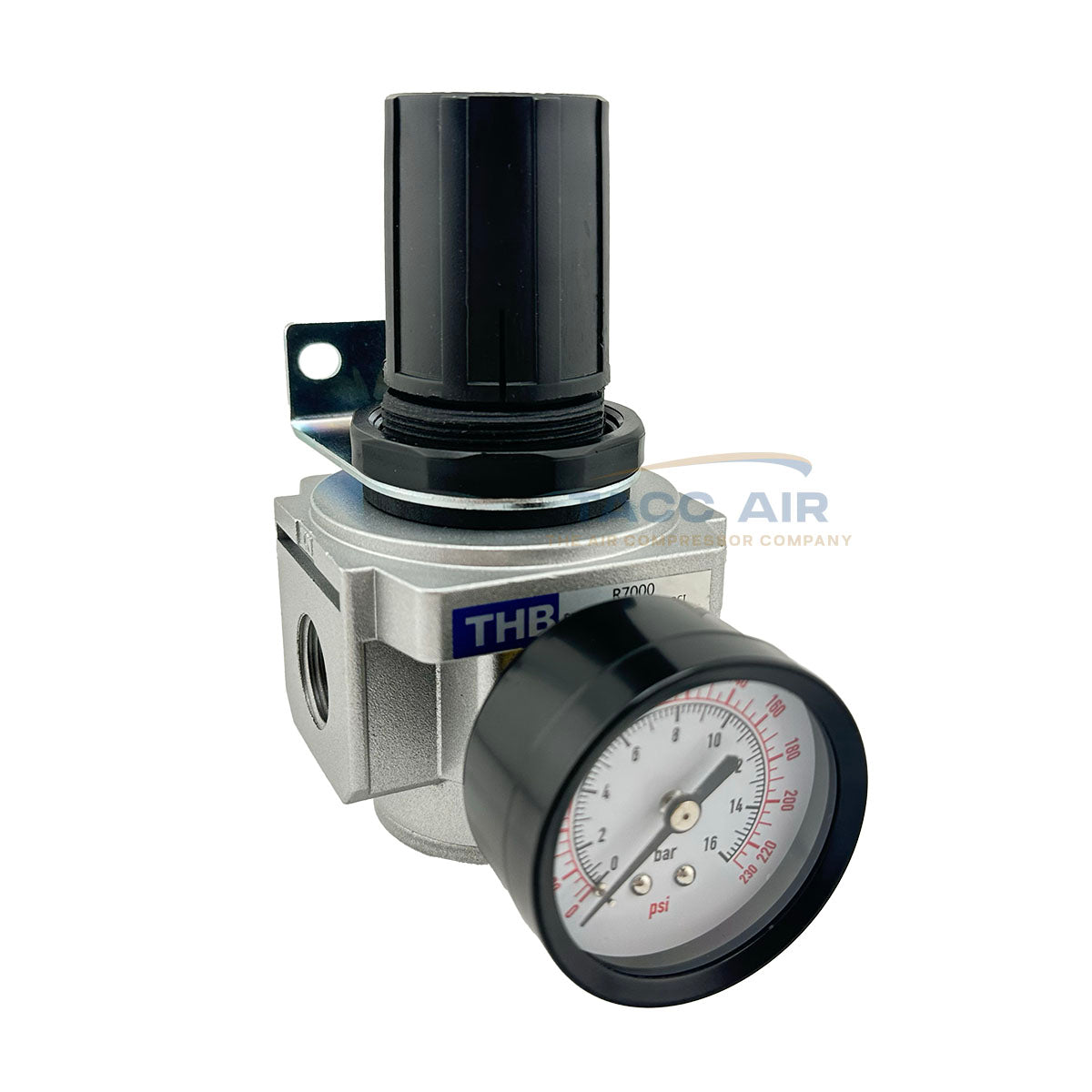

Heavy Duty 3/4" Inline Compressed Air Regulator with Gauge and Wall Mount Bracket

This premium 3/4" inline air regulator is engineered for reliability and durability in both home shop and commercial applications. Designed for air compressors and compressed air systems, it provides precise pressure control to ensure your equipment operates at peak performance. The regulator comes complete with a pressure gauge and a steel wall mount bracket, offering flexibility for various installation setups.Perfect for a wide range of compressed air systems, this regulator provides easy-to-use pressure control, flexibility in installation, and long-term durability.

Key Features:

• High-Quality Construction: The regulator is built with a rugged aluminum body for long-lasting durability, even in demanding environments.

• Precise Pressure Control: Easily adjust the pressure using the turn knob. To lock the knob in place at your desired pressure, simply press it down. To unlock, just pull up on the knob, which lifts about 1/4" to the unlocked position. This simple mechanism ensures you have consistent control over your system's pressure.

• Flexibility in Mounting: The regulator can be mounted directly on the compressor, down the line, or at the regulated equipment. It comes with a steel wall mount bracket for secure installation, though if you don’t need the wall mount, it can be removed. If the bracket is not used, the regulator should be installed in a rigid pipe system for adequate stability and support.

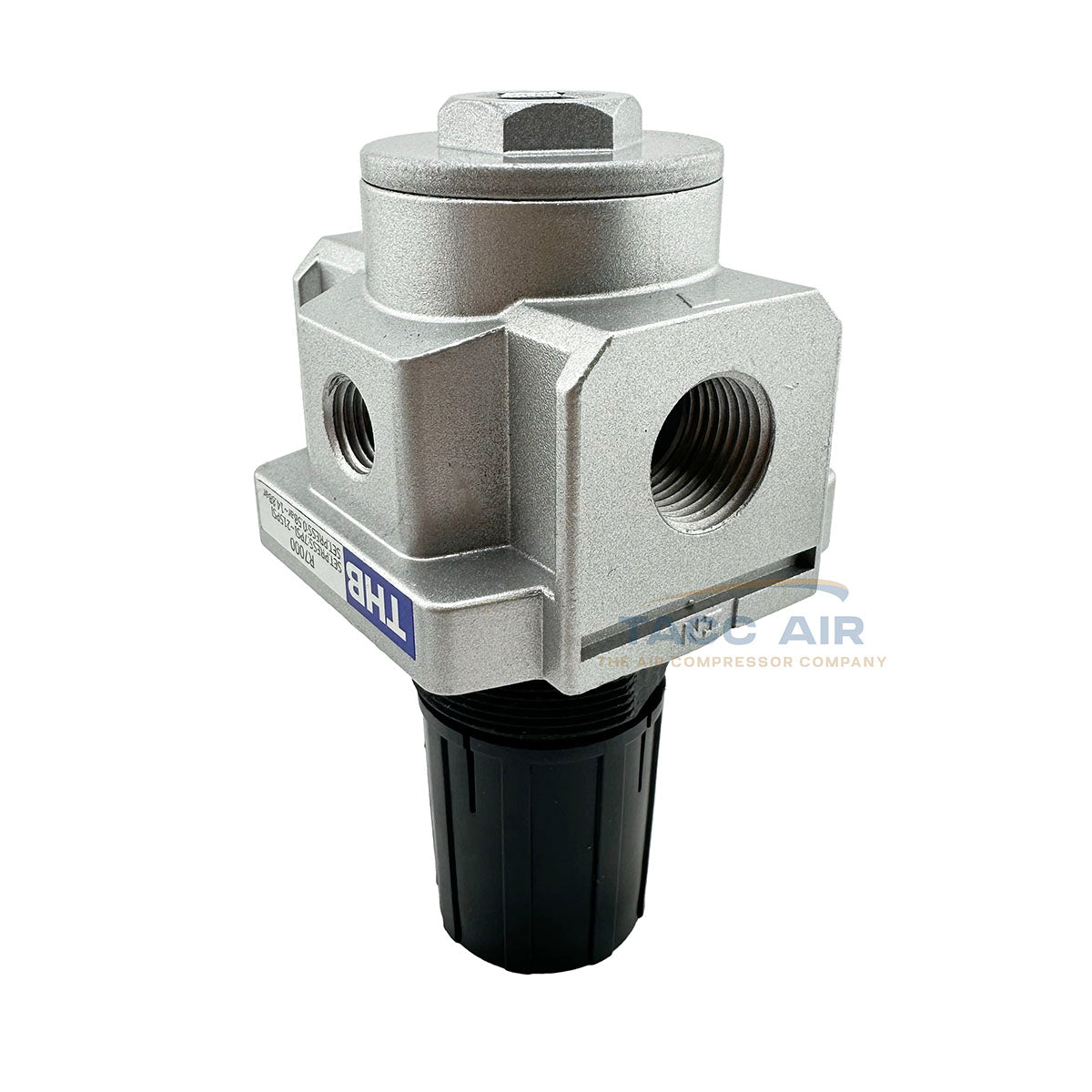

• Directional Flow: This regulator is directional, ensuring air flows in the proper direction as indicated by arrows on the body. Both the inlet and outlet ports are clearly marked by each 3/4" female NPT port. Additionally, there is a 1/4" female NPT port on two other sides, allowing you to install the pressure gauge on either side. A pipe plug is also included for the side you don't use.

• Pressure Gauge Included: The gauge reads up to 230 PSI, providing real-time pressure readings to ensure your system is operating within optimal parameters.

• Durability: The maximum operating pressure is 225 PSI, with a max operating temperature of 140°F, making it ideal for high-performance air systems. The regulator measures 5.25" in height, 2.75" in width, and 2.75" in depth, making it compact yet powerful.

• Improved Longevity: To help prolong the life of the regulator, we recommend installing an inline filter before the regulator to prevent debris from damaging the diaphragm.

Whether for your home workshop or a commercial setup, this heavy-duty air regulator ensures reliable, consistent performance in a variety of applications. Secure your air system with confidence, knowing this high-grade regulator will keep things running smoothly for years to come.

Specifications:

• Ports: 3/4" female NPT (inlet and outlet), 1/4" female NPT (additional ports)

• Maximum Pressure: 225 PSI

• Maximum Temperature: 140°F

• Pressure Gauge: Reads up to 230 PSI

• Overall Dimensions: 5.25" height x 2.75" width x 2.75" depth

• Construction: Aluminum body with steel wall mount bracket (removable)

• Recommended Installation: Inline filter before the regulator for optimal performance

(Note: 3/4" NPT Measures approximately 1" in diameter)
