3/4" NPT Heavy Duty High Flow Compressed Air Pressure Regulator 162 CFM

Heavy Duty High Flow 3/4" In-Line Compressed Air Pressure Regulator Rated Up To 162 SCFM, 250 PSI Max Pressure, Includes Wall Bracket & Pressure Gauge

Specifications:

• Connection: 3/4" Female NPT (3/4' NPT measures approx. 1" in diameter)

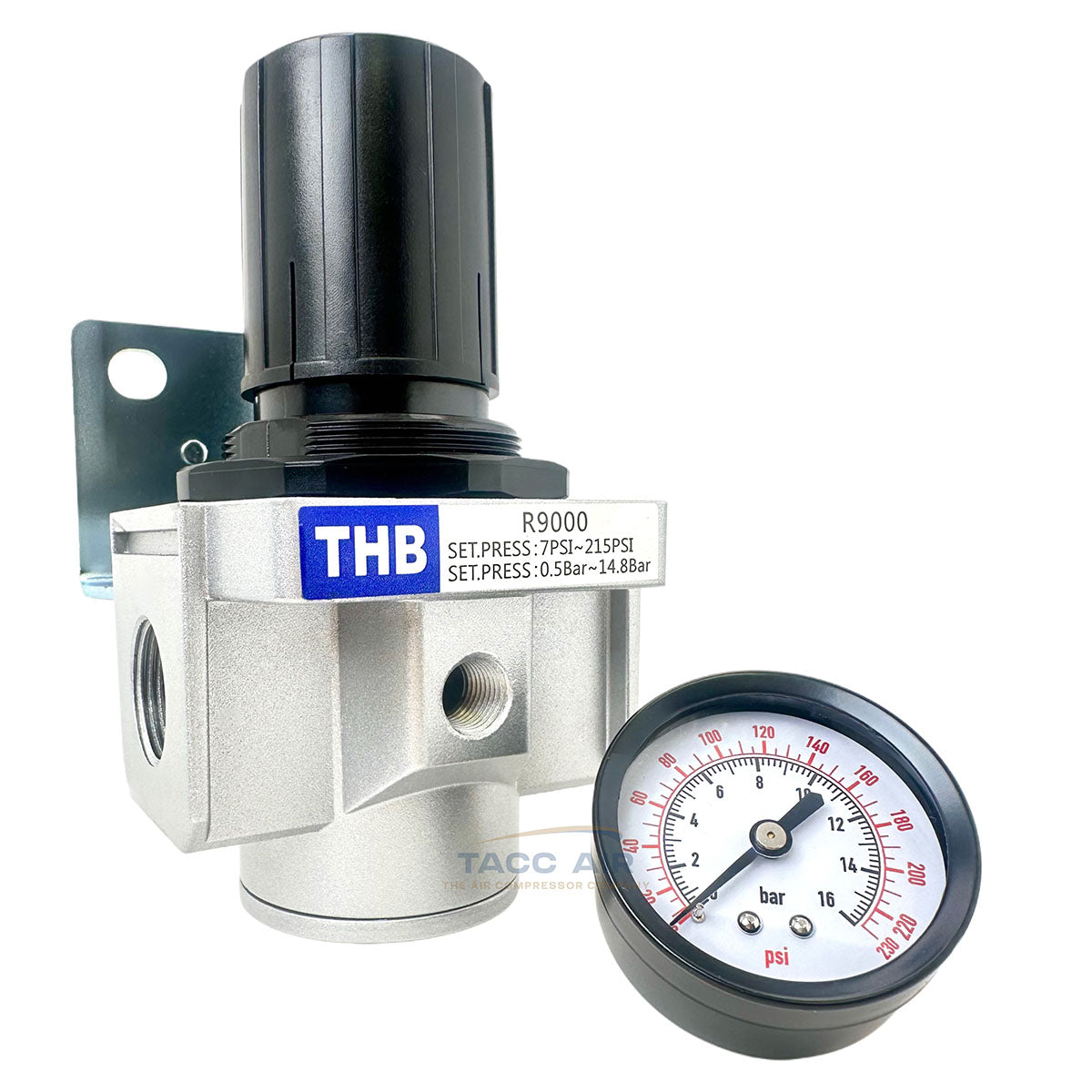

• Gauge Connection: Features two 1/4" NPT ports on either side for gauge connection also comes with 1/4" plug to plug the side not used.

• Adjustable Output Pressure: 7 to 225 PSI

• Maximum Input Pressure: 250 PSI

• Max Flow Rate: 162 SCFM

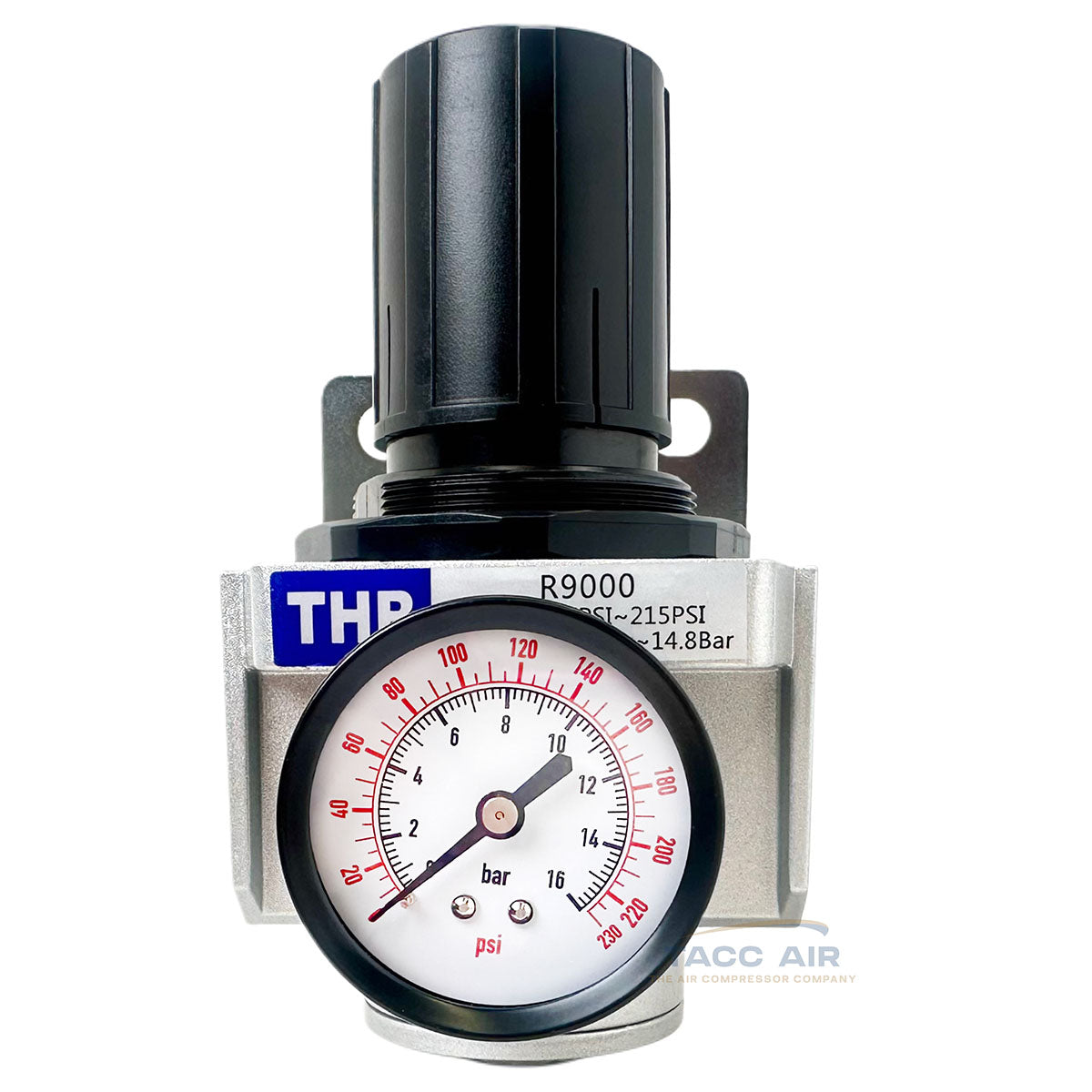

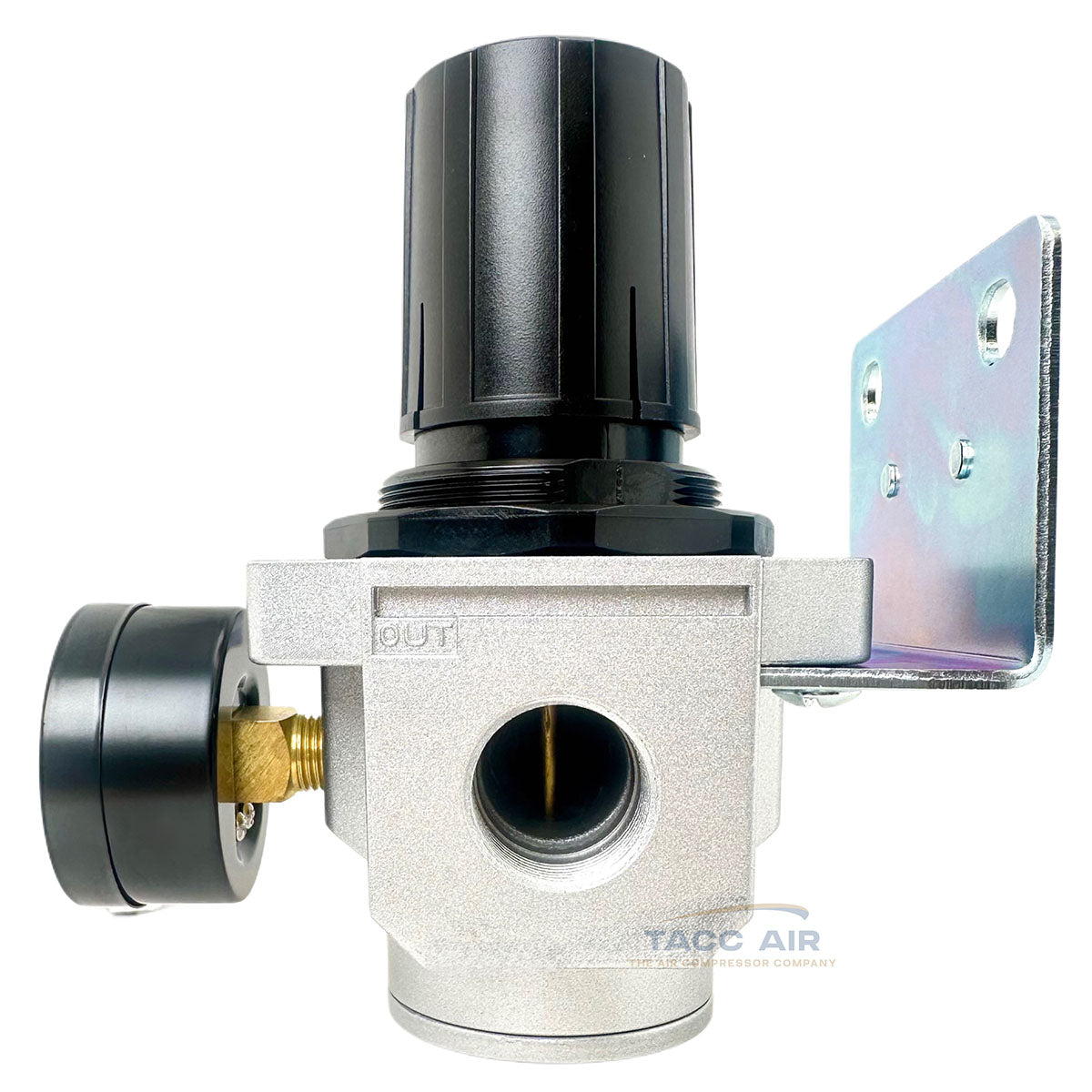

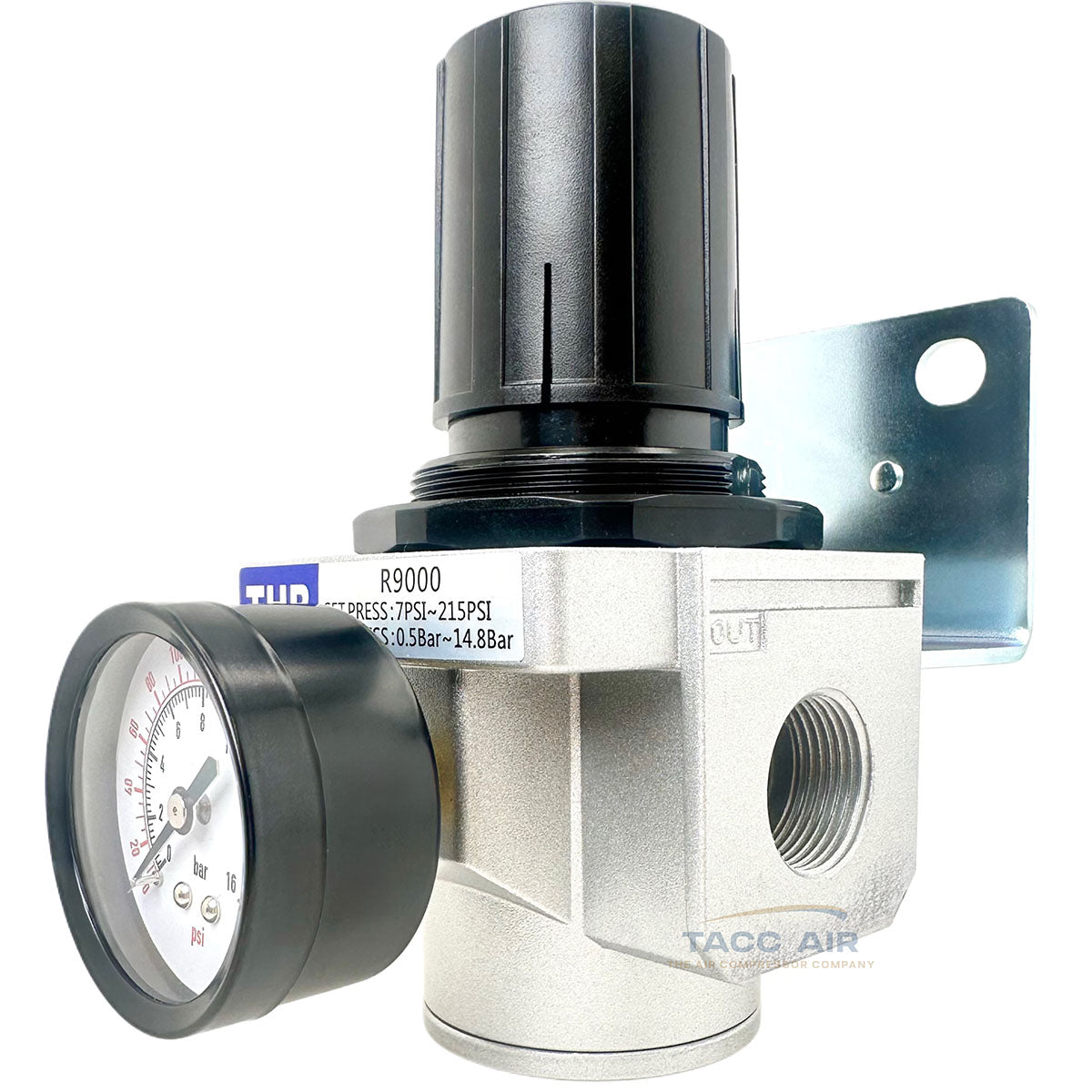

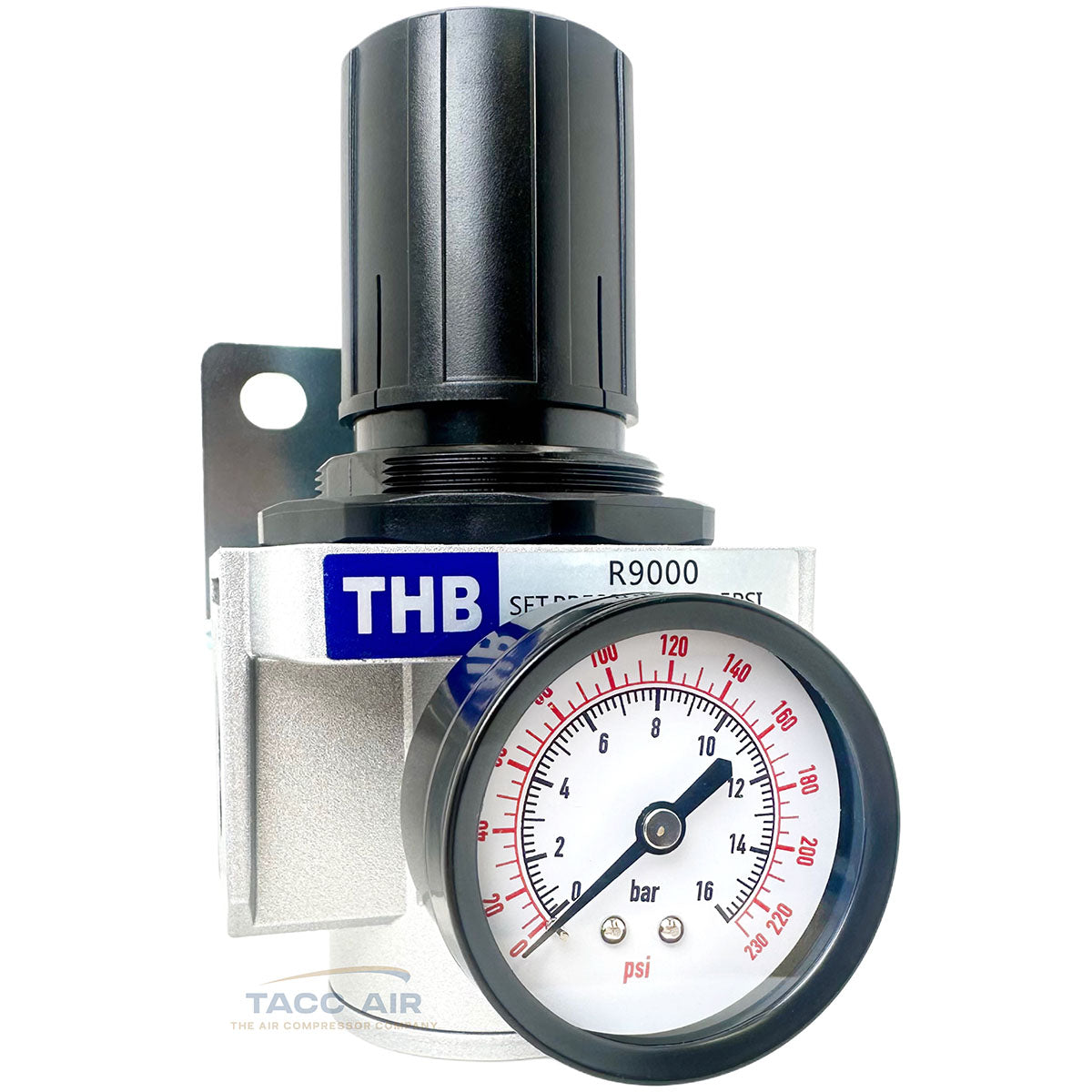

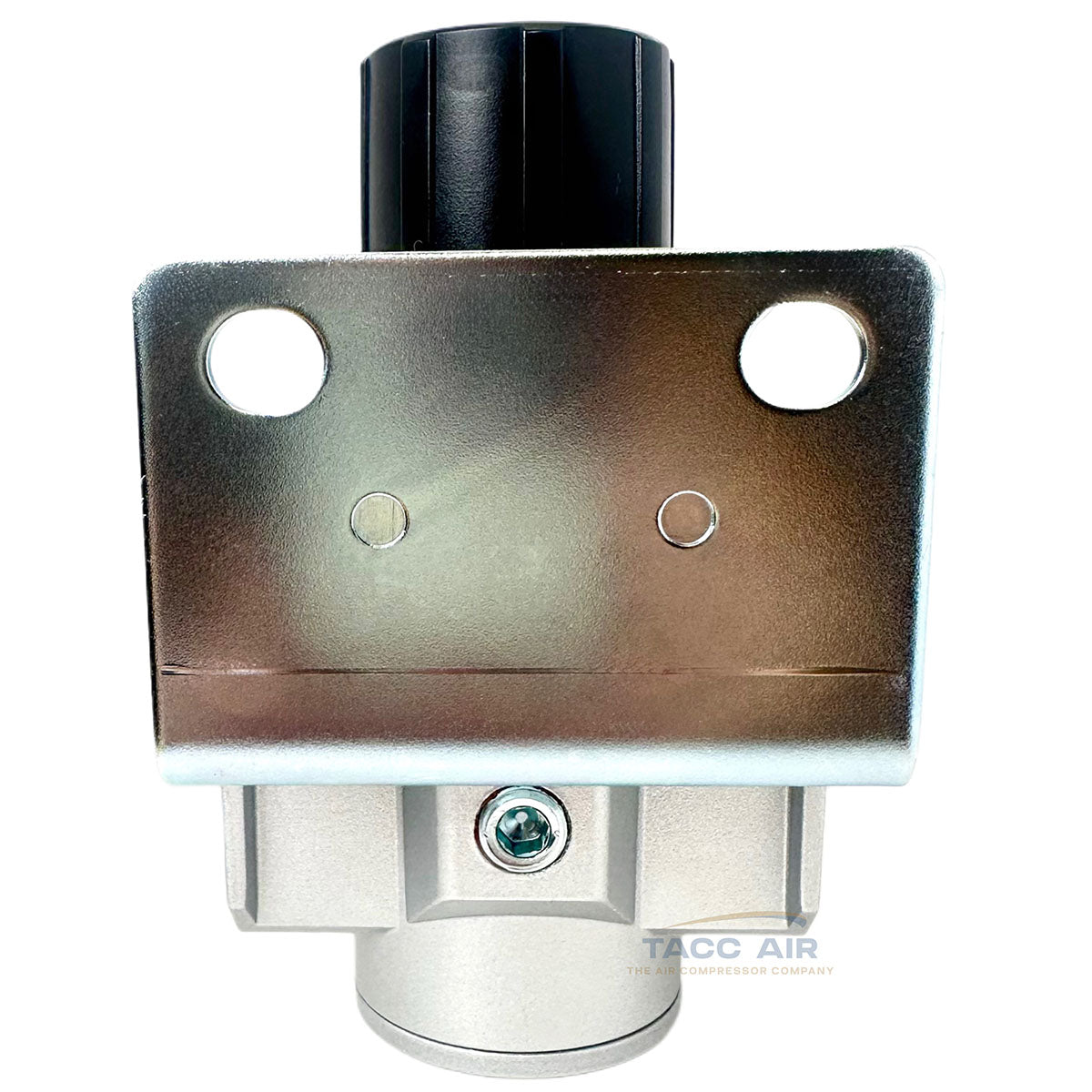

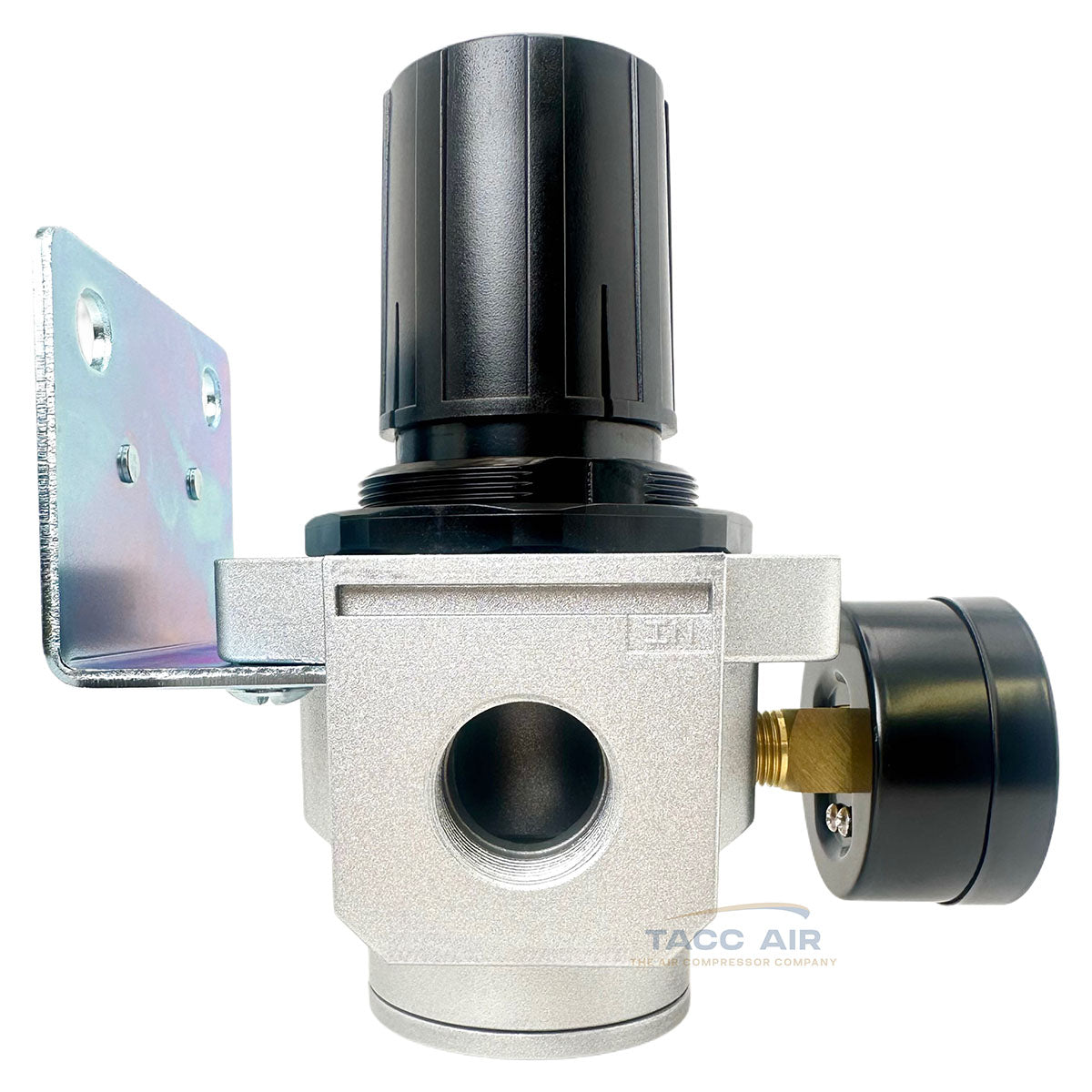

• Includes: Wall mounting bracket and air pressure gauge

• Knob: High-impact plastic

• Flow Direction: Directional flow – air must follow arrows on aluminum body

• Dimensions (excluding gauge): 6.375" height x 3.6" width x 3.6" depth

• Construction: In-line design for use in compressed air systems

Product Description:
This industrial-grade, high-flow 3/4" in-line compressed air pressure regulator is designed for consistent performance in demanding shop, plant, and commercial construction environments. With an adjustable output pressure range of 7 to 225 PSI and a high flow capacity of up to 162 SCFM, it's built to handle heavy-duty pneumatic applications.

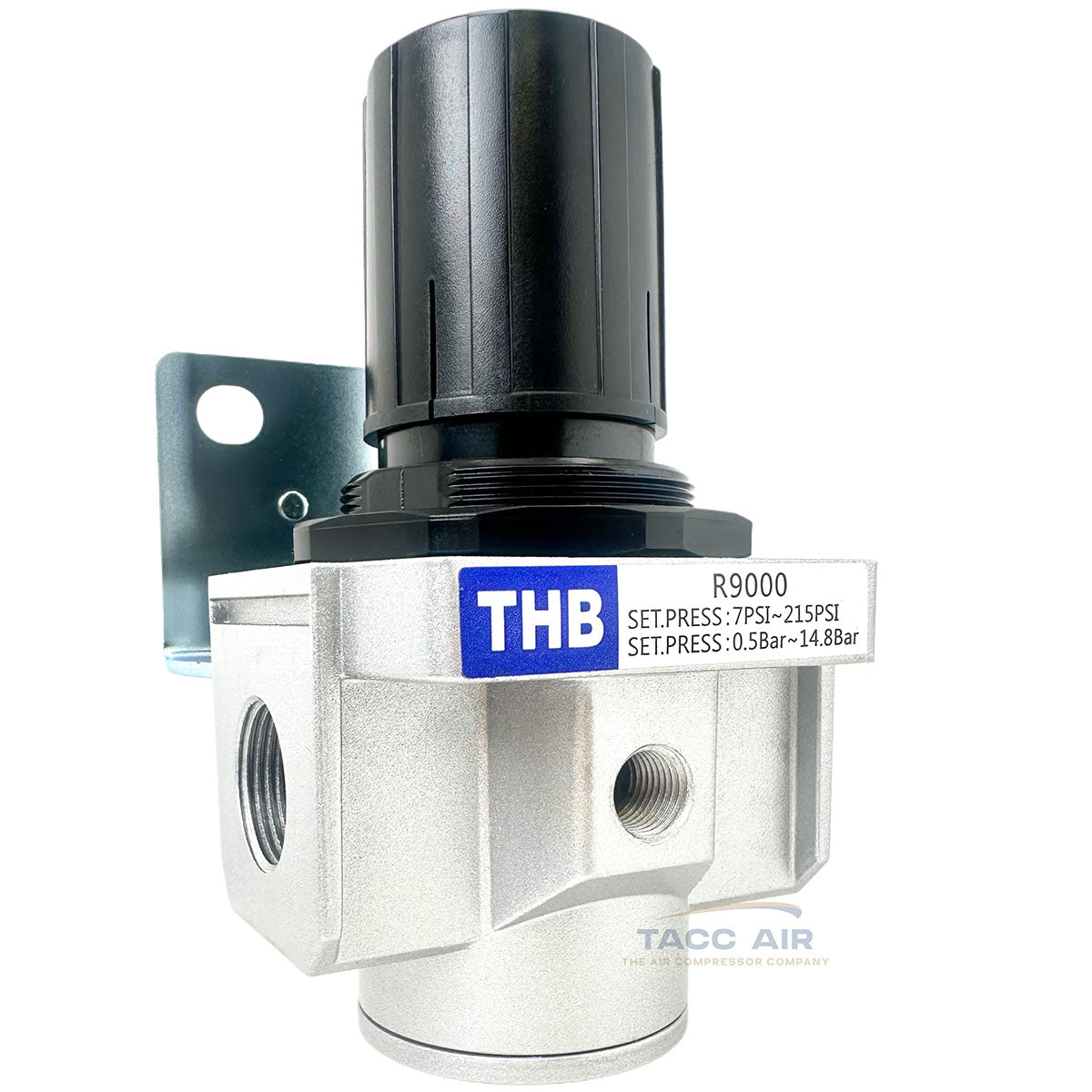

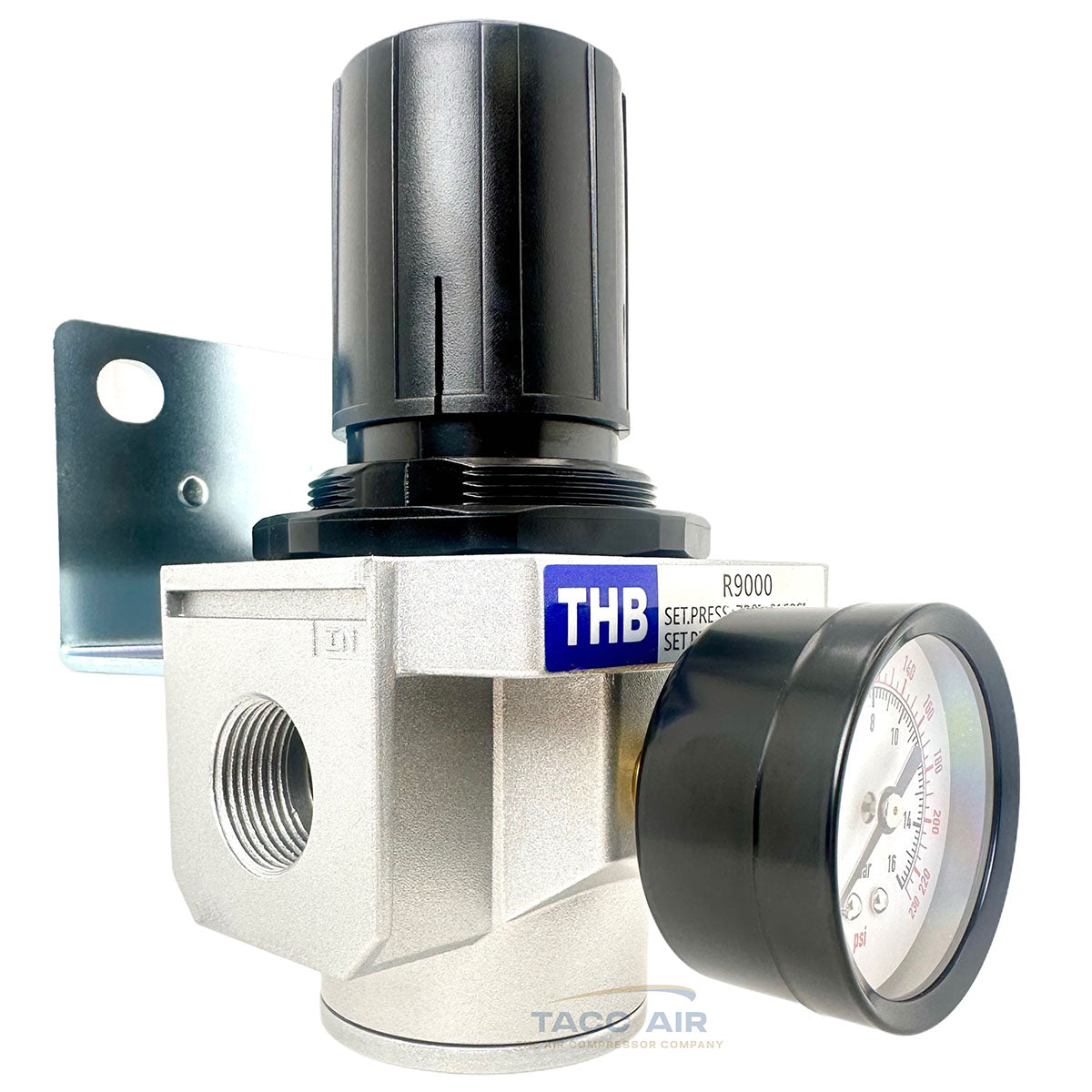

The regulator features 3/4" female NPT inlet and outlet ports (Note: 3/4" NPT measures approx. 1" diameter), a high-impact locking adjustment knob, and a rugged aluminum body. It includes a surface-mount wall bracket and an air pressure gauge for easy monitoring and setup flexibility.

Regulator Knob locks into place to set pressure by simply pushing down on the adjustment knob and to unlock the knob you simply pull up and it will move about 1/8" to a unlock position to allow for pressure adjustment.

Important Note: This is a directional flow regulator — air must flow in the direction indicated by the arrows stamped on the aluminum body.

Overall dimensions (excluding the gauge) are 6.375" tall by 3.6" wide and 3.6" deep. Designed for reliability, accuracy, and ease of use without unnecessary features.
