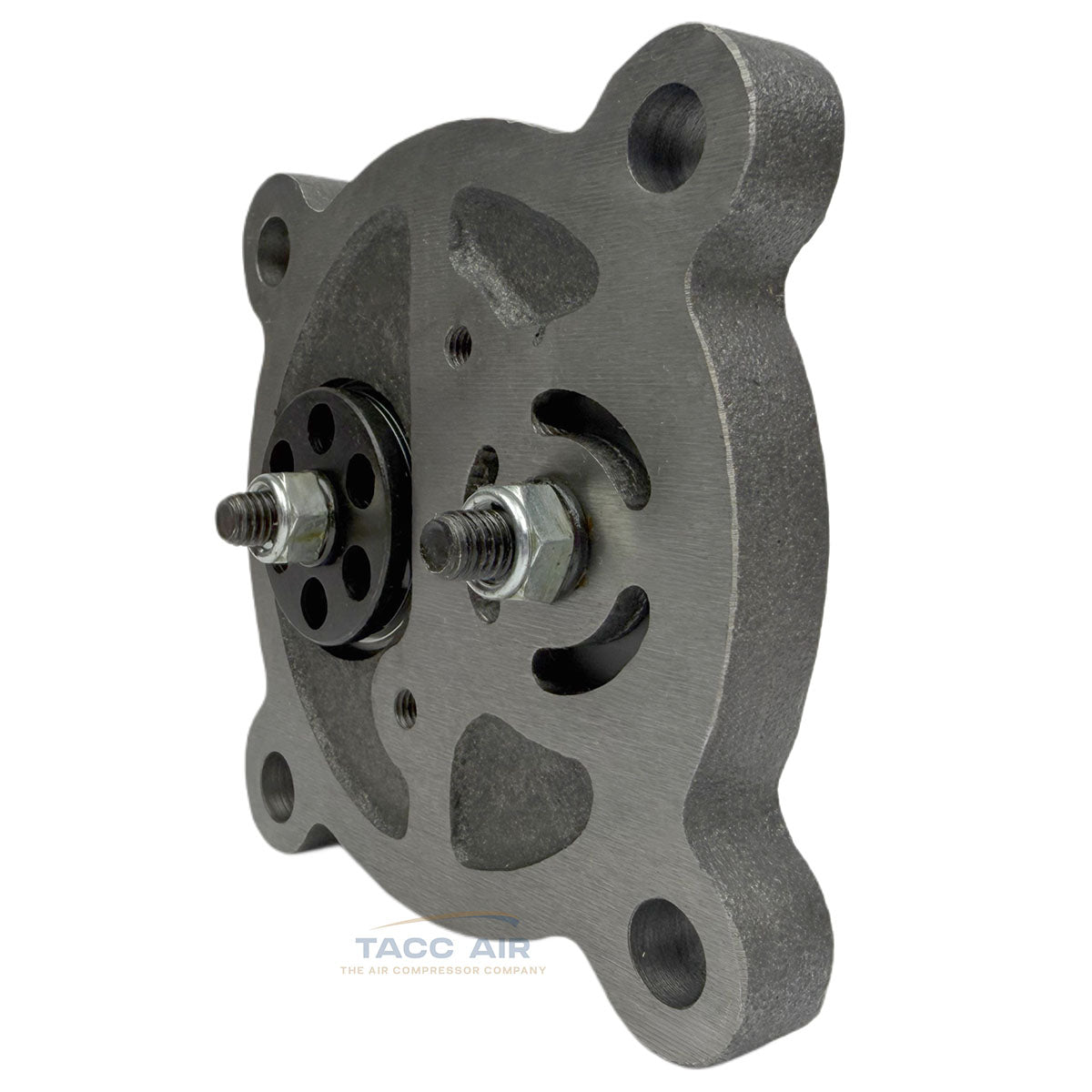

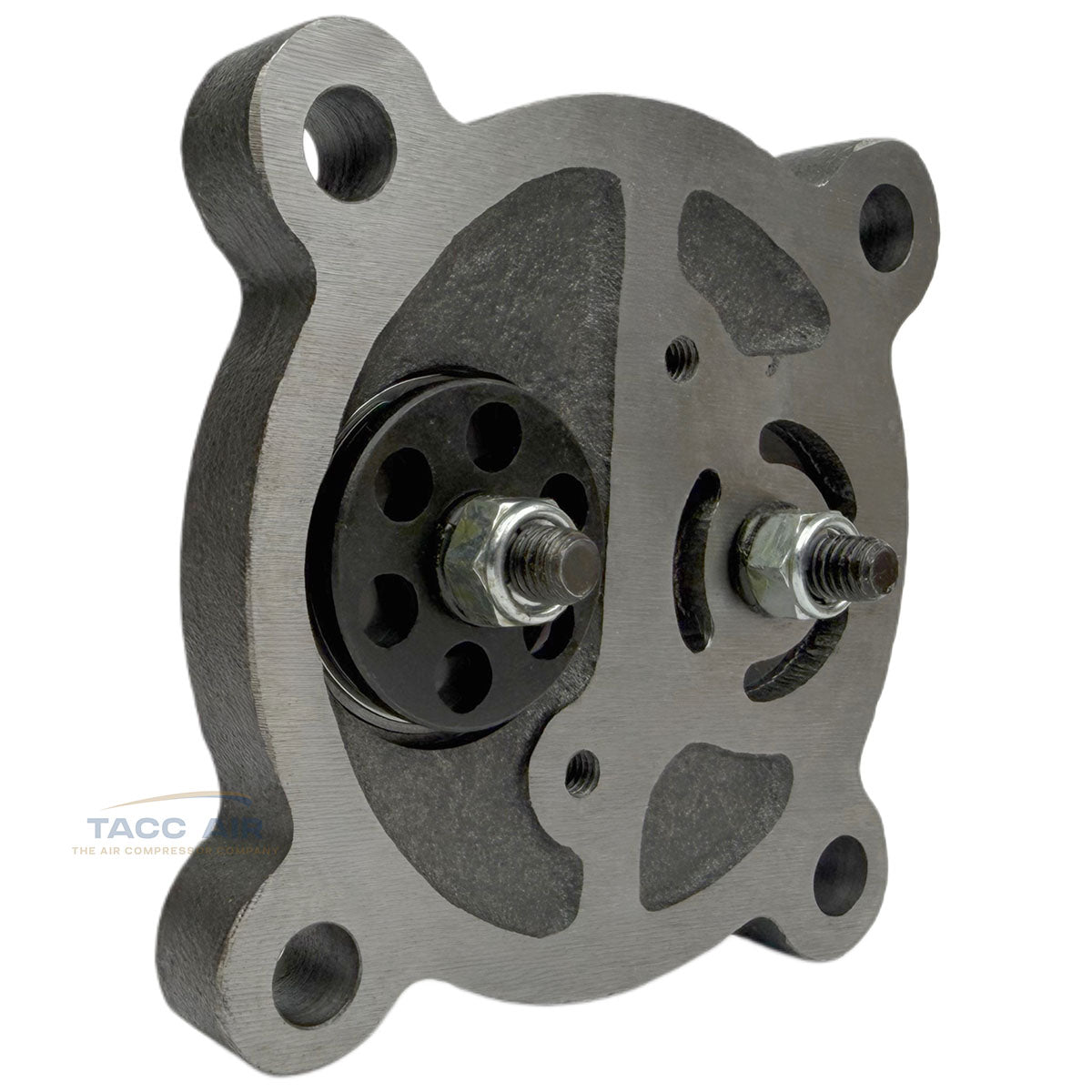

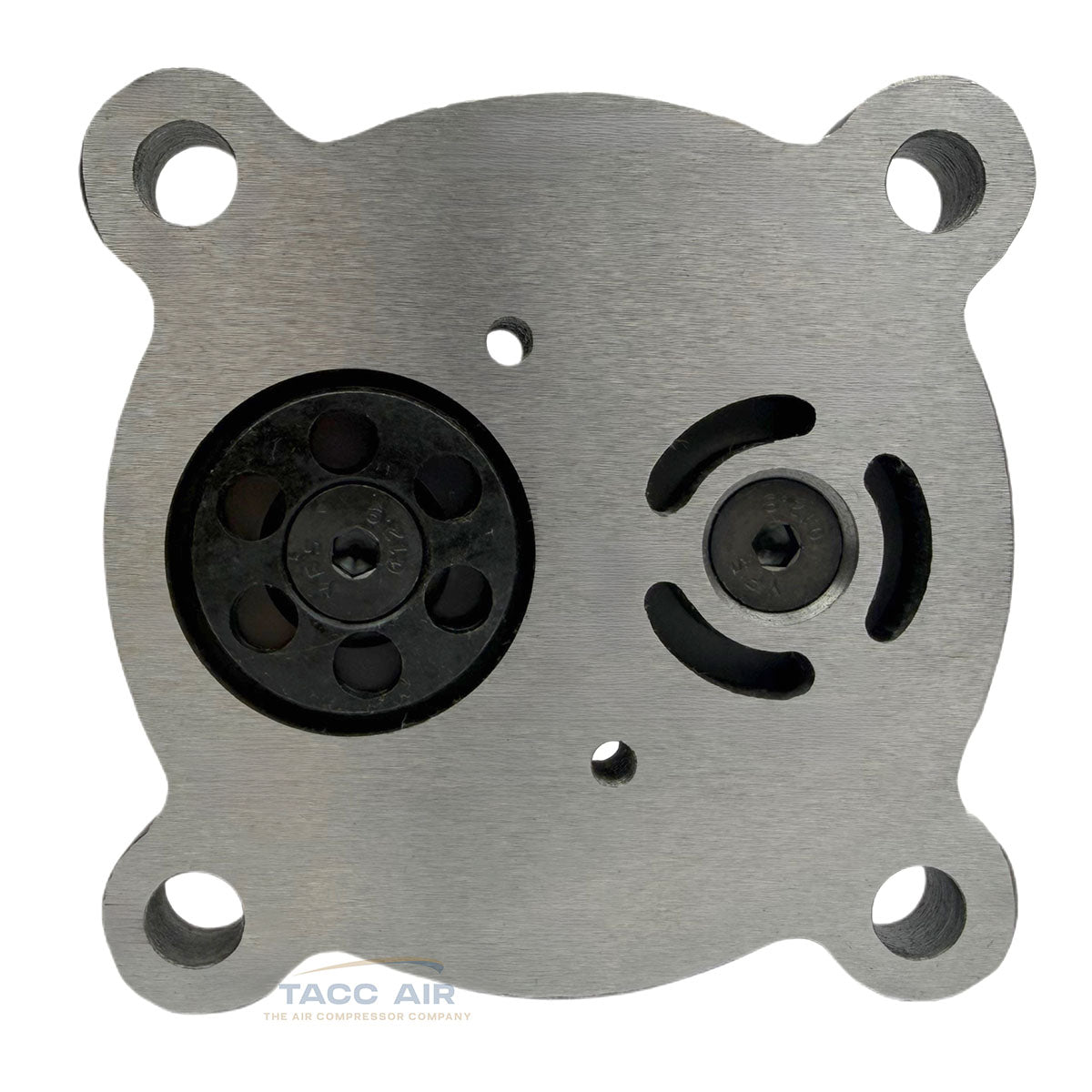

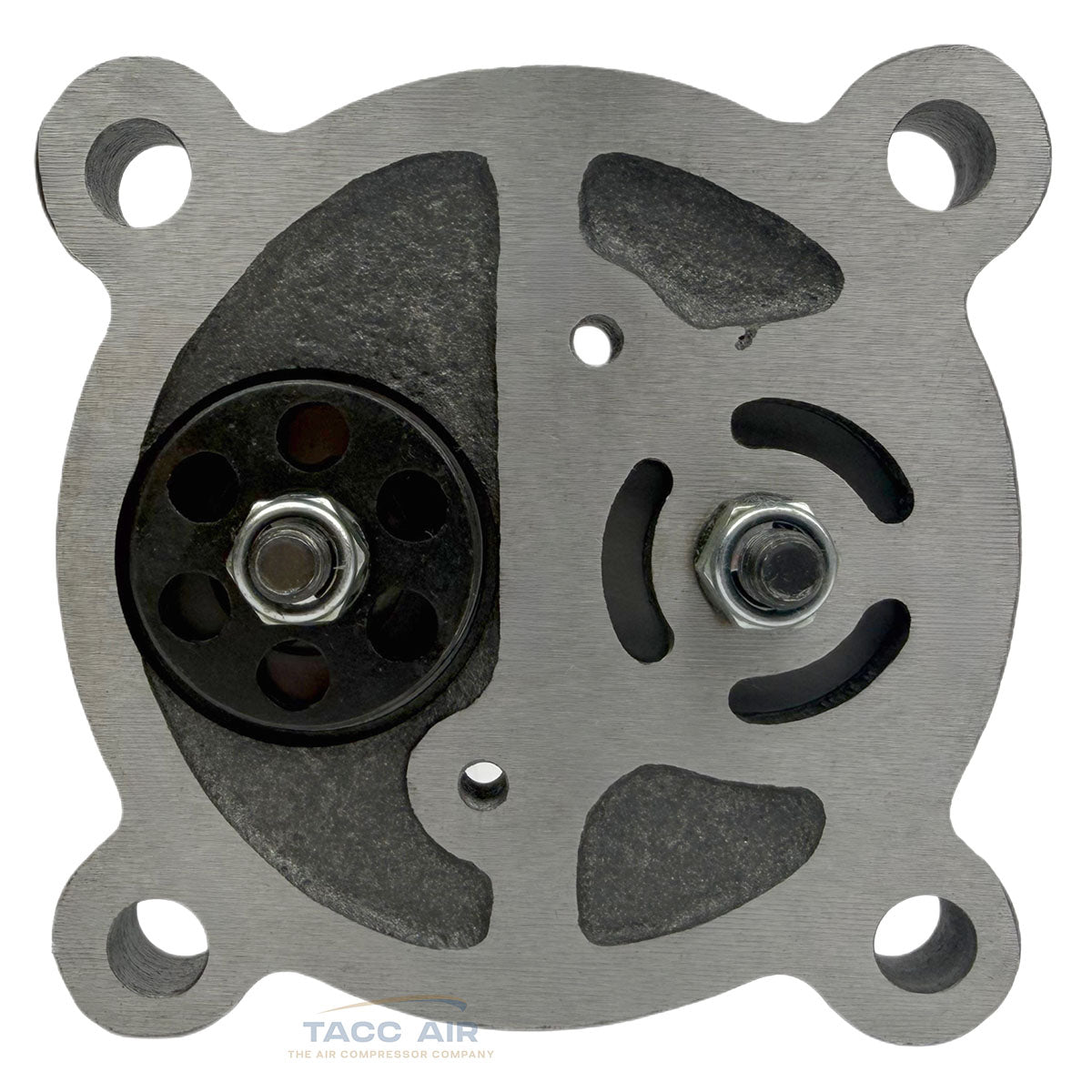

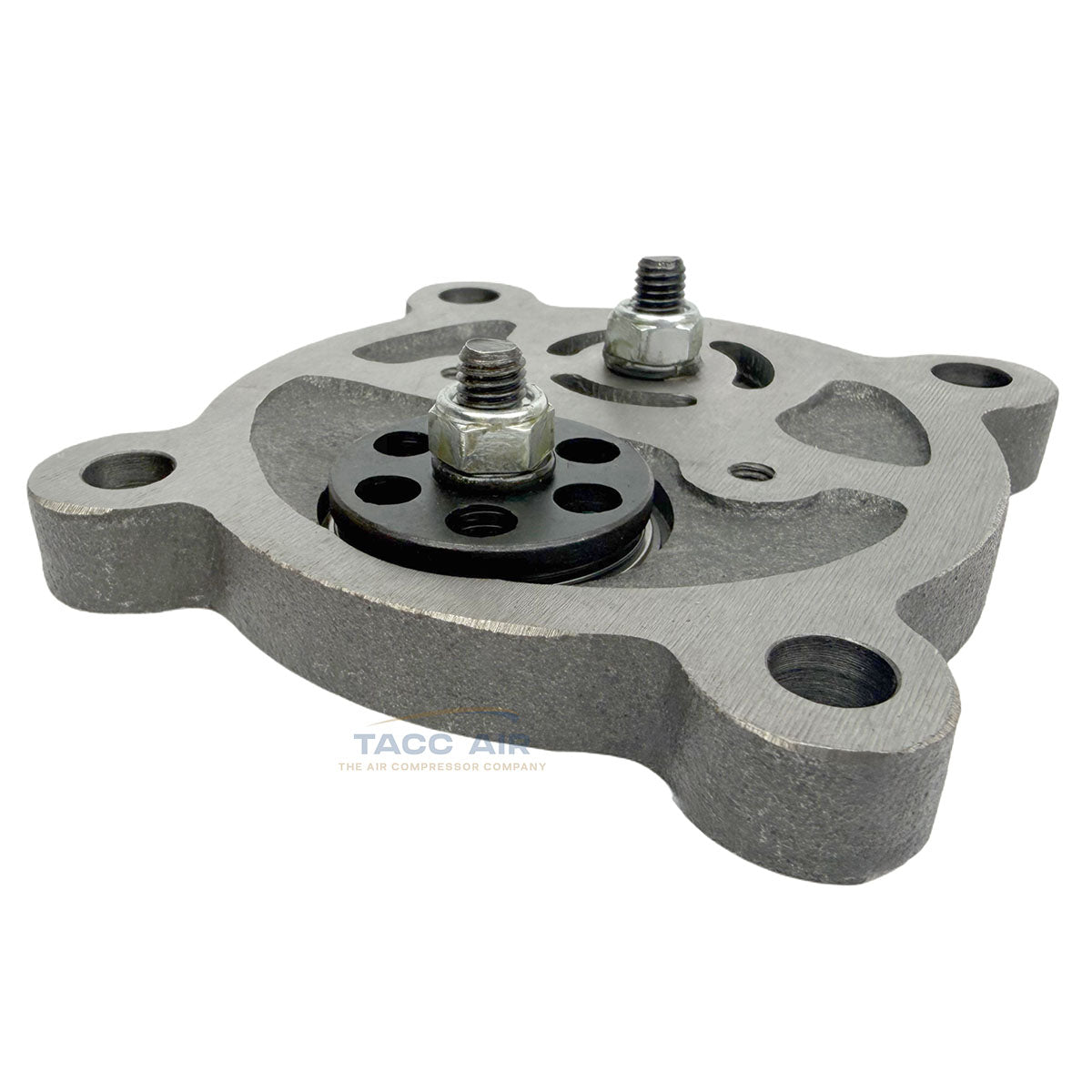

Puma Air Compressor 3B13-AP80 TK-50 Pump Low Pressure Valve Plate Assembly

3B13-AP80 Puma Air Compressor Valve Plate Assembly – TK-50 Pump (Low Pressure)

The 3B13-AP80 valve plate assembly is a direct-replacement valve plate designed specifically for the low pressure cylinders on Puma TK-50 air compressor pumps. This assembly is used on the low pressure cylinders. The low pressure cylinders can be identified by having air filters, the high pressure cylinder on the TK-50 pump will not have an air filter.

Important: This valve plate assembly is NOT compatible with TUK-50 pumps. The TUK-50 requires a different valve assembly.

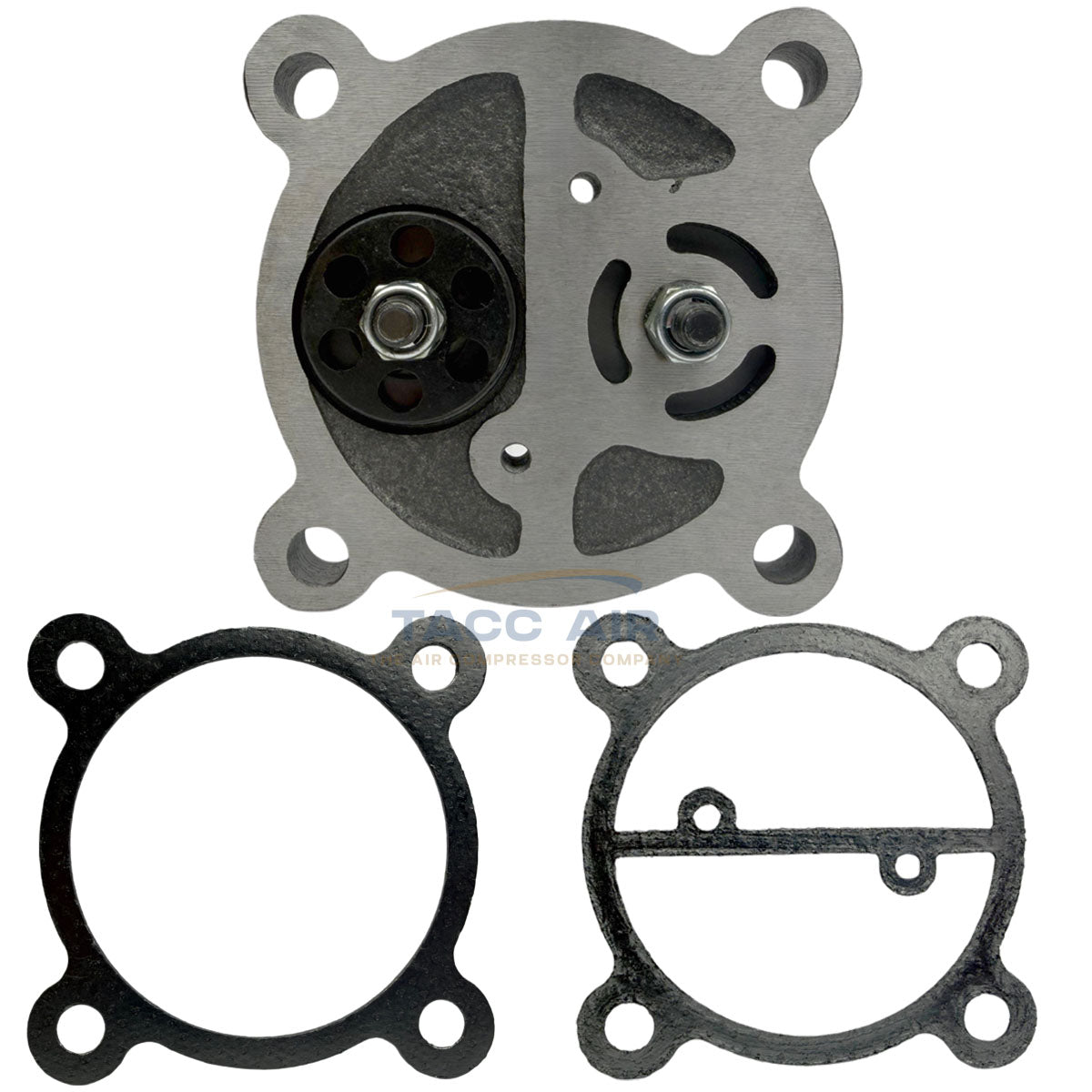

This is a complete assembly, including:

• Valve plate

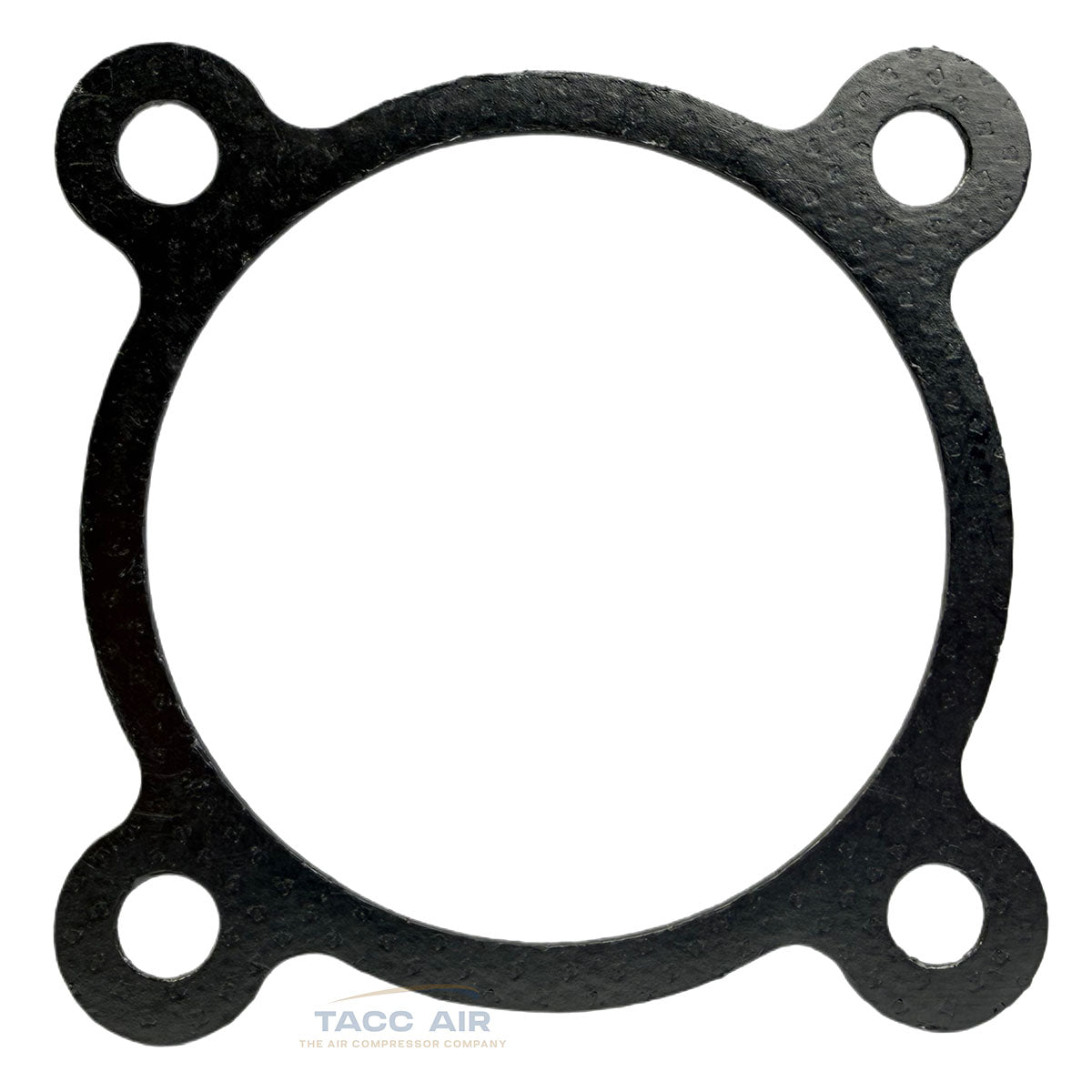

• Cylinder gasket

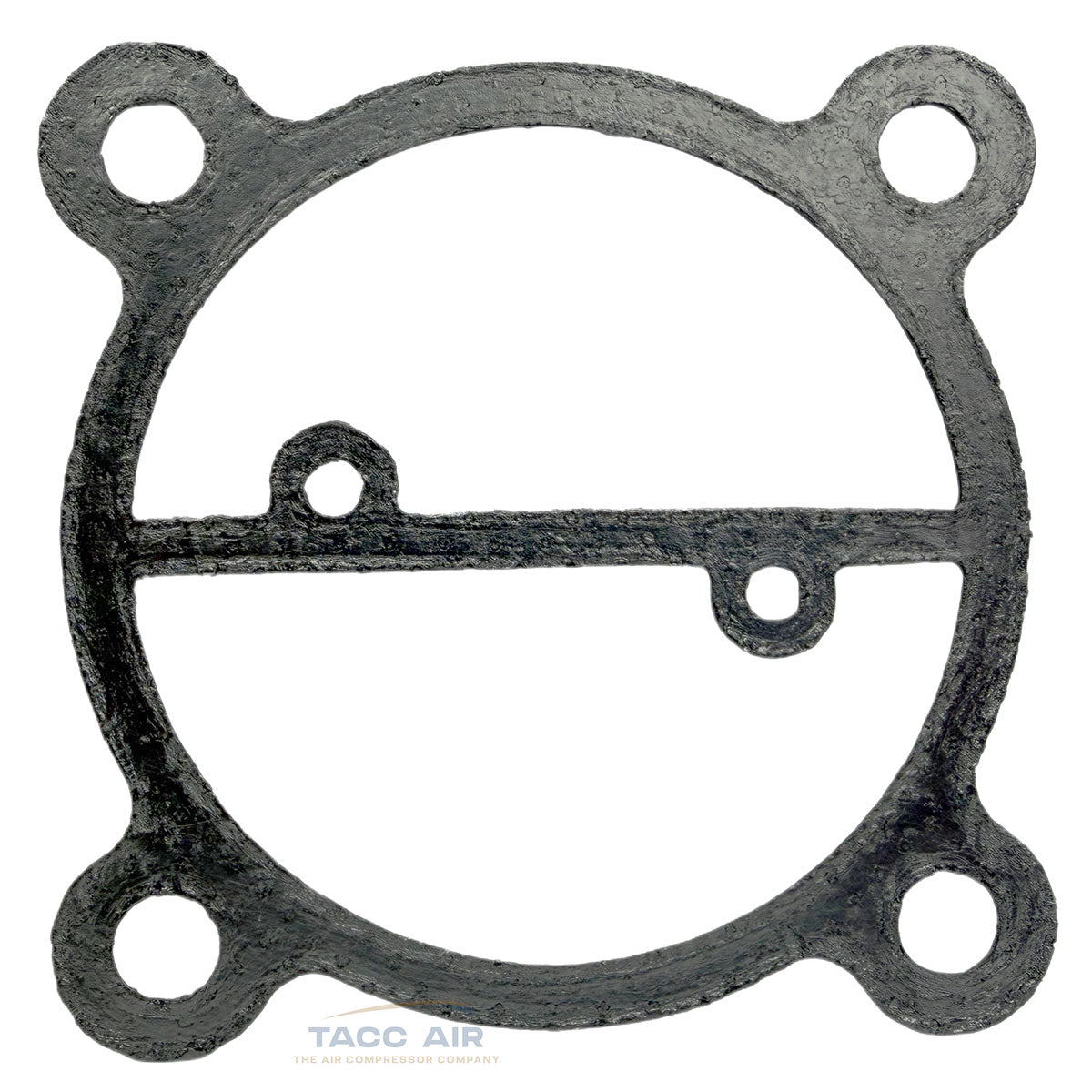

• Head gasket

Fitment & Compatibility

Fits the following Puma compressors equipped with a TK-50 pump:

• TK-5080V

• TK-5080H

• PP5

• Other models using the TK-50 pump (verify before ordering)


Specifications

• Part Number: 3B13-AP80

• Valve Plate Width: 4-1/8"

• Thickness: 9/16"

• Application: Low pressure cylinders only
