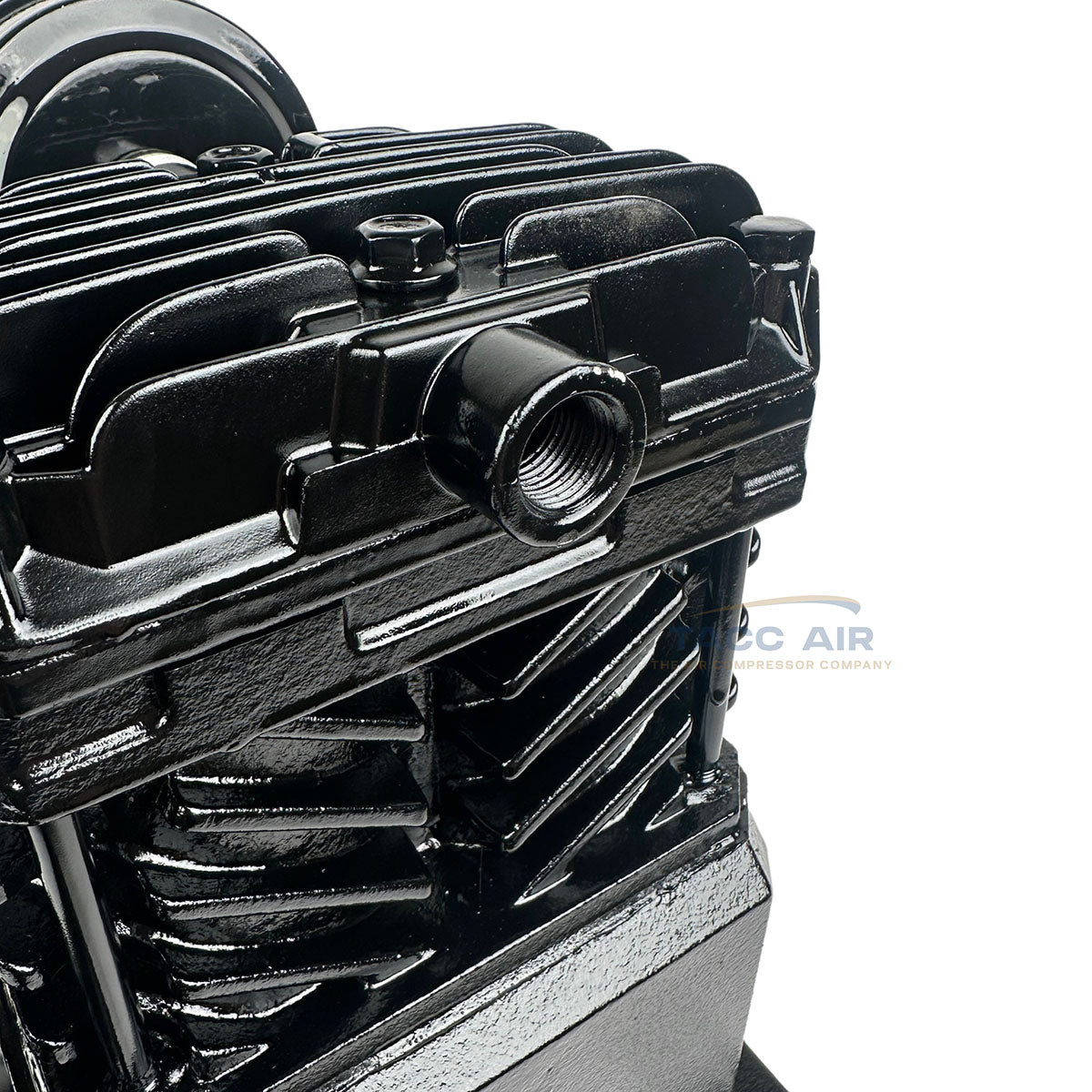

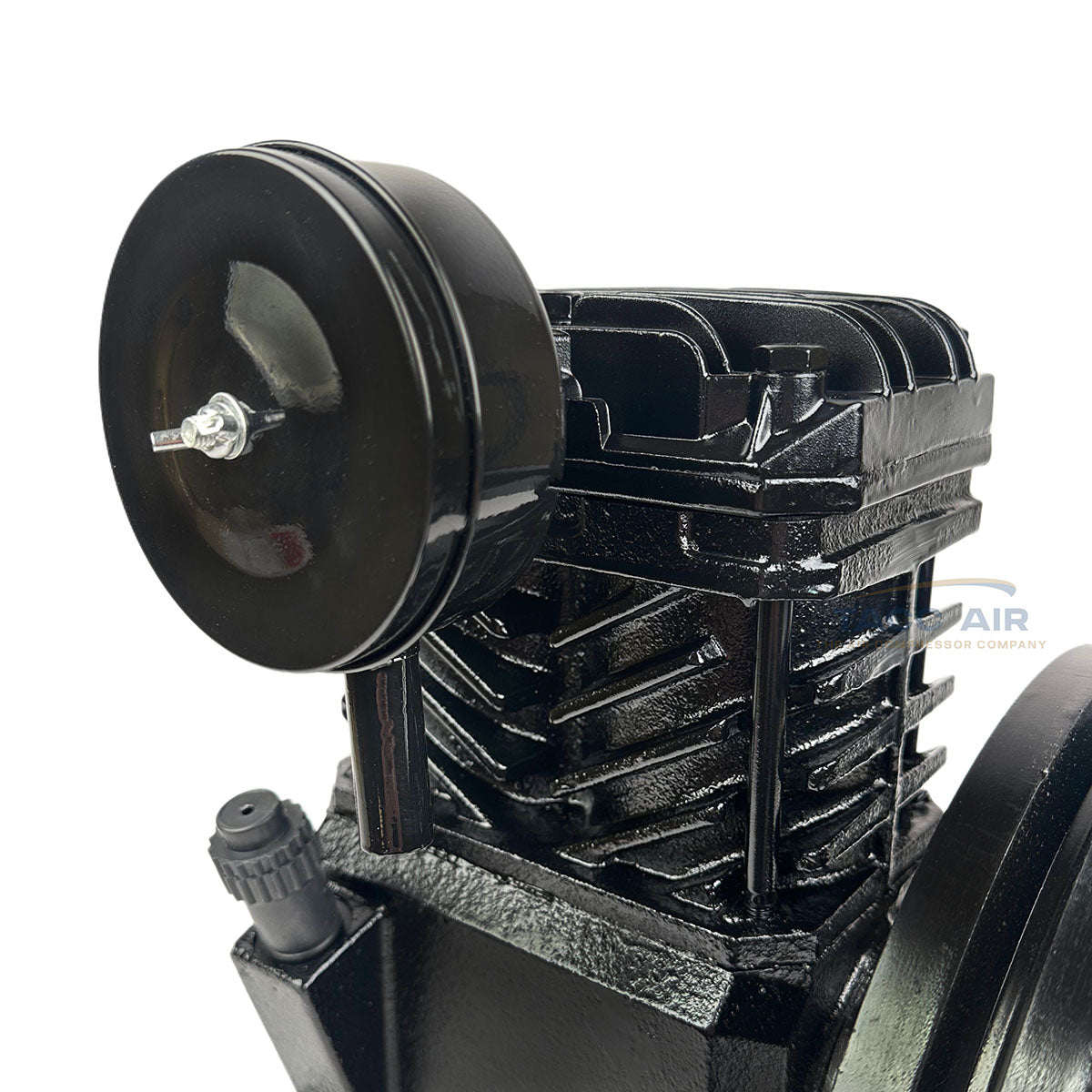

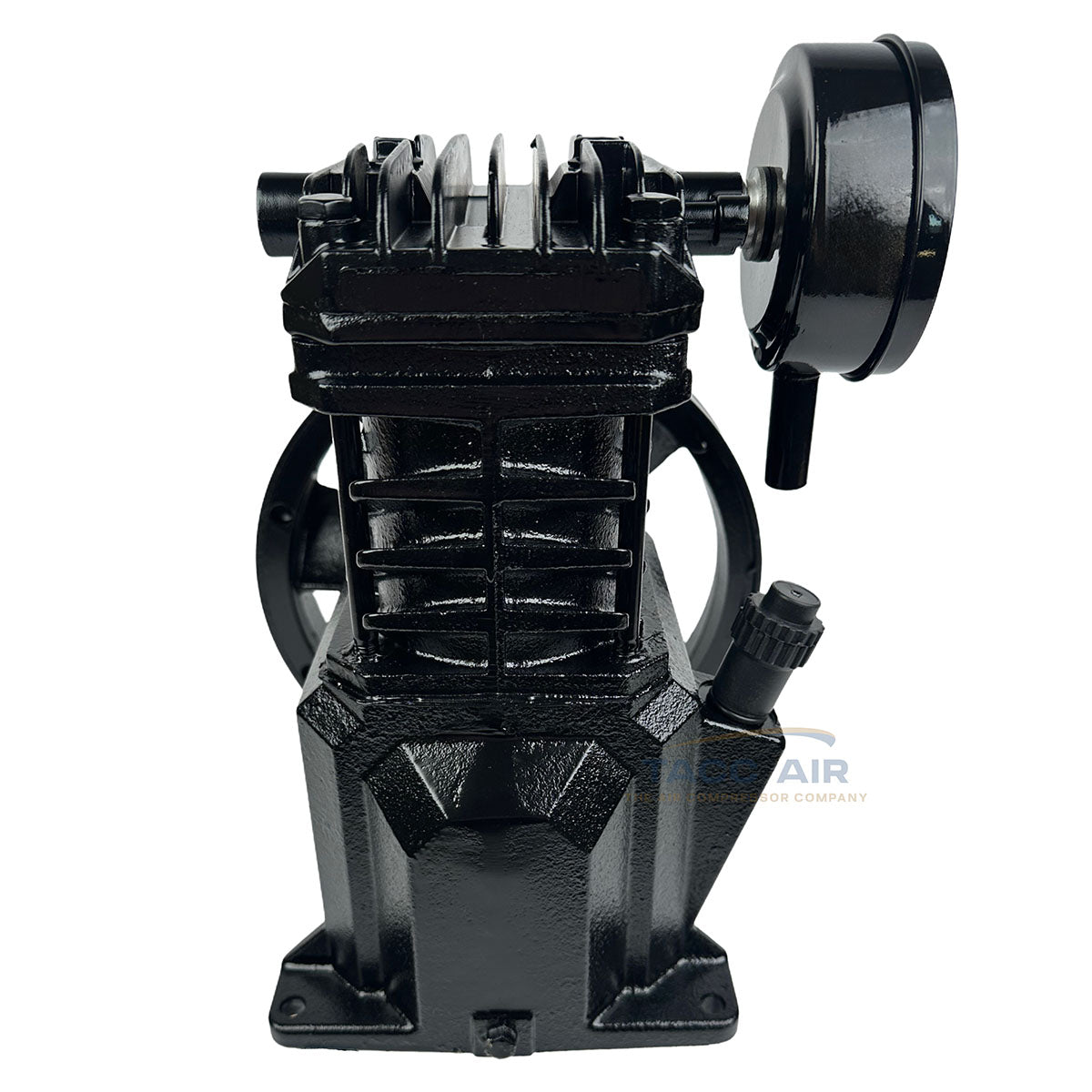

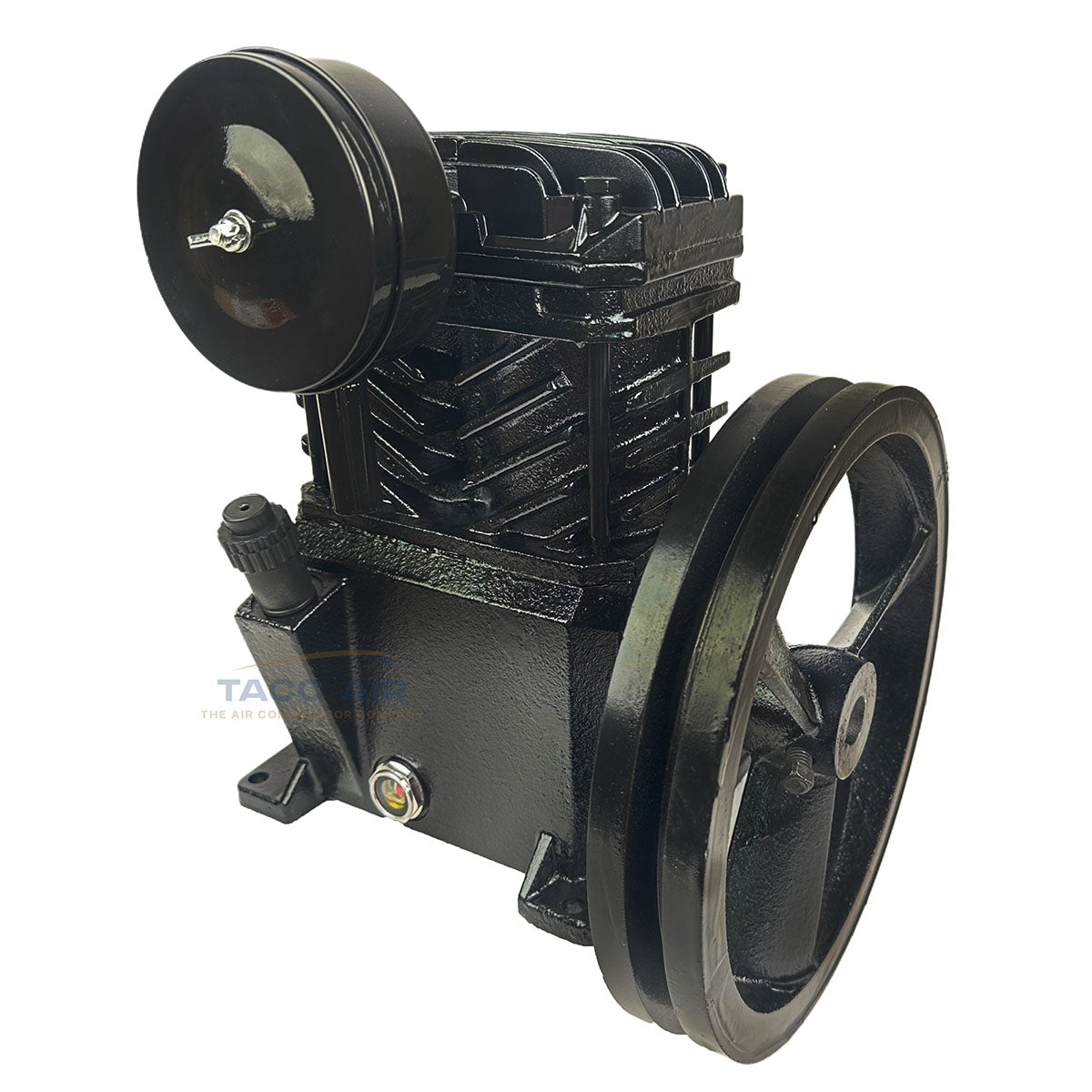

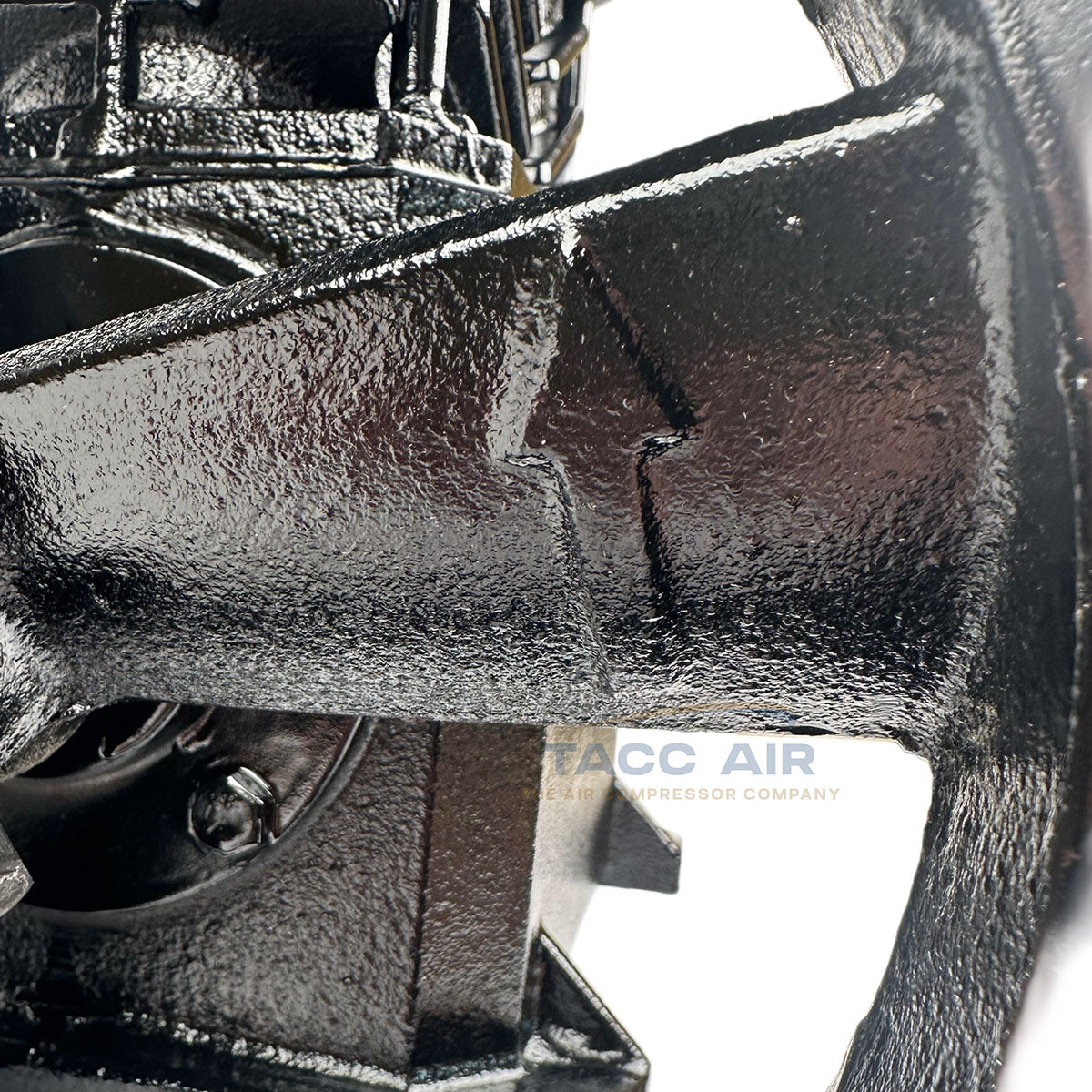

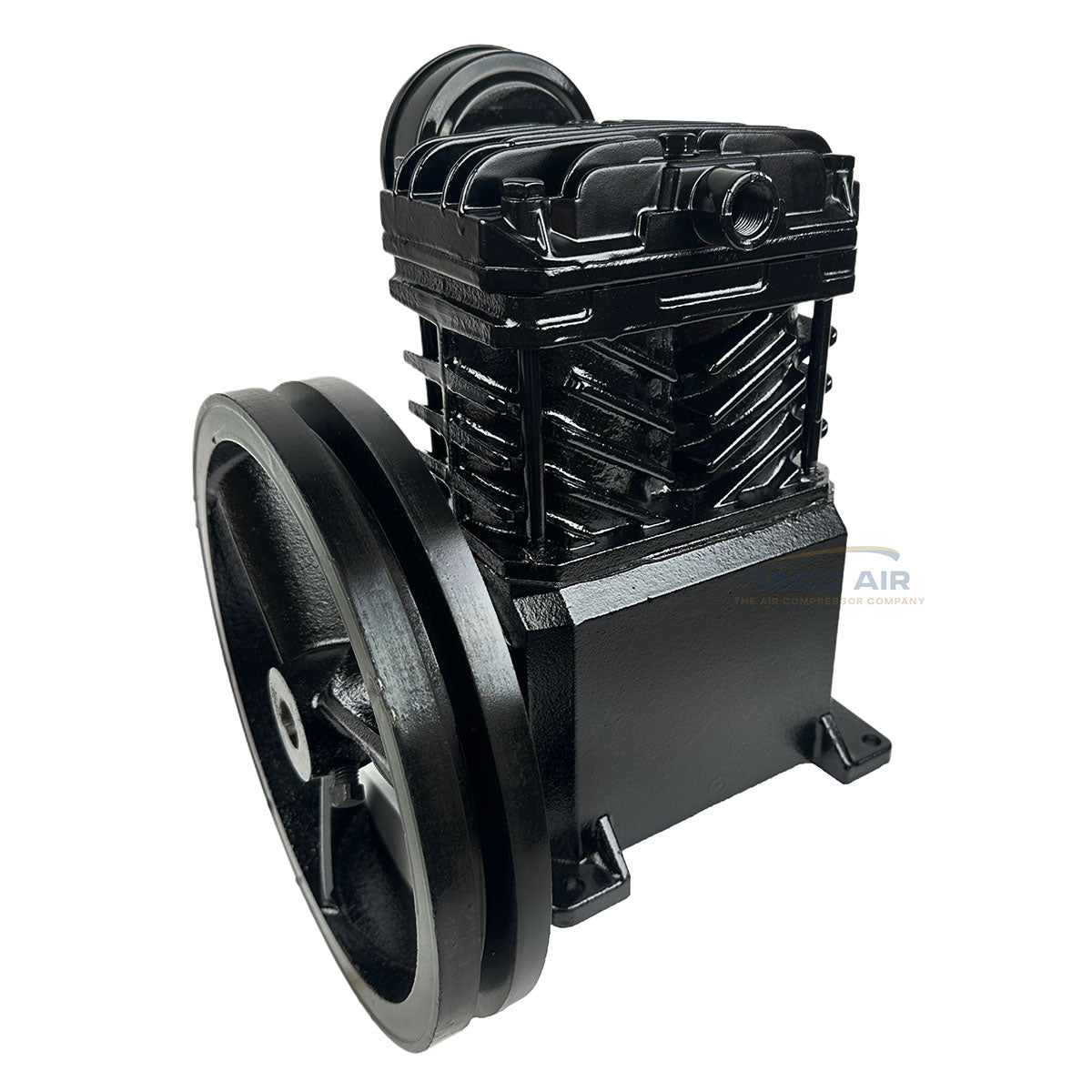

3HP Replacement Cast Iron Air Compressor Pump For Campbell Hausfeld VT4923

Heavy-Duty Cast Iron 3 HP Air Compressor Pump – Compatible Replacement for Campbell Hausfeld VT4923 & More

Upgrade or replace your current compressor pump with this brand-new 3 HP two-cylinder, single-stage air compressor pump, engineered for reliable performance and solid durability. Designed with a cast iron body and aluminum head for optimal heat dissipation, this pump delivers up to 12 SCFM at 90 PSI, making it ideal for use with up to 60-gallon air tanks.

Whether you're restoring a Campbell Hausfeld model or need a universal-fit replacement, this unit offers the power, quality, and specs to meet your needs. It comes with—intake filter, 10” V-belt pulley, two set screws for pulley, and crank case breather. Everything you need for installation right out of the box.

Please confirm the specifications and mounting dimensions before purchasing to ensure proper fit and compatibility for your compressor setup.

Note: This pump requires a true 3hp motor which would be at least 15 amps at 220 volt in order to be able to spin at max rpm and get the most out of the pump without overloading the motor. If you have questions about compatibility feel free to reach at anytime.

Key Features:

• 3 HP Pump

• Two-Cylinder, Single-Stage Design

• Durable Cast Iron Construction with Aluminum Head

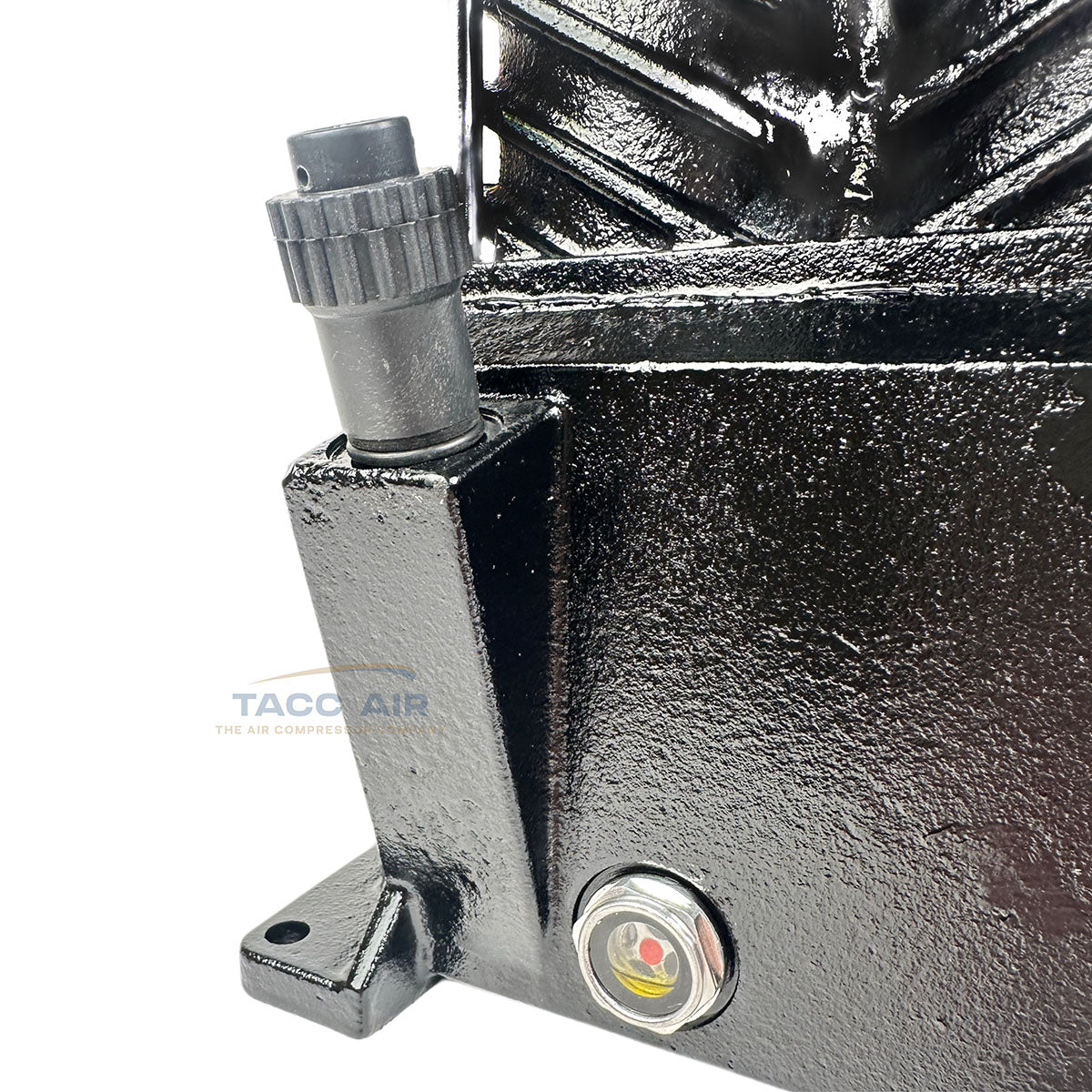

• Sight Glass For Easy Oil Level Visibility

•  10” Pulley with Dual Set Screws

• Includes Intake Filter

• Max Output: 12 SCFM @ 90 PSI

• Weight: 36.4 lbs

• Max RPM 1200

• Oil Drain Located Opposite Shaft for Easy Maintenance

• Works Best With Up To 60-Gallon Compressor Tanks

Thread & Mounting Specs:

• Intake Port: 1/2" FNPT

• Exhaust Port: 3/8" FNPT

• Mounting Hole Centers (Front to Back): 6-1/2"(When looking at flywheel)

• Mounting Hole Centers (Side to Side): 5-7/8" (When looking at flywheel)

Compatible With (But Not Limited To):

• Campbell Hausfeld Models: VT627000, VT622701, VT629100, VT203001, VT233301, VT4200, VT4101, VT510700, VT619504, VT558804, VT620800, VT627505, VT558701, VT623803AJ, VT635500, VT559506 and more.

• RIDGID: GP90135, GP90150A

• Maxus: EX8003, VT633001AJ

• Husky: VT6314HDRB

• Sears Craftsman: 106.174541, 106.153992

• Kobalt: VT6362

• Speedaire: 3Z408L, 5F214A

This pump is a versatile replacement solution for many air compressor brands. Still, it’s essential to verify measurements and specifications against your original unit for proper fitment and compatibility.
