5 HP Three Phase Magnetic Starter Motor Control Switch Box 460 - 480 Volt 3 PH

5 HP Magnetic Motor Starter Control Box – Three Phase, 460-480V, Adjustable Overload 7-11 A, With Steel Enclosure for Air Compressors, HVAC, and Equipment

Product Description:
This 5HP magnetic motor starter is 460-480V, three-phase. This starter is a perfect solution for controlling air compressors, pumps, fans, and other equipment requiring reliable motor protection.

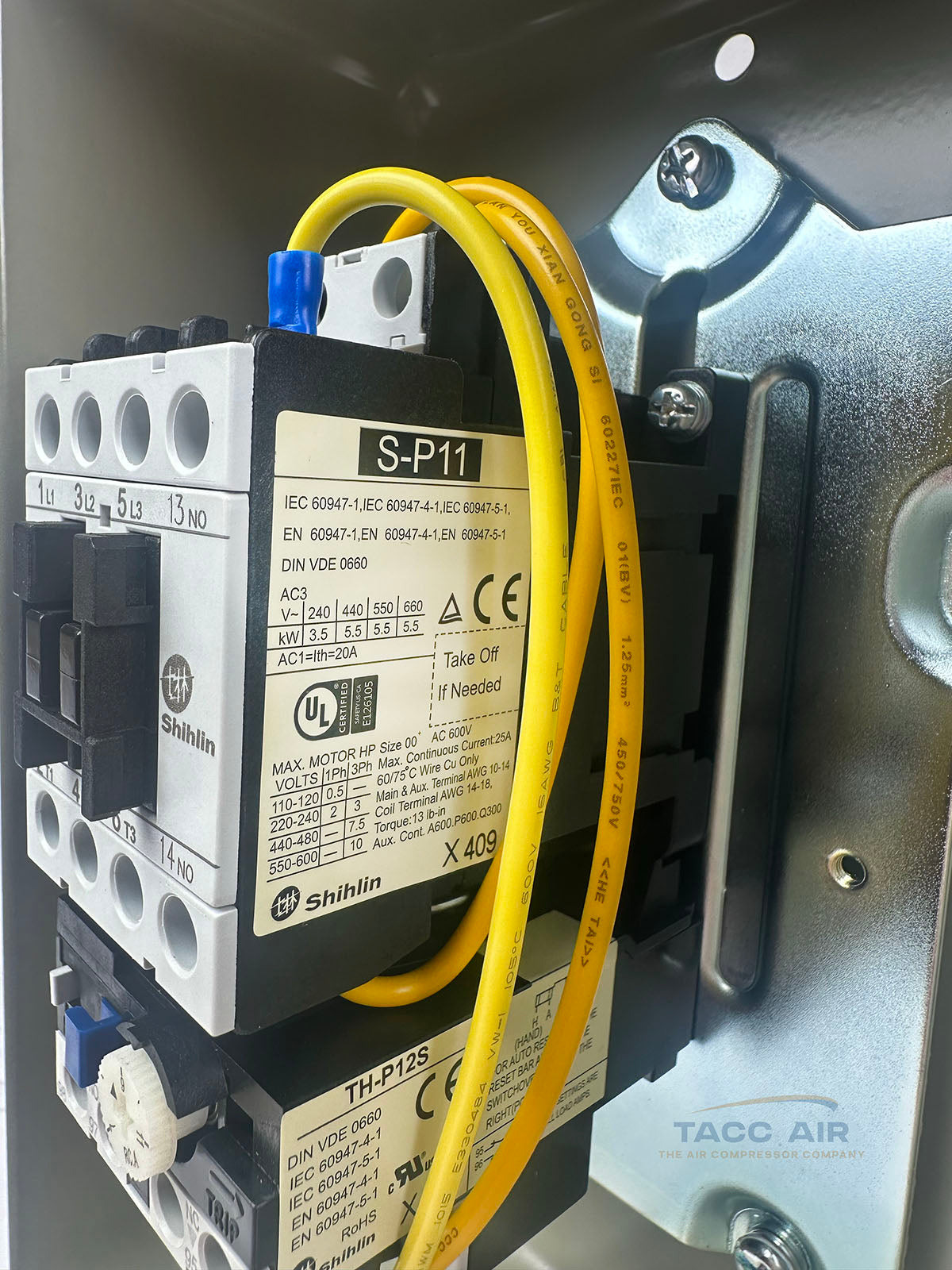

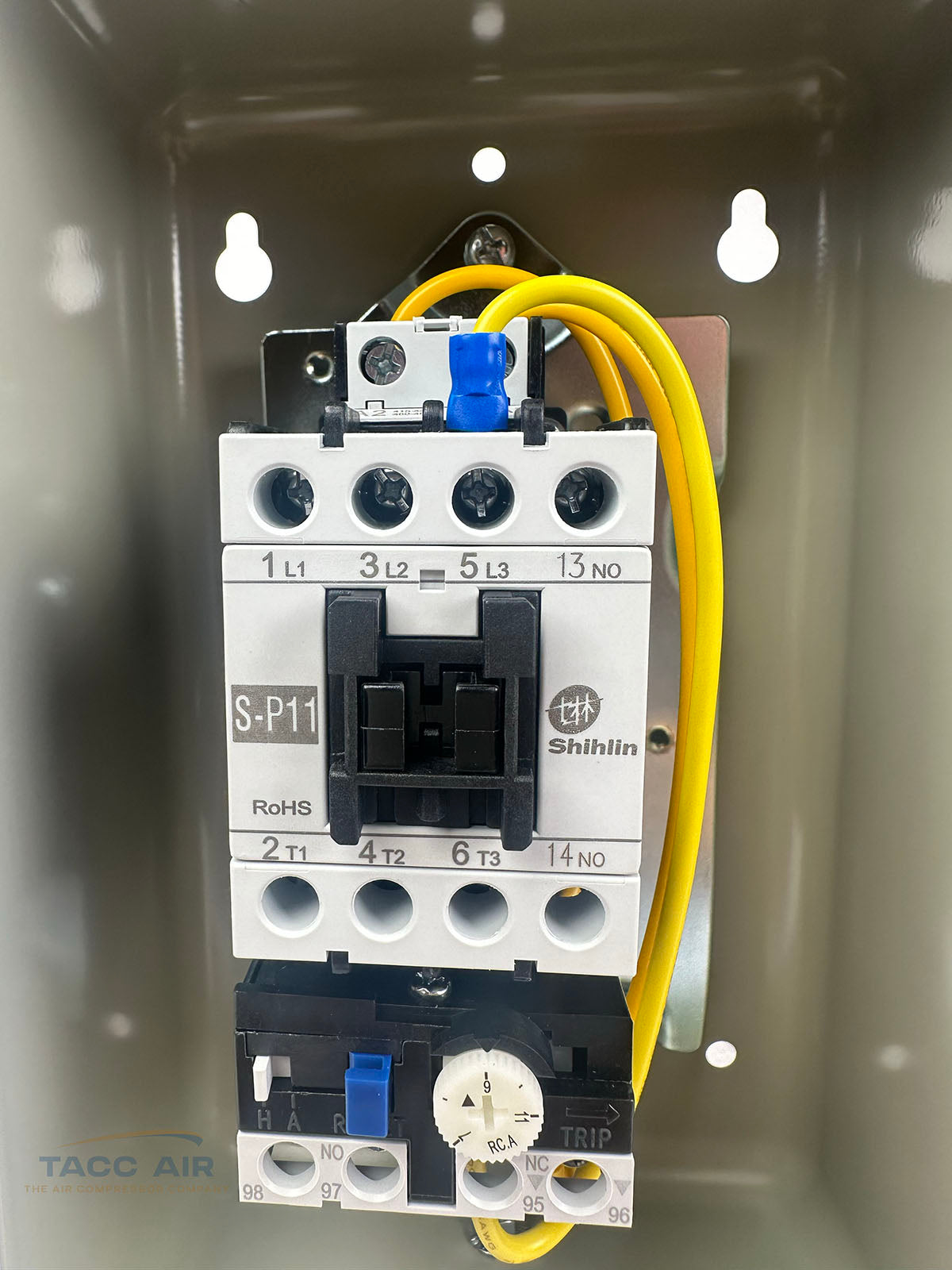

Equipped with an adjustable overload relay (7-11 amps), it safeguards your motor from overcurrent damage while offering the ease of fine-tuning for your setup.

This unit includes four 1" pre-punched knockouts for wire entry and four rubber grommets to keep your wiring protected. A manual reset button can be set to automatic for flexible operation, depending on your control system needs.

Ideal for compressor applications, this starter reduces load stress on pressure switches and extends system life when used alongside a compatible pressure switch (sold separately).

Specifications:

• Motor Size Compatibility: 5 Horsepower (HP) Recomended

• Voltage: 460-480V AC, Three Phase

• Overload Range: Adjustable from 7 to 11 Amps

• Reset Function: Manual or Auto Reset Options

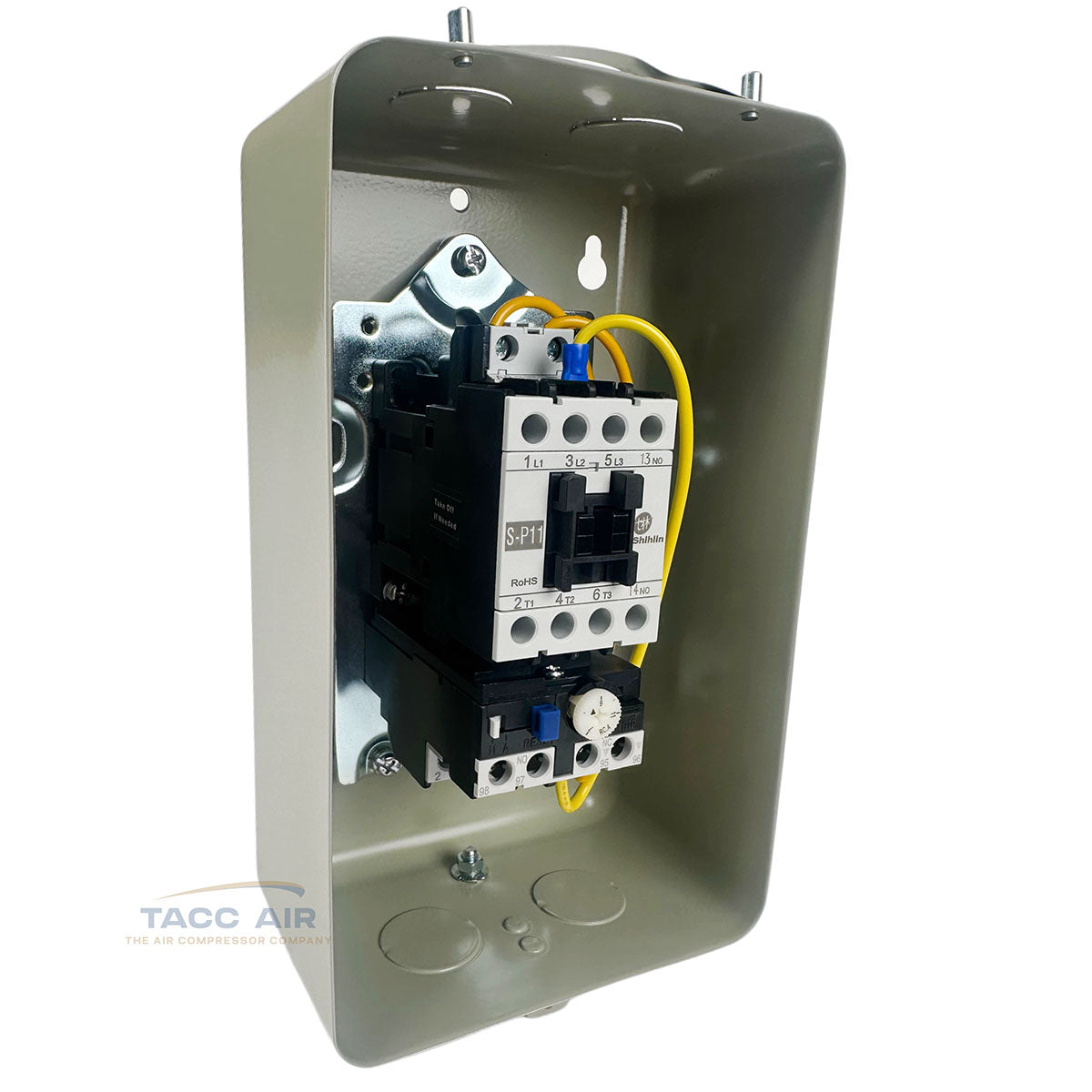

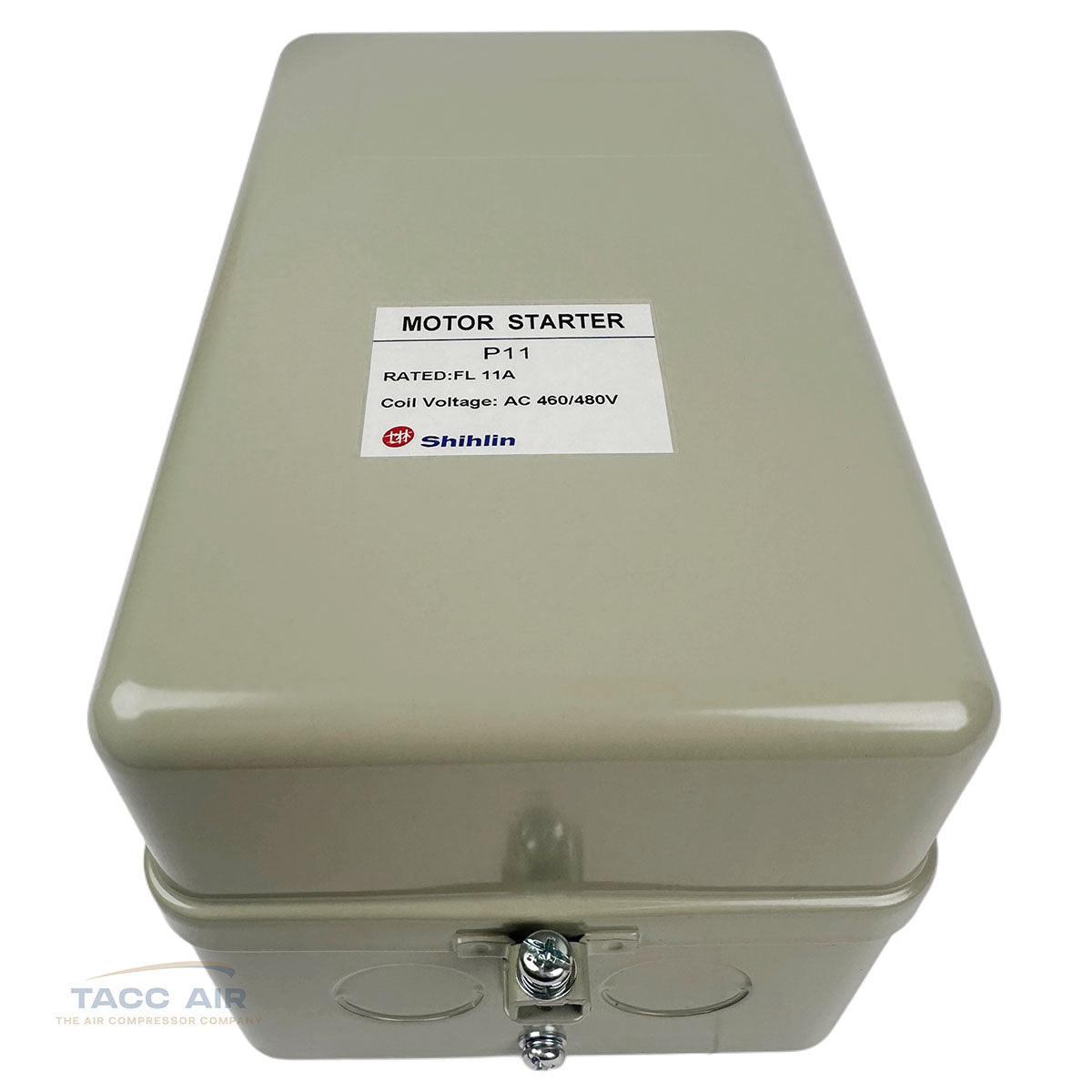

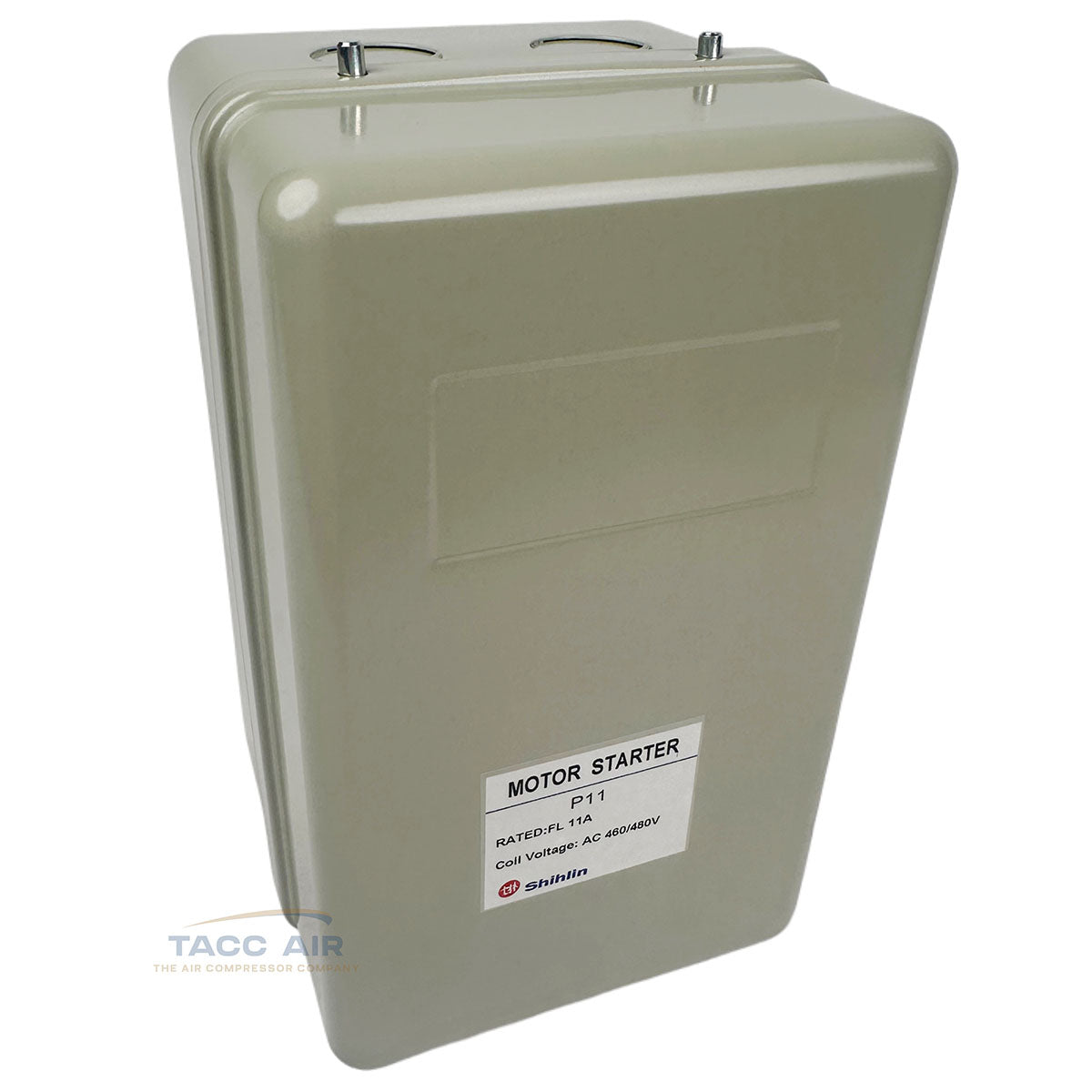

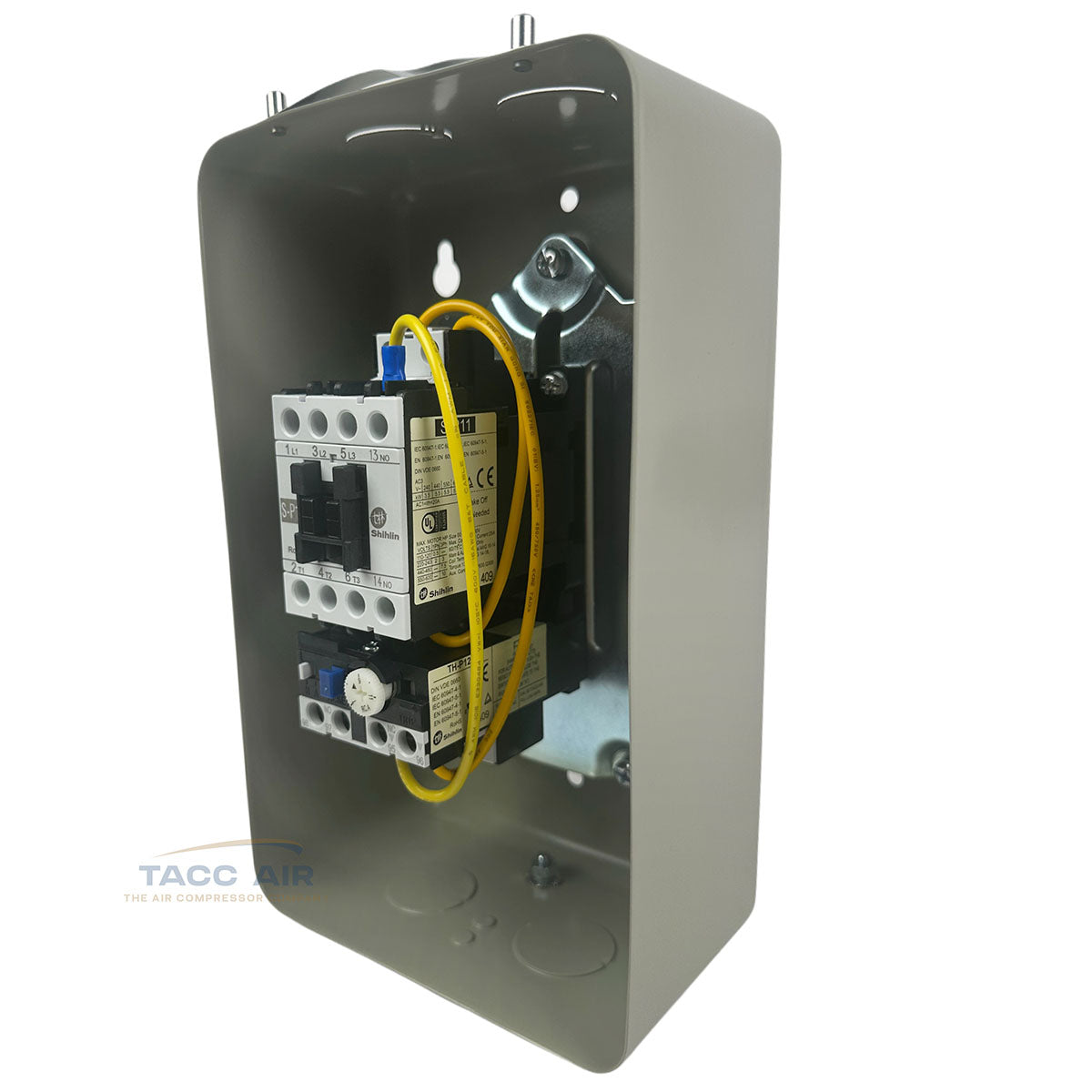

• Steel Enclosure: For durability and protection

• Knockouts: Four punch-out holes (1") for wire entry/exit

• Rubber Grommets Included: Four 1" protective wire grommets

• Starter Dimensions (H x D x W): 9.5" x 5" x 5-1/4"

• Installation: Professional installation is required
