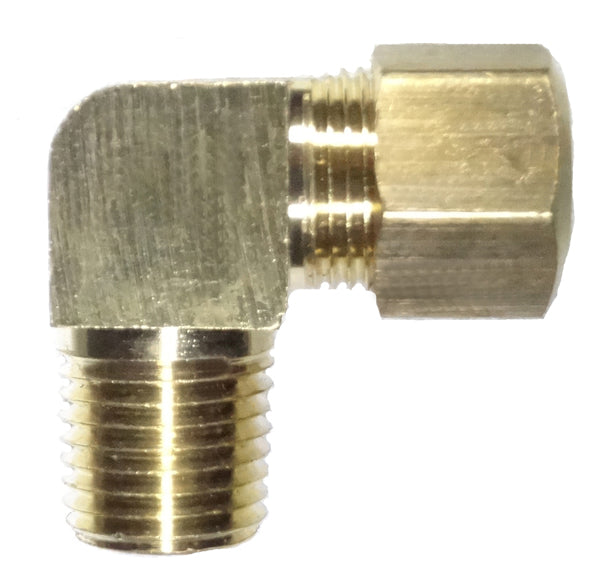

1/4" Compression x 1/8" Male NPT 90 Degree Brass Compression Elbow Pipe Fitting

1/4" Compression x 1/8" Male NPT Brass Barstock 90° Elbow

This 1/4" compression x 1/8" male NPT brass barstock 90-degree elbow is designed to adapt 1/4" OD tubing to 1/8" NPT pipe thread at a 90-degree angle. Manufactured from solid brass barstock, this fitting provides excellent durability, corrosion resistance, and reliable sealing performance in demanding applications.

It is compatible with copper, aluminum, nylon, and polyethylene (poly) tubing with a 1/4" outside diameter. Commonly used in air, water, and gas systems, this fitting is intended for use with non-corrosive fluids and gases suitable for brass.

Note: The 1/8" male NPT thread measures approximately 3/8" in outside diameter for reference. The compression end must be used specifically with 1/4" OD tubing.

Features & Specifications

• 1/4" Compression x 1/8" Male NPT connection

• 90-degree elbow configuration

• Solid brass barstock construction

• Compatible with copper, aluminum, nylon, and poly tubing

• Suitable for air, water, and gas applications

• Temperature range: -65°F to +250°F (-53°C to +121°C)

• Meets ASA, ASME, and SAE specifications

• Contains lead

Ideal for pneumatic systems, air compressors, industrial equipment, and general plumbing or mechanical applications where a compact 90-degree transition is required.
