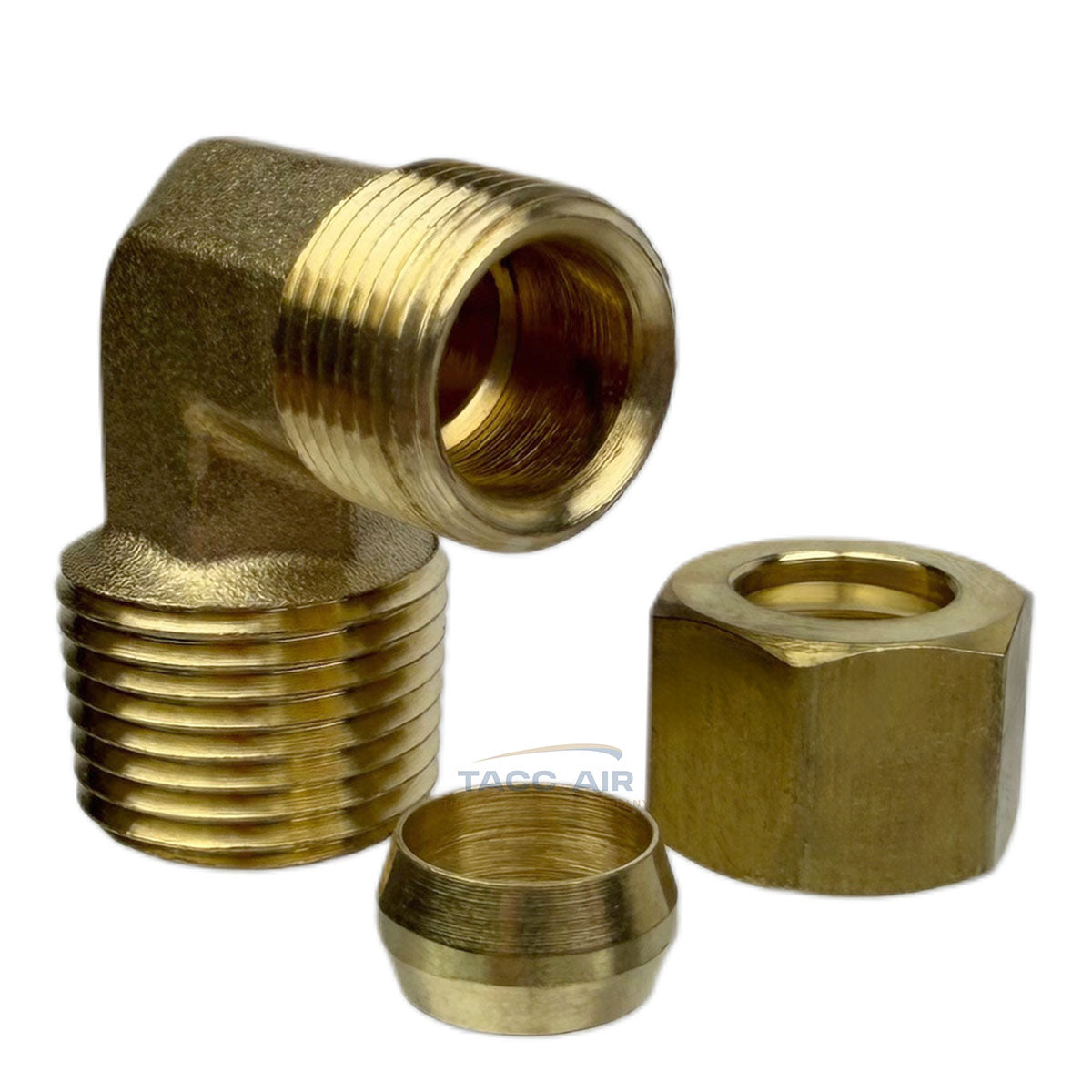

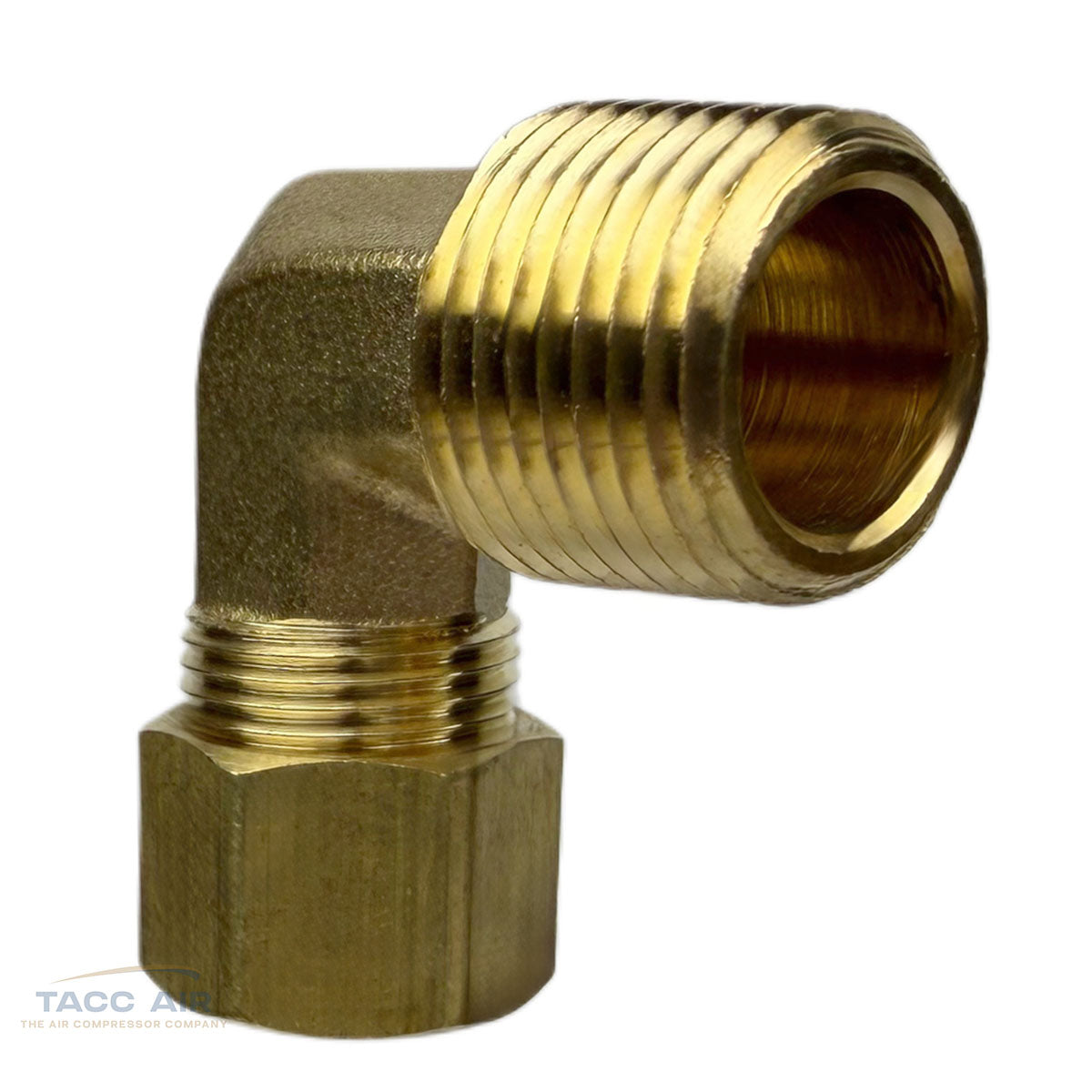

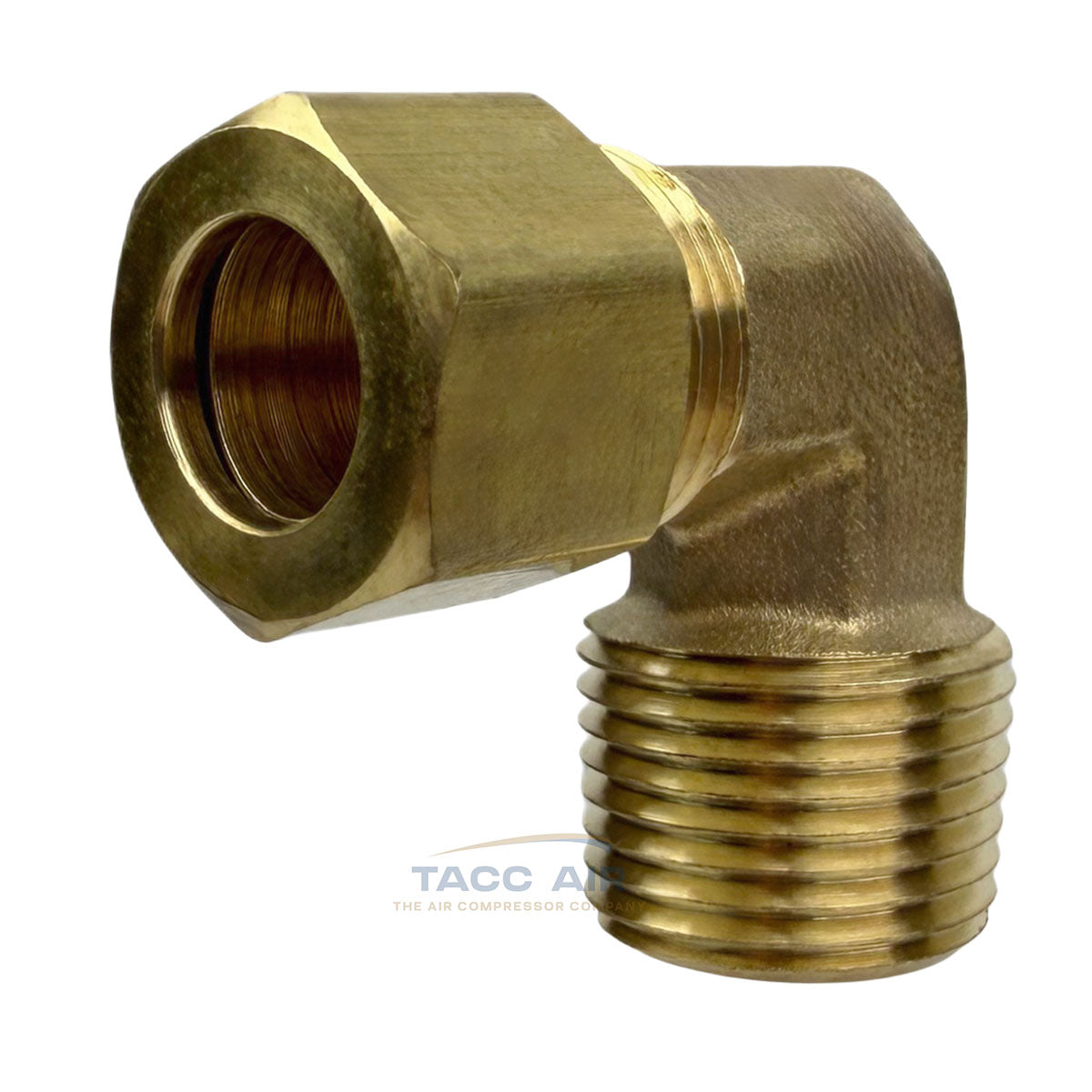

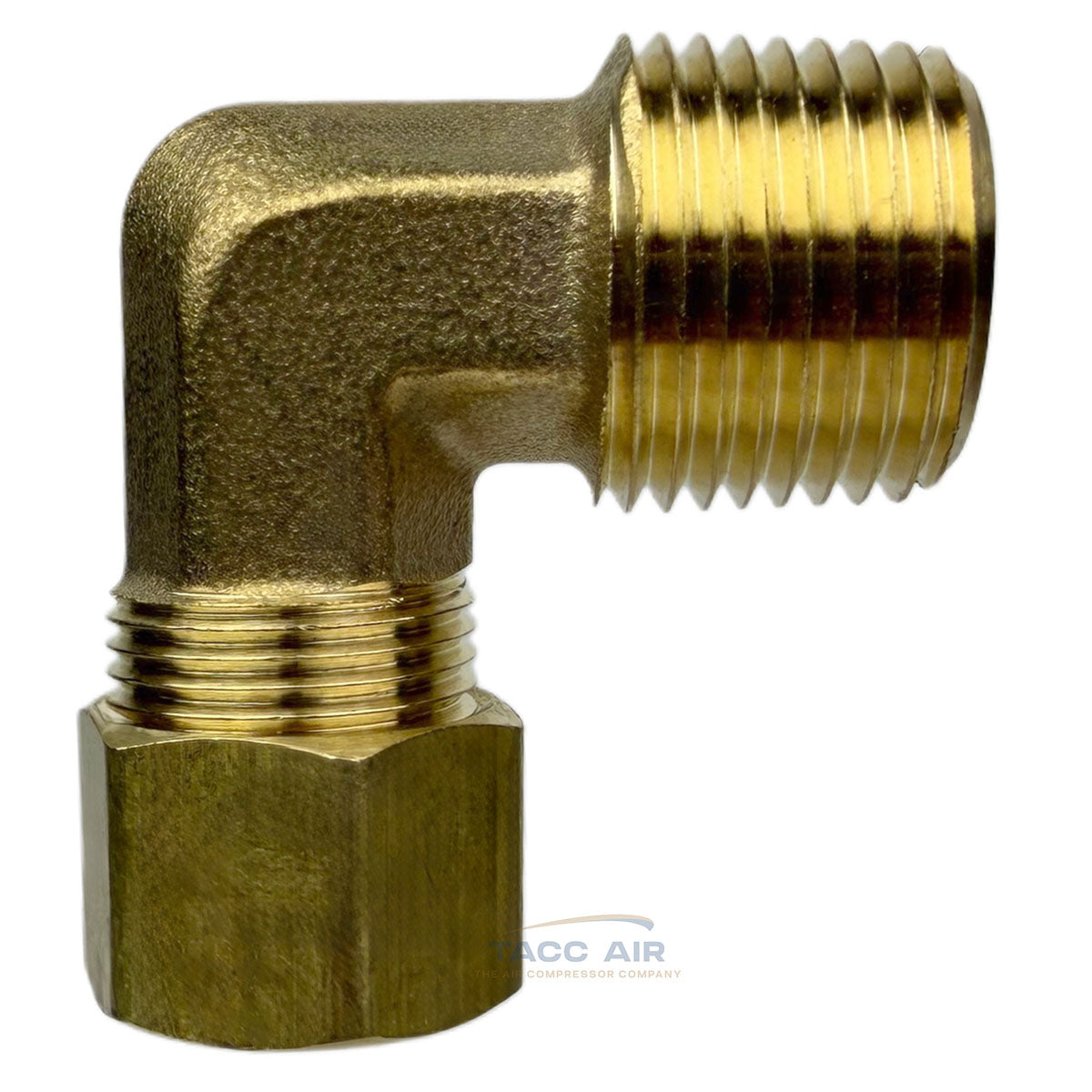

3/8" Compression x 3/8" Male NPT 90° Compression Brass Elbow Fitting 69EEE

This 3/8" Compression x 3/8" Male NPT Forged Brass Elbow is built for reliable, leak-resistant connections in low to medium pressure systems. Designed to work seamlessly with copper, aluminum, and thermoplastic tubing, it’s an ideal choice for plumbing, industrial, and general-purpose fluid transfer applications where movement and vibration are minimal.

The 90-degree design allows for tighter installation in compact spaces, and its forged brass construction ensures strength, durability, and long-term resistance to corrosion. Built to meet ASA, ASME, and SAE standards, this elbow fitting is ready to deliver professional performance.

Specifications:

• Size: 3/8" Compression x 3/8" Male NPT

• Material: Forged brass for enhanced durability

• Working Pressure: Up to 200 PSI

• Temperature Range: -65°F to +250°F (-53°C to +121°C)

• Tolerance: +/- .02

• Vibration Resistance: Fair (not intended for high-vibration environments)

• Standards: Compliant with ASA, ASME, and SAE

• Application: Suitable for copper, aluminum, and thermoplastic tubing (not recommended for steel or gas applications)

Note: Not intended for use in potable water systems. Contains lead.
