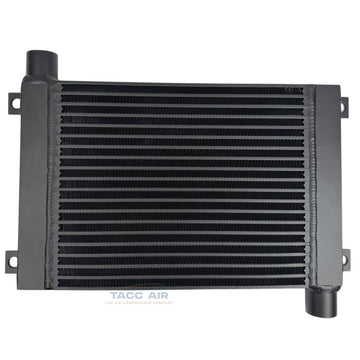

Belt Guard Aftercooler For 5-7.5 Horsepower Compressor 3/4" Female NPT Connections
Belt Guard Aftercooler For 5-7.5 Horsepower Compressor 3/4" Female NPT Connections

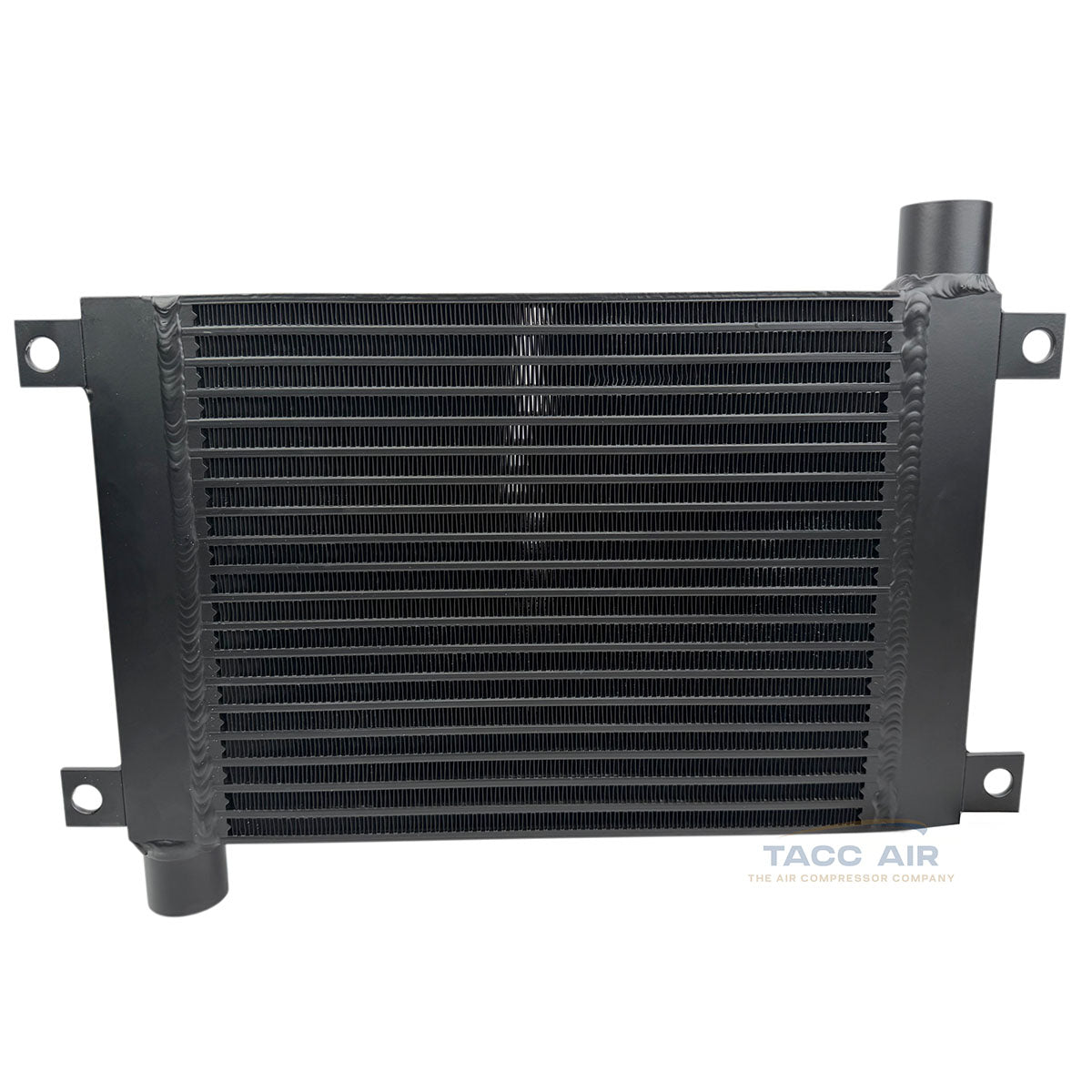

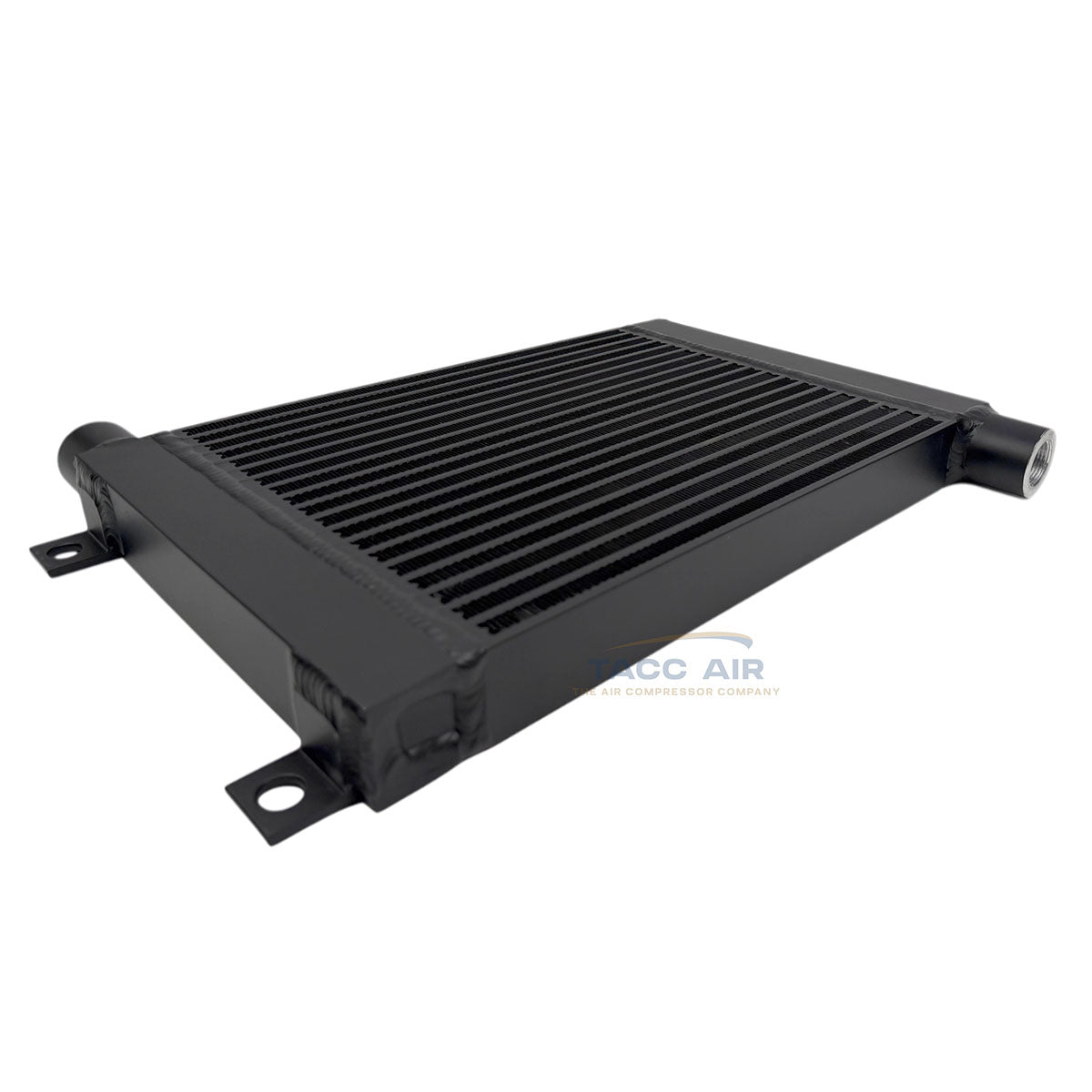

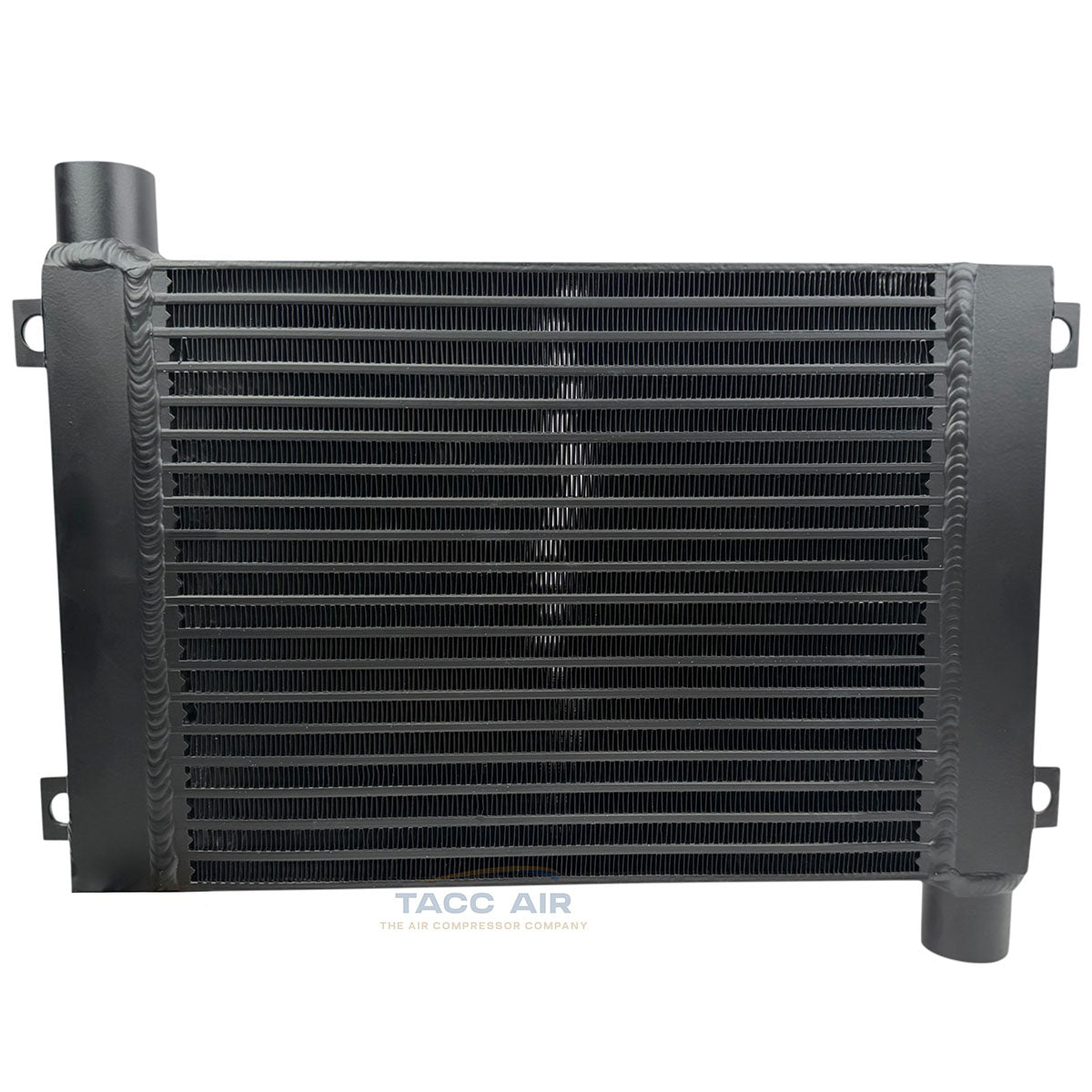

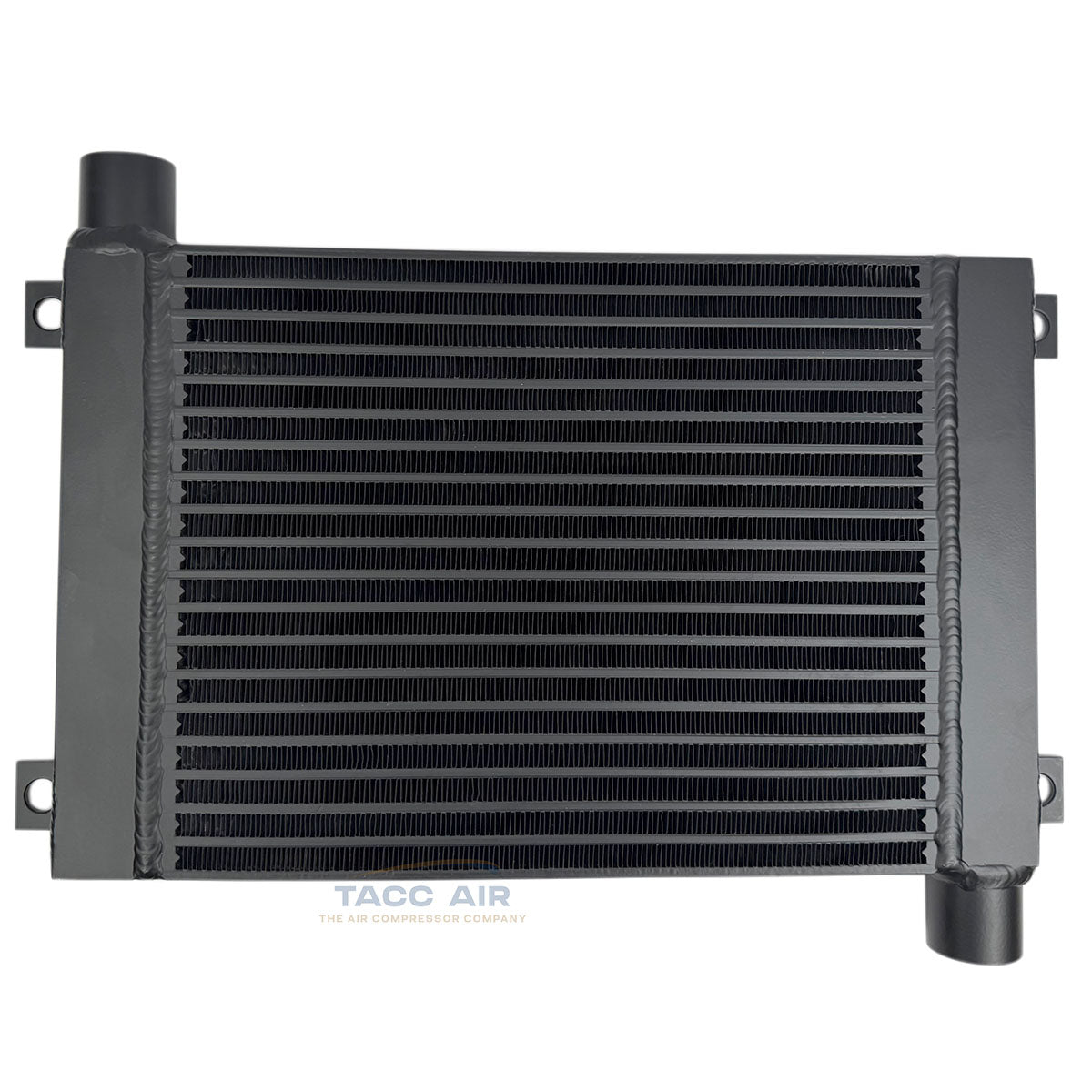

Belt Guard Aftercooler For 5-7.5 HP Air Compressors With 3/4" Female NPT Connections
Reduce compressed air temperatures and improve the performance of your compressed air system with this Belt Guard Aftercooler. Designed for 5-7.5 HP belt-driven reciprocating air compressors, this aftercooler helps cool compressed air before it enters the receiver tank or downstream filtration equipment.
Compressed air leaving the compressor pump can exceed 300°F, carrying a large amount of water vapor. As the air cools, this vapor condenses into liquid water, allowing it to be removed by your tank drain, moisture separator, or filtration system. Cooling the air before it reaches your filters and dryers helps improve their efficiency and can reduce maintenance costs.
Features:
- Fits most 5-7.5 HP belt-driven air compressors
- Part Number: BLD1335

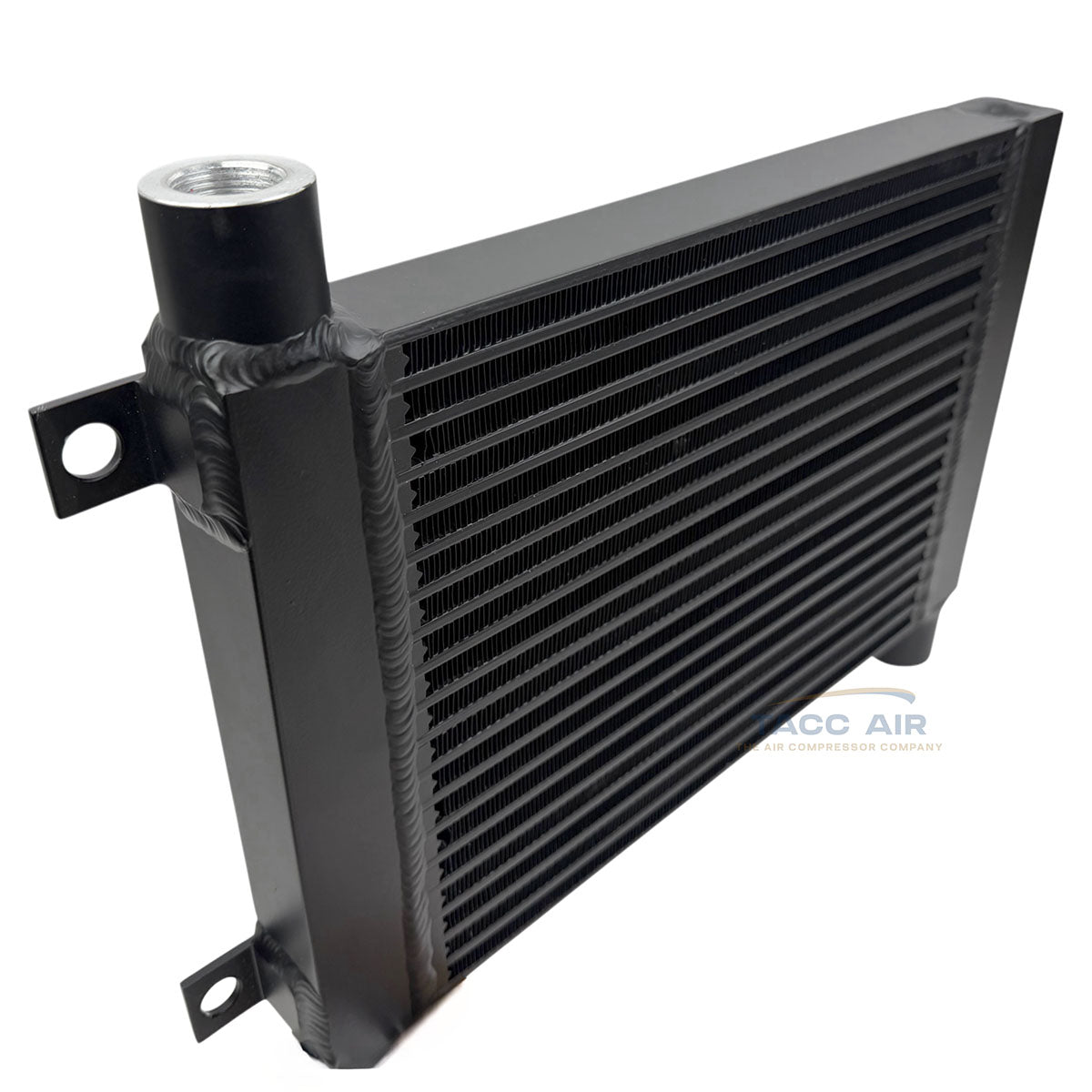

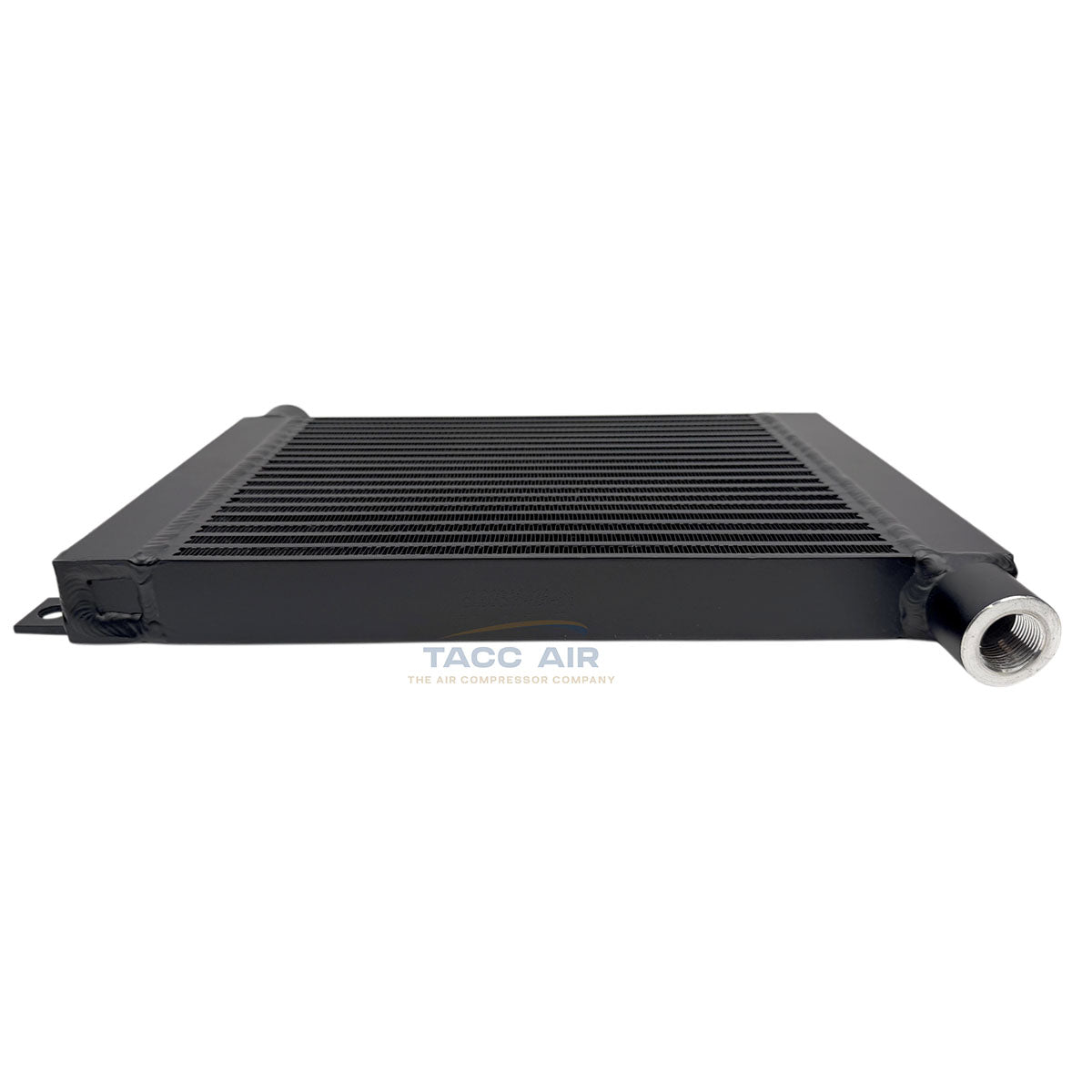

- 3/4" Female NPT inlet and outlet connections

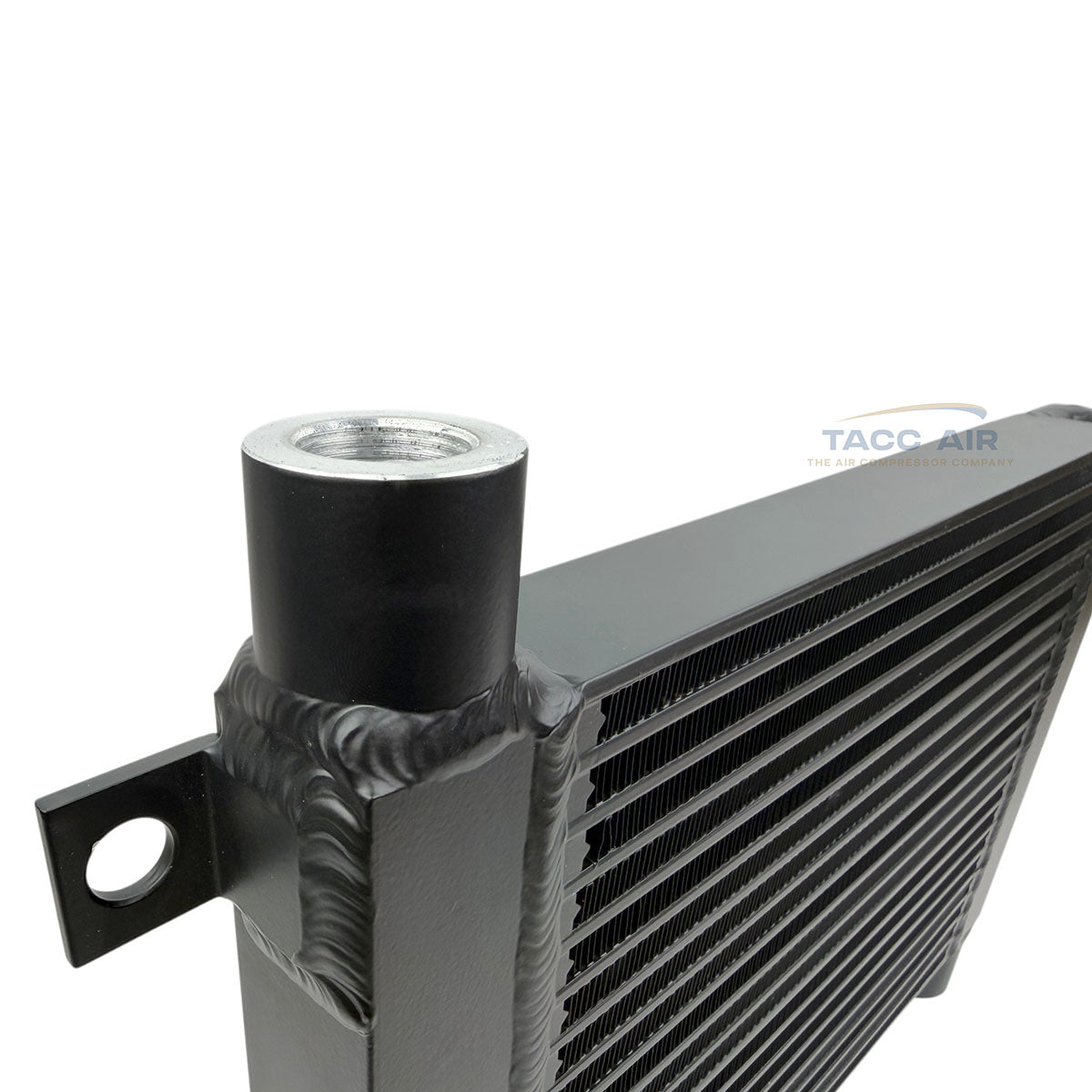

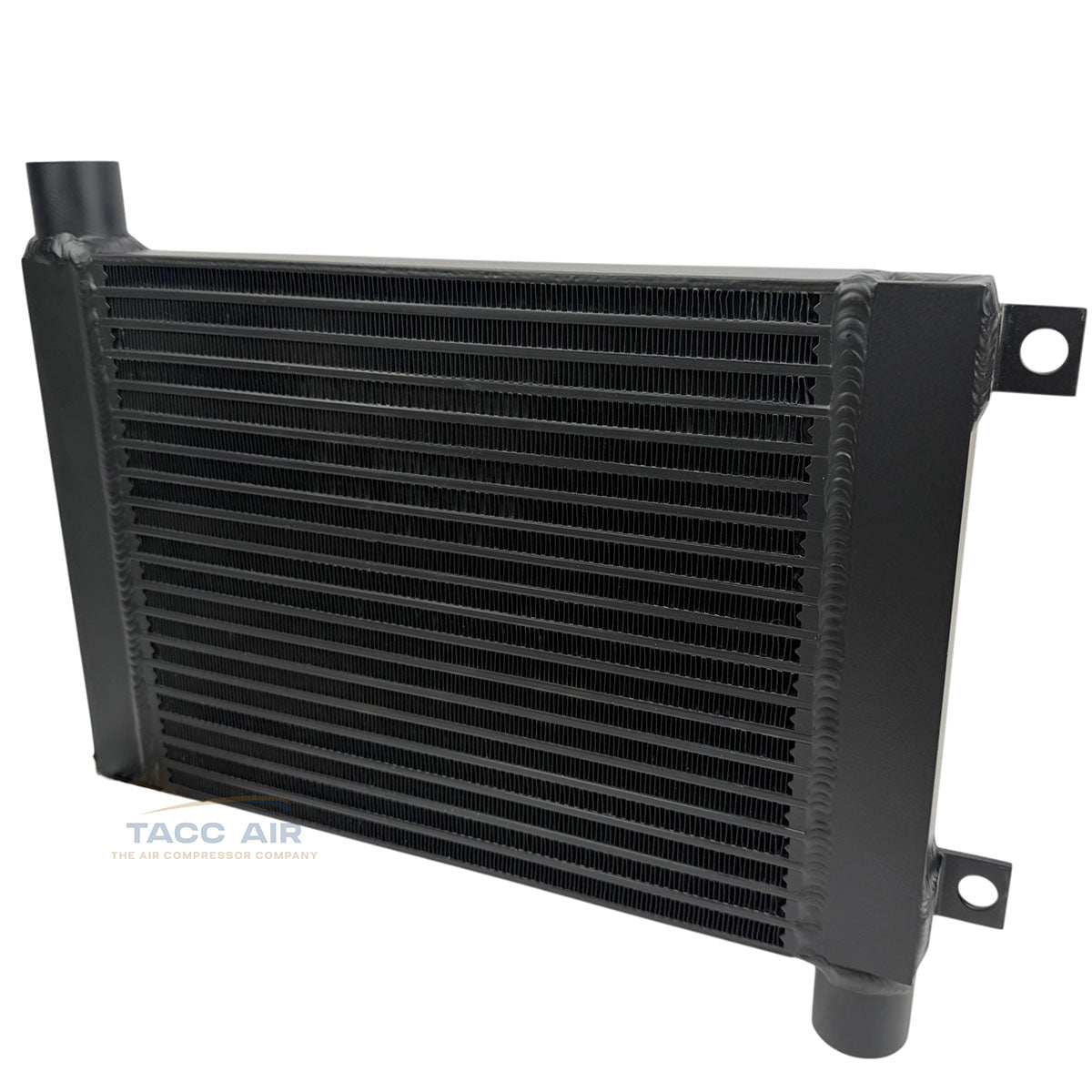

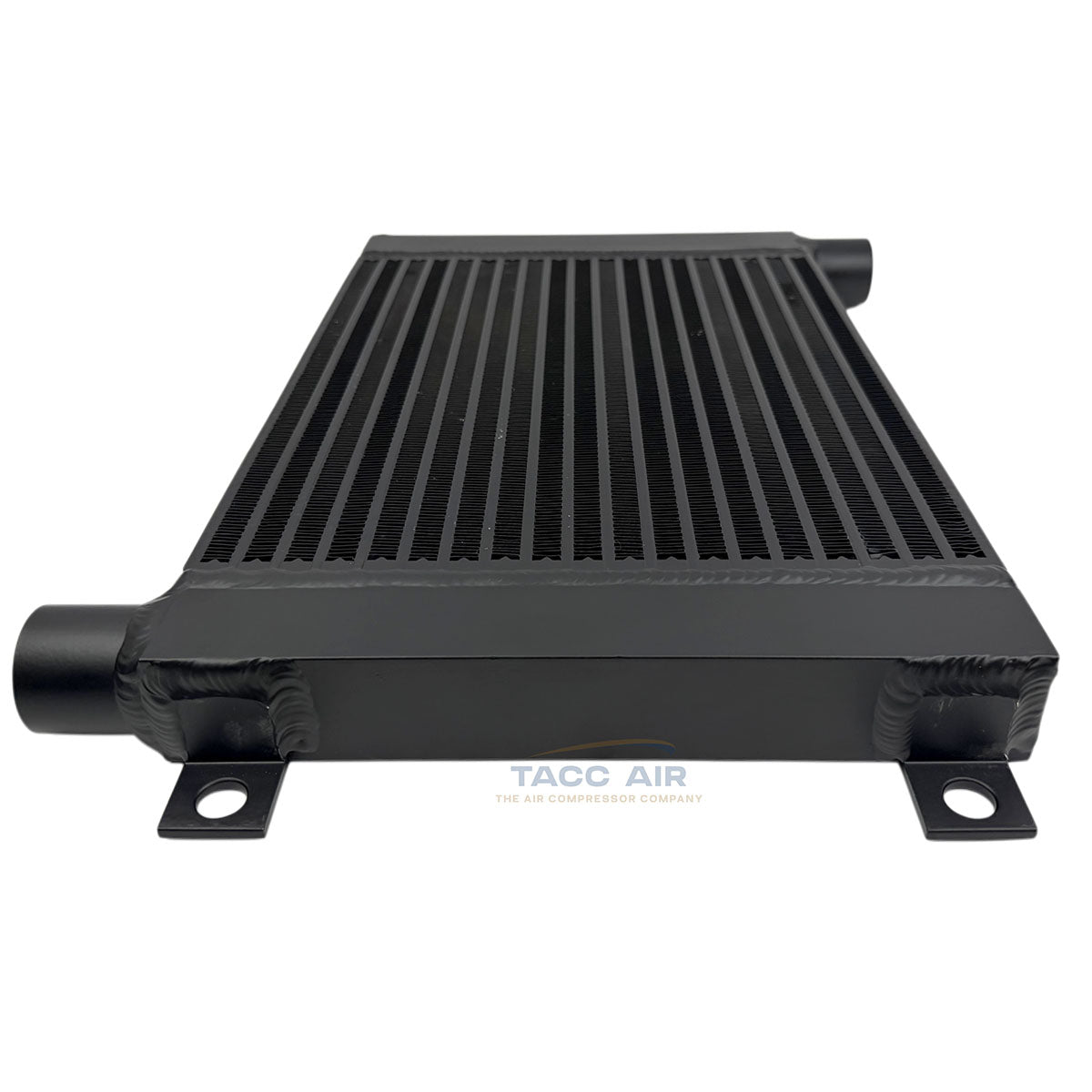

- Heavy-duty finned Aluminum design for excellent heat dissipation
- Helps lower compressed air temperatures
- Promotes condensation of water vapor for improved moisture removal
- Helps improve the performance of moisture separators, filters, and air dryers
- Can be mounted on the compressor belt guard or used in custom remote installations
Specifications:
- Part Number: BLD1335
- Motor Size: 5-7.5 HP
- Connections: 3/4" Female NPT Inlet & Outlet
- Bolt Mount Spacing Center To Center : 17.5" x 8.375"
- Overall Dimensions At Widest Points: 13.25" Tall x 18.5" Wide
Installation Information:
This aftercooler typically requires custom mounting.
The most common installation is mounting the cooler to the front of the compressor belt guard, where the compressor flywheel forces air across the cooling fins. This airflow provides the cooling necessary for the aftercooler to operate efficiently.
Because compressor manufacturers use different belt guard designs, mounting hardware is not included, and some fabrication or custom mounting may be required.
Remote Mount Applications:
The BLD1335 can also be used as a remote inline aftercooler when mounted away from the compressor. In these applications, customers commonly fabricate custom brackets or frames and use one or more electric fans to force air across the cooling fins.
Remote installations are popular for:
- Mobile service trucks
- Trailer-mounted compressors
- Custom compressed air systems
- Applications where belt guard mounting is not practical
A very common use is installing the aftercooler before a moisture separator, coalescing filter, refrigerated dryer, or desiccant dryer. Since compressed air leaving the compressor is extremely hot, cooling it first allows the water vapor to condense into liquid moisture before it reaches your filtration equipment, and also bring air temperatures down to a safe temperature for some of these filtration requirements.
This helps:
- Lower compressed air temperature
- Condense water vapor into removable liquid moisture
- Improve moisture separator performance
- Reduce the moisture load on coalescing filters
- Improve desiccant dryer efficiency
Whether mounted on the compressor or remotely, adequate airflow across the cooling fins is essential for proper cooling performance.
Package Includes:
- (1) BLD1335 Belt Guard Aftercooler
Please Note:
✔ Verify your compressor's mounting dimensions before ordering.
✔ This cooler is intended for applications with adequate airflow, either from the compressor flywheel or from electric cooling fan(s).
✔ Custom mounting hardware or fabrication may be required depending on your application.
