Replacement Champion Air Compressor Pilot Valve Unloader 145-175 PSI # M2853

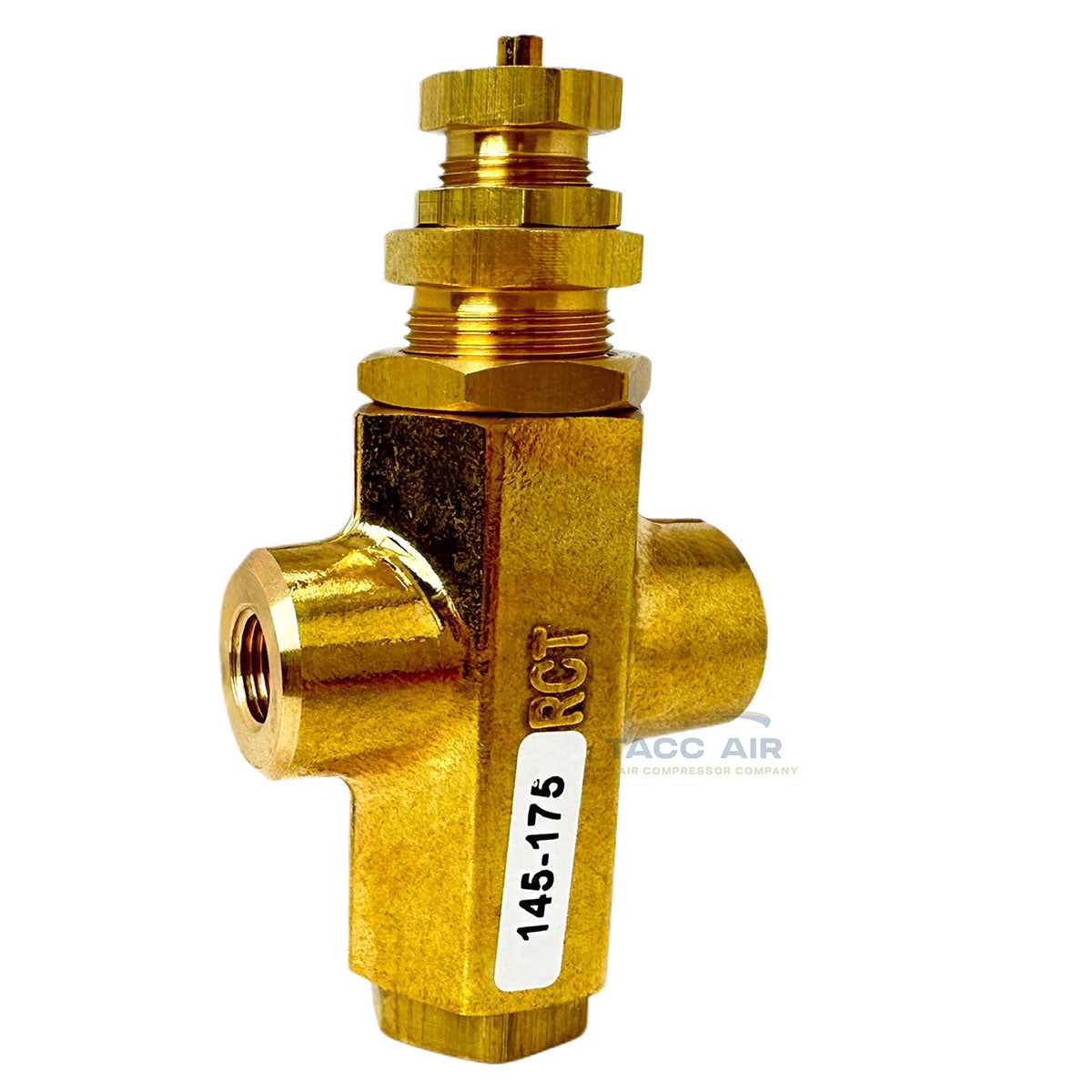

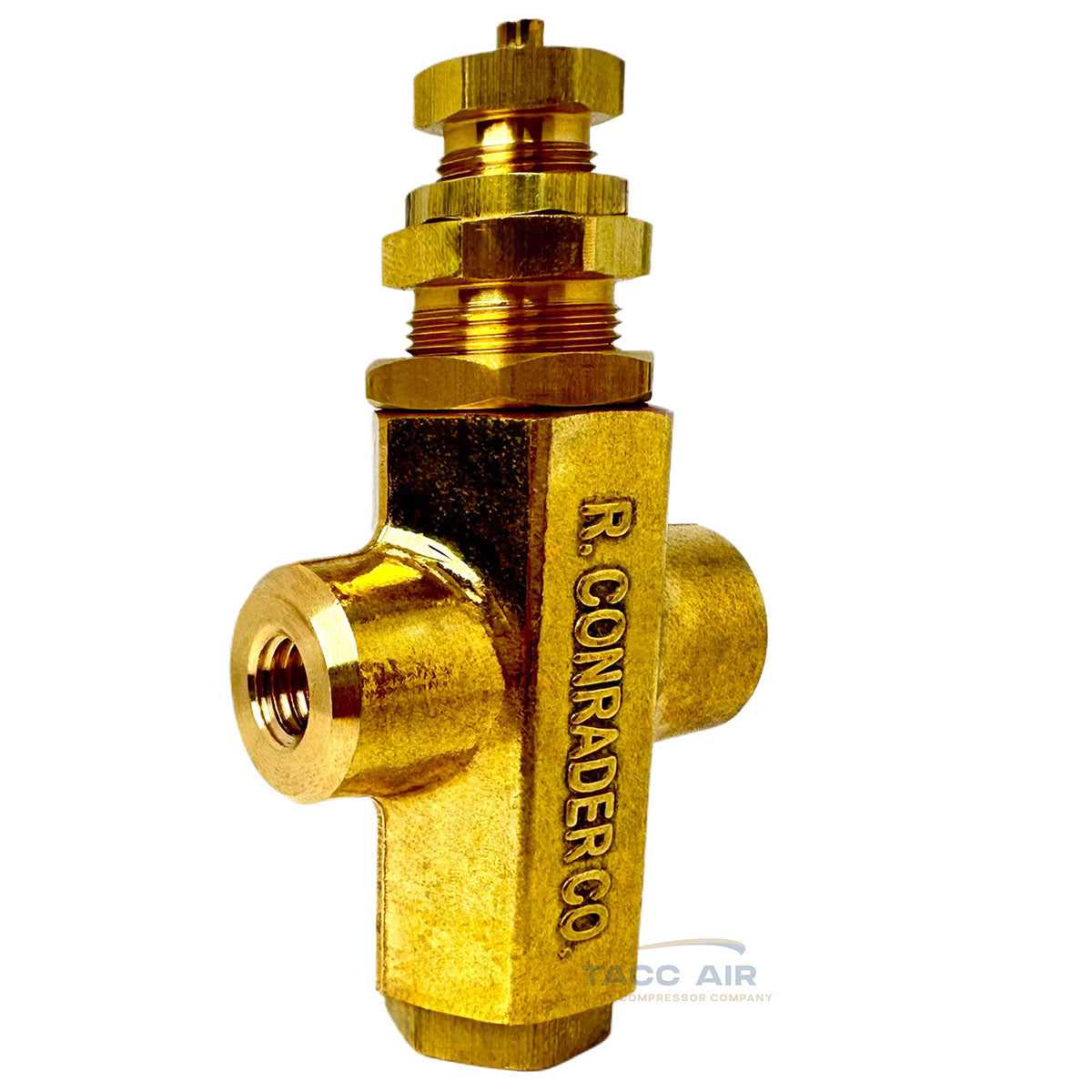

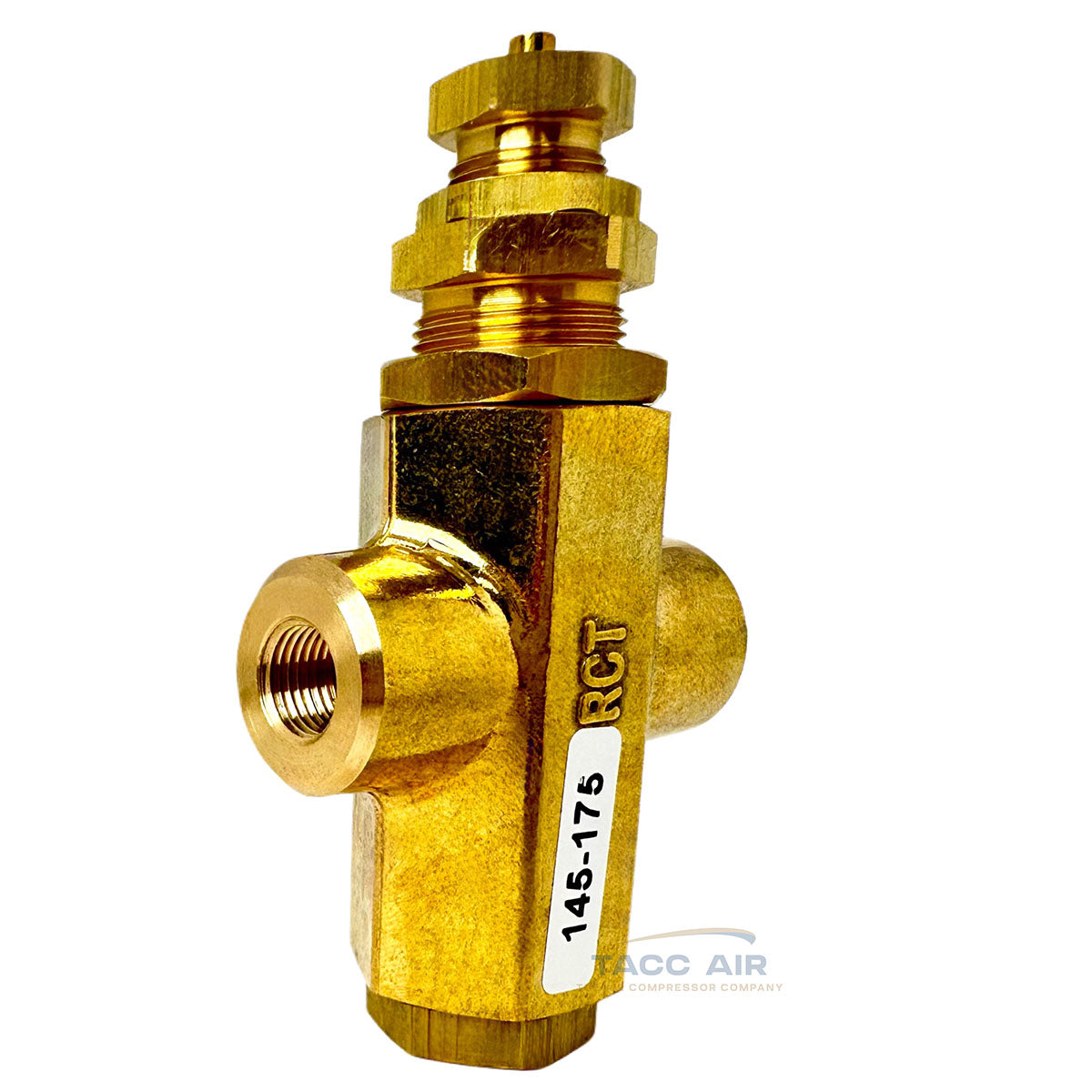

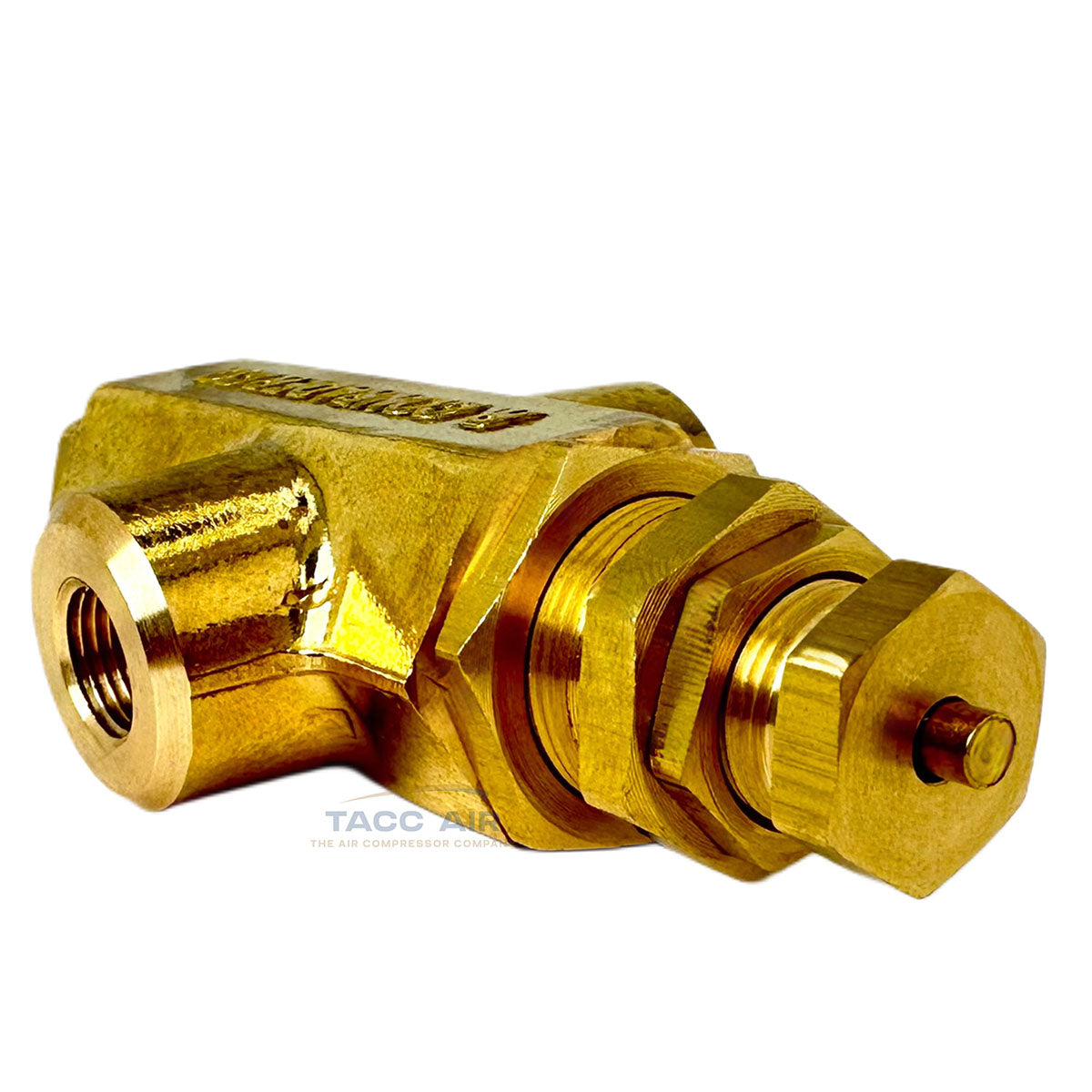

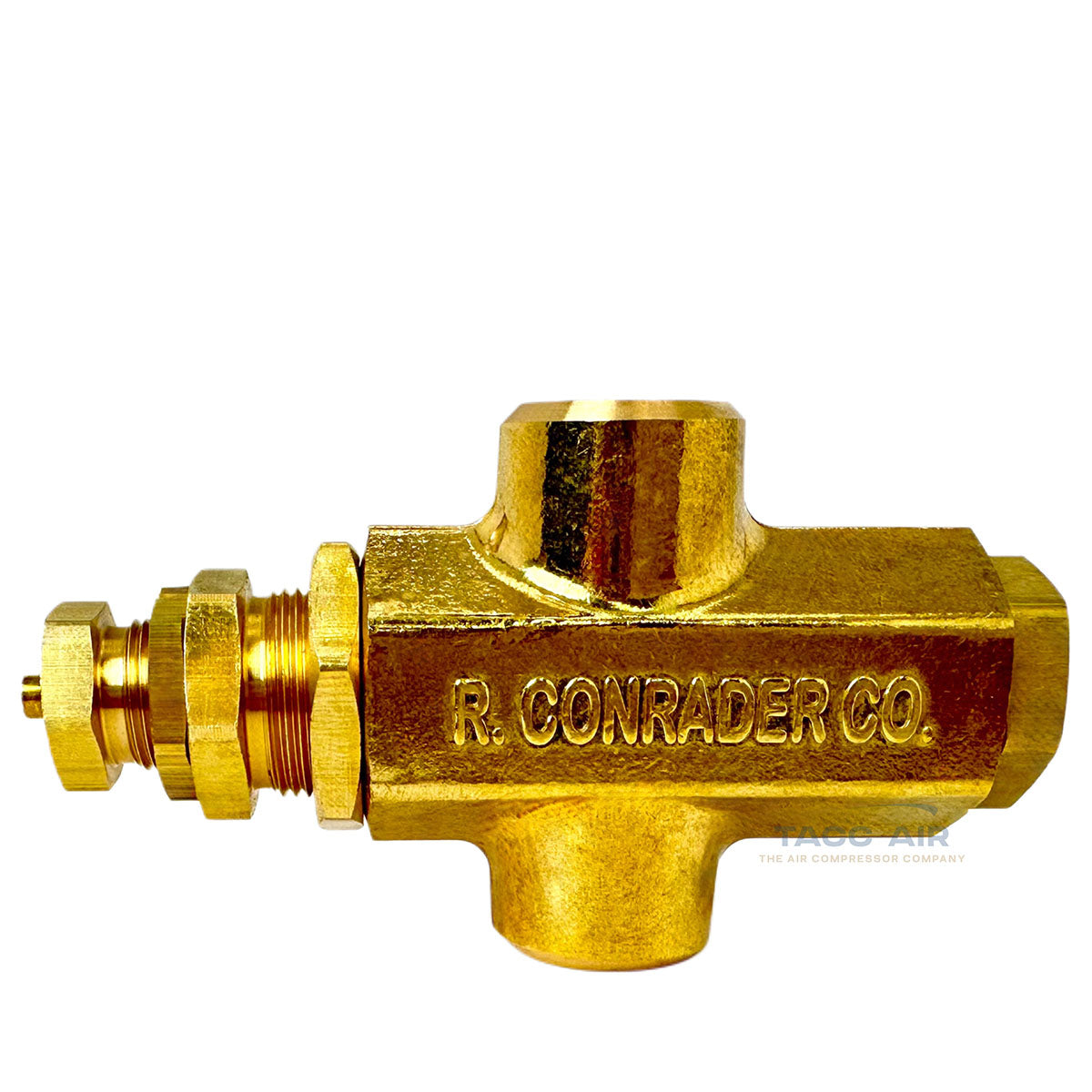

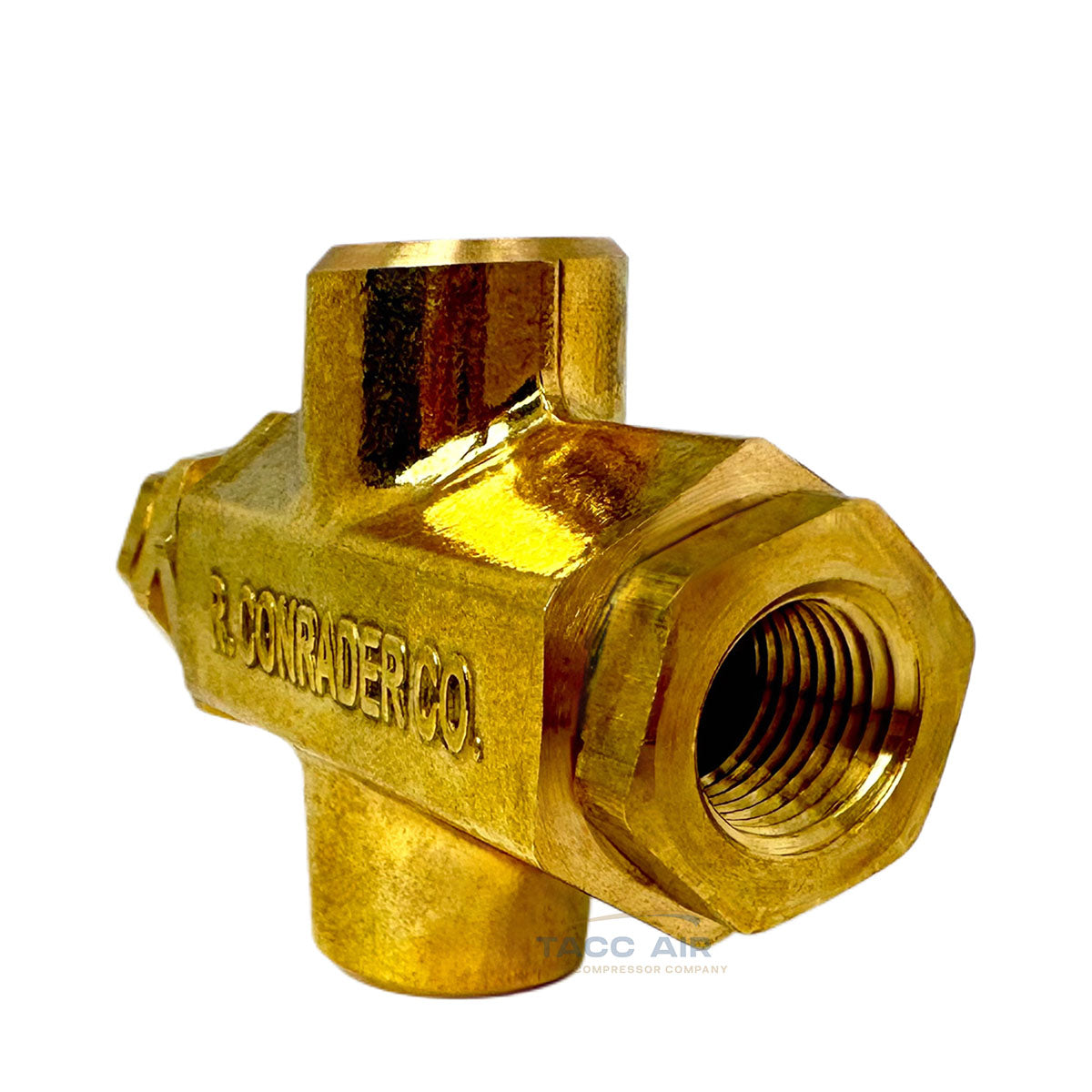

Conrader RCT1-F1-145-175 Pilot Valve 145-175 PSI, 1/4" FNPT Inlet, 1/8" FNPT Outlet – Replacement for M2853

Product Description:
The Conrader RCT1-F1-145-175 Pilot Valve is designed to control pneumatic components in compressed air systems by sending pressure at designated set points. This valve automatically opens at the factory-set unload pressure of 175 PSI and closes at the load pressure of 145 PSI, helping to maintain efficient compressor operation.

Featuring a 1/4" FNPT inlet and 1/8" FNPT outlet, this pilot valve is commonly used as a replacement for the M2853 model found in many Champion air compressors. Please note that this model does not include a manual unloader lever.

Made in the USA

Specifications:

• Model: RCT1-F1-145-175

• Pressure Range: 145–175 PSI

• Inlet Connection: 1/4" Female NPT (Note: 1/4" NPT measures approx. 1/2" in diameter)

• Outlet Connection: 1/8" Female NPT (Note: 1/8" NPT measures approx. 3/8" in diameter)

• Mounting Thread: 3/8"–16 UNC 2B

• Operating Temperature: -15°F to 400°F

• Manual Lever: Not included

• Replacement For: M2853

• Quantity: One (1) Pilot Valve
