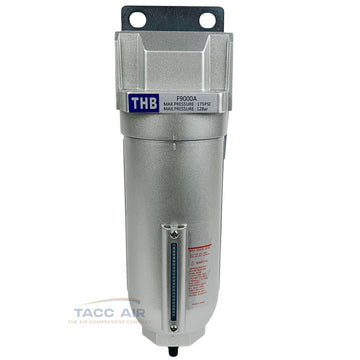

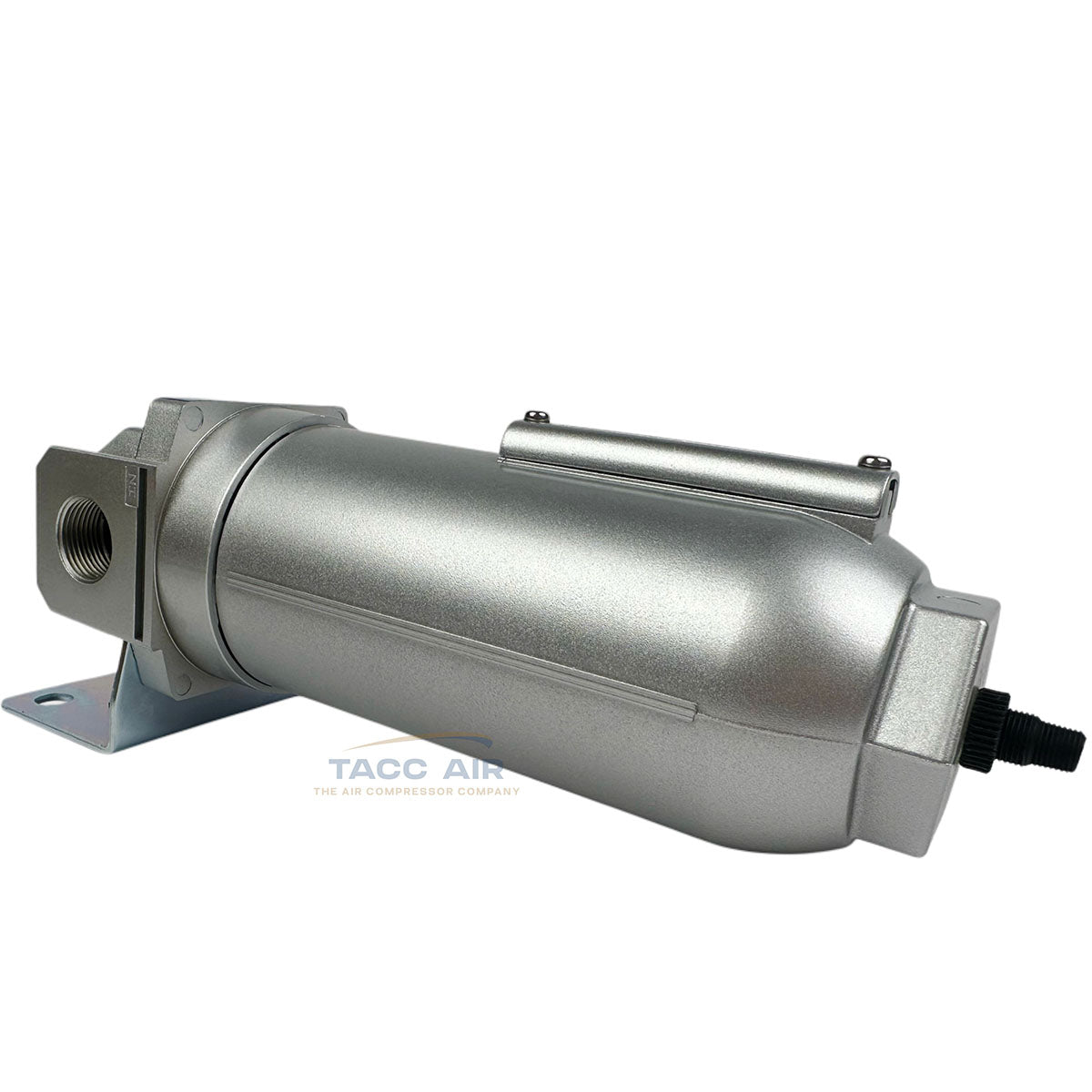

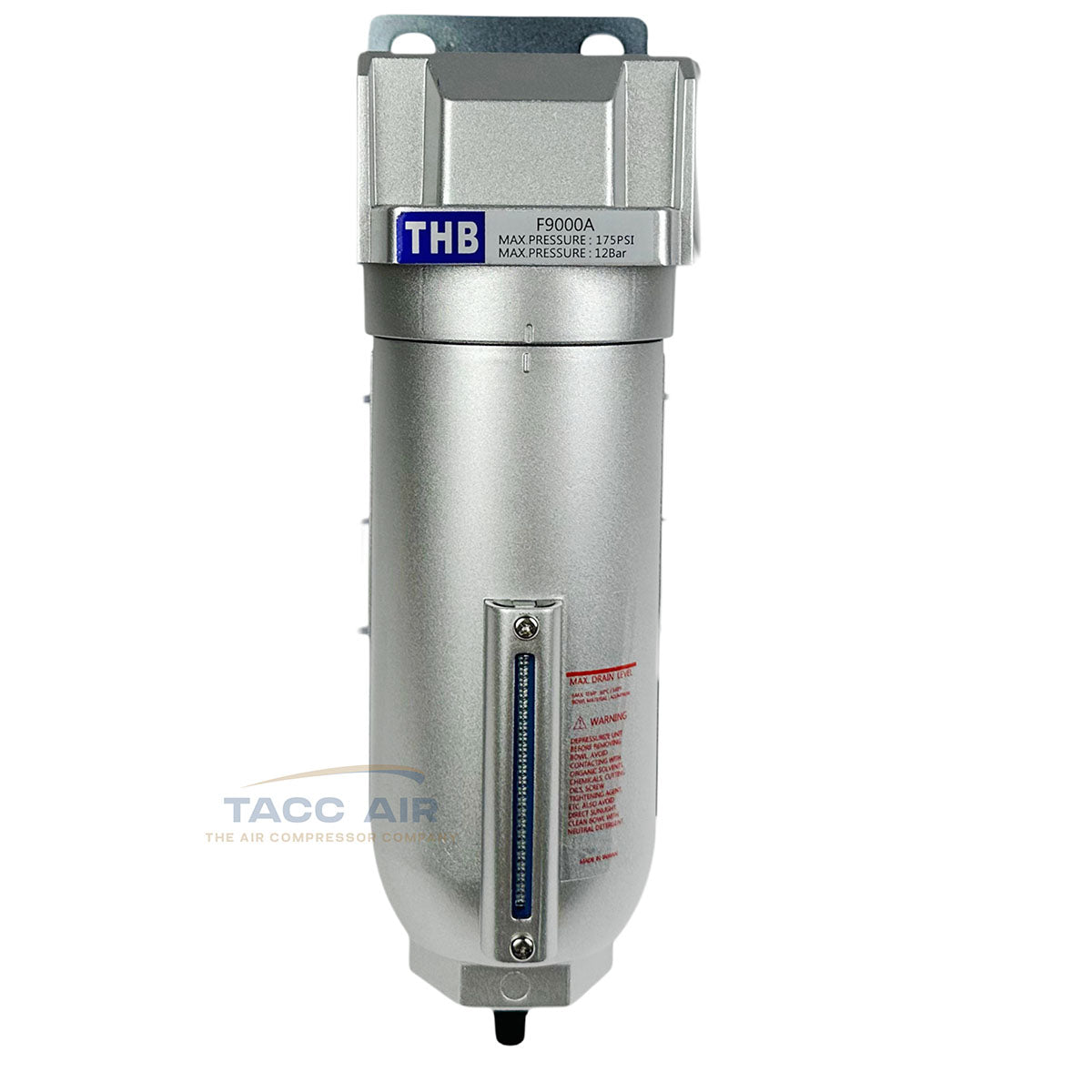

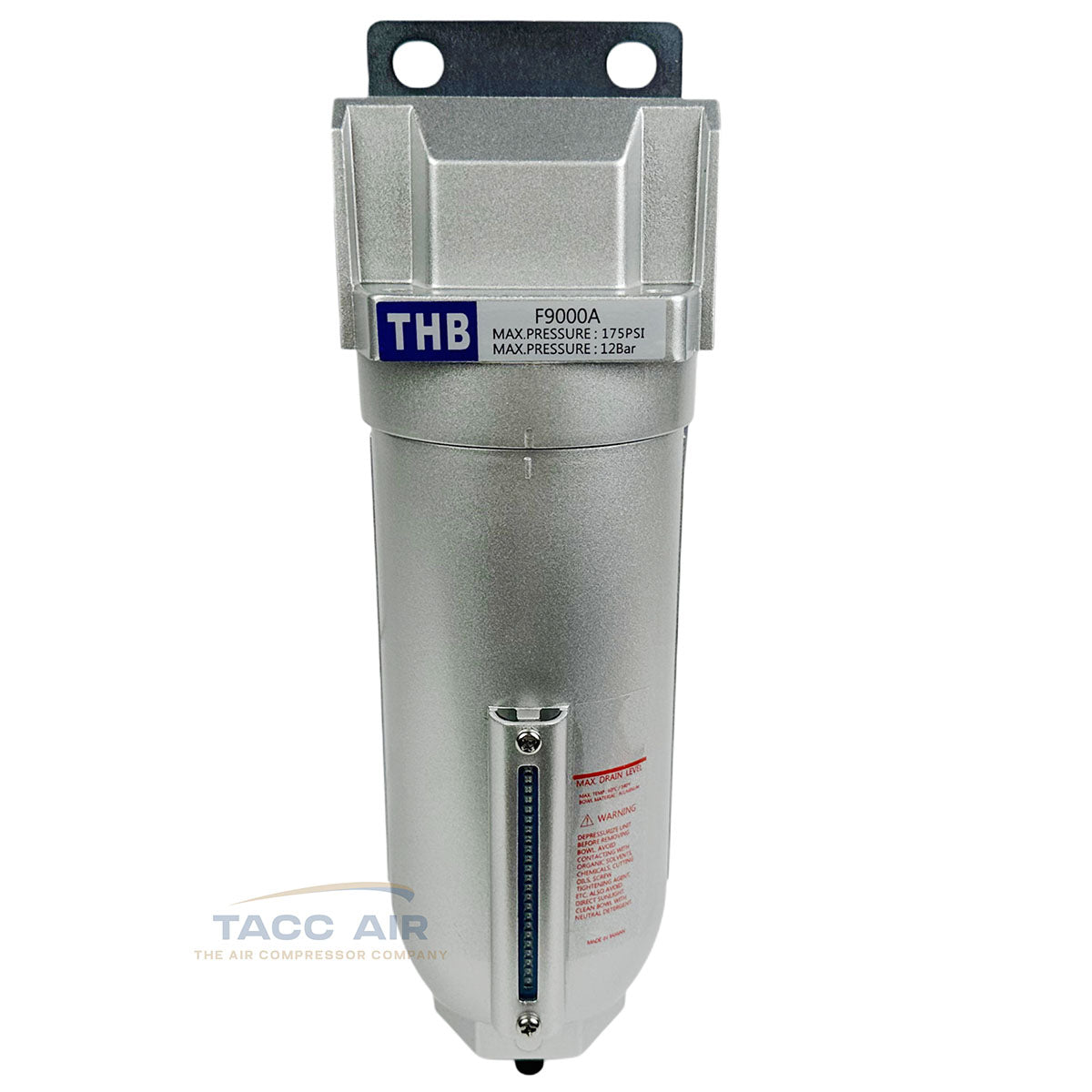

3/4" Inline Air Compressor Water Moisture Filter Trap Separator w/ Auto Drain

Heavy Duty High Flow 3/4" In-Line Compressed Air Moisture Filter, 183 SCFM, 5 Micron Element, 300ml Capacity, Auto Float Drain, All-Aluminum Construction

Description:
This industrial-grade 3/4" high-flow in-line compressed air moisture filter is built to remove water droplets and debris from your air lines before they reach your tools or equipment. With a high flow capacity of up to 183 SCFM and a 5 micron filter element, it offers reliable filtration in demanding shop, plant, and commercial construction environments.

The all-aluminum body is durable and built for long-term use. The moisture bowl holds up to 300 ml of water and features an automatic float style drain at the bottom for hands free operation.

Designed for use in compressed air systems where clean, dry air is critical to performance and equipment longevity.

Specifications:

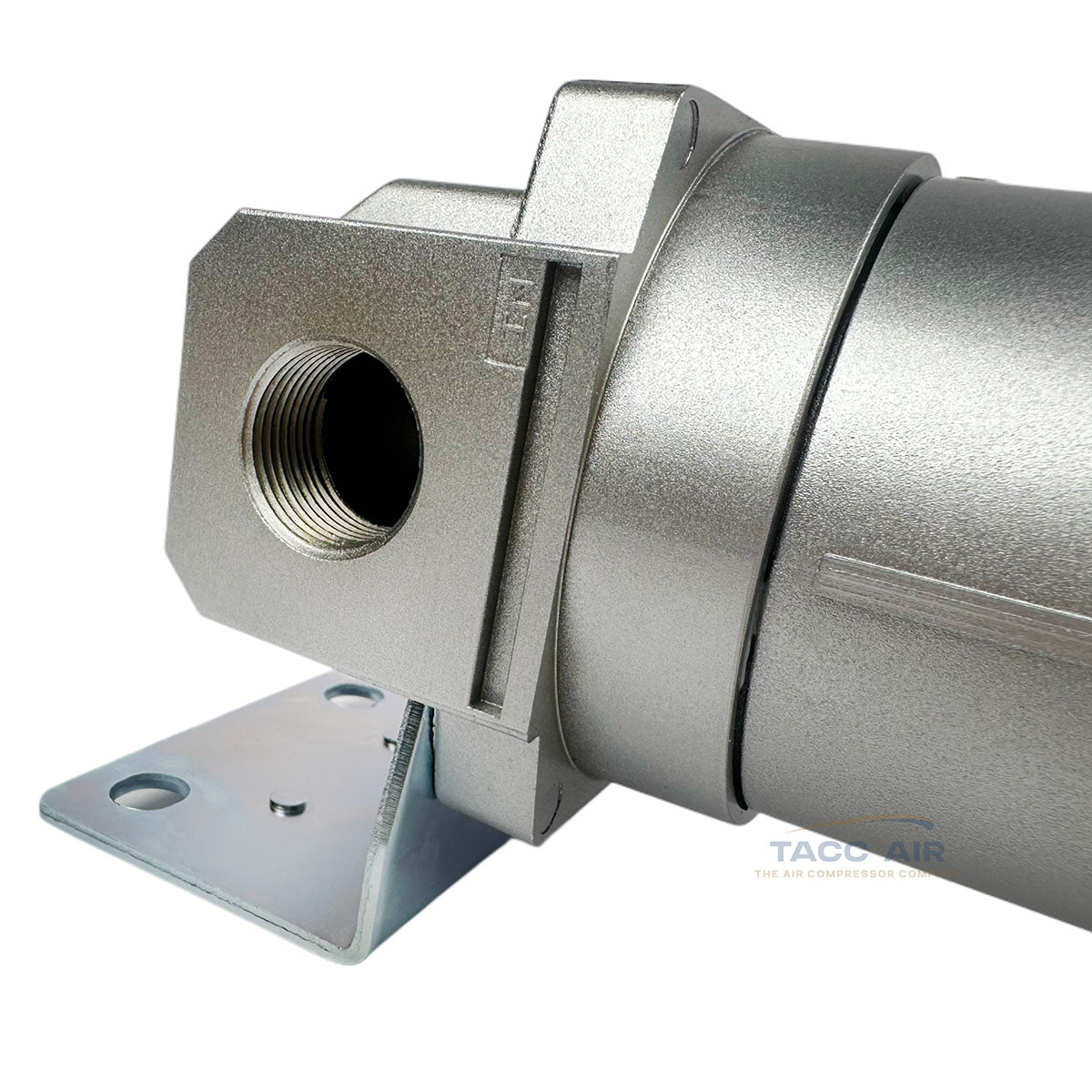

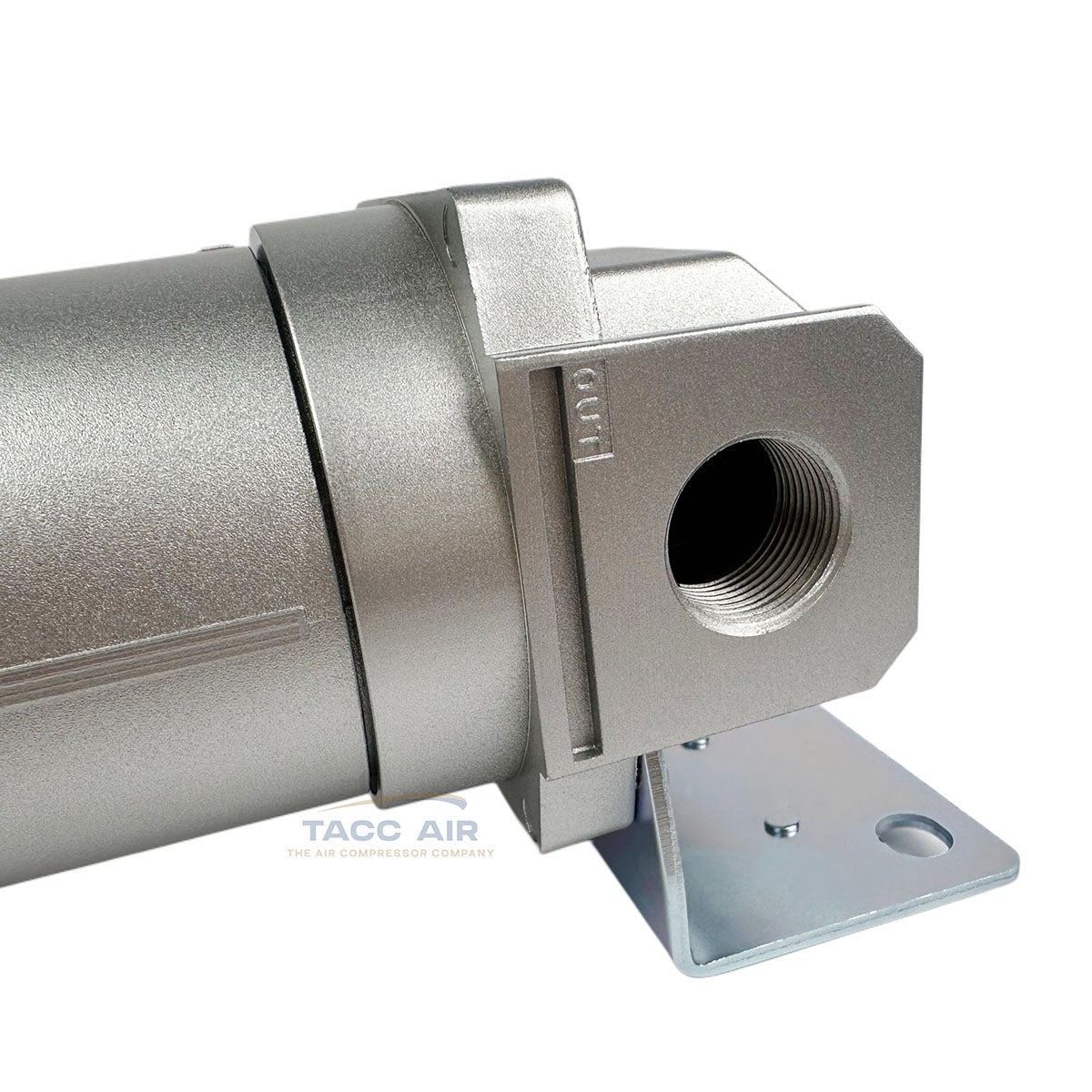

• Connection: 3/4" Female NPT (Note: 3/4" NPT measures approximately 1" in diameter)

• Flow Rate: Up to 183 SCFM

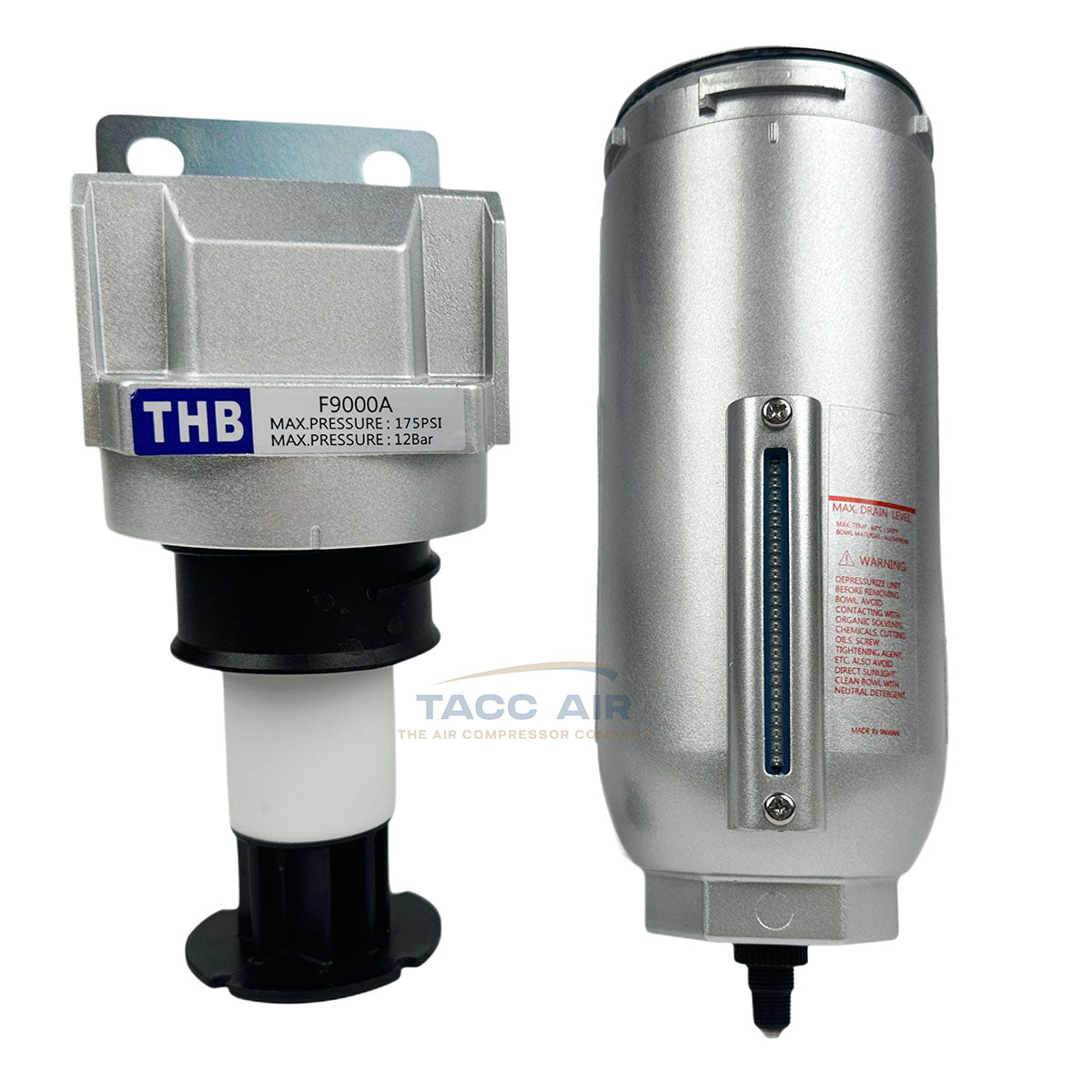

• Filter Element: 5 micron

• Capacity: Holds up to 300 ml of water

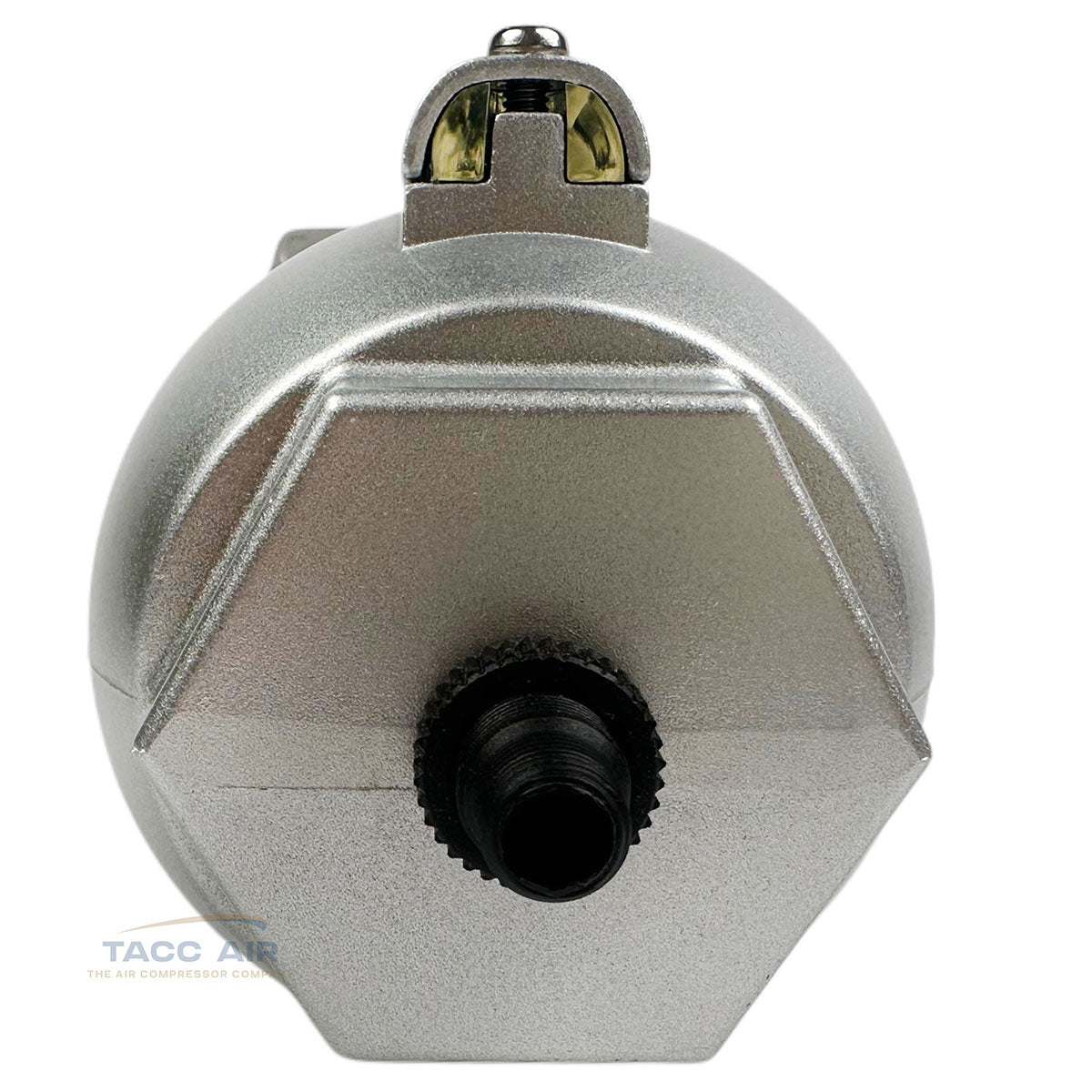

• Drain: Automatic float style drain

• Body Material: All-aluminum housing

• Design: In-line moisture trap for compressed air systems

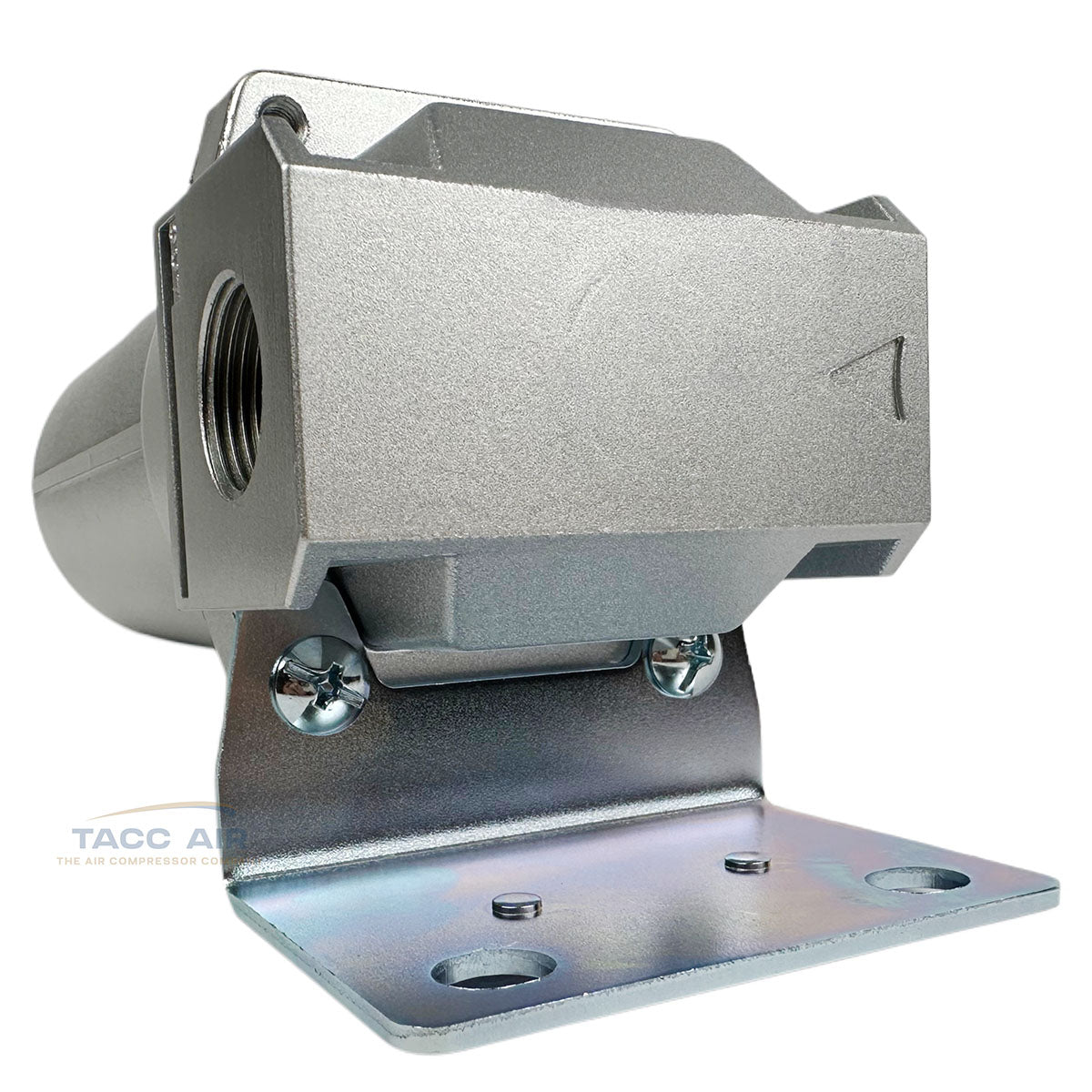

• This is directional flow. The air must be flowing in the direction of the arrows marked on the aluminum housing.

• Dimensions: 11" Tall x 3.5" wide x 3.5" deep
