Heavy Duty Pressure Switch Air Compressor Control Valve 95-125 PSI 1 Port 25 amp

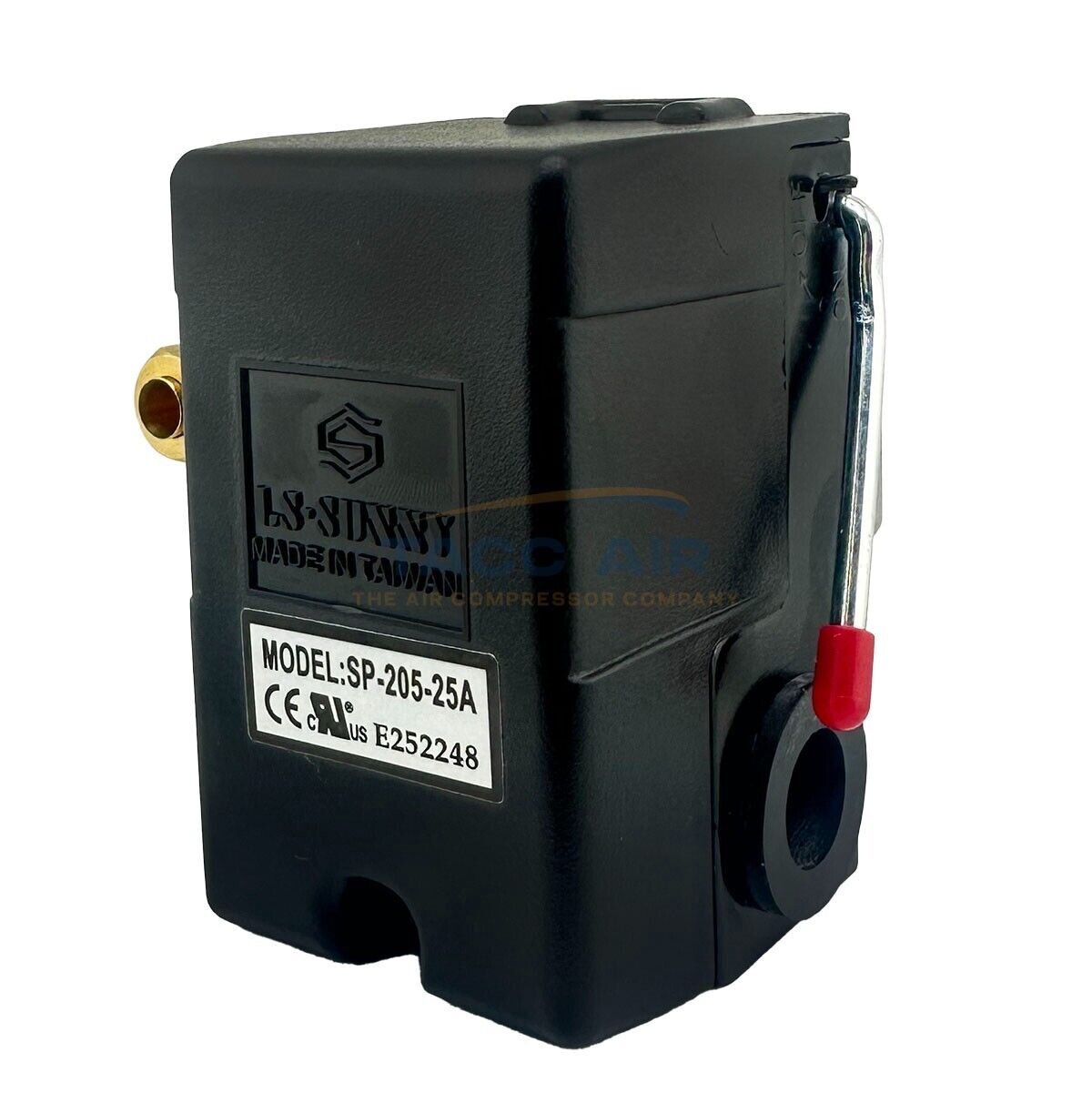

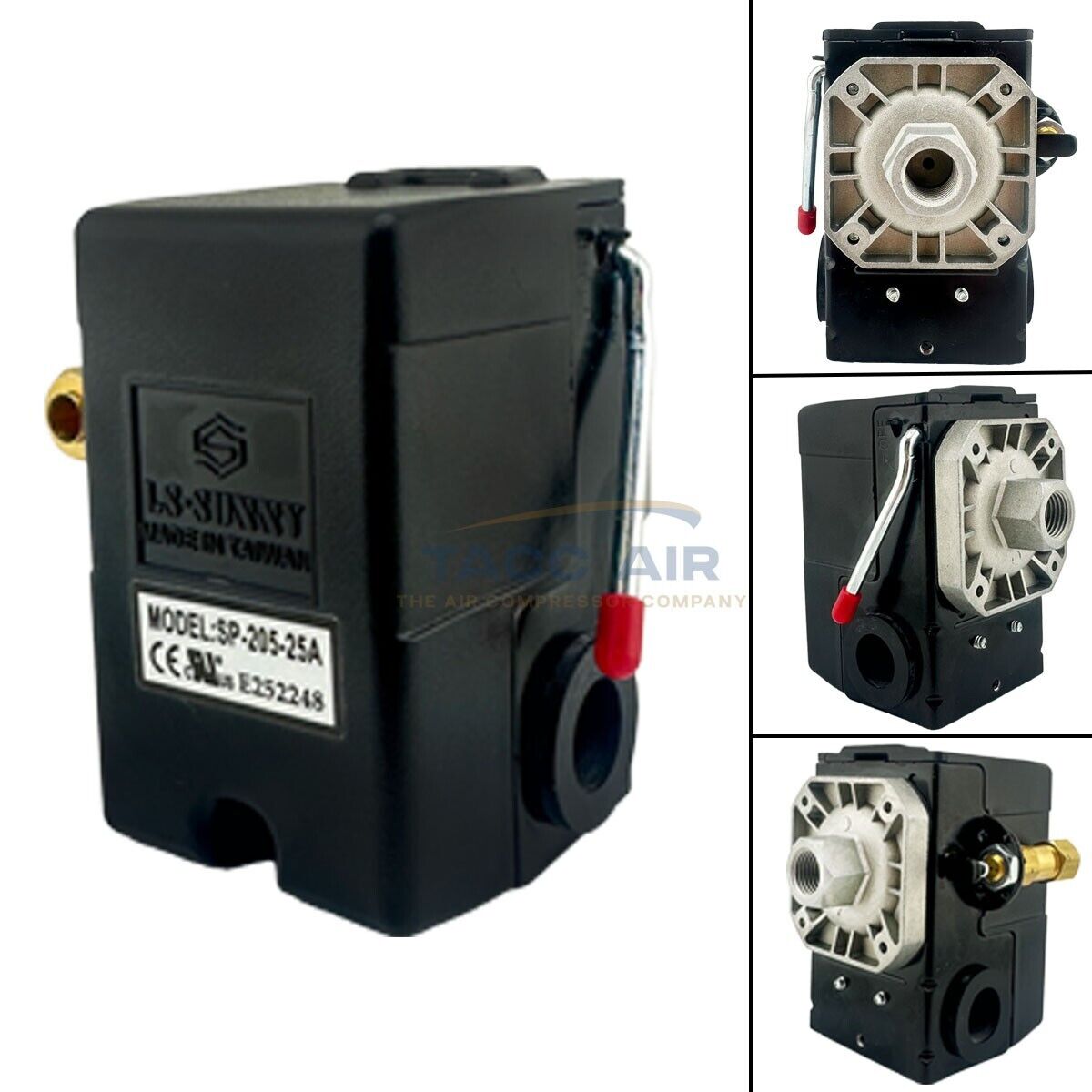

Heavy-Duty Single Port 25 Amp Air Compressor Pressure Switch – Reliable and Long-Lasting Replacement

Tired of replacing air compressor switches that burn out and melt? This high-quality, heavy-duty 25 Amp air compressor pressure switch is the perfect solution. Designed for durability and optimal performance, this switch operates on 115V, 230V, and 12V DC power, making it suitable for various compressor types.

Product Features:

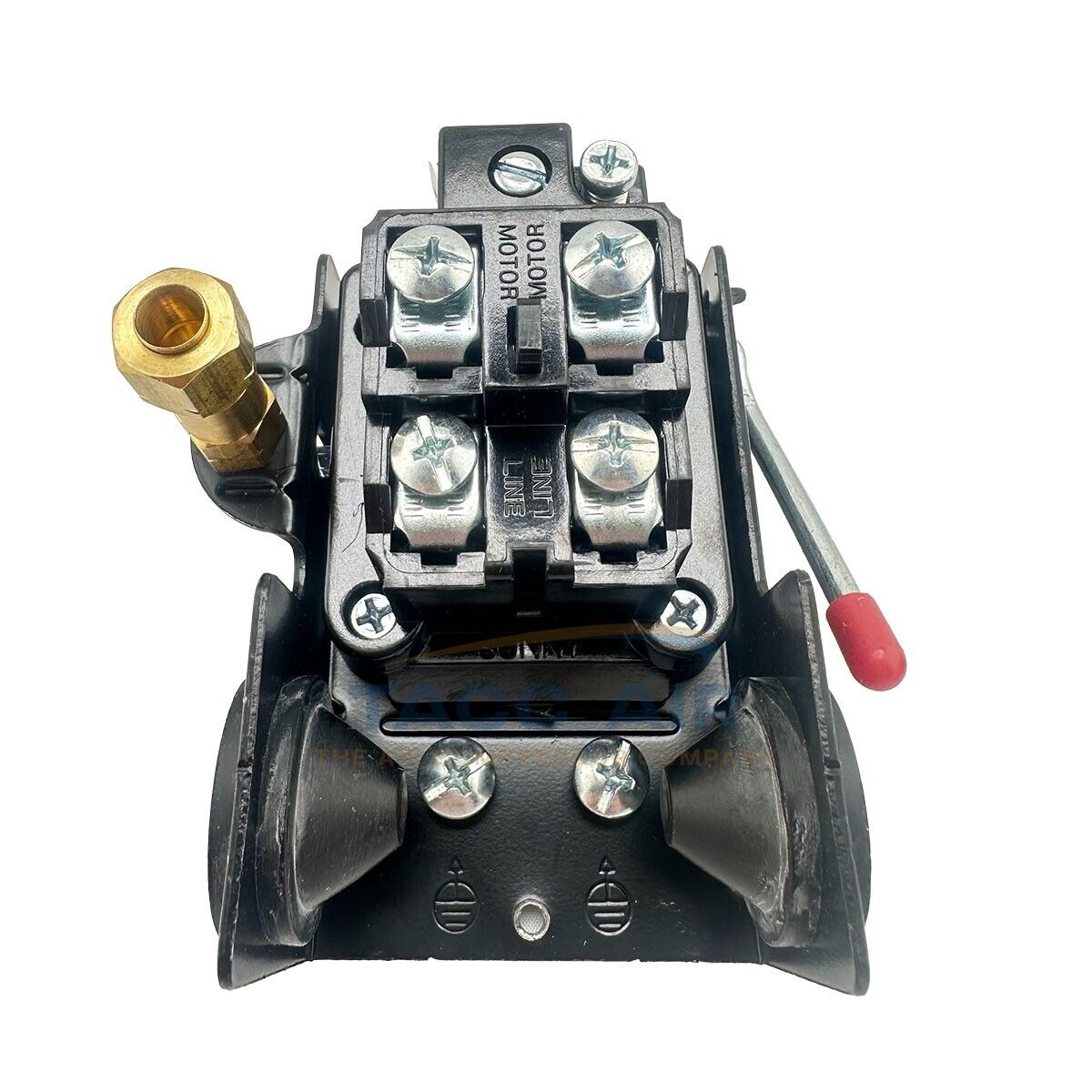

• Heavy-Duty Power Rating: This pressure switch handles up to 25 Amps at 115V, 230V, and 12V DC, providing robust performance for a wide range of air compressors.
• Adjustable Pressure Settings: The switch is pre-set to activate at 95 PSI and deactivate at 125 PSI. You can easily adjust the pressure range by a 35 PSI decrease or up to a 75 PSI Increase , offering flexibility for different compressor needs.
• Versatile Compatibility: A universal replacement switch that works for brands like Furnas, Square D, Sunny, Lefoo, and more. As long as the pressure settings are within range or can be adjusted, this switch will be a great fit.

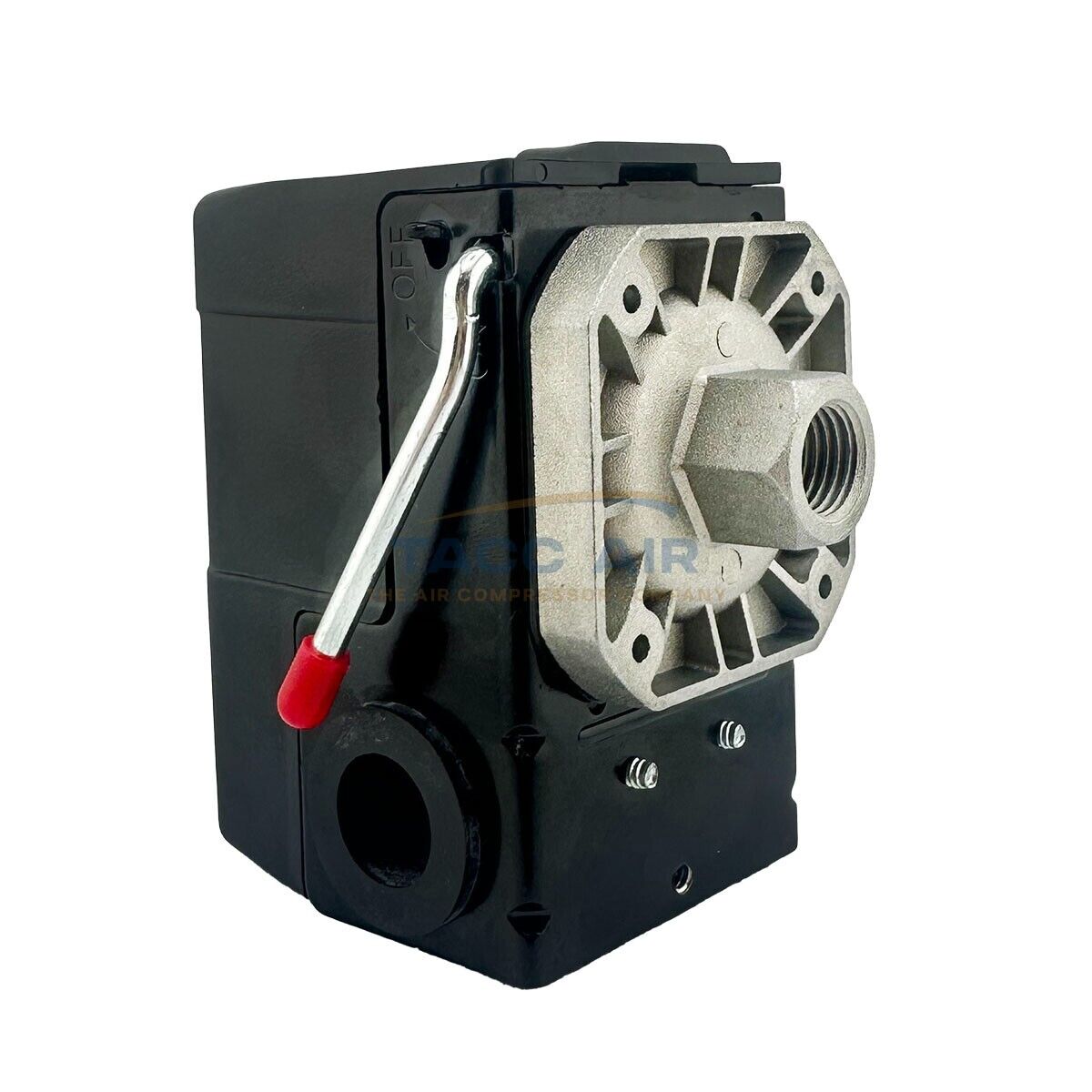

• On/Off Control: Features a convenient on/off lever located on the side of the unit for easy operation.

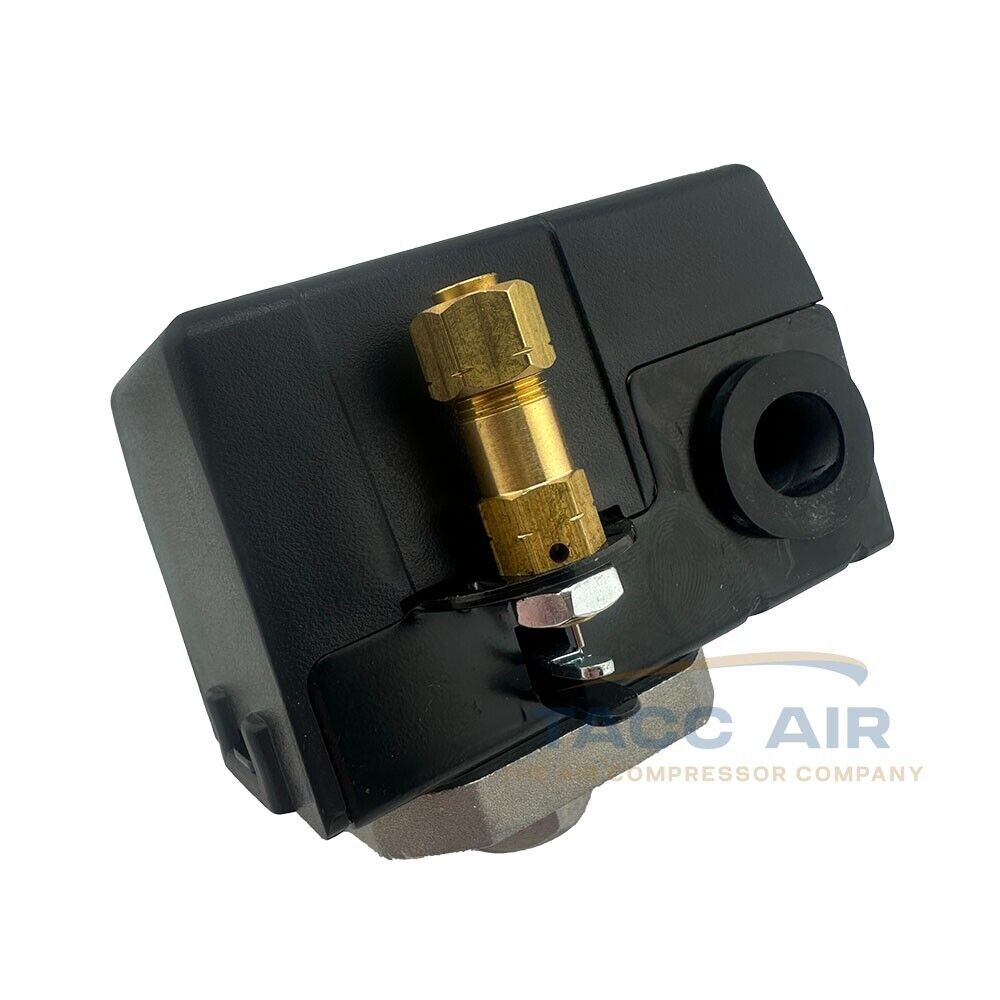

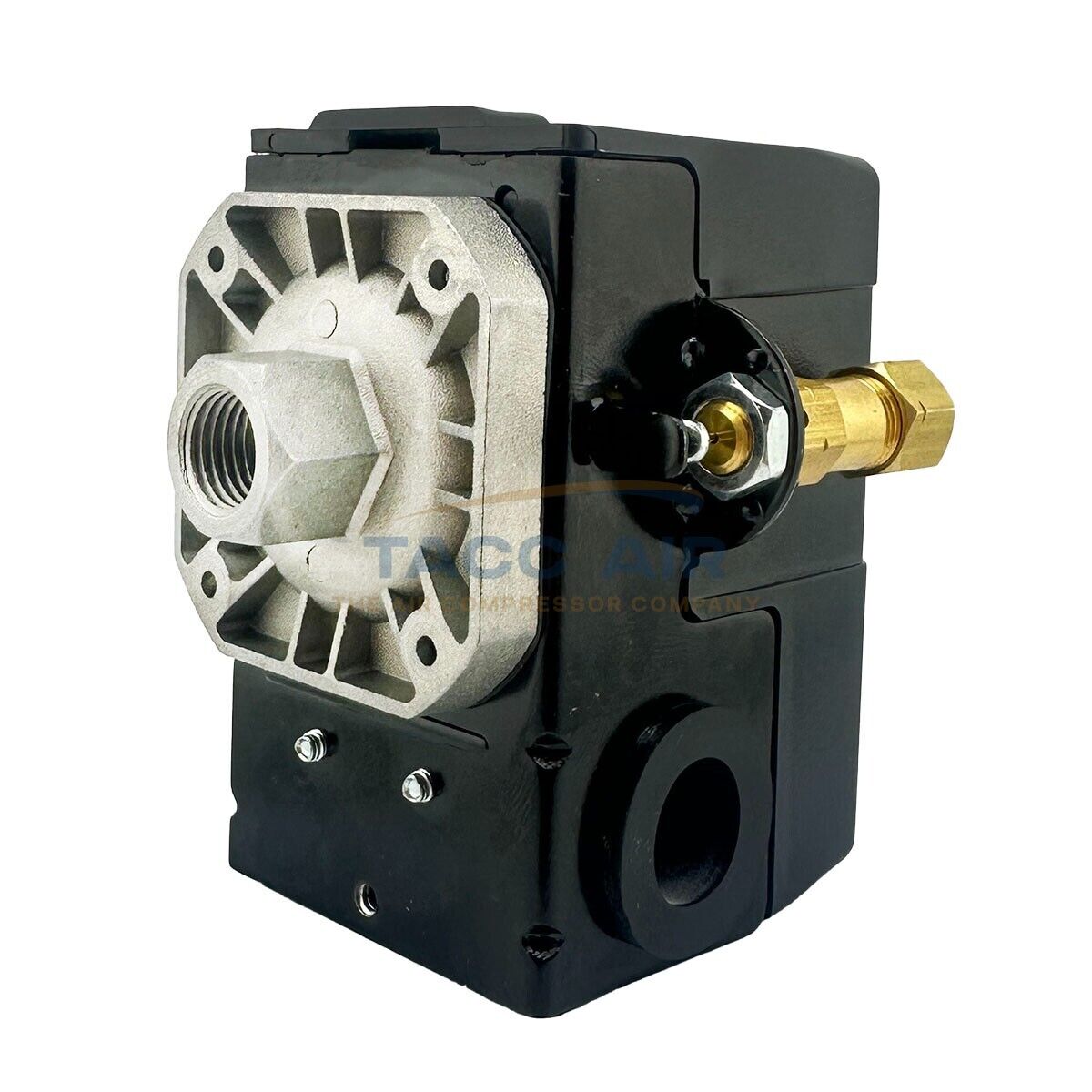

• Unloader Valve: Includes an unloader valve that can be used based on your compressor’s specific requirements. This valve helps maintain optimal performance and extends the life of your compressor.

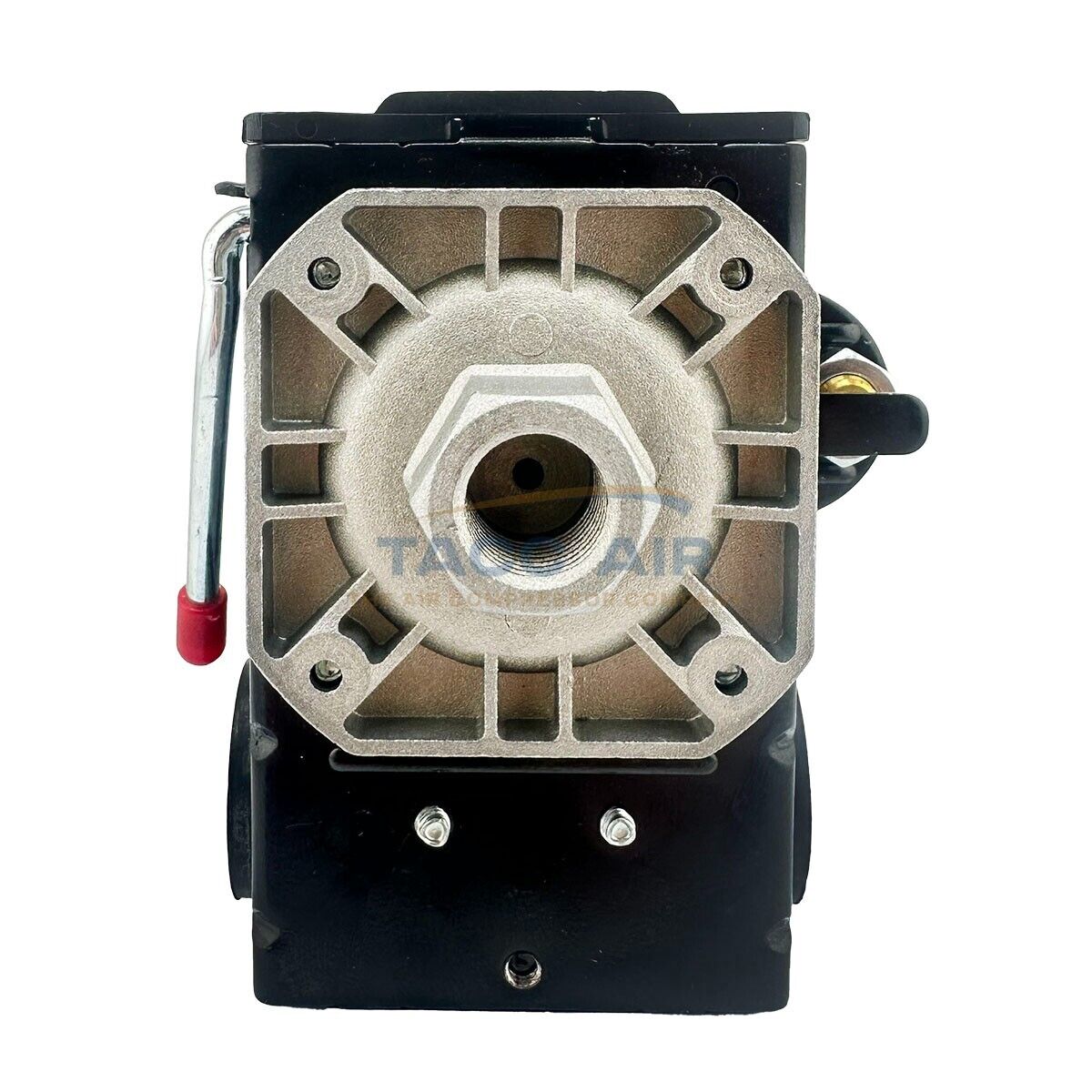

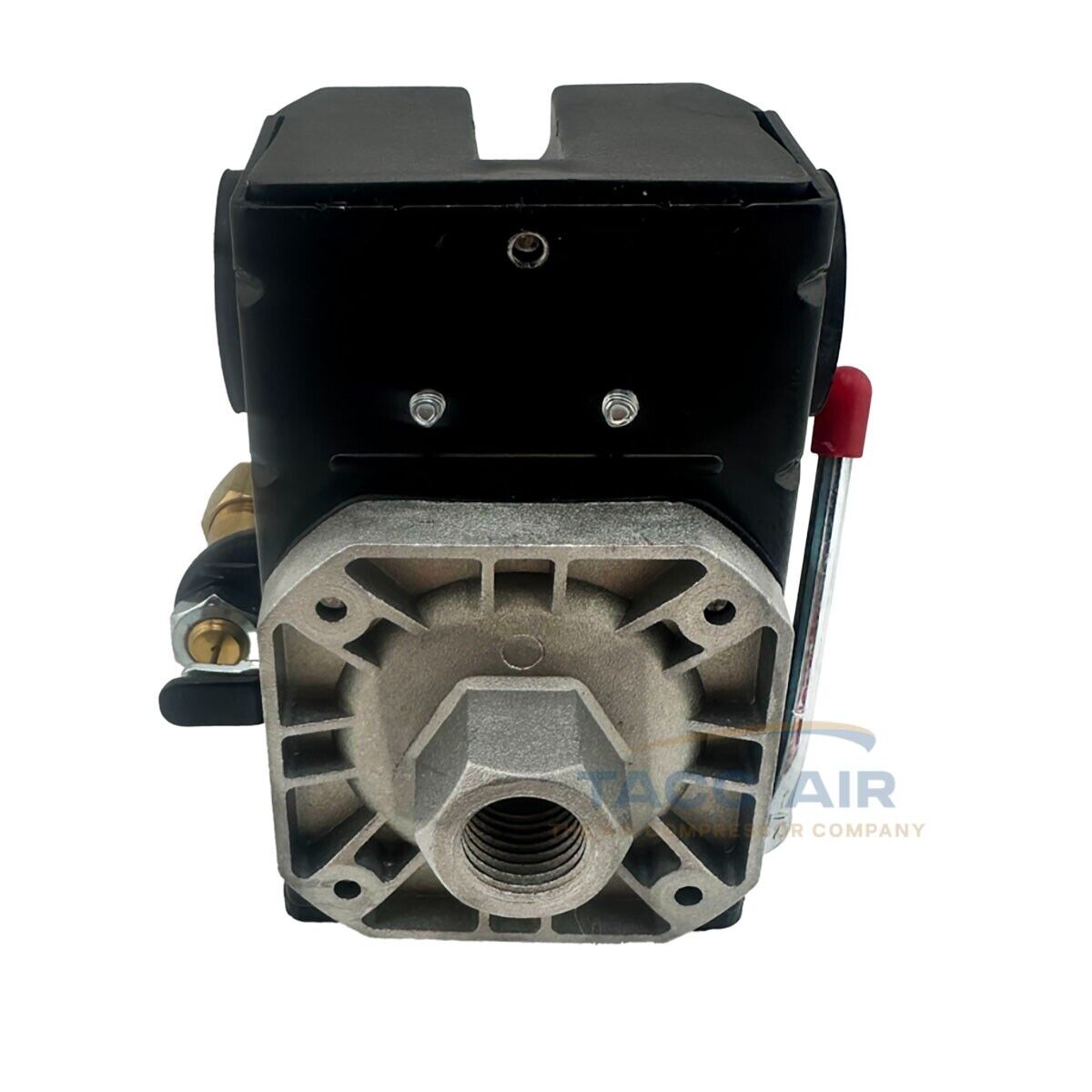

• Reliable Construction: The switch requires a 1/4" air inlet from the tank and comes with four 1/4" female ports for various air connections. Additionally, a new compression nut and ferrule are included for a secure, leak-free connection.

Ideal for High-Amp Compressors or Those Without a Magnetic Starter:

This heavy-duty air compressor switch is perfect for high-amp compressors or compressors operating without a magnetic starter. It's also an excellent upgrade for compressors that need a more reliable and durable switch.

Specifications:

• Pre Set Cut-in Pressure: 95 PSI
• Pre Set Cut-out Pressure: 125 PSI (adjustable)
• Min Cut-in Pressure: 60 PSI (Min Adjustment)
• Max Cut-out Pressure: 200 PSI (Maximum Adjustment)
• Power Rating: Max 25 Amps (115V, 230V, and 12-24 Volt DC)
• Air Pressure Connection Port: One 1/4" female port for tank pressure inlet.
• Unloader Connection Port: One 1/4" Compression Connection
• Includes: Compression nut and ferrule for secure installation of unloader line

Note: The unloader line does not need to be connected if your compressor is not equipped with an unloader. If left disconnected, the unloader valve remains non-functional but will not affect the operation of the electrical components of the switch. The switch will continue to operate normally without it.
