Maxline System M8006 1/2" Tubing x 1/2" Female NPT Thread Straight Fitting

MaxLine Air Piping System M8006 1/2" Tubing x 1/2" Female Threaded NPT Straight Fitting

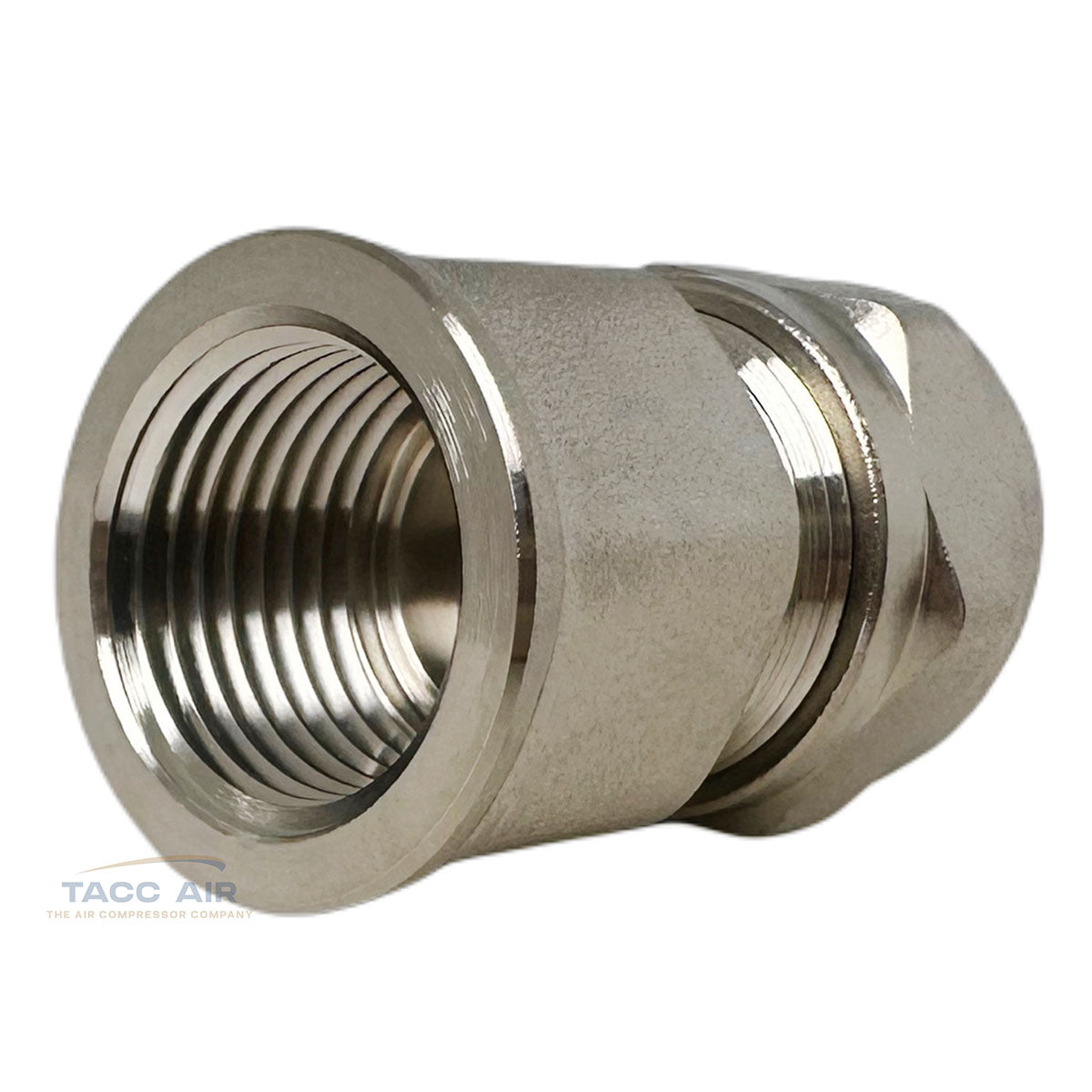

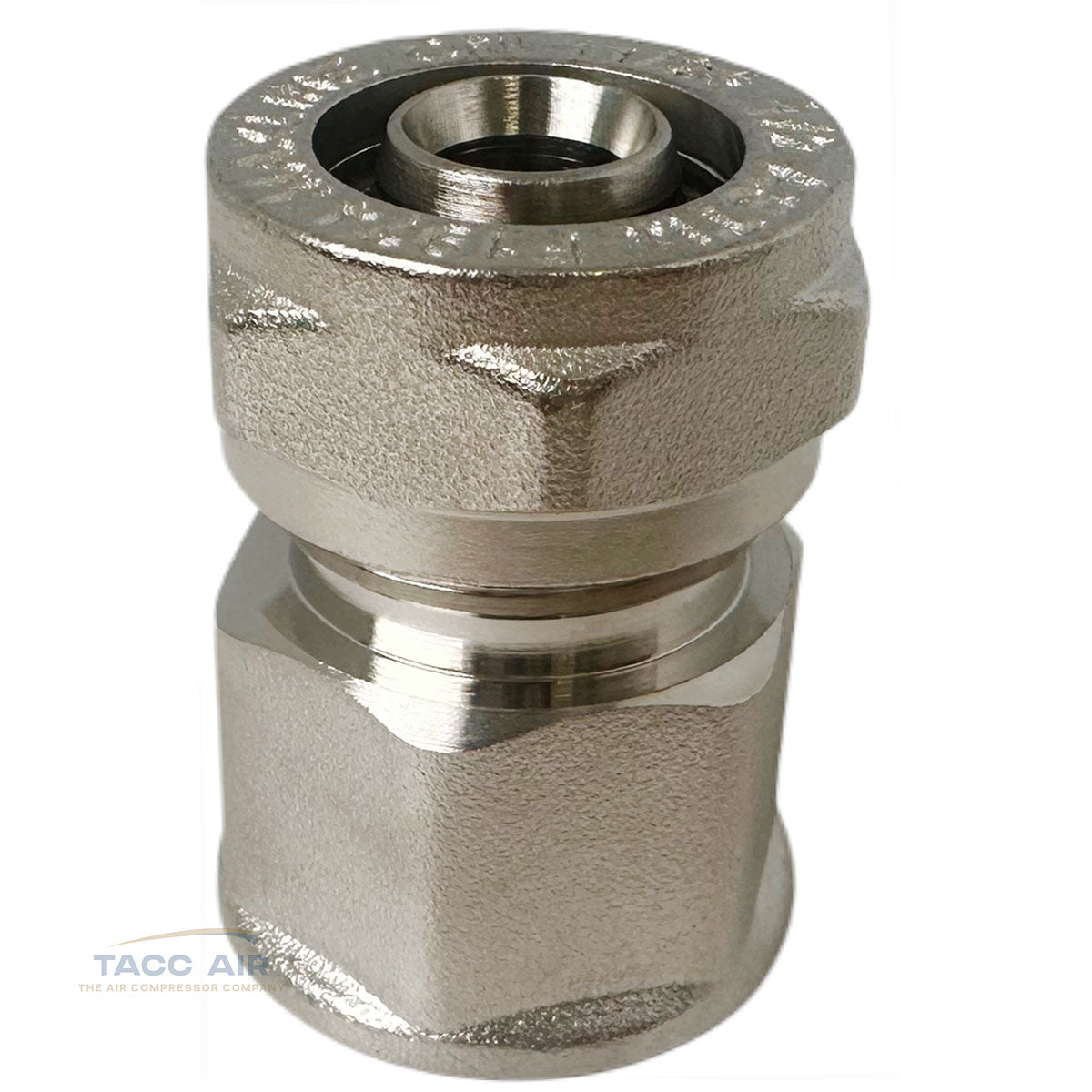

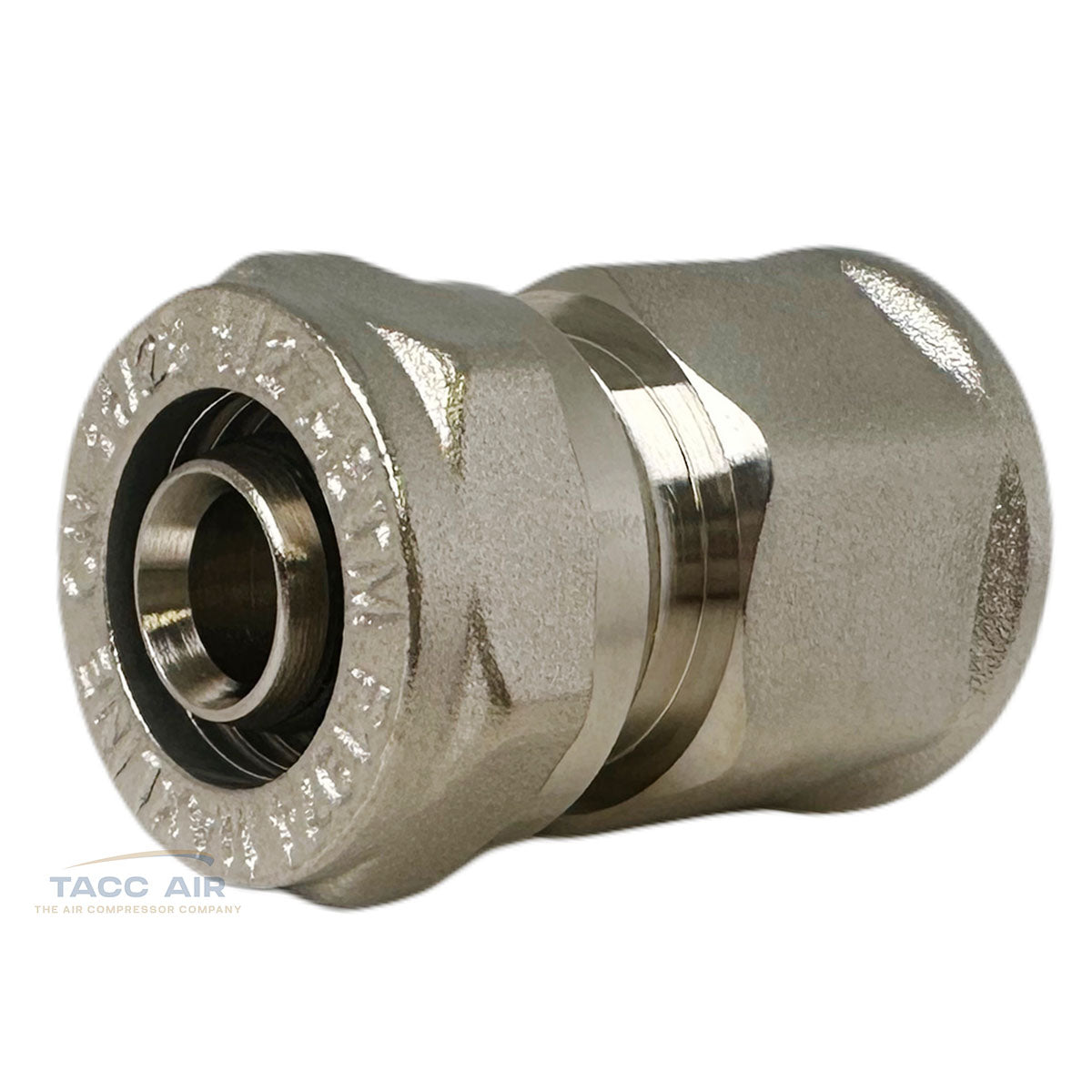

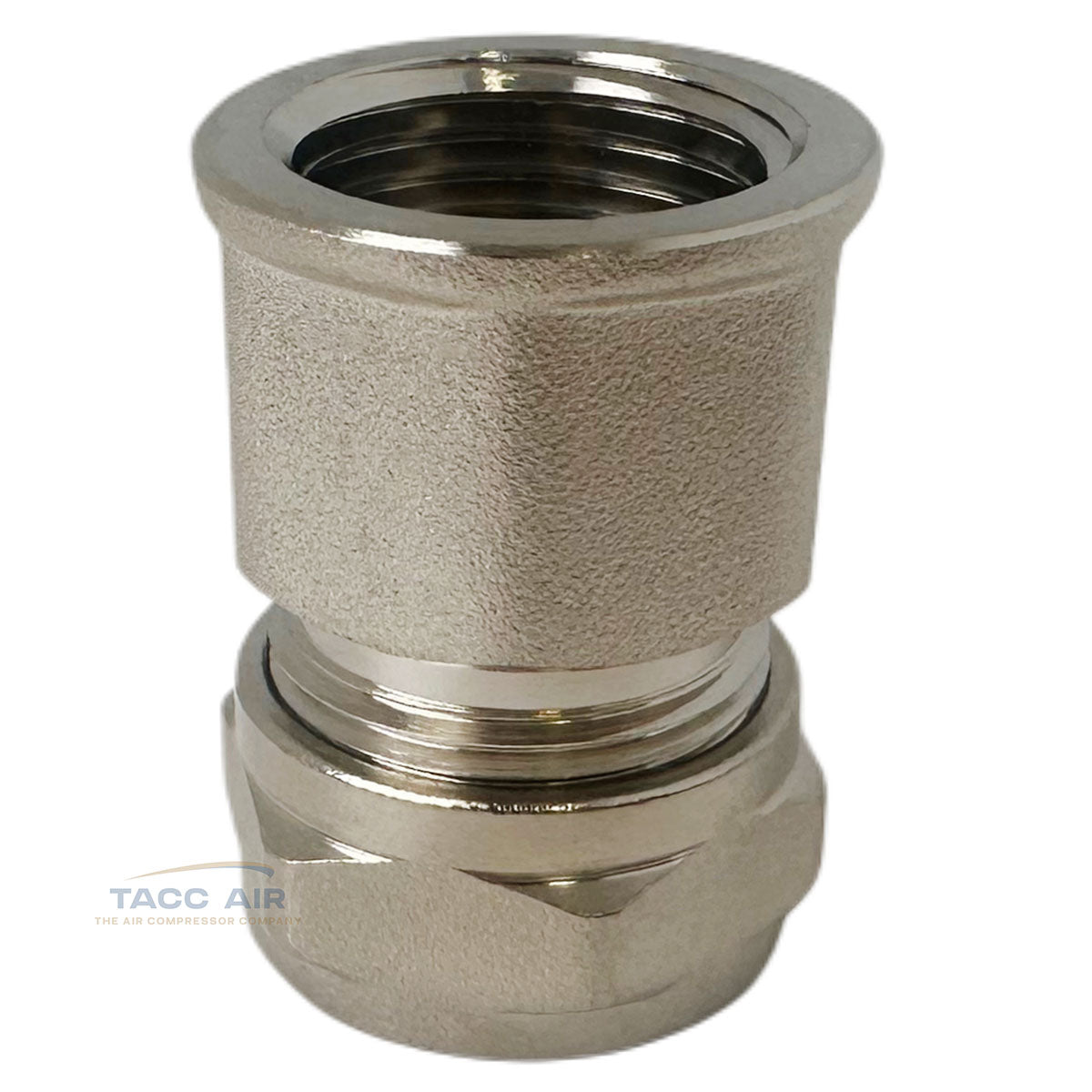

The MaxLINE M8006 Female NPT Straight Fitting is a dependable and essential component for customizing your MaxLINE compressed air system. Designed for use with 1/2" MaxLINE Tubing by RAPIDAIR, this straight fitting provides a 1/2" female NPT connection—ideal for connecting to male-threaded components such as hose reels, regulators, filters, or other equipment requiring a 1/2" NPT connection off the main line.

Constructed from solid brass and nickel-plated for enhanced corrosion resistance, the M8006 features a double O-ring seal to ensure a tight, leak-free fit. The split ring connection system allows for quick installation and easy disassembly, making it a convenient option for both new installations and future modifications.

If a smaller thread size is needed, use this in conjunction with a reducer to get to the desired size.

Features:

• Compatible with 1/2" MaxLINE Tubing (by RAPIDAIR)

• 1/2" Female NPT outlet for connecting equipment or accessories (Note 1/2" NPT measures approximately 3/4" in diameter)

• Solid brass construction with nickel plating for corrosion resistance

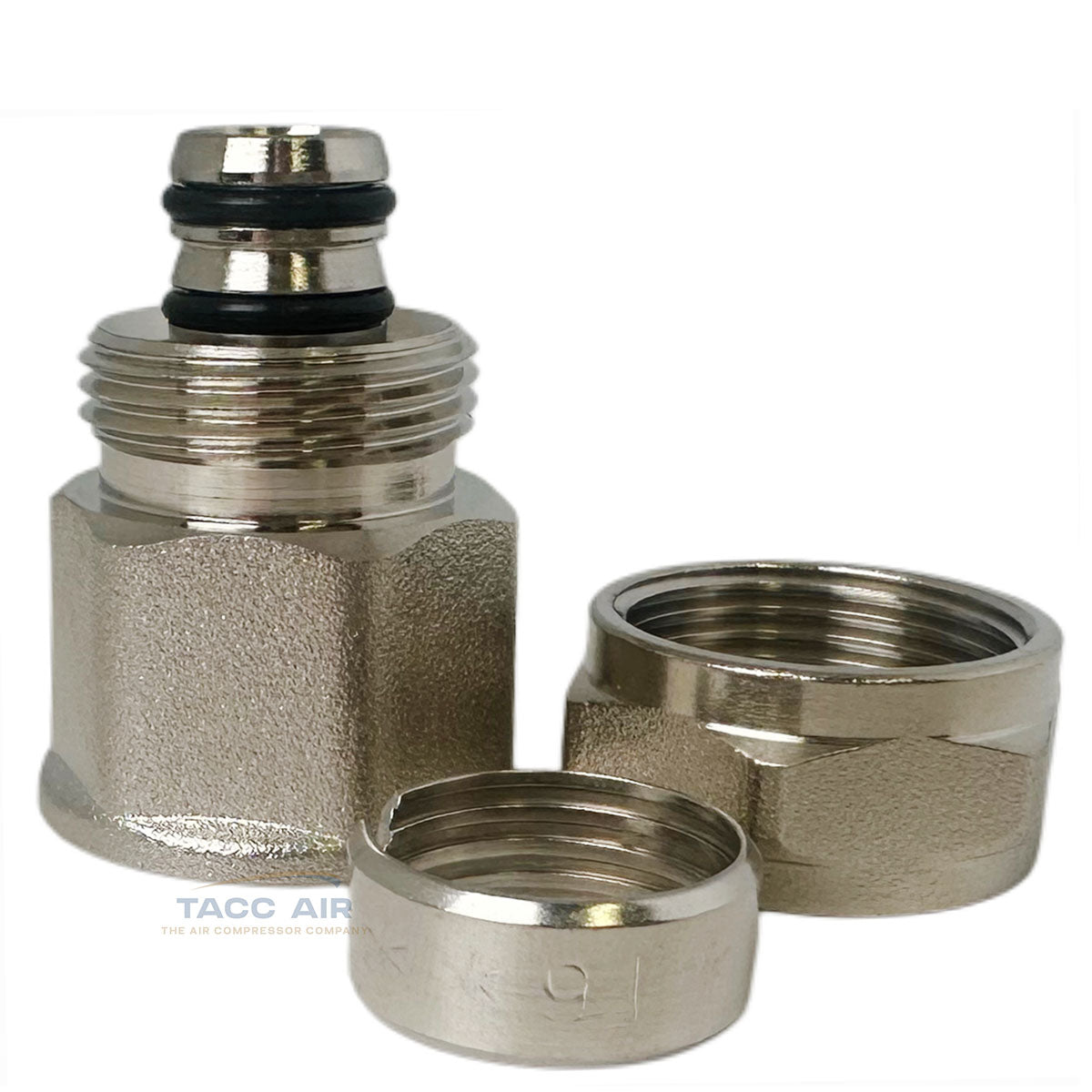

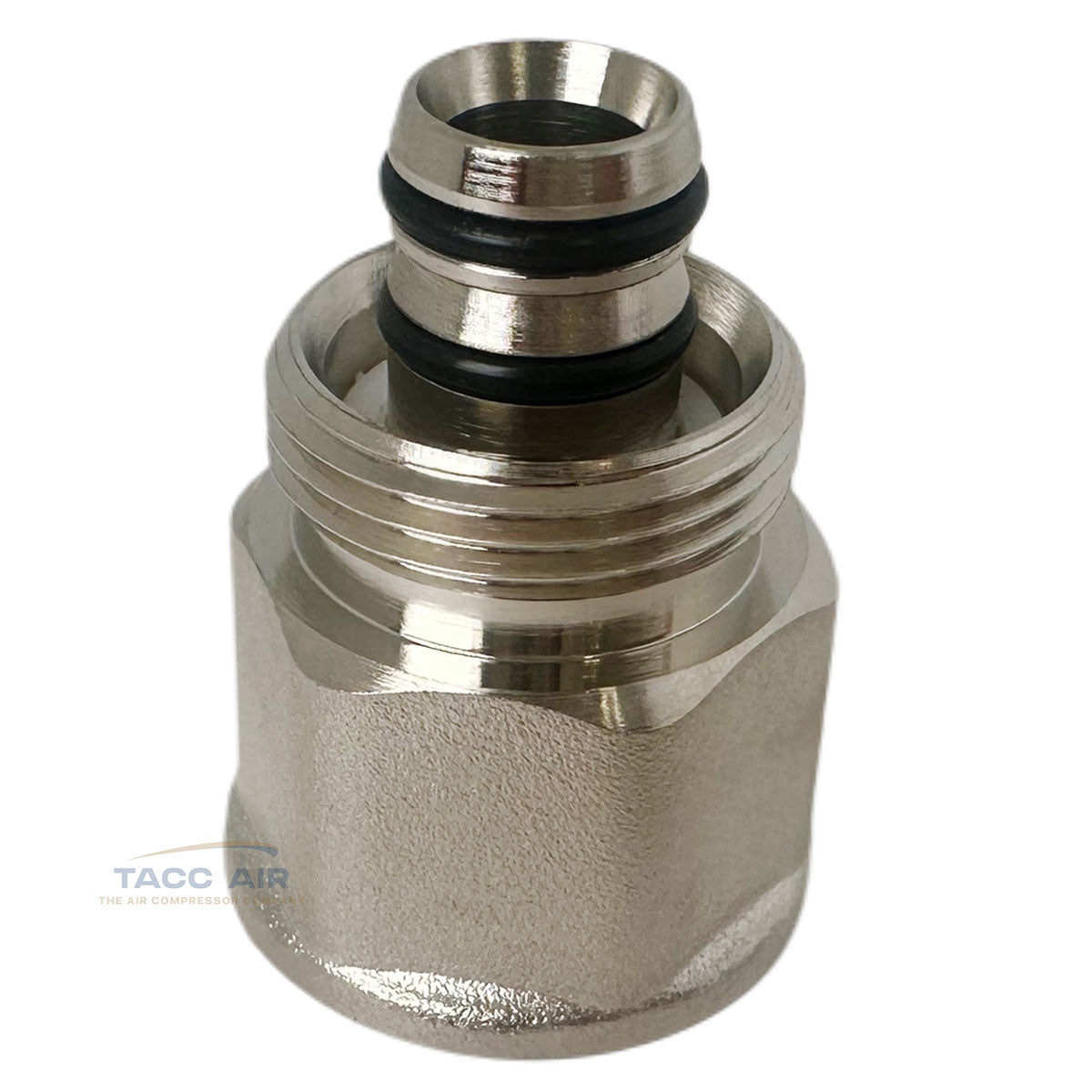

• Double O-ring seal for a tight, leak-free connection

• Split ring connections for easy installation and disassembly

• Rated for 175 PSI working pressure

• Temperature Range: -40°F to 140°F

• Meets OSHA Guidelines

Part Number: M8006
Brand: MaxLINE by RAPIDAIR
Type: Straight Fitting for Compressed Air Piping Systems

If you're building or modifying a MaxLINE system and need a secure connection to 1/2" NPT-threaded components, this straight fitting offers a reliable and efficient solution.
