M8201 RapidAir 3/4" Maxline Multi Port Outlet Block Manifold 1/2" NPT (4x)

MaxLine Air Piping System M8201

Dual Or Quad Outlet / Port  Manifold 3/4" Maxline Inlet × (2-4 ) 1/2"  NPT Outlets

The MaxLine M8201 Dual or Quad Outlet Port manifold is the perfect solution for adding multiple outlets or connections to your 3/4" MaxLine compressed air system. Designed for seamless integration with MaxLine’s semi-flexible 3/4" tubing, this outlet port allows you to connect multiple tools or accessories at a single location—ideal for garages, workshops, and professional air systems.

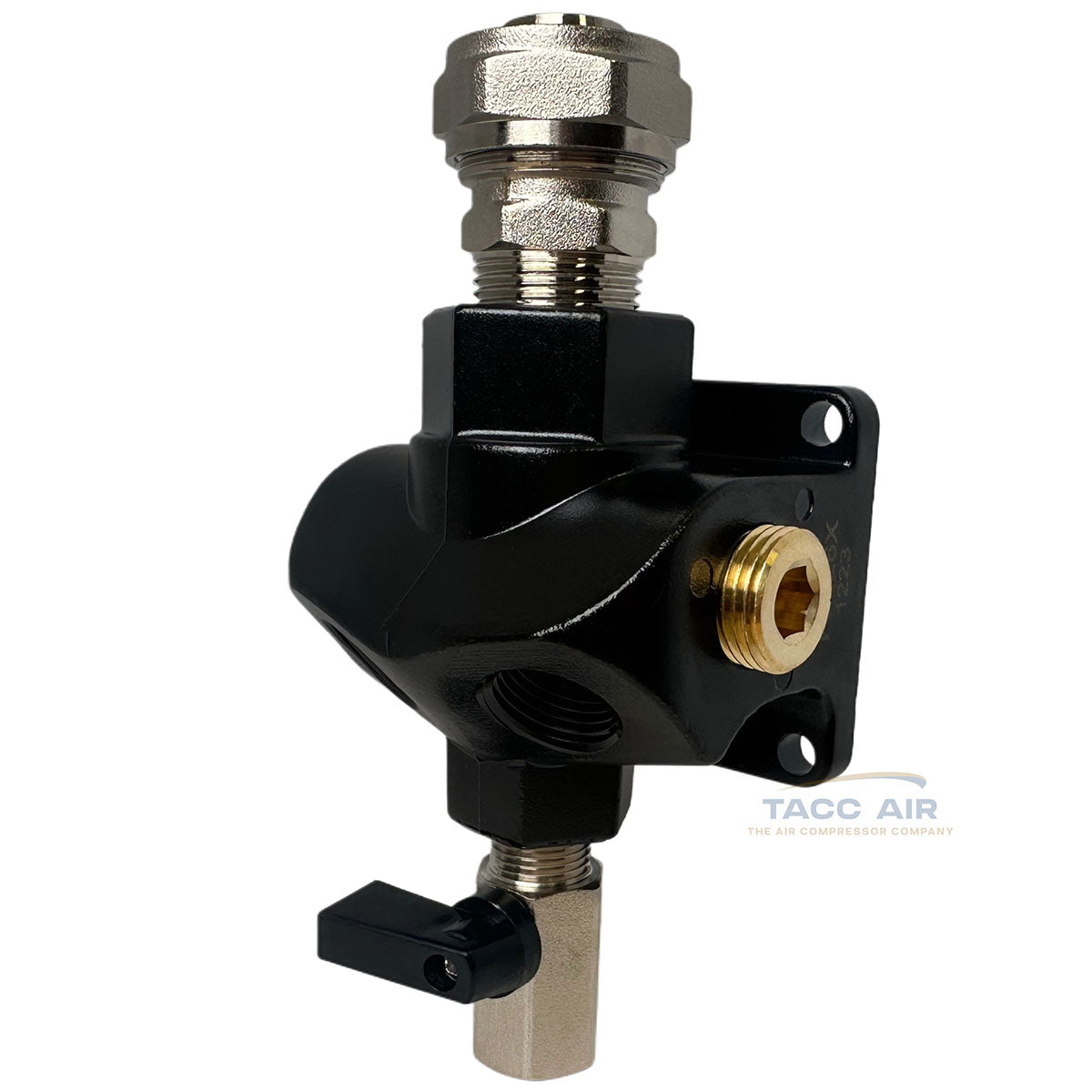

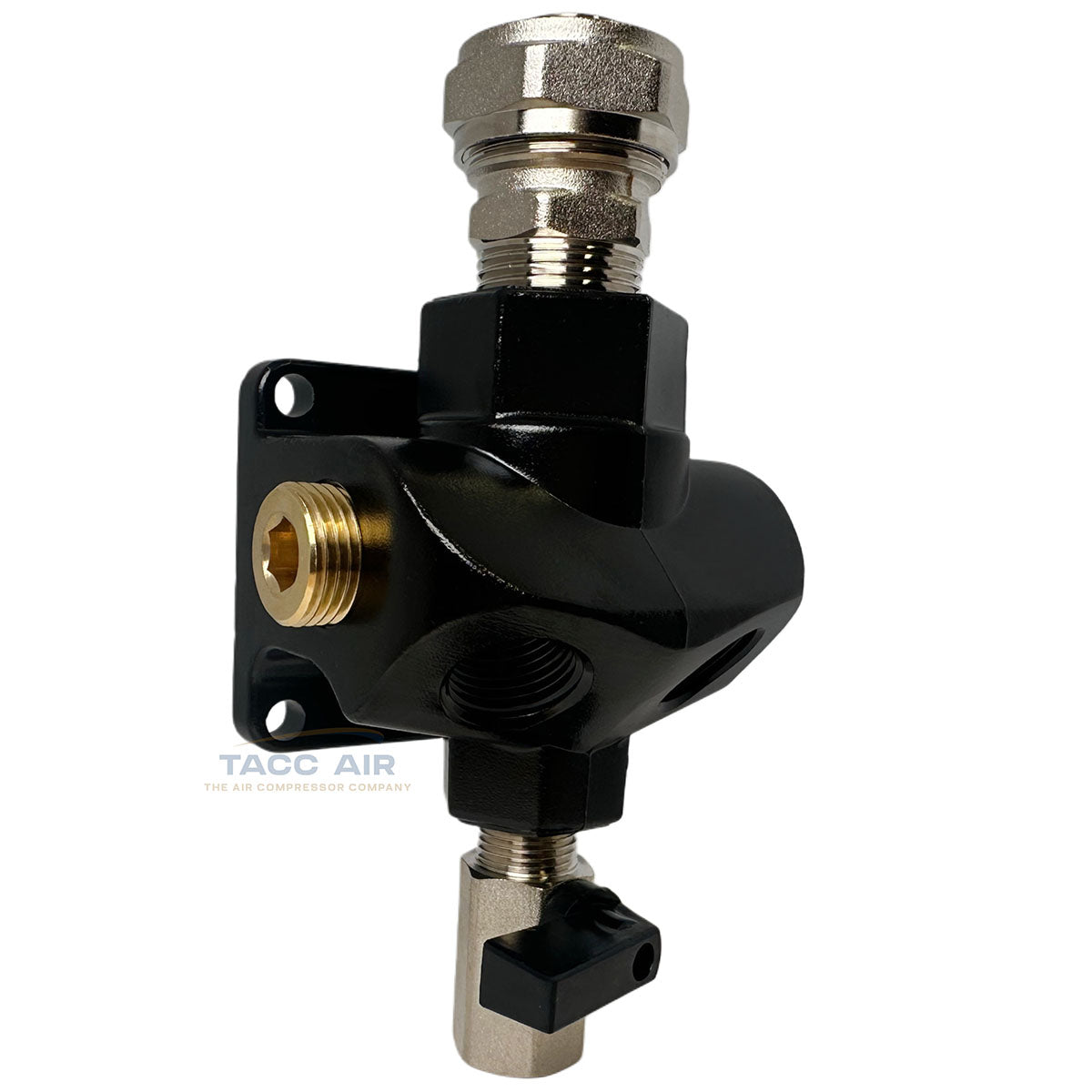

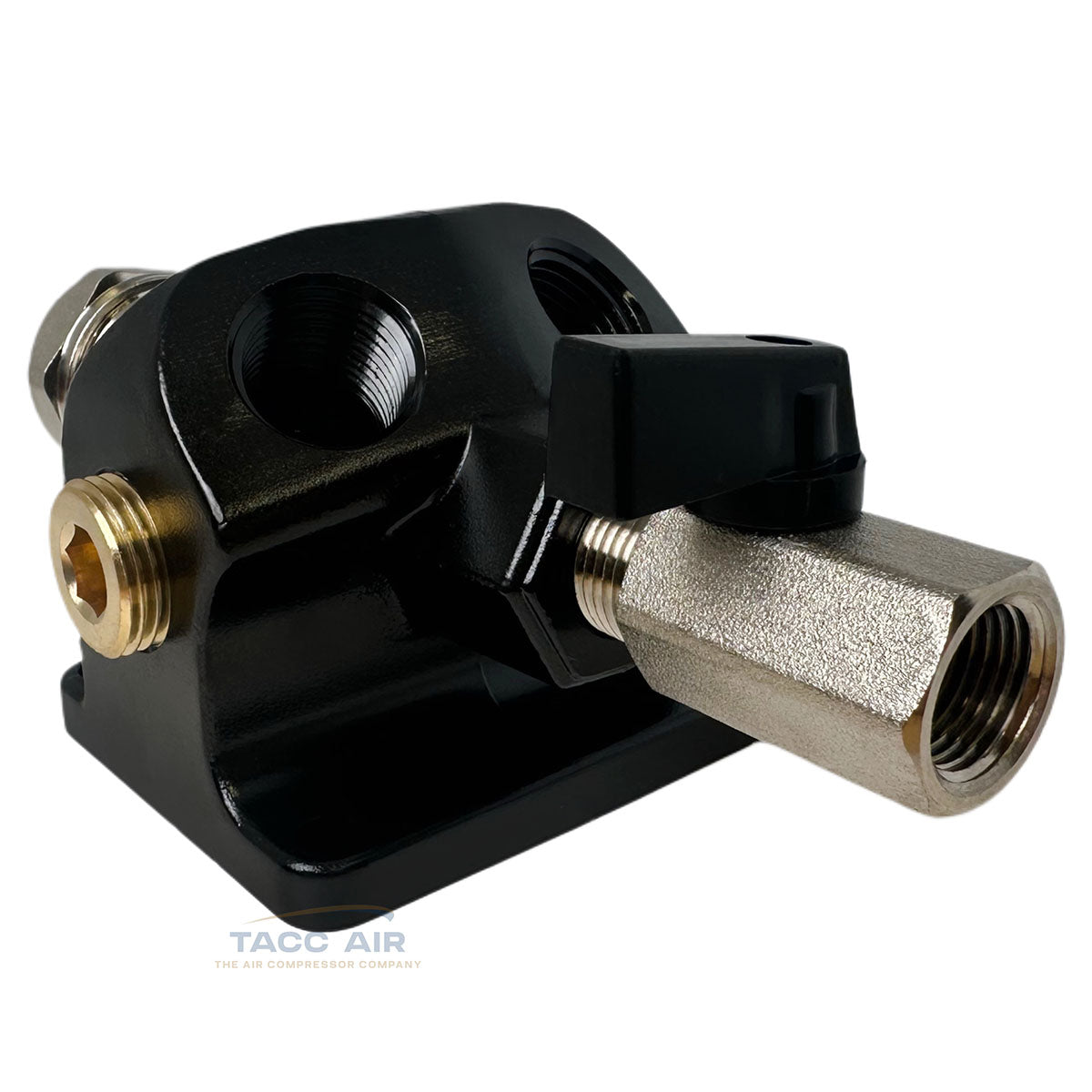

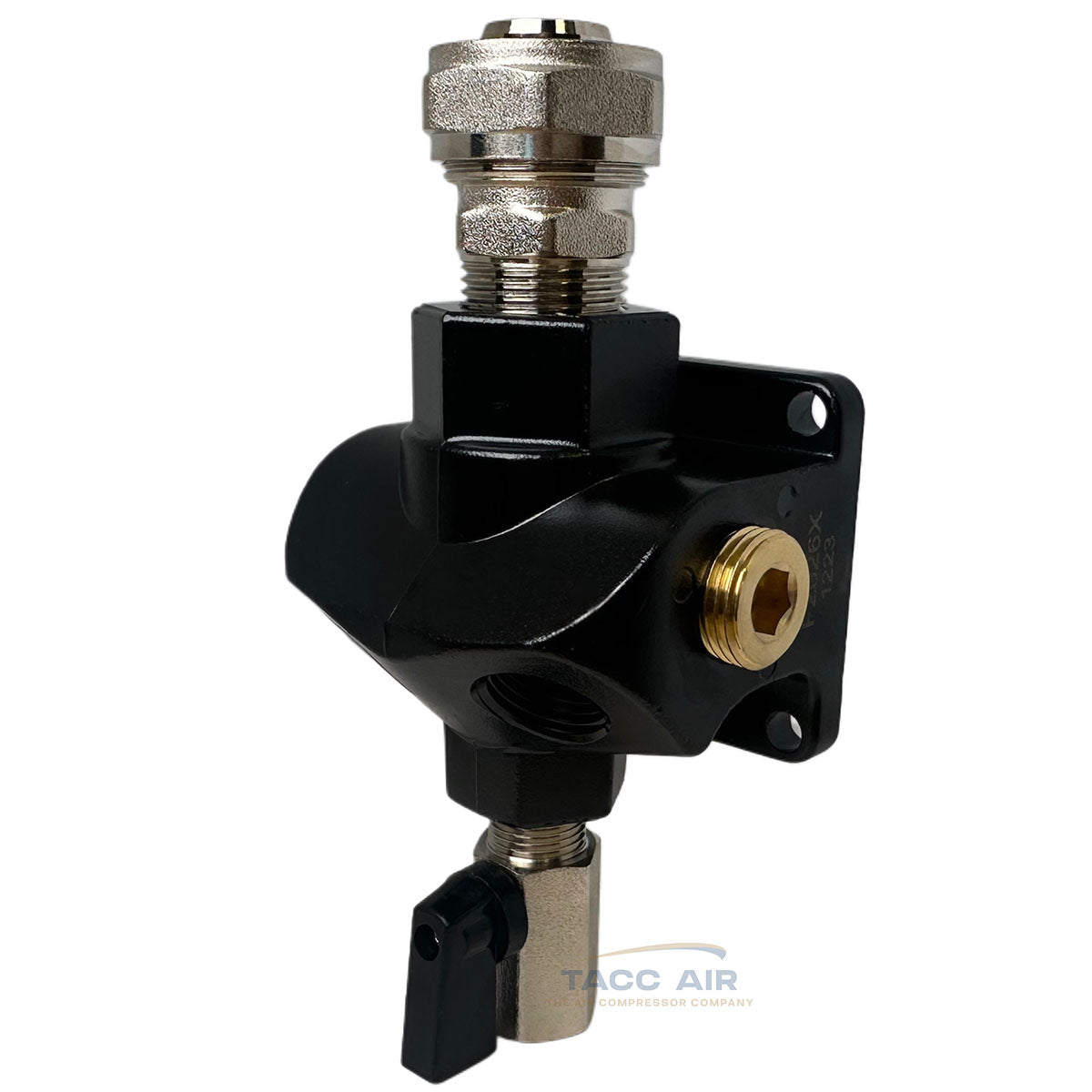

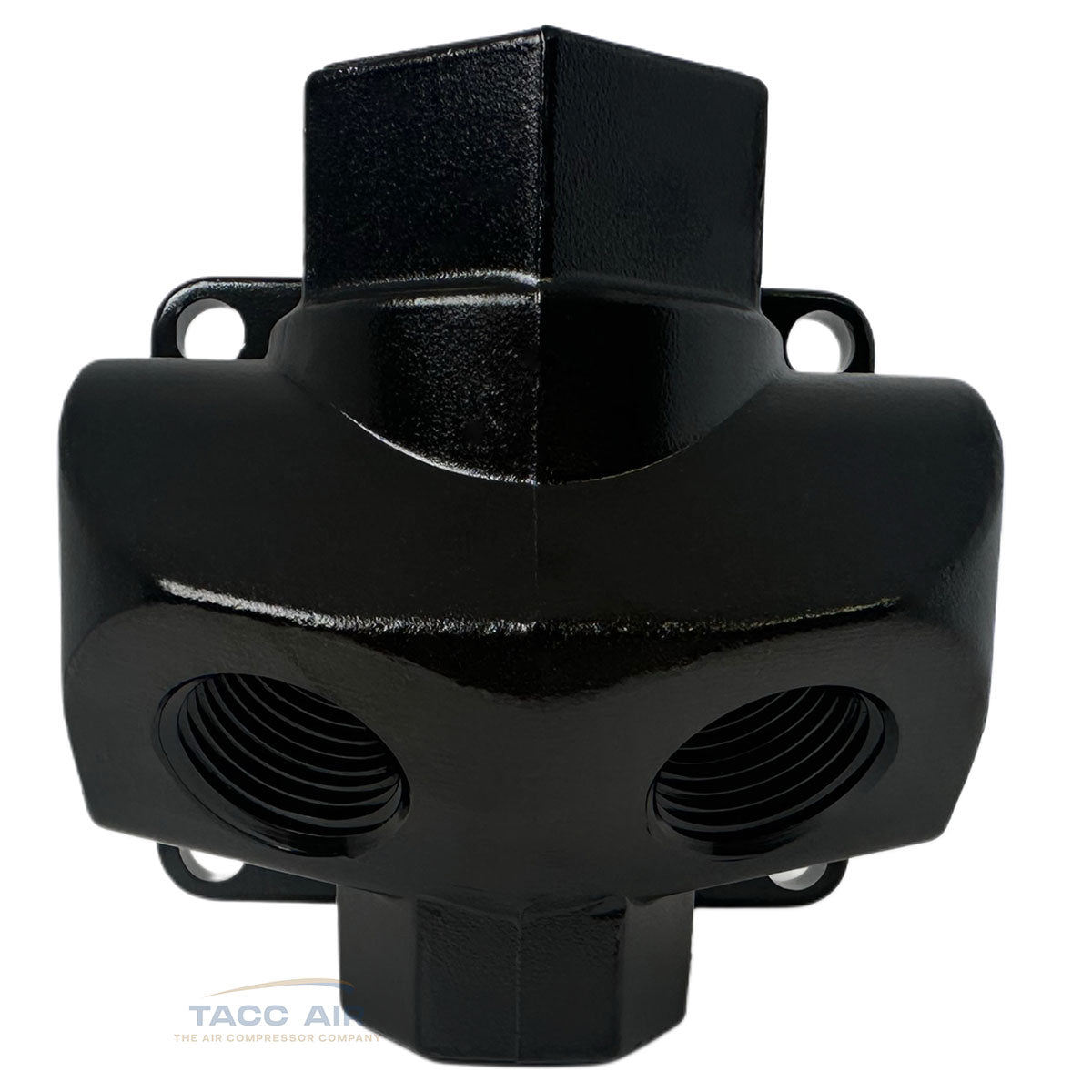

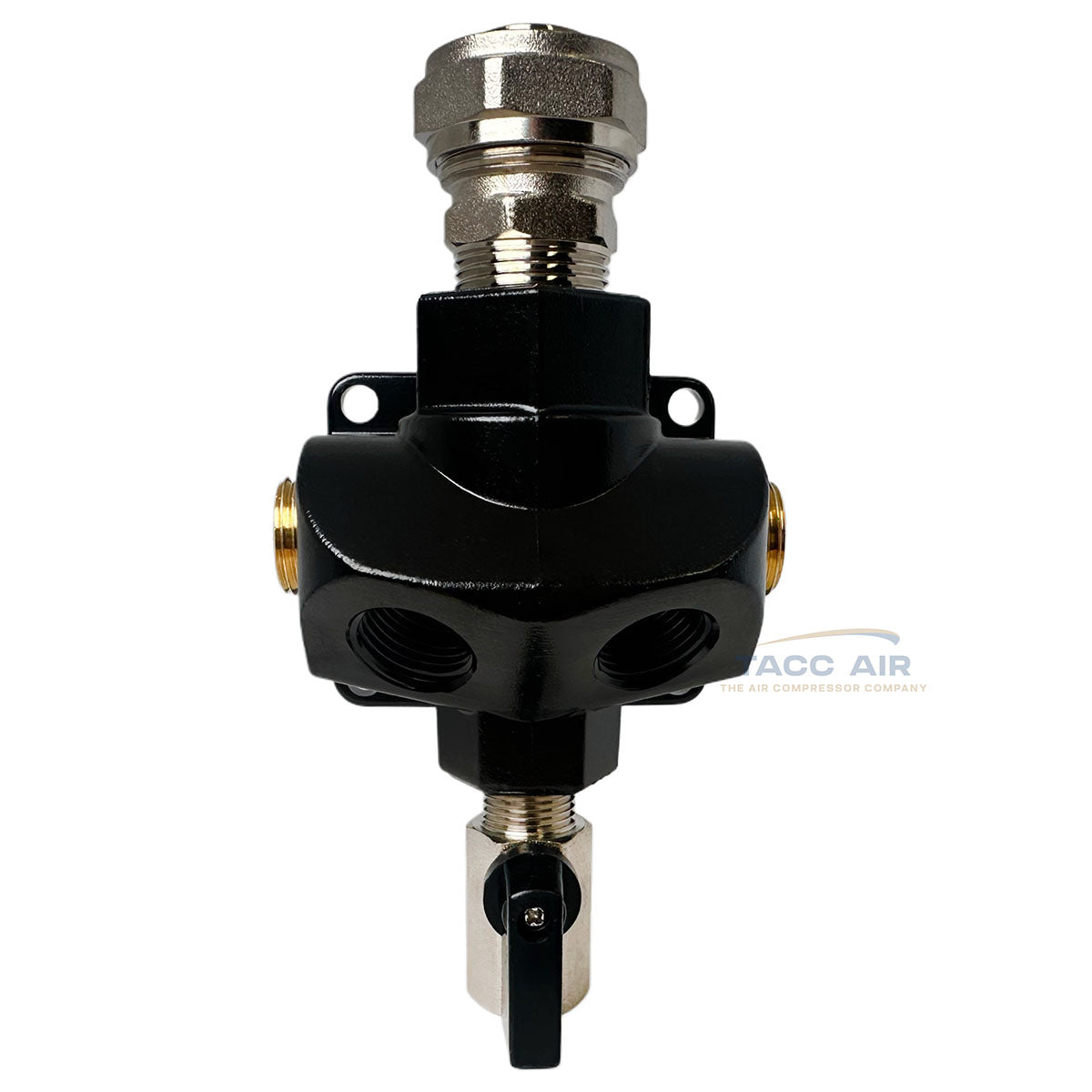

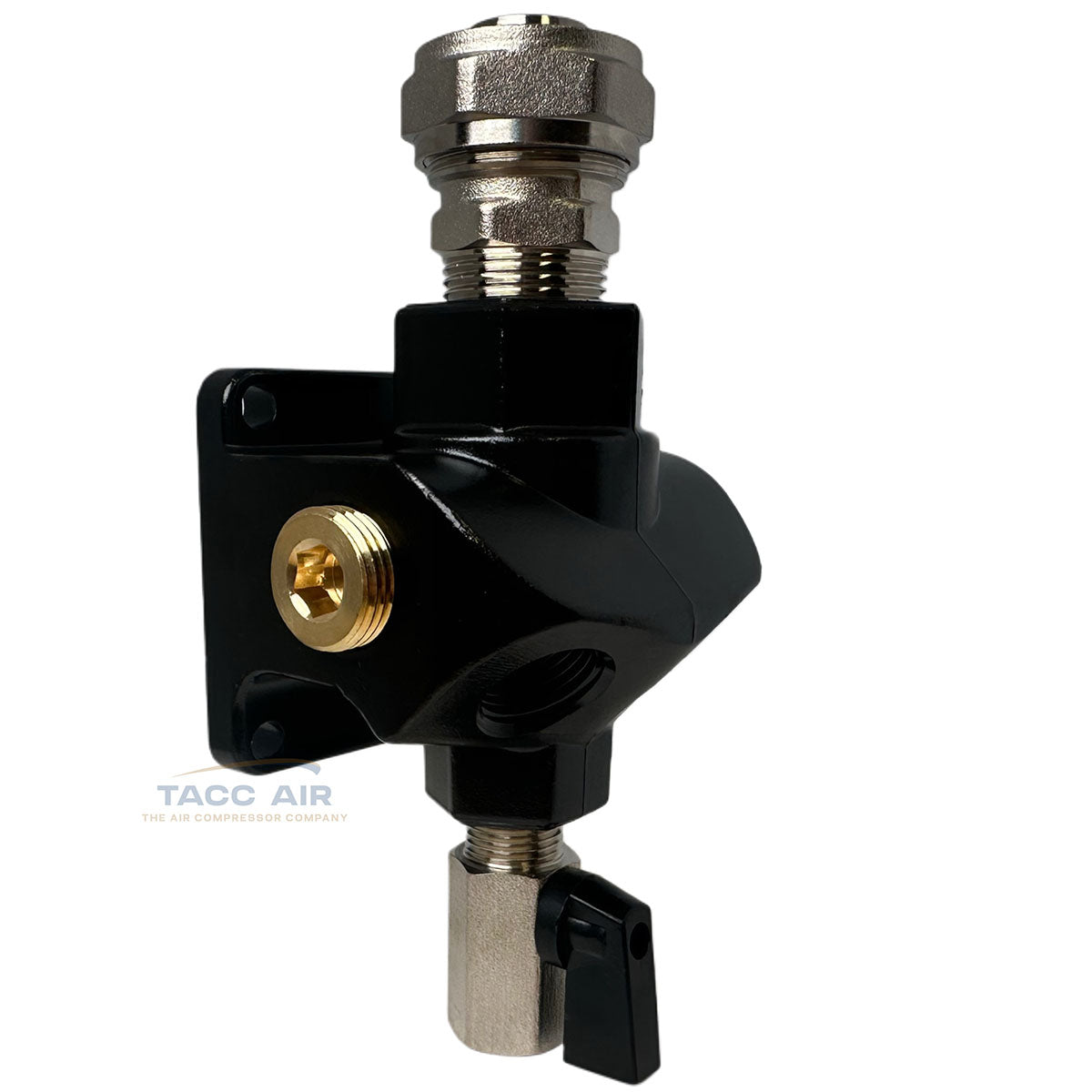

The M8201 features two angled 1/2" NPT female ports in the front and two additional ports one on each side of the manifold for more convenient tool connections and configurations. Also a 3/8" npt ball valve for a moisture drain on the bottom to help provide a drainage location for condensation in your airline setup. This is a rugged cast aluminum manifold and comes with all the fittings shown in the photos. (Air couplers not included)

Features:

• Compatible with 3/4" MaxLine Tubing (by RAPIDAIR)

• Two-to-Four port 1/2" NPT female outlets (Note: 1/2" npt measures approximately 3/4" in diameter)

• 3/8" Ball valve moisture drain on the bottom of the block

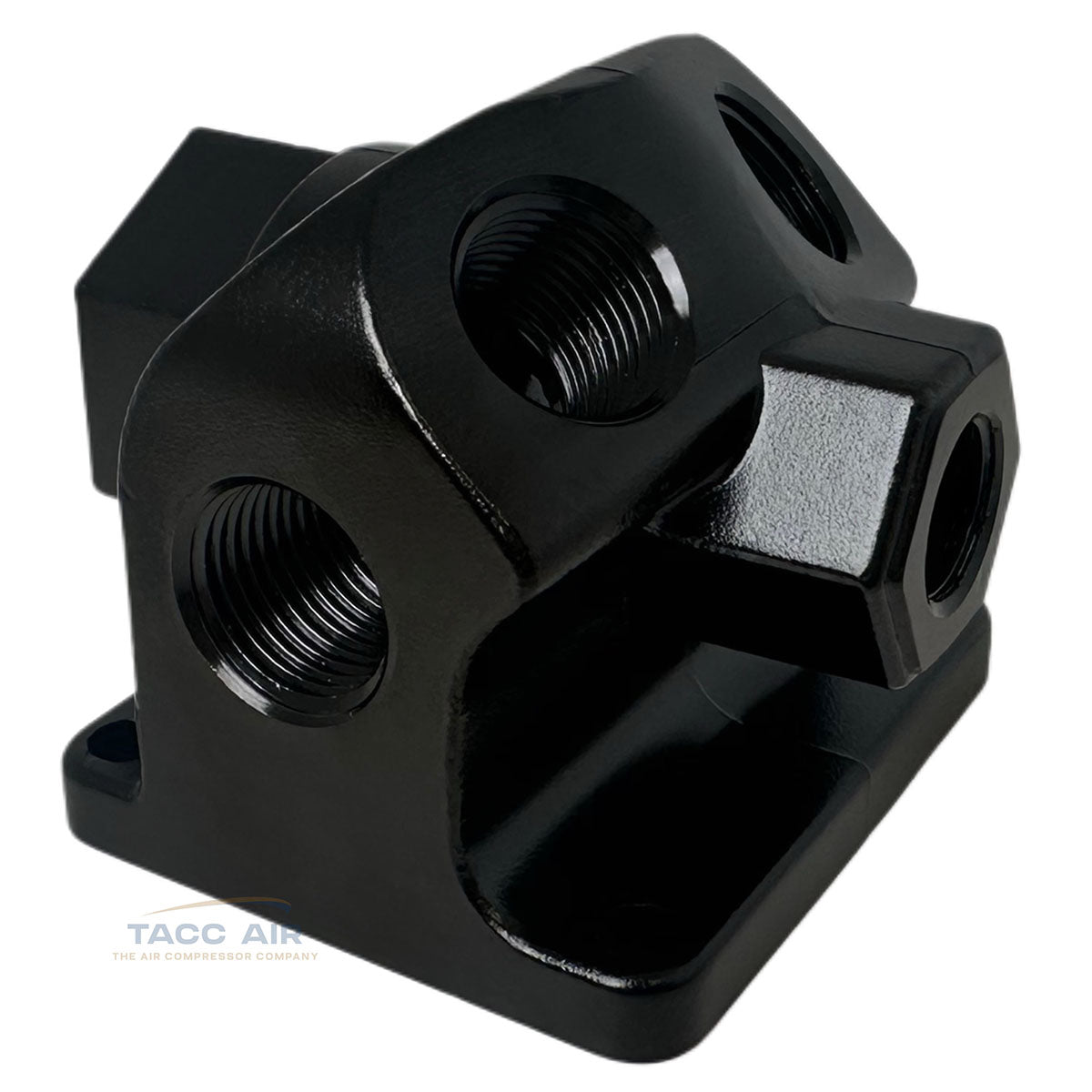

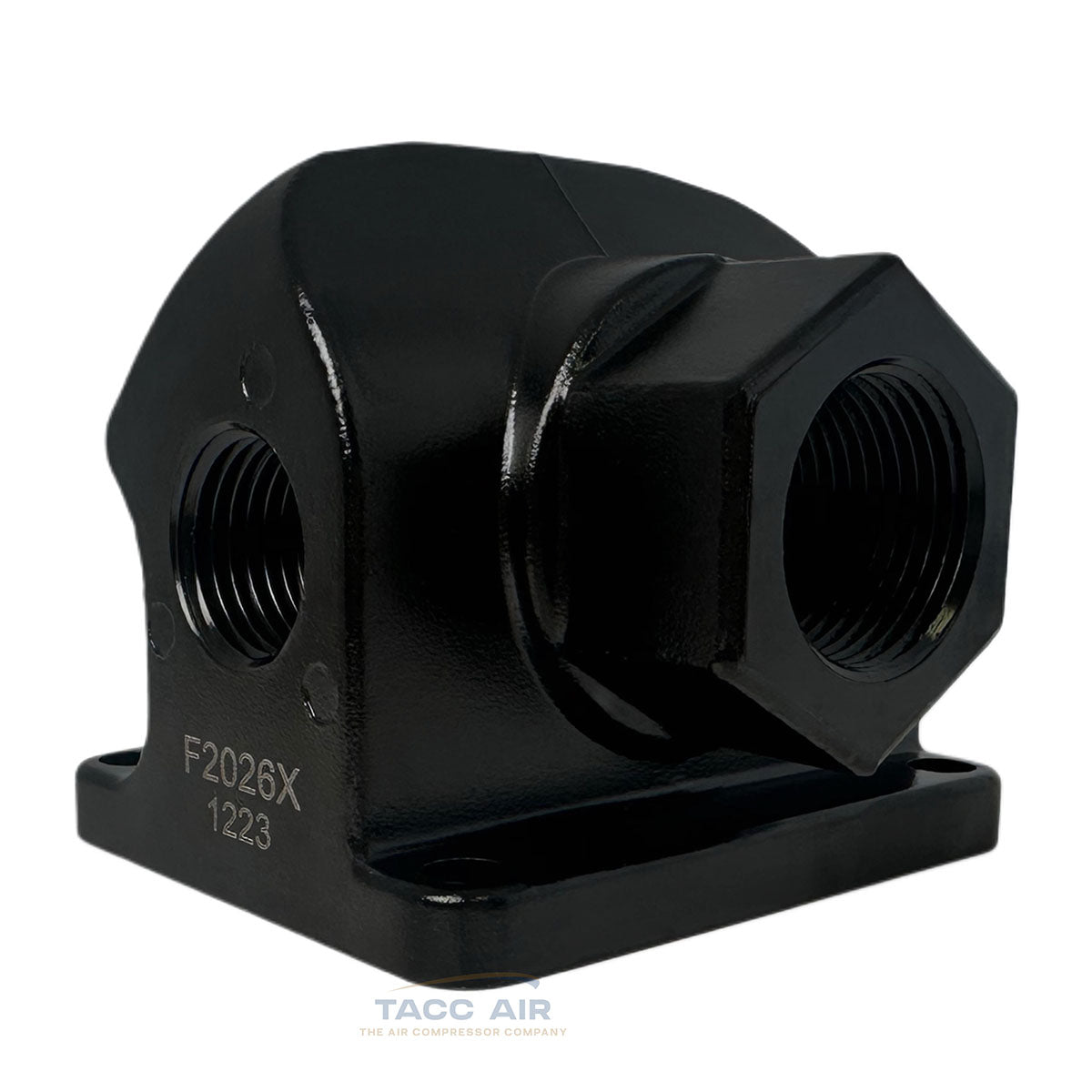

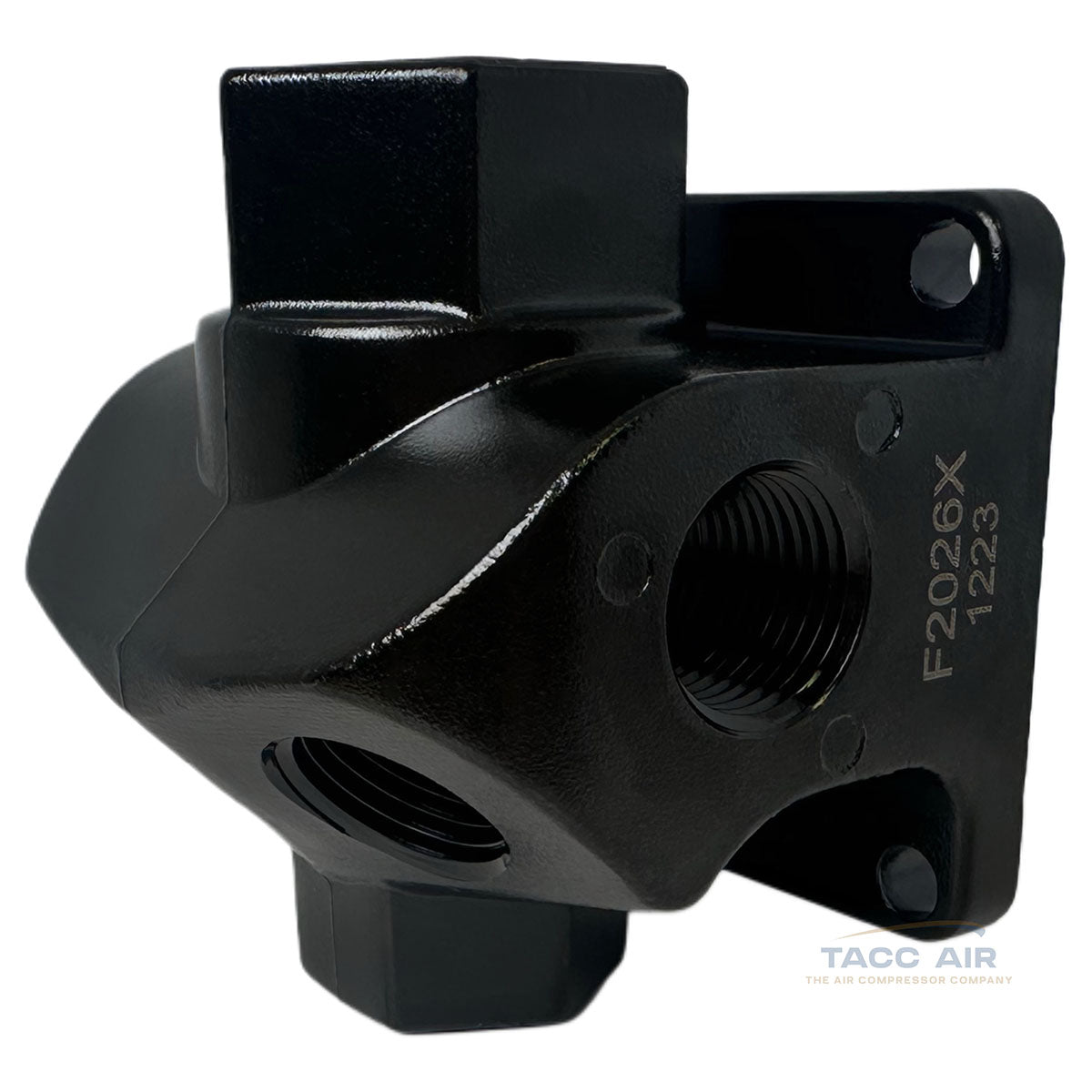

• Durable cast aluminum construction

• Rated for 190 PSI working pressure

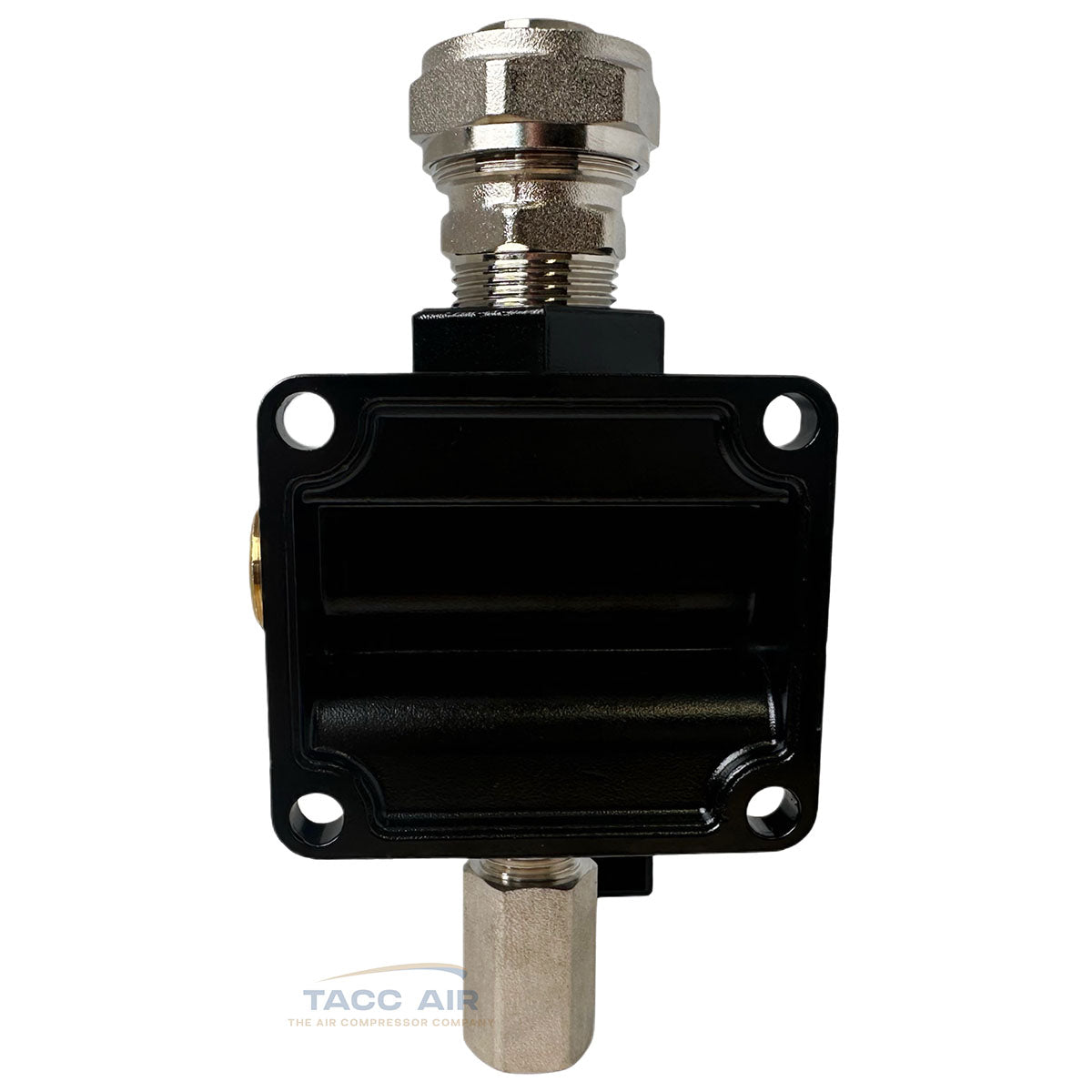

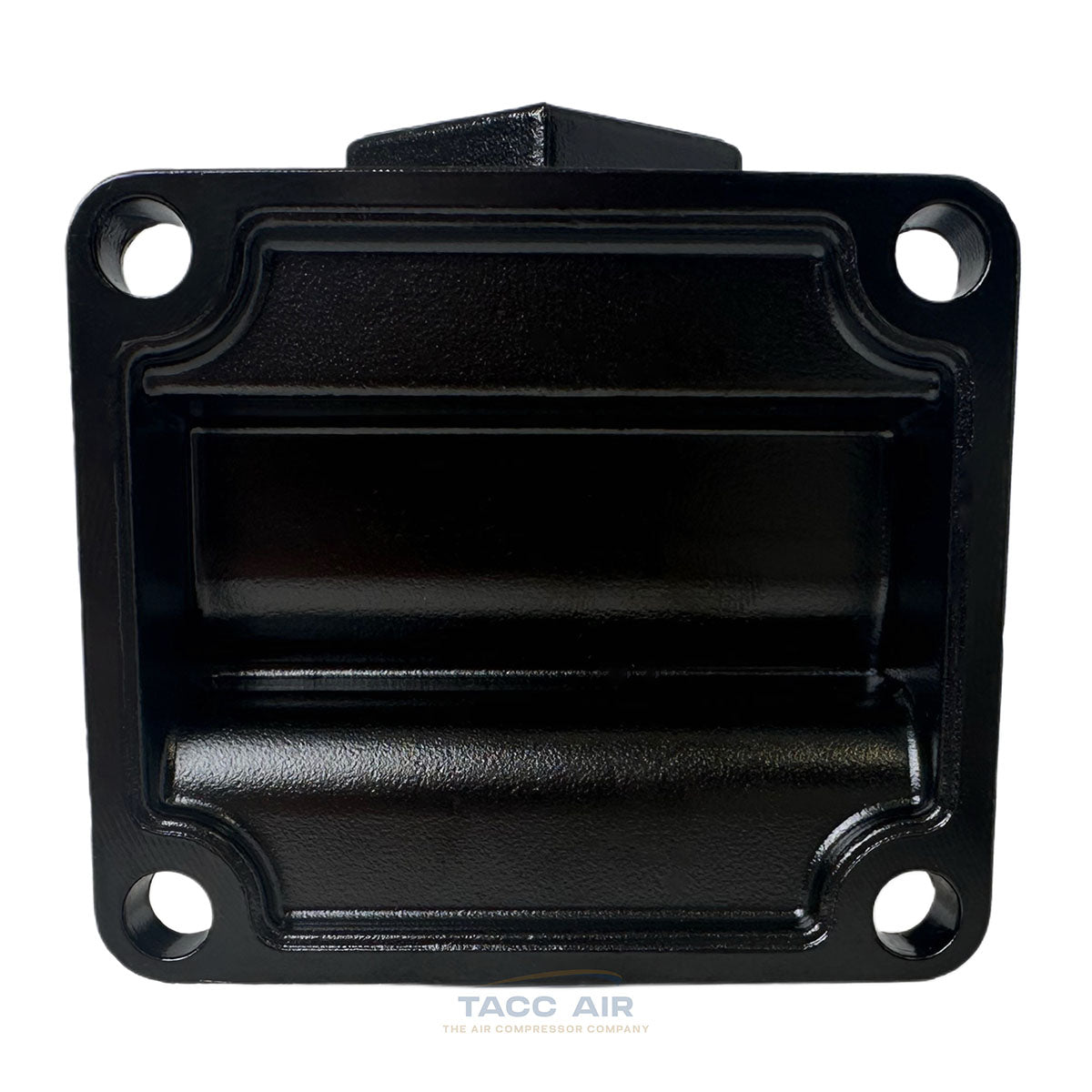

• Easy wall-mount installation for fixed air supply locations

Specifications:

• Part Number: M8201

• Brand: MaxLine by RAPIDAIR

• Type: Dual or Quad Outlet Port for Compressed Air Systems

• Inlet Size: 3/4" ID (MaxLine Tubing  Connection Only)

• Outlet Size: Up to 4  1/2" NPT Female Threads(Note: 1/2" npt measures approximately 3/4" in diameter)

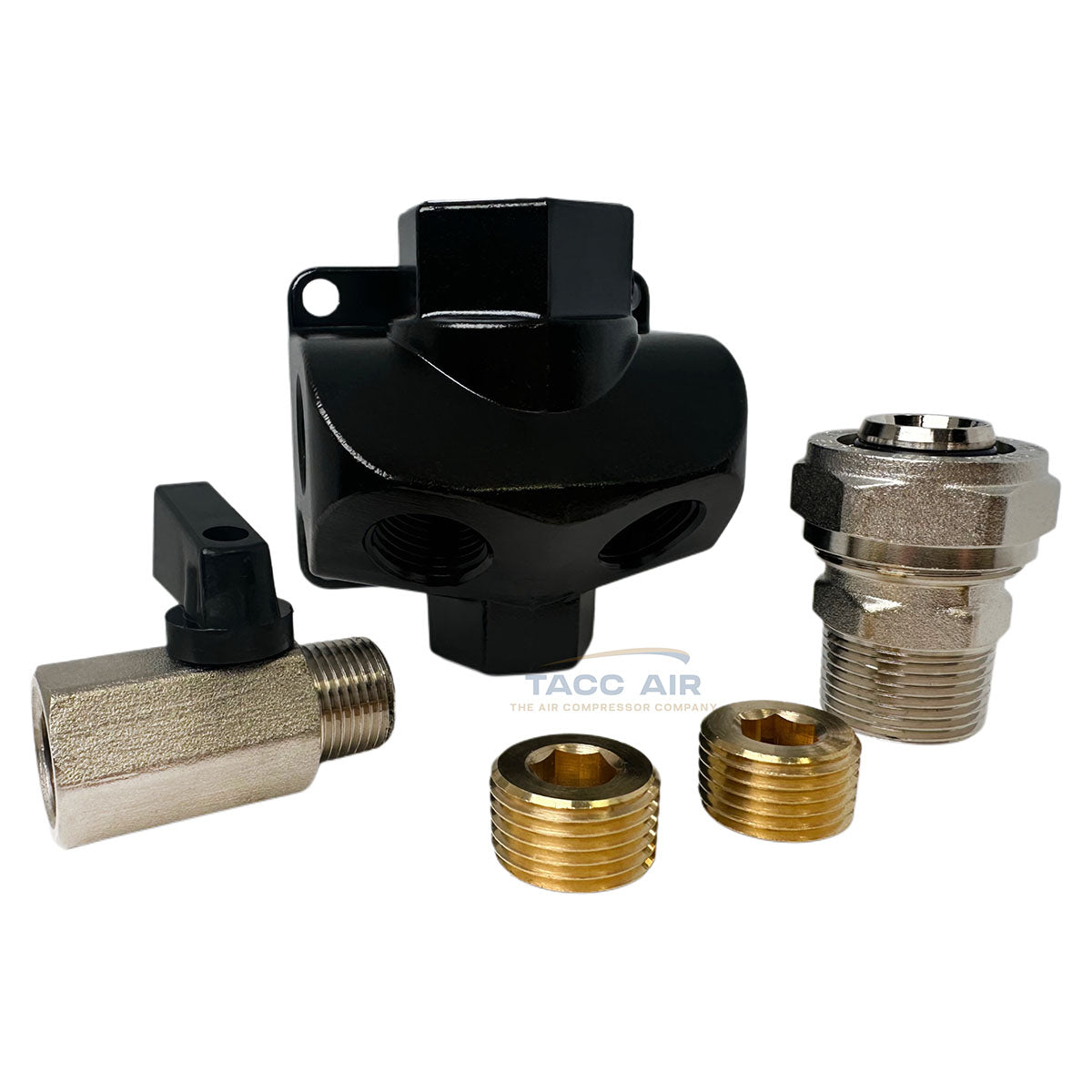

• Includes:

  • Cast aluminum outlet block

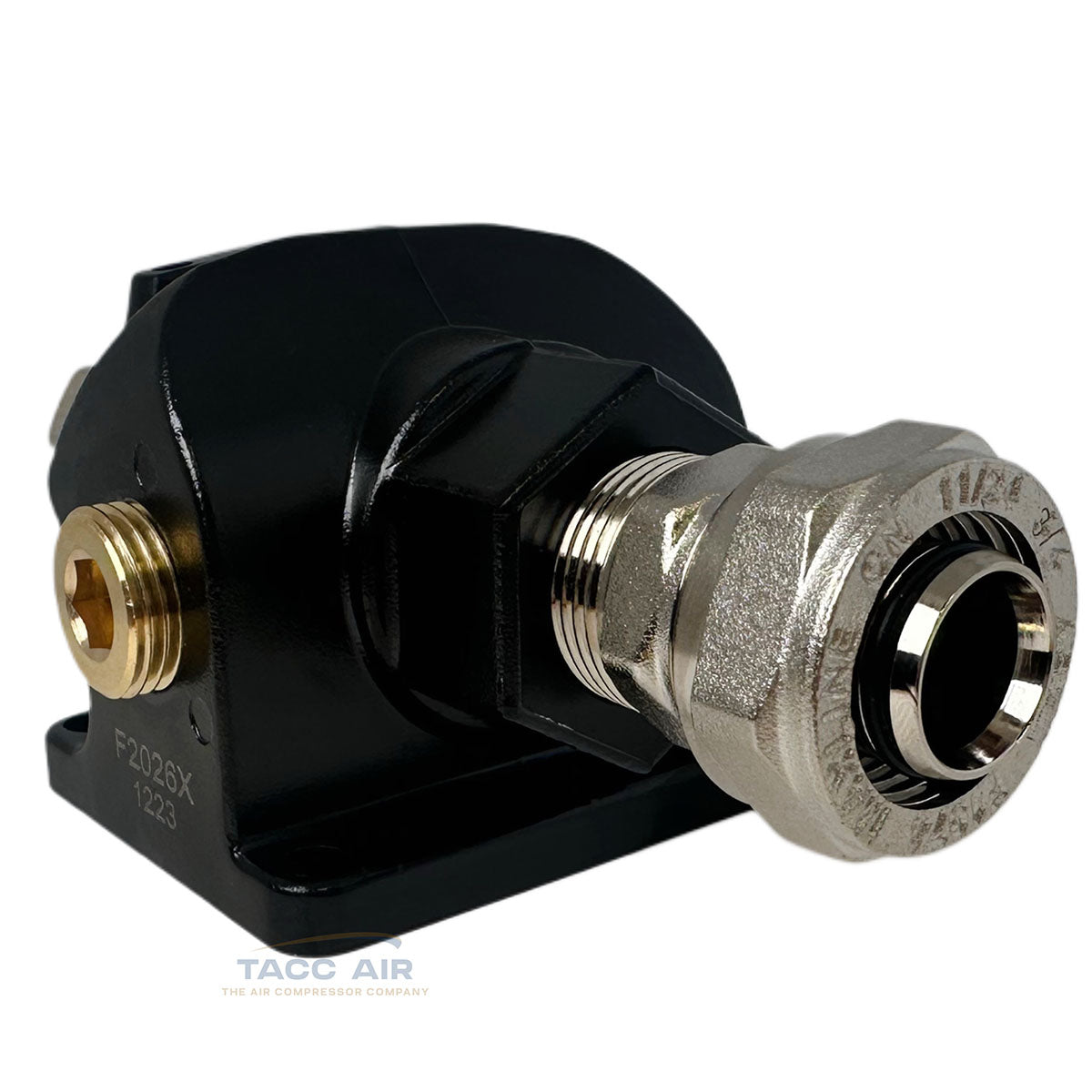

  • M8003 adapter inlet fitting

  • 3/8" NPT ball drain valve

  • Two 1/2" Brass plugs to plug two of the ports if they are not needed (Note: 1/2" npt measures approximately 3/4" in diameter)

• Dimensions (with fittings):

  • Height: ~6.5″

  • Width: ~3.25″

  • Depth: ~2.75″

Whether you're adding a dedicated tool station or expanding your MaxLine setup, the M8201 multiple outlet port manifold delivers clean, efficient, and professional-grade air connections wherever you need it.
