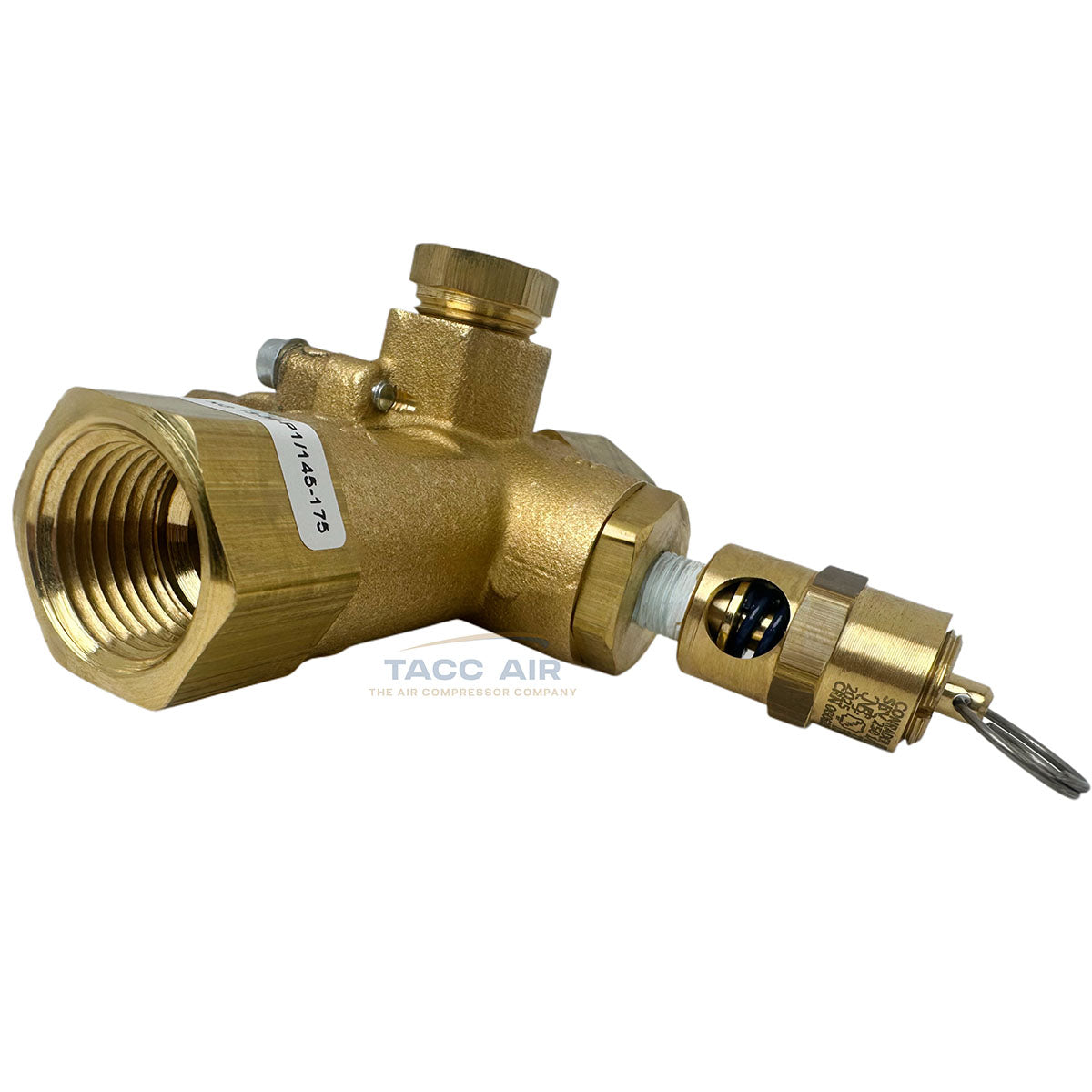

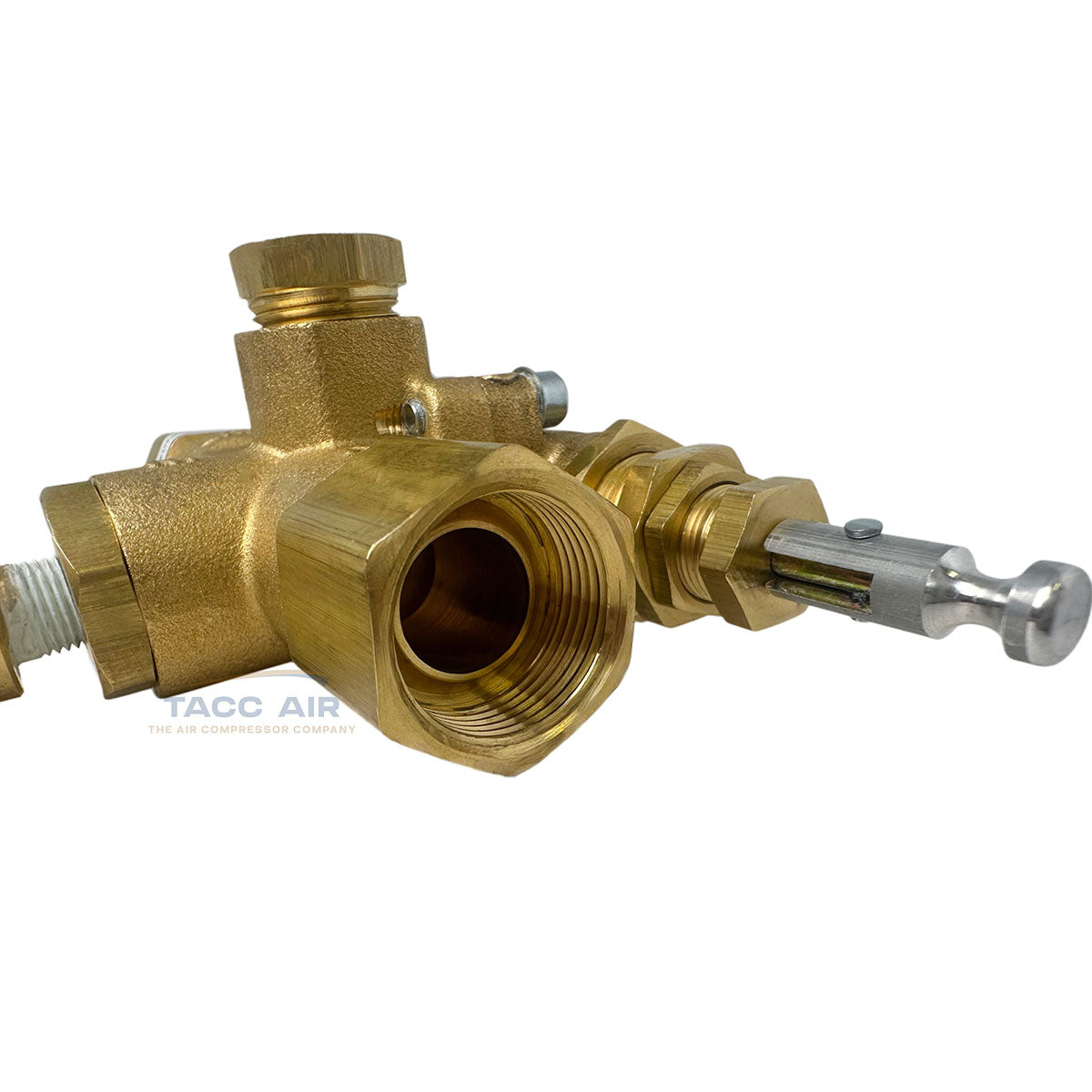

Replacement Pilot Unloader Check Valve for Ingersoll Rand T30 –

145-175 PSI Made in USA (49816283-C)

Aftermarket USA Made Replacement for manufactures part number #2475 also known as 49816283

Description:

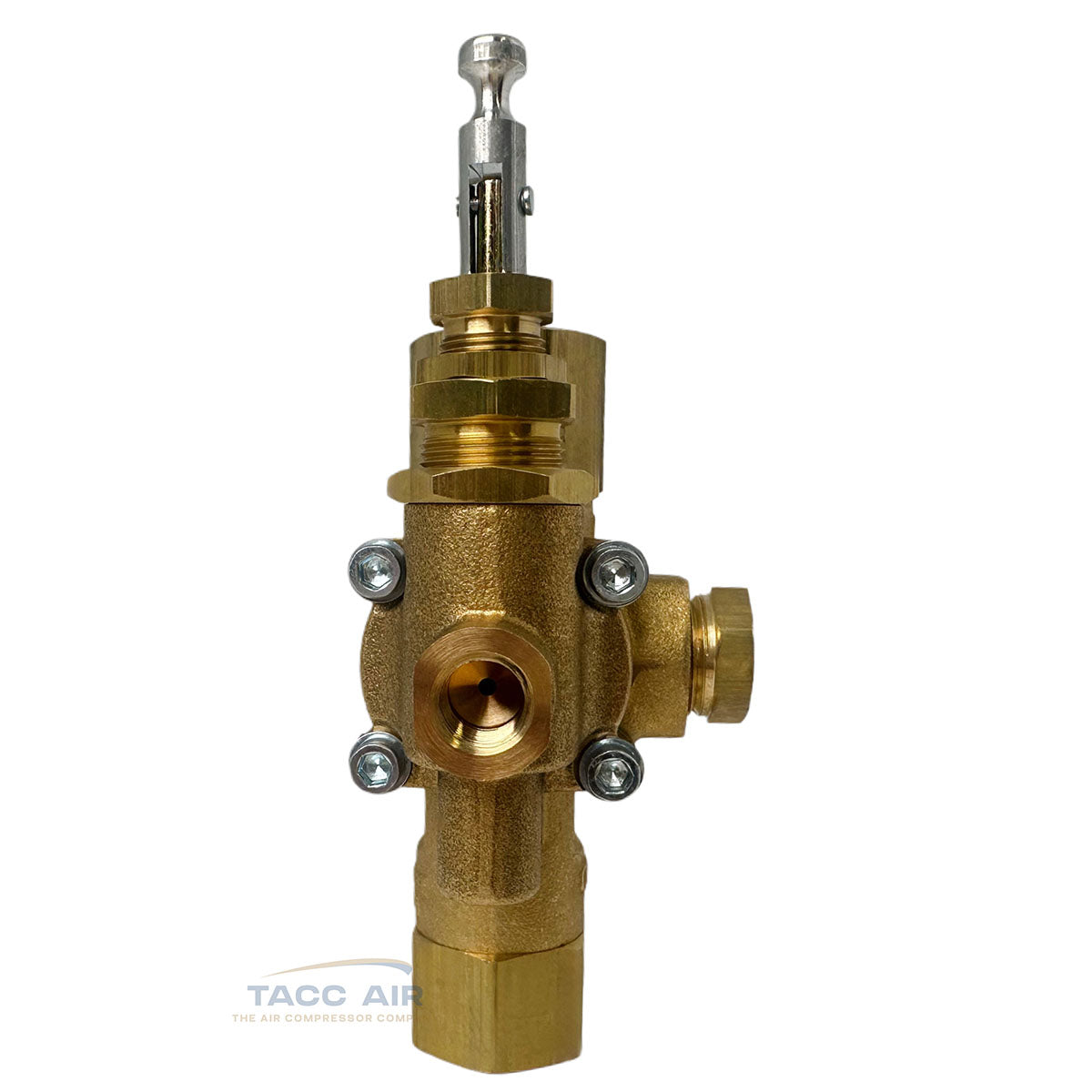

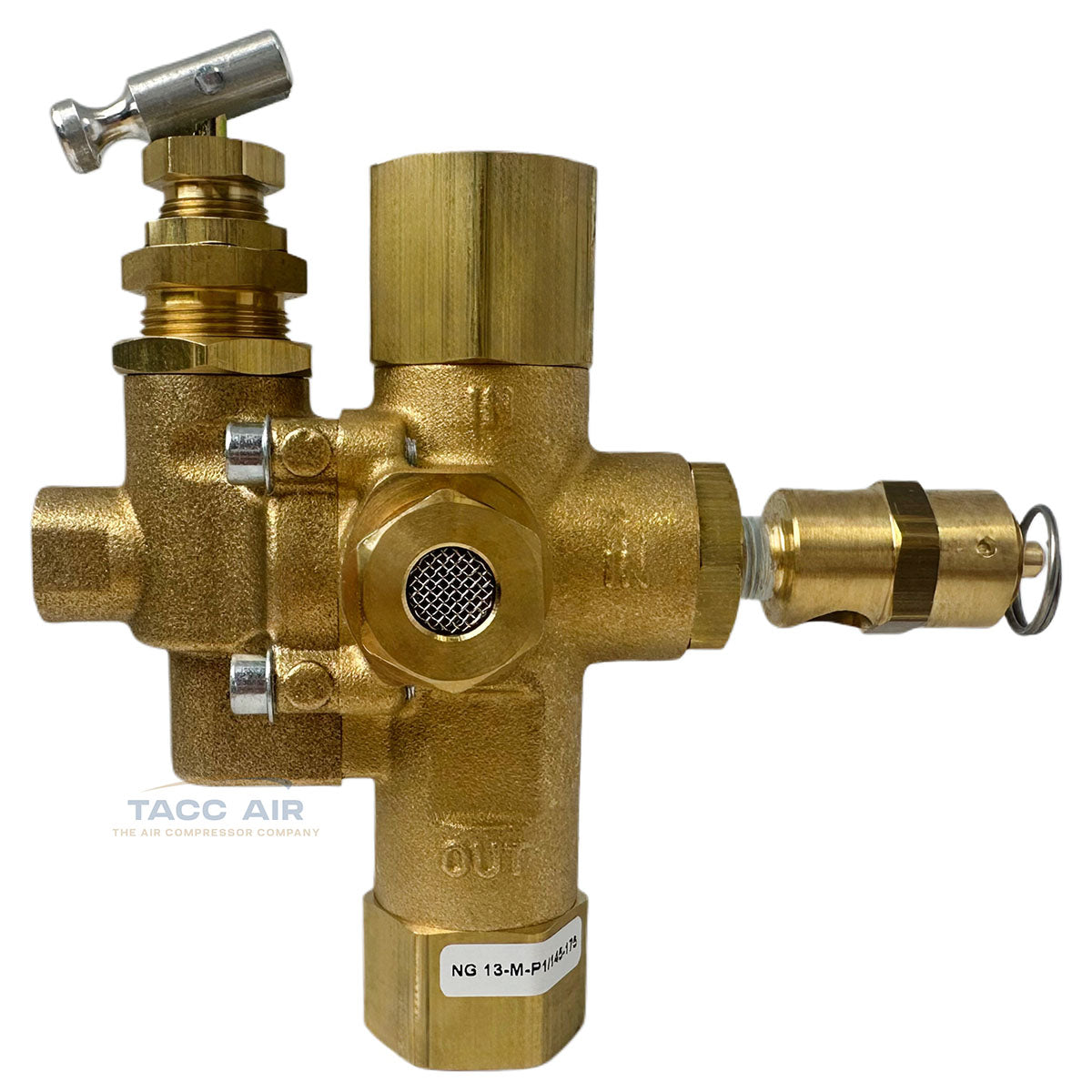

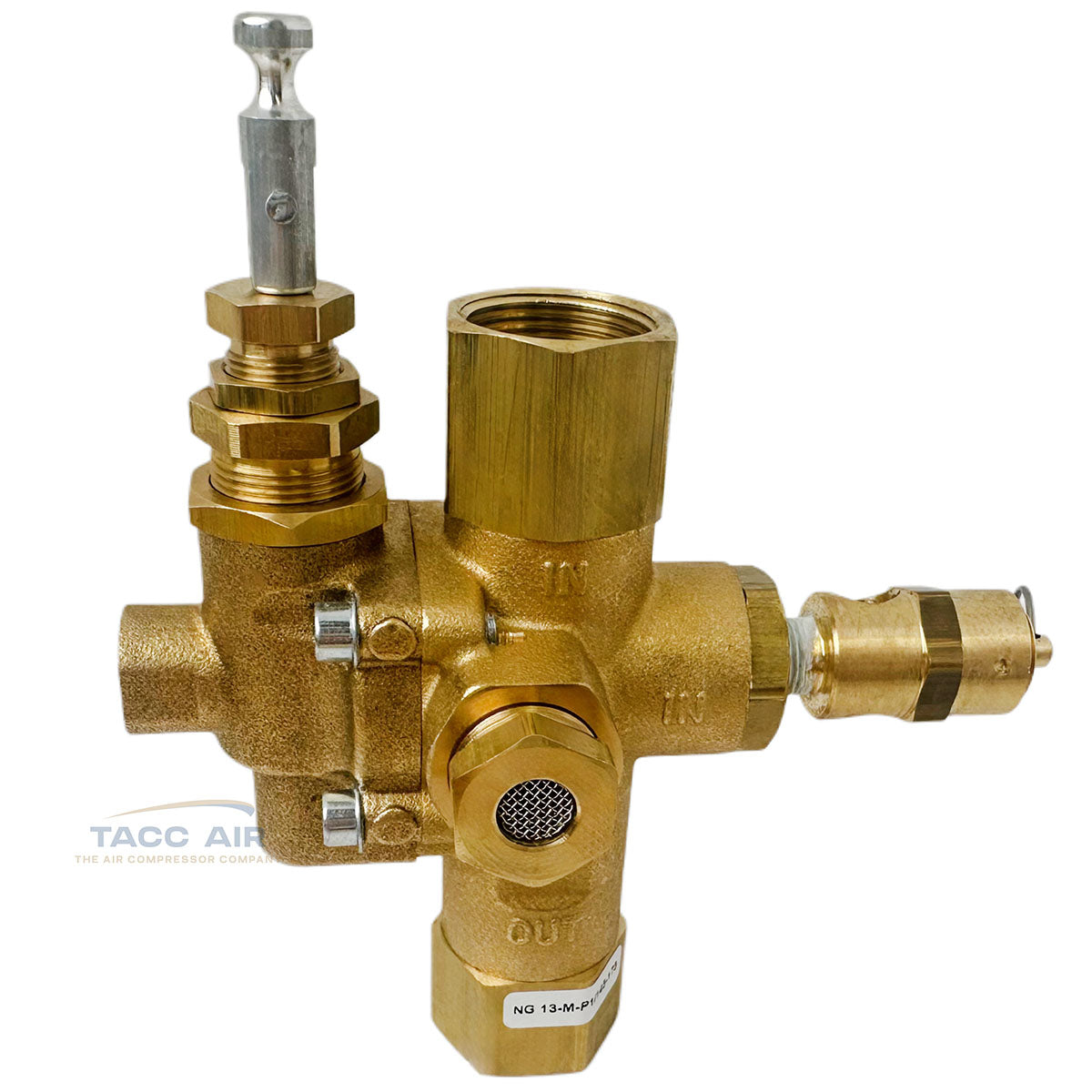

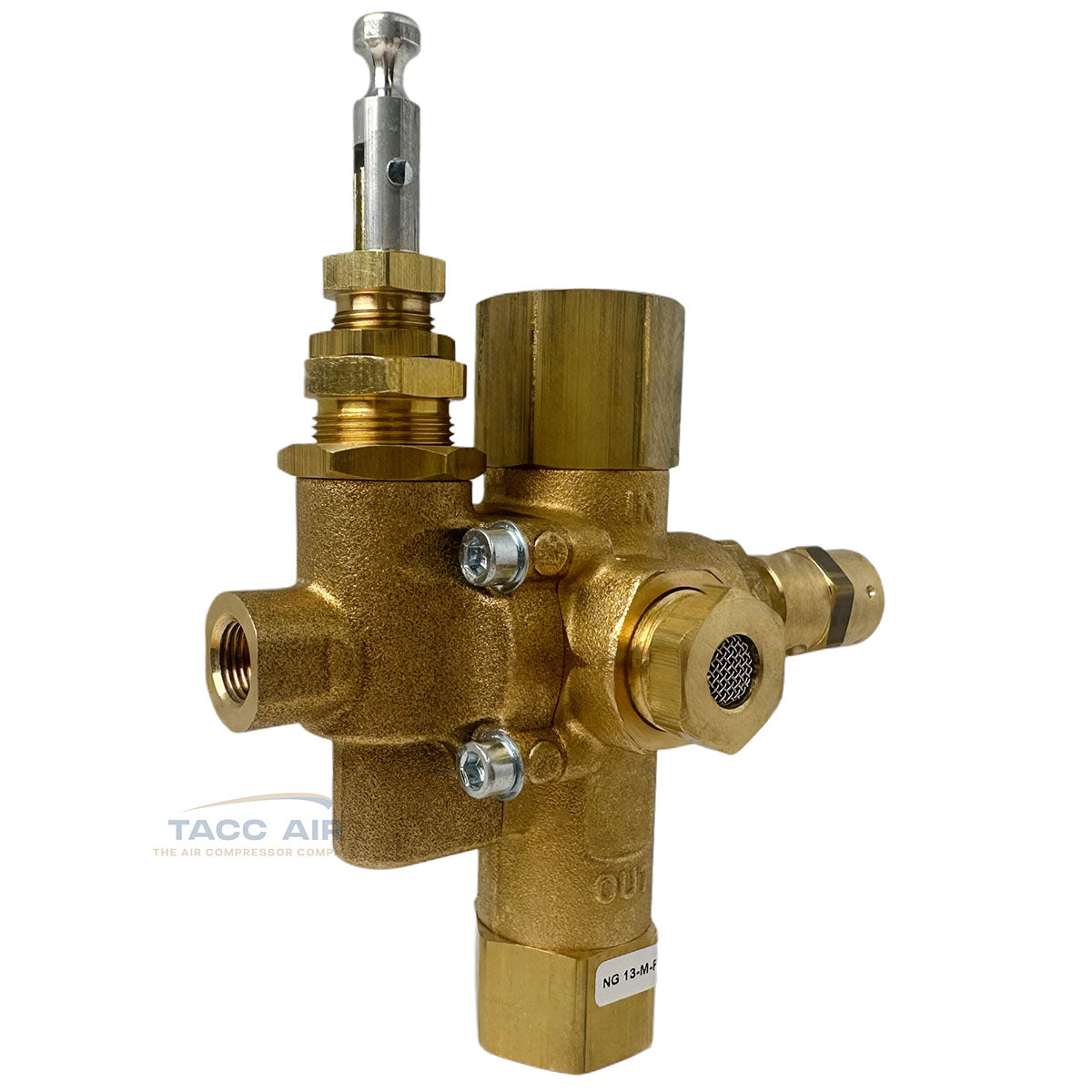

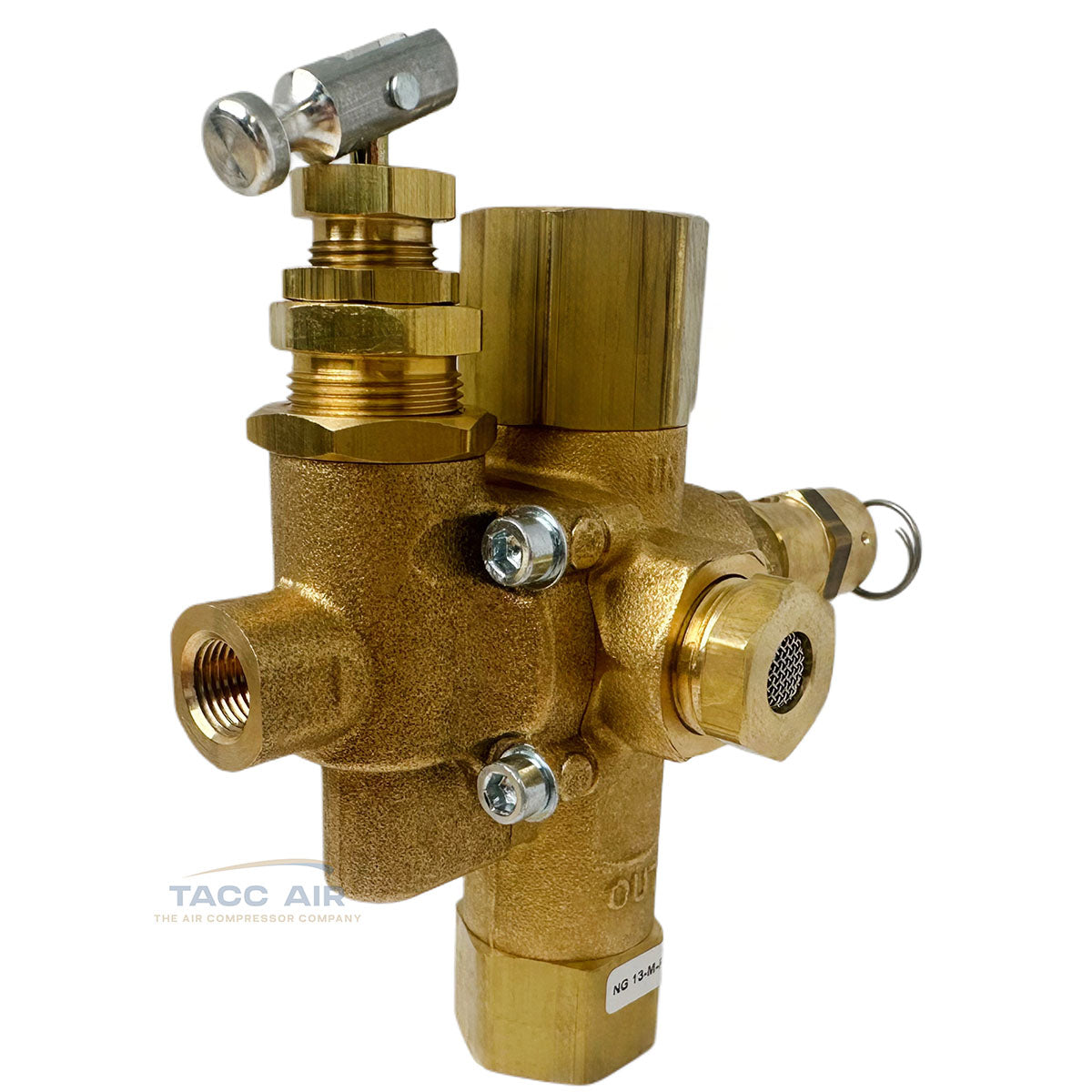

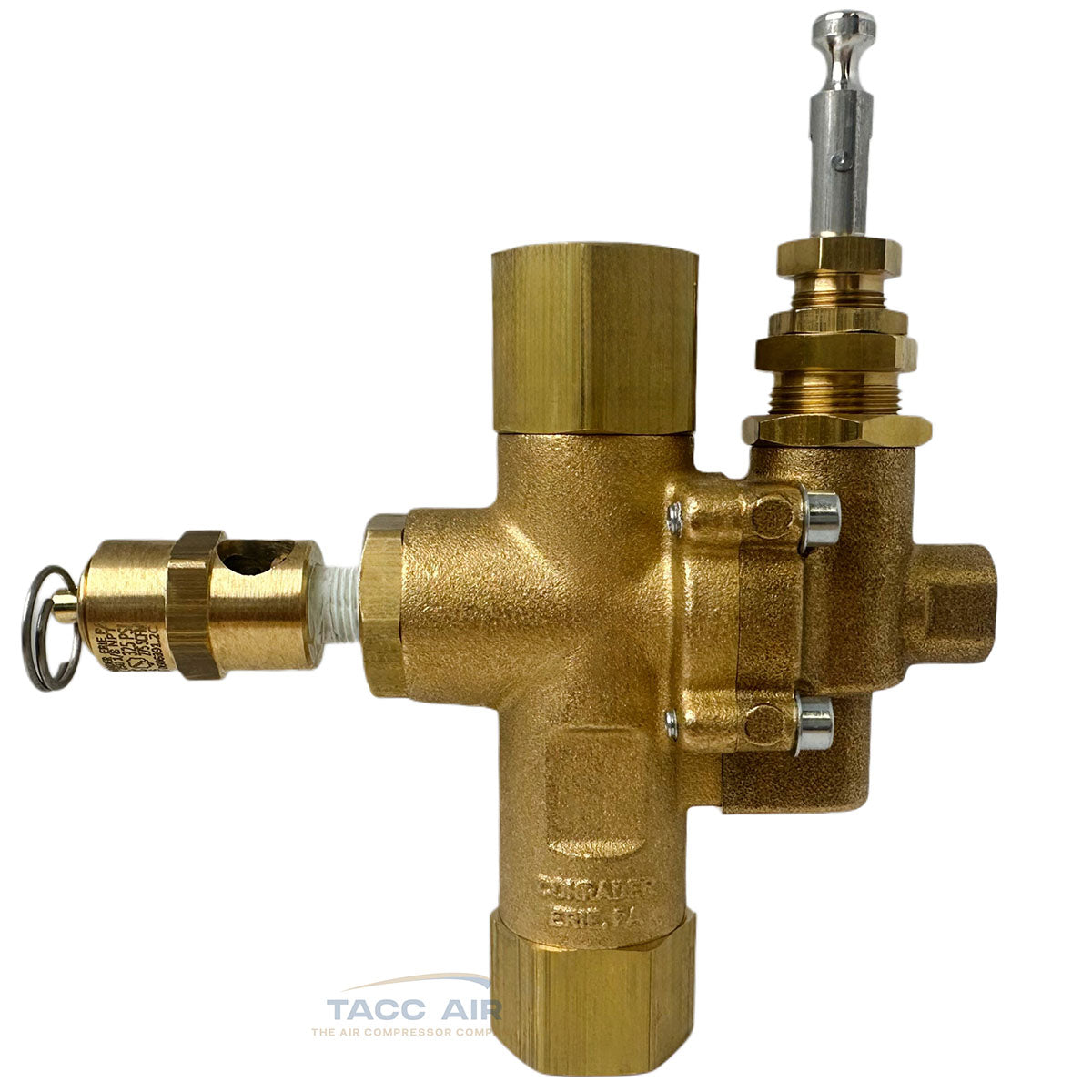

Replace your unloader valve with this high-quality aftermarket pilot unloader check valve, designed specifically for Ingersoll Rand T30 gas-powered air compressors. Manufactured in the USA by Conrader, this valve assembly equivalent to (part number 49816283-C) is built from solid brass for exceptional durability and corrosion resistance.

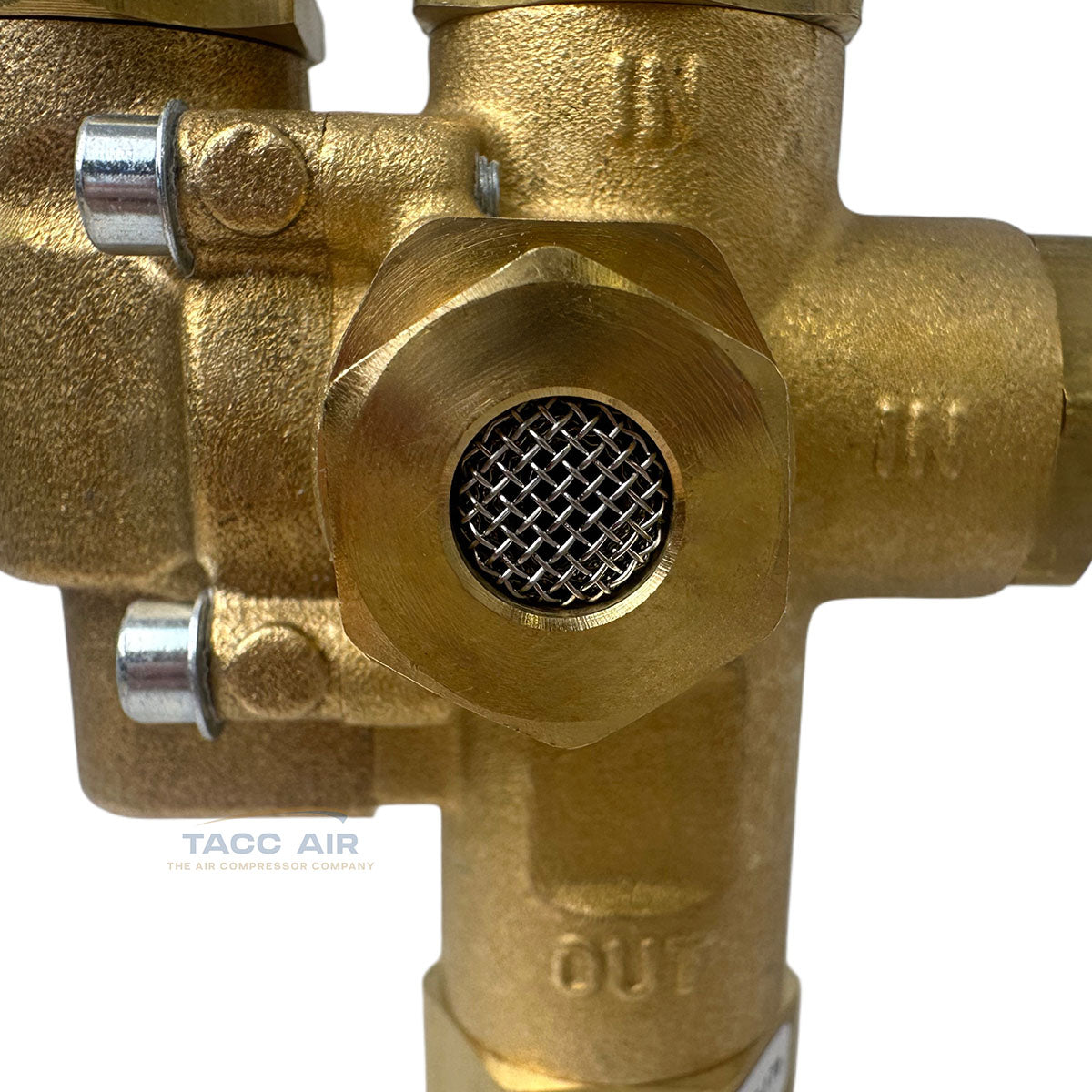

This combo valve serves as an inline check valve, unloader, and includes a 325 PSI integrated relief valve, offering reliable pressure control and safety in one compact unit. The 5/8" inverted flare inlet on the top connects to the discharge line from the pump, while the 1/2" female NPT bottom port threads directly into your existing tank connection or fitting.

An additional 1/8" female NPT port is provided for installing a throttle control valve. The unit comes factory-set to engage at 145 PSI and disengage at 175 PSI, making it a direct fit and functional replacement for the OEM valve on compatible T30 models.

 Specifications:

  • Inlet: 5/8" Inverted Flare (top connection from compressor pump) (The outside of the tubing going into this connection should measure 5/8" OD)

  • Tank Connection: 1/2" Female NPT (bottom outlet to tank fitting)(Note: 1/2" NPT measures approximately 3/4" in diameter)

  • Throttle Control Port: 1/8" Female NPT (Note: 1/8" NPT measures approximately 3/8" in diameter)

  • Pressure Settings: ON at 145 PSI / OFF at 175 PSI (factory preset)

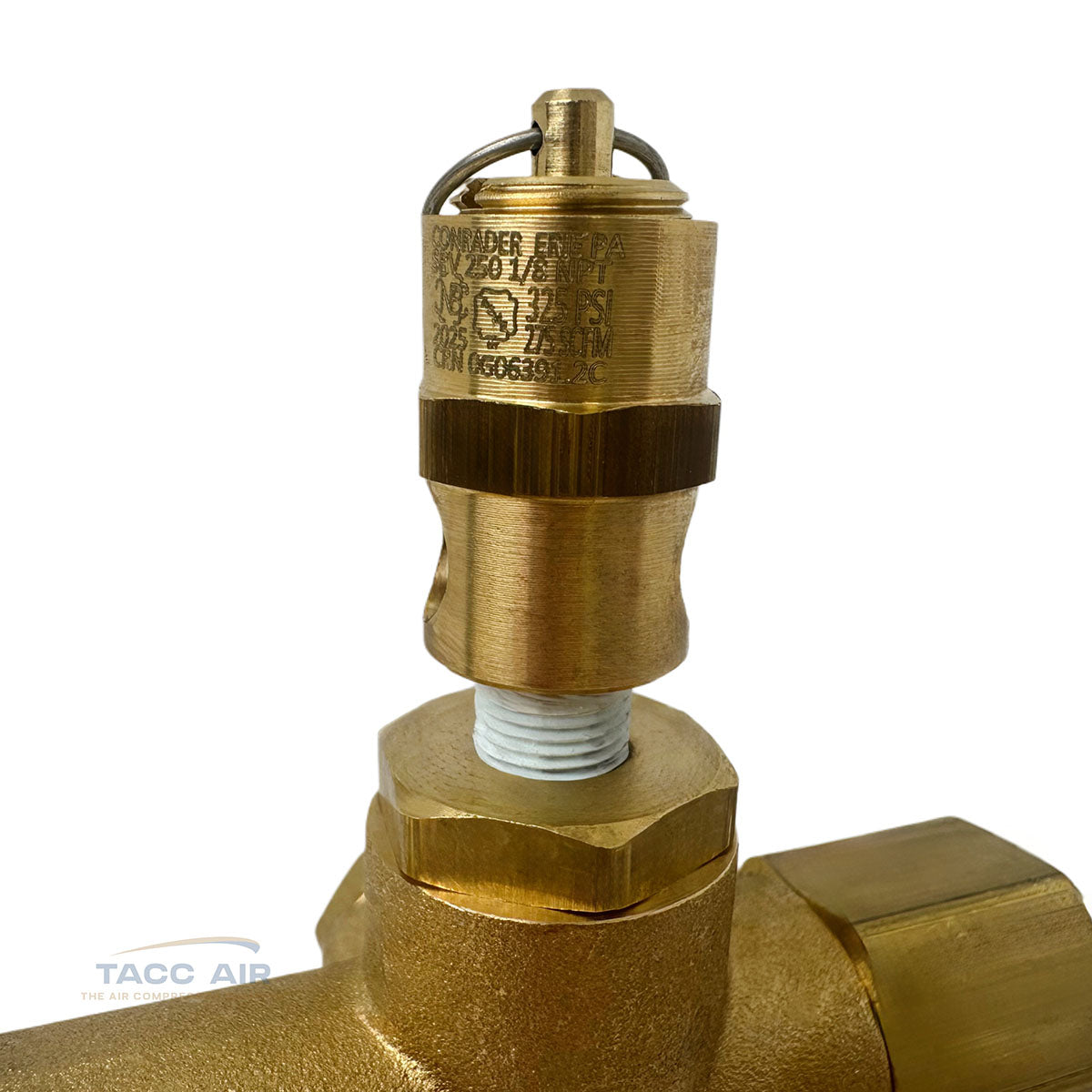

  • Relief Valve Rating: 325 PSI (This does not replace the relief on the air tank, the air tank should have a separate relief rated for the pressure requirements of the air tank.)

  • Material: Solid Brass

  • Origin: Made in the USA by Conrader

  • Replaces OEM Part #: 49816283-C / #2475

  • Application: For Ingersoll Rand T30 Gas-Powered Air Compressors
