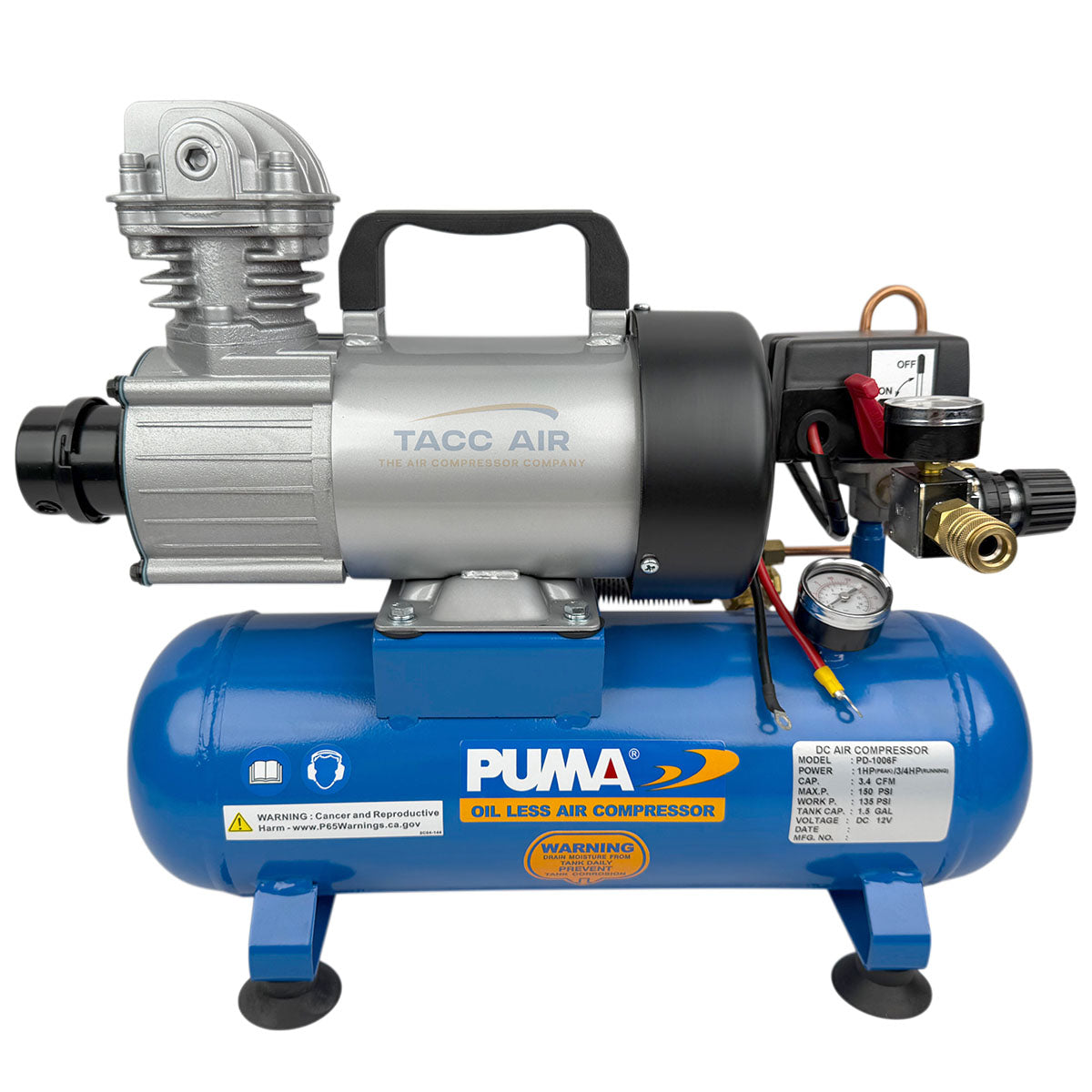

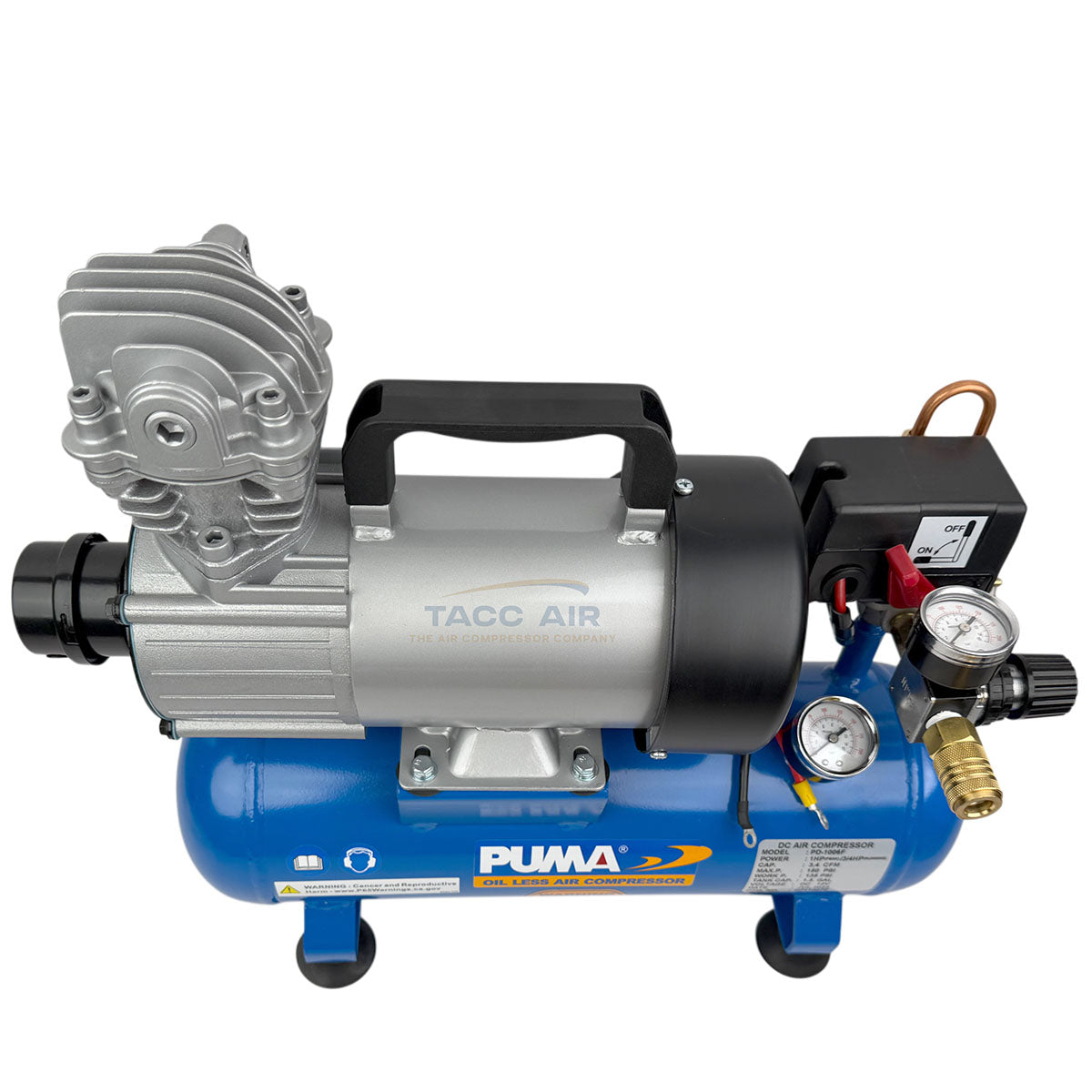

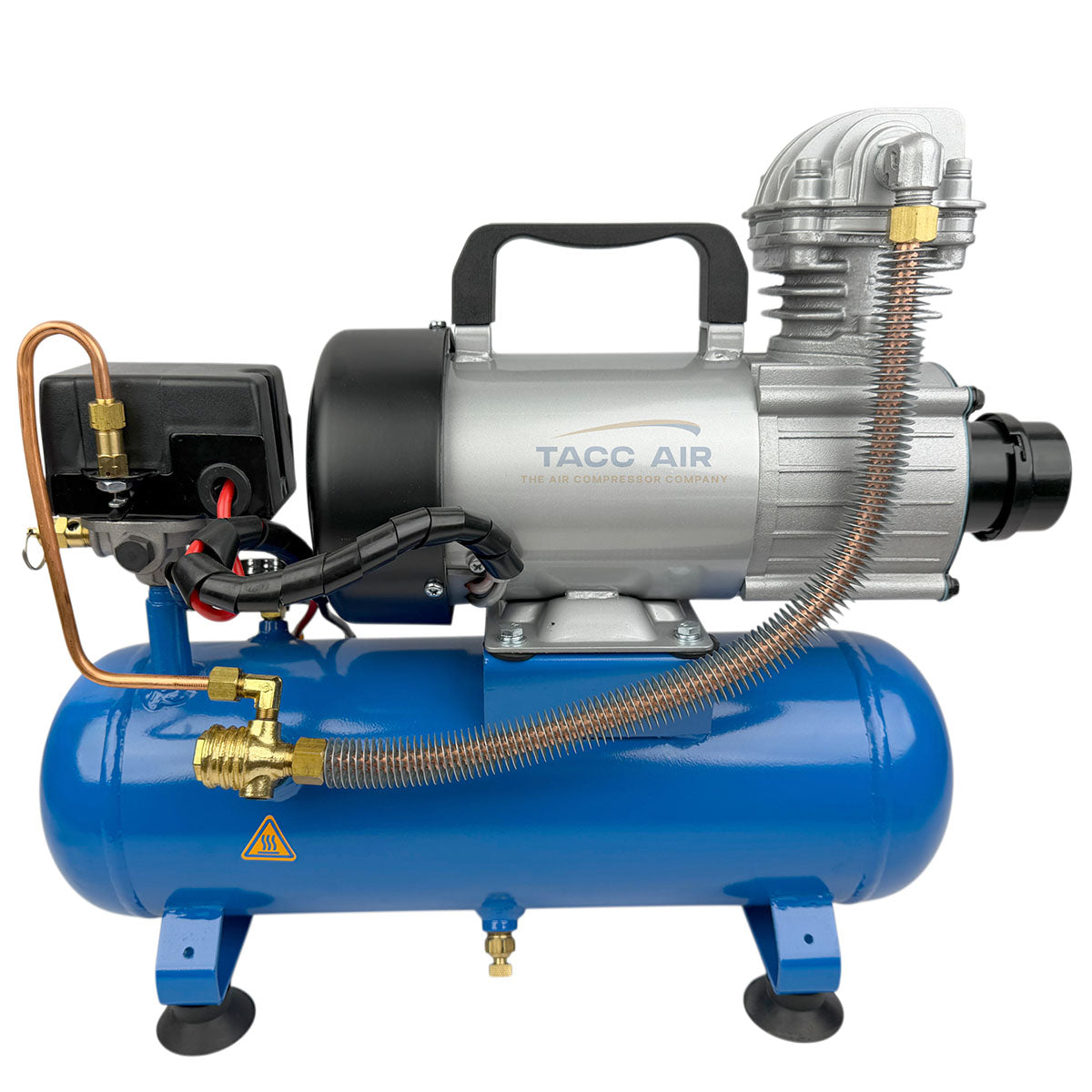

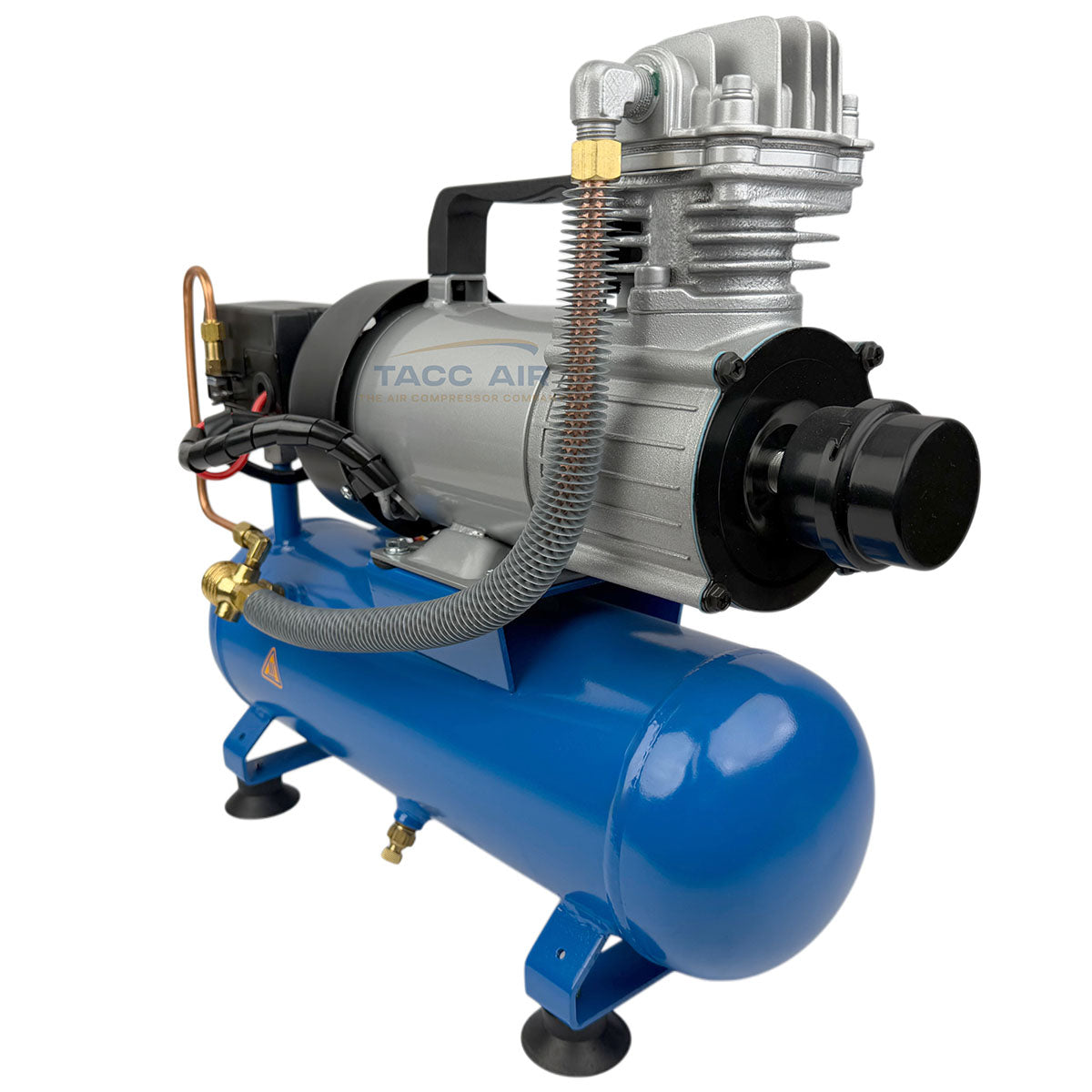

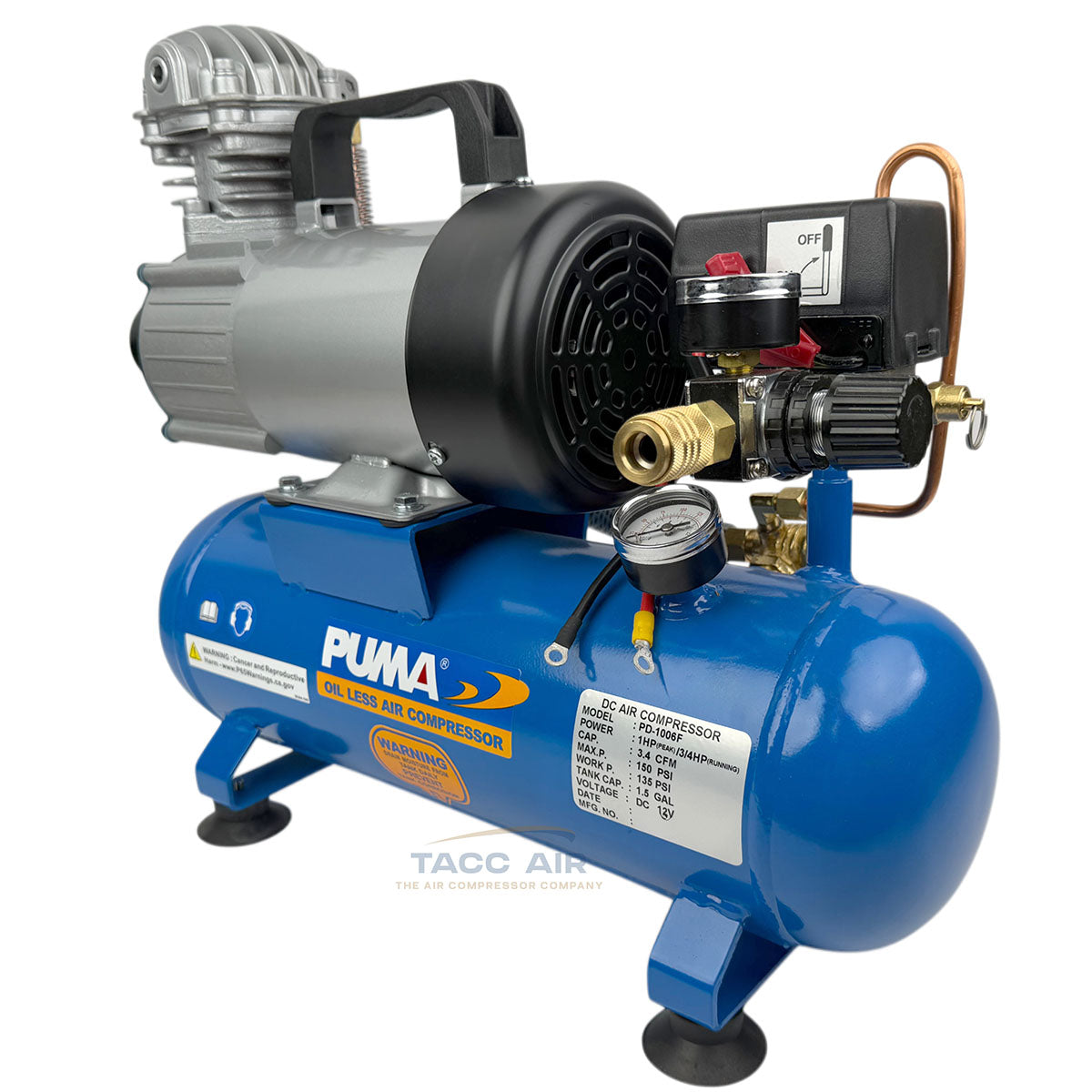

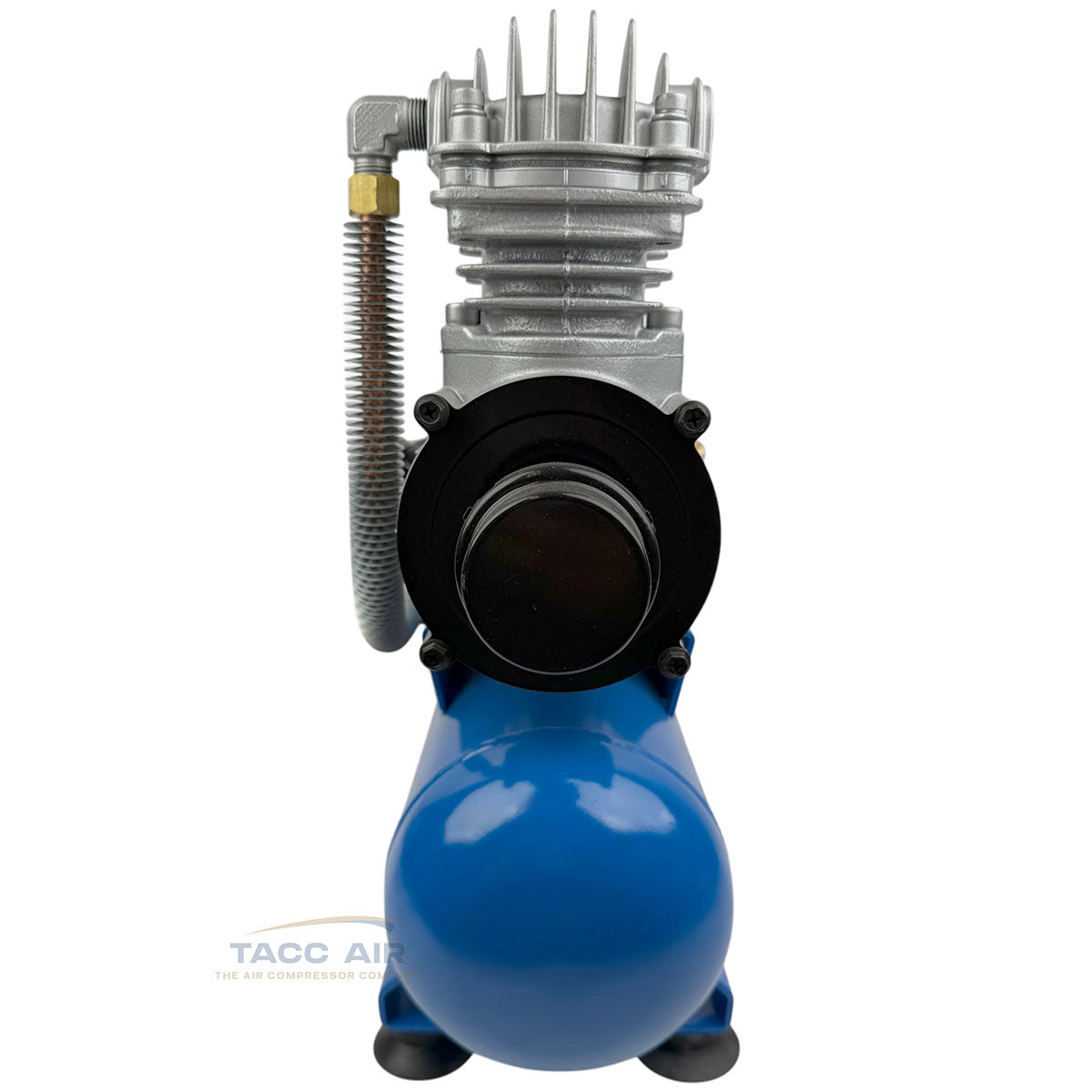

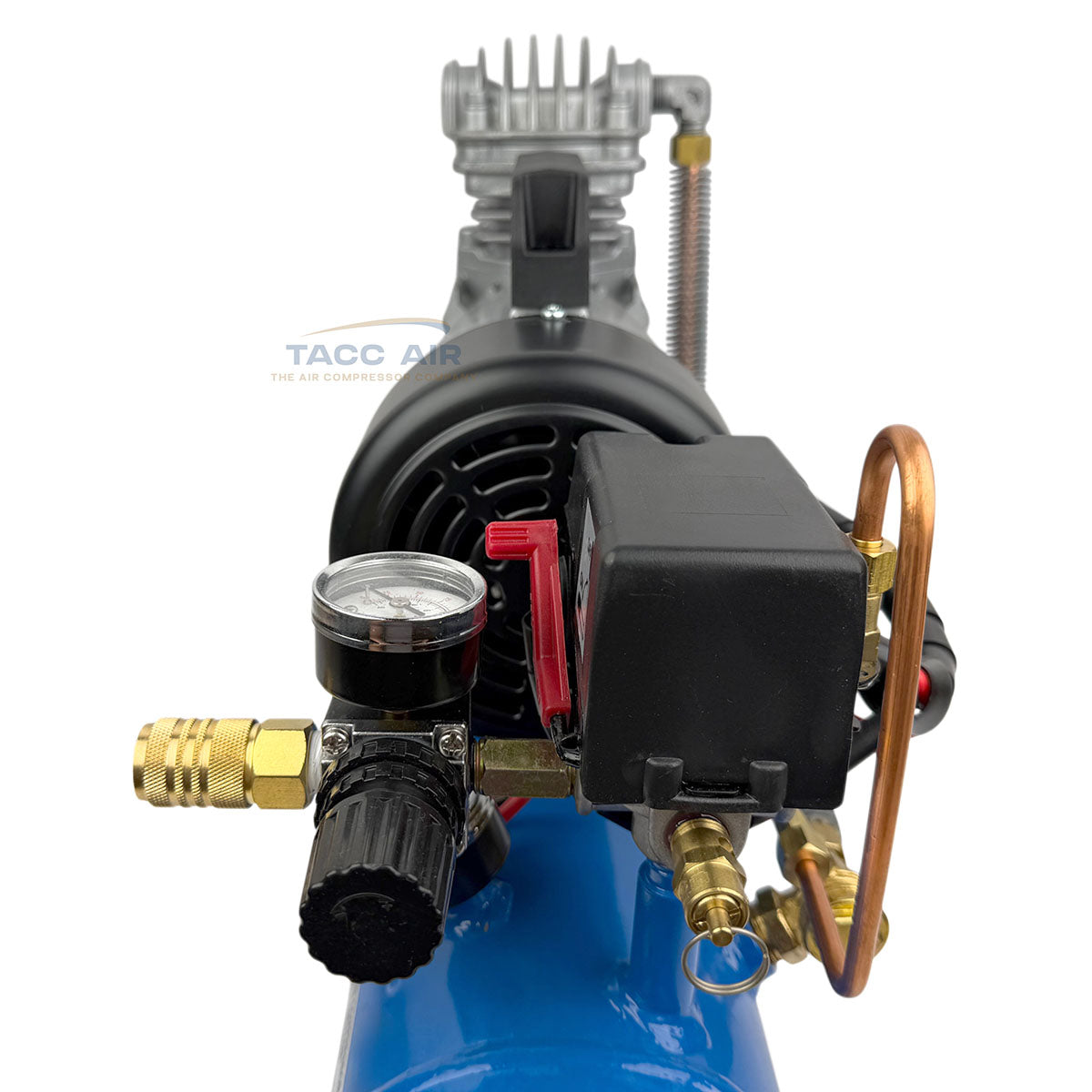

PD-1006F Puma 1 HP 1.5 Gallon Oil-Less Portable Air Compressor 12 Volt DC

Puma PD1006F 12 Volt 1.5 Gallon Oil-Less Air Compressor with Advanced Intake Filter

The Puma PD1006F is a compact but extremely capable 12-volt DC air compressor designed for mobile air applications where reliability, portability, and high airflow are critical. Don’t let the small size fool you — this compressor delivers an impressive 3.4 CFM at 40 PSI and 3.0 CFM at 90 PSI, making it one of the higher-performing compact 12V compressors available in its class.

Built around Puma’s proven PD1006 platform, the PD1006F version features an upgraded heavy-duty air intake filtration system designed for dusty, dirty, and harsh operating environments. This improved intake filter helps extend compressor life by providing better protection against dirt, debris, and contaminants commonly found in agricultural, off-road, construction, and industrial environments.

Unlike many small 12V compressors that are only suitable for inflating tires occasionally, the PD1006F is built for serious onboard air applications. The integrated 1.5-gallon air tank provides stored air capacity for faster response and smoother operation, while the oil-less direct-drive design keeps maintenance simple and eliminates the need for oil changes.

This compressor is an excellent choice for:

• Emergency onboard air systems
• Trucks and service vehicles
• Agricultural equipment
• Off-road and overlanding rigs
• Utility vehicles and UTVs
• Boats and marine applications
• Air suspension systems
• Air horns
• Tire inflation
• Light-duty pneumatic applications
• Remote field service equipment

The PD1006F has also become popular as a replacement compressor for certain agricultural and specialty equipment applications. Many users have adapted these Puma 12V compressors onto planters, combines, and tractors where a compact onboard air source is needed. They are commonly used as replacements or upgrades for factory-installed compressors on equipment such as planters and combines due to their strong airflow, compact footprint, and dependable 12V operation. While fitment varies depending on the machine and mounting setup, the compact size and high CFM output make this compressor a versatile solution for custom agricultural air systems.

The oil-less compressor pump allows for clean air operation without the mess and maintenance associated with lubricated compressors. Combined with a maximum pressure rating of 150 PSI and a working pressure of 135 PSI, the PD1006F is capable of handling demanding onboard air duties while remaining compact enough for tight installation spaces.

Its relatively low 30 amp draw makes it practical for most properly wired 12V vehicle electrical systems when connected directly to the battery with appropriate wiring and circuit protection.

Features:

• Genuine Puma PD1006F upgraded filter model
• Heavy-duty advanced intake filtration system
• Compact portable onboard air solution
• High airflow for a 12V compressor
• Oil-less direct-drive design
• Integrated 1.5-gallon air tank
• 150 PSI maximum pressure
• Low-maintenance operation
• Ideal for trucks, agriculture, off-road, and utility applications
• Excellent for air suspension and air horn systems
• Compact footprint for easy mounting

Specifications:

• Model: PD1006F
• Voltage: 12 Volt DC
• Tank Size: 1.5 Gallon
• Compressor Type: Oil-Less Direct Drive
• Horsepower: 1 HP Peak / 3/4 HP Running
• Maximum Pressure: 150 PSI
• Working Pressure: 135 PSI
• Airflow: 3.4 CFM @ 40 PSI
• Airflow: 3.0 CFM @ 90 PSI
• Amp Draw: 30 Amps
• Dimensions: 16.5" H x 19.25" L x 8" W (at widest points)
• Advanced Intake Filter System
• Portable / Onboard Air Design

Whether you need dependable onboard air for a work truck, farm equipment, off-road vehicle, or emergency backup system, the Puma PD1006F delivers impressive performance in a compact package with the added durability benefits of the upgraded intake filtration system.
