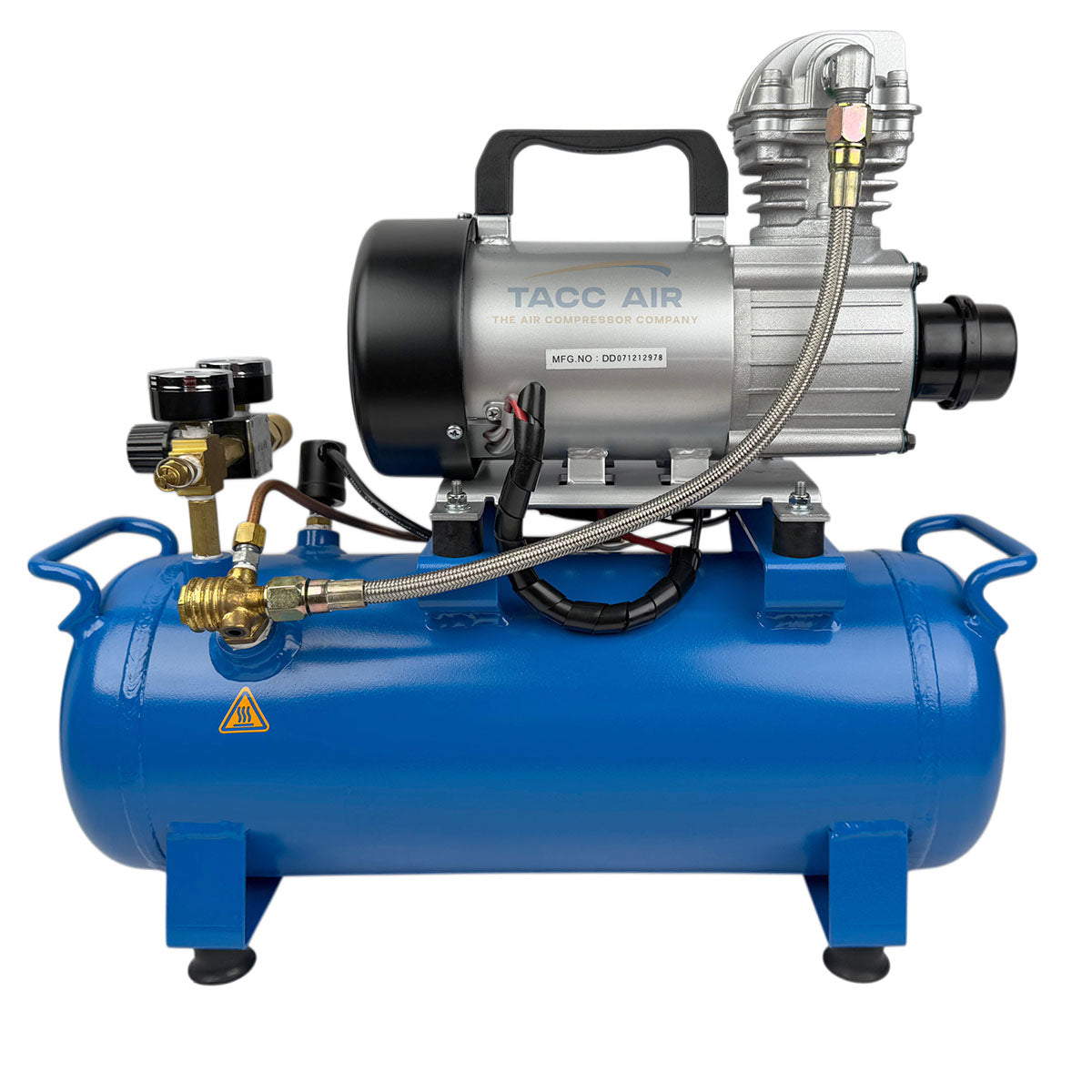

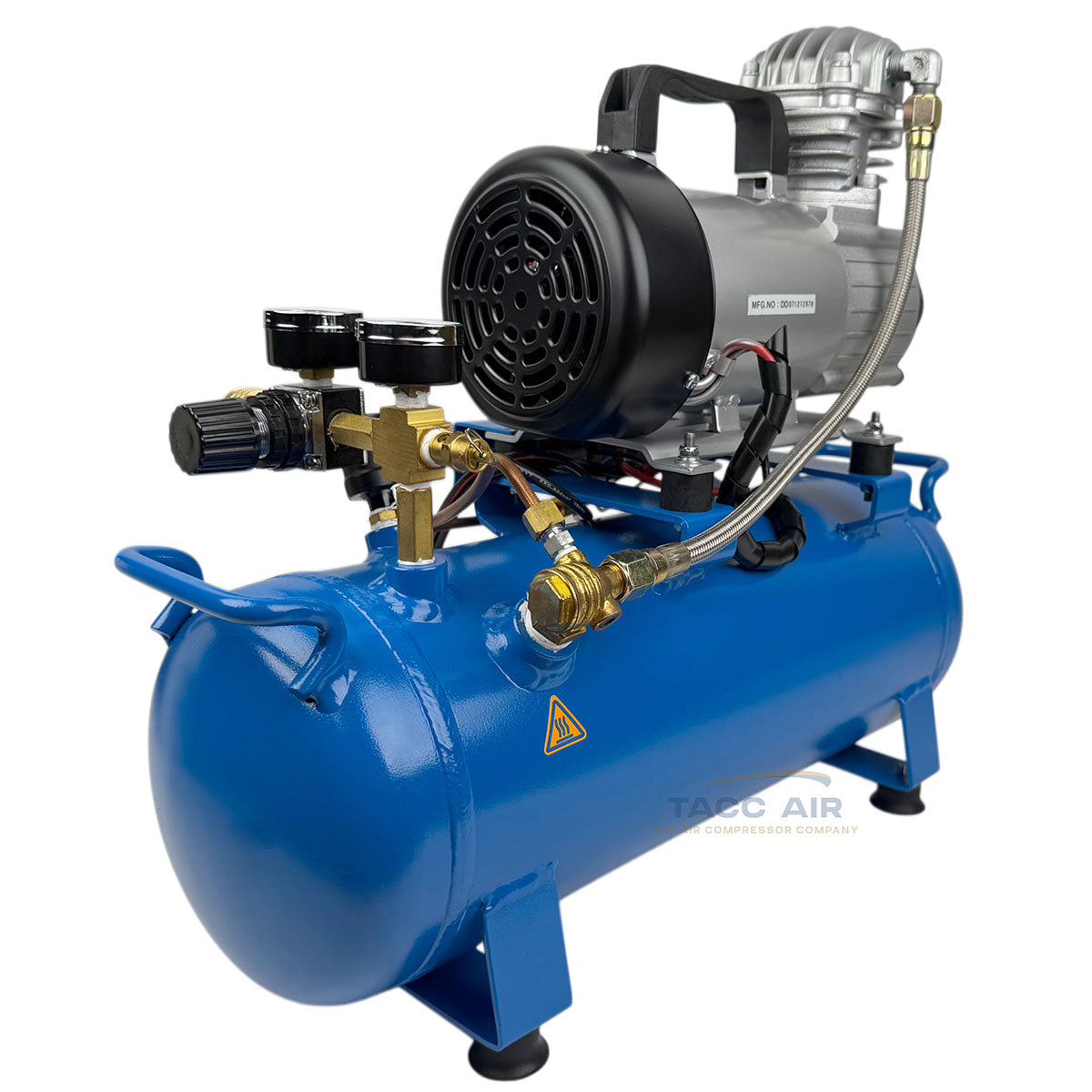

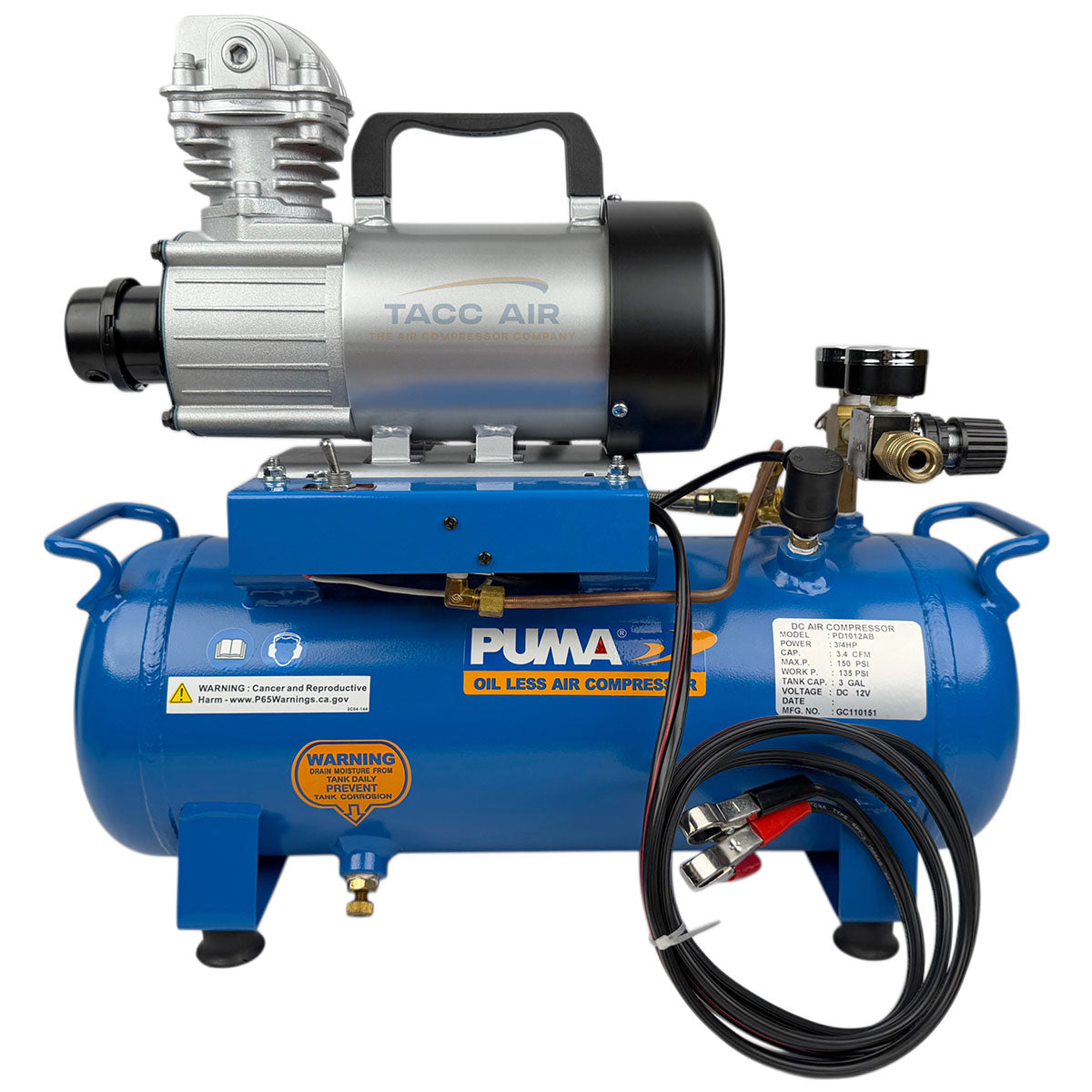

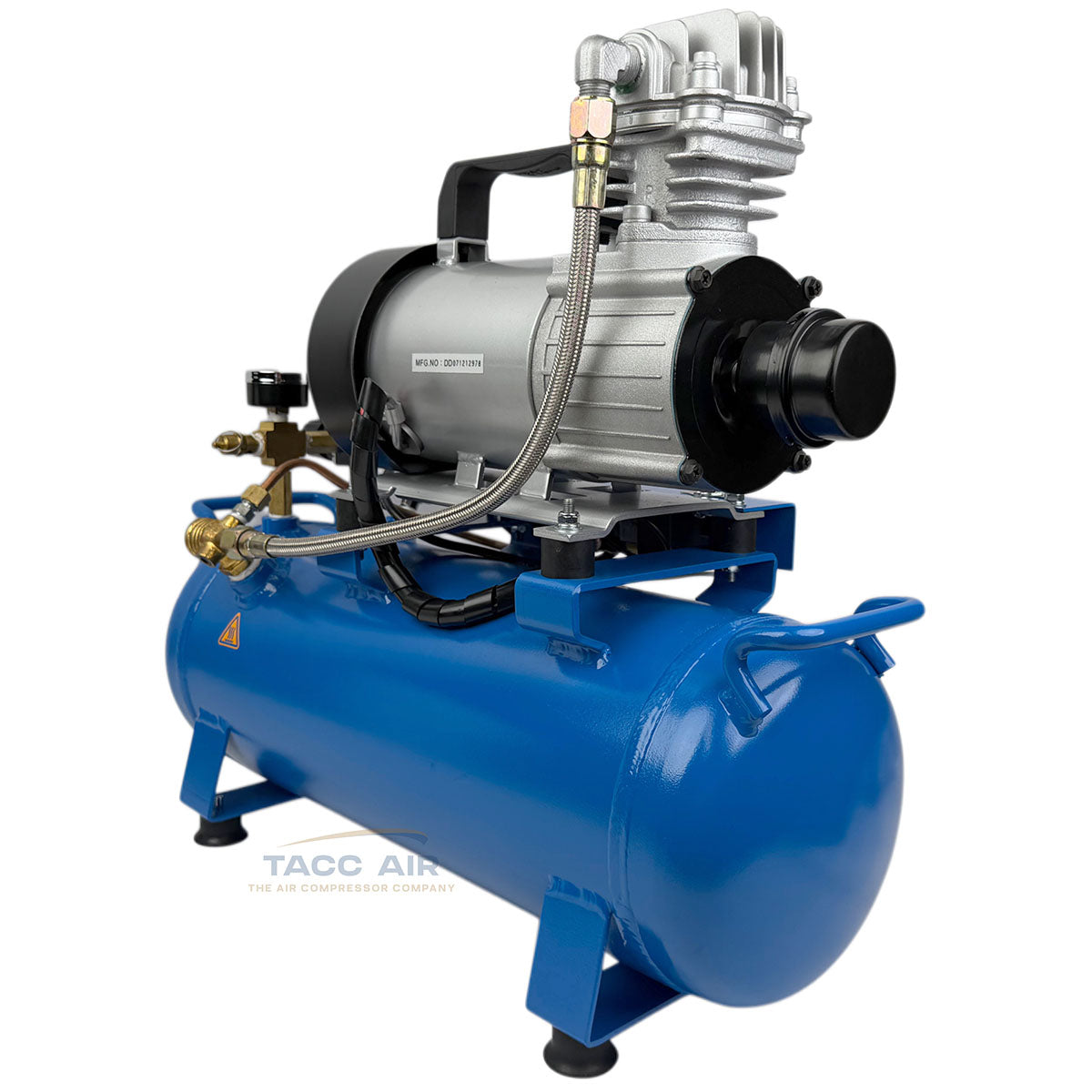

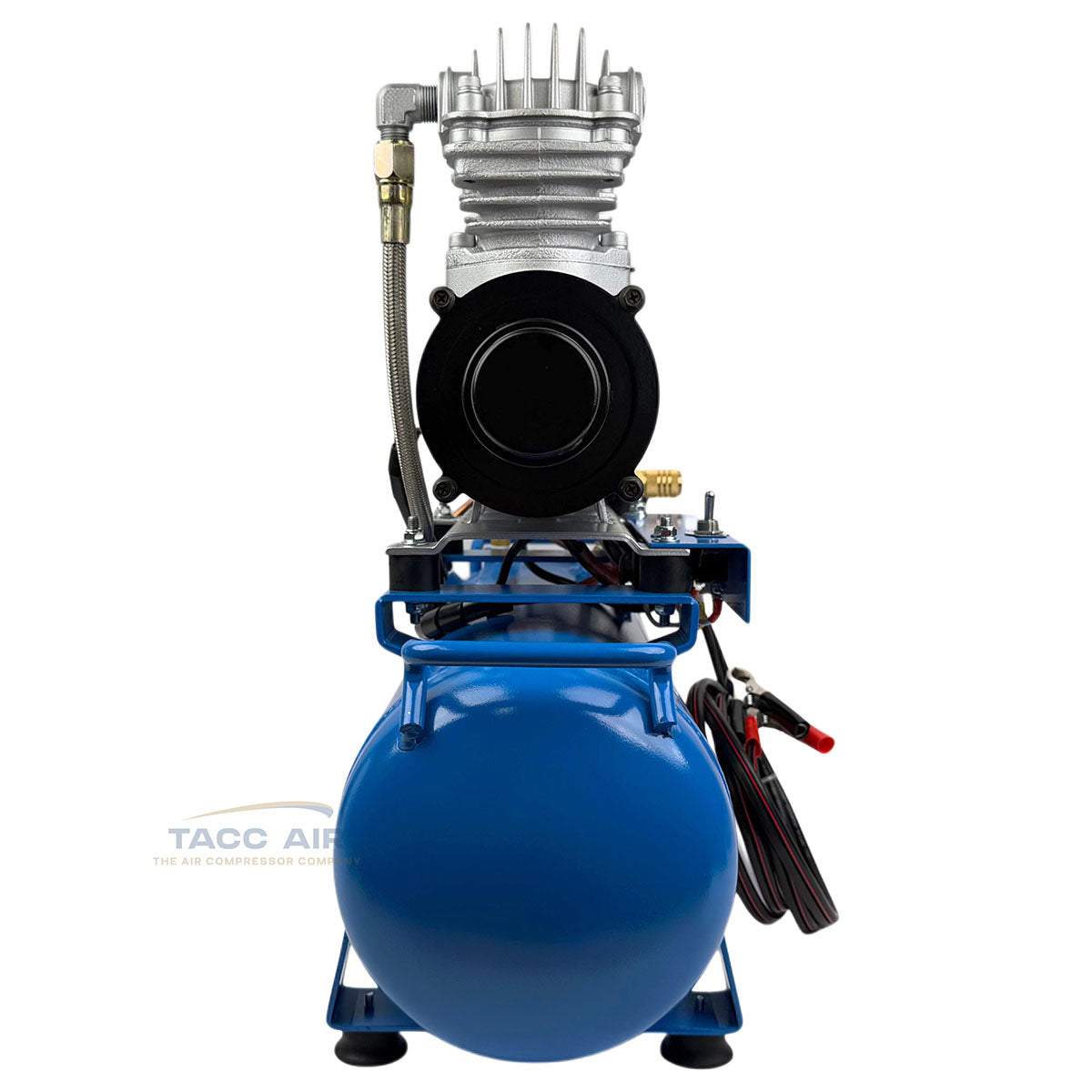

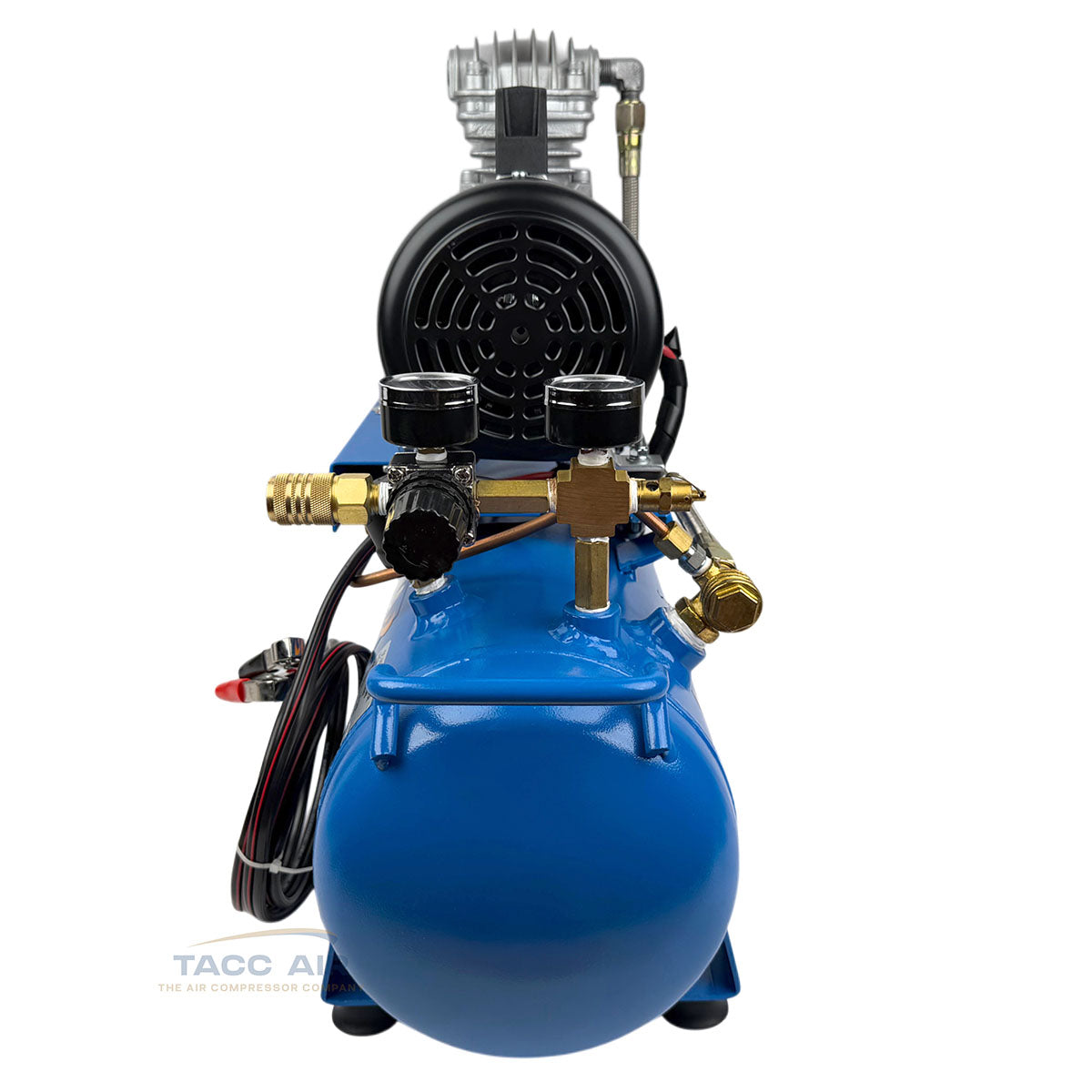

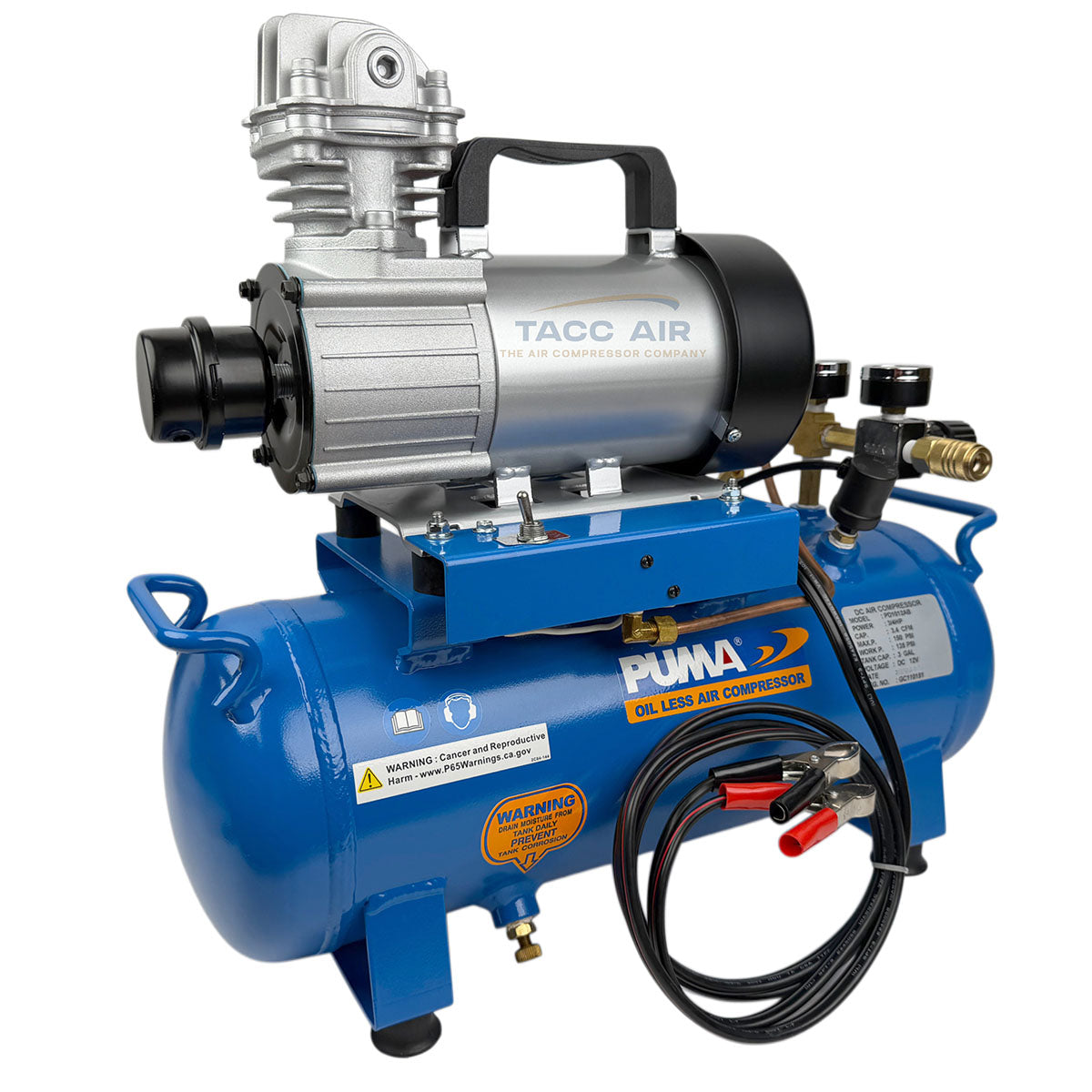

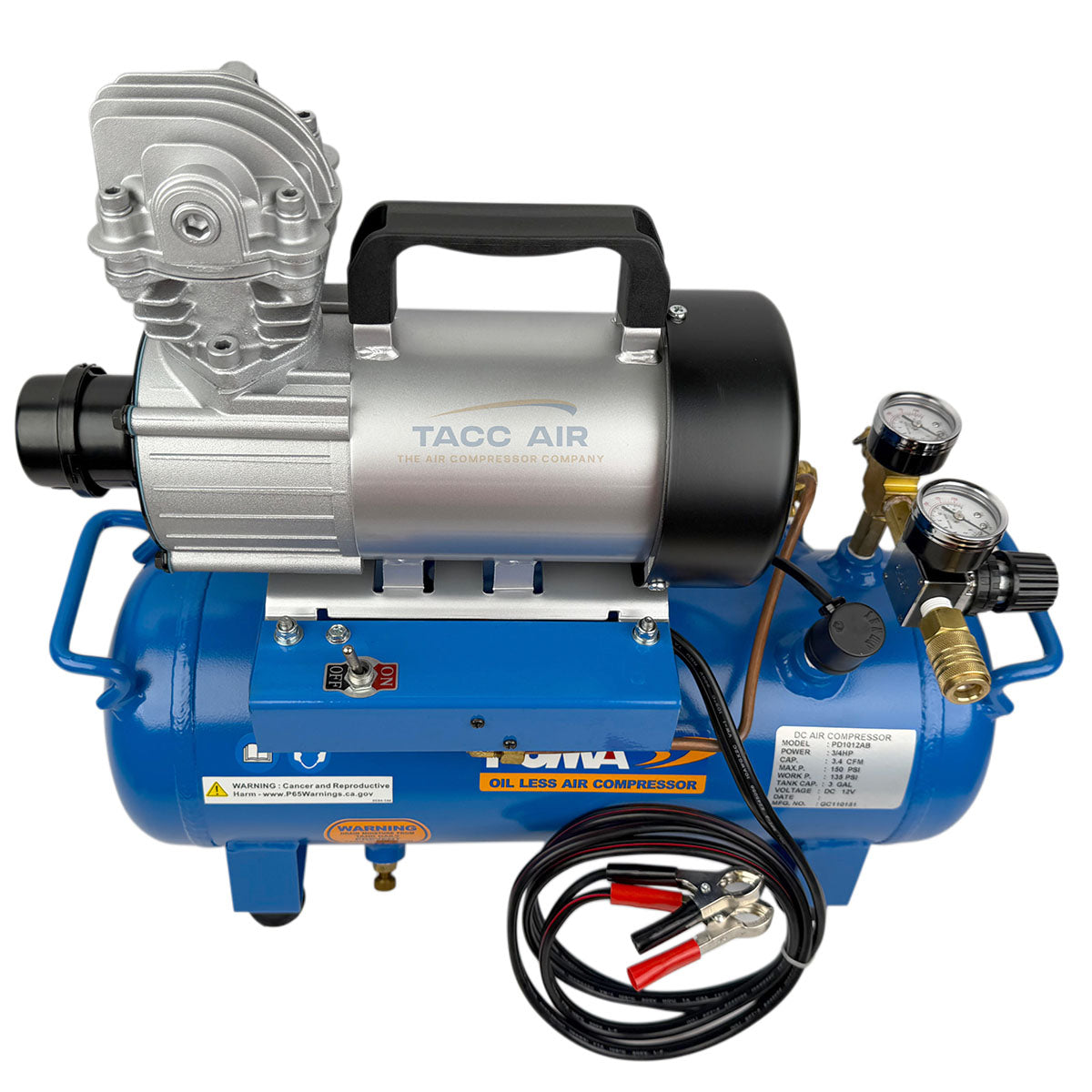

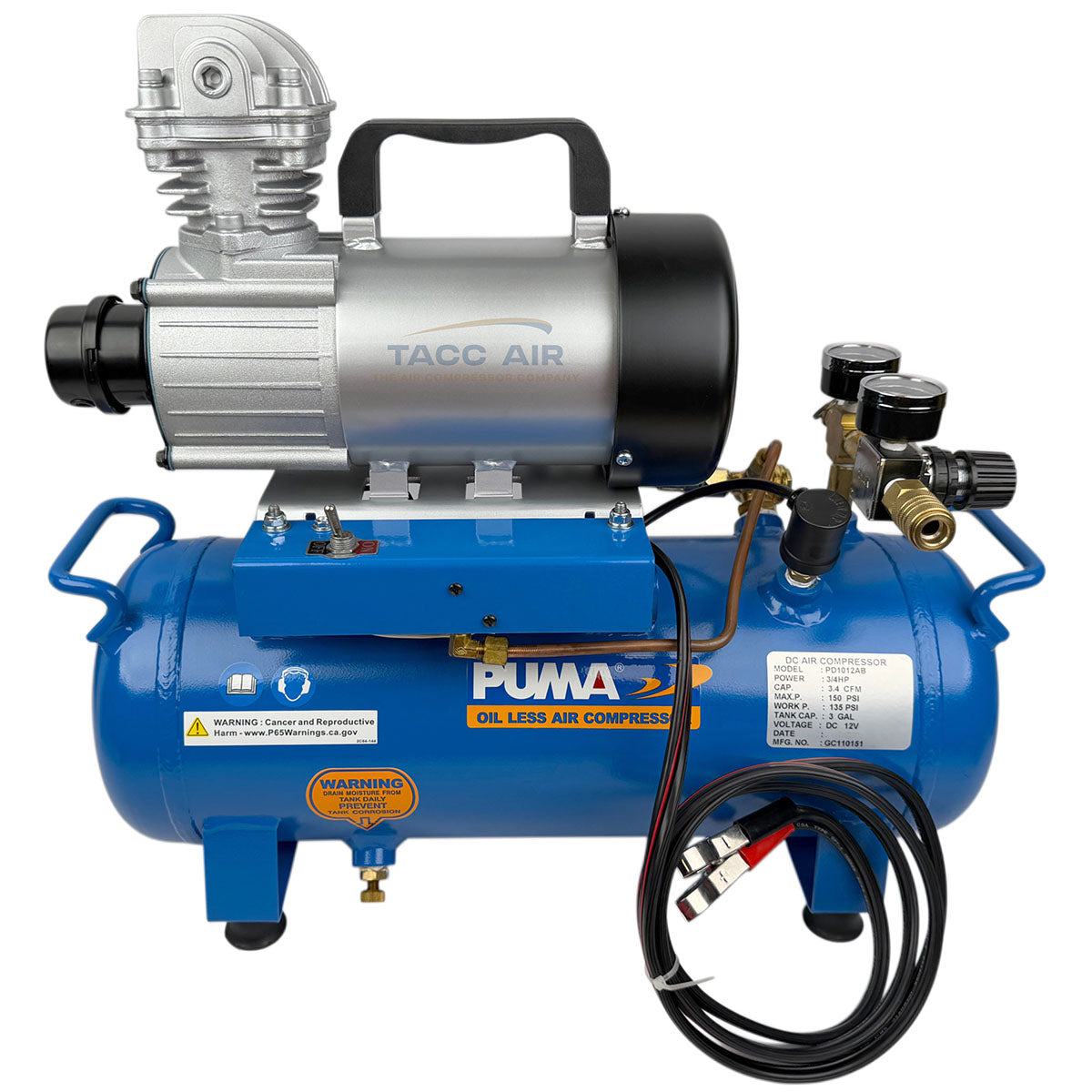

Puma PD-1012AB 3/4 HP 12 Volt DC Air Compressor with 3 Gallon Aluminum Tank
The Puma PD-1012AB is a compact, heavy-duty 12-volt DC air compressor designed for service trucks, utility vehicles, off-road equipment, agricultural applications, RVs, trailers, and any situation where dependable onboard compressed air is needed. Powered by a durable 3/4 HP oil-less direct-drive pump, this compressor delivers maintenance-free operation while providing reliable airflow and long service life.
What sets the PD-1012AB apart from the standard PD1012A is the addition of an enclosed pressure switch assembly. The "B" designation indicates that the pressure switch is enclosed, helping shield electrical components from moisture, dust, dirt, and other environmental contaminants. This makes the PD-1012AB an excellent choice for mobile and outdoor applications where exposure to the elements is common.
The compressor utilizes Puma's high-efficiency pump design and advanced cooling system to provide dependable performance while maintaining lower operating temperatures. Deep cooling fins and an oversized cooling fan help dissipate heat effectively, supporting operation in demanding environments.
A lightweight yet rugged 3-gallon aluminum hot dog tank provides onboard air storage while resisting rust and corrosion. Three integrated ergonomic carrying grips make transportation easy, while the compact footprint allows installation in tight spaces where larger compressors are impractical.
Whether you're inflating tires, operating air horns, servicing equipment in the field, or supplying compressed air for light-duty pneumatic tools, the Puma PD-1012AB offers a dependable portable air solution built for real-world working conditions.
Features
- 3/4 HP oil-less direct-drive compressor
- Operates on 12 Volt DC power
- Maintenance-free oil-free pump
- Enclosed pressure switch for improved protection against moisture and contaminants
- 3-gallon aluminum air tank
- Corrosion-resistant tank construction

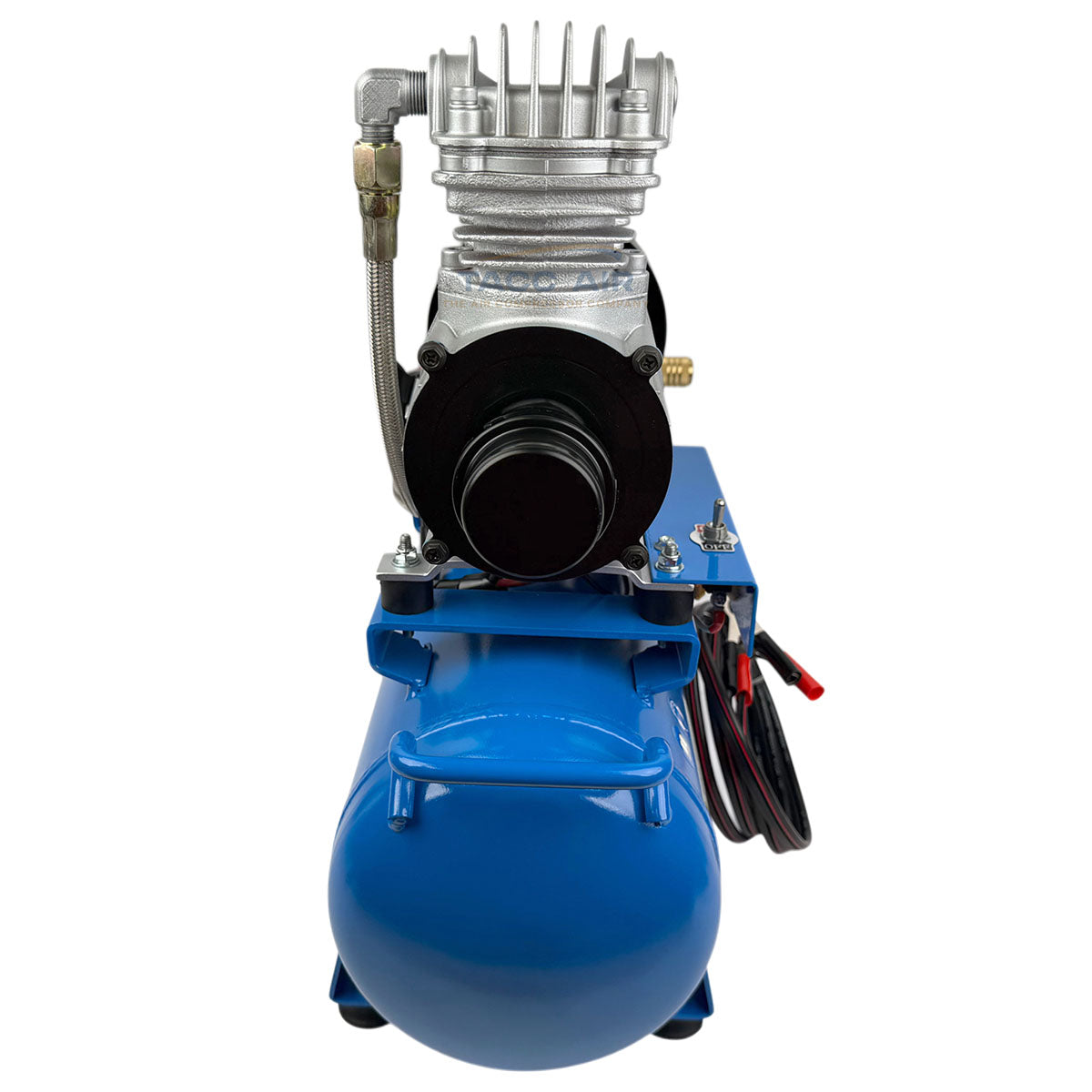

- Deep cooling fins for enhanced heat dissipation
- Oversized motor cooling fan
- Compact and portable design
- Integrated carrying handles
- Stainless steel braided discharge tube

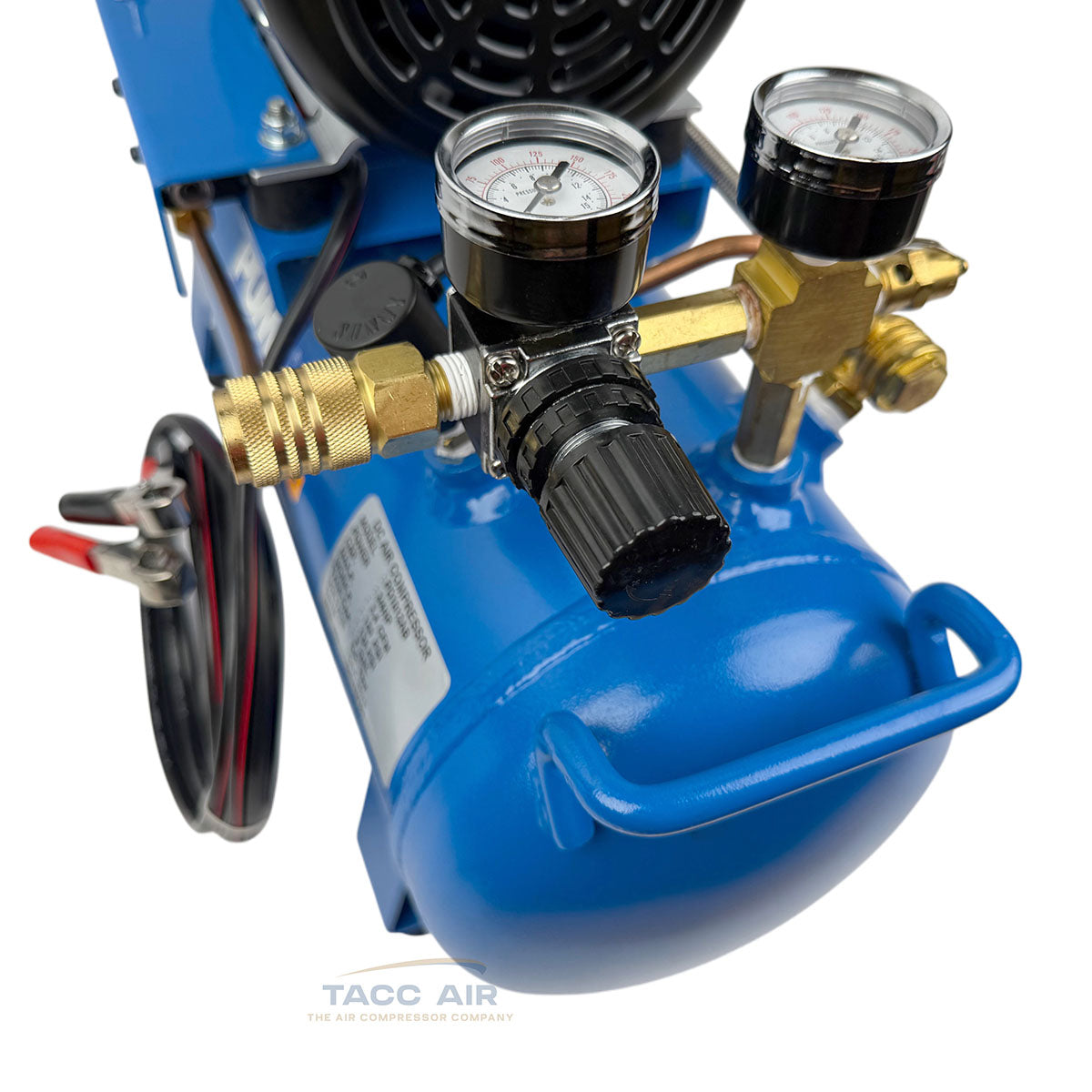

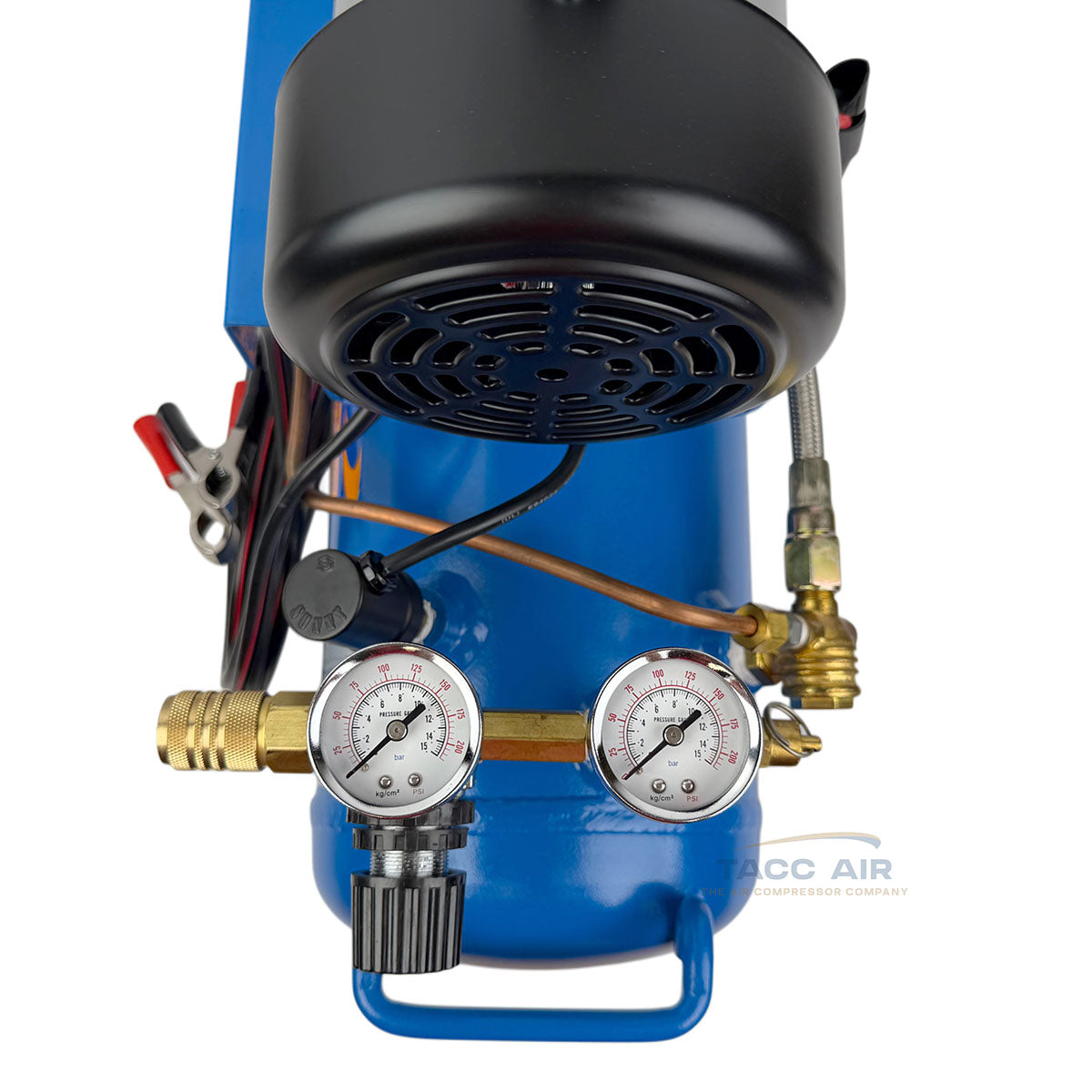

- Air pressure regulator with gauge
- Quick-connect air coupler

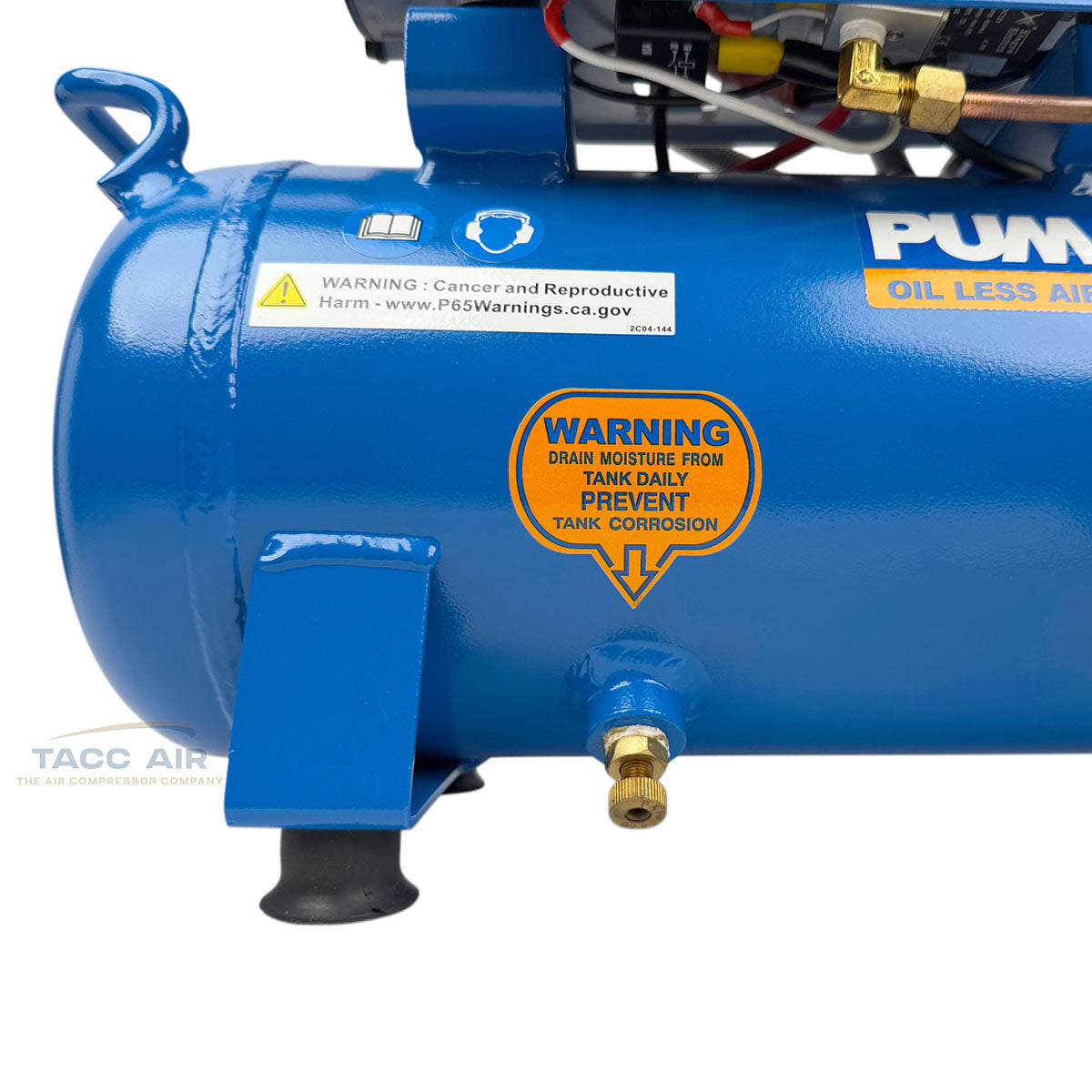

- Tank drain valve
- ASME-certified safety relief valve
- Replaceable canister-style intake filter

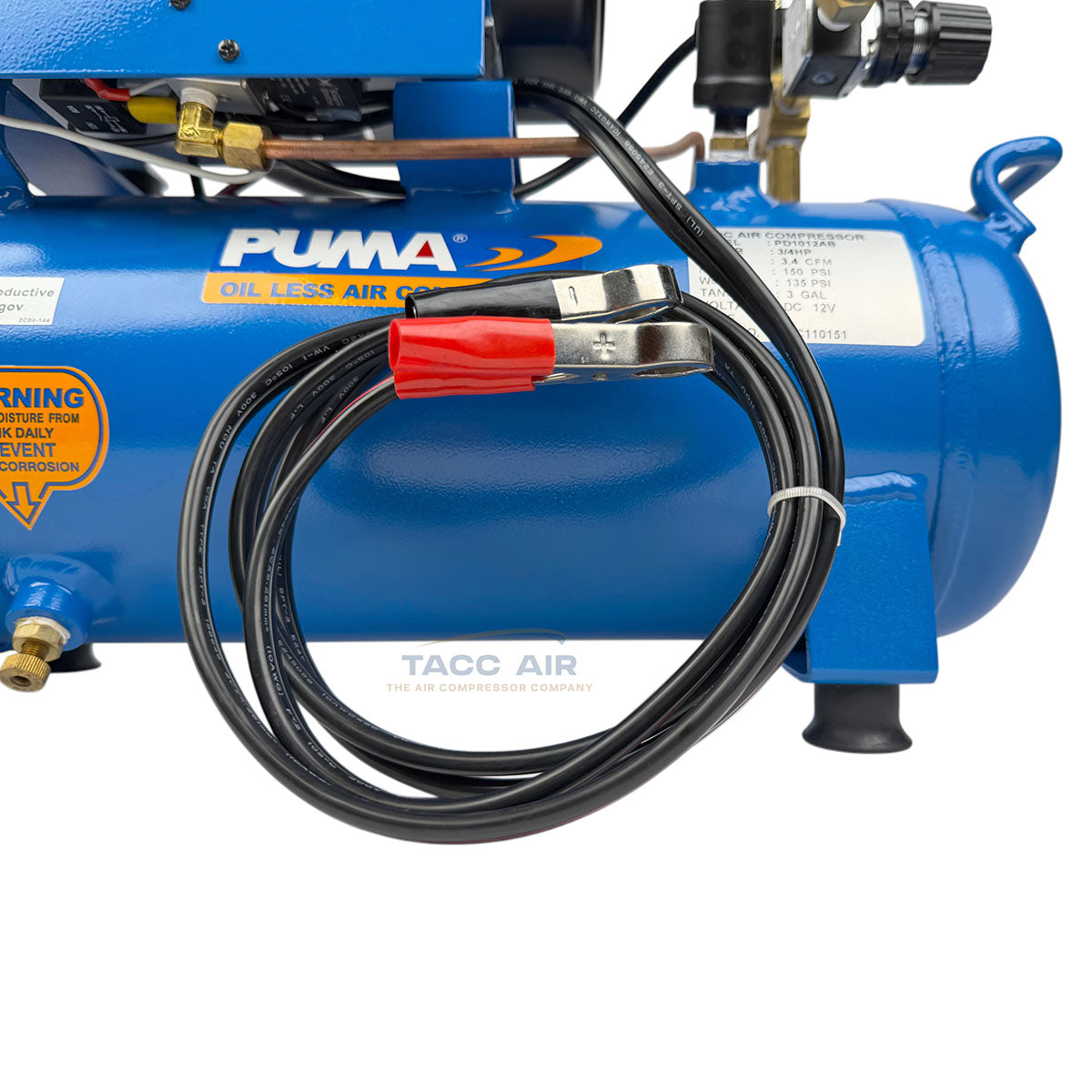

- 6.5-foot battery cable with clamps included
Specifications
- Model: PD-1012AB
- Motor: 3/4 HP
- 46 Amps
- Voltage: 12 Volt DC
- Pump Type: Oil-Free Direct Drive
- Tank Capacity: 3 Gallons
- Tank Material: Aluminum
- SCFM: 3.4
- Air Delivery @ 40 PSI: 2.0 CFM
- Air Delivery @ 90 PSI: 1.36 CFM
- Operating Cut-In Pressure: 105 PSI
- Operating Cut-Out Pressure: 135 PSI
- Maximum Pressure: 150 PSI
- Noise Level Approx: 78 dB
- Dimensions: 21.5" L x 9" W x 19" H
- Weight: 30 lbs
- Pressure Switch Type: Enclosed Moisture-Resistant Design
- Power Connection: 6.5-Foot Battery Cable with Clamps
- Cooling System: Deep Cooling Fins with Oversized Motor Fan
- Air Tank Style: Hot Dog
- Tank Handles + Integrated Ergonomic Carrying Grip
The Puma PD-1012AB combines the convenience of 12-volt operation, corrosion-resistant aluminum construction, and the added protection of an enclosed pressure switch, making it an excellent choice for service vehicles, field maintenance crews, off-road enthusiasts, agricultural operations, and anyone who needs reliable compressed air wherever the job takes them. Built for portability and durability, it delivers dependable performance when and where you need it most.
